2014 TOYOTA URBAN CRUISER Owners Manual

209
2-3. Operating the lights and wipers
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)

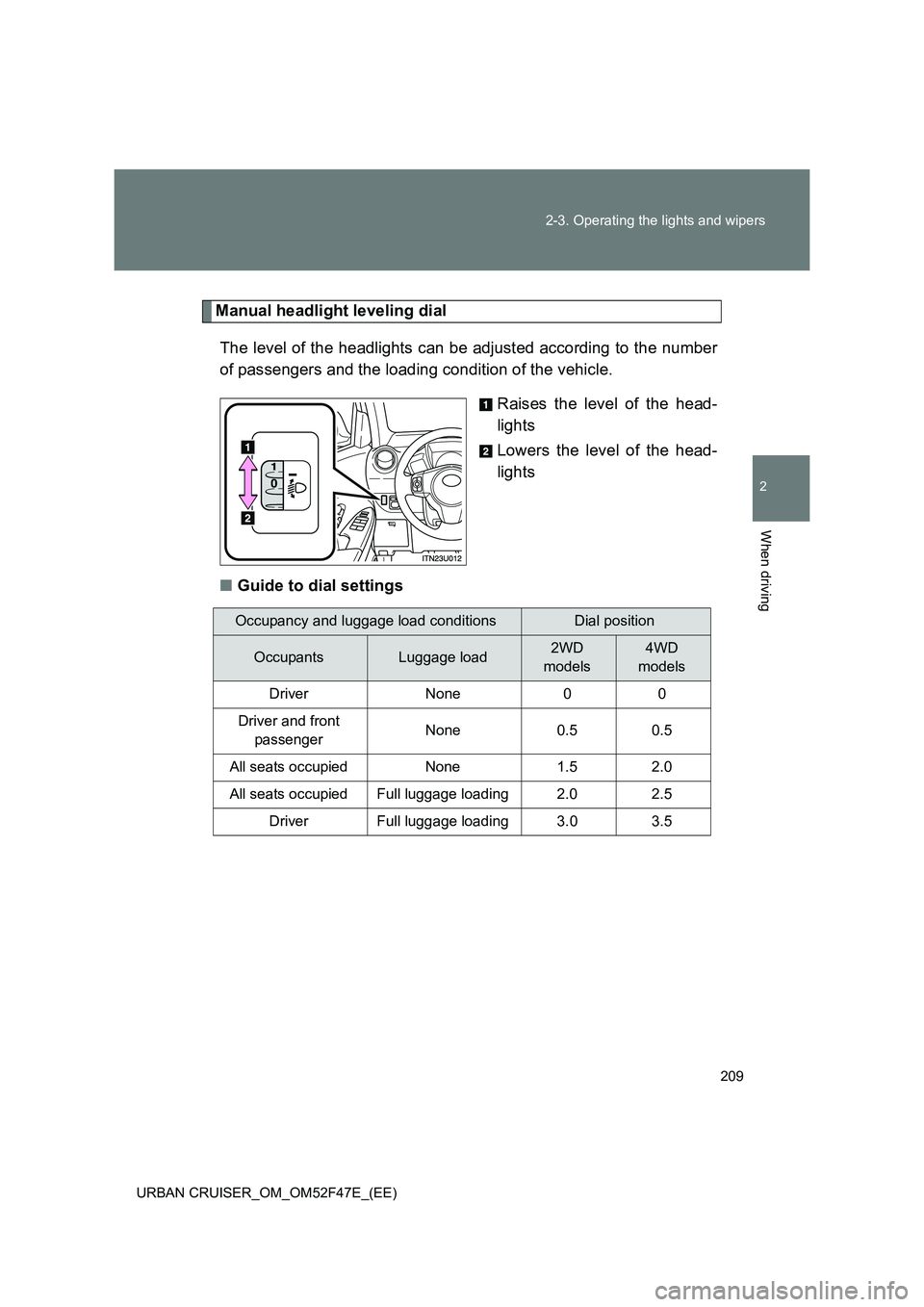

Manual headlight leveling dial
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle. Raises the level of the head-
lights
Lowers the level of the head-
lights
■ Guide to dial settings
Occupancy and luggage load conditionsDial position
OccupantsLuggage load2WD
models4WD
models
Driver None 0 0
Driver and front passenger None 0.5 0.5
All seats occupied None 1.5 2.0
All seats occupied Full luggage loading 2.0 2.5 Driver Full luggage loading 3.0 3.5

210
2-3. Operating the lights and wipers
URBAN CRUISER_OM_OM52F47E_(EE)

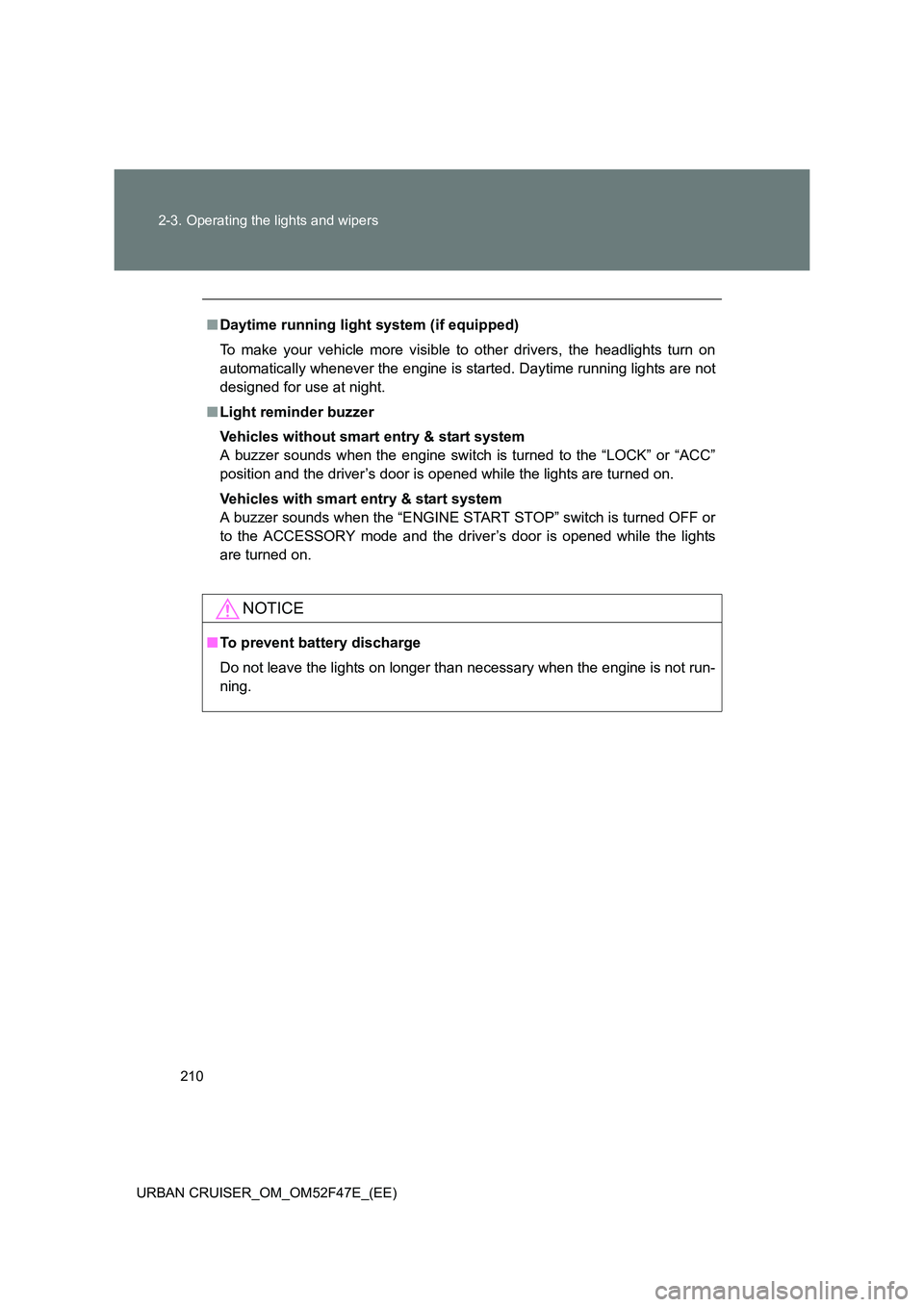

■ Daytime running light system (if equipped)
To make your vehicle more visible to other drivers, the headlights turn on
automatically whenever the engine is started. Daytime running lights are not
designed for use at night.
■ Light reminder buzzer
Vehicles without smart entry & start system
A buzzer sounds when the engine switch is turned to the “LOCK” or “ACC”
position and the driver’s door is opened while the lights are turned on.
Vehicles with smart entry & start system
A buzzer sounds when the “ENGINE START STOP” switch is turned OFF or
to the ACCESSORY mode and the driver’s door is opened while the lights
are turned on.
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.

211
2-3. Operating the lights and wipers
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
Fog light switch∗
∗: If equipped
The fog lights secure excellent visibility in difficult driving condi-
tions, such as in rain and fog.
Front and rear fog light switchOff
Front fog lights on
Both front and rear fog
lights on
After the headlight switch is
turned off, the rear fog lights do
not come on even if you turn
on the headlight switch again.

212
2-3. Operating the lights and wipers
URBAN CRUISER_OM_OM52F47E_(EE)

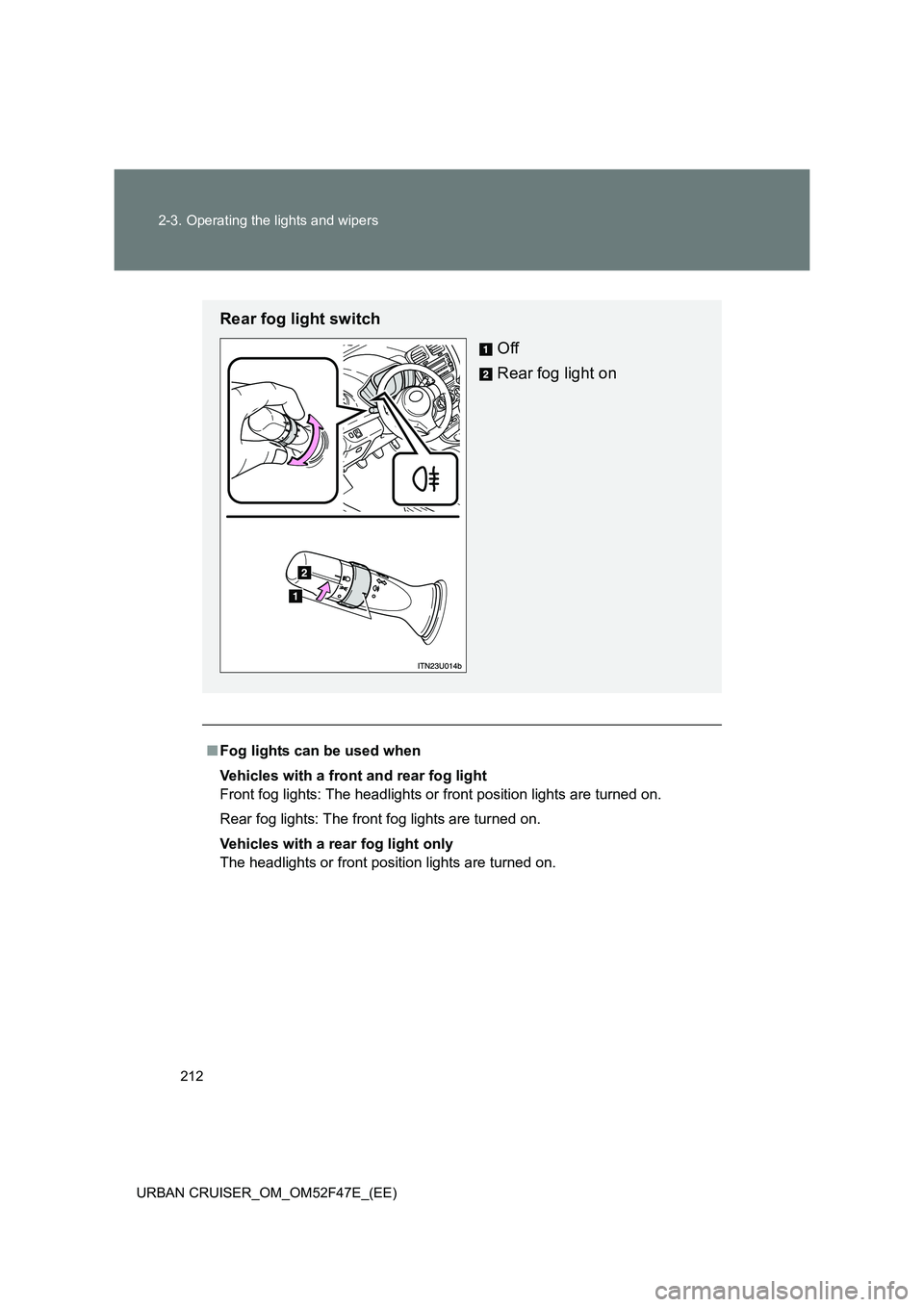

■ Fog lights can be used when
Vehicles with a front and rear fog light
Front fog lights: The headlights or front position lights are turned on.
Rear fog lights: The front fog lights are turned on.
Vehicles with a rear fog light only
The headlights or front position lights are turned on.
Rear fog light switch
Off
Rear fog light on

213
2-3. Operating the lights and wipers
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)

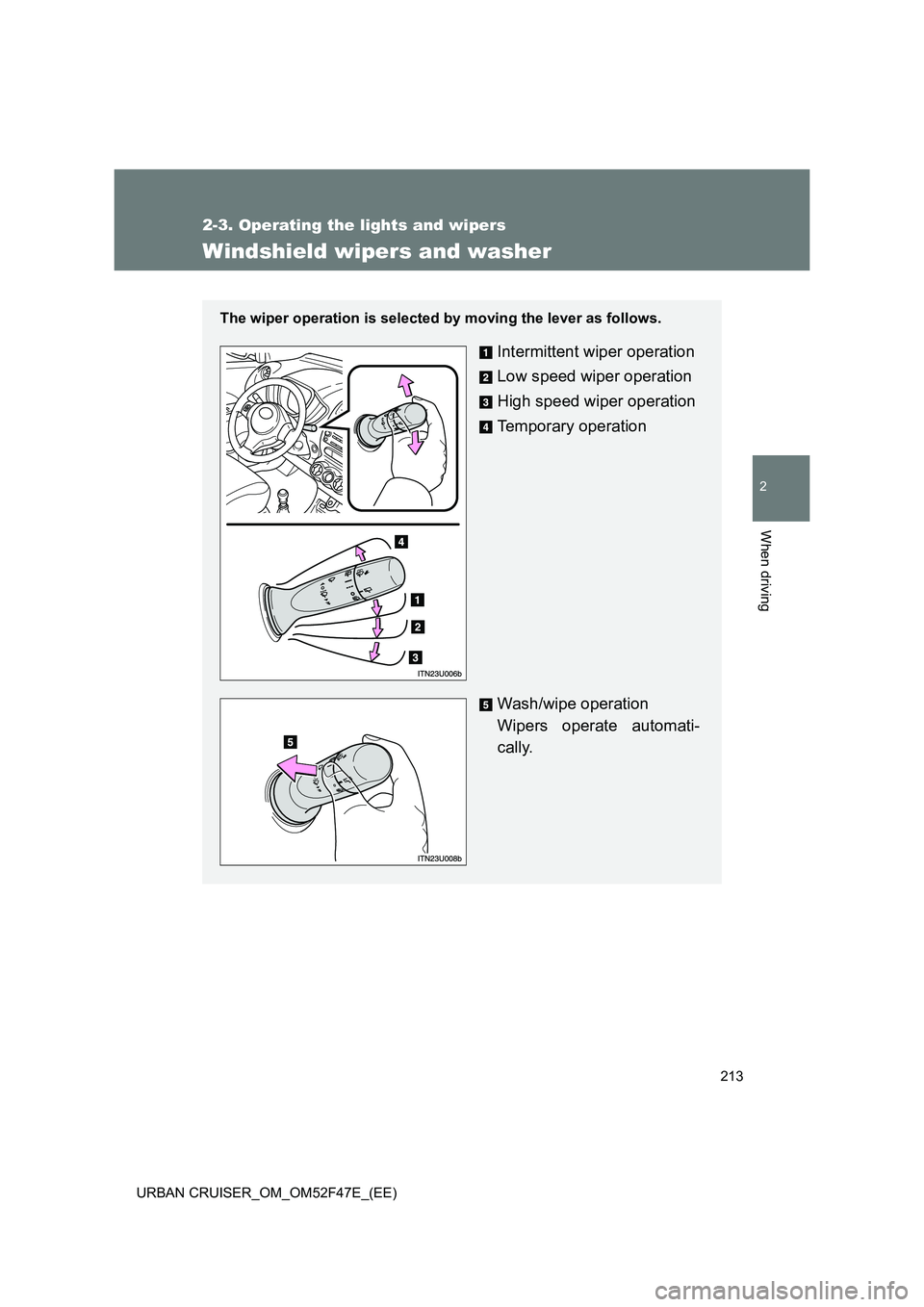

Windshield wipers and washer
The wiper operation is selected by moving the lever as follows.
Intermittent wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Wash/wipe operation
Wipers operate automati-
cally.

214
2-3. Operating the lights and wipers
URBAN CRUISER_OM_OM52F47E_(EE)
■ The windshield wiper and washer can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the IGNITION ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked and if there is washer fluid in
the windshield washer fluid reservoir.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes block
Do not try to clear it with a pin or other object. The nozzle will be damaged.

215
2-3. Operating the lights and wipers
2
When driving
URBAN CRUISER_OM_OM52F47E_(EE)
Rear window wiper and washer
■The rear window wiper and washer can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the IGNITION ON mode.
■ If no washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the
washer fluid reservoir. The wiper operation is selected by moving the lever as follows.
Intermittent window wiper
operation
Normal window wiper oper-
ation
Washer/wiper dual opera-
tion
Washer/wiper dual opera-
tion

216
2-3. Operating the lights and wipers
URBAN CRUISER_OM_OM52F47E_(EE)
NOTICE
■ When the rear window is dry
Do not use the wipers, as they may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
