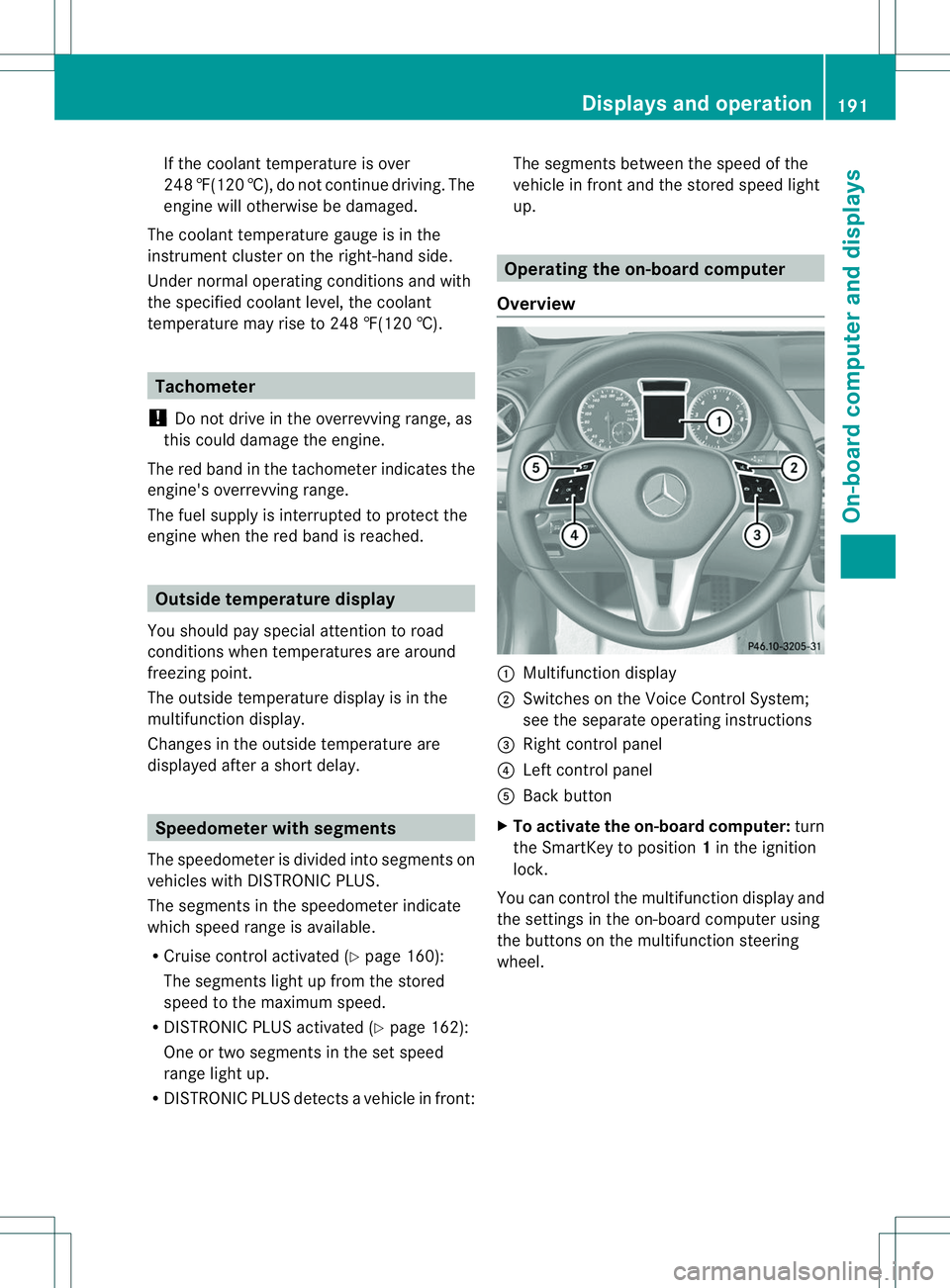

If the coolant temperature is over
248 ‡(120 †), do not continue driving. The
engine willo therwisebedamaged.
The coolant temperature gauge is in the
instrument cluster on the right-hand side.
Under normal operating conditions and with
the specified coolant level,t he coolant
temperature may rise to 248 ‡(120 †). Tachometer
! Do not drive in the overrevving range, as
this could damage the engine.
The red band in the tachometer indicates the
engine's overrevving range.
The fuel supply is interrupted to protect the
engine when the red band is reached. Outside temperatur
edisplay
You shouldp ay specialattention to road
conditions when temperature sare around
freezing point.
The outsid etemperature display is in the
multifunction display.
Changes in the outsid etemperature are
displayed after ashort delay. Speedometer with segments
The speedometer is divided into segments on
vehicle swith DISTRONIC PLUS.
The segments in the speedometer indicate
which speed range is available.
R Cruise control activated (Y page 160):
The segments lightupf rom the stored
speed to the maximum speed.
R DISTRONIC PLUS activated (Y page 162):
One or two segments in the set speed
range light up.
R DISTRONIC PLUS detects avehicle in front: The segments between the speed of the
vehicle in fron
tand the stored speed light
up. Operatin
gthe on-board computer
Overview 001A
Multifunctio ndisplay
0010 Switches on the Voic eControl System;
see the separat eoperating instructions
0023 Right control panel
0021 Left control panel
001E Bac kbutton
X To activat ethe on-board computer: turn
the SmartKey to position 1in the ignition
lock.
You can control the multifunction displaya nd
the settings in the on-board computer using
the buttons on the multifunction steering
wheel. Displays and operation
191On-board computer and displays Z

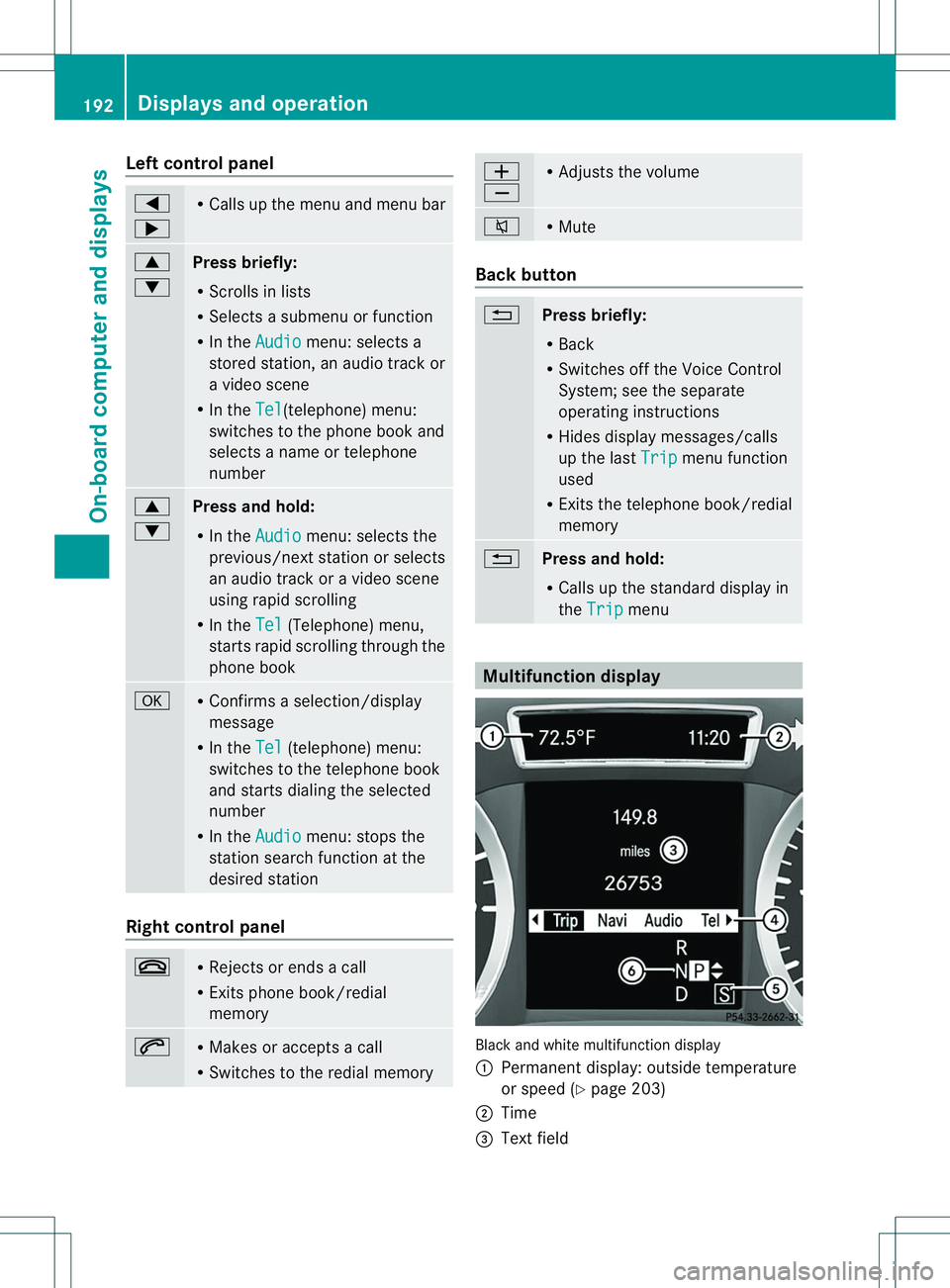

Left control panel
000A
0004 R
Calls up th emenua nd men ubar 0006
0005
Press briefly:
R
Scrolls in lists
R Select sasubmenu or function
R In the Audio menu: selects a
stored station, an audio track or
av ideo scene
R In the Tel (telephone) menu:
switche stothephon ebook and
selects anam eort elephone
number 0006
0005
Press and hold:
R
In the Audio menu: selects the
previous/nex tstation or selects
an audi otrack or avideo scene
using rapi dscrolling
R In the Tel (Telephone) menu,
starts rapi dscrolling throug hthe
phone book 000C R
Confirms aselect ion/display
message
R In the Tel (telephone
)menu:
switches to the telephone book
and starts dialing the selected
number
R In the Audio menu
:stops the
statio nsearch functio natthe
desired station Right contro
lpanel 0008 R
Rejects or end sacall
R Exits phone book/redial
memory 0006 R
Makes or accepts acall
R Switche stothe redia lmemory 0008
0009 R
Adjusts the volume 0001 R
Mute Bac
kbutton 0002
Press briefly:
R
Back
R Switche soff the Voice Control
System; se ethe separate
operating instructions
R Hides displa ymessages/calls
up the last Trip menu function
used
R Exits the telephone book/redial
memory 0002
Press and hold:
R
Call supthe standard displa yin
the Trip menu
Multifunctio
ndisplay Black and white multifunction display
001A
Permanent display: outside temperature
or spee d(Ypage 203)
0010 Time
0023 Text field 192
Displays an
doperationOn-boa rdcompu tera nd displays

0021
Menu bar
001E Drive program (Y page 144)
0024 Transmission position (Y page 144)Color multifunction display
001A
Permanent display: outside temperature
or speed (Y page 203)
0010 Time
0023 Text field
0021 Menu bar
001E Drive program (Y page 144)
0024 Transmission position (Y page 144)
X To show menu bar0021: press the000A
or 0004 button on the steering wheel.
Menu bar 0021disappears after afew seconds.
Text field 0023shows the selected menu or
submenu as well as displaym essages.
i You can set the time using the audio
system or COMAND, see the separate
operating instructions.
The following messages may appearint he
multifunction display:
000A Shift recommendation
(Ypage 147)
000300060009 Active Parking Assist (Y page 175)
CRUISE Cruise control (Y
page 160) 000C
Adaptive Highbeam Assist
(Y page 108)
000C ECO start/stop function
(Ypage 139)
0005 HOLD function (Y page 171) Menus and submenus
Menu overview
Operating the on-board computer
(Y page 191).
Depending on the equipment installed in the
vehicle, you can call up the following menus:
R Trip menu (Y
page 193)
R Navi menu (navigation instructions)
(Y page 195)
R Audio menu (Y
page 196)
R Tel (telephone) menu (Y
page 197)
R DriveAssist (Assistance) menu
(Y page 199)
R Serv. menu (Y
page 202)
R Sett. menu (Y
page 202)
The Audio ,
Navi and
Tel menus differ slightly
in vehicles with Audio 20 and in vehicles with
COMAND. The examples given in this
Operator's Manual apply to vehicles
equipped with COMAND. Trip menu
Standard display Example: standard display (color multifunction
display)
X
Press and hold the 0002button on the
steering wheel until the Trip menu withMenus and submenus
193On-board computer and displays Z

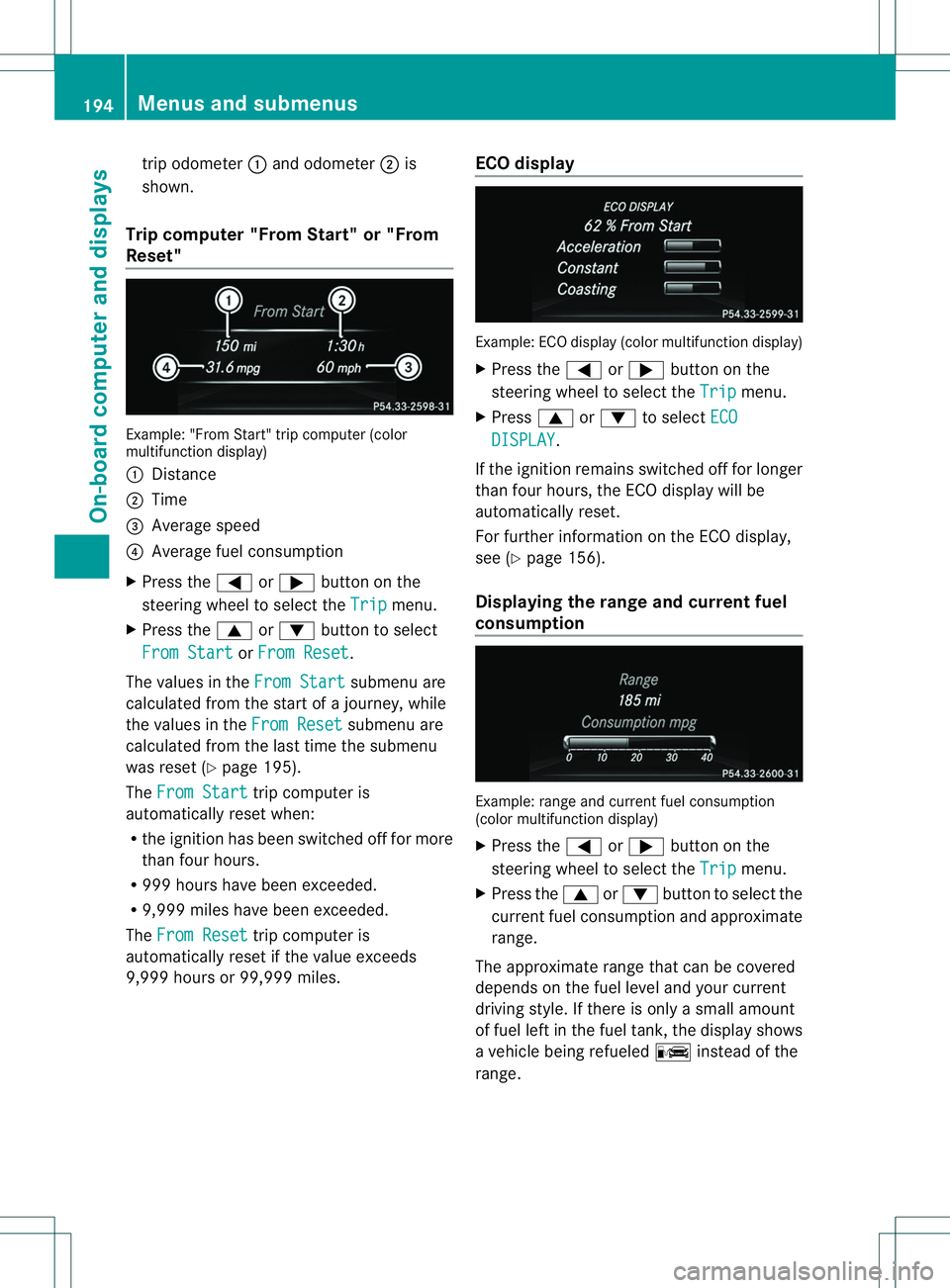

tri
po dometer 001Aand odometer 0010is
shown.
Trip compute r"From Start" or "From
Reset" Example: "From Start" tri
pcomputer (color
multifunction display)
001A Distance
0010 Time
0023 Averag espeed
0021 Averag efuelconsumption
X Press the 000Aor0004 button on the
steering whee ltoselect theTrip menu.
X Press the 0006or0005 button to select
Fro mStart or
Fro mReset .
Th ev alues in the FromStart submenu are
calculated fro mthe start of ajourney, while
the values in the From Reset submenu are
calculated from the last time the submenu
was reset (Y page 195).
The From Start trip computer is
automatically reset when:
R the ignition has been switched off for more
than four hours.
R 999 hours have been exceeded.
R 9,999 miles have been exceeded.
The From Reset trip computer is
automatically reset if the value exceeds
9,999 hours or 99,999 miles. ECO display Example: ECO display (color multifunction display)
X
Press the 000Aor0004 button on the
steering wheel to select the Trip menu.
X Press 0006or0005 to select ECO DISPLAY .
If the ignition remains switched off for longer
than four hours, the ECO displayw ill be
automatically reset.
For further information on the ECO display,
see (Y page 156).
Displaying the range and current fuel
consumption Example: range and current fuel consumption
(color multifunction display)
X
Press the 000Aor0004 button on the
steering wheel to select the Trip menu.
X Press the 0006or0005 button to select the
current fuel consumption and approximate
range.
The approximate range that can be covered
depends on the fuel level and your current
driving style. If there is only asmall amount
of fuel left in the fuel tank,t he displayshows
av ehicle being refueled 0011instead of the
range. 194
Menus and submenusOn-board computer and displays

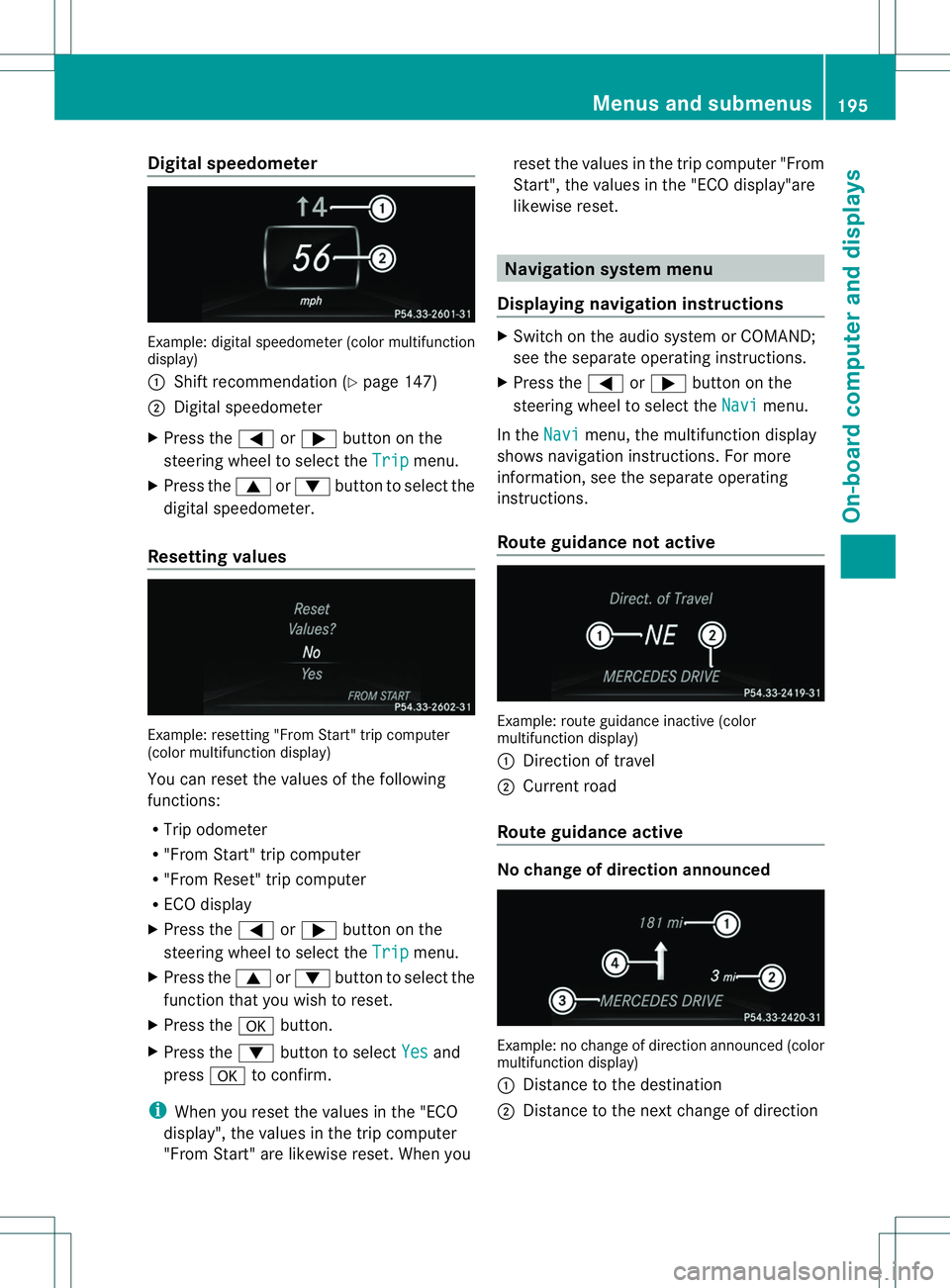

Digital speedometer
Example: digita
lspeedometer (colo rmultifunction
display)
001A Shift recommendatio n(Ypage 147)
0010 Digital speedometer
X Pres sthe 000A or0004 button on the
steering wheel to selec tthe Trip menu.
X Press the 0006or0005 button to select the
digital speedometer.
Resetting values Example: resetting"
From Start"trip computer
(color multifunction display)
You can reset the values of the following
functions:
R Trip odometer
R "From Start"t rip computer
R "From Reset" trip computer
R ECO display
X Press the 000Aor0004 button on the
steering wheel to select the Trip menu.
X Press the 0006or0005 button to select the
function that you wish to reset.
X Press the 000Cbutton.
X Press the 0005button to select Yes and
press 000Cto confirm.
i When you reset the values in the "ECO
display", the values in the trip computer
"From Start"a re likewise reset. When you reset the values in the trip computer "From
Start", the values in the "ECO display"are
likewise reset. Navigation system menu
Displaying navigation instructions X
Switch on the audios ystem or COMAND;
see the separate operating instructions.
X Press the 000Aor0004 button on the
steering wheel to select the Navi menu.
In the Navi menu, the multifunction display
shows navigation instructions. For more
information ,see the separate operating
instructions.
Route guidance not active Example: route guidance inactive (color
multifunction display)
001A
Direction of travel
0010 Current road
Route guidance active No change of direction announced
Example: no change of direction announced (color
multifunction display)
001A
Distancetot he destination
0010 Distancetot he next change of direction Menus and submenus
195On-board computer and displays Z

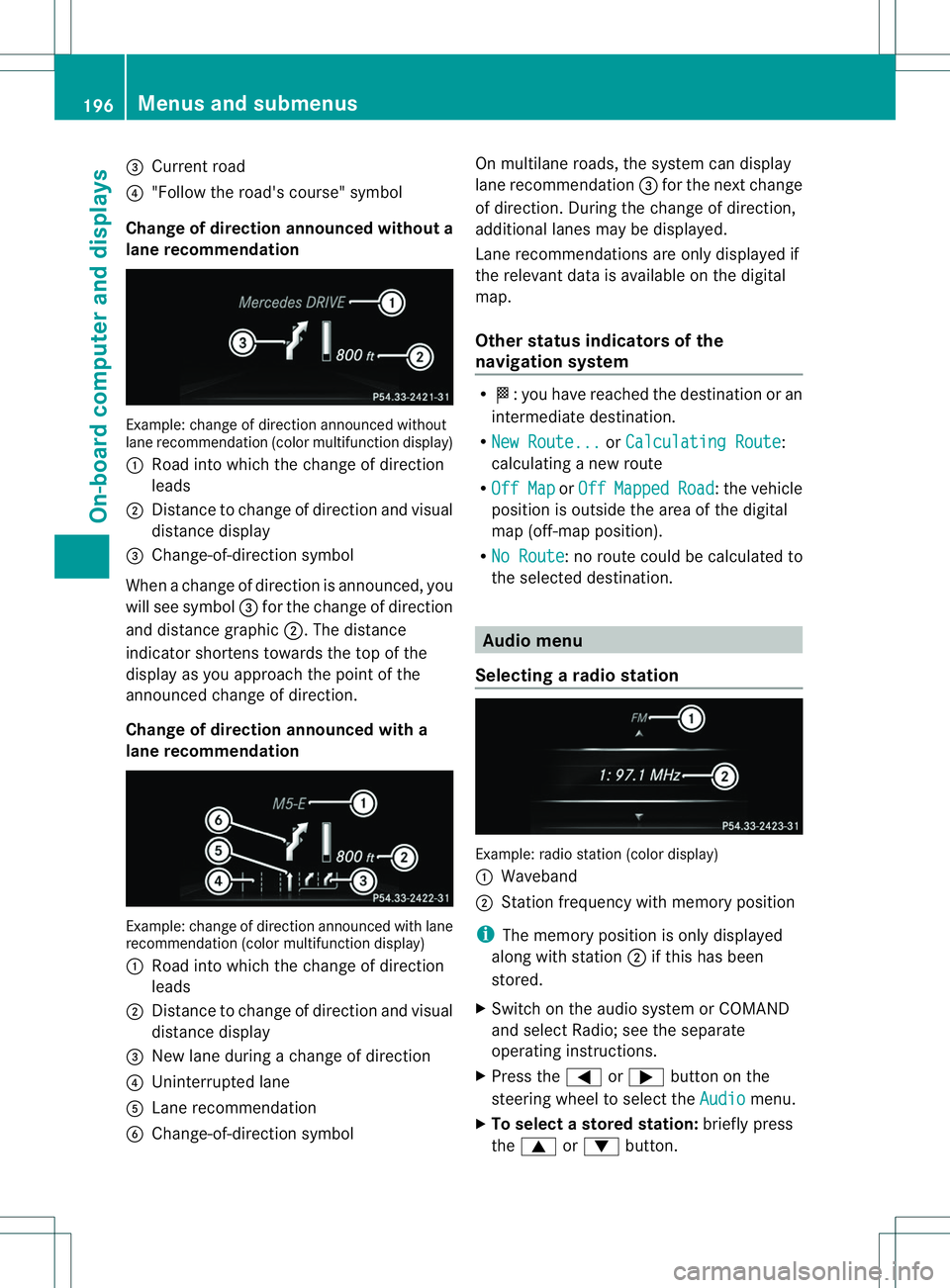

0023
Curren troad
0021 "Follow th eroad's course "symbol
Change of direction announced withou ta
lane recommendation Example: change of direction announced without
lane recommendation (color multifunction display)
001A Road int owhich the change of direction
leads
0010 Distanc etochange of direction and visual
distance display
0023 Change-of-direction symbol
When achange of direction is announced, you
will see symbol 0023for the change of direction
and distance graphic 0010.The distance
indicator shortenst owards the top of the
displayasy ou approach the point of the
announced change of direction.
Change of direction announced with a
lane recommendation Example: change of direction announced with lane
recommendation (color multifunction display)
001A Road into which the change of direction
leads
0010 Distancetoc hange of direction and visual
distance display
0023 New lane during achange of direction
0021 Uninterrupted lane
001E Lane recommendation
0024 Change-of-direction symbol On multilane roads, the system can display
lane recommendation
0023for the next change
of direction. During the change of direction,
additional lanes may be displayed.
Lane recommendations are only displayed if
the relevant data is available on the digital
map.
Other status indicators of the
navigation system R
000D:y ou have reached the destination or an
intermediate destination.
R New Route... or
Calculating Route :
calculating anew route
R Off Map or
Off Mapped Road :t
he vehicle
position is outside the area of the digital
map (off-map position).
R No Route :nor
oute could be calculated to
the selected destination. Audio menu
Selecting aradio station Example: radi
ostatio n(colo rdisplay)
001A Waveband
0010 Station frequency with memory position
i The memory position is only displayed
along with station 0010if this has been
stored.
X Switch on the audio syste morCOMAND
and select Radio; see the separate
operating instructions.
X Press the 000Aor0004 button on the
steering wheel to select the Audio menu.
X To select astore dstation: brieflypress
the 0006 or0005 button. 196
Menus and submenusOn-board computer and displays

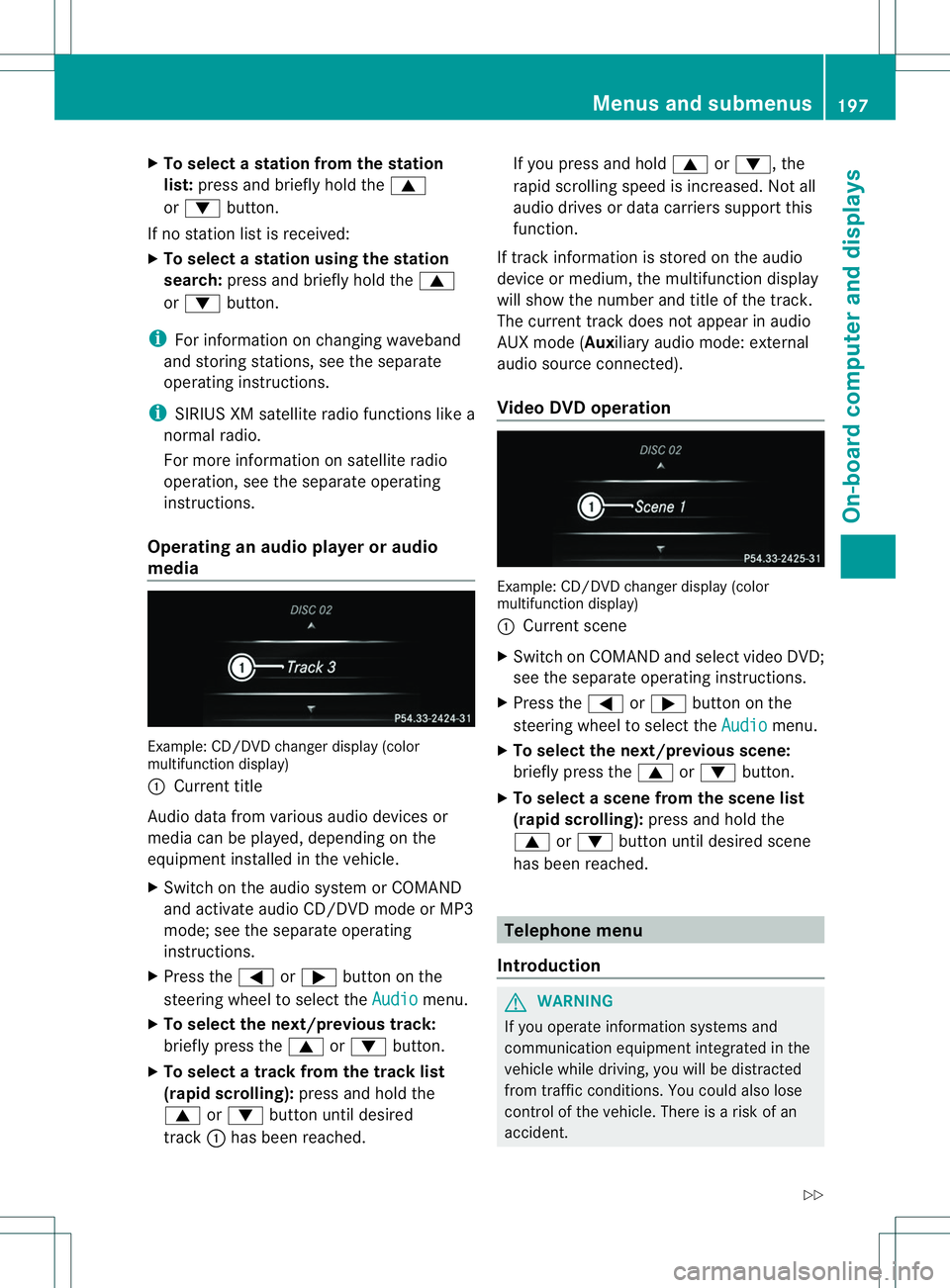

X
To select astation from the station
list: press and briefl yholdt he 0006
or 0005 button.
If no statio nlist is received:
X To select astatio nusing the station
search: press and briefl yholdt he 0006
or 0005 button.
i For informatio nonchanging waveband
and storing stations, see the separate
operating instructions.
i SIRIUS XM satellite radi ofunctions like a
normal radio.
For mor einformatio nonsatelliteradio
operation, see th eseparate operating
instructions.
Operatin ganaudio player or audio
media Example
:CD/DVD change rdisplay (color
multifunction display)
001A Curren ttitle
Audio data from various audio devices or
media can be played, depending on the
equipmen tinstalled in the vehicle.
X Switch on the audi osystem or COMAND
and activate audi oCD/DV Dmode or MP3
mode; see the separate operating
instructions.
X Press the 000Aor0004 button on the
steerin gwheel to select the Audio menu.
X To select the next/previous track:
briefly press the 0006or0005 button.
X To select atrack from the track list
(rapid scrolling): press and hold the
0006 or0005 button until desired
track 001Ahas been reached. If you press and hold
0006or0005,t he
rapid scrolling speed is increased. Not all
audio drives or data carriers support this
function.
If track information is stored on the audio
device or medium, the multifunction display
will show the number and title of the track.
The current track does not appear in audio
AUX mode (Auxiliary audio mode: external
audio source connected).
Video DVD operation Example: CD/DVD changer display (color
multifunction display)
001A
Current scene
X Switch on COMAND and select video DVD;
see the separate operating instructions.
X Press the 000Aor0004 button on the
steerin gwheel to select the Audio menu.
X To select the next/previous scene:
briefly press the 0006or0005 button.
X To select ascene from th escene list
(rapid scrolling): press and hold the
0006 or0005 buttonuntil desired scene
ha sb eenr eached. Telephon
emenu
Introduction G
WARNING
If yo uoperate informatio nsystems and
communication equipmen tintegrated in the
vehicl ewhile driving, you will be distracted
from traffic conditions. You could also lose
control of th evehicle. There is ariskofan
accident. Menu
sand sub menus
197On-boardcomputer and displays
Z

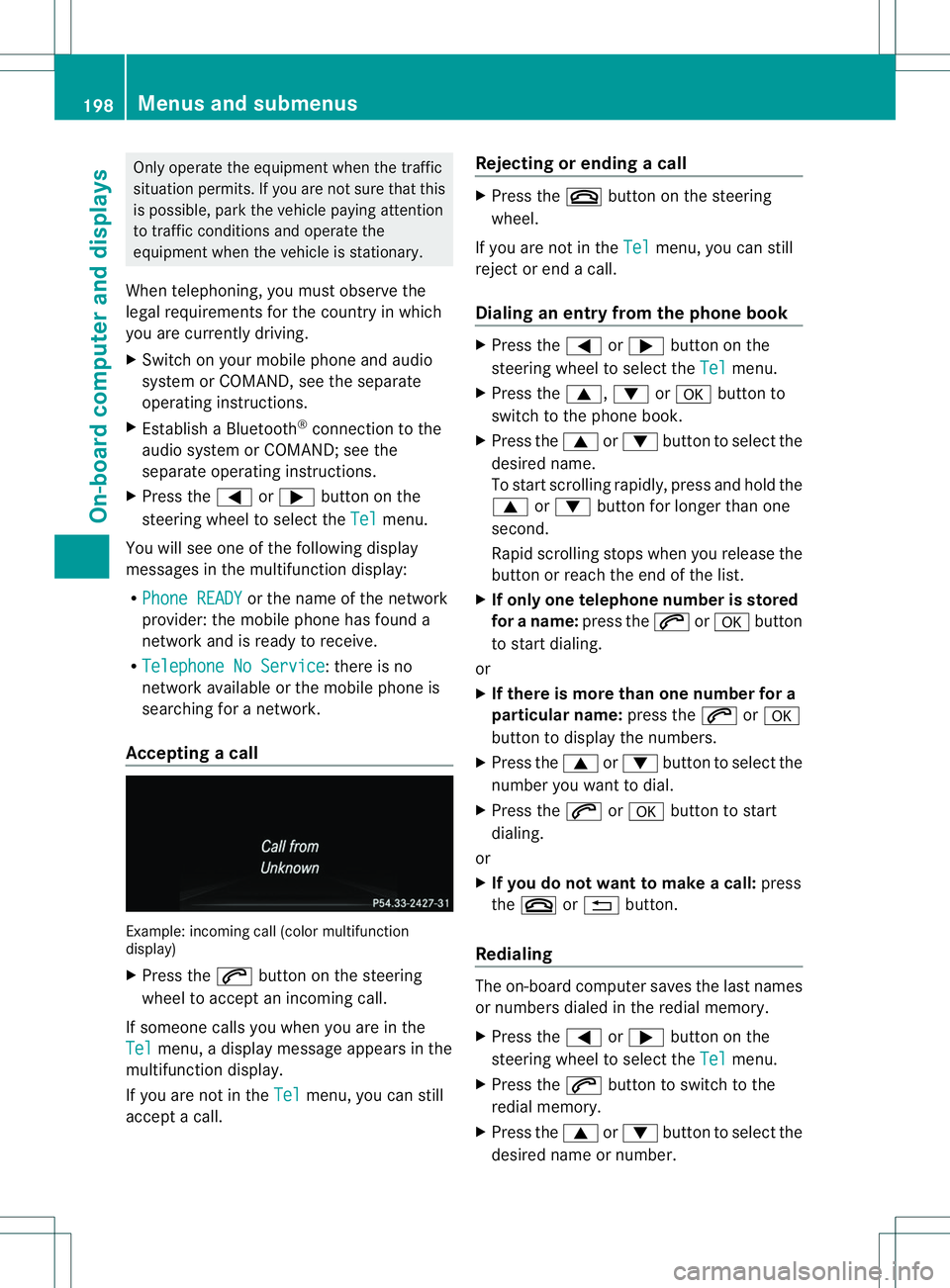

Only operate the equipment when the traffic
situation permits. If you are not sure that this
is possible,p ark the vehicle paying attention
to traffic conditions and operate the
equipment when the vehicle is stationary.
When telephoning, you must observe the
legal requirements for the country in which
you are currently driving.
X Switch on your mobile phone and audio
system or COMAND, see the separate
operating instructions.
X Establish aBluetooth ®
connection to the
audios ystem or COMAND; see the
separate operating instructions.
X Press the 000Aor0004 button on the
steering wheel to select the Tel menu.
You will see one of the following display
messages in the multifunction display:
R Phone READY or the name of the network
provider: the mobile phone has found a
network and is ready to receive.
R Telephone No Service :t
here is no
network available or the mobile phone is
searching for anetwork.
Accepting acall Example: incoming call (color multifunction
display)
X Press the 0006button on the steering
wheel to accep tanincoming call.
If someone calls yo uwheny ou areint he
Tel menu
,adisplay message appear sinthe
multifunctio ndisplay.
If you are not in the Tel menu, you can still
accept acall. Rejecting or ending
acall X
Press the 0008button on the steering
wheel.
If you are not in the Tel menu, you can still
reject or end acall.
Dialin gane ntry from the phone book X
Press the 000Aor0004 button on the
steering wheel to select the Tel menu.
X Press the 0006,0005or000C button to
switch to the phone book.
X Press the 0006or0005 button to select the
desired name.
To start scrolling rapidly, pres sand hol dthe
0006 or0005 button for longe rthan one
second.
Rapid scrolling stops whe nyou release the
button or reach the end of the list.
X If only one telephone number is stored
for aname: press the 0006or000C button
to start dialing.
or
X If thereism ore thanone number for a
particular name: press the0006or000C
button to display the numbers.
X Press the 0006or0005 button to select the
number you want to dial.
X Press the 0006or000C button to start
dialing.
or
X If you do not want to makeac all:press
the 0008 or0002 button.
Redialing The on-board computer saves the last names
or numbers dialed in the redial memory.
X
Press the 000Aor0004 button on the
steerin gwheel to select the Tel menu.
X Press the 0006button to switch to the
redial memory.
X Press the 0006or0005 button to select the
desired name or number. 198
Menus and submenusOn-board computer and displays
