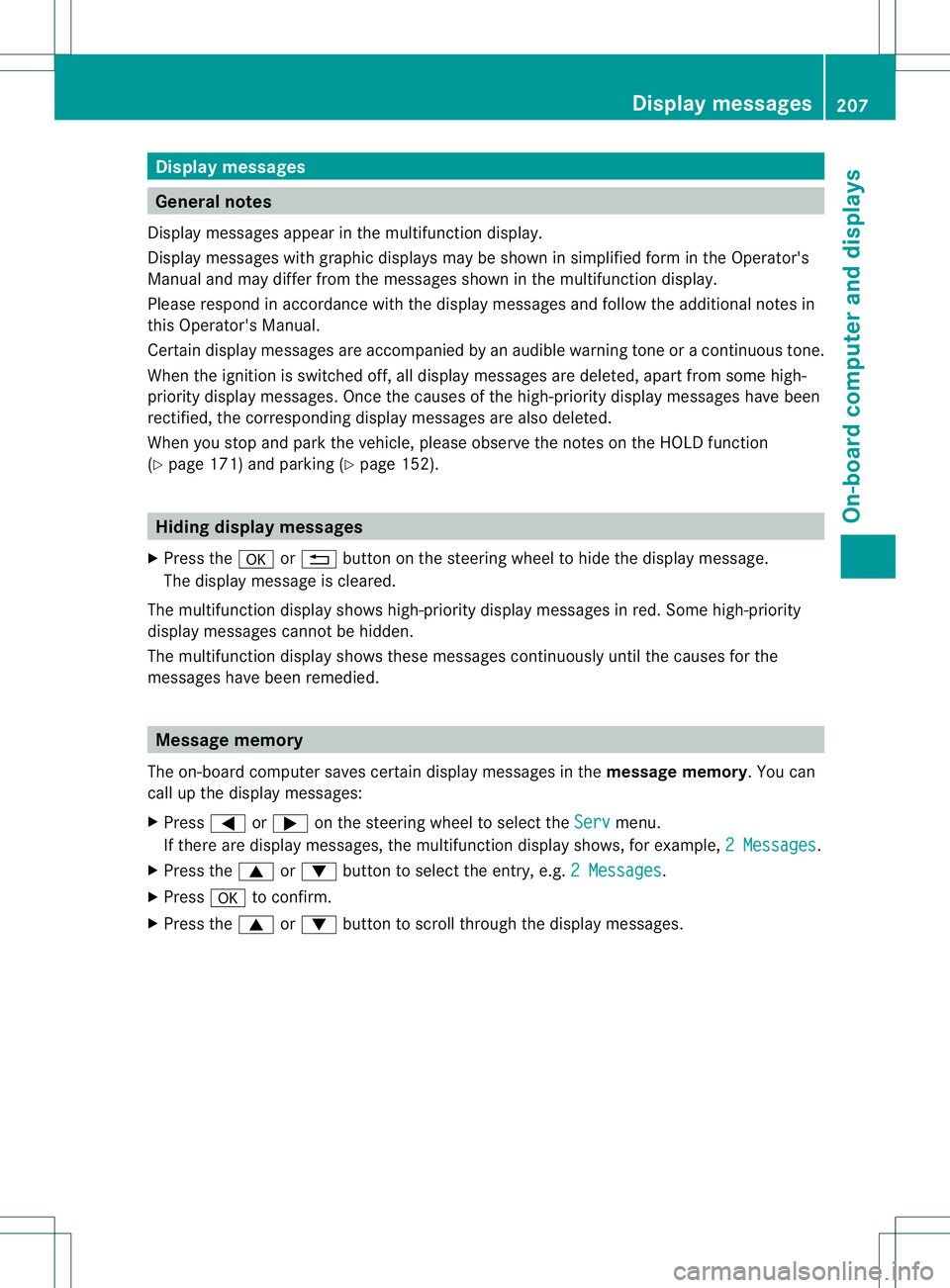

Display messages
General notes
Display message sappear in th emultifunction display.
Display message swithg raphic displays may be shown in simplified for minthe Operator's
Manual and may differ from the messages shown in the multifunction display.
Please respond in accordance with the displaym essages and follow the additional notes in
this Operator's Manual.
Certain displaym essages are accompanied by an audible warning tone or acontinuous tone.
When the ignition is switched off, all displaym essages are deleted, apart from some high-
priority displaym essages. Once the causes of the high-priority displaym essages have been
rectified, the corresponding displaym essages are also deleted.
When you stop and park the vehicle, please observe the notes on the HOLD function
(Y page 171) and parking (Y page 152).Hiding display messages
X Press the 000Cor0002 button on the steering wheel to hide the displaym essage.
The displaym essage is cleared.
The multifunction displays hows high-priority displaym essages in red. Some high-priority
displaym essages cannot be hidden.
The multifunction displays hows these messages continuously until the causes for the
messages have been remedied. Message memory
The on-board computer saves certain displaym essages in themessage memory.Y ou can
call up the display messages:
X Press 000Aor0004 on the steerin gwheel to select the Serv menu.
If there are display messages, the multifunction display shows, for example, 2Messages .
X Press the 0006or0005 button to select the entry, e.g. 2Messages .
X Press 000Cto confirm.
X Press the 0006or0005 button to scroll through the display messages. Display messages
207On-board computer and displays Z

Safety systems
Display messages Possible causes/consequences and
000B Solutions
001C000A
Currently
Unavailable See
Operator's Manual ABS (Anti-lock Braking System), ESP
®
(Electronic Stability
Program), BAS (Brake Assist), the HOLD function and hill start
assist are temporarily unavailable.
COLLISION PREVENTION ASSIST/COLLISION PREVENTION
ASSIST PLUS may also have failed.
In addition, the 000A,0004and001C warning lamps light up in
the instrumen tcluster.
ATTENTION ASSIST is deactivated.
Possible causes are:
R self-diagnosis is not yet complete.
R the on-board voltage may be insufficient.
G WARNING
The brake system continues to function normally, but without the
functions listed above. The wheels could therefore lock if you
brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP ®
is not operational, ESP ®
is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
X Carefullyd riveashort distance on asuitable stretch of road,
making slight steering movement sataspeed above 12 mph
(20 km/h).
If the display message disappears, the functions mentioned
above are available again.
If the display message continues to be displayed:
X Drive on carefully.
X Visit aqualified specialist workshop. 001C000A
Inoperative See
Operator's Manual ABS,E
SP®
,B AS ,the HOLD function and hill start assist are
unavailable due to amalfunction.
COLLISION PREVENTION ASSIST/COLLISION PREVENTION
ASSIST PLUS may also have failed.
In addition, the 0001,000A,0004and001C warning lamps light
up in the instrumen tcluster.
ATTENTION ASSIST is deactivated.
G WARNING 208
Display messagesOn-board computer and displays

Display messages Possible causes/consequences and
000B Solutions

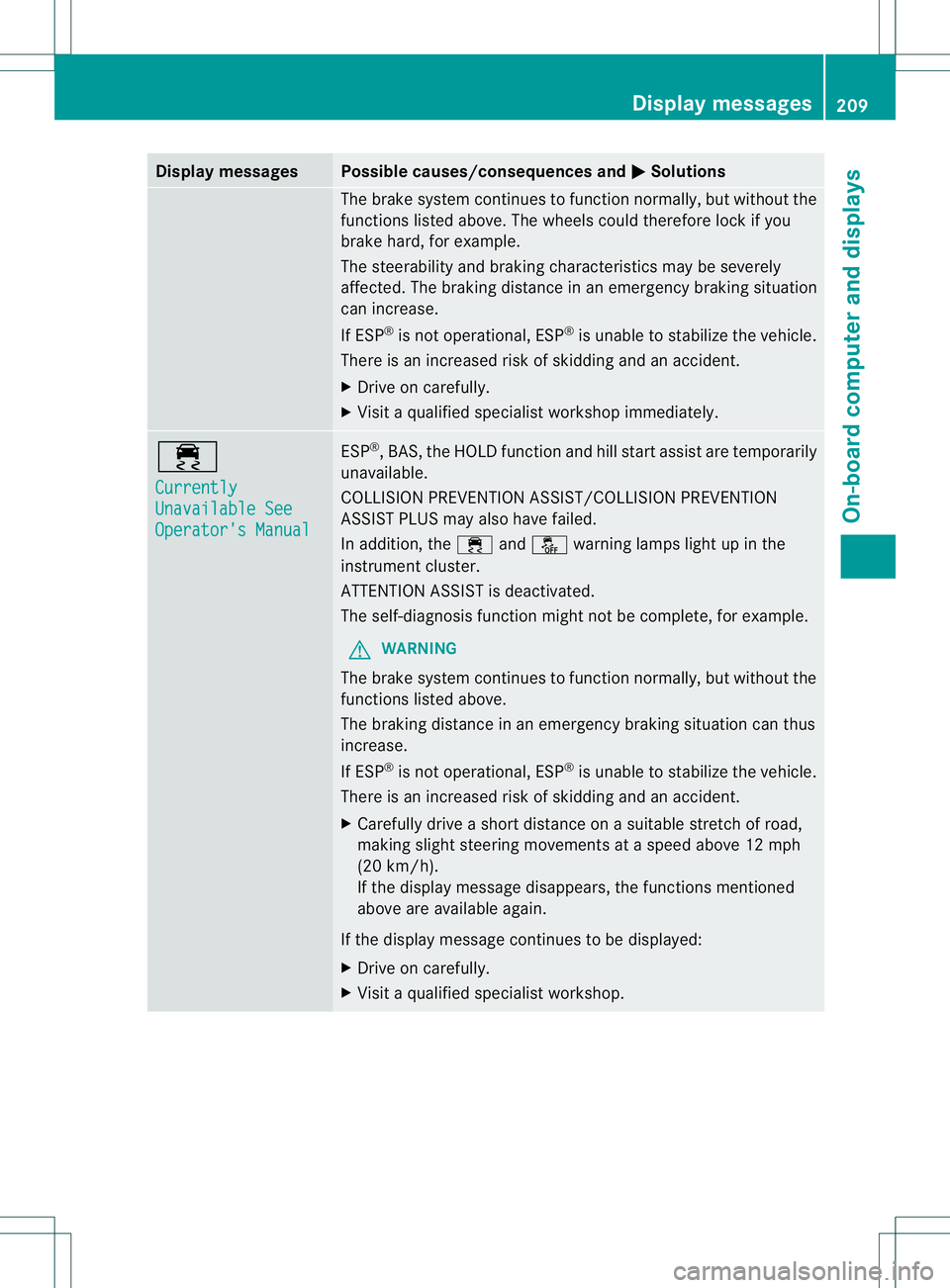

The brak
esystem continues to function normally, but without the
function slisted above. The wheels could therefore loc kifyou
brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergenc ybraking situation
can increase.
If ESP ®
is not operational, ESP ®
is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
X Drive on carefully.
X Visit aqualified specialist workshop immediately. 000A
Currently
Unavailable See
Operator's Manual ESP
®
,B AS ,the HOLD function and hill start assist are temporarily
unavailable.
COLLISION PREVENTION ASSIST/COLLISION PREVENTION
ASSIST PLUS may also have failed.
In addition, the 000Aand0004 warning lamps light up in the
instrument cluster.
ATTENTION ASSIST is deactivated.
The self-diagnosis function might not be complete, for example.
G WARNING
The brake system continues to function normally, but without the
functions listed above.
The braking distance in an emergenc ybraking situation can thus
increase.
If ESP ®
is not operational, ESP ®
is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
X Carefully drive ashort distance on asuitable stretch of road,
making slight steerin gmovements at aspeed above 12 mph
(20 km/h).
If the display message disappears, the functions mentioned
above are available again.
If the display message continues to be displayed:
X Drive on carefully.
X Visit aqualified specialist workshop. Display messages
209On-board computer and displays Z

Display messages Possible causes/consequences and
000B Solutions

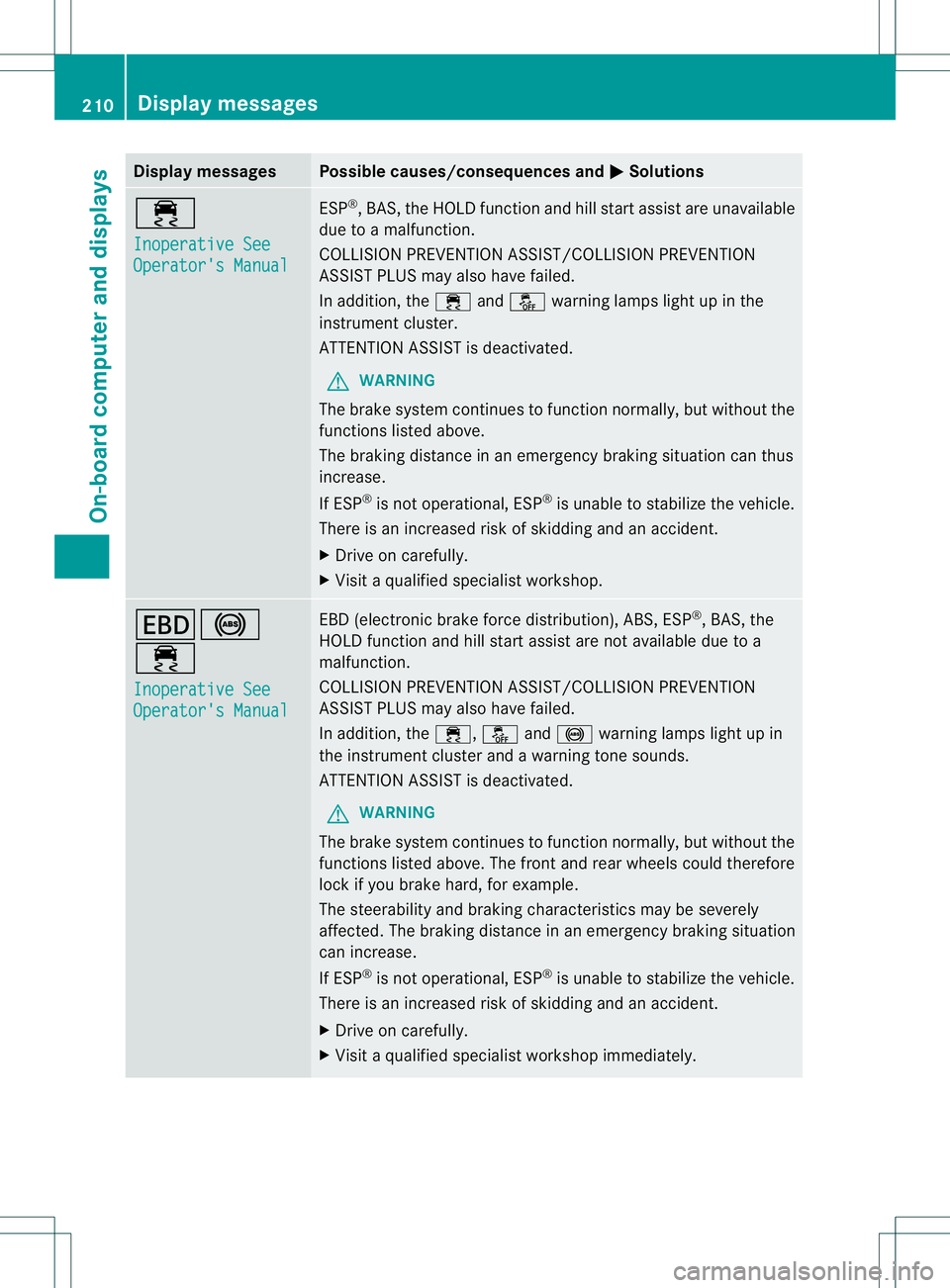

000A
Inoperative See
Operator'
sManual ESP
®
,B AS ,the HOLD function and hill start assist are unavailable
due to amalfunction.
COLLISION PREVENTION ASSIST/COLLISIO NPREVENTION
ASSIST PLU Smay also have failed.
In addition ,the 000A and0004 warning lamps light up in the
instrumen tcluster.
ATTENTION ASSIST is deactivated.
G WARNING
The brak esystem continue stofunction normally, but without the
functions listed above.
The braking distance in an emergenc ybraking situation can thus
increase.
If ESP ®
is not operational, ESP ®
is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
X Drive on carefully.
X Visit aqualified specialist workshop. 0002001C
000A
Inoperative See
Operator's Manual EBD (electronic brake force distribution), ABS,E
SP®
,B AS ,the
HOLD function and hill start assist are not available due to a
malfunction.
COLLISION PREVENTION ASSIST/COLLISION PREVENTION
ASSIST PLUS may also have failed.
In addition, the 000A,0004and001C warning lamps light up in
the instrument cluster and awarning tones ounds.
ATTENTION ASSIST is deactivated.
G WARNING
The brake system continues to function normally, but without the
functions listed above. The front and rear wheels could therefore
lock if you brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergenc ybraking situation
can increase.
If ESP ®
is not operational, ESP ®
is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
X Drive on carefully.
X Visit aqualified specialist workshop immediately. 210
Display messagesOn-board computer and displays

Display messages Possible causes/consequences and
000B Solutions

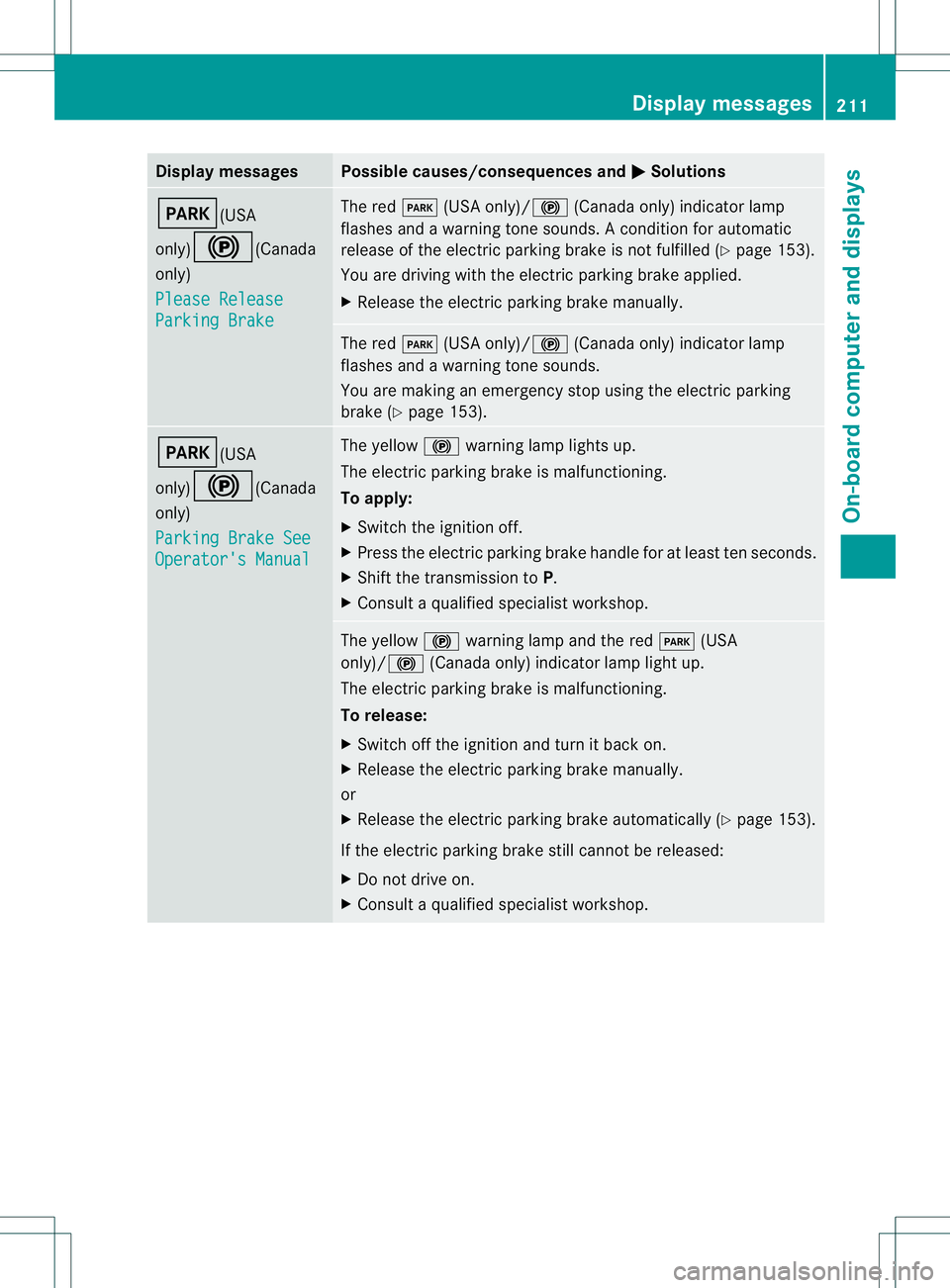

0005(USA
only)
000A(Canada
only)
Please Release Parkin
gBrake The red
0005(USAonly)/ 000A (Canada only) indicato rlamp
flashes and awarning tone sounds. Acondition for automatic
release of the electric parking brake is not fulfilled (Y page 153).
You are driving with the electric parking brake applied.
X Release the electric parking brake manually. The red
0005(USA only)/000A (Canada only) indicator lamp
flashes and awarning tones ounds.
You are making an emergenc ystop using the electric parking
brake (Y page 153). 0005(USA
only)000A(Canada
only)
Parking Brake See Operator's Manual The yellow
000Awarning lamp lights up.
The electric parking brake is malfunctioning.
To apply:
X Switch the ignition off.
X Press the electric parking brake handle for at least ten seconds.
X Shift the transmission to P.
X Consult aqualified specialist workshop. The yellow
000Awarning lamp and the red 0005(USA
only)/000A (Canada only) indicator lamp light up.
The electric parking brake is malfunctioning.
To release:
X Switch off the ignition and turn it back on.
X Release the electric parking brake manually.
or
X Release the electric parking brake automatically (Y page 153).
If the electric parking brake still cannot be released:
X Do not drive on.
X Consult aqualified specialist workshop. Display messages
211On-board computer and displays Z

Display messages Possible causes/consequences and
000B Solutions

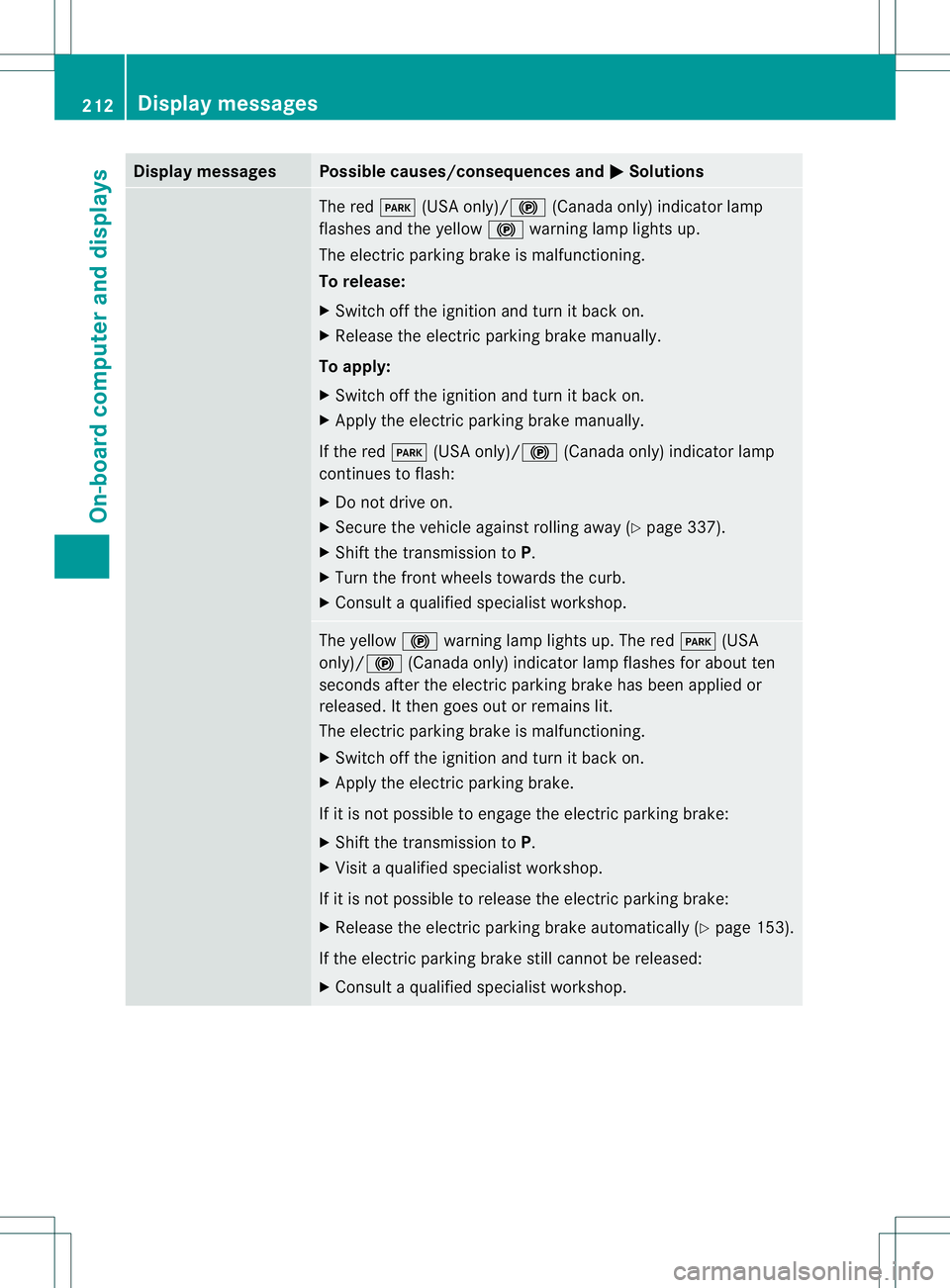

The red
0005(USAonly)/ 000A (Canada only) indicato rlamp
flashes and th eyellow 000Awarning lamp light sup.
The electric parking brak eismalfunctioning.
To release:
X Switch off th eignition and tur nitback on.
X Release th eelectric parking brak emanually.
To apply:
X Switch off th eignition and tur nitback on.
X Apply th eelectric parking brak emanually.
If th ered 0005 (USAonly)/000A (Canadaonly) indicator lamp
continue stoflash:
X Do no tdriveo n.
X Secure th evehicle against rolling away ( Ypage 337).
X Shift th etransmission to P.
X Turn th efront wheel stowards the curb.
X Consult aqualified specialist workshop. The yellow
000Awarning lamp lights up. The red 0005(USA
only)/000A (Canada only) indicator lamp flashes for about ten
seconds after the electric parking brake has been applied or
released. It then goes out or remains lit.
The electric parking brake is malfunctioning.
X Switch off the ignition and turn it back on.
X Apply the electric parking brake.
If it is not possible to engage the electric parking brake:
X Shift the transmission to P.
X Visit aqualified specialist workshop.
If it is not possible to release the electric parking brake:
X Release the electric parking brake automatically (Y page 153).
If the electric parking brake still cannot be released:
X Consult aqualified specialist workshop. 212
Display messagesOn-board computer and displays

Display messages Possible causes/consequences and
000B Solutions

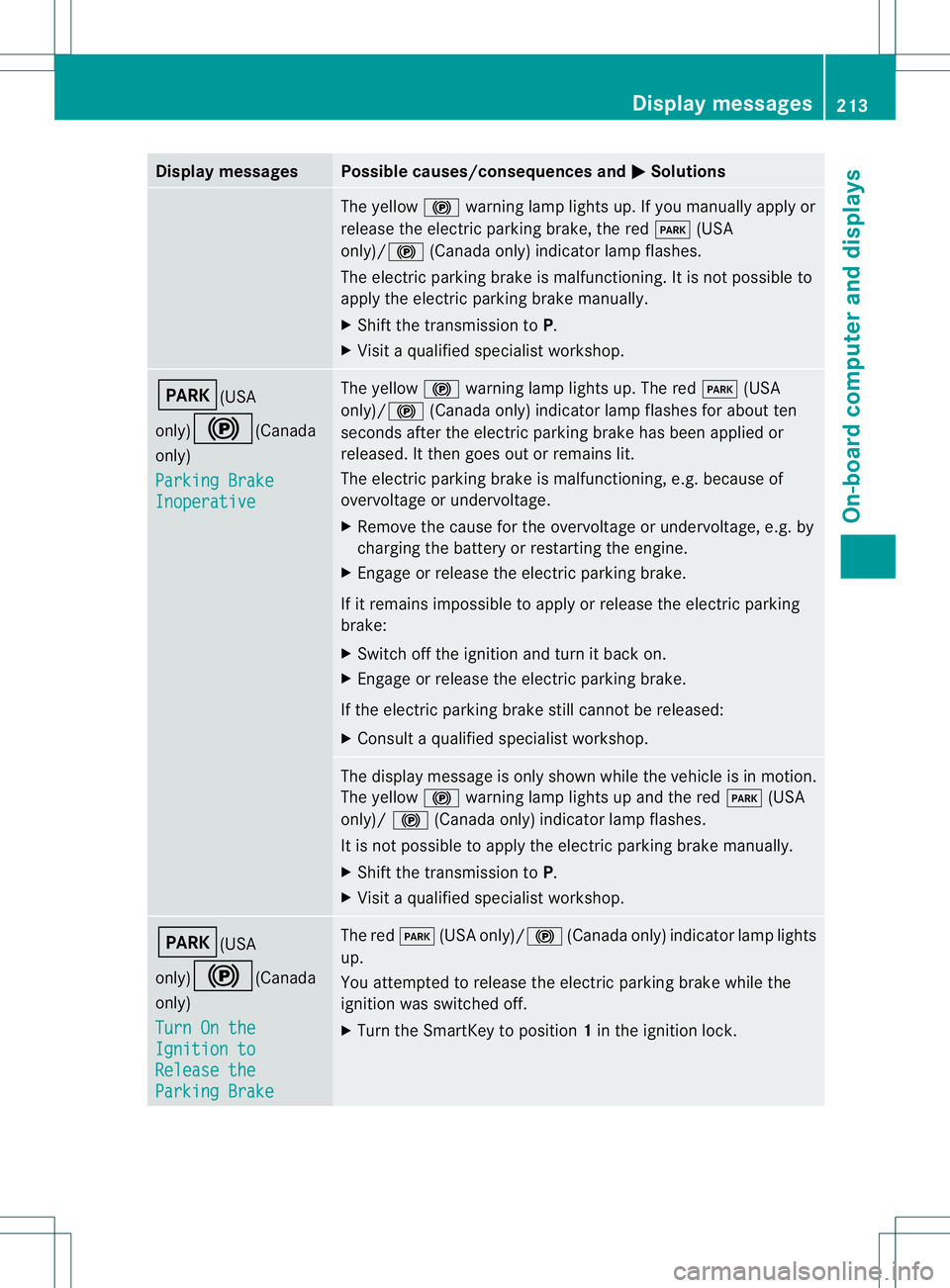

The yellow
000Awarnin glamp lights up. If you manually apply or
release th eelectric parkin gbrake, the red 0005(USA
only)/000A (Canada only )indicator lamp flashes.
The electric parking brake is malfunctioning. It is not possible to
apply the electric parking brake manually.
X Shift the transmission to P.
X Visi taq ualified specialist workshop. 0005(USA
only)000A
(Canada
only)
Parkin gBrake Inoperative The yellow
000Awarning lamp lights up. The red 0005(USA
only)/ 000A(Canada only) indicator lamp flashes for about ten
seconds after the electric parkin gbrake has been applied or
released. It then goes out or remains lit.
The electric parkin gbrake is malfunctioning, e.g. because of
overvoltage or undervoltage.
X Remove the cause for the overvoltage or undervoltage, e.g. by
chargin gthe battery or restartin gthe engine.
X Engage or release the electric parkin gbrake.
If it remains impossible to apply or release the electric parking
brake:
X Switc hoff the ignition and turn it back on.
X Engage or release the electric parkin gbrake.
If the electric parkin gbrake still cannot be released:
X Consult aqualified specialist workshop. The display message is only shown while the vehicle is in motion.
The yellow
000Awarning lamp lights up and the red 0005(USA
only)/ 000A(Canada only) indicator lamp flashes.
It is not possible to apply the electric parkin gbrake manually.
X Shift the transmission to P.
X Visit aqualified specialist workshop. 0005(USA
only)000A
(Canada
only)
Turn On the Ignition to
Releas
ethe Parkin
gBrake The red
0005(USA only)/000A (Canada only) indicator lamp lights
up.
You attempted to release the electric parkin gbrake while the
ignition was switched off.
X Turn the SmartKey to position 1in the ignition lock. Display messages
213On-boardcomputer and displays Z

Display messages Possible causes/consequences and
000B Solutions
0004(USA
only)
0001(Canada
only)

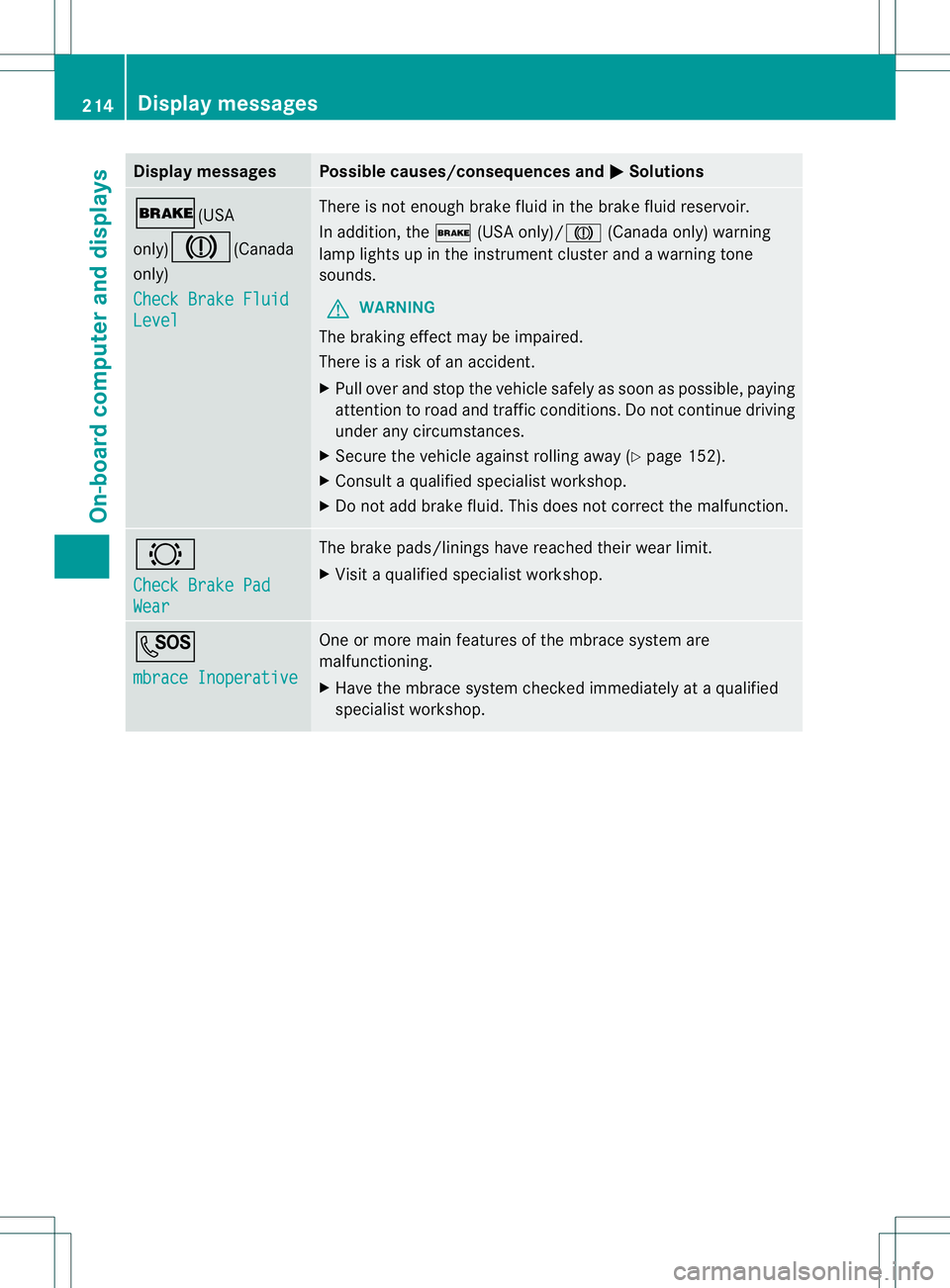

Check Brake Fluid Level There is no
tenough brake fluid in the brake fluid reservoir.
In addition, the 0004(USA only)/0001 (Canada only) warning
lamp lights up in the instrument cluster and awarning tone
sounds.
G WARNING
The braking effect ma ybeimpaired.
There is ariskofana ccident.
X Pull ove rand stop the vehicl esafelyass oonasp ossible,p aying
attention to road and traffic conditions. Do not continue driving
under any circumstances.
X Secure the vehicle against rolling away( Ypage 152).
X Consult aqualified specialist workshop.
X Do not add brake fluid. This does not correct the malfunction. 0002
Check Brake Pad
Wear The brake pads/linings have reached their wear limit.
X
Visit aqualified specialist workshop. 0015
mbrace Inoperative One or more main features of the mbrace system are
malfunctioning.
X
Have the mbrace system checked immediately at aqualified
specialist workshop. 214
Display messagesOn-board computer and displays
