2014 MERCEDES-BENZ B-CLASS SPORTS Owners Manual

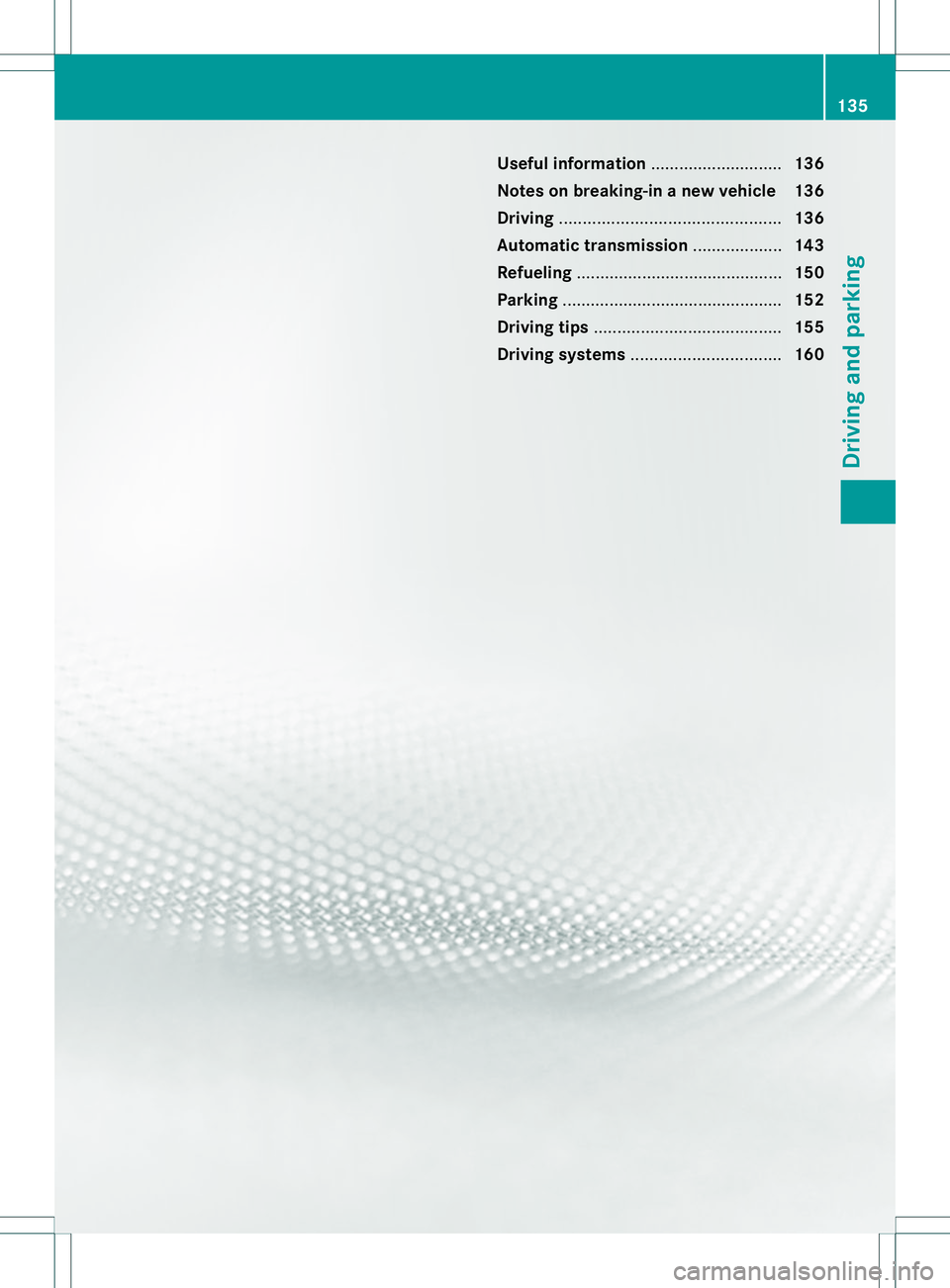

Useful information
............................136
Notes on breaking-in anew vehicle 136
Driving ............................................... 136
Automatic transmission ...................143
Refueling ............................................ 150
Parking ............................................... 152
Driving tips ........................................ 155
Driving systems ................................ 160 135Driving and parking

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please not ethat your vehicle may
not be equipped with all features
described. This also applies to safety-
related system sand functions.
i Read the information on qualified
specialist workshops: (Y page 25).Notes on breaking-in
anew vehicle Important safety notes
New and replaced brak epads and disc sonly
reac htheir optimum braking effect after
several hundred kilometers of driving.
Compensate for this by applyin ggreater force
to th ebrak epedal. Th
ef irst 1000 miles (1500 km)
The mor eyou look after th eengine when it is
new, th emores atisfied you will be with its
performanc einthefuture.
R You should therefore driv eatvarying
vehicle and engine speed sfor th efirst
1000 miles (1500 km).
R Avoid heavy loads, e.g .driving at full
throttle, during this period.
R Change gearing ood time, before the
tachometer needle is 001Bof the way to the
red area of the tachometer.
R Do not manually shift to alower gear to
brake the vehicle.
R If possible, do not depress the accelerator
pedal past the point of resistance
(kickdown).
R Ideally ,for the first 1000 miles (1500 km),
drive in program E. After 1,000 miles (1,500 km), you can
increase the engine spee
dgradually and bring
the vehicle to ful lspeed.
i You should also observe these notes on
breaking-in if the engine or parts of the
drive train on you rvehicle have been
replaced.
i Always observe the respective speed
limits. Driving
Important safet
ynotes G
WARNING
Objects in the driver's footwell can restrict the
pedal travel or obstruct adepressed pedal.
The operatin gand road safety of the vehicle
is jeopardized. There is arisk of an accident.
Make sure that all objects in the vehicle are
stowed correctly, and that they cannot enter
the driver's footwell. Install the floormats
securely and as specified in order to ensure
sufficien tclearanc efor the pedals. Do not use
loose floormats and do not place floormats on
top of one another. G
WARNING
Unsuitable footwear can hinde rcorrect usage
of the pedals, e.g.:
R shoes with thick soles
R shoes with high heels
R slippers
There is arisk of an accident.
Wear suitable footwear to ensure correct
usage of the pedals. G
WARNING
If you switch off the ignition while driving,
safety-relevant functions are only available
with limitations, or not at all. This could affect,
for example, the power steering and the brake
boosting effect .You will require considerably 136
DrivingDriving and parking

more effort to steer and brake. There is
arisk
of an accident.
Do not switch off the ignitio nwhile driving. G
WARNING
If the parking brake has not been fully
released when driving, the parking brake can:
R overheat and cause afire
R lose its hold function.
There is arisk of fire and an accident. Release
the parking brake fully before driving off.
! Warm up the engine quickly. Do not use
the engine's full performance until it has
reached operating temperature.
Only shift the automatic transmission to
the desired drive position when the vehicle
is stationary.
Where possible, avoid spinning the drive
wheels when pulling away on slippery
roads. You could otherwise damage the
drive train. Key positions
0005
To remove the SmartKey
(shift the transmission to position P)
000C Power supply for some consumers, such
as the windshield wipers
0001 Ignition (power supply for all consumers)
and drive position
0002 To start the engine
i The SmartKey can be turned in the
ignition lock even if it is not the correct SmartKey for the vehicle. The ignition is not
switched on. The engine cannot be started. Starting the engine
Important safety notes G
WARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. Inhaling
these exhaust gases leads to poisoning. There
is ar isk of fatal injury. Therefore never leave
the engine running in enclosed spaces
without sufficient ventilation. G
WARNING
Flammable materials introduced through
environmental influence or by animals can
ignite if in contact with the exhaust system or
parts of the engine that heat up. There is arisk
of fire.
Carry out regular checkstom ake sure that
there are no flammable foreign materials in
the engine compartmentorint he exhaust
system.
! Do not depress the accelerator pedal
when startingt he engine.
i During acold start, the engine runs at
higher speeds to enable the catalytic
converter to reach its operating
temperature. The sound of the engine may
change during this time.
Automatic transmission X
Shift the transmission to position P.
Transmission position display Pis shown in
the multifunction display.
i When the transmission is in position N,
you can also start the engine with the brake
pedal depressed. Driving
137Driving and parking Z

Starting procedure
X
Turn the SmartKey to position 3in the
ignition lock (Y page 137) and release it as
soon as the engine is running. Pulling away
Automatic transmission i
It is only possible to shift the transmission
from position Pto the desired position if
you depress the brake pedal. Only then can
the parking lock be deactivated. If you do
not depress the brake pedal, the DIRECT
SELECT lever can still be moved but the
parking lock remains engaged.
i If the transmission oil temperature is
below 000F4‡(000F20 †),y ou can only shift from
position Pwhen the engin eisrunning.
X Depress the brake pedal and keep it
depressed.
X Shif tthe transmission to position Dor R.
X Release the brake pedal.
X Carefully depress the accelerator pedal.
The electric parking brake (Y page 153) is
automatically released.
The red 000Aindicator lamp in the
instrumentc luster goes out.
i The vehicle lock scentrally onc eyou have
pulled away. The locking knobs in the doors
drop down.
You can open the doors fro mthe inside at
any time.
You can also deactivate the automatic
locking feature (Y page 205).
i Upshifts take place at higher engine
speeds after acold start. This helps the
catalytic converter to reach its operating
temperature more quickly. Hill starta
ssist Hill start assist helps you when pulling away
forwards or in reverse on an uphill gradient.
It holds the vehicle for
ashort time after you
have removed your foot from the brake pedal.
This gives you enough time to move your foot
from the brake pedal to the accelerator pedal
and to depress it before the vehicle begins to
roll. G
WARNING
After ashort time, hill start assist will no
longer brake your vehicle and it could roll
away. There is arisk of an accident and injury.
Therefore, quickly move your foot from the
brake pedal to the accelerator pedal. Never
leave the vehicle when it is held by hill start
assist.
X Remove your foot from the brake pedal.
The vehicle is then held for about asecond.
X Pull away.
Hill start assist is not active if:
R you are pulling away on alevel road or on
ad ownhill gradient.
R the transmission is in position N.
R the electric parking brake is applied.
R ESP ®
is malfunctioning.
Further information on holding the vehicle
stationary on uphill gradients (Y page 146). ECO start/stop function
Introduction The ECO start/stop function switches the
engine off automatically if the vehicle is
stopped under certain conditions.
The engine start
sautomatically when the
driver wants to pull away again. The ECO
start/stop function thereby helps you to
reduce the fuel consumption and emissions
of your vehicle. 138
DrivingDriving and parking

Important safety notes
G
WARNING
If th eengineiss witched off automatically and
you exit th evehicle, th eengine is restarted
automatically. The vehicl emay begi nmoving.
There is arisk of accident and injury.
If you wish to exit the vehicle, alwayst urn off
the ignition and secure the vehicle against
rolling away.
General notes 001A
ECO start/stop display (example: color
multifunction display)
The ECO start/stop function switches the
engine off automatically when the vehicle
stops moving, if:
R the 000C symbol appears in the
multifunction display in vehicles with black
and white multifunction display
R the 000C symbol appears in green in the
multifunction display in vehicles with a
color multifunction display.
The stop/start function is automatically
activated each time you start the engine with
the SmartKey.
If the ECO start/stop function has been
manually deactivated (Y page 140) or a
malfunction has caused the system to be
deactivated, the 000Csymbol is not
displayed. Automatic engine switch-off General notes
The ECO stop/start function is operational
and display
sthe following in the multifunction
display:
R the 000C symbol in vehicles with ablack
and white multifunction display
R ag reen 000C symbol in vehicles with a
color multifunction display
This is the case if, amon gothe rthings:
R the indicator lamp in the ECO button is lit
green.
R the outside temperature is within the range
that is suitable for the system.
R the engine is at normal operating
temperature.
R the set temperature for the vehicle interior
has been reached.
R the battery is sufficiently charged.
R the system detectst hat the windshield is
not fogged up when the air-conditioning
system is switched on.
R the hood is closed.
R the driver's door is closed and the driver's
seat belt is fastened.

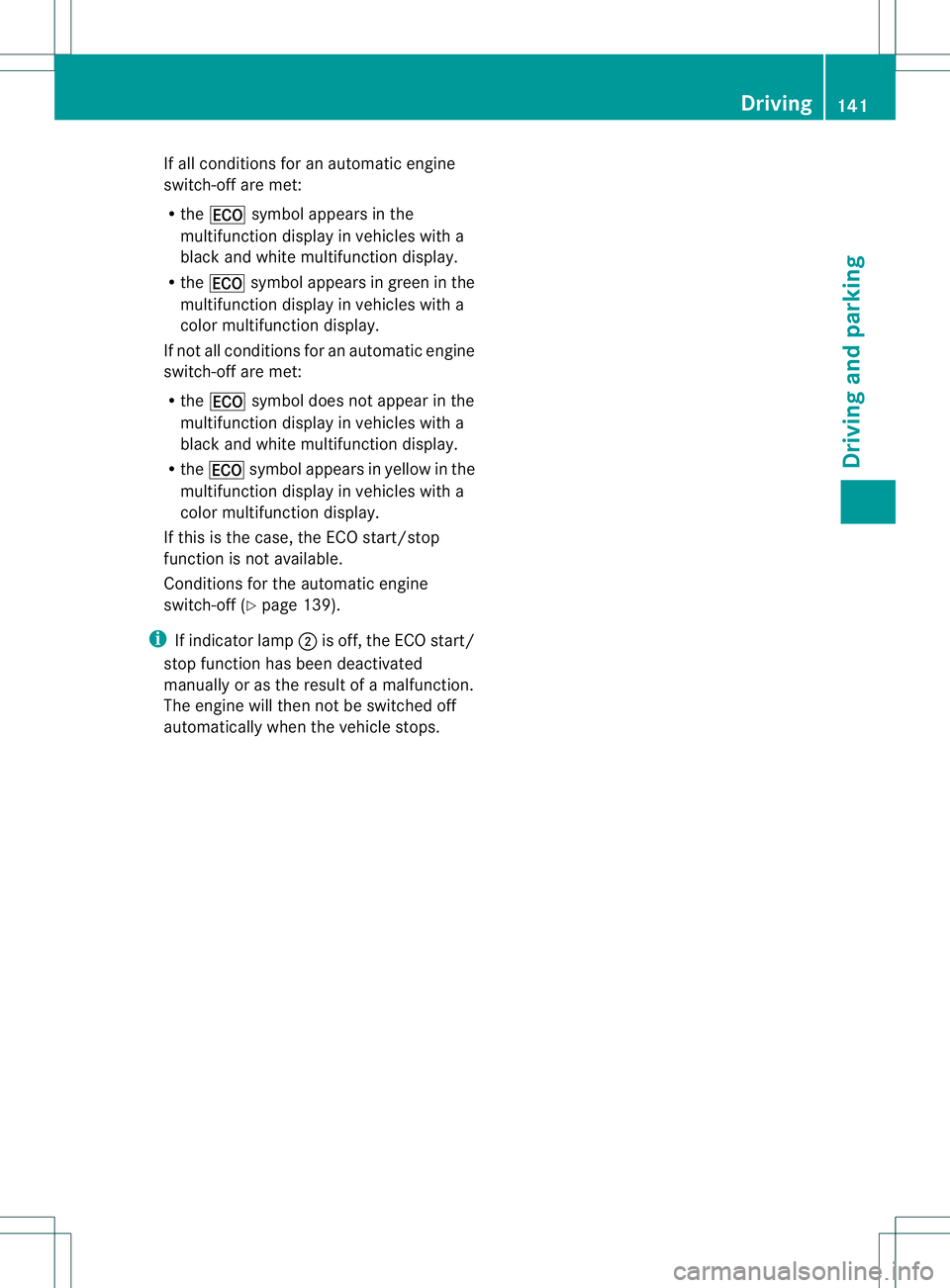

If not all conditionsf or an automatic engine
switch-off are met:
R the 000C symbol does not appearin
vehicles with ablack and white
multifunction display
R ay ellow 000Csymbol appears in vehicles
with acolor multifunction display
i All of the vehicle's systems remai nactive
when the engine ha sbeens topped
automatically.
i Thee ngine can be switched off
automaticall yamaximum of fou rtimes
(firs tstop and thre esubsequen tstops )in
succession.
In vehicles with ablack and white
multifunctio ndisplay, the automatic engine
switch-off is the navailablea gain after the Driving
139Driving and parking Z

ECO symbo
lappears in the multifunction
display.
In vehicles with acolor multifunction
display, the 000Csymbo lappears in yellow
in the multifunctio ndisplay after the fourth
automatic engine start .When the 000C
symbol is shown in green in the
multifunction display, automatic engine
switch-off is again possible.
Vehicles with automatic transmission
If the vehicle is braked to astandstill in Dor
N,t he ECO start/stop function switches off
the engine automatically.
i The HOLD function can be activated if the
engine has been switched off
automatically .Itisthen not necessary to
continue applying the brakes during the
automatic stop phase. When you depress
the accelerator pedal, the engine starts
automatically and the braking effect of the
HOLD function is deactivated.
Automatic engine start General notes
The engine starts automatically if:
R
you switch off the ECO start/stop function
by pressing the ECO button.
R you engage reverse gear R.
R the vehicle starts to roll.
R the brake system requires this.
R the temperature in the vehicle interior
deviates from the set range.
R the system detectsm oisture on the
windshield when the air-conditioning
system is switched on.
R the condition of charge of the battery is too
low.
R the driver's seat belt is removed or the
driver's door is opened. Vehicles with automatic transmission
The engine is started automatically if you:
R
release the brake pedal when HOLD is not
activated and the transmission is in
position Dor N.
R depress the accelerator pedal.
R move the transmission out of position P.
i Shiftingt he transmission to position P
does not start the engine.
i When you shift the transmission from R
to D,t he ECO start/stop function is
available in the following cases:
R after the 000Csymbol appears in the
multifunction displayinv ehicles with a
black and white multifunction display
R after the 000Csymbol appears in green
in vehicles with acolor multifunction
display
Deactivating/activating the ECO start/
stop function ECO button
X
To switch off: press button001A.
Indicator lamp 0010and the 000Csymbol in
the multifunction displaygoo ut.
X To switch on: press button001A.
Indicator lamp 0010lights up. 140
DrivingDriving and parking

If all conditions for an automatic engine
switch-off are met:
R
the 000C symbola ppears in the
multifunction display in vehicle swith a
black and white multifunction display.
R the 000C symbola ppears in green in the
multifunction display in vehicle swith a
color multifunction display.
If not all conditions for an automatic engine
switch-off are met:
R the 000C symbold oes not appear in the
multifunction display in vehicle swith a
black and white multifunction display.
R the 000C symbola ppears in yellow in the
multifunction display in vehicle swith a
color multifunction display.
If this is the case, the ECO start/stop
function is not available.
Conditions for the automatic engine
switch-off (Y page 139).
i If indicator lamp 0010is off, the ECO start/
stop function has been deactivated
manually or as the resultofa malfunction.
The engine willt hen not be switched off
automatically when the vehicl estops. Driving
141Driving an dparking Z

Problems with the engine
Problem Possible causes/consequences and
000B Solutions
The engine does not
start. The HOLD function or DISTRONIC PLUS is activated.
X
Deactivat ethe HOLD function (Y page 171) or DISTRONIC
PLUS (Y page 162).
X Try to start the engine again. The engine does not
start. The starter motor
can be heard. R
There is amalfunction in the engine electronics.
R There is amalfunction in the fuel supply.
X Turn the SmartKey back to position 0in the ignition lock before
attempting to start the engine again.
X Try to start the engine again (Y page 137). Avoid excessively
long and frequent attemptstos tart the engine as these will drain
the battery.
If the engine does not start after several attempts:
X Consult aqualified specialist workshop. The engine does not
start. You cannot hear
the starter motor. The on-board voltage is too low because the battery is too weak
or discharged.
X
Jump-start the vehicle (Y page 303).
If the engine does not start despite attemptstoj ump-start it:
X Consult aqualified specialist workshop, e.g. an authorized
Mercedes-Benz Center. The starter motor was exposed to
athermal load that was too high.
X Allow the starter motor to cool down for approximately two
minutes.
X Try to start the engine again.
If the engine still does not start:
X Consult aqualified specialist workshop. 142
DrivingDriving and parking
