2013 TOYOTA SIENNA Owners Manual

521
3-4. Using the rear audio system
3
Interior features
SIENNA_OM_OM45472U_(U)
■
DVD video disc glossary
● DVD video discs: Digital Versatile Discs that hold world’s standard video.
DVD video discs have adopted “MPEG2”, one of the world standards of
digital compression technologies. The picture data is compressed by 1/
40 on average and stored. Variable rate encoded technology has been
adopted in which the volume of data assigned to the picture is changed
depending on the picture format. Audio data is stored using PCM and
Dolby digital, which enables higher quality of sound. Furthermore, multi-
angle and multi-language features will also help you enjoy the more
advanced technology of DVD video.
● Viewer restrictions: This feature limits what can be viewed in conformity
with the level of restrictions of the country. The level of restrictions varies
depending on the DVD video disc. Some DVD video discs cannot be
played at all, or violent scenes are skipped or replaced with other scenes.
• Level 1: DVD video discs for children can be played.
• Level 2 - 7: DVD video discs for children and G-rated movies can be
played.
• Level 8: All types of DVD video discs can be played.

522 3-4. Using the rear audio system
SIENNA_OM_OM45472U_(U)
●Multi-angle feature: Allows you to enjoy the same scene at different
angles.
● Multi-language feature: Allows you to select the language of the subtitles
and audio.
● Region codes: Region codes are provided on DVD players and DVD
discs. If the DVD video disc does not have the same region code as the
DVD player, you cannot play the disc on the DVD player.
● Audio: This DVD player can play li ner PCM, Dolby digital, dts and MPEG
audio format DVD. Other decoded type cannot be played.
● Title and chapter: Video and audio programs stored on DVD video discs
are divided into sections by title and chapter.
● Title: The largest unit of the video and audio programs stored on DVD
video discs. Usually, one piece of a movie, one album, or one audio pro-
gram is assigned as a title.
● Chapter: A unit smaller than a title. A title comprises multiple chapters.
■ Audio
Manufactured under licence from Dolb y Laboratories. “Dolby” and the dou-
ble-D symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674;
5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued
& pending. DTS is a registered trademark and the DTS logos, Symbol and
DTS 2.0 Channel are trademarks of DTS, lnc.
©1996-2008 DTS, lnc. All
Rights Reserved.

523
3-4. Using the rear audio system
3
Interior features
SIENNA_OM_OM45472U_(U)

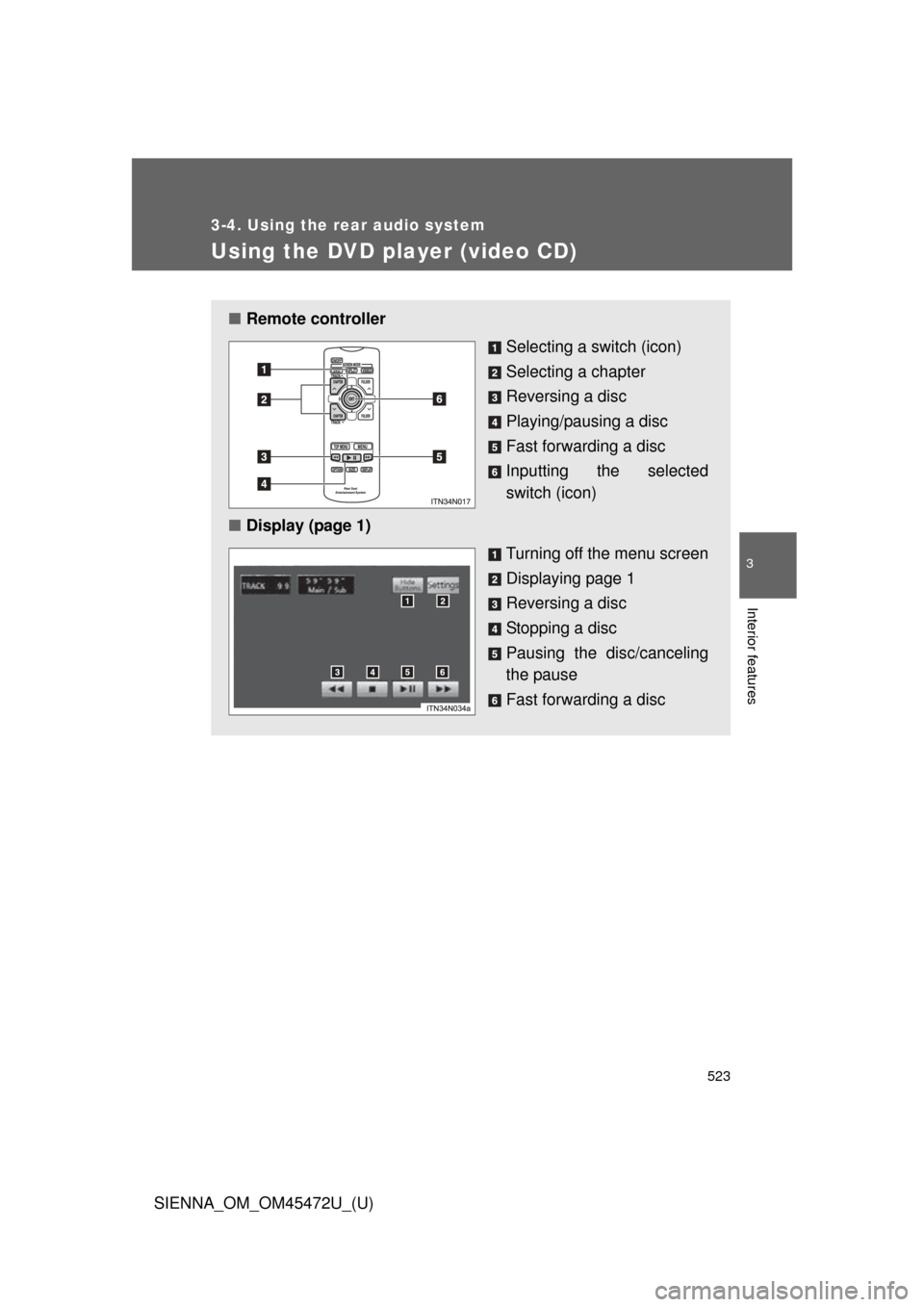

Using the DVD player (video CD)
■Remote controller
Selecting a switch (icon)
Selecting a chapter
Reversing a disc
Playing/pausing a disc
Fast forwarding a disc
Inputting the selected
switch (icon)
■ Display (page 1)
Turning off the menu screen
Displaying page 1
Reversing a disc
Stopping a disc
Pausing the disc/canceling
the pause
Fast forwarding a disc

524 3-4. Using the rear audio system
SIENNA_OM_OM45472U_(U)

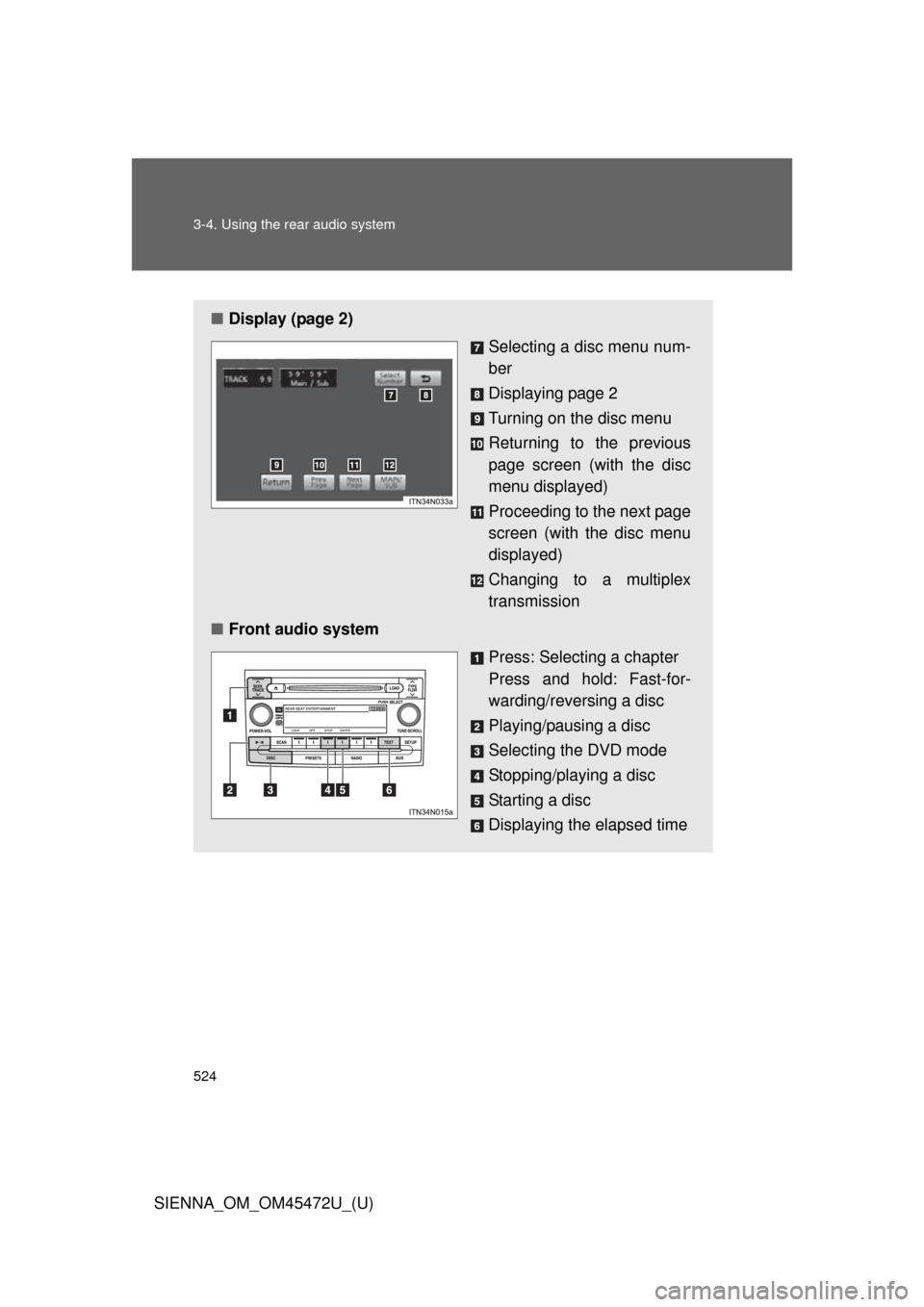

■Display (page 2)
Selecting a disc menu num-
ber
Displaying page 2
Turning on the disc menu
Returning to the previous
page screen (with the disc
menu displayed)
Proceeding to the next page
screen (with the disc menu
displayed)
Changing to a multiplex
transmission
■ Front audio system
Press: Selecting a chapter
Press and hold: Fast-for-
warding/reversing a disc
Playing/pausing a disc
Selecting the DVD mode
Stopping/playing a disc
Starting a disc
Displaying the elapsed time

525
3-4. Using the rear audio system
3
Interior features
SIENNA_OM_OM45472U_(U)
Selecting a desired screen
■ Selecting a menu number
Select on the control icon screen. Input the desired menu number
and select .
: deletes the last input num-ber
: returns to the previous screen
■ Searching manually
Select or on the screen, or press or
until the desired screen appears.
STEP1
STEP2

526 3-4. Using the rear audio system
SIENNA_OM_OM45472U_(U)
Changing the sound-multiplex modeSelect on the control icon screen. The mode cycles through
each time the is pressed.
“Main”  “Sub”  “Main/Sub”
Slow playback
Press or select to pause video and then press
or select . Video is played slowly when you press or
select by pressing and holding .

527
3-4. Using the rear audio system
3
Interior features
SIENNA_OM_OM45472U_(U)
Using the DVD player (audio CD/CD text)
■Canceling random, repeat and scan play
Select , or again.
Press to display the
control screen.
Repeat play
Random playback
Search playback
■ Front audio system
Press: Selecting a chapter
Press and hold: Fast-for-
warding/reversing a disc
Playing/pausing a disc
Selecting the DVD mode
Repeat play (P. 441)
Random playback
(  P. 440)
Displaying the elapsed time

528
3-4. Using the rear audio system
SIENNA_OM_OM45472U_(U)
Using the DVD player (WMA/MP3 discs)
Repeat play■ Repeating a file
Select .
■ Repeating all of the files in a folder
Select , and press and hold .
■Using the control screen
Press to display the
control screen.
Repeat play
Random playback
Search playback
■ Front audio system
Press: Selecting a chapter
Press and hold: Fast-for-
warding/reversing a disc
Playing/pausing a disc
Selecting the DVD mode
Repeat play (P. 450)
Random playback
(  P. 449)
Displaying the elapsed time
