2013 TOYOTA SIENNA Owners Manual

425
3-2. Using the audio system
3
Interior features
SIENNA_OM_OM45472U_(U)
NOTICE
■
To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine o\
ff.
■ To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

426
3-2. Using the audio system
SIENNA_OM_OM45472U_(U)

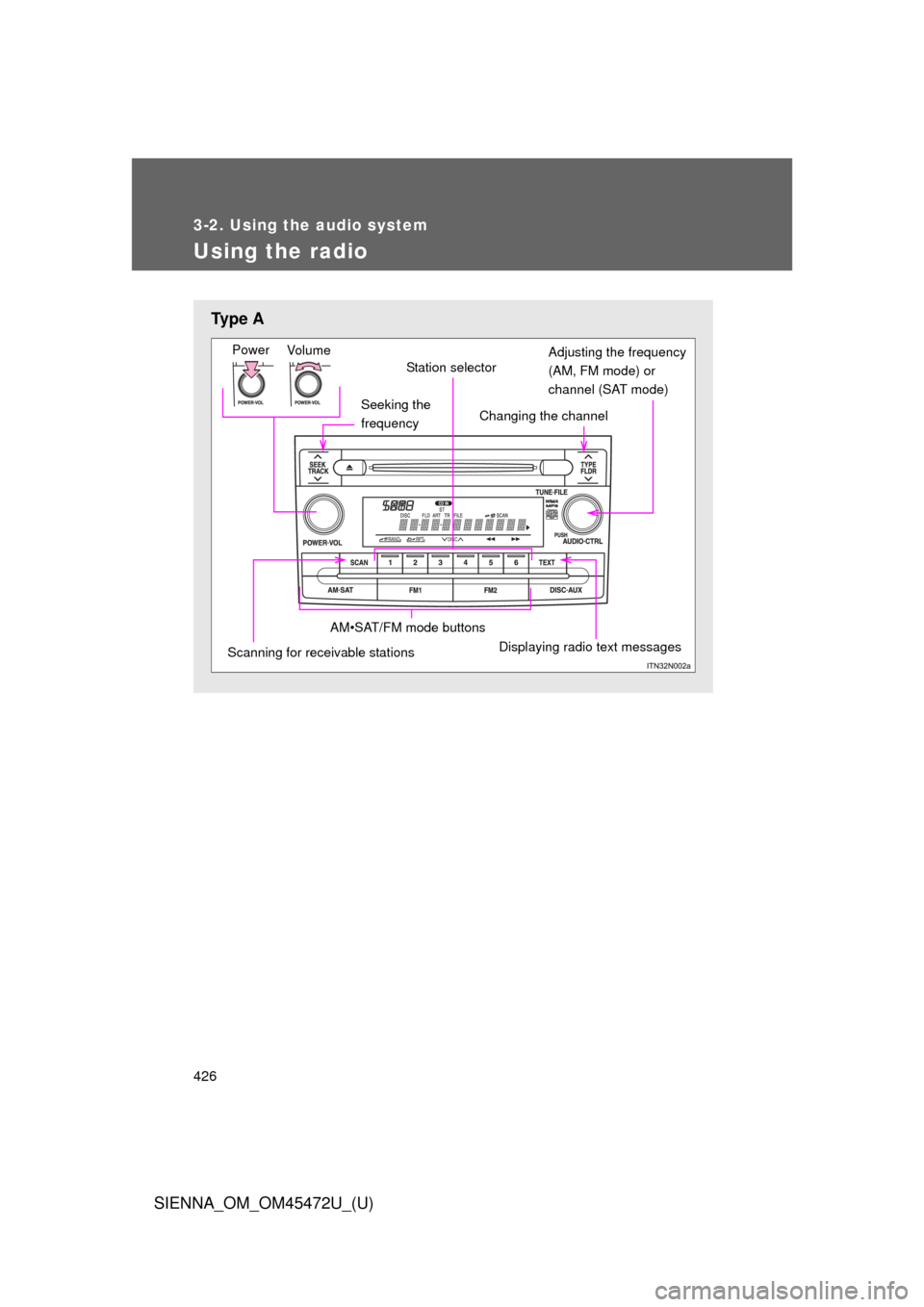

Using the radio
Ty p e A
Seeking the
frequency
Vo lu m e
Power
Station selector
Changing the channel
AM•SAT/FM mode buttons
Scanning for receivable stationsDisplaying radio text messages
Adjusting the frequency
(AM, FM mode) or
channel (SAT mode)

427
3-2. Using the audio system
3
Interior features
SIENNA_OM_OM45472U_(U)

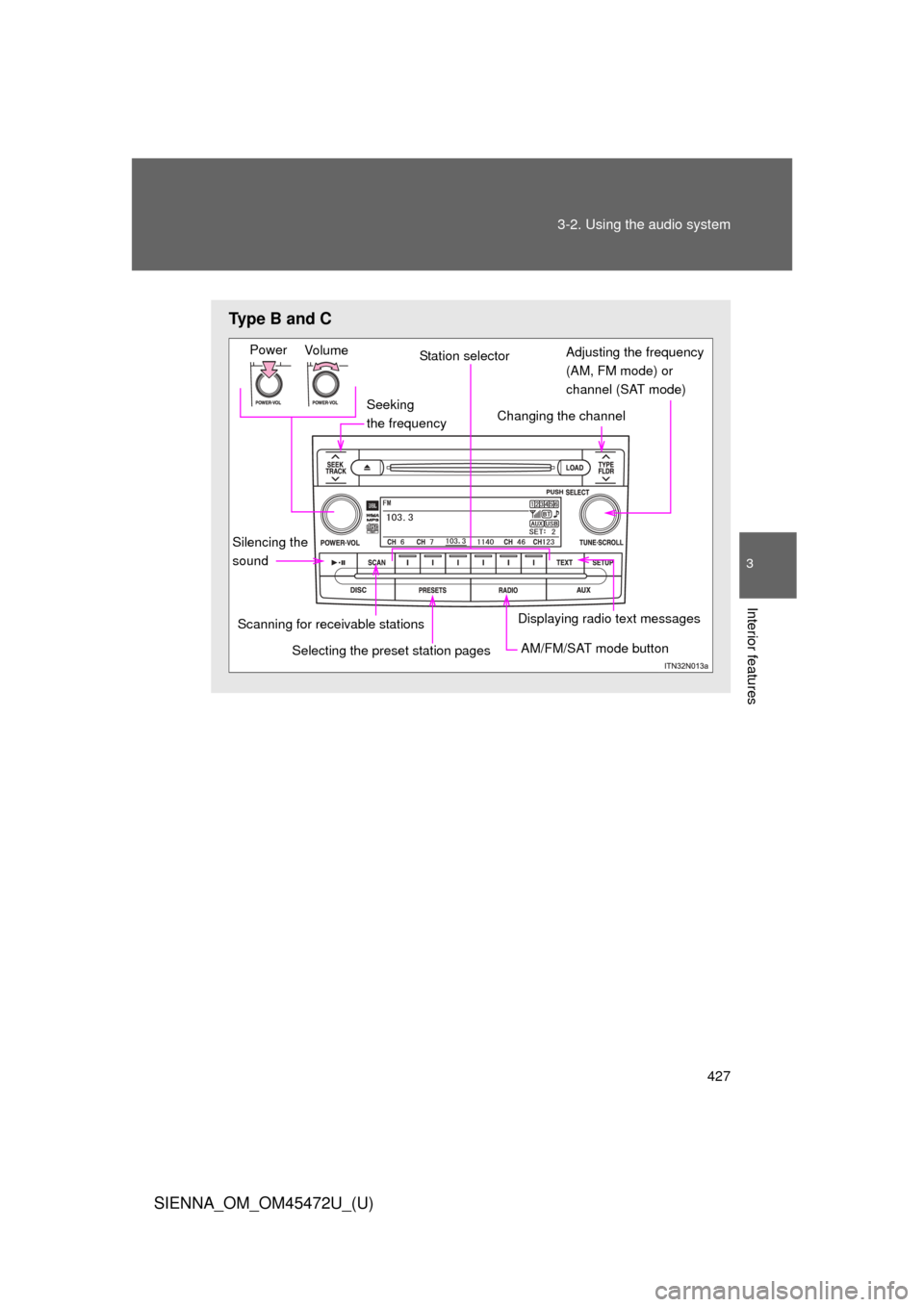

Type B and C
Seeking
the frequency
Vo lu m e
Power
Station selector
Changing the channel
AM/FM/SAT mode button
Scanning for receivable stations
Displaying radio text messages
Adjusting the frequency
(AM, FM mode) or
channel (SAT mode)
Selecting the preset station pages
Silencing the
sound

428 3-2. Using the audio system
SIENNA_OM_OM45472U_(U)
Setting station presets (excluding XM® Satellite Radio)
Search for desired stations by turning or or
pressing “ ” or “ ” on .
Press and hold the button (from to or one of )
until you hear a beep.
Type B and C:
Each time is pressed, station pages are changed. There
are 6 sets of 6 presets. There is a total of 36 presets.
STEP1
STEP2

429
3-2. Using the audio system
3
Interior features
SIENNA_OM_OM45472U_(U)
Scanning radio stations (excluding XM® Satellite Radio)
■ Scanning the preset radio stations
Press and hold until you hear a beep.
Preset stations will be played for 5 seconds each.
When the desired station is reached, press once
again.
■ Scanning all radio stations within range
Press .
All stations with reception w ill be played for 5 seconds each.
When the desired station is reached, press once
again.
■ Displaying radio text messages (for type B and C, FM mode
only)
When a new radio text message is received, “MSG” is shown on
the display. To display the message, press .
If the text continues past the end of the display, “ ” is displayed.
Press and hold until you hear a beep.
Text messages are not displayed while driving.
STEP1
STEP2
STEP1
STEP2

430 3-2. Using the audio system
SIENNA_OM_OM45472U_(U)
XM® Satellite Radio (if equipped)
■ Receiving XM
® Satellite Radio
Press or .
The display changes as follows each time the button is pressed.
Ty p e A
AM  SAT1  SAT2  SAT3
Ty p e B a n d C
AM  FM  SAT
Turn or to select a desired channel in all the
categories or press “ ” or “ ” on to select the desired
channel in the current category.
■ Setting XM
® Satellite Radio channel presets
Select the desired channel. Press and hold a button (from to
or one of ) until you hear a beep.
Type B and C:
Each time is pressed, station pages are changed. There is a
total of 6 sets of 6 presets.
STEP1
STEP2

431
3-2. Using the audio system
3
Interior features
SIENNA_OM_OM45472U_(U)
■
Changing the channel category
Press “ ” or “ ” on .
■ Scanning XM
® Satellite Radio channels
● Scanning channels in the current category
Press .
When the desired channel is reached, press the button
again.
● Scanning preset channels
Press and hold until you hear a beep.
When the desired channel is reached, press the button
again.
■ Displaying text information
Press .
Each time is pressed, the display changes in the following
order:
Ty p e A
Channel name  Title (song/program title)  Name (artist name/
feature)  Channel number.
Type B and C
Title (song/ program title)  Title (song/program title)/Name (artist
name/ feature).
STEP1
STEP2
STEP1
STEP2

432 3-2. Using the audio system
SIENNA_OM_OM45472U_(U)
Silencing the sound (type B and C)Press .
Press the button again to turn the system back on.
■ When the battery is disconnected (type A only)
All preset stations are erased.
■ Radio antenna type
● Detachable antenna (type A and B)
To remove a detachable antenna, carefully turn it counterclockwise.
● Wire antenna (type C)
The radio antenna is mounted inside the rear quarter window.
■ Reception sensitivity
● Type B and C  Cargo loaded on the roof luggage carrier, especially
metal objects, may adversely affect the reception of XM
® Satellite Radio.
● Maintaining perfect radio reception at all times is difficult due to the con-
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains, transmitters, etc.
● Type C  The radio antenna is mounted inside the rear quarter window.
To maintain clear radio reception, do not attach metallic window tinting or
other metallic objects to the antenna wire mounted inside the rear quarter
window.
