2013 TOYOTA SIENNA Owners Manual

257
2-2. Instrument cluster and information display
2
When driving
SIENNA_OM_OM45472U_(U)
■
Tr i p Ti m e r
Set up display
■ Before setting
Press the “SETUP” button while
the vehicle is stopped.
The “Custom Settings” screen is
displayed on the multi-information
display.
If left idle for approximately 20
seconds, the display will revert to
the previous screen.
Select “Display / Clock” by
pressing the “INFO” or “SETUP”
button, and press the “SELECT
RESET” button.
If you select “Exit” and press
“SELECT RESET”, the display
will revert to the previous screen.
Displays the elapsed time since the timer was
reset.
The timer only functions when the engine is running.
The timer can be started and paused by pressing the
“SELECT RESET” button, and reset by pressing and
holding the “SELECT RESET” button when the trip
timer is displayed.
STEP1
STEP2

258 2-2. Instrument cluster and information display
SIENNA_OM_OM45472U_(U)Select the desired item by press-
ing the “INFO” or “SETUP” but-
ton.
Press the “SELECT RESET” but-
ton to enter the setting mode.
The current setting is indicated by
yellow text.
■
Setting the clock
Select “Clock” on the “Display Settings” screen, and press the
“SELECT RESET” button.
Press the “INFO” button to adjust
the hours and the “SETUP” but-
ton to adjust the minutes.
Press the “SELECT RESET” but-
ton to set the clock.
■Selecting the units
Select “Units” on the “Display Settings” screen, and press the
“SELECT RESET” button.
Select the units you want to read
by pressing the “INFO” or
“SETUP” button.
Press the “SELECT RESET” but-
ton to set the units.
The current setting is indicated by
yellow text.
STEP3
STEP1
STEP2
STEP1
STEP2

259
2-2. Instrument cluster and information display
2
When driving
SIENNA_OM_OM45472U_(U)
■
Selecting the language
Select “Language” on the “Display Settings” screen, and
press the “SELECT RESET” button.
Select the language you want to
read by pressing the “INFO” or
“SETUP” button.
Press the “SELECT RESET” but-
ton to set the language.
The current setting is indicated by
yellow text.
To shortcut directly to the “Lan-
guage” screen from the initial
“Custom Settings” screen, press
and hold the “SETUP” button for
5 seconds.
■Setting up the information display
Select “Screen Settings” on the “Display Settings” screen, and
press the “SELECT RESET” button.
For vehicles without a navigation
system, select “Climate / Info” by
pressing the “INFO” or “SETUP”
button.
Press the “SELECT RESET” but-
ton to enter the adjustment mode.
STEP1
STEP2
STEP1
STEP2

260 2-2. Instrument cluster and information display
SIENNA_OM_OM45472U_(U)●
Setting the brightness
Select “Brightness” on the
“Screen Settings” screen, and
press the “SELECT RESET” but-
ton.
Press the “INFO” or “SETUP”
button to adjust the brightness.
+: Brighter
-: Darker
Press the “SELECT RESET” but-
ton to exit the screen.
STEP1
STEP2

261
2-2. Instrument cluster and information display
2
When driving
SIENNA_OM_OM45472U_(U)
●
Setting the contrast
Select “Contrast” on the “Screen
Settings” screen, and press the
“SELECT RESET” button.
Press the “INFO” or “SETUP”
button to adjust the contrast.
+: Strengthen
-: Weaken
Press the “SELECT RESET” but-
ton to exit the screen.
■ Setting up the rear view monitor display (if equipped with the
rear view monitor system)
Select “Screen Settings” on the “Display Settings” screen, and
press the “SELECT RESET” button.
Select “Back Monitor” by press-
ing the “INFO” or “SETUP” but-
ton.
Press the “SELECT RESET” but-
ton to enter the adjustment mode.
STEP1
STEP2
STEP1
STEP2

262 2-2. Instrument cluster and information display
SIENNA_OM_OM45472U_(U)●
Setting the brightness
Select “Brightness” on the
“Screen Settings” screen, and
press the “SELECT RESET” but-
ton.
Press the “INFO” or “SETUP”
button to adjust the brightness.
+: Brighter
-: Darker
Press the “SELECT RESET” but-
ton to the exit screen.
● Setting the contrast
Select “Contrast” on the “Screen
Settings” screen, and press the
“SELECT RESET” button.
STEP1
STEP2
STEP1

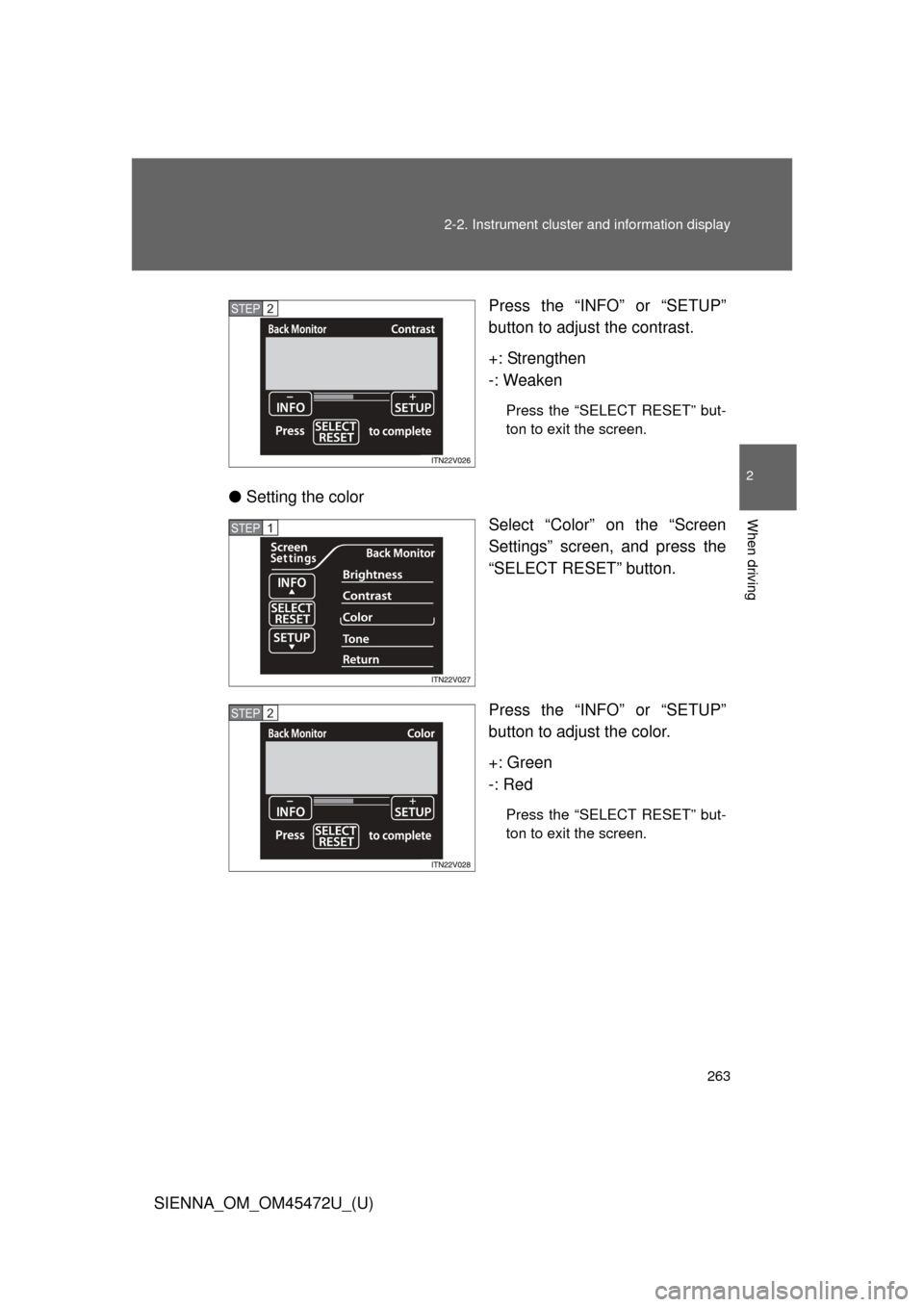

263
2-2. Instrument cluster and information display
2
When driving
SIENNA_OM_OM45472U_(U)
Press the “INFO”
or “SETUP”
button to adjust the contrast.
+: Strengthen
-: Weaken
Press the “SELECT RESET” but-
ton to exit the screen.
● Setting the color
Select “Color” on the “Screen
Settings” screen, and press the
“SELECT RESET” button.
Press the “INFO” or “SETUP”
button to adjust the color.
+: Green
-: Red
Press the “SELECT RESET” but-
ton to exit the screen.
STEP2
STEP1
STEP2

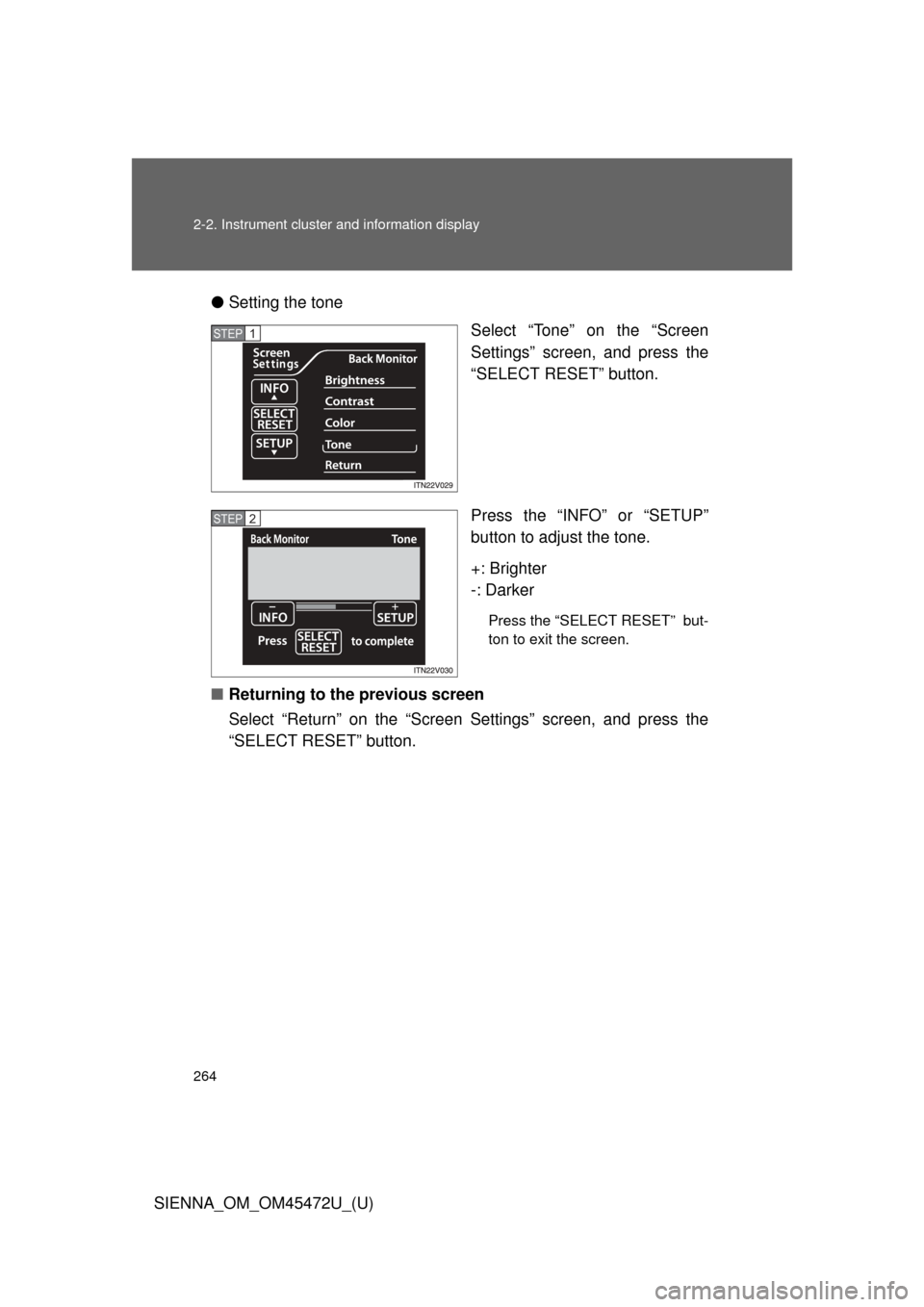

264 2-2. Instrument cluster and information display
SIENNA_OM_OM45472U_(U)●
Setting the tone
Select “Tone” on the “Screen
Settings” screen, and press the
“SELECT RESET” button.
Press the “INFO” or “SETUP”
button to adjust the tone.
+: Brighter
-: Darker
Press the “SELECT RESET” but-
ton to exit the screen.
■ Returning to the previous screen
Select “Return” on the “Screen Settings” screen, and press the
“SELECT RESET” button.
STEP1
STEP2
