2013 TOYOTA SIENNA Owners Manual

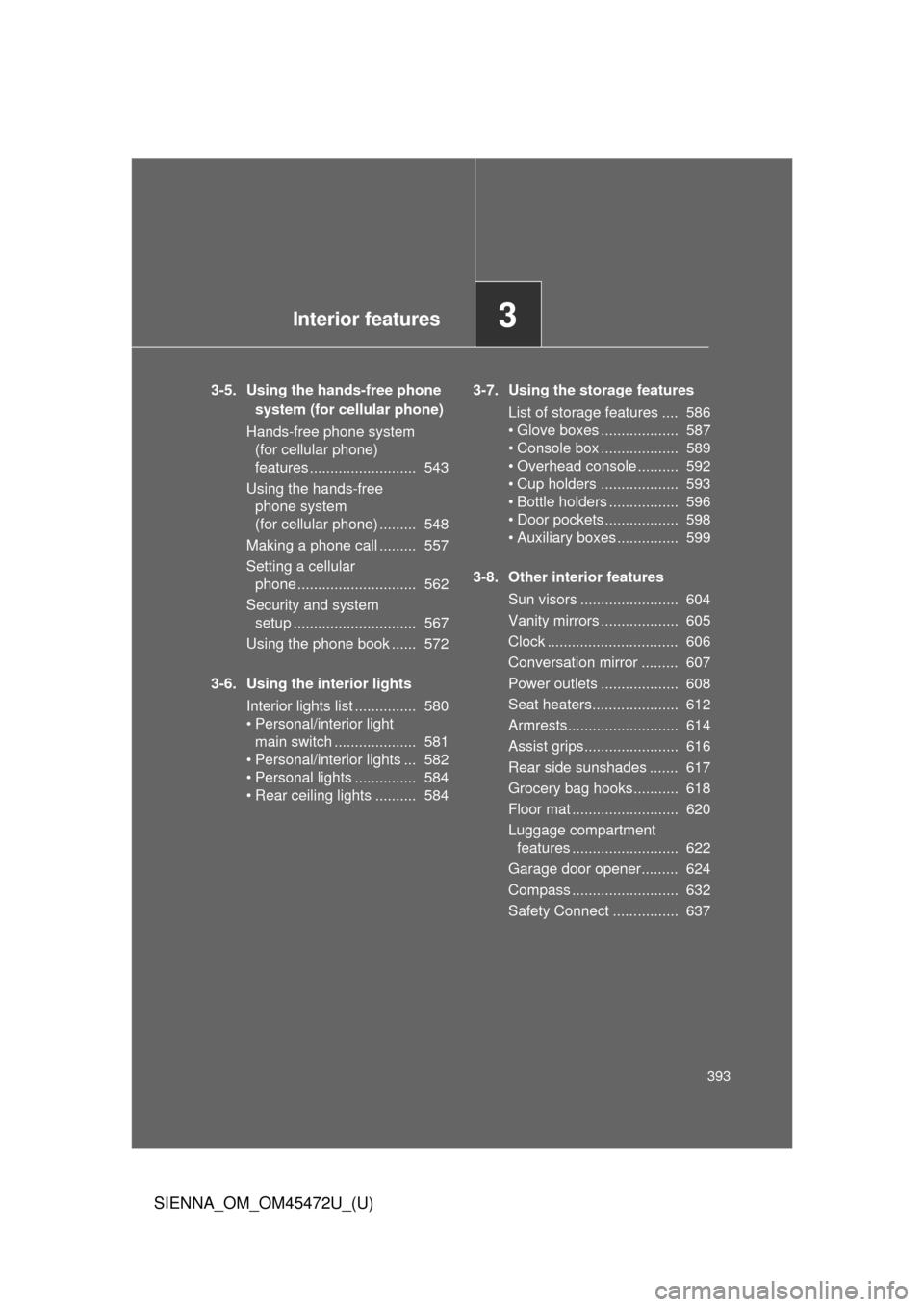

Interior features3
393
SIENNA_OM_OM45472U_(U)
3-5. Using the hands-free phone system (for cellular phone)
Hands-free phone system (for cellular phone)
features .......................... 543
Using the hands-free phone system
(for cellular phone) ......... 548
Making a phone call ......... 557
Setting a cellular phone ............................. 562
Security and system setup .............................. 567
Using the phone book ...... 572
3-6. Using the interior lights Interior lights list ............... 580
• Personal/interior light main switch .................... 581
• Personal/interior lights ... 582
• Personal lights ............... 584
• Rear ceiling lights .......... 584 3-7. Using the storage features
List of storage features .... 586
• Glove boxes ................... 587
• Console box ................... 589
• Overhead console .......... 592
• Cup holders ................... 593
• Bottle holders ................. 596
• Door pockets .................. 598
• Auxiliary boxes ............... 599
3-8. Other interior features Sun visors ........................ 604
Vanity mirrors ................... 605
Clock ................................ 606
Conversation mirror ......... 607
Power outlets ................... 608
Seat heaters..................... 612
Armrests........................... 614
Assist grips....................... 616
Rear side sunshades ....... 617
Grocery bag hooks........... 618
Floor mat .......................... 620
Luggage compartment features .......................... 622
Garage door opener......... 624
Compass .......................... 632
Safety Connect ................ 637

394
SIENNA_OM_OM45472U_(U)
3-1. Using the air conditioning system and defogger
Front manual air conditioning system
Adjusting the settings■ Basic setting
To turn on the air conditioning system and adjust the fan
speed, press “ ” on to increase the fan speed and “ ” to
decrease the fan speed.
The fan speed is shown on the control panel. (6 levels)
Press to turn the fan off.
: If equipped
Front fan speed
Air outlet selector
buttons
Driver’s side temperature
control dial
Rear temperature control dial
Passenger’s side
temperature control dial
Rear fan speed
Off
Windshield defogger
Outside air or recirculated air mode
Front air
conditioning
on/off switch
STEP1

395
3-1. Using the air conditioning system
and defogger
3
Interior features
SIENNA_OM_OM45472U_(U)Driver’s side temperature control dial
Turn the temperature control dial clockwise (warm) or coun-
terclockwise (cool).
If is not pressed, the system will blow ambient temperature air
or heated air.
For quick cooling, turn the temperature control dial to the “MAX A/C”
position. The air conditioning will automatically turn on and the air
circulation mode will be set to recirculated air mode.
When the dial is in the “MAX A/C” position, the air conditioning sys-
tem cannot be turned off even if is pressed.
Front passenger’s side temperature control dial
Turn the temperature control dial clockwise (warm) or counter
clockwise (cool).
STEP2

396 3-1. Using the air conditioning system and defogger
SIENNA_OM_OM45472U_(U)To change the air outlets, press , , or
.
Air flows as shown below according to the mode selected. Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows mainly to the feet.
STEP3

397
3-1. Using the air conditioning system
and defogger
3
Interior features
SIENNA_OM_OM45472U_(U) Air flows to the feet and the
windshield defogger operates.
■ Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (introduces air from out-
side the vehicle) (indicator off) and recirculated air mode (recycles air
inside the vehicle) (indicator on) each time the button is pressed.
Changing the rear setting
■ Adjusting the temperature setting
Turn the rear temperature control dial clockwise (increase) or
counterclockwise (decrease).
When the rear temperature control dial is turned to “REAR
CTRL”, the rear temperature and fan speed can be operated
from the rear air conditioning control panel. ( P. 412)

398 3-1. Using the air conditioning system and defogger
SIENNA_OM_OM45472U_(U)■
Adjusting rear fan speed
Press “ ” on to increase the fan speed and “ ” to decrease
the fan speed.
The fan speed is shown on the control panel. (4 levels)
Press to turn the fan off.
Defogging the windshield Press .
The air conditioning system oper-
ates automatically.
Recirculated air mode will auto-
matically switch to outside air
mode. It is not possible to return
to recirculated air mode when the
switch is on.
Pressing again will revert
to the previous air outlet mode.

399
3-1. Using the air conditioning system
and defogger
3
Interior features
SIENNA_OM_OM45472U_(U)
Adjusting the position of and opening and closing the air outlets
Center outlets Direct air flow to the left or right,
up or down.
Right and left side outlets Adjusting: Direct air flow to theleft or right, up or
down.
Opening and closing: Close the vent.
Open the vent.

400 3-1. Using the air conditioning system and defogger
SIENNA_OM_OM45472U_(U)
■Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ When
is selected for the air outlets used
For your driving comfort, air flowing to the feet may be warmer than air flow-
ing to the upper body depending on the temperature setting.
■ When the indicator light on flashes
Press
and turn off the air conditioning system before turning it on once
more. There may be a problem in the ai r conditioning system if the indicator
light continues to flash. Turn the air conditioning system off and have it
inspected by your Toyota dealer.
■ Air conditioning odors
● During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
● To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
