2013 TOYOTA SIENNA Owners Manual

721
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_OM_OM45472U_(U)
FuseAmpereCircuit
6 ECU-IG NO.1 10 A Multiplex communication system,
stop lights, navigation system,
vehicle stability control system,
Active Torque Control 4WD, intui-
tive parking assist, auto anti-glare
inside rear view mirror, pre-collision
seat belt, outside rear view mirror,
seat heater, TPMS, yaw rate & G
sensor, steering angle sensor,
AUTO ACCESS SEAT, main body
ECU
7 P/W RL 20 A Rear power windows (left-side)
8 D/L 15 A Power door lock system
9 P/SEAT FR 30 A Power front seat (right-side)
10 S/ROOF 30 A Moon roof 11 P/W RR 20 A Rear power windows (right-side)
12 P/W FR 20 A Front power windows (right-side)
13 P/SEAT FL 30 A Power front seat (left-side), driving
position memory system
14 STOP 10 A Stop lights, ABS, vehicle stability
control system, rear combination
light, high mounted stop light, auto-
matic transaxle, shift lock system,
multiplex communication system,
power third seat switch, multiport
fuel injection system/sequential
multiport fuel injection system,
trailer lights (stop lights)
15 P/W FL 20 A Front power windows (left-side)

722 4-3. Do-it-yourself maintenance
SIENNA_OM_OM45472U_(U)
FuseAmpereCircuit
16 PSD LH 25 A Power sliding door (left-side)
17 4WD 7.5 A Active Torque Control 4WD
18 AM1 10 A Starting system
19 GAUGE NO.2 7.5 A Gauges and meters, multi informa-
tion display
20 IG2 7.5 A Automatic transaxle, multiport fuel
injection system/sequential multi-
port fuel injection system, SRS air-
bag system, front passenger
occupant classification system,
steering lock system, smart key
system, starting system, fuel pump
21 PANEL 10 A Air conditioning system, navigation
system, front passenger’s seat belt
reminder light, audio system, steer-
ing switch, intuitive parking assist
switch, personal/interior light main
switch, shift lever light, headlight
levering switch, power door lock
main switch, clock, power quarter
window switch, seat heater switch,
emergency flashers, rear window
defogger switch, vehicle stability
control off switch, console box light,
power slide switch light

723
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_OM_OM45472U_(U)
FuseAmpereCircuit
22 TAIL 10 A Tail lights, trailer lights (tail lights),
license plate light, rear combination
lights
23 WIP ECU 7.5 A Windshield wiper and rear window
wiper
24 P/VENT 15 A Power quarter windows
25 AFS 10 A Automatic High Beam
26 WIP 30 A Windshield wiper
27 WASHER 20 A Windshield washer
28 WIP RR 20 A Rear window wiper
29 WASHER RR 15 A Rear window washer
30 HTR-IG 10 A Air conditioning system
31 SHIFT LOCK 7.5 A Shift lock system, multiport fuel
injection system/sequential multi-
port fuel injection system
32 ECU-IG NO.2 10 A Pre-collision system, pre-collision
seat belt, dynamic radar cruise
control, electric power steering,
rain-sensing windshield wipers,
driving position memory system,
power sliding door, power third
seat, power back door, multiplex
communication system
33 PSD RH 25 A Power sliding door (right-side)
34 OBD 7.5 A On-board diagnosis system
35 S-HTR FL 15 A Seat heater (left-side)
36 S-HTR FR 15 A Seat heater (right-side)

724 4-3. Do-it-yourself maintenance
SIENNA_OM_OM45472U_(U)
■After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 725)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.

725
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_OM_OM45472U_(U)

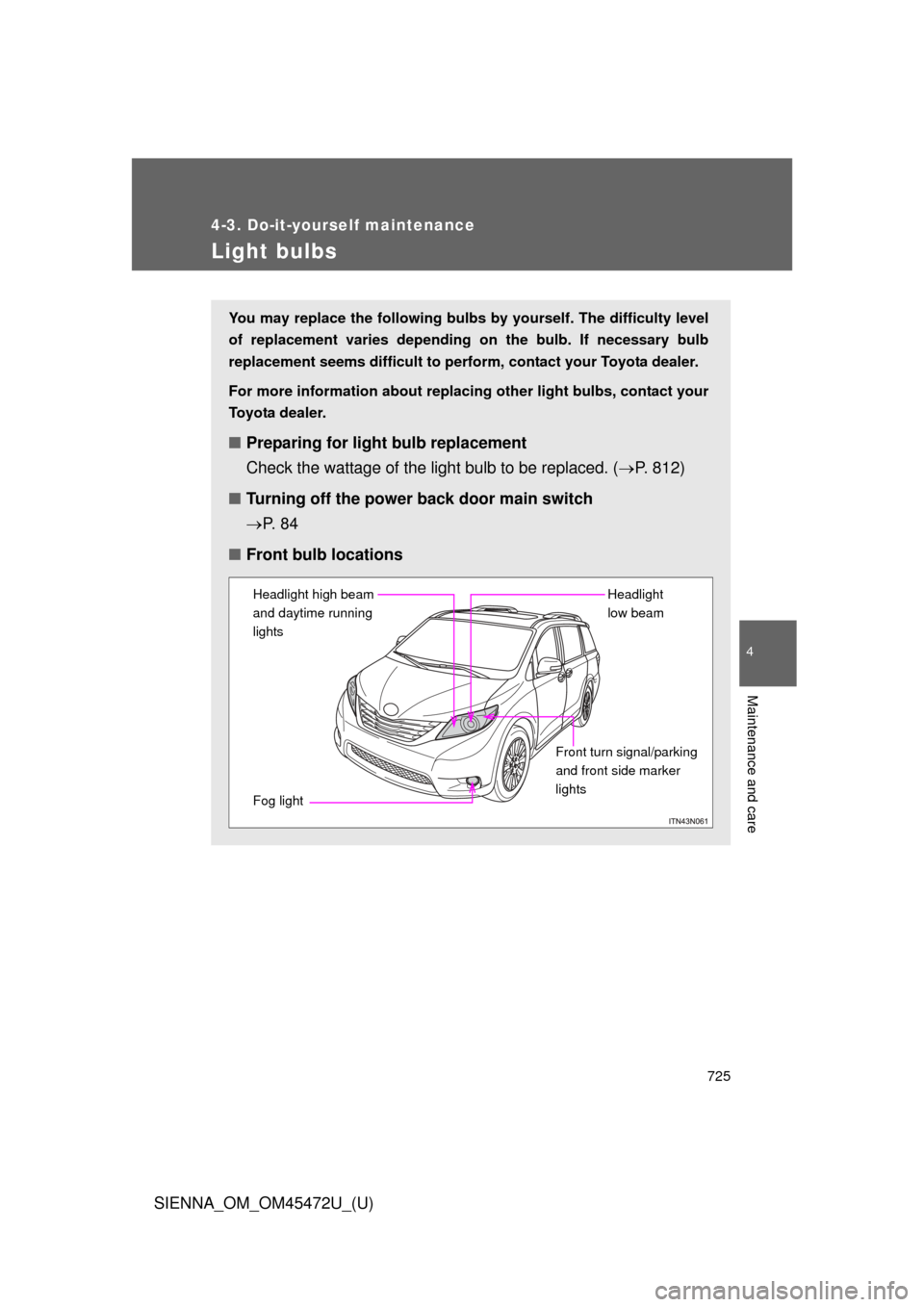

Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( P. 812)
■ Turning off the power back door main switch
P. 8 4
■ Front bulb locations
Fog light Headlight high beam
and daytime running
lights Headlight
low beam
Front turn signal/parking
and front side marker
lights

726 4-3. Do-it-yourself maintenance
SIENNA_OM_OM45472U_(U)
Replacing light bulbs■ Headlight low beams (halogen bulb)
For left side only:
Open the fuse box cover. ( P. 712)
Unplug the connector while
pushing the lock release.

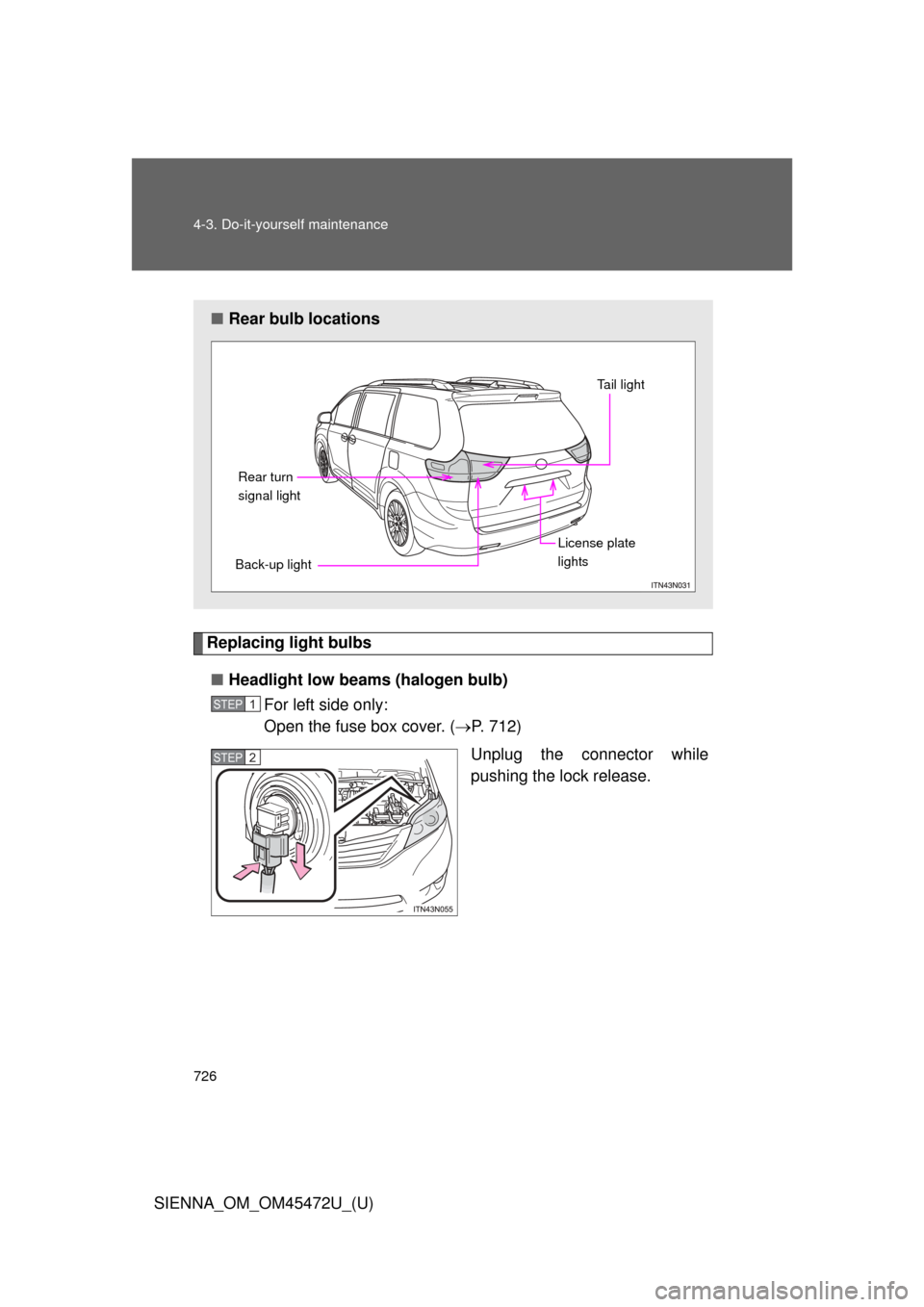

■ Rear bulb locations
Back-up lightRear turn
signal light
License plate
lightsTail light
STEP1
STEP2

727
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_OM_OM45472U_(U)

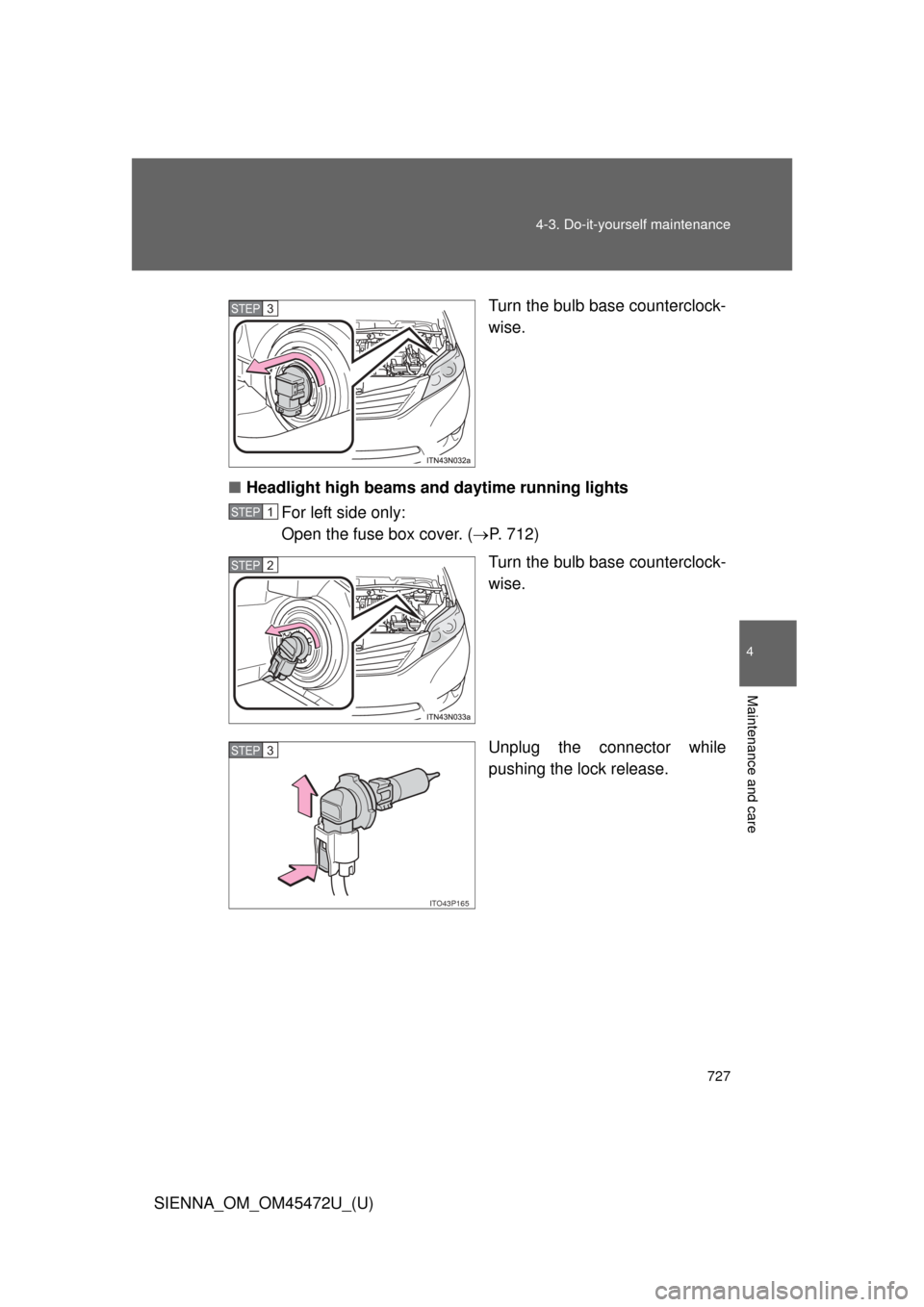

Turn the bulb base counterclock-
wise.
■ Headlight high beams and daytime running lights
For left side only:
Open the fuse box cover. ( P. 712)
Turn the bulb base counterclock-
wise.
Unplug the connector while
pushing the lock release.
STEP3
STEP1
STEP2
ITO43P165
STEP3

728 4-3. Do-it-yourself maintenance
SIENNA_OM_OM45472U_(U)■

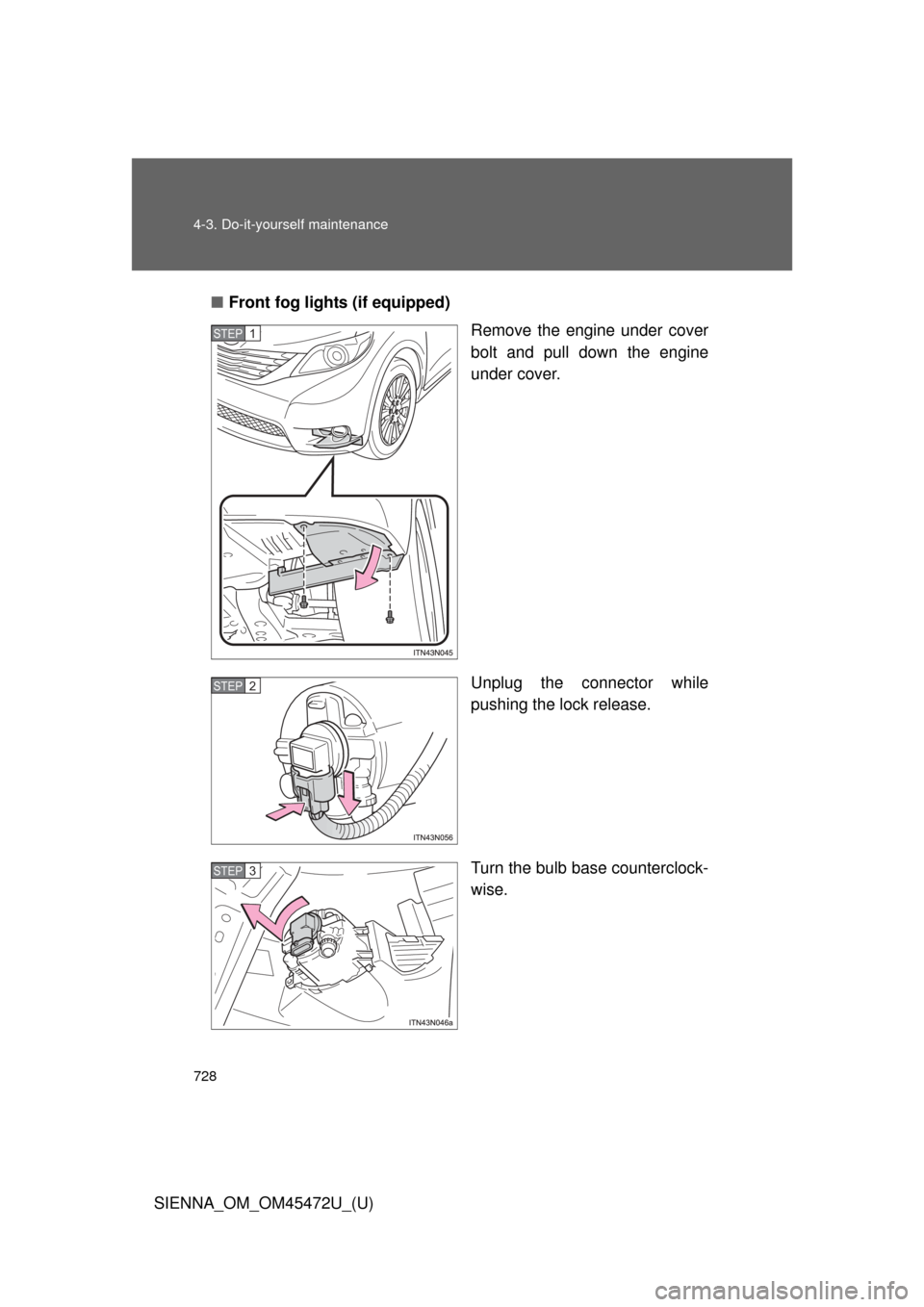

Front fog lights (if equipped)
Remove the engine under cover
bolt and pull down the engine
under cover.
Unplug the connector while
pushing the lock release.
Turn the bulb base counterclock-
wise.
STEP1
STEP2
STEP3
