2013 TOYOTA SIENNA Owners Manual

145
1-4. Opening and closing the windows and moon roof
1
Before driving
SIENNA_OM_OM45472U_(U)
■
The power windows can be operated when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ Operating the power windows af ter turning the engine off
Vehicles without a smart key system
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They can-
not, however, be operated once either front door is opened.
Vehicles with a smart key system
The power windows can be operated for approximately 45 seconds even
after the “ENGINE START STOP” swit ch is turned to ACCESSORY mode or
turned off. They cannot, however, be operated once either front door is
opened.
■ Jam protection function
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.

146 1-4. Opening and closing the windows and moon roof
SIENNA_OM_OM45472U_(U)
■When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot
be closed, perform the following operations using the power window switch
on the relevant door.
● After stopping the vehicle, the window can be closed by holding the
power window switch in the one-touch closing position while the engine
switch is turned to the “ON” position (vehicles without a smart key sys-
tem) or the “ENGINE START STOP” switch is turned to IGNITION ON
mode (vehicles with a smart key system).
● If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position.
Continue holding the switch for a further 6 seconds after the win-
dow has closed.
Hold the power window switch in the one-touch opening position.
Continue holding the switch for a further 2 seconds after the win-
dow has opened completely.
Hold the power window switch in the one-touch closing position
once again. Continue holding the switch for a further 2 seconds
after the window has closed.
If you release the switch while the window is moving, start again from the
beginning. If the window continues to close but then re-open slightly even
after performing the above procedure correctly, have the vehicle inspected
by your Toyota dealer.
STEP1
STEP2
STEP3

147
1-4. Opening and closing the windows and moon roof
1
Before driving
SIENNA_OM_OM45472U_(U)
CAUTION
■
Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in
some instances, even death.
■ Jam protection function
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the window fully closes.
● The jam protection function is disabled if the switch is pulled and held dur-
ing one-touch closing operation.

148
1-4. Opening and closing the windows and moon roof
SIENNA_OM_OM45472U_(U)

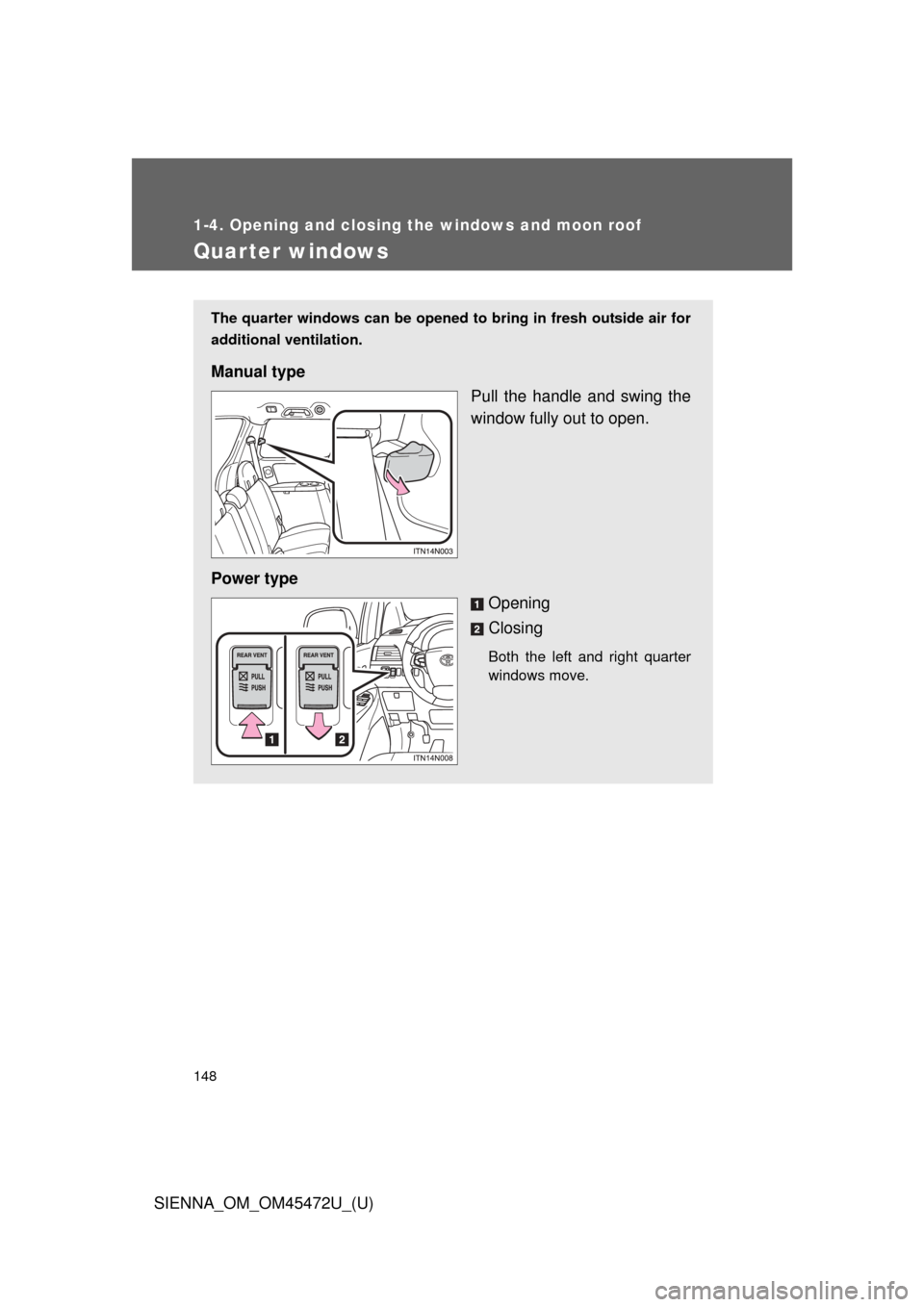

Quarter windows
The quarter windows can be opened to bring in fresh outside air for
additional ventilation.
Manual type
Pull the handle and swing the
window fully out to open.
Power type Opening
Closing
Both the left and right quarter
windows move.

149
1-4. Opening and closing the windows and moon roof
1
Before driving
SIENNA_OM_OM45472U_(U)
■
The windows can be operated when (power type)
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ Operating the windows after turnin g the engine off (power type)
Vehicles without a smart key system
The power type windows can be operated for approximately 45 seconds
even after the engine switch is turned to the “ACC” or “LOCK” position. They
cannot, however, be operated once either front door is opened.
Vehicles with a smart key system
The power type windows can be operated for approximately 45 seconds
even after the “ENGINE START STOP” switch is turned to ACCESSORY
mode or turned off. They cannot, however, be operated once either front
door is opened.
CAUTION
■ Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in
some instances, even death.

150
1-4. Opening and closing the windows and moon roof
SIENNA_OM_OM45472U_(U)

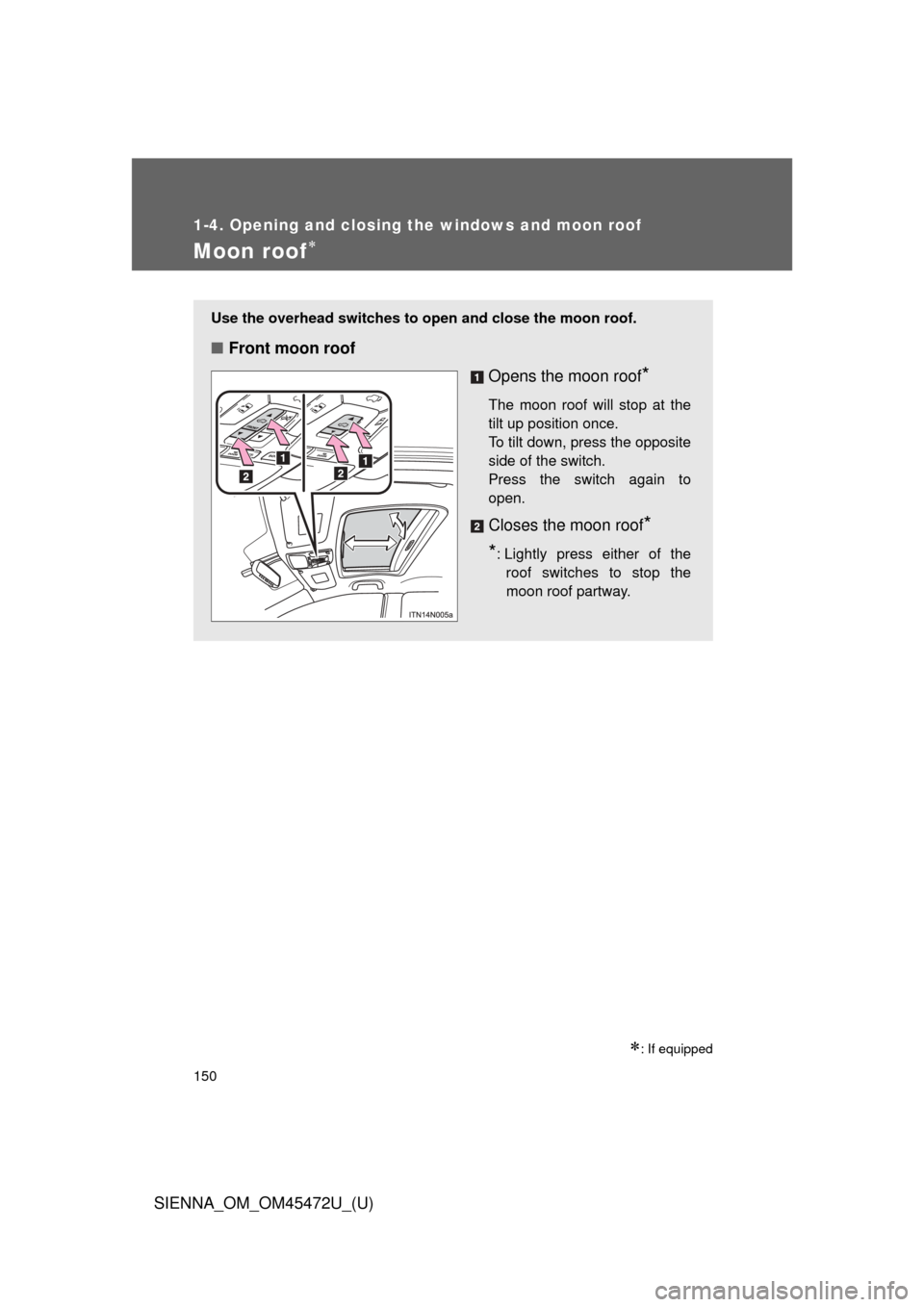

Moon roof
: If equipped
Use the overhead switches to open and close the moon roof.
■Front moon roof
Opens the moon roof
*
The moon roof will stop at the
tilt up position once.
To tilt down, press the opposite
side of the switch.
Press the switch again to
open.
Closes the moon roof*
*
: Lightly press either of the roof switches to stop the
moon roof partway.

151
1-4. Opening and closing the windows and moon roof
1
Before driving
SIENNA_OM_OM45472U_(U)

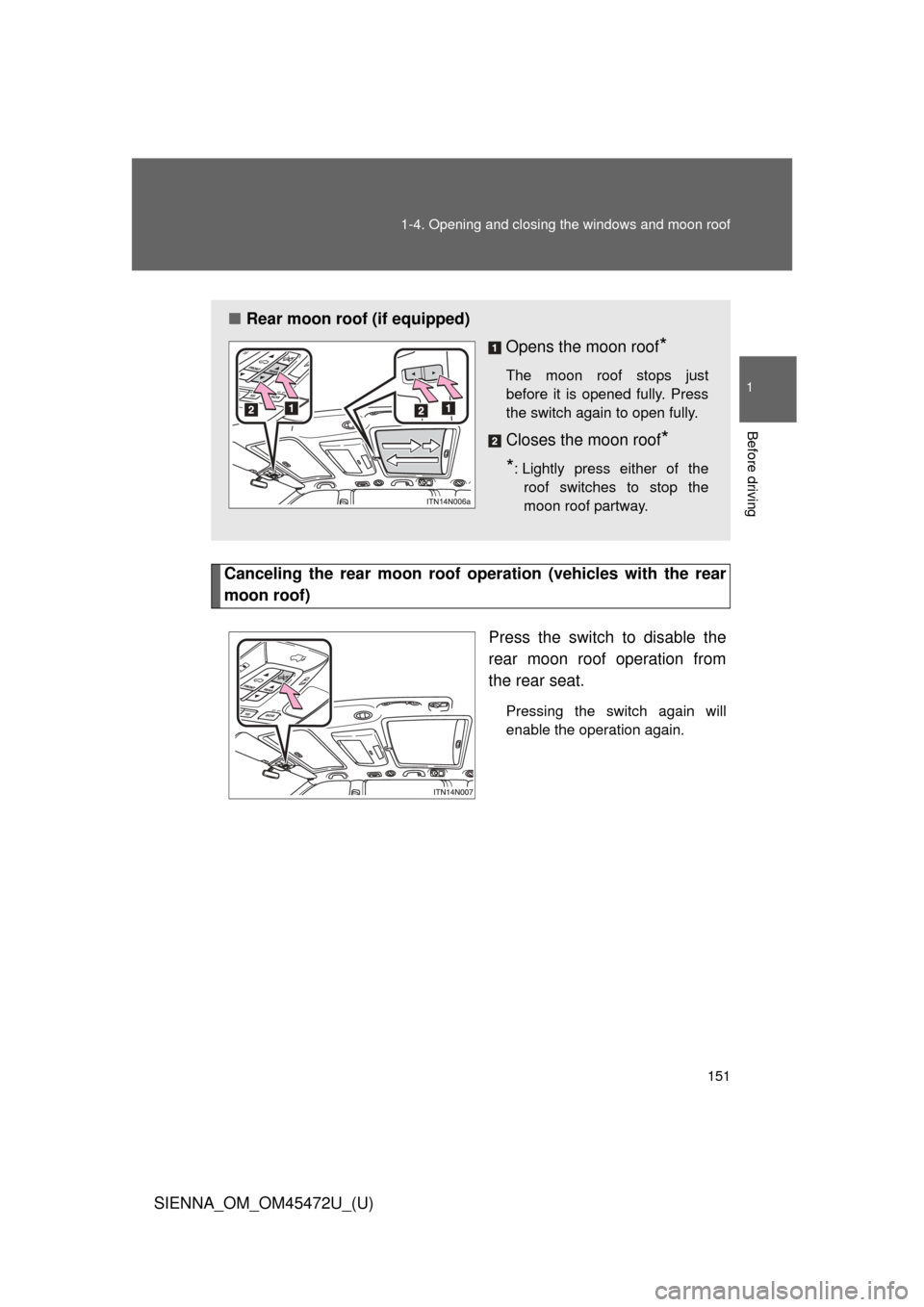

Canceling the rear moon roof operation (vehicles with the rear
moon roof)
Press the switch to disable the
rear moon roof operation from
the rear seat.
Pressing the switch again will
enable the operation again.
■Rear moon roof (if equipped)
Opens the moon roof
*
The moon roof stops just
before it is opened fully. Press
the switch again to open fully.
Closes the moon roof*
*
: Lightly press either of the roof switches to stop the
moon roof partway.

152 1-4. Opening and closing the windows and moon roof
SIENNA_OM_OM45472U_(U)
■The moon roof can be operated when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ Operating the moon roof af ter turning the engine off
Vehicles without a smart key system
The moon roof can be operated for approximately 45 seconds after the
engine switch is turned to the “ACC” or “LOCK” position. It cannot, however,
be operated once either front door is opened.
Vehicles with a smart key system
The moon roof can be operated for approximately 45 seconds after the
“ENGINE START STOP” switch is turned to ACCESSORY mode or turned
off. It cannot, however, be operated once either front door is opened.
■ Jam protection function
If an object is detected between the moon roof and the frame while the moon
roof is closing, travel is stopped and the moon roof opens slightly.
