2013 TOYOTA SIENNA Owners Manual

193
1-7. Safety information
1
Before driving
SIENNA_OM_OM45472U_(U)
CAUTION
■
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ When the child restrain t system is not in use
● Keep the child restraint system properly secured on the seat even if it is
not in use.
Do not store the restraint unsecured in the passenger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of a sudden stop, sudden swerve or
an accident.

194
1-7. Safety information
SIENNA_OM_OM45472U_(U)

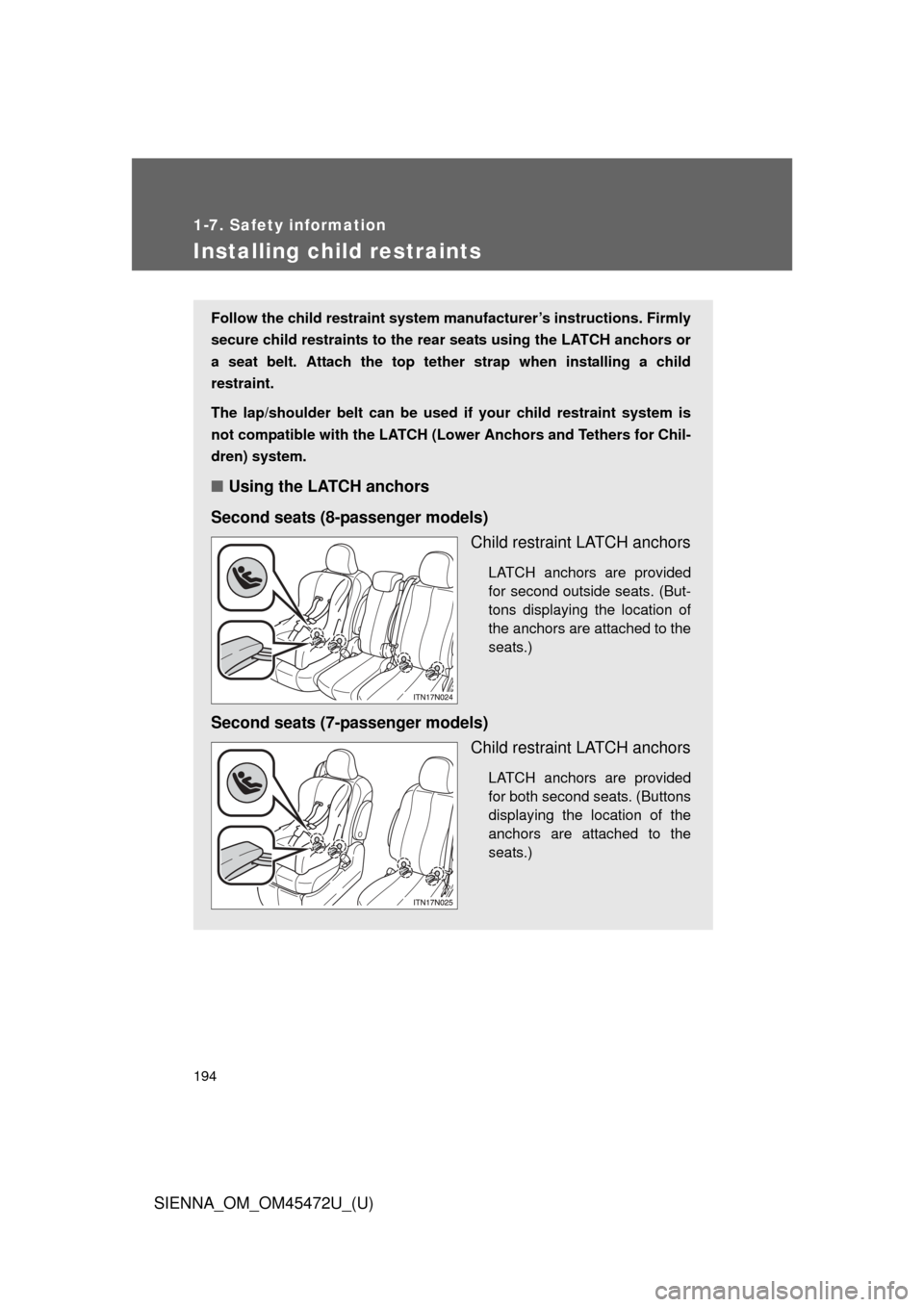

Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the r ear seats using the LATCH anchors or
a seat belt. Attach the top teth er strap when installing a child
restraint.
The lap/shoulder belt can be used if your child restraint system is
not compatible with the LATCH (Low er Anchors and Tethers for Chil-
dren) system.
■ Using the LATCH anchors
Second seats (8-passenger models) Child restraint LATCH anchors
LATCH anchors are provided
for second outside seats. (But-
tons displaying the location of
the anchors are attached to the
seats.)
Second seats (7-passenger models)Child restraint LATCH anchors
LATCH anchors are provided
for both second seats. (Buttons
displaying the location of the
anchors are attached to the
seats.)

195
1-7. Safety information
1
Before driving
SIENNA_OM_OM45472U_(U)

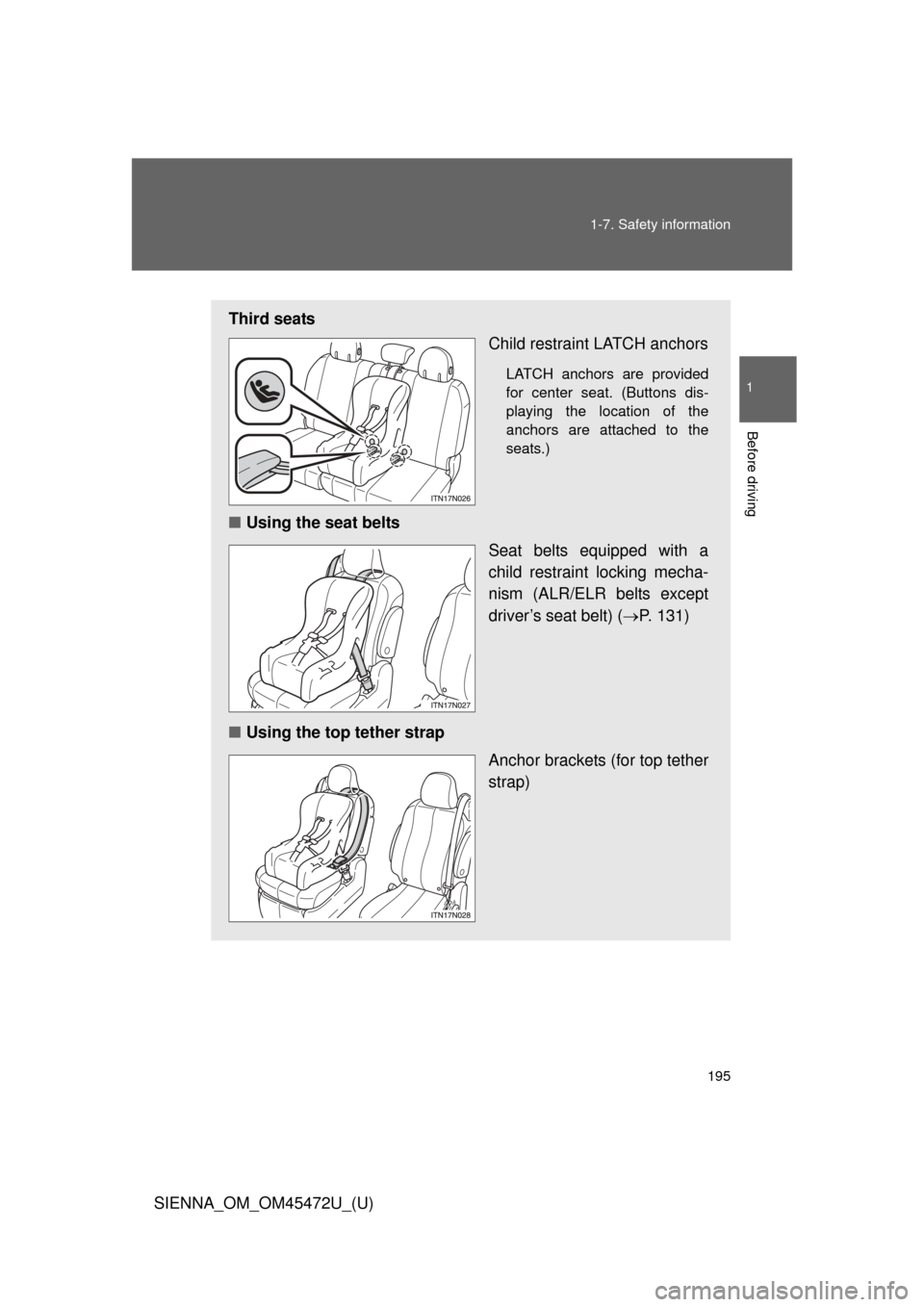

Third seats
Child restraint LATCH anchors
LATCH anchors are provided
for center seat. (Buttons dis-
playing the location of the
anchors are attached to the
seats.)
■Using the seat belts
Seat belts equipped with a
child restraint locking mecha-
nism (ALR/ELR belts except
driver’s seat belt) (P. 131)
■ Using the top tether strap
Anchor brackets (for top tether
strap)

196 1-7. Safety information
SIENNA_OM_OM45472U_(U)

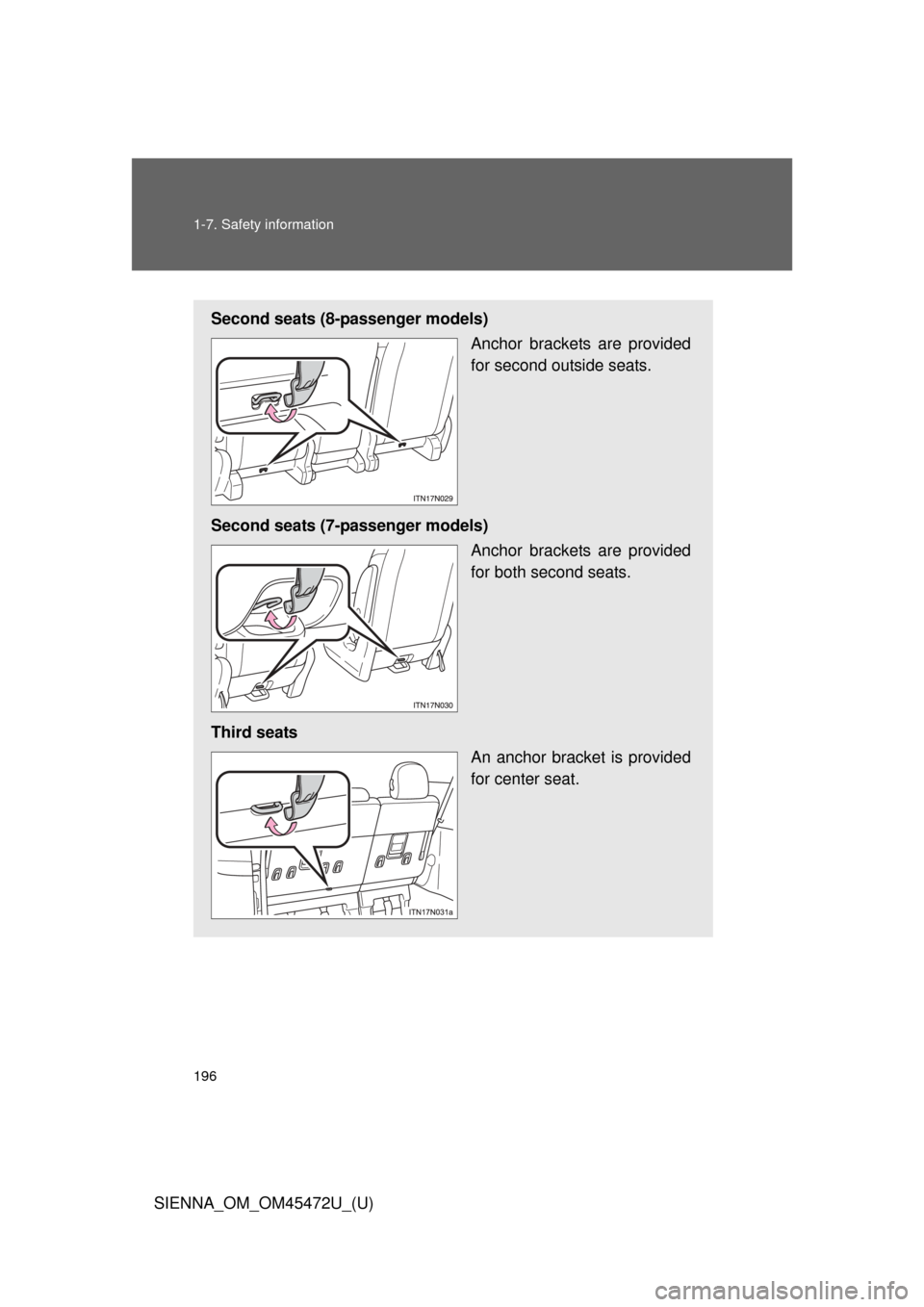

Second seats (8-passenger models)Anchor brackets are provided
for second outside seats.
Second seats (7-passenger models) Anchor brackets are provided
for both second seats.
Third seats An anchor bracket is provided
for center seat.

197
1-7. Safety information
1
Before driving
SIENNA_OM_OM45472U_(U)
Installation with LATCH system (second seat)
Fold the seatback while pulling
the lever and move to the rear-
most recline position.
Widen the gap between the seat cushion and seatback
slightly.
Ty p e A Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether strap,
the top tether strap should be
latched onto the top tether strap
anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
STEP1
STEP2
Canada only
STEP3

198 1-7. Safety information
SIENNA_OM_OM45472U_(U)Ty p e B
Latch the hooks of the lower
straps onto the LATCH anchors.
If the child restraint has a top
tether strap, the top tether strap
should be latched onto the top
tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
STEP3
Canada only

199
1-7. Safety information
1
Before driving
SIENNA_OM_OM45472U_(U)
Installation with LATCH system (third seat)
Manual seat 1st lock position
11th lock position
Fold the seatback while pulling
the strap. Return the seatback
and secure it at the 1st lock posi-
tion (most upright position).
Adjust the seatback to the 11th
lock position.
Power seat Fold down the seatback by
pressing the folding/returning
switch (P.110). Raise the seat-
back by pressing the same
switch, the returning switch
(  P.114) or the seatback angle
adjustment switch ( P.101).
(The seatback will automatically
stop.) Do not touch the switch
while the seatback is moving,
because the operation will stop.
Widen the gap between the seat cushion and seatback
slightly.
STEP1
STEP1
STEP2

200 1-7. Safety information
SIENNA_OM_OM45472U_(U)Ty p e A
Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether strap,
the top tether strap should be
latched onto the top tether strap
anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Ty p e B Latch the hooks of the lower
straps onto the LATCH anchors.
If the child restraint has a top
tether strap, the top tether strap
should be latched onto the top
tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
STEP3
Canada only
STEP3
Canada only
