2013 MITSUBISHI OUTLANDER SPORT Owners Manual

2-38 Seat and restraint systems
2
5. Latch the tether strap hook (E) of the child restraint sys-tem to the tether anchor bar (F) and tighten the tether strap
so it is securely fastened.
6. Push and pull the child restraint system in all directions to be sure it is firmly secured.
Installing a child restraint system using the seat
belt (with emergency/automatic locking mecha-
nism)
N00407300426
With the exception of the driver, the seat belt in all other seat-
ing positions can be converted from normal Emergency Lock-
ing Retractor (ELR) mode, to Automatic Locking Retractor
(ALR) mode. This means that when you pull the seat belt fully
out of the retractor, the retractor will switch to its ALR child
restraint installation function. Always use the ALR child
restraint installation function when you install a child restraint
system using the seat belt.
Children 12 years old and under should always be restrained in
the rear seat, whenever possible, although the front passenger
seat belt can also be converted to ALR mode.
WARNING
!
Child restraint system tether anchors are designed
only to withstand loads from correctly fitted child
restraint systems. Under no circumstances are they
to be used for adult seat belts, or harnesses, or for
attaching other items or equipment to the vehicle.
WARNING
!
When you install a child restraint system using the
seat belt, always make sure the retractor has been
switched to the ALR child restraint installation
function. The ALR function will keep the child
restraint system tightly secured to the seat.
Failure to convert the retractor to the ALR function
may allow the child restraint system to move for-
ward during sudden braking or an accident, result-
ing in serious injury or death to the child or other
occupants.
BK0150700US.book 38 ページ ２０１２年３月２２日　木曜日　午後６時４６分

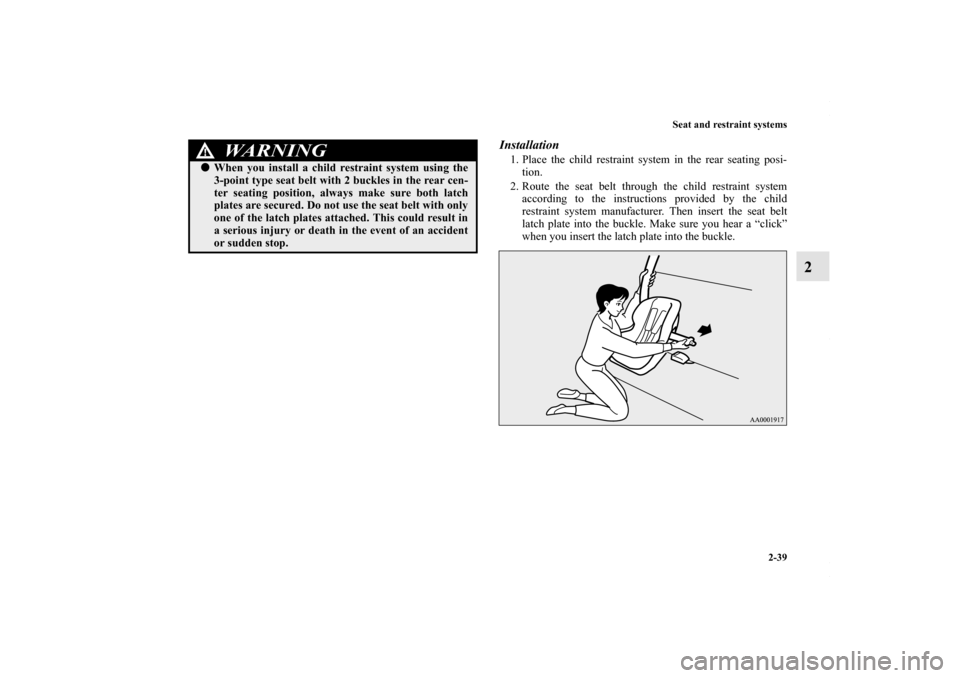

Seat and restraint systems2-39
2
Installation1. Place the child restraint system in the rear seating posi-tion.
2. Route the seat belt through the child restraint system according to the instructions provided by the child
restraint system manufacturer. Then insert the seat belt
latch plate into the buckle. Make sure you hear a “click”
when you insert the latch plate into the buckle.

When you install a child restraint system using the
3-point type seat belt with 2 buckles in the rear cen-
ter seating position, always make sure both latch
plates are secured. Do not use the seat belt with only
one of the latch plates attached. This could result in
a serious injury or death in the event of an accident
or sudden stop.
WARNING
!
BK0150700US.book 39 ページ ２０１２年３月２２日　木曜日　午後６時４６分

2-40 Seat and restraint systems
2
3. To activate the ALR child restraint installation function,slowly pull the shoulder part of the belt all the way out of
the retractor until it stops. Then let the belt feed back into
the retractor.
4. After the belt has retracted, tug on it. If the belt is in the ALR function, you will not be able to
pull it out. If the webbing can be pulled out from retractor,
the ALR function has not been activated and you will
need to repeat steps 3 and 4. 5. After confirming that the belt is locked, grab the shoulder
part of the belt near the buckle and pull up to remove any
slack from the lap part of the belt allowing the slack to
feed into the retractor. Remember, if the lap belt portion is
not tight, the child restraint system will not be secure. It
may help to put your weight on the child restraint system
and/or push on its seatback while pulling up on the belt
(See illustration).
BK0150700US.book 40 ページ ２０１２年３月２２日　木曜日　午後６時４６分

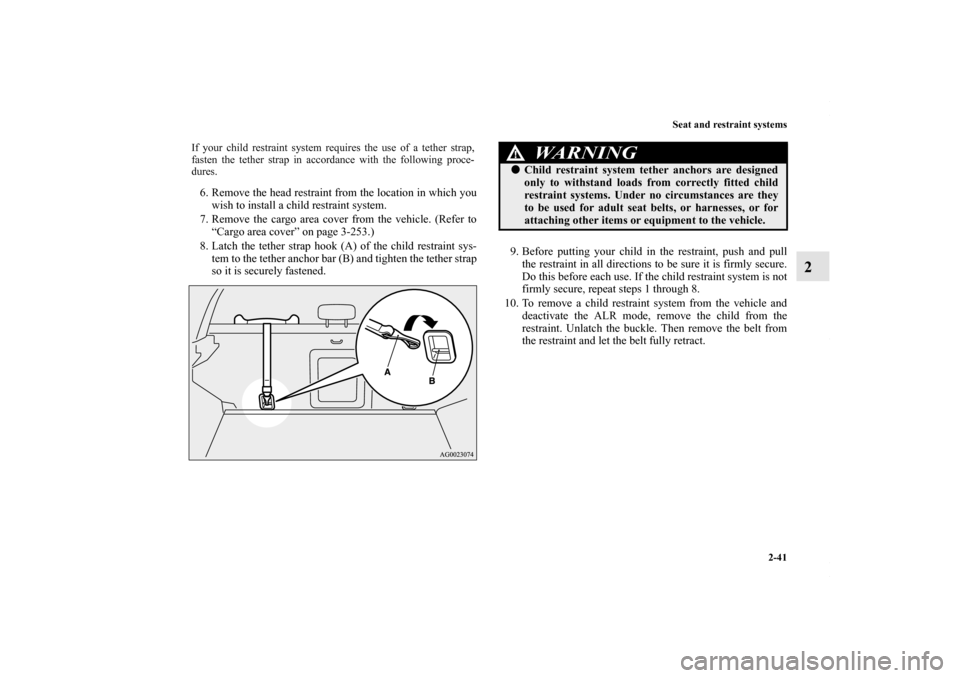

Seat and restraint systems2-41
2
6. Remove the head restraint from the location in which youwish to install a child restraint system.
7. Remove the cargo area cover from the vehicle. (Refer to “Cargo area cover” on page 3-253.)
8. Latch the tether strap hook (A) of the child restraint sys- tem to the tether anchor bar (B) and tighten the tether strap
so it is securely fastened. 9. Before putting your child in the restraint, push and pull
the restraint in all directions to be sure it is firmly secure.
Do this before each use. If the child restraint system is not
firmly secure, repeat steps 1 through 8.
10. To remove a child restraint system from the vehicle and deactivate the ALR mode, remove the child from the
restraint. Unlatch the buckle. Then remove the belt from
the restraint and let the belt fully retract.If your child restraint system requires the use of a tether strap,
fasten the tether strap in accordance with the following proce-
dures.
WARNING
!
Child restraint system tether anchors are designed
only to withstand loads from correctly fitted child
restraint systems. Under no circumstances are they
to be used for adult seat belts, or harnesses, or for
attaching other items or equipment to the vehicle.
BK0150700US.book 41 ページ ２０１２年３月２２日　木曜日　午後６時４６分

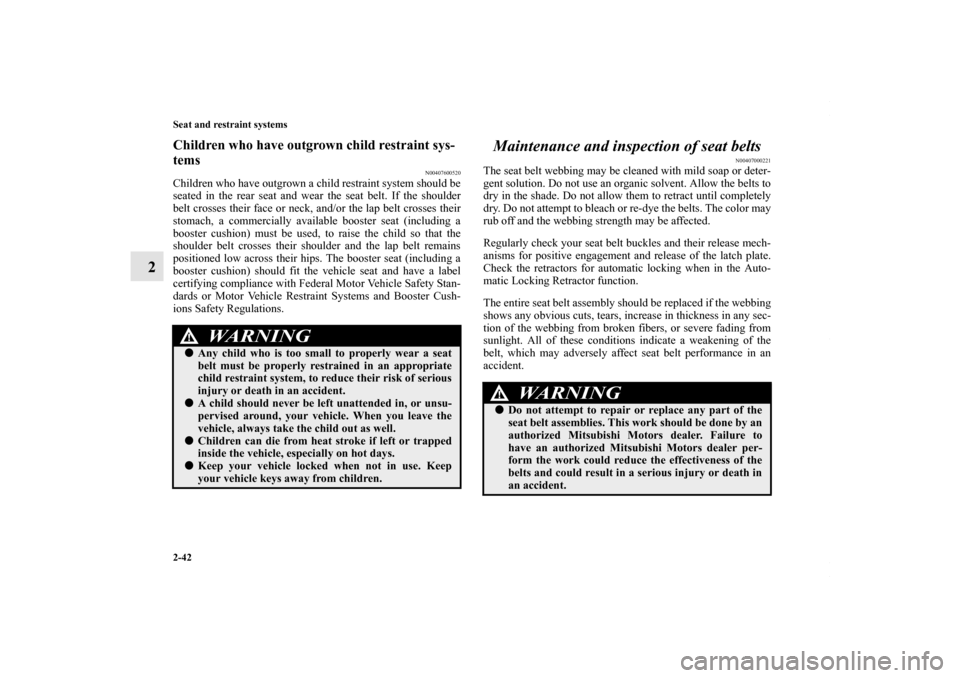

2-42 Seat and restraint systems
2
Children who have outgrown child restraint sys-
tems
N00407600520
Children who have outgrown a child restraint system should be
seated in the rear seat and wear the seat belt. If the shoulder
belt crosses their face or neck, and/or the lap belt crosses their
stomach, a commercially available booster seat (including a
booster cushion) must be used, to raise the child so that the
shoulder belt crosses their shoulder and the lap belt remains
positioned low across their hips. The booster seat (including a
booster cushion) should fit the vehicle seat and have a label
certifying compliance with Federal Motor Vehicle Safety Stan-
dards or Motor Vehicle Restraint Systems and Booster Cush-
ions Safety Regulations.
Maintenance and inspection of seat belts
N00407000221
The seat belt webbing may be cleaned with mild soap or deter-
gent solution. Do not use an organic solvent. Allow the belts to
dry in the shade. Do not allow them to retract until completely
dry. Do not attempt to bleach or re-dye the belts. The color may
rub off and the webbing strength may be affected.
Regularly check your seat belt buckles and their release mech-
anisms for positive engagement and release of the latch plate.
Check the retractors for automatic locking when in the Auto-
matic Locking Retractor function.
The entire seat belt assembly should be replaced if the webbing
shows any obvious cuts, tears, increase in thickness in any sec-
tion of the webbing from broken fibers, or severe fading from
sunlight. All of these conditions indicate a weakening of the
belt, which may adversely affect seat belt performance in an
accident.
WARNING
!
Any child who is too small to properly wear a seat
belt must be properly restrained in an appropriate
child restraint system, to reduce their risk of serious
injury or death in an accident.
A child should never be left unattended in, or unsu-
pervised around, your vehicle. When you leave the
vehicle, always take the child out as well.
Children can die from heat stroke if left or trapped
inside the vehicle, especially on hot days.
Keep your vehicle locked when not in use. Keep
your vehicle keys away from children.
WARNING
!
Do not attempt to repair or replace any part of the
seat belt assemblies. This work should be done by an
authorized Mitsubishi Motors dealer. Failure to
have an authorized Mitsubishi Motors dealer per-
form the work could reduce the effectiveness of the
belts and could result in a serious injury or death in
an accident.
BK0150700US.book 42 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Seat and restraint systems2-43
2
Supplemental Restraint System (SRS) -
airbag
N00407700680
This vehicle is equipped with a Supplemental Restraint System
(SRS), which includes airbags for the driver and passengers.
The SRS front airbags are designed to supplement the primary
protection of the driver and front passenger seat belt systems
by providing those occupants with protection against head and
chest injuries in certain moderate to severe frontal collisions.
The SRS front airbags, together with sensors at the front of the
vehicle and sensors attached to the front seats, form an
advanced airbag system.
The SRS driver’s knee airbag is designed to supplement the
primary protection of the driver’s seat belt system. It can
reduce the forward movement of the driver’s lower legs and
provide increased overall body protection in certain moderate
to severe frontal collisions.
The SRS side airbags and the curtain airbags are also designed
to supplement the seat belts. The SRS side airbags provide the
driver and front passenger with protection against chest injuries
by deploying the bag on the side impacted in moderate to
severe side impact collisions. The SRS curtain airbags provide
the driver and passengers on the front seat and rear outboard
seat with protection against head injuries by deploying a bag
on the side impacted in moderate to severe side impact colli-
sions and by deploying both bags when a rollover is detected.
The SRS airbags are NOT a substitute for use of the seat belts.
For maximum protection in all types of accidents, seat belts
must ALWAYS be worn by everyone who drives or rides in this vehicle (with infants and small children in an appropriate
child restraint system in the rear seat, and older children buck-
led in the rear seat). Refer to “Child restraint systems” on page
2-31.
WARNING
!

IT IS VERY IMPORTANT TO ALWAYS WEAR
YOUR SEAT BELT PROPERLY EVEN WITH AN
AIRBAG.
• Seat belts help keep the driver and passengers
properly positioned. This reduces the risk of injury
in all collisions, and reduces the risk of serious
injuries or death when the airbags inflate.
During sudden braking just before a collision, an
unrestrained or improperly restrained driver or
passengers can move forward into direct contact
with, or within close proximity to, the airbag when
it begins to inflate.
The beginning stage of airbag inflation is the most
forceful and can cause serious injuries or death if
the occupant comes in contact with the airbag at
this time.
• Seat belts reduce the risk of injury in rear impact collisions, and in lower-speed frontal collisions
because the airbags are not designed to inflate in
those situations.
• Seat belts reduce the risk of being thrown from
your vehicle in a collision or rollover.
BK0150700US.book 43 ページ ２０１２年３月２２日　木曜日　午後６時４６分

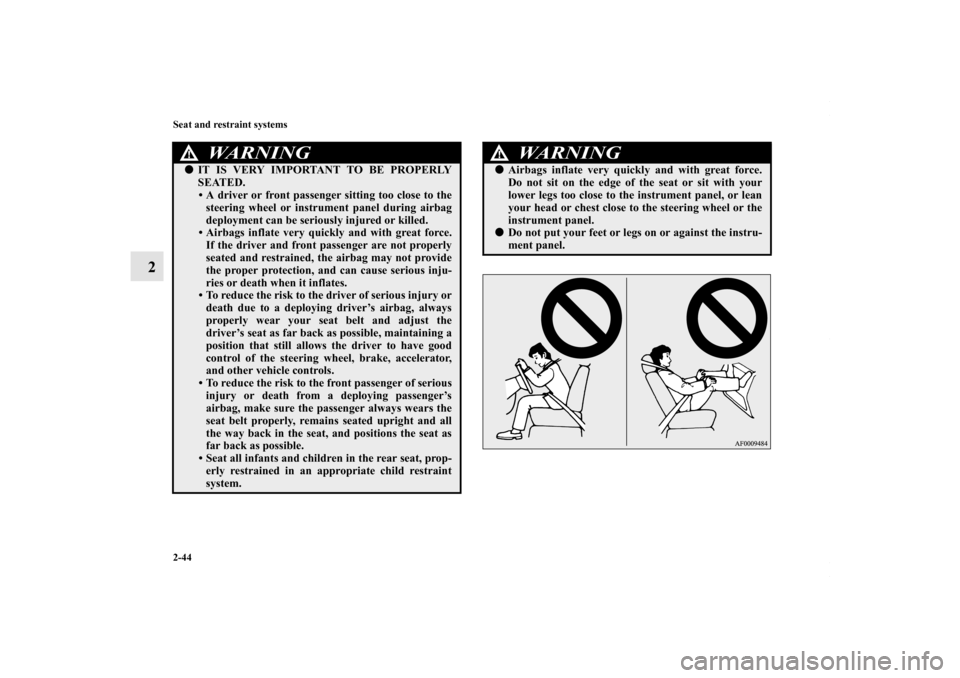

2-44 Seat and restraint systems
2
WARNING
!
IT IS VERY IMPORTANT TO BE PROPERLY
SEATED.
• A driver or front passenger sitting too close to the
steering wheel or instrument panel during airbag
deployment can be seriously injured or killed.
• Airbags inflate very quickly and with great force.
If the driver and front passenger are not properly
seated and restrained, the airbag may not provide
the proper protection, and can cause serious inju-
ries or death when it inflates.
• To reduce the risk to the driver of serious injury or death due to a deploying driver’s airbag, always
properly wear your seat belt and adjust the
driver’s seat as far back as possible, maintaining a
position that still allows the driver to have good
control of the steering wheel, brake, accelerator,
and other vehicle controls.
• To reduce the risk to the front passenger of serious
injury or death from a deploying passenger’s
airbag, make sure the passenger always wears the
seat belt properly, remains seated upright and all
the way back in the seat, and positions the seat as
far back as possible.
• Seat all infants and children in the rear seat, prop-
erly restrained in an appropriate child restraint
system.
WARNING
!
Airbags inflate very quickly and with great force.
Do not sit on the edge of the seat or sit with your
lower legs too close to the instrument panel, or lean
your head or chest close to the steering wheel or the
instrument panel.
Do not put your feet or legs on or against the instru-
ment panel.
BK0150700US.book 44 ページ ２０１２年３月２２日　木曜日　午後６時４６分

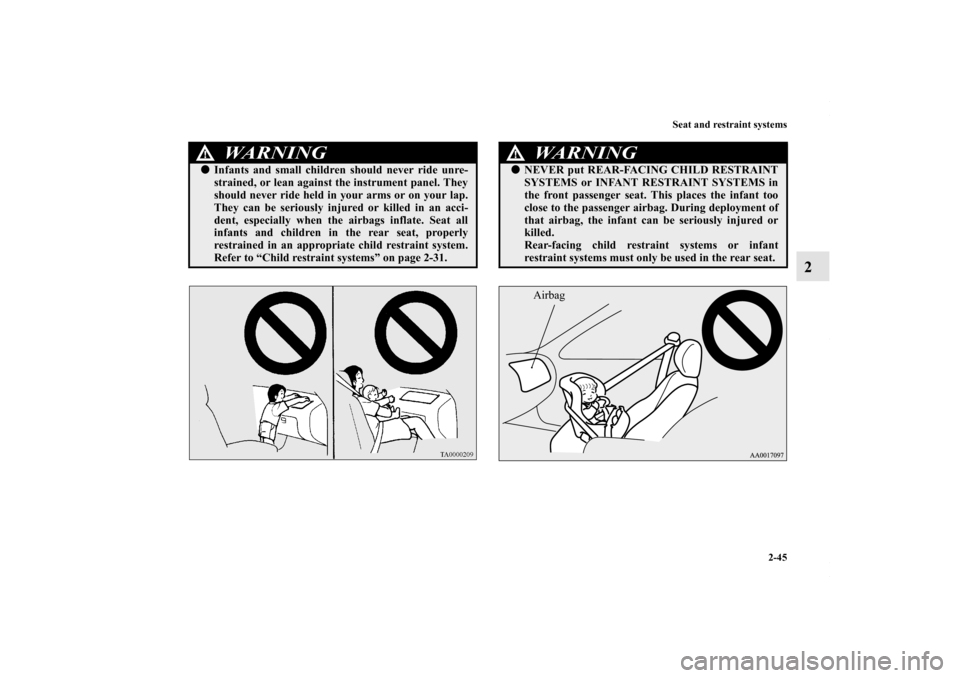

Seat and restraint systems2-45
2
WARNING
!
Infants and small children should never ride unre-
strained, or lean against the instrument panel. They
should never ride held in your arms or on your lap.
They can be seriously injured or killed in an acci-
dent, especially when the airbags inflate. Seat all
infants and children in the rear seat, properly
restrained in an appropriate child restraint system.
Refer to “Child restraint systems” on page 2-31.
WARNING
!
NEVER put REAR-FACING CHILD RESTRAINT
SYSTEMS or INFANT RESTRAINT SYSTEMS in
the front passenger seat. This places the infant too
close to the passenger airbag. During deployment of
that airbag, the infant can be seriously injured or
killed.
Rear-facing child restraint systems or infant
restraint systems must only be used in the rear seat.
Airbag
BK0150700US.book 45 ページ ２０１２年３月２２日　木曜日　午後６時４６分
