Features and controls3-87
3

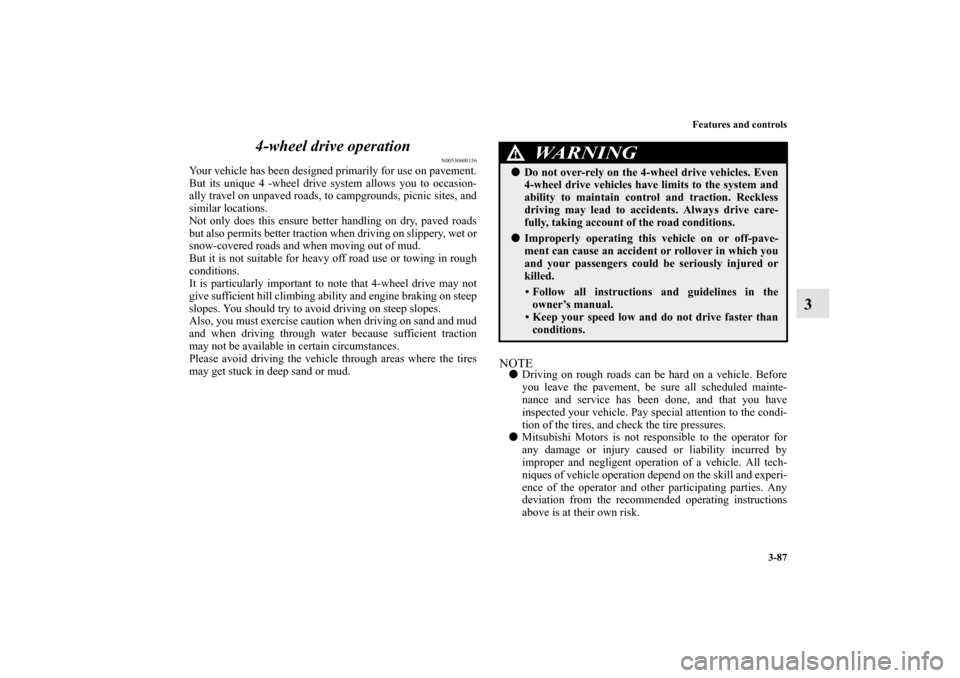

4-wheel drive operation
N00530600156
Your vehicle has been designed primarily for use on pavement.
But its unique 4 -wheel drive system allows you to occasion-
ally travel on unpaved roads, to campgrounds, picnic sites, and
similar locations.
Not only does this ensure better handling on dry, paved roads
but also permits better traction when driving on slippery, wet or
snow-covered roads and when moving out of mud.
But it is not suitable for heavy off road use or towing in rough
conditions.
It is particularly important to note that 4-wheel drive may not
give sufficient hill climbing ability and engine braking on steep
slopes. You should try to avoid driving on steep slopes.
Also, you must exercise caution when driving on sand and mud
and when driving through water because sufficient traction
may not be available in certain circumstances.
Please avoid driving the vehicle through areas where the tires
may get stuck in deep sand or mud.
NOTE
Driving on rough roads can be hard on a vehicle. Before
you leave the pavement, be sure all scheduled mainte-
nance and service has been done, and that you have
inspected your vehicle. Pay special attention to the condi-
tion of the tires, and check the tire pressures.
Mitsubishi Motors is not responsible to the operator for
any damage or injury caused or liability incurred by
improper and negligent operation of a vehicle. All tech-
niques of vehicle operation depend on the skill and experi-
ence of the operator and other participating parties. Any
deviation from the recommended operating instructions
above is at their own risk.
WARNING
!Do not over-rely on the 4-wheel drive vehicles. Even
4-wheel drive vehicles have limits to the system and
ability to maintain control and traction. Reckless
driving may lead to accidents. Always drive care-
fully, taking account of the road conditions.Improperly operating this vehicle on or off-pave-
ment can cause an accident or rollover in which you
and your passengers could be seriously injured or
killed.
• Follow all instructions and guidelines in the
owner’s manual.
• Keep your speed low and do not drive faster than conditions.
BK0150700US.book 87 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Features and controls3-145
3

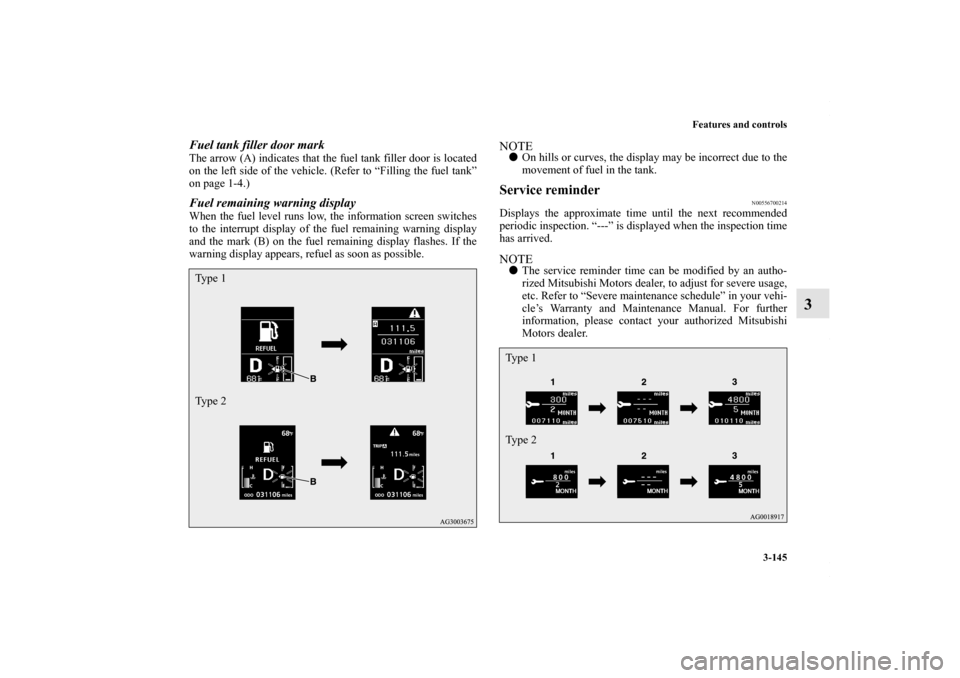

Fuel tank filler door markThe arrow (A) indicates that the fuel tank filler door is located
on the left side of the vehicle. (Refer to “Filling the fuel tank”
on page 1-4.)Fuel remaining warning displayWhen the fuel level runs low, the information screen switches
to the interrupt display of the fuel remaining warning display
and the mark (B) on the fuel remaining display flashes. If the
warning display appears, refuel as soon as possible.
NOTEOn hills or curves, the display may be incorrect due to the
movement of fuel in the tank.Service reminder
N00556700214
Displays the approximate time until the next recommended
periodic inspection. “---” is displayed when the inspection time
has arrived.NOTEThe service reminder time can be modified by an autho-
rized Mitsubishi Motors dealer, to adjust for severe usage,
etc. Refer to “Severe maintenance schedule” in your vehi-
cle’s Warranty and Maintenance Manual. For further
information, please contact your authorized Mitsubishi
Motors dealer.
Type 1
Type 2
Type 1
Type 2
BK0150700US.book 145 ページ ２０１２年３月２２日 木曜日 午後６時４６分
