2013 MITSUBISHI OUTLANDER SPORT USB

Overview
Interior
N00100301199
Dome light (front)/Reading lights
P. 3 - 2 4 0
Sunshade illumination switch
(if so equipped) P.3-56
Sun visors P.3-236
Vanity mirror P.3-236
Card holder P.3-236
Arm rest (if so equipped) P.2-11
Cup holder (if so equipped)
P. 3 - 2 5 2 Arm rest (if so equipped) P.2-9
Floor console box P.3-248
12V power outlet P.3-238
USB input terminal (if so equipped) P.3-231
Auxiliary Audio connector (RCA) (if so equipped) P.5-91
Dome light (rear) (if so equipped)
P. 3 - 2 4 2
Cargo area cover
(if so equipped)
P. 3 - 2 5 3 Supplemental restraint system
(SRS) - air bag (for front
passenger’s seat) P.2-43, 2-53
Assist grips P.3-254
Coat hook P.3-254
Rear seat P.2-11 Bottle holder P.3-252
SC00000100--1.fm 3 ページ ２０１２年３月２６日　月曜日　午後５時３４分

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . 3- 4
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 8
Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 14
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 38
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 41
Child safety locks for rear door . . . . . . . . . . . . . . . . . . . . . . . . . 3- 43
Liftgate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 44
Inside liftgate release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 47
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 48
Power window control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 52
Sunshade (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 56
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 58
Steering wheel height and reach adjustment . . . . . . . . . . . . . . . 3- 59
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 60
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 64
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 66
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 69
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 71
Continuously variable transmission (CVT) (if so equipped). . . 3- 74
Electronically controlled 4WD system (if so equipped) . . . . . . 3- 84
4-wheel drive operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 87
Inspection and maintenance following rough road operation . . 3- 90
Cautions on the handling of 4-wheel drive vehicles . . . . . . . . . 3- 91
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 93
Hill start assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 94
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 96
Anti-lock braking system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 97
Electric power steering system (EPS) . . . . . . . . . . . . . . . . . . . . 3- 101
Active stability control (ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 102 Cruise control (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 107
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . 3- 115
Rear-view camera (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 3- 121
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 126
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 129
Indicator light, warning light, and
information screen display list . . . . . . . . . . . . . . . . . . . . . . . . 3- 162
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 177
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 177
Information screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 180
Combination headlights and dimmer switch . . . . . . . . . . . . . . . 3- 183
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . 3- 191
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 192
Hazard warning flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 193
Front fog light switch (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 193
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 194
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . 3- 203
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 204
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 205
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . 3- 205
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . 3- 231
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 236
12 V power outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 238
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 240
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 246
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 251
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 252
Cargo area cover (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 253
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 254
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 254
Luggage hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 255
SC00000500-3.fm 1 ページ ２０１２年３月２６日　月曜日　午後５時４２分

Features and controls3-205
3
Link System
(if so equipped)
N00563700027
The Link System takes overall control of the devices connected
via the USB input terminal or the Bluetooth
® 2.0 interface
allowing the connected devices to be operated by using the
switches in the vehicle or voice commands.
See the following section for details on how to operate.
Refer to “Bluetooth
® 2.0 interface” on page 3-205.
Refer to “USB input terminal” on page 3-231.
Refer to “To play tracks from USB device” on page 5-73.
Refer to “To play tracks from a Bluetooth
® device” on page 5-
88.
Refer to “To use the external audio input function” on page 5-
91.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
Link System End User License Agreement
N00563800015
You have acquired a device that includes software licensed by
Mitsubishi Motors Corporation from JOHNSON CONTROLS
Inc (the automotive experience business unit), and their subse-
quent 3rd party suppliers. For a complete list of these 3rd party
products and their end user license agreements, please go to the
following website.
http://www.jciblueconnect.com/faq/fulldisclosure.pdf
Bluetooth
® 2.0 interface
(if so equipped)
N00563900146
The Bluetooth
® 2.0 interface allows for making/receiving
hands-free calls in the vehicle using a Bluetooth
® compatible
cellular phone based on the wireless communication technol-
ogy commonly known as Bluetooth
®. It also allows the user to
play music, saved in a Bluetooth
® music player, from the vehi-
cle’s speakers.
The system is equipped with a voice recognition function,
which allows you to make hands-free calls by simple switch
operations and voice command operations using a defined
voice tree.
The Bluetooth
® 2.0 interface can be used when the ignition
switch or the operation mode is in ON or ACC.
Before you can use the Bluetooth
® 2.0 interface, you must pair
the Bluetooth
® device and Bluetooth
® 2.0 interface. Refer to
“Connecting the Bluetooth
® 2.0 interface and Bluetooth
®
device” on page 3-213.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
BK0150700US.book 205 ページ ２０１２年３月２２日　木曜日　午後６時４６分

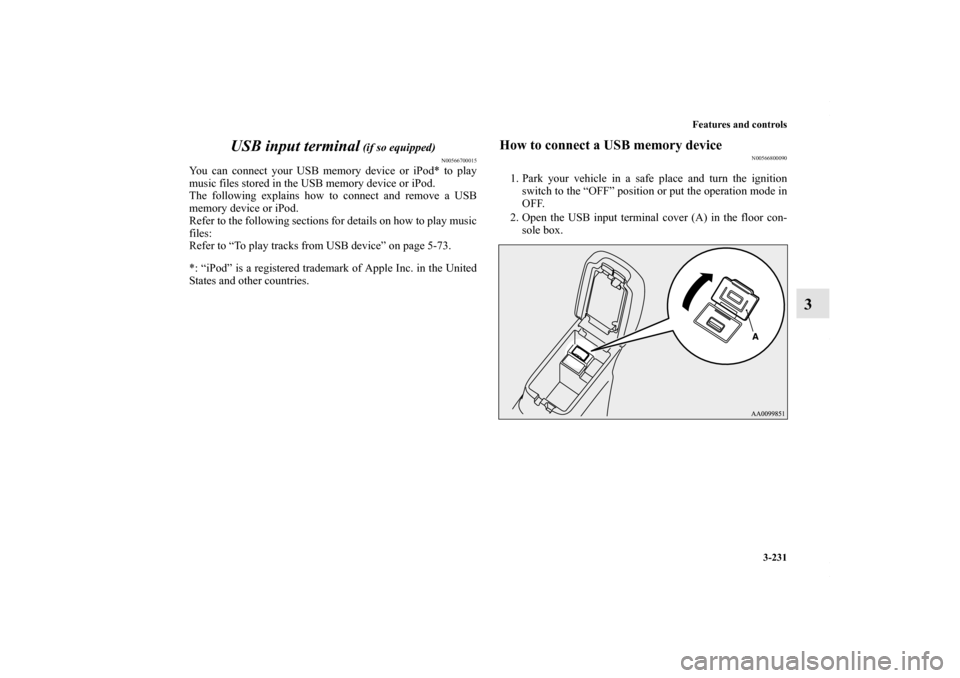

Features and controls3-231
3
USB input terminal
(if so equipped)
N00566700015
You can connect your USB memory device or iPod* to play
music files stored in the USB memory device or iPod.
The following explains how to connect and remove a USB
memory device or iPod.
Refer to the following sections for details on how to play music
files:
Refer to “To play tracks from USB device” on page 5-73.
*: “iPod” is a registered trademark of Apple Inc. in the United
States and other countries.
How to connect a USB memory device
N00566800090
1. Park your vehicle in a safe place and turn the ignition
switch to the “OFF” position or put the operation mode in
OFF.
2. Open the USB input terminal cover (A) in the floor con- sole box.
BK0150700US.book 231 ページ ２０１２年３月２２日　木曜日　午後６時４６分

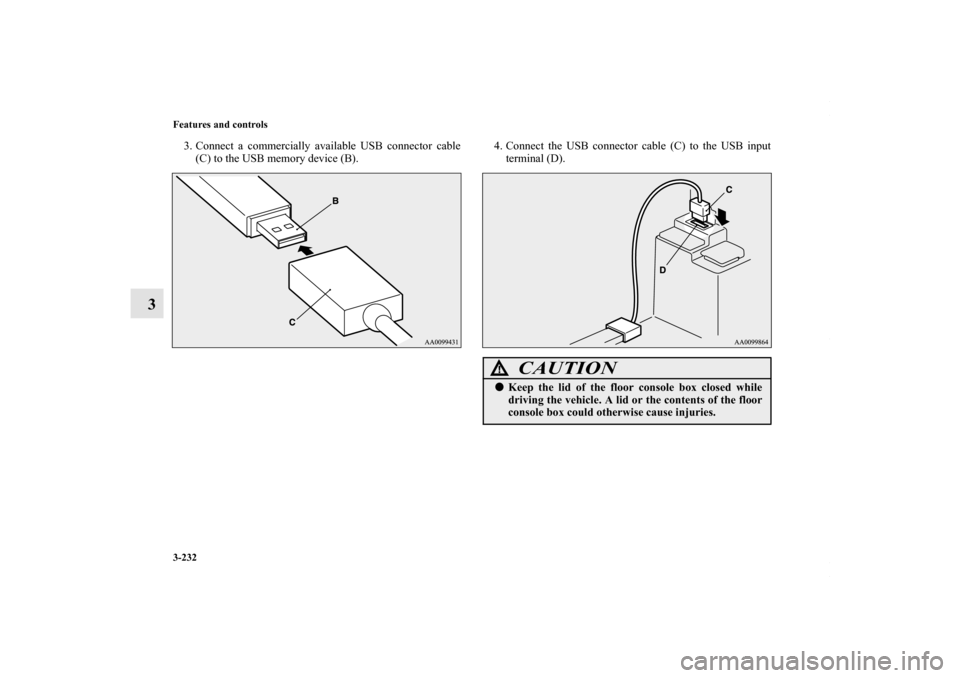

3-232 Features and controls
3
3. Connect a commercially available USB connector cable(C) to the USB memory device (B). 4. Connect the USB connector cable (C) to the USB input
terminal (D).
CAUTION
!
Keep the lid of the floor console box closed while
driving the vehicle. A lid or the contents of the floor
console box could otherwise cause injuries.
BK0150700US.book 232 ページ ２０１２年３月２２日　木曜日　午後６時４６分

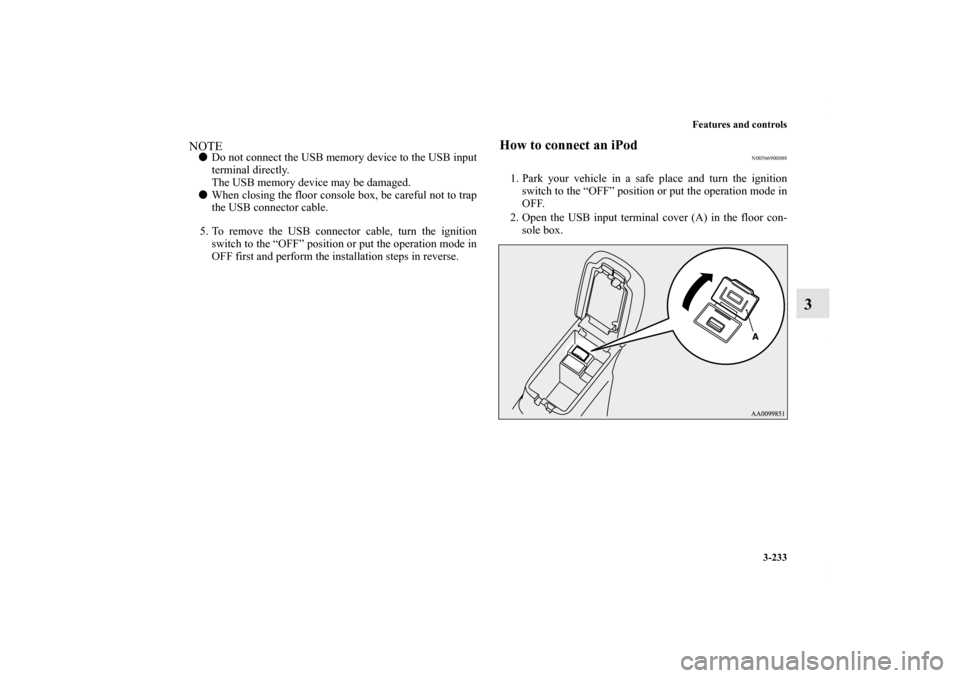

Features and controls3-233
3
NOTE
Do not connect the USB memory device to the USB input
terminal directly.
The USB memory device may be damaged.

When closing the floor console box, be careful not to trap
the USB connector cable.
5. To remove the USB connector cable, turn the ignition switch to the “OFF” position or put the operation mode in
OFF first and perform the installation steps in reverse.
How to connect an iPod
N00566900088
1. Park your vehicle in a safe place and turn the ignition
switch to the “OFF” position or put the operation mode in
OFF.
2. Open the USB input terminal cover (A) in the floor con- sole box.
BK0150700US.book 233 ページ ２０１２年３月２２日　木曜日　午後６時４６分

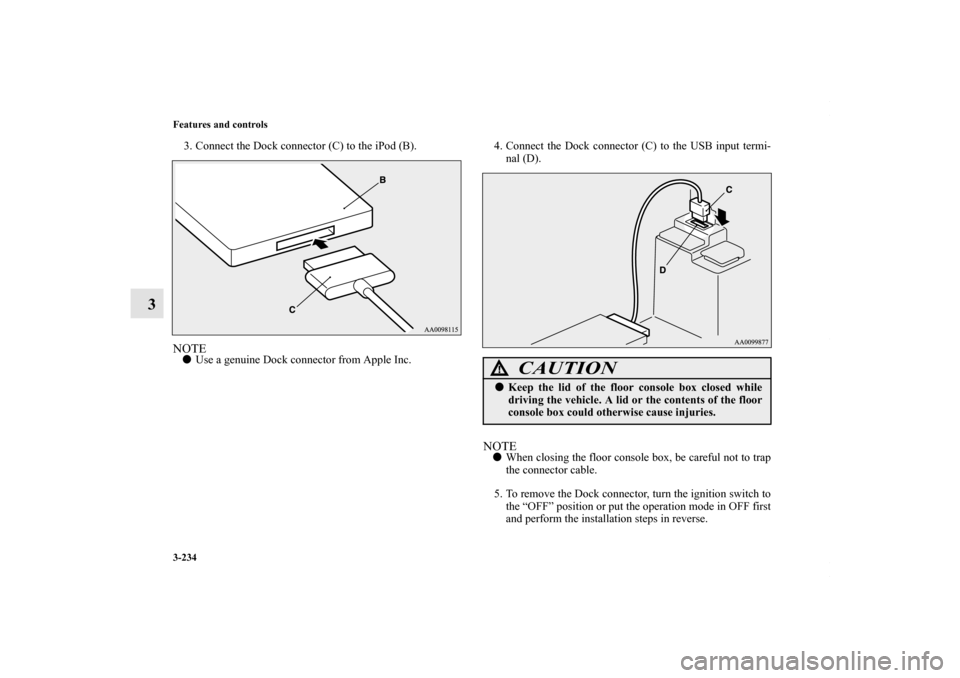

3-234 Features and controls
3
3. Connect the Dock connector (C) to the iPod (B).NOTE
Use a genuine Dock connector from Apple Inc. 4. Connect the Dock connector (C) to the USB input termi-
nal (D).
NOTE
When closing the floor console box, be careful not to trap
the connector cable.
5. To remove the Dock connector, turn the ignition switch to the “OFF” position or put the operation mode in OFF first
and perform the installation steps in reverse.
CAUTION
!
Keep the lid of the floor console box closed while
driving the vehicle. A lid or the contents of the floor
console box could otherwise cause injuries.
BK0150700US.book 234 ページ ２０１２年３月２２日　木曜日　午後６時４６分

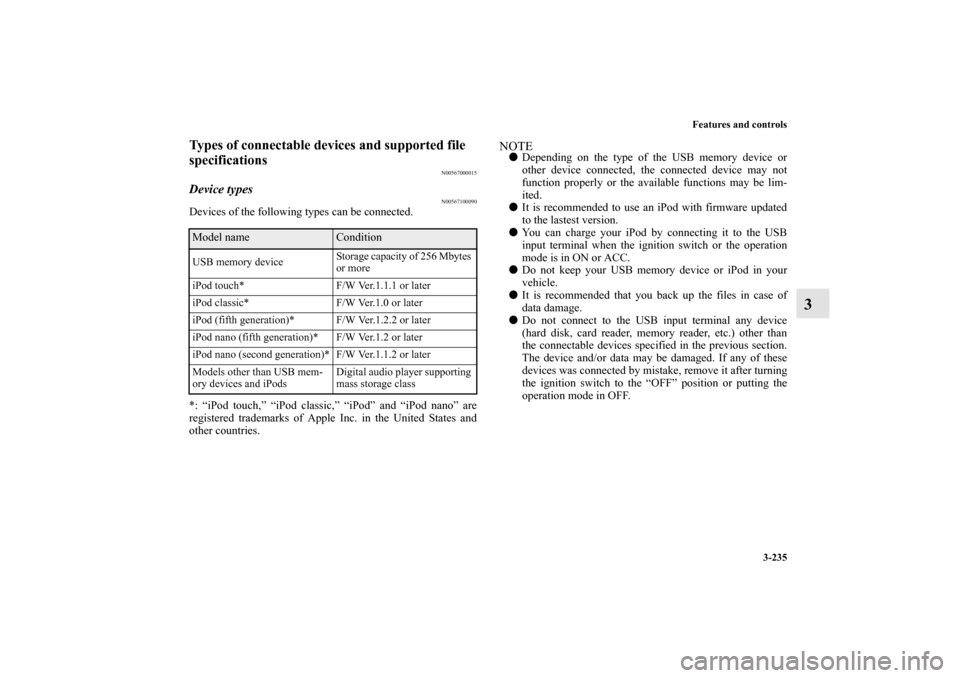

Features and controls3-235
3
Types of connectable devices and supported file
specifications
N00567000015
Device types
N00567100090
Devices of the following types can be connected.
*: “iPod touch,” “iPod classic,” “iPod” and “iPod nano” are
registered trademarks of Apple Inc. in the United States and
other countries.
NOTE
Depending on the type of the USB memory device or
other device connected, the connected device may not
function properly or the available functions may be lim-
ited.

It is recommended to use an iPod with firmware updated
to the lastest version.

You can charge your iPod by connecting it to the USB
input terminal when the ignition switch or the operation
mode is in ON or ACC.

Do not keep your USB memory device or iPod in your
vehicle.

It is recommended that you back up the files in case of
data damage.

Do not connect to the USB input terminal any device
(hard disk, card reader, memory reader, etc.) other than
the connectable devices specified in the previous section.
The device and/or data may be damaged. If any of these
devices was connected by mistake, remove it after turning
the ignition switch to the “OFF” position or putting the
operation mode in OFF.
Model name
Condition
USB memory device Storage capacity of 256 Mbytes
or more
iPod touch* F/W Ver.1.1.1 or later
iPod classic* F/W Ver.1.0 or later
iPod (fifth generation)* F/W Ver.1.2.2 or later
iPod nano (fifth generation)* F/W Ver.1.2 or later
iPod nano (second generation)* F/W Ver.1.1.2 or later
Models other than USB mem-
ory devices and iPods Digital audio player supporting
mass storage class
BK0150700US.book 235 ページ
２０１２年３月２２日　木曜日　午後６時４６分
