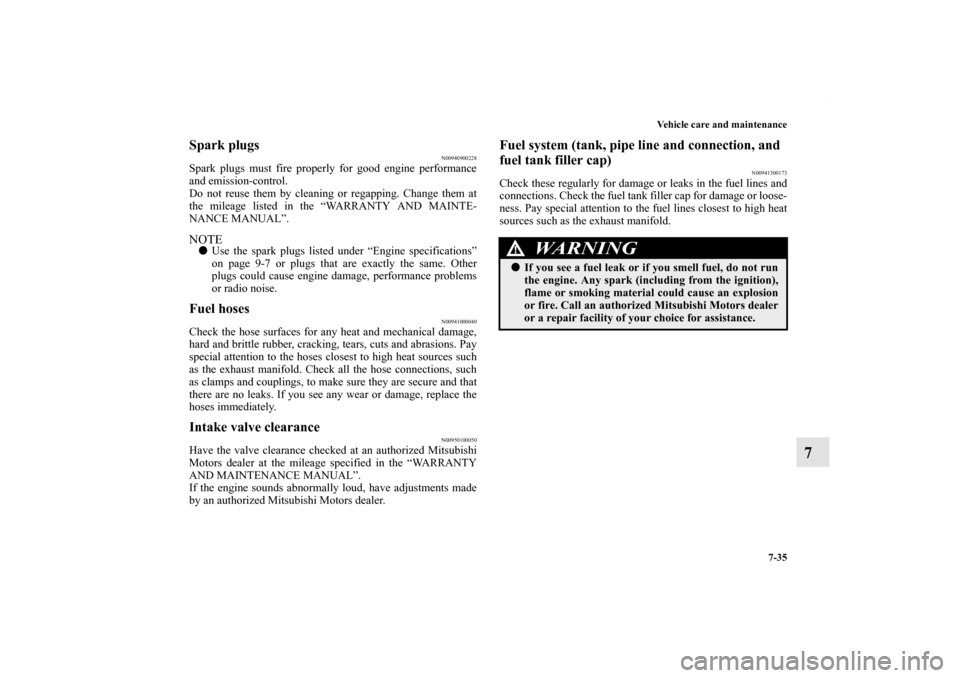

Vehicle care and maintenance7-35
7
Spark plugs
N00940900228
Spark plugs must fire properly for good engine performance
and emission-control.
Do not reuse them by cleaning or regapping. Change them at
the mileage listed in the “WARRANTY AND MAINTE-
NANCE MANUAL”. NOTEUse the spark plugs listed under “Engine specifications”
on page 9-7 or plugs that are exactly the same. Other
plugs could cause engine damage, performance problems
or radio noise.Fuel hoses
N00941000040
Check the hose surfaces for any heat and mechanical damage,
hard and brittle rubber, cracking, tears, cuts and abrasions. Pay
special attention to the hoses closest to high heat sources such
as the exhaust manifold. Check all the hose connections, such
as clamps and couplings, to make sure they are secure and that
there are no leaks. If you see any wear or damage, replace the
hoses immediately.Intake valve clearance
N00950100050
Have the valve clearance checked at an authorized Mitsubishi
Motors dealer at the mileage specified in the “WARRANTY
AND MAINTENANCE MANUAL”.
If the engine sounds abnormally loud, have adjustments made
by an authorized Mitsubishi Motors dealer.
Fuel system (tank, pipe line and connection, and
fuel tank filler cap)
N00941300173
Check these regularly for damage or leaks in the fuel lines and
connections. Check the fuel tank filler cap for damage or loose-
ness. Pay special attention to the fuel lines closest to high heat
sources such as the exhaust manifold.
WARNING
!If you see a fuel leak or if you smell fuel, do not run
the engine. Any spark (including from the ignition),
flame or smoking material could cause an explosion
or fire. Call an authorized Mitsubishi Motors dealer
or a repair facility of your choice for assistance.
BK0150700US.book 35 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Specifications9-7
9
Engine specifications
N01147700442
Engine model
4B11Engine displacement
121.9 CID (1,998 cm
3)
No. of cylinders and cylinder arrangement 4 in lineBore3.39 in (86.0 mm)Stroke 3.39 in (86.0 mm)Compression ratio 10.0Thermostat valve opening temperature189 °F (87 °C)Spark plugs
NGK DIFR6C11
Spark plug gap .040 to .043 in (1.0 to 1.1 mm)Firing order 1-3-4-2
BK0150700US.book 7 ページ ２０１２年３月２２日 木曜日 午後６時４６分
Alphabetical index
6Rearview mirrorInside rearview mirror 3-60
Outside rearview mirrors 3-64
Replacement of light bulbs 7-47
Replacing tires and wheels 7-28
Reporting Safety Defects 8-3
S
Safe driving techniques 4-6
Seat belt 2-18 Adjustable seat belt shoulder anchor 2-27
Child restraint systems 2-31
Front passenger seat belt warning light 2-27
Maintenance and inspection 2-42
Seat belt extender 2-28
Seat belt force limitter 2-31
Seat belt pre-tensioners 2-29
Seat belt use during pregnancy 2-29
Seats 2-2 Arm rest 2-11
Front seats 2-3
Head restraints 2-12
Heated seat 2-9
Seats and restraint systems 2-3
Service brake 3-93
Service precautions 7-2
Side turn signal light Bulb capacity 7-48
Snow tires 7-32 Spark plugs 7-35
Starting the engine 3-69
Steering
Power steering fluid 9-9
Steering wheel height and reach adjustment 3-59
Stop lights Bulb capacity 7-48
Replacement 7-62
Storage spaces 3-246
Sun visors 3-236
Sunshade 3-56
Supplemental Restraint System 2-43 How the Supplemental Restraint System works 2-47
Maintenance service 2-68
T
Tail lightBulb capacity 7-48
Replacement 7-62
Tank capacity 9-9
Theft-alarm system 3-48
Tire 7-23 Inflation pressure 7-27
Maintenance 7-29
Quality grading 8-2
Replacing tires and wheels 7-28
Rotation 7-30
Size (tire and wheel) 9-8
Snow tires 7-32
