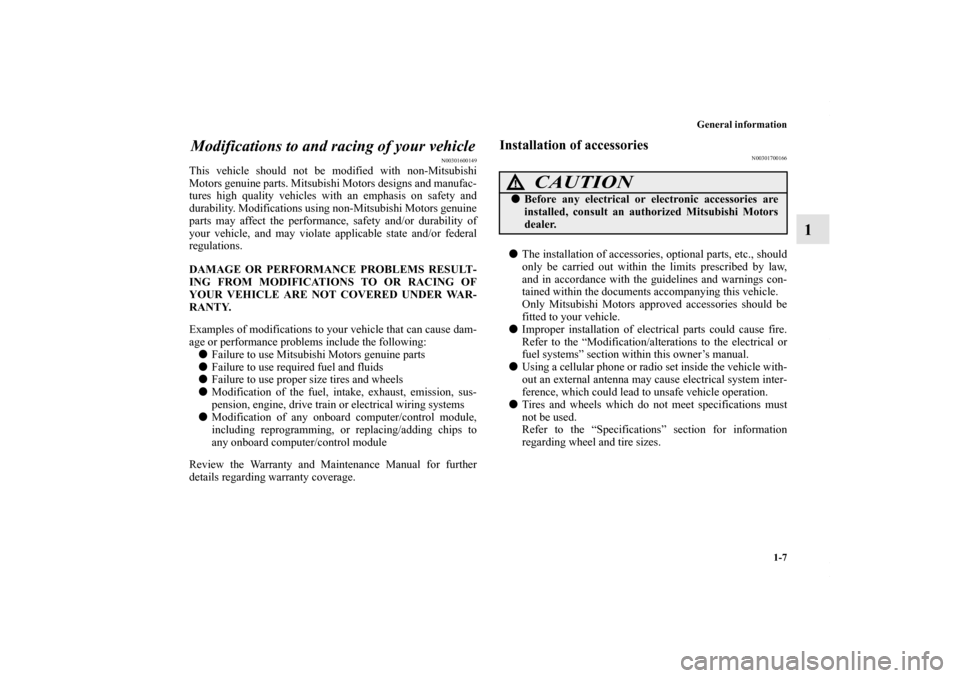

General information1-7
1
Modifications to and racing of your vehicle
N00301600149
This vehicle should not be modified with non-Mitsubishi
Motors genuine parts. Mitsubishi Motors designs and manufac-
tures high quality vehicles with an emphasis on safety and
durability. Modifications using non-Mitsubishi Motors genuine
parts may affect the performance, safety and/or durability of
your vehicle, and may violate applicable state and/or federal
regulations.
DAMAGE OR PERFORMANCE PROBLEMS RESULT-
ING FROM MODIFICATIONS TO OR RACING OF
YOUR VEHICLE ARE NOT COVERED UNDER WAR-
RANTY.
Examples of modifications to your vehicle that can cause dam-
age or performance problems include the following:

Failure to use Mitsubishi Motors genuine parts

Failure to use required fuel and fluids

Failure to use proper size tires and wheels

Modification of the fuel, intake, exhaust, emission, sus-
pension, engine, drive train or electrical wiring systems

Modification of any onboard computer/control module,
including reprogramming, or replacing/adding chips to
any onboard computer/control module
Review the Warranty and Maintenance Manual for further
details regarding warranty coverage.
Installation of accessories
N00301700166

The installation of accessories, optional parts, etc., should
only be carried out within the limits prescribed by law,
and in accordance with the guidelines and warnings con-
tained within the documents accompanying this vehicle.
Only Mitsubishi Motors approved accessories should be
fitted to your vehicle.

Improper installation of electrical parts could cause fire.
Refer to the “Modification/alterations to the electrical or
fuel systems” section within this owner’s manual.

Using a cellular phone or radio set inside the vehicle with-
out an external antenna may cause electrical system inter-
ference, which could lead to unsafe vehicle operation.

Tires and wheels which do not meet specifications must
not be used.
Refer to the “Specifications” section for information
regarding wheel and tire sizes.
CAUTION
!
Before any electrical or electronic accessories are
installed, consult an authorized Mitsubishi Motors
dealer.
BK0150700US.book 7 ページ ２０１２年３月２２日　木曜日　午後６時４６分

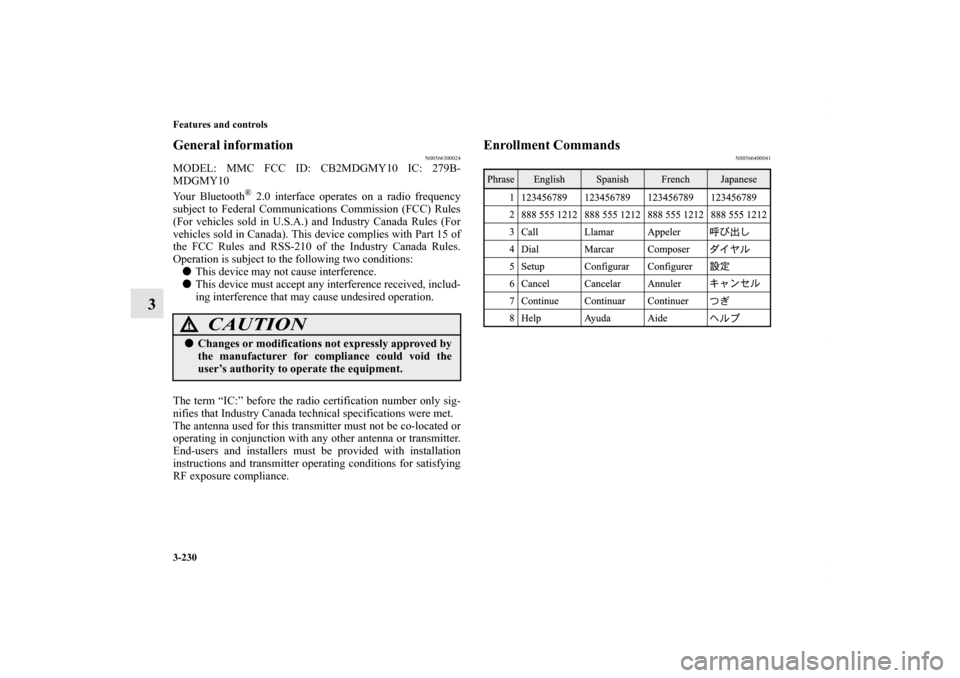

3-230 Features and controls
3
General information
N00566300024
MODEL: MMC FCC ID: CB2MDGMY10 IC: 279B-
MDGMY10
Your Bluetooth
® 2.0 interface operates on a radio frequency
subject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
the FCC Rules and RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions:
This device may not cause interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
The term “IC:” before the radio certification number only sig-
nifies that Industry Canada technical specifications were met.
The antenna used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
End-users and installers must be provided with installation
instructions and transmitter operating conditions for satisfying
RF exposure compliance.
Enrollment Commands
N00566400041
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0150700US.book 230 ページ ２０１２年３月２２日　木曜日　午後６時４６分

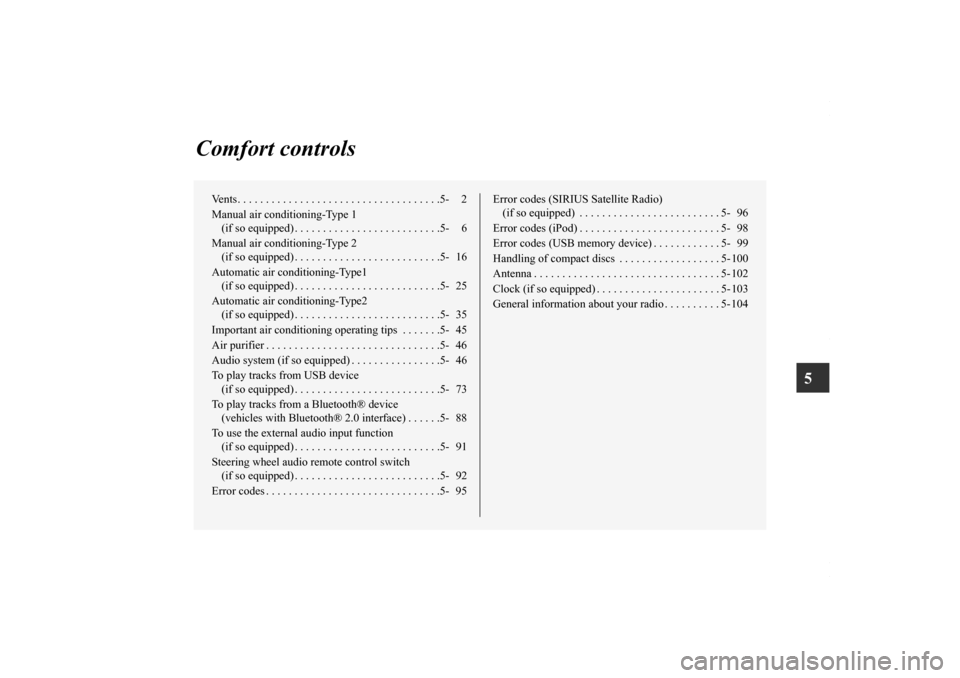

5
Comfort controls
Vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 2
Manual air conditioning-Type 1 (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 6
Manual air conditioning-Type 2 (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 16
Automatic air conditioning-Type1 (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 25
Automatic air conditioning-Type2 (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 35
Important air conditioning operating tips . . . . . . .5- 45
Air purifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 46
Audio system (if so equipped) . . . . . . . . . . . . . . . .5- 46
To play tracks from USB device (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 73
To play tracks from a Bluetooth® device (vehicles with Bluetooth® 2.0 interface) . . . . . .5- 88
To use the external audio input function (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 91
Steering wheel audio remote control switch (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 92
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 95 Error codes (SIRIUS Satellite Radio)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 96
Error codes (iPod) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 98
Error codes (USB memory device) . . . . . . . . . . . . 5- 99
Handling of compact discs . . . . . . . . . . . . . . . . . . 5- 100
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5- 102
Clock (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 5- 103
General information about your radio . . . . . . . . . . 5- 104
BK0150700US.book 1 ページ ２０１２年３月２２日　木曜日　午後６時４６分

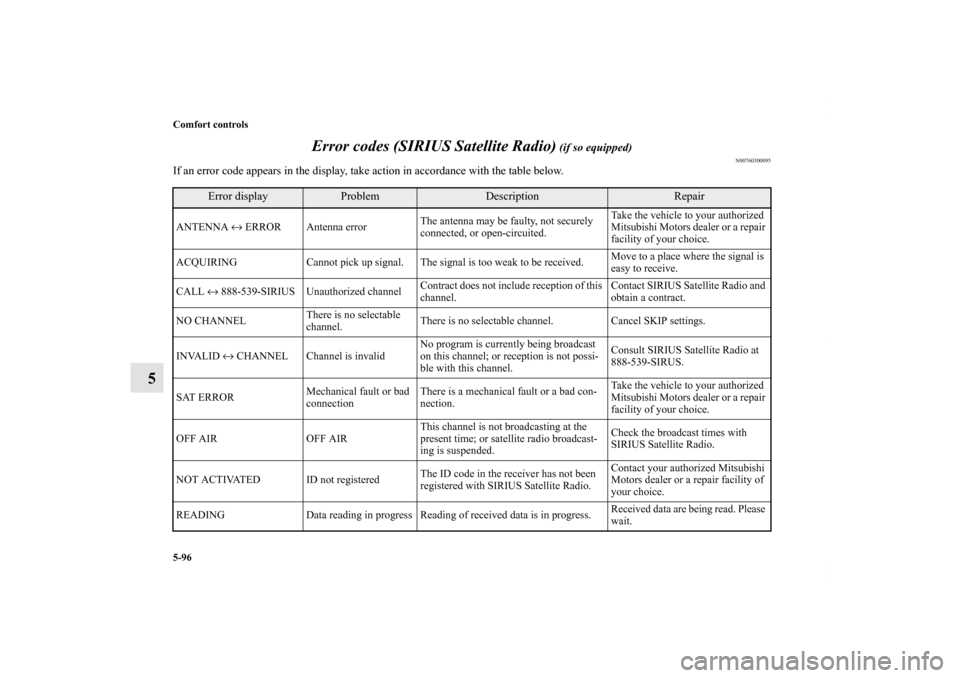

5-96 Comfort controls
5Error codes (SIRIUS Satellite Radio)
(if so equipped)
N00760300095
If an error code appears in the display, take action in accordance with the table below.
Error display
Problem
Description
Repair
ANTENNA
↔ ERROR Antenna error The antenna may be faulty, not securely
connected, or open-circuited. Take the vehicle to your authorized
Mitsubishi Motors dealer or a repair
facility of your choice.
ACQUIRING Cannot pick up signal. The signal is too weak to be received. Move to a place where the signal is
easy to receive.
CALL ↔ 888-539-SIRIUS Unauthorized channel Contract does not include reception of this
channel.Contact SIRIUS Satellite Radio and
obtain a contract.
NO CHANNEL There is no selectable
channel.
There is no selectable channel. Cancel SKIP settings.
INVALID ↔ CHANNEL Channel is invalid No program is currently being broadcast
on this channel; or reception is not possi-
ble with this channel. Consult SIRIUS Satellite Radio at
888-539-SIRUS.
SAT ERROR Mechanical fault or bad
connectionThere is a mechanical fault or a bad con-
nection. Take the vehicle to your authorized
Mitsubishi Motors dealer or a repair
facility of your choice.
OFF AIR OFF AIR This channel is not broadcasting at the
present time; or satellite radio broadcast-
ing is suspended.Check the broadcast times with
SIRIUS Satellite Radio.
NOT ACTIVATED ID not registered The ID code in the receiver has not been
registered with SIRIUS Satellite Radio.Contact your authorized Mitsubishi
Motors dealer or a repair facility of
your choice.
READING Data reading in progress Reading of received data is in progress. Received data are being read. Please
wait.BK0150700US.book 96 ページ
２０１２年３月２２日　木曜日　午後６時４６分

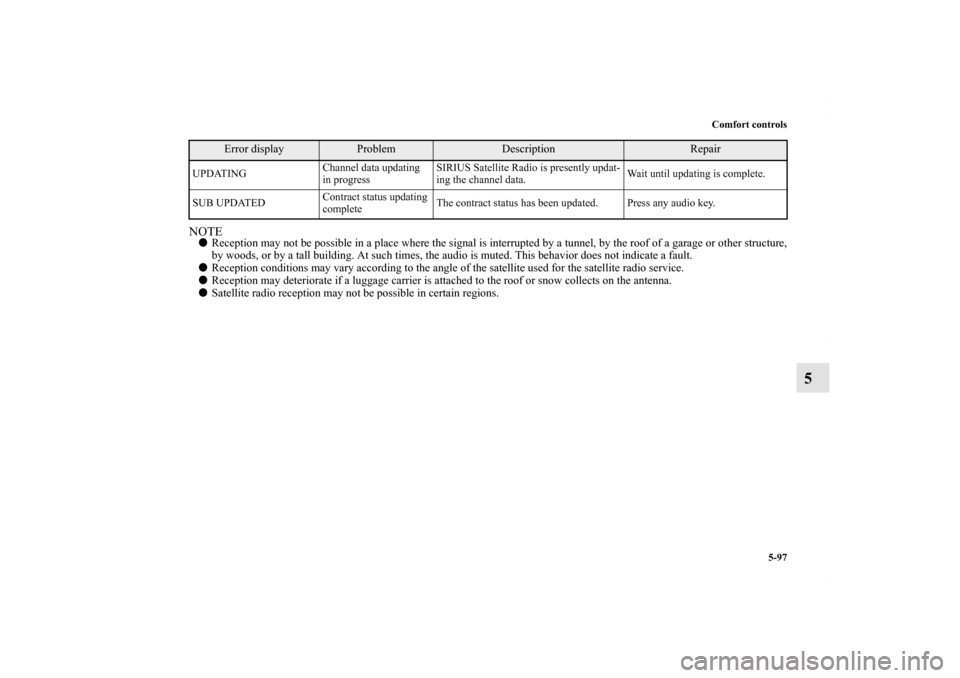

Comfort controls5-97
5
NOTE
Reception may not be possible in a place where the signal is interrupted by a tunnel, by the roof of a garage or other structur e,
by woods, or by a tall building. At such times, the audio is muted. This behavior does not indicate a fault.

Reception conditions may vary according to the angle of the satellite used for the satellite radio service.

Reception may deteriorate if a luggage carrier is attached to the roof or snow collects on the antenna.

Satellite radio reception may not be possible in certain regions.UPDATING Channel data updating
in progressSIRIUS Satellite Radio is presently updat-
ing the channel data.
Wait until updating is complete.
SUB UPDATED Contract status updating
complete
The contract status has been updated. Press any audio key.
Error display
Problem
Description
Repair
