2013 MITSUBISHI OUTLANDER SPORT hood release

Overview
Drive mode-selector (if so equipped)
P. 3 - 8 4Center vents P.5-2
Gearshift or selector lever P.3-71, 3-75 12V power outlet P.3-238 Glove compartment P.3-247
Fuel tank filler door
release lever P.1-4 Rear window defogger switch P.3-203Side vents P.5-2
Engine hood release lever
P.7-4 Hazard warning flasher switch P.3-193
Mitsubishi Multi-Communication System
(if so equipped)
Audio (if so equipped) P.5-46
Clock (if so equipped) P.5-103
Air conditioning P.5-6, 5-16, 5-25, 5-35 Key slot (if so equipped) P.3-28
Cup holder P.3-251
Fuses P.7-39
Multi-information meter switch
P.3-131
Parking brake lever P.7-33
BK0150700US.book 2 ページ ２０１２年３月２２日　木曜日　午後６時４６分

7-4 Vehicle care and maintenance
7Engine hood
N00937500477
To openUse the engine hood release lever (located under the instrument
panel near the driver’s door) to unlock the engine hood.
Pull the lever toward you to release the engine hood latch.
Release the lever and lift the engine hood.
NOTE

To prevent damage to the engine hood and wipers, make
sure the wipers are at resting position when you open the
engine hood.
WARNING
!
Never use the release lever to unlatch the engine
hood while the vehicle is in motion.
Do not drive your vehicle unless the engine hood is
locked.
BK0150700US.book 4 ページ ２０１２年３月２２日　木曜日　午後６時４６分

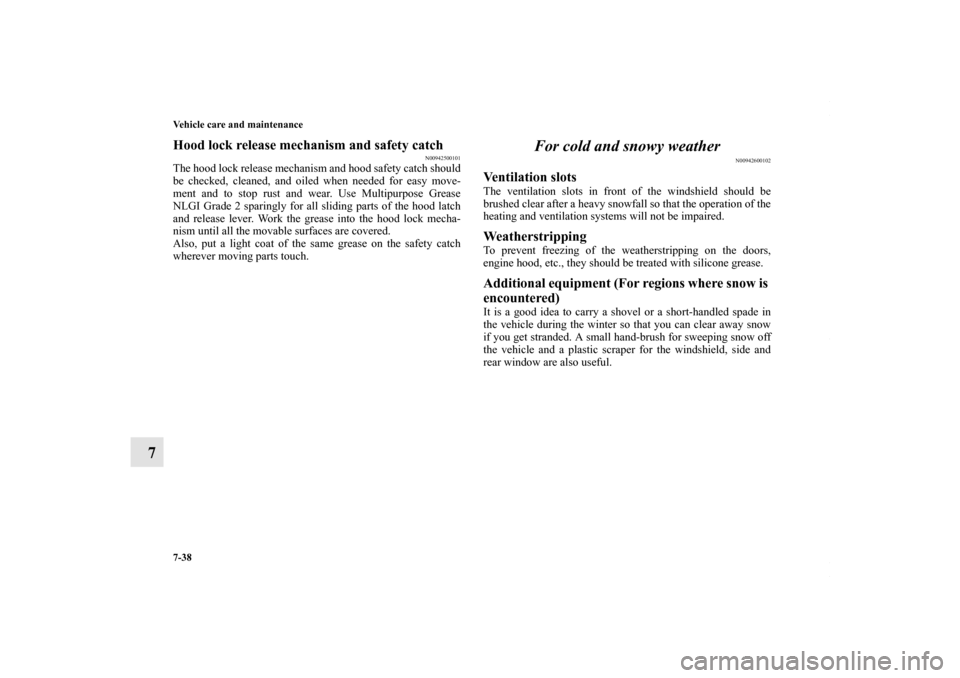

7-38 Vehicle care and maintenance
7
Hood lock release mechanism and safety catch
N00942500101
The hood lock release mechanism and hood safety catch should
be checked, cleaned, and oiled when needed for easy move-
ment and to stop rust and wear. Use Multipurpose Grease
NLGI Grade 2 sparingly for all sliding parts of the hood latch
and release lever. Work the grease into the hood lock mecha-
nism until all the movable surfaces are covered.
Also, put a light coat of the same grease on the safety catch
wherever moving parts touch.
For cold and snowy weather
N00942600102
Ventilation slotsThe ventilation slots in front of the windshield should be
brushed clear after a heavy snowfall so that the operation of the
heating and ventilation systems will not be impaired.WeatherstrippingTo prevent freezing of the weatherstripping on the doors,
engine hood, etc., they should be treated with silicone grease.Additional equipment (For regions where snow is
encountered)It is a good idea to carry a shovel or a short-handled spade in
the vehicle during the winter so that you can clear away snow
if you get stranded. A small hand-brush for sweeping snow off
the vehicle and a plastic scraper for the windshield, side and
rear window are also useful.
BK0150700US.book 38 ページ ２０１２年３月２２日　木曜日　午後６時４６分

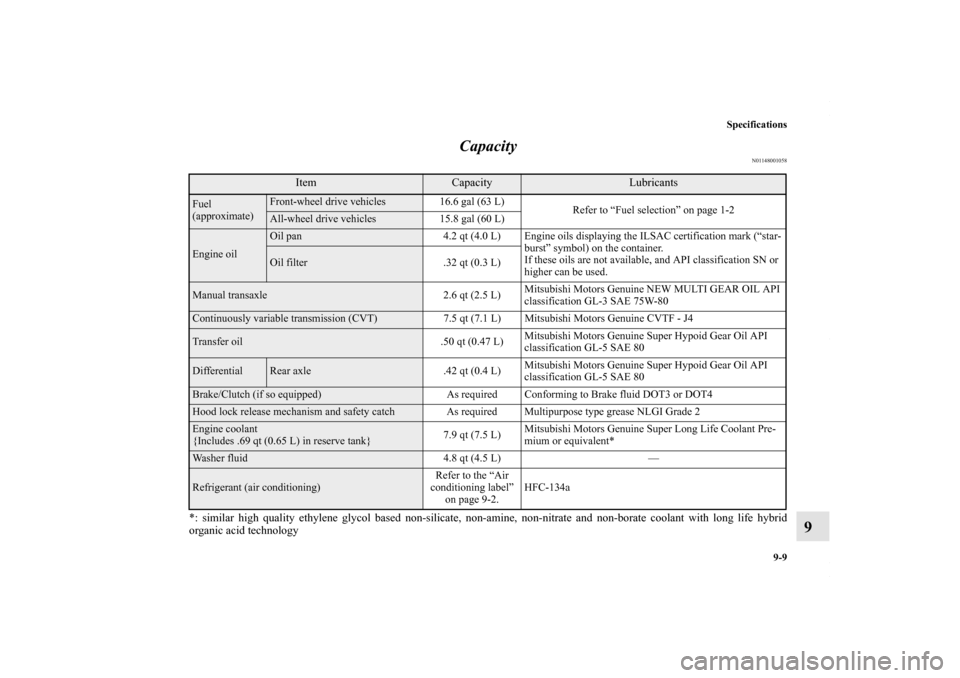

Specifications9-9
9
Capacity
N01148001058
*: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid
organic acid technology
Item
Capacity
Lubricants
Fuel
(approximate)
Front-wheel drive vehicles 16.6 gal (63 L)
Refer to “Fuel selection” on page 1-2All-wheel drive vehicles15.8 gal (60 L)
Engine oil
Oil pan 4.2 qt (4.0 L) Engine oils displaying the ILSAC certification mark (“star-
burst” symbol) on the container.
If these oils are not available, and API classification SN or
higher can be used.Oil filter .32 qt (0.3 L)
Manual transaxle 2.6 qt (2.5 L)Mitsubishi Motors Genuine NEW MULTI GEAR OIL API
classification GL-3 SAE 75W-80Continuously variable transmission (CVT)
7.5 qt (7.1 L) Mitsubishi Motors Genuine CVTF - J4Transfer oil.50 qt (0.47 L)Mitsubishi Motors Genuine Super Hypoid Gear Oil API
classification GL-5 SAE 80Differential
Rear axle
.42 qt (0.4 L)Mitsubishi Motors Genuine Super Hypoid Gear Oil API
classification GL-5 SAE 80
Brake/Clutch (if so equipped)
As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2Engine coolant
{Includes .69 qt (0.65 L) in reserve tank}7.9 qt (7.5 L)Mitsubishi Motors Genuine Super Long Life Coolant Pre-
mium or equivalent*Washer fluid
4.8 qt (4.5 L)—Refrigerant (air conditioning) Refer to the “Air
conditioning label” on page 9-2. HFC-134a
BK0150700US.book 9
ページ ２０１２年３月２２日　木曜日　午後６時４６分

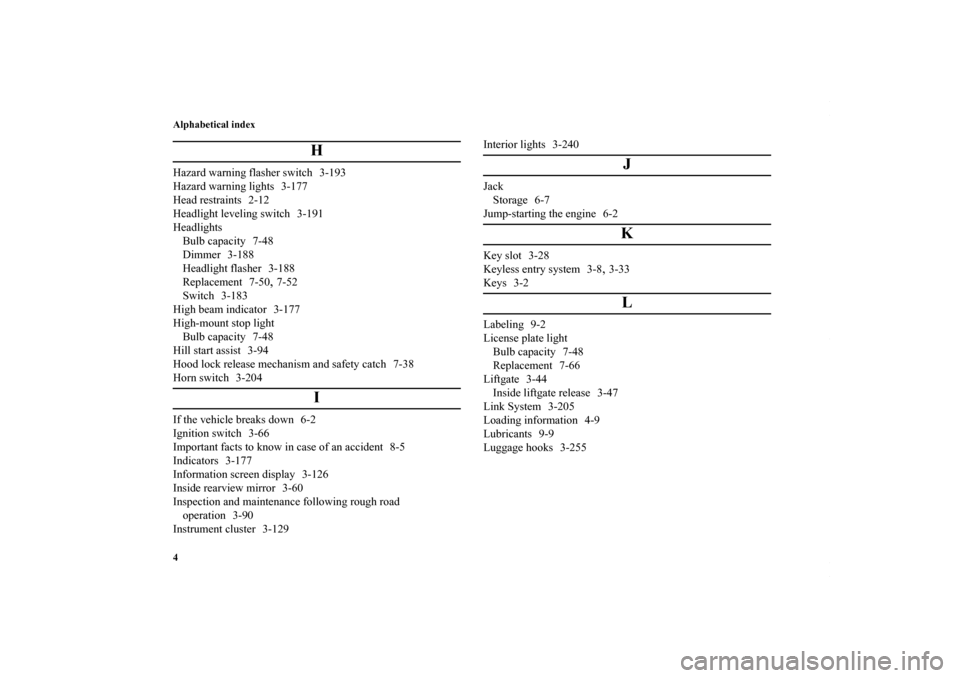

Alphabetical index
4
H
Hazard warning flasher switch 3-193
Hazard warning lights 3-177
Head restraints 2-12
Headlight leveling switch 3-191
HeadlightsBulb capacity 7-48
Dimmer 3-188
Headlight flasher 3-188
Replacement 7-50
,7-52
Switch 3-183
High beam indicator 3-177
High-mount stop light Bulb capacity 7-48
Hill start assist 3-94
Hood lock release mechanism and safety catch 7-38
Horn switch 3-204
I
If the vehicle breaks down 6-2
Ignition switch 3-66
Important facts to know in case of an accident 8-5
Indicators 3-177
Information screen display 3-126
Inside rearview mirror 3-60
Inspection and maintenance following rough road operation 3-90
Instrument cluster 3-129 Interior lights 3-240
J
Jack
Storage 6-7
Jump-starting the engine 6-2
K
Key slot 3-28
Keyless entry system 3-8
,3-33
Keys 3-2
L
Labeling 9-2
License plate light Bulb capacity 7-48
Replacement 7-66
Liftgate 3-44 Inside liftgate release 3-47
Link System 3-205
Loading information 4-9
Lubricants 9-9
Luggage hooks 3-255
