Features and controls3-177
3
Indicators
N00519900127
Turn signal indicators/Hazard warning lights
N00520000216
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed.NOTE

If the indicator flashes faster than usual or if the indicator
stays on without flashing, check for a malfunctioning turn
signal light bulb or turn signal connection.High beam indicator
N00520100086
A blue light comes on when the headlights are on high beam.Front fog light indicator
(if so equipped)
N00520200175
This indicator comes on while the front fog lights are on.Position indicator
N00551300026
This indicator light illuminates while the position lights are on.ECO mode indicator
(if so equipped)
N00568800023
This indicator will be displayed when fuel-efficient driving is
achieved.
Wa r n i n g l i g h t s
N00520300147
Brake warning light
N00520400470
This light comes on when the ignition switch is turned to the
“ON” position (engine off) or the operation mode is put in ON.
When the engine is started, the light should go off a few sec-
onds later. A warning is also displayed in the multi-information
display.
The warning light also illuminates after starting the engine
under the following conditions.

When the parking brake is still applied.

When the brake fluid level is low.

When the brake system circuit is not working properly.
Before driving, be sure that the parking brake is fully released
and brake warning light is off.
BK0150700US.book 177 ページ ２０１２年３月２２日　木曜日　午後６時４６分

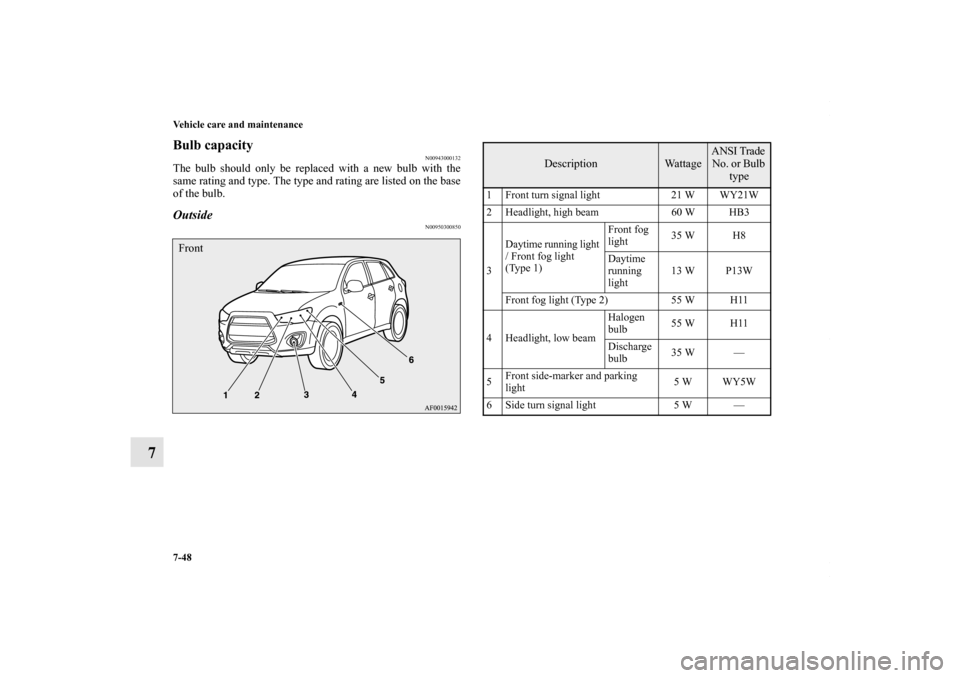

7-48 Vehicle care and maintenance
7
Bulb capacity
N00943000132
The bulb should only be replaced with a new bulb with the
same rating and type. The type and rating are listed on the base
of the bulb.Outside
N00950300850
Front
Description
Wattage
ANSI Trade No. or Bulb type
1 Front turn signal light 21 W WY21W
2 Headlight, high beam 60 W HB3
3 Daytime running light
/ Front fog light
(Type 1) Front fog
light
35 W H8
Daytime
running
light 13 W P13W
Front fog light (Type 2) 55 W H11
4 Headlight, low beam Halogen
bulb
55 W H11
Discharge
bulb 35 W —
5 Front side-marker and parking
light
5 W WY5W
6 Side turn signal light 5 W —
BK0150700US.book 48 ページ ２０１２年３月２２日　木曜日　午後６時４６分

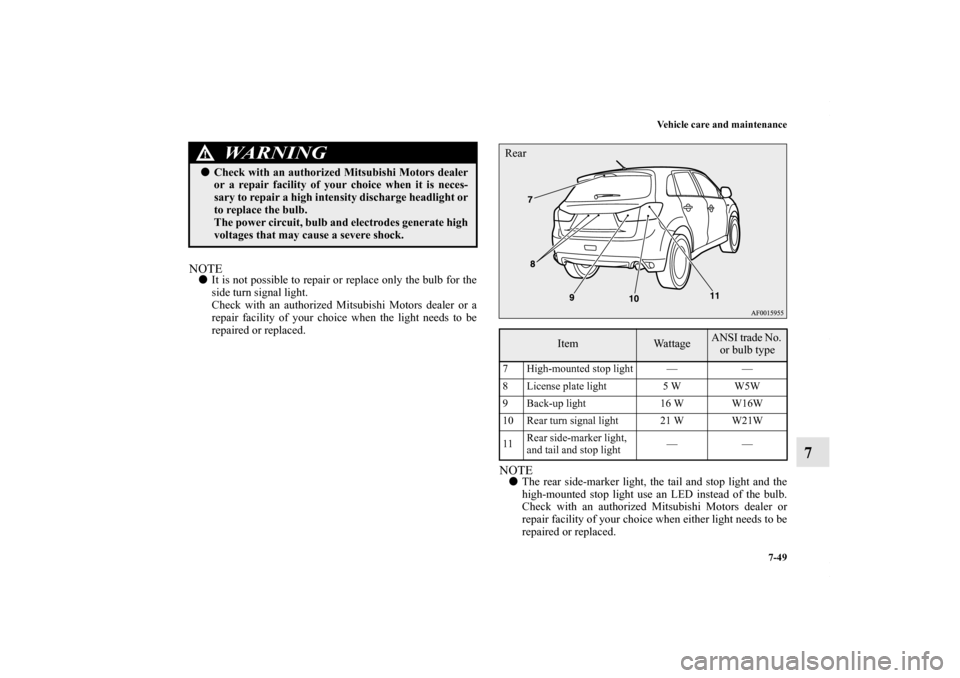

Vehicle care and maintenance7-49
7
NOTE
It is not possible to repair or replace only the bulb for the
side turn signal light.
Check with an authorized Mitsubishi Motors dealer or a
repair facility of your choice when the light needs to be
repaired or replaced.
NOTE
The rear side-marker light, the tail and stop light and the
high-mounted stop light use an LED instead of the bulb.
Check with an authorized Mitsubishi Motors dealer or
repair facility of your choice when either light needs to be
repaired or replaced.
WARNING
!
Check with an authorized Mitsubishi Motors dealer
or a repair facility of your choice when it is neces-
sary to repair a high intensity discharge headlight or
to replace the bulb.
The power circuit, bulb and electrodes generate high
voltages that may cause a severe shock.
Item
Wattage
ANSI trade No.
or bulb type
7 High-mounted stop light — —
8 License plate light 5 W W5W
9 Back-up light 16 W W16W
10 Rear turn signal light 21 W W21W
11 Rear side-marker light,
and tail and stop light ——Rear
BK0150700US.book 49 ページ
２０１２年３月２２日　木曜日　午後６時４６分

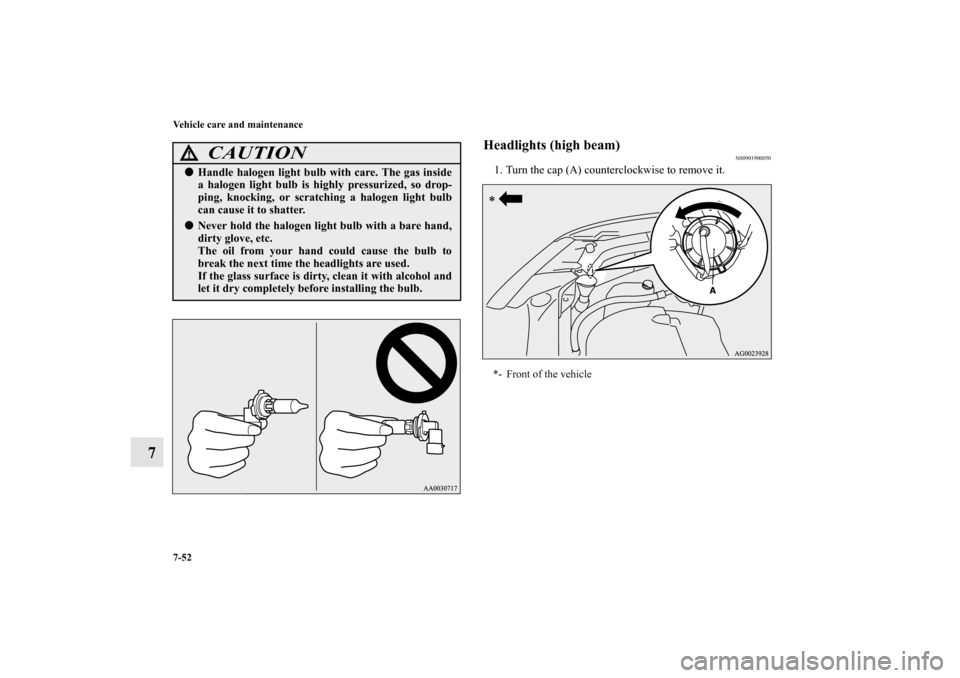

7-52 Vehicle care and maintenance
7
Headlights (high beam)
N00901900050
1. Turn the cap (A) counterclockwise to remove it.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
*- Front of the vehicle
BK0150700US.book 52 ページ ２０１２年３月２２日　木曜日　午後６時４６分

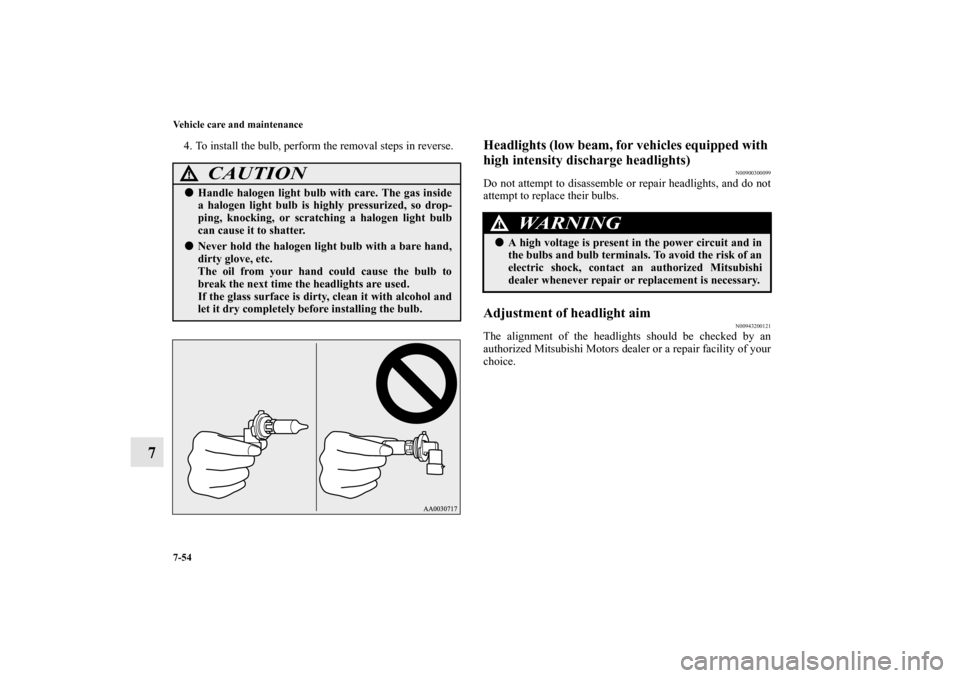

7-54 Vehicle care and maintenance
7
4. To install the bulb, perform the removal steps in reverse.
Headlights (low beam, for vehicles equipped with
high intensity discharge headlights)
N00900300099
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
WARNING
!
A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
dealer whenever repair or replacement is necessary.
BK0150700US.book 54 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Alphabetical index
4
H
Hazard warning flasher switch 3-193
Hazard warning lights 3-177
Head restraints 2-12
Headlight leveling switch 3-191
HeadlightsBulb capacity 7-48
Dimmer 3-188
Headlight flasher 3-188
Replacement 7-50
,7-52
Switch 3-183
High beam indicator 3-177
High-mount stop light Bulb capacity 7-48
Hill start assist 3-94
Hood lock release mechanism and safety catch 7-38
Horn switch 3-204
I
If the vehicle breaks down 6-2
Ignition switch 3-66
Important facts to know in case of an accident 8-5
Indicators 3-177
Information screen display 3-126
Inside rearview mirror 3-60
Inspection and maintenance following rough road operation 3-90
Instrument cluster 3-129 Interior lights 3-240
J
Jack
Storage 6-7
Jump-starting the engine 6-2
K
Key slot 3-28
Keyless entry system 3-8
,3-33
Keys 3-2
L
Labeling 9-2
License plate light Bulb capacity 7-48
Replacement 7-66
Liftgate 3-44 Inside liftgate release 3-47
Link System 3-205
Loading information 4-9
Lubricants 9-9
Luggage hooks 3-255
