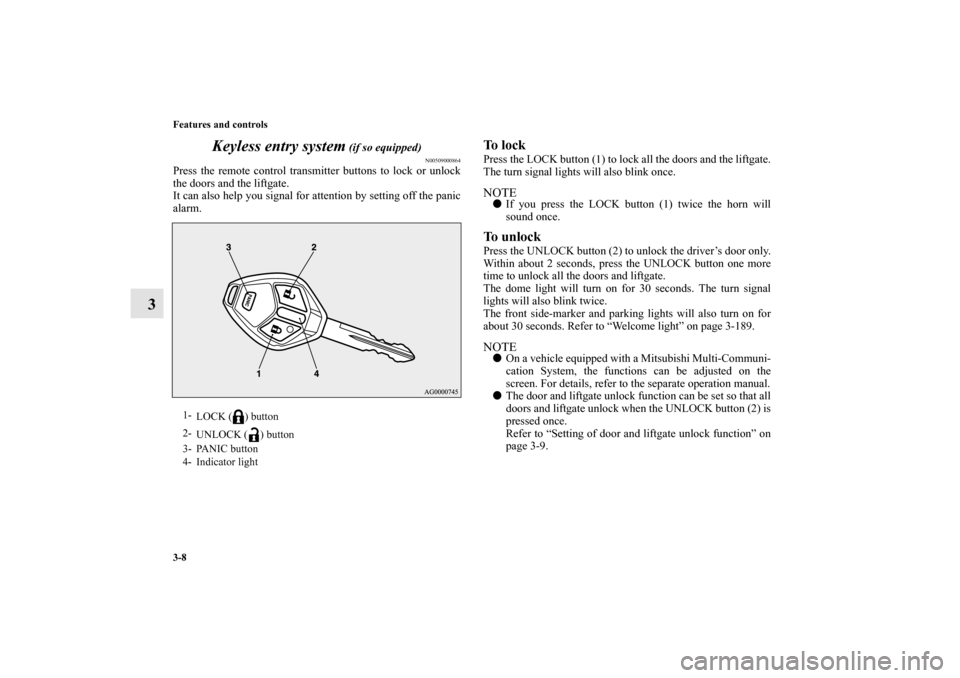

3-8 Features and controls
3Keyless entry system
(if so equipped)
N00509000864
Press the remote control transmitter buttons to lock or unlock
the doors and the liftgate.
It can also help you signal for attention by setting off the panic
alarm.
To l o c kPress the LOCK button (1) to lock all the doors and the liftgate.
The turn signal lights will also blink once.NOTE

If you press the LOCK button (1) twice the horn will
sound once.To unlockPress the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors and liftgate.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.
The front side-marker and parking lights will also turn on for
about 30 seconds. Refer to “Welcome light” on page 3-189.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.

The door and liftgate unlock function can be set so that all
doors and liftgate unlock when the UNLOCK button (2) is
pressed once.
Refer to “Setting of door and liftgate unlock function” on
page 3-9.
1-
LOCK ( ) button
2- UNLOCK ( ) button
3- PANIC button
4- Indicator light
BK0150700US.book 8 ページ ２０１２年３月２２日　木曜日　午後６時４６分

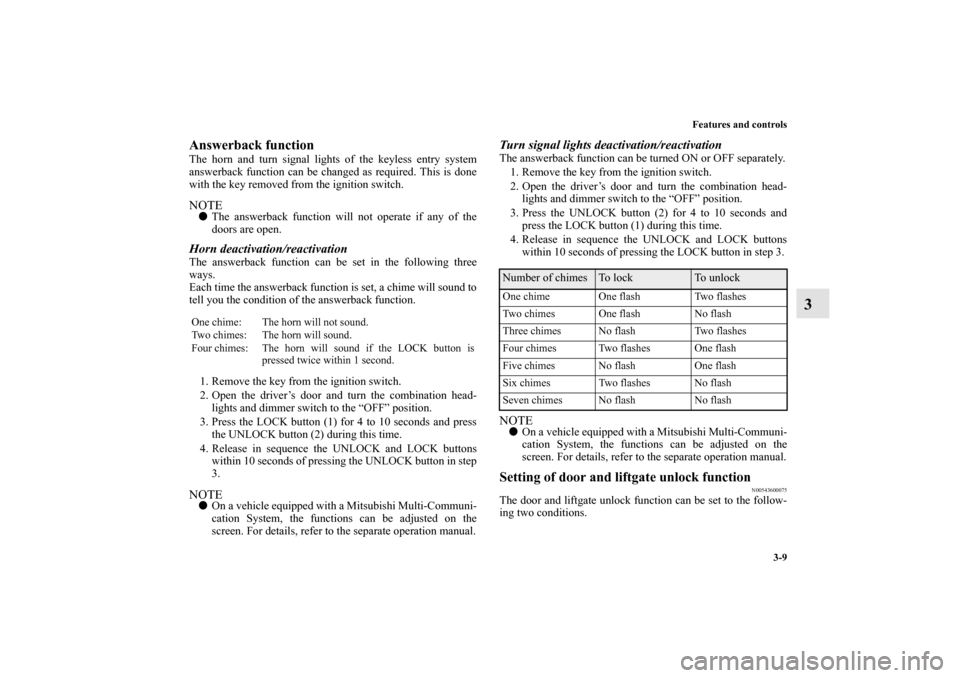

Features and controls3-9
3
Answerback functionThe horn and turn signal lights of the keyless entry system
answerback function can be changed as required. This is done
with the key removed from the ignition switch.NOTE
The answerback function will not operate if any of the
doors are open.Horn deactivation/reactivationThe answerback function can be set in the following three
ways.
Each time the answerback function is set, a chime will sound to
tell you the condition of the answerback function.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head- lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press the UNLOCK button (2) during this time.
4. Release in sequence the UNLOCK and LOCK buttons within 10 seconds of pressing the UNLOCK button in step
3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Turn signal lights deactivation/reactivationThe answerback function can be turned ON or OFF separately.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head- lights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and press the LOCK button (1) during this time.
4. Release in sequence the UNLOCK and LOCK buttons within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.Setting of door and liftgate unlock function
N00543600075
The door and liftgate unlock function can be set to the follow-
ing two conditions.
One chime: The horn will not sound.
Two chimes: The horn will sound.
Four chimes: The horn will sound if the LOCK button is
pressed twice within 1 second.
Number of chimes
To l o c k
To unlock
One chime One flash Two flashes
Two chimes One flash No flash
Three chimes No flash Two flashes
Four chimes Two flashes One flash
Five chimes No flash One flash
Six chimes Two flashes No flash
Seven chimes No flash No flash
BK0150700US.book 9 ページ ２０１２年３月２２日　木曜日　午後６時４６分

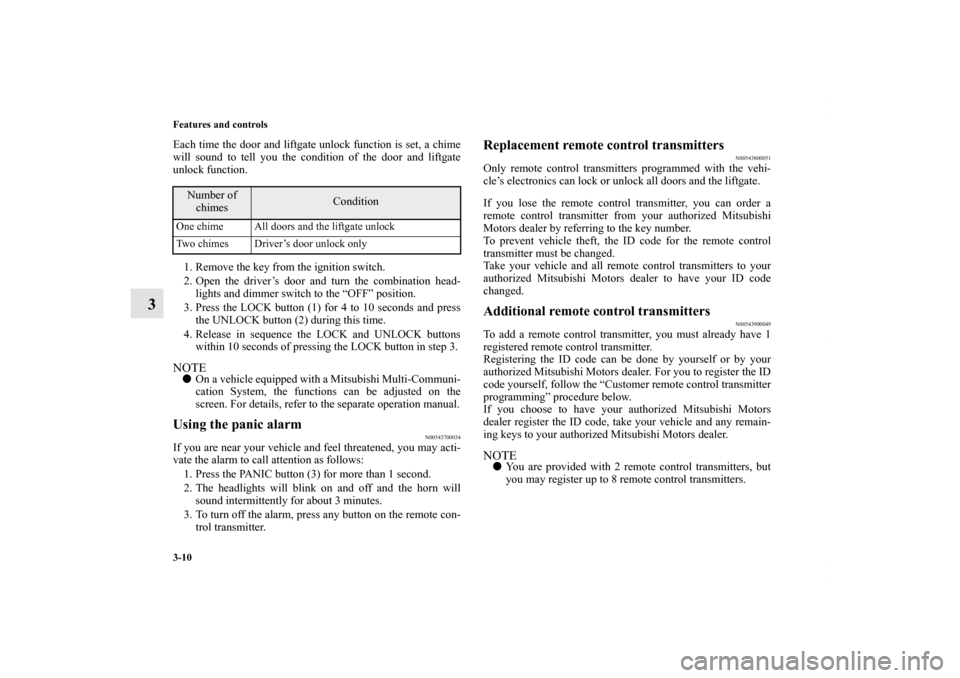

3-10 Features and controls
3
Each time the door and liftgate unlock function is set, a chime
will sound to tell you the condition of the door and liftgate
unlock function.1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head- lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.Using the panic alarm
N00543700034
If you are near your vehicle and feel threatened, you may acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con- trol transmitter.
Replacement remote control transmitters
N00543800051
Only remote control transmitters programmed with the vehi-
cle’s electronics can lock or unlock all doors and the liftgate.
If you lose the remote control transmitter, you can order a
remote control transmitter from your authorized Mitsubishi
Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the remote control
transmitter must be changed.
Take your vehicle and all remote control transmitters to your
authorized Mitsubishi Motors dealer to have your ID code
changed.Additional remote control transmitters
N00543900049
To add a remote control transmitter, you must already have 1
registered remote control transmitter.
Registering the ID code can be done by yourself or by your
authorized Mitsubishi Motors dealer. For you to register the ID
code yourself, follow the “Customer remote control transmitter
programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and any remain-
ing keys to your authorized Mitsubishi Motors dealer.NOTE
You are provided with 2 remote control transmitters, but
you may register up to 8 remote control transmitters.
Number of
chimes
Condition
One chime All doors and the liftgate unlock
Two chimes Driver’s door unlock onlyBK0150700US.book 10 ページ ２０１２年３月２２日　木曜日　午後６時４６分

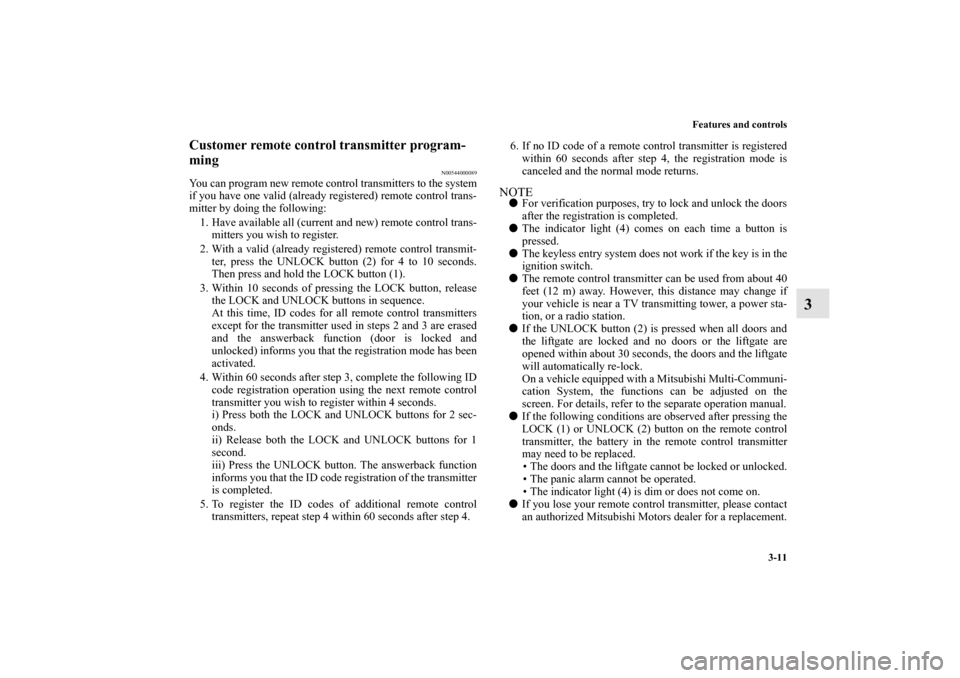

Features and controls3-11
3
Customer remote control transmitter program-
ming
N00544000089
You can program new remote control transmitters to the system
if you have one valid (already registered) remote control trans-
mitter by doing the following:1. Have available all (current and new) remote control trans- mitters you wish to register.
2. With a valid (already registered) remote control transmit- ter, press the UNLOCK button (2) for 4 to 10 seconds.
Then press and hold the LOCK button (1).
3. Within 10 seconds of pressing the LOCK button, release the LOCK and UNLOCK buttons in sequence.
At this time, ID codes for all remote control transmitters
except for the transmitter used in steps 2 and 3 are erased
and the answerback function (door is locked and
unlocked) informs you that the registration mode has been
activated.
4. Within 60 seconds after step 3, complete the following ID code registration operation using the next remote control
transmitter you wish to register within 4 seconds.
i) Press both the LOCK and UNLOCK buttons for 2 sec-
onds.
ii) Release both the LOCK and UNLOCK buttons for 1
second.
iii) Press the UNLOCK button. The answerback function
informs you that the ID code registration of the transmitter
is completed.
5. To register the ID codes of additional remote control transmitters, repeat step 4 within 60 seconds after step 4. 6. If no ID code of a remote control transmitter is registered
within 60 seconds after step 4, the registration mode is
canceled and the normal mode returns.
NOTE
For verification purposes, try to lock and unlock the doors
after the registration is completed.

The indicator light (4) comes on each time a button is
pressed.

The keyless entry system does not work if the key is in the
ignition switch.

The remote control transmitter can be used from about 40
feet (12 m) away. However, this distance may change if
your vehicle is near a TV transmitting tower, a power sta-
tion, or a radio station.

If the UNLOCK button (2) is pressed when all doors and
the liftgate are locked and no doors or the liftgate are
opened within about 30 seconds, the doors and the liftgate
will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.

If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the battery in the remote control transmitter
may need to be replaced.
• The doors and the liftgate cannot be locked or unlocked.
• The panic alarm cannot be operated.
• The indicator light (4) is dim or does not come on.

If you lose your remote control transmitter, please contact
an authorized Mitsubishi Motors dealer for a replacement.
BK0150700US.book 11 ページ ２０１２年３月２２日　木曜日　午後６時４６分

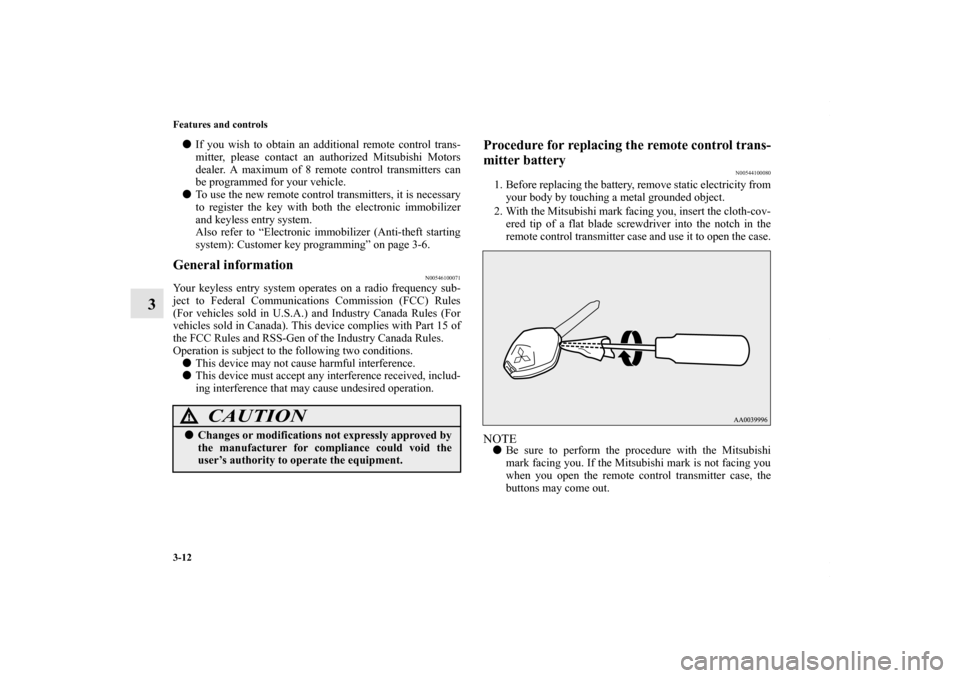

3-12 Features and controls
3

If you wish to obtain an additional remote control trans-
mitter, please contact an authorized Mitsubishi Motors
dealer. A maximum of 8 remote control transmitters can
be programmed for your vehicle.

To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Electronic immobilizer (Anti-theft starting
system): Customer key programming” on page 3-6.General information
N00546100071
Your keyless entry system operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
the FCC Rules and RSS-Gen of the Industry Canada Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Procedure for replacing the remote control trans-
mitter battery
N00544100080
1. Before replacing the battery, remove static electricity from
your body by touching a metal grounded object.
2. With the Mitsubishi mark facing you, insert the cloth-cov- ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
buttons may come out.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0150700US.book 12 ページ ２０１２年３月２２日　木曜日　午後６時４６分

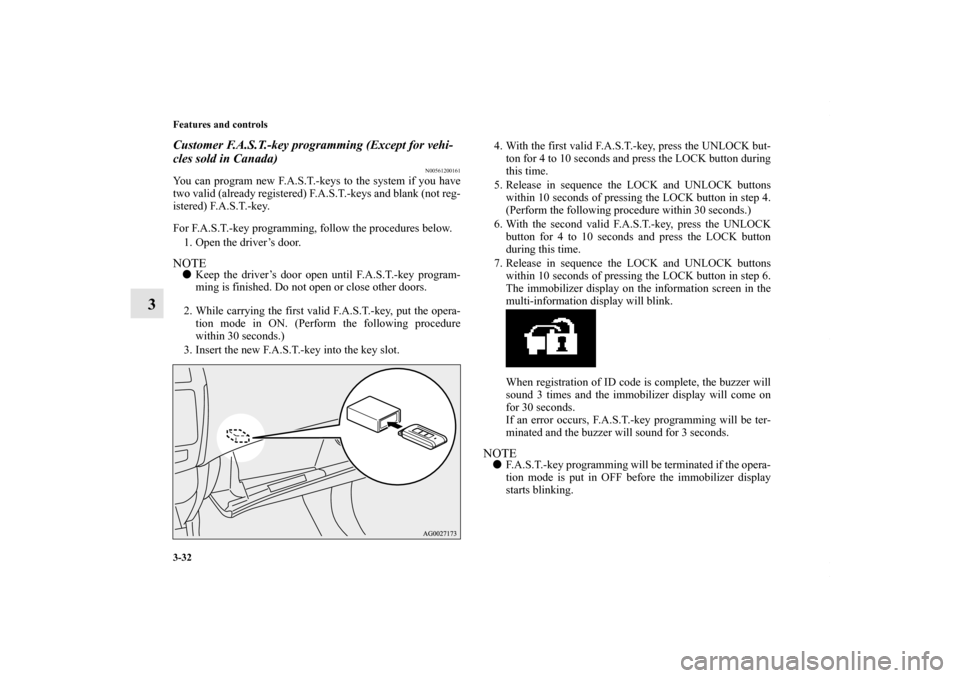

3-32 Features and controls
3
Customer F.A.S.T.-key programming (Except for vehi-
cles sold in Canada)
N00561200161
You can program new F.A.S.T.-keys to the system if you have
two valid (already registered) F.A.S.T.-keys and blank (not reg-
istered) F.A.S.T.-key.
For F.A.S.T.-key programming, follow the procedures below.1. Open the driver’s door.NOTE
Keep the driver’s door open until F.A.S.T.-key program-
ming is finished. Do not open or close other doors.
2. While carrying the first valid F.A.S.T.-key, put the opera- tion mode in ON. (Perform the following procedure
within 30 seconds.)
3. Insert the new F.A.S.T.-key into the key slot. 4. With the first valid F.A.S.T.-key, press the UNLOCK but-
ton for 4 to 10 seconds and press the LOCK button during
this time.
5. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 4.
(Perform the following procedure within 30 seconds.)
6. With the second valid F.A.S.T.-key, press the UNLOCK button for 4 to 10 seconds and press the LOCK button
during this time.
7. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 6.
The immobilizer display on the information screen in the
multi-information display will blink.
When registration of ID code is complete, the buzzer will
sound 3 times and the immobilizer display will come on
for 30 seconds.
If an error occurs, F.A.S.T.-key programming will be ter-
minated and the buzzer will sound for 3 seconds.
NOTE
F.A.S.T.-key programming will be terminated if the opera-
tion mode is put in OFF before the immobilizer display
starts blinking.
BK0150700US.book 32 ページ ２０１２年３月２２日　木曜日　午後６時４６分

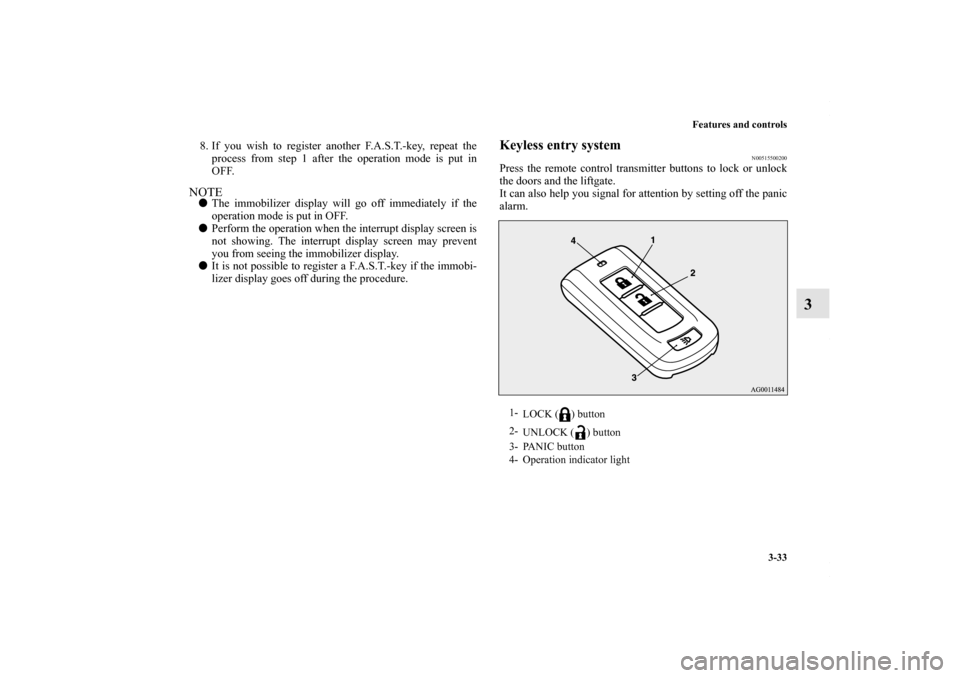

Features and controls3-33
3
8. If you wish to register another F.A.S.T.-key, repeat theprocess from step 1 after the operation mode is put in
OFF.NOTE
The immobilizer display will go off immediately if the
operation mode is put in OFF.

Perform the operation when the interrupt display screen is
not showing. The interrupt display screen may prevent
you from seeing the immobilizer display.

It is not possible to register a F.A.S.T.-key if the immobi-
lizer display goes off during the procedure.
Keyless entry system
N00515500200
Press the remote control transmitter buttons to lock or unlock
the doors and the liftgate.
It can also help you signal for attention by setting off the panic
alarm.1-
LOCK ( ) button
2- UNLOCK ( ) button
3- PANIC button
4- Operation indicator light
BK0150700US.book 33 ページ ２０１２年３月２２日　木曜日　午後６時４６分

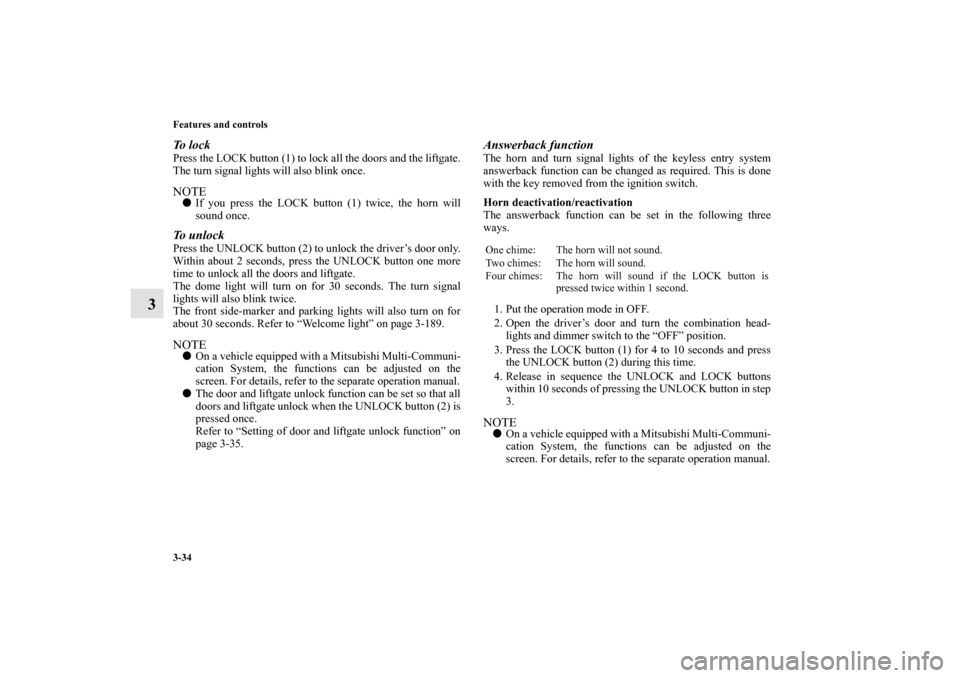

3-34 Features and controls
3
To l o c kPress the LOCK button (1) to lock all the doors and the liftgate.
The turn signal lights will also blink once.NOTE
If you press the LOCK button (1) twice, the horn will
sound once.To u n l o c kPress the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors and liftgate.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.
The front side-marker and parking lights will also turn on for
about 30 seconds. Refer to “Welcome light” on page 3-189.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.

The door and liftgate unlock function can be set so that all
doors and liftgate unlock when the UNLOCK button (2) is
pressed once.
Refer to “Setting of door and liftgate unlock function” on
page 3-35.
Answerback functionThe horn and turn signal lights of the keyless entry system
answerback function can be changed as required. This is done
with the key removed from the ignition switch.
Horn deactivation/reactivation
The answerback function can be set in the following three
ways.
1. Put the operation mode in OFF.
2. Open the driver’s door and turn the combination head- lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press the UNLOCK button (2) during this time.
4. Release in sequence the UNLOCK and LOCK buttons within 10 seconds of pressing the UNLOCK button in step
3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.One chime: The horn will not sound.
Two chimes: The horn will sound.
Four chimes: The horn will sound if the LOCK button is
pressed twice within 1 second.
BK0150700US.book 34 ページ ２０１２年３月２２日　木曜日　午後６時４６分
