2013 MITSUBISHI OUTLANDER SPORT buttons

Features and controls3-35
3

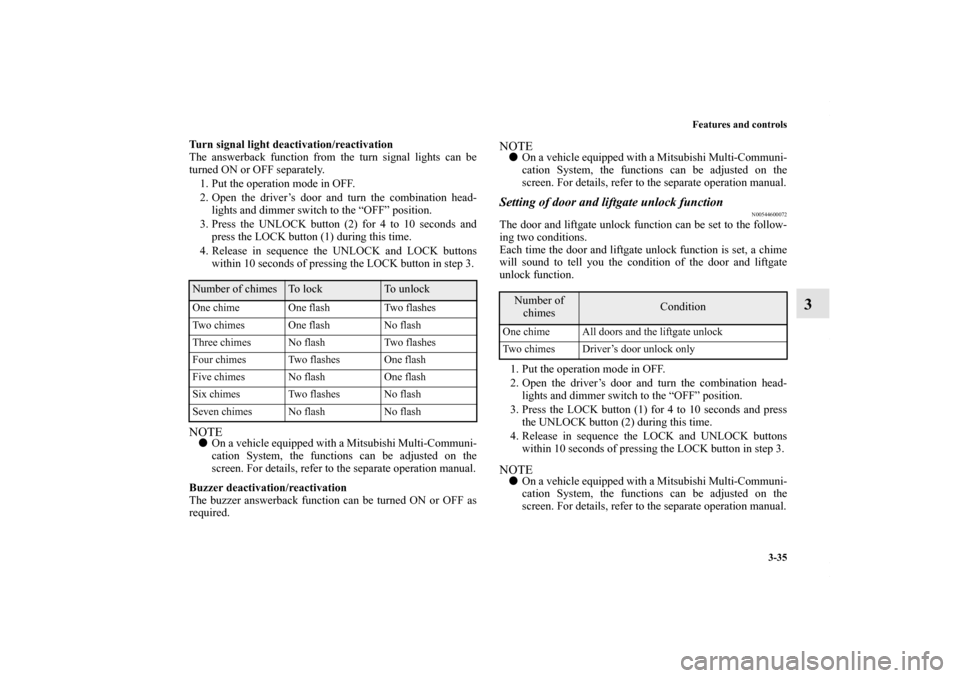

Turn signal light deactivation/reactivation
The answerback function from the turn signal lights can be
turned ON or OFF separately.1. Put the operation mode in OFF.
2. Open the driver’s door and turn the combination head- lights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and press the LOCK button (1) during this time.
4. Release in sequence the UNLOCK and LOCK buttons within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Buzzer deactivation/reactivation
The buzzer answerback function can be turned ON or OFF as
required.
NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.Setting of door and liftgate unlock function
N00544600072
The door and liftgate unlock function can be set to the follow-
ing two conditions.
Each time the door and liftgate unlock function is set, a chime
will sound to tell you the condition of the door and liftgate
unlock function.
1. Put the operation mode in OFF.
2. Open the driver’s door and turn the combination head- lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to the separate operation manual.
Number of chimes
To l o c k
To u n l o c k
One chime One flash Two flashes
Two chimes One flash No flash
Three chimes No flash Two flashes
Four chimes Two flashes One flash
Five chimes No flash One flash
Six chimes Two flashes No flash
Seven chimes No flash No flash
Number of
chimes
Condition
One chime All doors and the liftgate unlock
Two chimes Driver’s door unlock only
BK0150700US.book 35 ページ ２０１２年３月２２日　木曜日　午後６時４６分

5-52 Comfort controls
5
Speed Compensated Volume function
N00752200268
Speed Compensated Volume function is a feature that automat-
ically adjusts the VOLUME, BASS, MID, and TREBLE set-
tings in accordance with the vehicle speed. It is possible to turn
this function ON-OFF using the following methods:1. If you are presently pushing the SOUND switch and mak- ing a tone adjustment, finish making the tone adjustment.
2. Push the SOUND switch for at least about 2 seconds. The system will switch to MENU mode and the characters
“SCV ON” will be shown on the display.NOTE
When you enter the MENU mode while listening to satel-
lite radio (if so equipped), “SKIP SETTING” will be
shown on the display and you will enter the satellite radio
setting mode. Every time you press the SOUND switch,
the display will change in the following order: “SKIP
SETTING” → “LOCK SETTING” → “SCV ON.” Press
the SOUND switch until “SCV ON” is shown on the dis-
play, to switch to the setting mode for the Speed Compen-
sated Volume function.
3. Turn the SOUND switch clockwise to turn the function ON. Turn it counterclockwise to turn the function OFF.NOTE
The factory setting for the Speed Compensated Volume
function is ON.

The MENU mode will automatically shut off when either
the radio or CD is selected or the user does not move any
of the switches for 10 seconds.
Radio control panel and display
N00734900898
1- RADIO (AM/FM selection) button
2- PWR (On-Off) switch
3- DISP (Display) button
4- PAGE button
5- FM (FM1/FM2) indicator
6- ST (Stereo) indicator
7- RBDS (Radio Broadcast Data System) indicator
8- PTY (Program Type) indicator
9- Memory select buttons
10- SCAN button 11- PTY (Program Type) button
12- TUNE switch
13- SEEK (Up-seek) button
14- SEEK (Down-seek) button
BK0150700US.book 52 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Comfort controls5-53
5
To listen to the radio
N00735000896
1. Press the PWR switch to turn the audio system ON andOFF. The system turns on in the last mode used.
Press the RADIO button to turn ON the radio.
2. Press the RADIO button to select the desired band (AM/FM1/FM2).
3. Press the SEEK button to tune to a station, or press one of the Memory select buttons to tune in to a station memo-
rized for that button.
Refer to “Automatic tuning”, “Manual tuning” or “To
enter frequencies into the memory”.Automatic tuningAfter pressing the SEEK button, a receivable station will be
automatically selected and reception of the station will begin.
SCAN function
Press the SCAN button. The radio will tune consecutively to
each available station for about 5 seconds per station. If you
want to stop scanning, press the SCAN button again.
The frequency display of the current station flashes once per
second during SCAN.Manual tuningThe frequency changes every time the TUNE switch is turned.
Turn the switch to select the desired station.To enter frequencies into the memoryAs many as 6 AM and 12 FM stations can be entered into the
memory.
To store a frequency in the memory, follow these steps: 1. Press the SEEK button , or turn the TUNE switch to tune
to the frequency you wish to keep in the memory.
2. Press one of the Memory select buttons until it beeps. The sound will be momentarily interrupted while the fre-
quency is being entered into the memory. The number of
the button matching the entry in the memory as well as the
frequency are displayed.
3. To recall a frequency that has been saved in memory, press the corresponding button briefly for no longer than
about 1 second.
NOTE
Disconnecting the battery cables erases all the radio sta-
tion settings stored in the memory.
BK0150700US.book 53 ページ ２０１２年３月２２日　木曜日　午後６時４６分

5-54 Comfort controls
5
Radio Broadcast Data System (RBDS)
N00751800137
RBDS features are available for use only on FM stations that
broadcast RBDS information.
This RBDS radio can search for stations broadcasting the
selected type of programming and display messages from radio
stations.PTY (Program Type)RBDS broadcasts are classified according to program type
(PTY) as follows.
To search for a broadcast of desired PTY1. To enter PTY (Program Type) mode, press the PTY buttonduring FM reception.
2. Press the PTY button repeatedly until your desired PTY is reached.
You can press one of the Memory select buttons for about
2 seconds to save the currently displayed PTY to that
Memory select button. Thereafter, you can easily call up
your desired PTY by pressing the corresponding Memory
select button.
3. Press the SEEK button, and the radio will begin to search for a broadcast of the selected PTY. During search, the
selected PTY on the display blinks and the sound will be
momentarily interrupted.
4. When the radio picks up a station with your desired PTY, the PTY and the frequency will each appear on the display
for 2 seconds. Then the PTY and the station name will
alternately appear on the display for 6 seconds.
5. The frequency will appear on the display. Then the radio will start receiving the program and exit the PTY mode.
1. ROCK
2. COUNTRY
3. EASY LIS
4. CLASSICL
5. JAZZ
6. Top 40
7. R&B
8. INFORM
9. RELIGION
10. MISC
BK0150700US.book 54 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Comfort controls5-57
5
SIRIUS satellite radio control panel and display
N00700200256
To listen to the SIRIUS satellite radio
N00760500202
1. Press the PWR switch to turn the audio system ON andOFF. The system turns on in the last mode used.
Press the RADIO button to turn ON the radio.
2. Press the RADIO button to select the desired band (SAT1/SAT2/SAT3/SAT4). Each time you push the but-
ton, the display will change in the following order:
AM →FM1 →FM2 →SAT1 →SAT2 →SAT3 →SAT4.
Once the display shows “SIRIUS”, satellite radio recep-
tion will begin.Category selection1. Pressing the PTY button will cause the category of the channel that is currently being received to be displayed for
around 2 seconds.
2. If the TUNE/SOUND switch is turned, the system will change to the category selection mode, the current cate-
gory will be shown in the display, and the PTY indicator
will light up.
3. Turning the TUNE/SOUND switch while in the category selection mode, the next category will be shown.NOTE
Selecting a different category will not change the channel.
During category selection, the original channel will con-
tinue to be received. Use a channel select button to change
the channel.

If you do not use the satellite radio again before 15 sec-
onds have elapsed, the category selection mode will be
canceled. (The PTY indicator will go out.)
1- RADIO (AM/FM/Satellite radio selection) button
2- PWR (On-Off) switch
3- DISP (Display) button
4- PAGE button
5- SAT (SAT1/SAT2/SAT3/SAT4) display
6- PTY indicator
7- Memory select buttons
8- SCAN button
9- PTY button
10- TUNE/SOUND (Category selection) switch 11- Channel selection up button
12- Channel selection down button
BK0150700US.book 57 ページ ２０１２年３月２２日　木曜日　午後６時４６分

5-58 Comfort controls
5

Pressing the PTY button while in the category selection
mode will cause the current channel to be displayed for
around 2 seconds.Channel selectionYou can select a channel by pressing a channel select button. NOTE
While in the category selection mode, only channels in the
category can be selected.Scan function1. Pressing the SCAN button will cause the satellite radio to
tune consecutively to each available channel for about 7
seconds per channel.
2. To stop the scan mode, press the SCAN button again.NOTE
While in the category selection mode, only channels in the
category can be scanned.To enter channels into the memoryYou can save one channel to each Memory select button, for a
maximum of 24 channels in memory.
To store a channel in the memory, follow these steps:
1. Press a channel select button and select the channel that you wish to keep in the memory.
2. Press one of the Memory select buttons until it beeps, indicating that the channel has been stored in memory.NOTE
If you store a channel in the memory, you can call up your
desired channel immediately by simply pushing the corre-
sponding Memory select button.
SIRIUS ID indication If you press a channel selection button to select “CH 0”, the
SIRIUS ID will be displayed.
1. If you select “CH 0”, the SIRIUS ID (12 digits) will be displayed.
2. To stop the SIRIUS ID indication, press a channel selec- tion button and select a channel other than “CH 0”.
BK0150700US.book 58 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Comfort controls5-61
5
To unlock locked channelsThere are two ways to unlock a locked channel. One way is to
unlock a single locked channel of your choice. The other way
is to unlock all locked channels.
To unlock a locked channel, you must enter the lock cancella-
tion code.1. To unlock a single locked channel of your choice, select the locked channel that you want to unlock. (If you want
to unlock all locked channels, it doesn't matter which
locked channel you have selected.)
2. Press the TUNE/SOUND switch for about 2 seconds or longer to enter the MENU mode. Then select the LOCK
setting mode.
3. In the LOCK setting mode, turn the TUNE/SOUND switch and select “UNLOCK CH” when you want to
unlock one locked channel of your choice or “UNLOCK
ALL” when you want to unlock all locked channels.
4. When you press the TUNE/SOUND switch, the code entry window will be shown in the display. 5. Use the Memory select buttons to enter the code (1111 to
6666) and then press the TUNE/SOUND switch.
6. If the entered code is correct, “UNLOCKED” will be shown and the locked channel(s) will be unlocked. The
satellite radio will then return to the LOCK setting mode.
If the entered code is incorrect, a warning sound will be
emitted and “CODE ERROR” will be displayed. The code
entry window will then be shown again.
You can try to enter the code again, no matter how many
times an incorrect code has been entered.
NOTE
The default factory setting for the code is “1111”.

You can change the code to any number you want with the
“CODE EDIT” function.
BK0150700US.book 61 ページ ２０１２年３月２２日　木曜日　午後６時４６分

5-62 Comfort controls
5

To cancel a code entry, turn the TUNE/SOUND switch
while the code entry window is displayed.
The code entry will be cancelled and then the setting
menu will be switched. To change the lock cancellation codeYou can change the code for unlocking channel(s) to any num-
ber you want.
1. Press the TUNE/SOUND switch for about 2 seconds or longer to enter the MENU mode. Then select the LOCK
setting mode.
2. In the LOCK setting mode, turn the TUNE/SOUND switch and select “CODE EDIT”.
3. When you press the TUNE/SOUND switch, the code entry window will be shown in the display.
4. Use the memory select buttons to enter the current code and then press the TUNE/SOUND switch.
5. If the correct code is entered, the code entry window will be shown again. Enter your desired code.
If the entered code is incorrect, a warning sound will be
emitted and “CODE ERROR” will be displayed. The code
entry window will then be shown again.
You can try to enter the code again, no matter how many
times an incorrect code has been entered.
6. After you enter the new code, press the TUNE/SOUND switch. The code entry window will be shown again for
confirmation. Enter the new code again and press the
TUNE/SOUND switch.
7. “STORED” will be displayed for 2 seconds, the code will be changed and the satellite radio will return to the LOCK
setting mode.
NOTE
The SKIP settings, LOCK settings and lock cancellation
code are stored in memory. Disconnecting the battery
cable will erase these settings.
(The lock cancellation code will reset to the default fac-
tory setting: “1111”).To reset the lock cancellation codeIn case you forget the code, it is possible to reset the code to the
factory setting (1111).
1. With the audio power OFF, press the PWR switch and the TUNE/SOUND switch at the same time.
The display will show “CODE INITIAL”.
2. Press the TUNE/SOUND switch. “YES” will be dis- played. To reset the code, press the TUNE/SOUND
switch again. “STORED” will be shown for 2 seconds and
the code will be reset.
If you do not want to reset the code, turn the
TUNE/SOUND switch to display “CANCEL” and then
press the TUNE/SOUND switch again. Text messageYou can change what is shown on the display when the satellite
radio tunes into a channel.
Press the DISP button repeatedly to change to your desired dis-
play mode. The order is:Channel Number + Channel Name →
Category Name → Artist Name → Song Title → Composer
NameNOTE
Category name can also displayed by pressing the PTY
button.
BK0150700US.book 62 ページ ２０１２年３月２２日　木曜日　午後６時４６分
