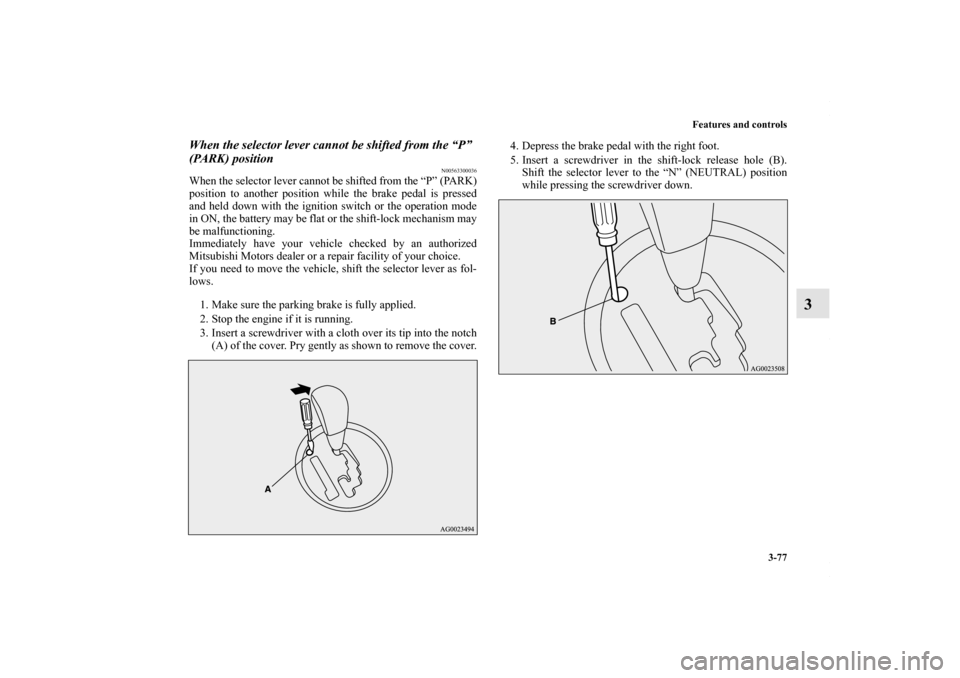

Features and controls3-77
3
When the selector lever cannot be shifted from the “P”
(PARK) position
N00563300036
When the selector lever cannot be shifted from the “P” (PARK)
position to another position while the brake pedal is pressed
and held down with the ignition switch or the operation mode
in ON, the battery may be flat or the shift-lock mechanism may
be malfunctioning.
Immediately have your vehicle checked by an authorized
Mitsubishi Motors dealer or a repair facility of your choice.
If you need to move the vehicle, shift the selector lever as fol-
lows.1. Make sure the parking brake is fully applied.
2. Stop the engine if it is running.
3. Insert a screwdriver with a cloth over its tip into the notch (A) of the cover. Pry gently as shown to remove the cover. 4. Depress the brake pedal with the right foot.
5. Insert a screwdriver in the shift-lock release hole (B).
Shift the selector lever to the “N” (NEUTRAL) position
while pressing the screwdriver down.
BK0150700US.book 77 ページ ２０１２年３月２２日 木曜日 午後６時４６分

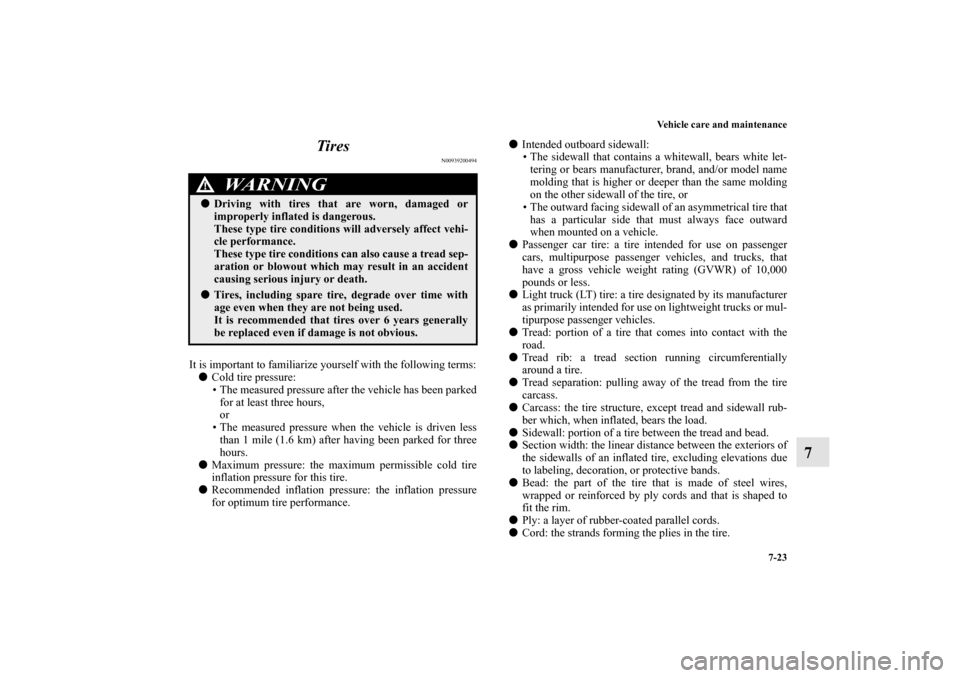

Vehicle care and maintenance7-23
7
Tires
N00939200494
It is important to familiarize yourself with the following terms:
Cold tire pressure:
• The measured pressure after the vehicle has been parked for at least three hours,
or
• The measured pressure when the vehicle is driven less than 1 mile (1.6 km) after having been parked for three
hours.
Maximum pressure: the maximum permissible cold tire
inflation pressure for this tire.
Recommended inflation pressure: the inflation pressure
for optimum tire performance.
Intended outboard sidewall:
• The sidewall that contains a whitewall, bears white let-
tering or bears manufacturer, brand, and/or model name
molding that is higher or deeper than the same molding
on the other sidewall of the tire, or
• The outward facing sidewall of an asymmetrical tire that has a particular side that must always face outward
when mounted on a vehicle.
Passenger car tire: a tire intended for use on passenger
cars, multipurpose passenger vehicles, and trucks, that
have a gross vehicle weight rating (GVWR) of 10,000
pounds or less.
Light truck (LT) tire: a tire designated by its manufacturer
as primarily intended for use on lightweight trucks or mul-
tipurpose passenger vehicles.
Tread: portion of a tire that comes into contact with the
road.
Tread rib: a tread section running circumferentially
around a tire.
Tread separation: pulling away of the tread from the tire
carcass.
Carcass: the tire structure, except tread and sidewall rub-
ber which, when inflated, bears the load.
Sidewall: portion of a tire between the tread and bead.
Section width: the linear distance between the exteriors of
the sidewalls of an inflated tire, excluding elevations due
to labeling, decoration, or protective bands.
Bead: the part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is shaped to
fit the rim.
Ply: a layer of rubber-coated parallel cords.
Cord: the strands forming the plies in the tire.
WARNING
!Driving with tires that are worn, damaged or
improperly inflated is dangerous.
These type tire conditions will adversely affect vehi-
cle performance.
These type tire conditions can also cause a tread sep-
aration or blowout which may result in an accident
causing serious injury or death.Tires, including spare tire, degrade over time with
age even when they are not being used.
It is recommended that tires over 6 years generally
be replaced even if damage is not obvious.
