2013 MITSUBISHI OUTLANDER SPORT Owners Manual

7-4 Vehicle care and maintenance
7Engine hood
N00937500477
To openUse the engine hood release lever (located under the instrument
panel near the driver’s door) to unlock the engine hood.
Pull the lever toward you to release the engine hood latch.
Release the lever and lift the engine hood.
NOTE

To prevent damage to the engine hood and wipers, make
sure the wipers are at resting position when you open the
engine hood.
WARNING
!
Never use the release lever to unlatch the engine
hood while the vehicle is in motion.
Do not drive your vehicle unless the engine hood is
locked.
BK0150700US.book 4 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Vehicle care and maintenance7-5
7
Support the engine hood with the hood prop. Insert the hood
prop securely in the opening under the hood marked with an
arrow.
To closeUnlatch the prop from the engine hood and put it back in its
retainer.
Slowly lower the engine hood about 8 inches (20 cm), then let
it drop from its own weight.
CAUTION
!
Always insert the support prop into the hole spe-
cially made for it. Propping the engine hood at any
other place could cause the prop to slip out and lead
to an accident.
The hood prop can fall out if the hood is lifted by a
strong wind.
CAUTION
!
Be careful not to trap your hands or fingers when
closing the engine hood.
Make sure the engine hood is firmly closed before
driving.
If you drive without the engine hood completely
closed, it could open up while driving.
BK0150700US.book 5 ページ ２０１２年３月２２日　木曜日　午後６時４６分

7-6 Vehicle care and maintenance
7
NOTE
If this does not close the engine hood properly, drop it
again from a slightly higher position.

Do not push down strongly on the engine hood. Depend-
ing on how strongly or where you push down, you could
create a dent in the vehicle body.

If you drive with the engine hood left open, warning dis-
play is displayed on the information screen in the multi-
information display.
View of the engine compartment
N00937600625
Type 1 Type 2
1- Engine oil level dipstick
2- Engine oil filler cap
3- Air cleaner filter
4- Brake fluid/Clutch fluid reservoir (if so equipped)
5- Windshield and rear window washer fluid reservoir
6- Engine coolant reserve tank
7- Radiator cap
8- Battery
BK0150700US.book 6 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Vehicle care and maintenance7-7
7

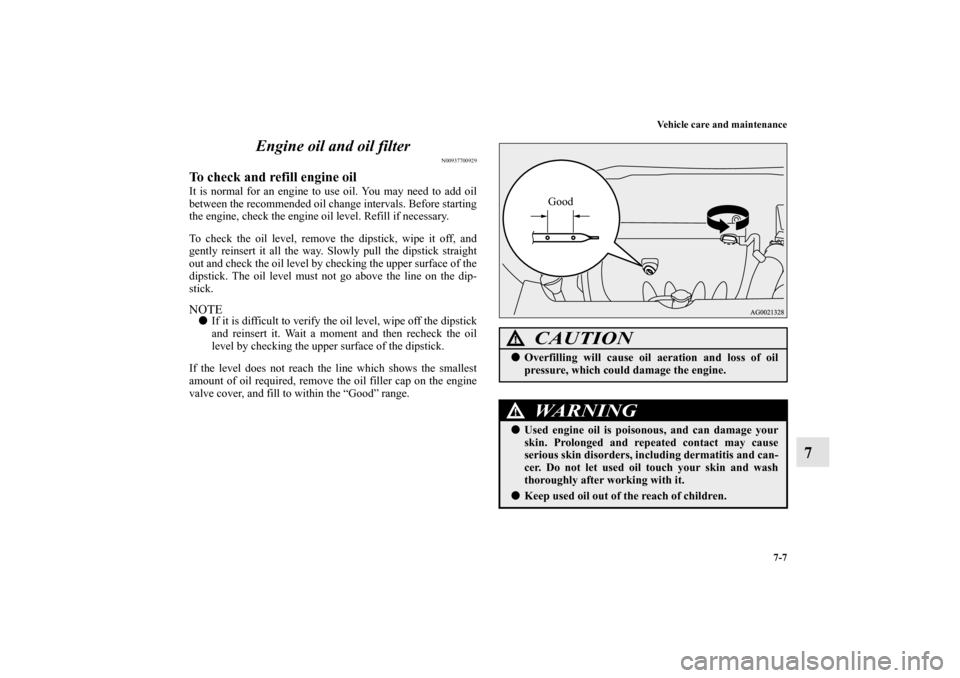

Engine oil and oil filter
N00937700929
To check and refill engine oilIt is normal for an engine to use oil. You may need to add oil
between the recommended oil change intervals. Before starting
the engine, check the engine oil level. Refill if necessary.
To check the oil level, remove the dipstick, wipe it off, and
gently reinsert it all the way. Slowly pull the dipstick straight
out and check the oil level by checking the upper surface of the
dipstick. The oil level must not go above the line on the dip-
stick.NOTE

If it is difficult to verify the oil level, wipe off the dipstick
and reinsert it. Wait a moment and then recheck the oil
level by checking the upper surface of the dipstick.
If the level does not reach the line which shows the smallest
amount of oil required, remove the oil filler cap on the engine
valve cover, and fill to within the “Good” range.
CAUTION
!
Overfilling will cause oil aeration and loss of oil
pressure, which could damage the engine.
WARNING
!
Used engine oil is poisonous, and can damage your
skin. Prolonged and repeated contact may cause
serious skin disorders, including dermatitis and can-
cer. Do not let used oil touch your skin and wash
thoroughly after working with it.
Keep used oil out of the reach of children.
Good
BK0150700US.book 7 ページ ２０１２年３月２２日　木曜日　午後６時４６分

7-8 Vehicle care and maintenance
7

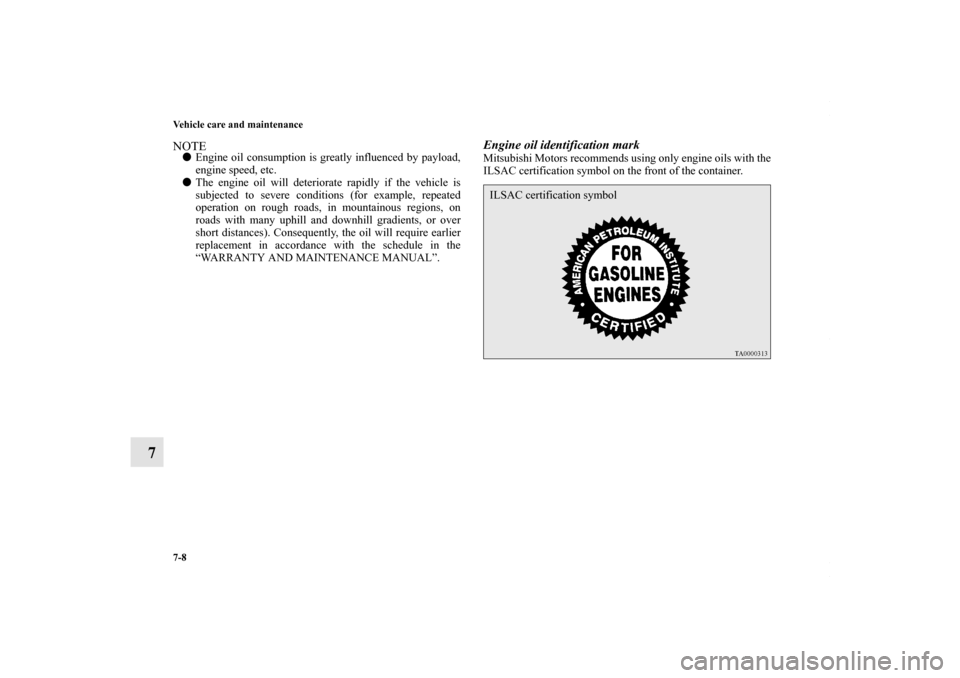

NOTE
Engine oil consumption is greatly influenced by payload,
engine speed, etc.

The engine oil will deteriorate rapidly if the vehicle is
subjected to severe conditions (for example, repeated
operation on rough roads, in mountainous regions, on
roads with many uphill and downhill gradients, or over
short distances). Consequently, the oil will require earlier
replacement in accordance with the schedule in the
“WARRANTY AND MAINTENANCE MANUAL”.
Engine oil identification markMitsubishi Motors recommends using only engine oils with the
ILSAC certification symbol on the front of the container.ILSAC certification symbol
BK0150700US.book 8 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Vehicle care and maintenance7-9
7

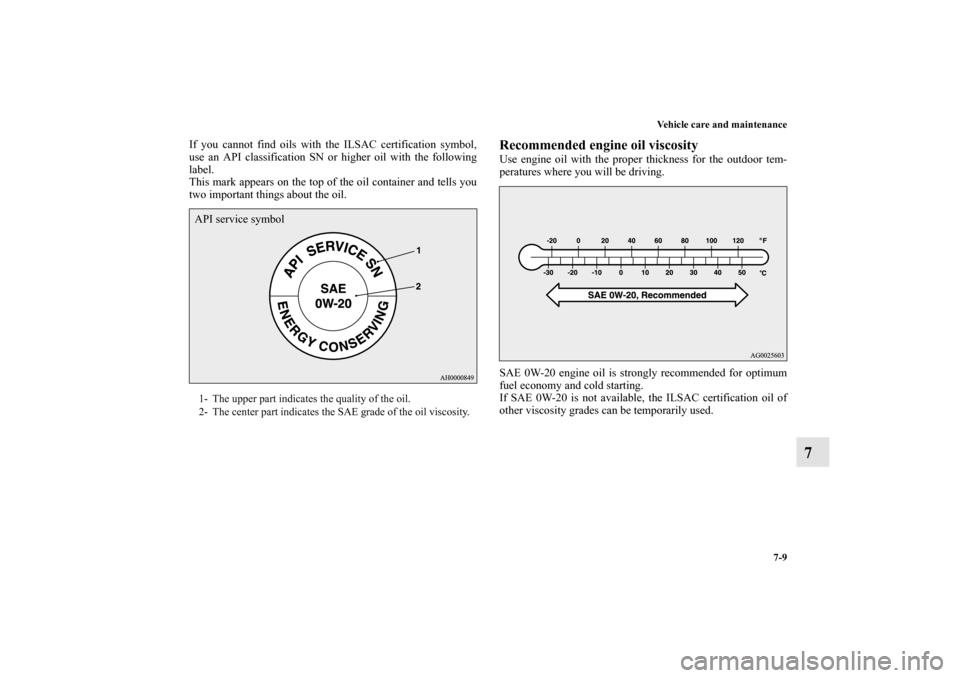

If you cannot find oils with the ILSAC certification symbol,
use an API classification SN or higher oil with the following
label.
This mark appears on the top of the oil container and tells you
two important things about the oil.
Recommended engine oil viscosityUse engine oil with the proper thickness for the outdoor tem-
peratures where you will be driving.
SAE 0W-20 engine oil is strongly recommended for optimum
fuel economy and cold starting.
If SAE 0W-20 is not available, the ILSAC certification oil of
other viscosity grades can be temporarily used.
1- The upper part indicates the quality of the oil.
2- The center part indicates the SAE grade of the oil viscosity.API service symbol
BK0150700US.book 9 ページ ２０１２年３月２２日　木曜日　午後６時４６分

7-10 Vehicle care and maintenance
7

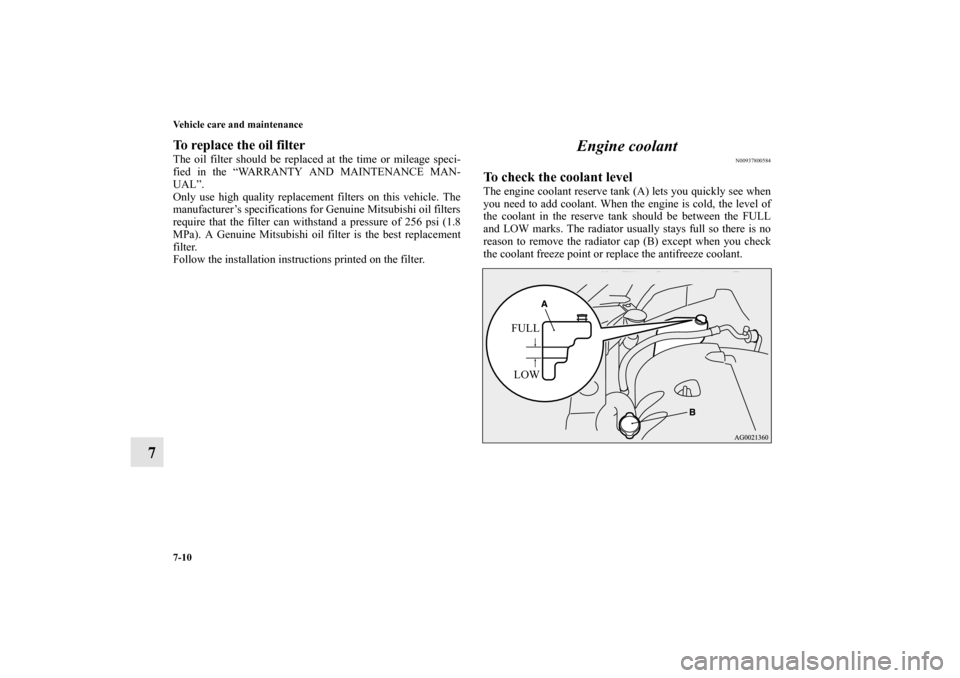

To replace the oil filterThe oil filter should be replaced at the time or mileage speci-
fied in the “WARRANTY AND MAINTENANCE MAN-
UAL”.
Only use high quality replacement filters on this vehicle. The
manufacturer’s specifications for Genuine Mitsubishi oil filters
require that the filter can withstand a pressure of 256 psi (1.8
MPa). A Genuine Mitsubishi oil filter is the best replacement
filter.
Follow the installation instructions printed on the filter.
Engine coolant
N00937800584
To check the coolant levelThe engine coolant reserve tank (A) lets you quickly see when
you need to add coolant. When the engine is cold, the level of
the coolant in the reserve tank should be between the FULL
and LOW marks. The radiator usually stays full so there is no
reason to remove the radiator cap (B) except when you check
the coolant freeze point or replace the antifreeze coolant.
FULLLOW
BK0150700US.book 10 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Vehicle care and maintenance7-11
7

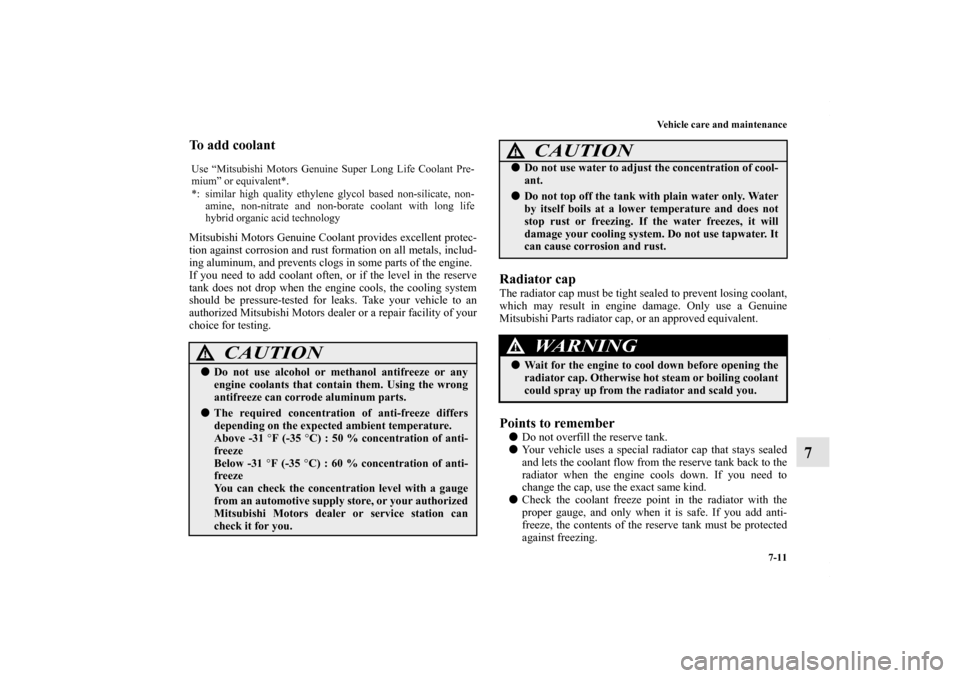

To add coolantMitsubishi Motors Genuine Coolant provides excellent protec-
tion against corrosion and rust formation on all metals, includ-
ing aluminum, and prevents clogs in some parts of the engine.
If you need to add coolant often, or if the level in the reserve
tank does not drop when the engine cools, the cooling system
should be pressure-tested for leaks. Take your vehicle to an
authorized Mitsubishi Motors dealer or a repair facility of your
choice for testing.
Radiator capThe radiator cap must be tight sealed to prevent losing coolant,
which may result in engine damage. Only use a Genuine
Mitsubishi Parts radiator cap, or an approved equivalent.Points to remember
Do not overfill the reserve tank.

Your vehicle uses a special radiator cap that stays sealed
and lets the coolant flow from the reserve tank back to the
radiator when the engine cools down. If you need to
change the cap, use the exact same kind.

Check the coolant freeze point in the radiator with the
proper gauge, and only when it is safe. If you add anti-
freeze, the contents of the reserve tank must be protected
against freezing.
Use “Mitsubishi Motors Genuine Super Long Life Coolant Pre-
mium” or equivalent*.
*: similar high quality ethylene glycol based non-silicate, non-
amine, non-nitrate and non-borate coolant with long life
hybrid organic acid technology
CAUTION
!
Do not use alcohol or methanol antifreeze or any
engine coolants that contain them. Using the wrong
antifreeze can corrode aluminum parts.
The required concentration of anti-freeze differs
depending on the expected ambient temperature.
Above -31 °F (-35 ° C) : 50 % concentration of anti-
freeze
Below -31 °F (-35 °C) : 60 % concentration of anti-
freeze
You can check the concentration level with a gauge
from an automotive supply store, or your authorized
Mitsubishi Motors dealer or service station can
check it for you.

Do not use water to adjust the concentration of cool-
ant.
Do not top off the tank with plain water only. Water
by itself boils at a lower temperature and does not
stop rust or freezing. If the water freezes, it will
damage your cooling system. Do not use tapwater. It
can cause corrosion and rust.
WARNING
!
Wait for the engine to cool down before opening the
radiator cap. Otherwise hot steam or boiling coolant
could spray up from the radiator and scald you.
CAUTION
!
