2013 MITSUBISHI OUTLANDER SPORT Owners Manual

3-232 Features and controls
3
3. Connect a commercially available USB connector cable(C) to the USB memory device (B). 4. Connect the USB connector cable (C) to the USB input
terminal (D).
CAUTION
!
Keep the lid of the floor console box closed while
driving the vehicle. A lid or the contents of the floor
console box could otherwise cause injuries.
BK0150700US.book 232 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-233
3
NOTE
Do not connect the USB memory device to the USB input
terminal directly.
The USB memory device may be damaged.

When closing the floor console box, be careful not to trap
the USB connector cable.
5. To remove the USB connector cable, turn the ignition switch to the “OFF” position or put the operation mode in
OFF first and perform the installation steps in reverse.
How to connect an iPod
N00566900088
1. Park your vehicle in a safe place and turn the ignition
switch to the “OFF” position or put the operation mode in
OFF.
2. Open the USB input terminal cover (A) in the floor con- sole box.
BK0150700US.book 233 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-234 Features and controls
3
3. Connect the Dock connector (C) to the iPod (B).NOTE
Use a genuine Dock connector from Apple Inc. 4. Connect the Dock connector (C) to the USB input termi-
nal (D).
NOTE
When closing the floor console box, be careful not to trap
the connector cable.
5. To remove the Dock connector, turn the ignition switch to the “OFF” position or put the operation mode in OFF first
and perform the installation steps in reverse.
CAUTION
!
Keep the lid of the floor console box closed while
driving the vehicle. A lid or the contents of the floor
console box could otherwise cause injuries.
BK0150700US.book 234 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-235
3
Types of connectable devices and supported file
specifications
N00567000015
Device types
N00567100090
Devices of the following types can be connected.
*: “iPod touch,” “iPod classic,” “iPod” and “iPod nano” are
registered trademarks of Apple Inc. in the United States and
other countries.
NOTE
Depending on the type of the USB memory device or
other device connected, the connected device may not
function properly or the available functions may be lim-
ited.

It is recommended to use an iPod with firmware updated
to the lastest version.

You can charge your iPod by connecting it to the USB
input terminal when the ignition switch or the operation
mode is in ON or ACC.

Do not keep your USB memory device or iPod in your
vehicle.

It is recommended that you back up the files in case of
data damage.

Do not connect to the USB input terminal any device
(hard disk, card reader, memory reader, etc.) other than
the connectable devices specified in the previous section.
The device and/or data may be damaged. If any of these
devices was connected by mistake, remove it after turning
the ignition switch to the “OFF” position or putting the
operation mode in OFF.
Model name
Condition
USB memory device Storage capacity of 256 Mbytes
or more
iPod touch* F/W Ver.1.1.1 or later
iPod classic* F/W Ver.1.0 or later
iPod (fifth generation)* F/W Ver.1.2.2 or later
iPod nano (fifth generation)* F/W Ver.1.2 or later
iPod nano (second generation)* F/W Ver.1.1.2 or later
Models other than USB mem-
ory devices and iPods Digital audio player supporting
mass storage class
BK0150700US.book 235 ページ
２０１２年３月２２日　木曜日　午後６時４６分

3-236 Features and controls
3
File specifications
N00567200017
You can play music files of the following specifications that
are saved in a USB memory device or other device supporting
mass storage class.
Sun visors
N00524600337
Pull the sun visor downward (1) to reduce front glare while
driving. To reduce side glare, turn the visor to the side (2).
Item
Condition
File formatMP3, WMA, AAC, WAV
Maximum number of levels
(including the root) Level 8
Number of folders 700
Number of files 65,535BK0150700US.book 236 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-237
3
Va n i t y m i r r o rType 1A vanity mirror is fitted to the back of the sun visor.
Operating the lid of the vanity mirror will automatically turn
on the mirror light (A).
Type 2A vanity mirror is fitted to the back of the sun visor.
CAUTION
!
If the lid of vanity mirror with light is kept open for
prolonged periods of time, the vehicle’s battery will
be discharged.
BK0150700US.book 237 ページ ２０１２年３月２２日　木曜日　午後６時４６分

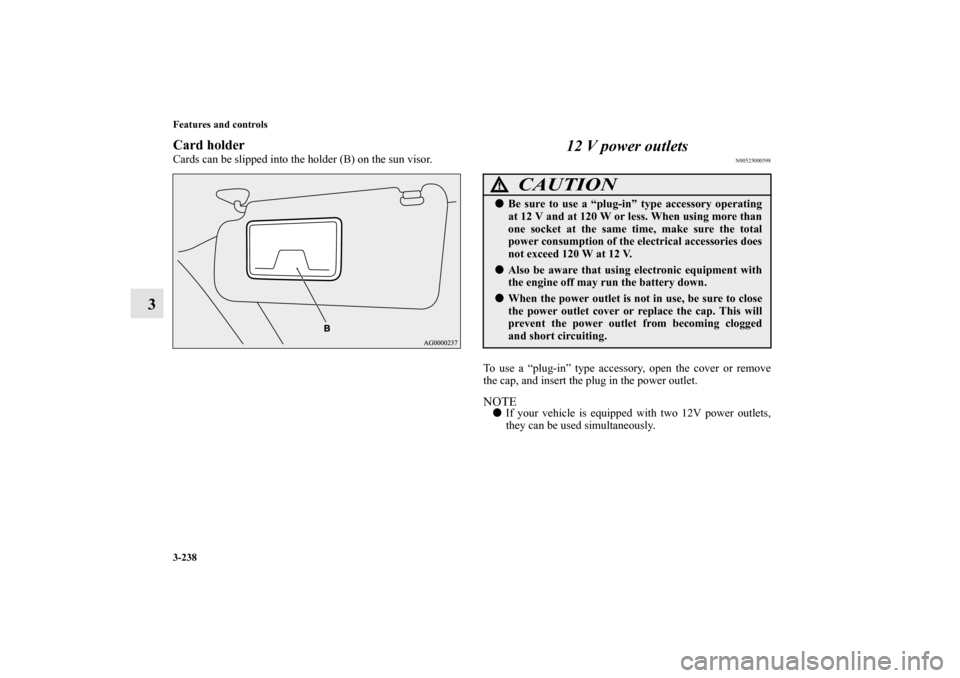

3-238 Features and controls
3
Card holderCards can be slipped into the holder (B) on the sun visor.
12 V power outlets
N00525000598
To use a “plug-in” type accessory, open the cover or remove
the cap, and insert the plug in the power outlet.NOTE
If your vehicle is equipped with two 12V power outlets,
they can be used simultaneously.
CAUTION
!
Be sure to use a “plug-in” type accessory operating
at 12 V and at 120 W or less. When using more than
one socket at the same time, make sure the total
power consumption of the electrical accessories does
not exceed 120 W at 12 V.
Also be aware that using electronic equipment with
the engine off may run the battery down.
When the power outlet is not in use, be sure to close
the power outlet cover or replace the cap. This will
prevent the power outlet from becoming clogged
and short circuiting.
BK0150700US.book 238 ページ ２０１２年３月２２日　木曜日　午後６時４６分

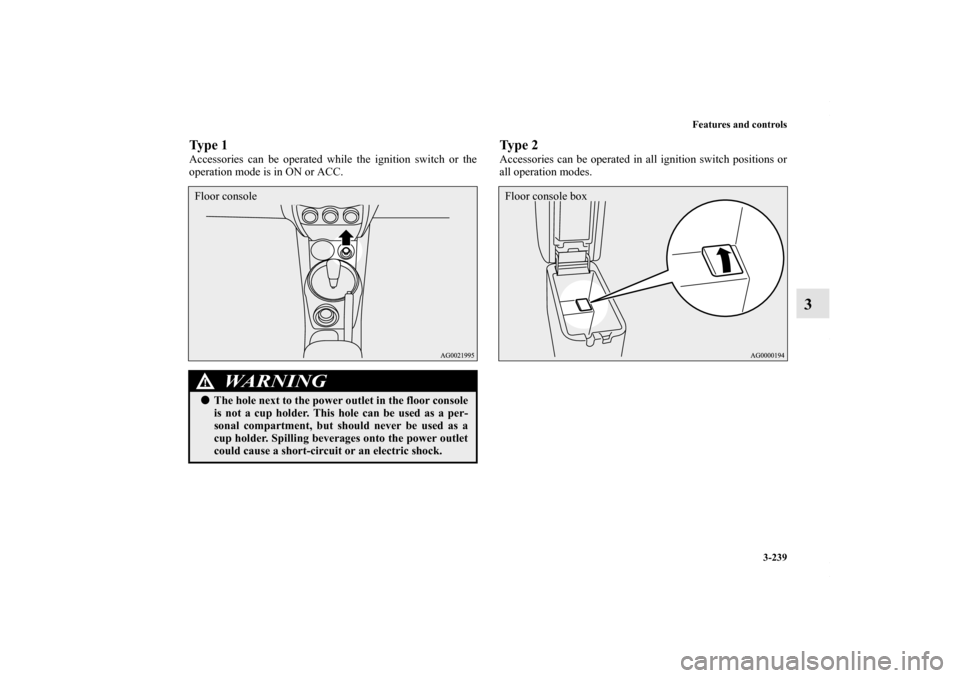

Features and controls3-239
3
Ty p e 1Accessories can be operated while the ignition switch or the
operation mode is in ON or ACC.
Ty p e 2Accessories can be operated in all ignition switch positions or
all operation modes.
WARNING
!
The hole next to the power outlet in the floor console
is not a cup holder. This hole can be used as a per-
sonal compartment, but should never be used as a
cup holder. Spilling beverages onto the power outlet
could cause a short-circuit or an electric shock.Floor console
Floor console box
