NOTE
Tire inflation pressures vary with the ambient tempera-
ture. If the vehicle is subjected to large variations in ambi-
ent temperature, the tire inflation pressures may be under-
inflated (causing the warning light/display come on) when
the ambient temperature is relatively low. If the warning
light/display comes on, adjust the tire inflation pressure.Whenever the tires and wheels are replaced with
new ones
N00532900153
If new wheels with new tire inflation pressure sensors are
installed, their ID codes must be programmed into the tire pres-
sure monitoring system. Have tire and wheel replacement per-
formed by an authorized Mitsubishi Motors dealer to avoid the
risk of damaging the tire inflation pressure sensors. If the
wheel replacement is not done by an authorized Mitsubishi
Motors dealer, it is not covered by your warranty.
General information
N00533000223
Your tire pressure monitoring system operates on a radio fre-
quency subject to Federal Communications Commission
(FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada
Rules (For vehicles sold in Canada). This device complies with
Part 15 of the FCC Rules and RSS-Gen of the Industry Canada
Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
CAUTION
!
The use of non-genuine wheels will prevent the
proper fit of the tire inflation pressure sensors,
resulting air leakage or damage of the sensors.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0150700US.book 120 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-121
3
Rear-view camera
(if so equipped)
N00546200128
When the gearshift lever or the selector lever is in the “R” posi-
tion with the ignition switch or the operation mode is in ON,
the rear-view image will be displayed on the screen of the
Mitsubishi Multi-Communication System in the center panel or
on the left portion of the inside rearview mirror.
When the gearshift lever or the selector lever is shifted out of
the “R” position, the rear-view image will go off.
Location of rear-view cameraThe rear-view camera (A) is in the liftgate, at the left side of
the liftgate handle.
WARNING
!

Never rely solely on the rear-view camera to clear
the area behind your vehicle. Always check visually
behind and all around your vehicle for persons, ani-
mals, obstructions or other vehicles. Failure to do so
can result in vehicle damage, serious injury or
death.
The rear-view camera is an aid system for backing
up, but it is not a substitute for your visual confir-
mation.
The view on the screen is limited, and objects out-
side the view, such as under the bumper or around
either corner of the bumper end, cannot be seen on
the screen.
CAUTION
!
If the camera lens gets dirty, a clear image cannot be
obtained. As necessary, rinse the lens with clean
water and gently wipe with a clean, soft cloth.
To avoid damaging the camera;
• Do not rub the cover excessively or polish it by
using an abrasive compound.
• Do not disassemble the camera.
• Do not splash hot water directly on the lens.
• Do not spray the camera and its surroundings with high-pressure water.
• Make sure that the liftgate is securely closed when
backing up.
BK0150700US.book 121 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-122 Features and controls
3
Reference lines on the screenReference lines and upper surface of the rear bumper (A) are
displayed on the screen.
Red line (B) indicates approximately 20 inches (50 cm)
behind the rear bumper.

Two Green lines (C) indicate approximately 8 inches (20
cm) outside of the vehicle body.

Short transverse lines (1 to 3) indicate distance from the
rear bumper.1: Approximately at the rear edge of the rear bumper
2: Approximately 39 inches (100 cm)
3: Approximately 79 inches (200 cm)
CAUTION
!
The rear-view camera uses a wide-angle lens. As a
result, images and distances shown on the screen are
not exact.
Actual distance may be different from distance indi-
cated by the lines on the screen, depending on the
loading condition of the vehicle and road surface
condition.
The reference lines for distance and vehicle width
are based on a level, flat road surface. In the follow-
ing cases, objects shown on the screen will appear to
be farther off than they actually are.
• When the rear of the vehicle is weighed down with
the weight of passengers and luggage in the vehi-
cle. (Case 1)
• When there is an upward slope at the back. (Case 2)
BK0150700US.book 122 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-123
3

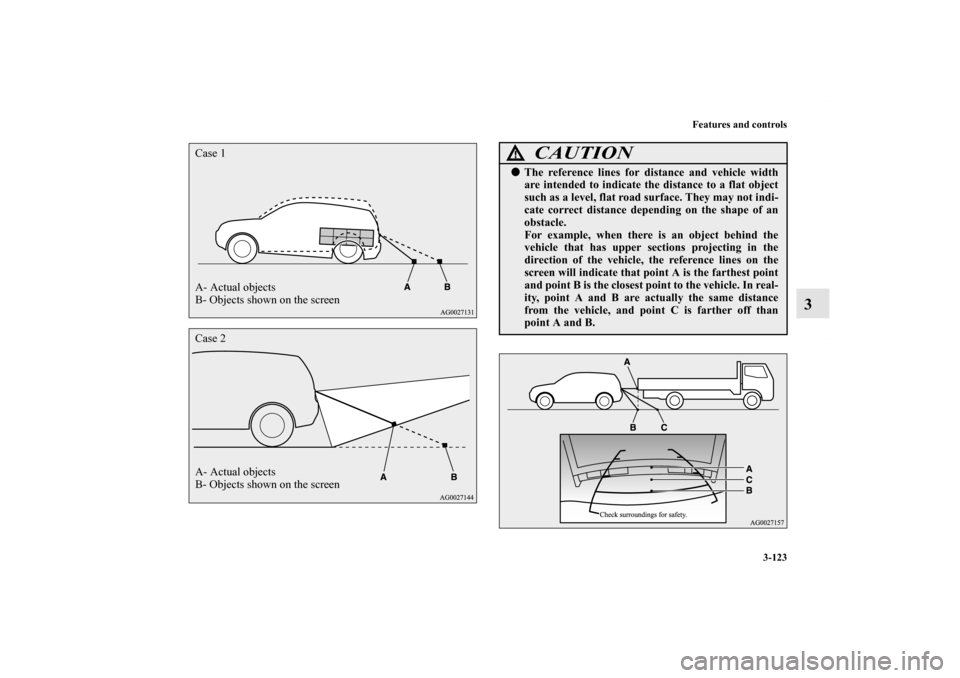

A- Actual objects
B- Objects shown on the screen Case 1Case 2
A- Actual objects
B- Objects shown on the screen
CAUTION
!
The reference lines for distance and vehicle width
are intended to indicate the distance to a flat object
such as a level, flat road surface. They may not indi-
cate correct distance depending on the shape of an
obstacle.
For example, when there is an object behind the
vehicle that has upper sections projecting in the
direction of the vehicle, the reference lines on the
screen will indicate that point A is the farthest point
and point B is the closest point to the vehicle. In real-
ity, point A and B are actually the same distance
from the vehicle, and point C is farther off than
point A and B.
BK0150700US.book 123 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-124 Features and controls
3
NOTE
Mirror image is displayed on the screen.

Monitor brightness is adjusted automatically by sensors.

It is possible to change the display language of the screen.
For details, please refer to the separated owner’s manual
for “Mitsubishi Multi-Communication System” or
“Change language or turn off the inside rearview mirror
screen: To change the language of warning text (3)” on
page 3-124.

Under certain circumstances, it may become difficult to
see an image on the screen, even when the system is func-
tioning correctly.
• In a dark area, such as at night.
• When water drops or condensation are on the lens.
• When sun light or headlights shine directly into the lens. Change language or turn off the inside rearview
mirror screen
N00568900053
It is possible to turn off the screen of the inside rearview mirror
and change the language of the warning messages on the
screen.
To temporarily set the non-display modeIf you press the switch (1) while the image appears on the
screen, it goes off temporarily.
To return to display mode, press the switch again or perform
the following operation.
[Except for vehicles equipped with the Free-hand Advanced
Security Transmitter (F.A.S.T.-key)]
Turn the ignition switch to the “ON” position after turning to
“OFF” or “ACC” position.
[For vehicles equipped with the Free-hand Advanced Security
Transmitter (F.A.S.T.-key)]
Put the operation mode in ON after putting the operation mode
in OFF.
BK0150700US.book 124 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-125
3
To permanently set the non-display mode1. Turn the ignition switch to the “ON” position or put theoperation mode in ON.
2. Put the gearshift lever or the selector lever in the “R” posi- tion.
3. Press and hold down the switch (1) (for about 15 sec- onds).
While you keep the switch pressed, the orange indicator
(2) comes on. When the image goes off, the non-display
mode setting is completed.
To change the language of warning text (3)1. Turn the ignition switch to the “ON” position or put theoperation mode in ON.
2. Put the gearshift lever or the selector lever in the “R” posi- tion.
3. Press and hold down the switch (1) to enter language selection mode (for 6 to 11 seconds).
In this mode, the image appears and the green indicator
(2) comes on.
4. Press the switch until the desired language appears on the display.
Each time you press the switch, the language will change
to the next one. When the warning text flashes, setting is
completed.
CAUTION
!
For safety reasons, do not perform the following
operations with the engine running.
CAUTION
!
For safety reasons, do not perform the following
operations with the engine running.
BK0150700US.book 125 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-126 Features and controls
3Instrument cluster
N00519000388
Speedometer
N00519100259
The speedometer shows the vehicle speed in miles per hour
(mph) or kilometers per hour (km/h).
1- Tachometer
→ P.3-127
2- Multi-information display → P.3-129
Information screen display list → P.3-163
3- Speedometer → P.3-126
4- Rheostat meter illumination button → P.3-128
Ty p e A
BK0150700US.book 126 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-127
3

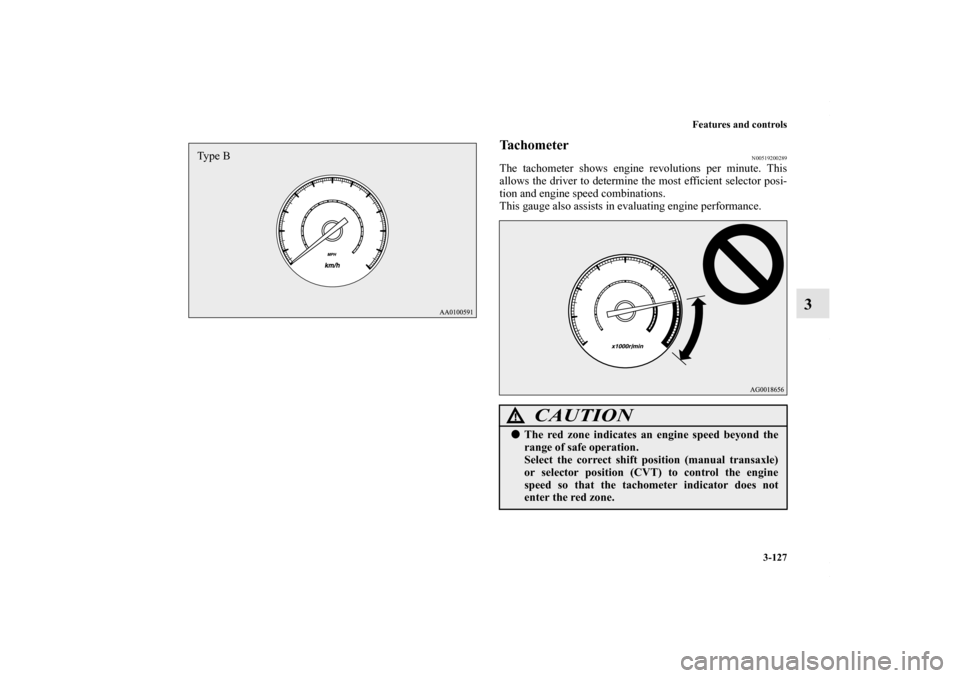

Tachometer
N00519200289
The tachometer shows engine revolutions per minute. This
allows the driver to determine the most efficient selector posi-
tion and engine speed combinations.
This gauge also assists in evaluating engine performance.
Ty p e B
CAUTION
!
The red zone indicates an engine speed beyond the
range of safe operation.
Select the correct shift position (manual transaxle)
or selector position (CVT) to control the engine
speed so that the tachometer indicator does not
enter the red zone.
BK0150700US.book 127 ページ ２０１２年３月２２日　木曜日　午後６時４６分
