2013 MITSUBISHI OUTLANDER SPORT Owners Manual

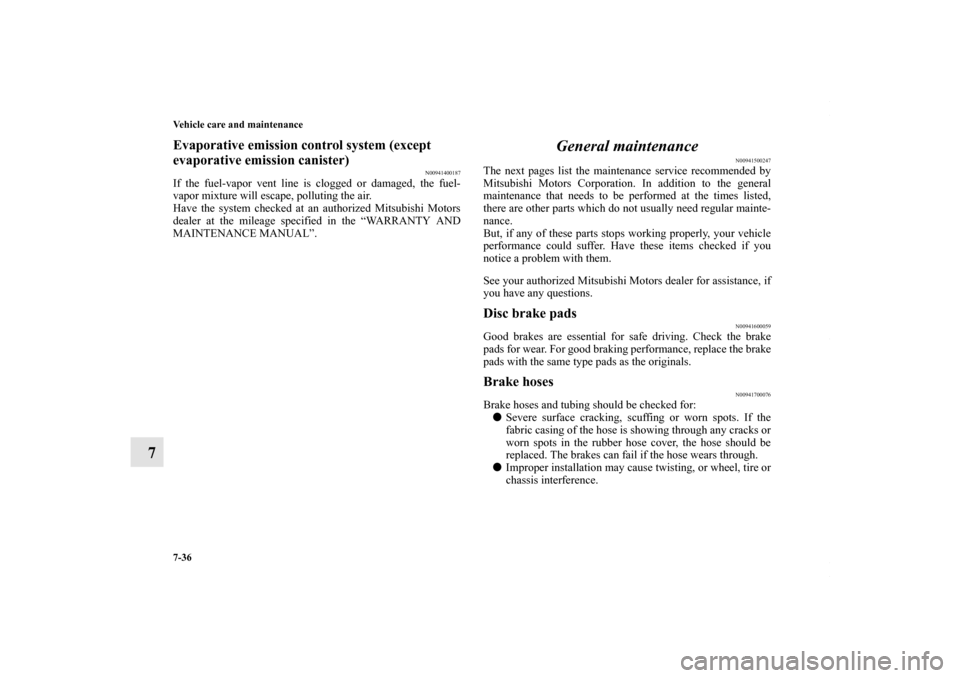

7-36 Vehicle care and maintenance
7
Evaporative emission control system (except
evaporative emission canister)
N00941400187
If the fuel-vapor vent line is clogged or damaged, the fuel-
vapor mixture will escape, polluting the air.
Have the system checked at an authorized Mitsubishi Motors
dealer at the mileage specified in the “WARRANTY AND
MAINTENANCE MANUAL”.
General maintenance
N00941500247
The next pages list the maintenance service recommended by
Mitsubishi Motors Corporation. In addition to the general
maintenance that needs to be performed at the times listed,
there are other parts which do not usually need regular mainte-
nance.
But, if any of these parts stops working properly, your vehicle
performance could suffer. Have these items checked if you
notice a problem with them.
See your authorized Mitsubishi Motors dealer for assistance, if
you have any questions.Disc brake pads
N00941600059
Good brakes are essential for safe driving. Check the brake
pads for wear. For good braking performance, replace the brake
pads with the same type pads as the originals.Brake hoses
N00941700076
Brake hoses and tubing should be checked for:
Severe surface cracking, scuffing or worn spots. If the
fabric casing of the hose is showing through any cracks or
worn spots in the rubber hose cover, the hose should be
replaced. The brakes can fail if the hose wears through.

Improper installation may cause twisting, or wheel, tire or
chassis interference.
BK0150700US.book 36 ページ ２０１２年３月２２日　木曜日　午後６時４６分

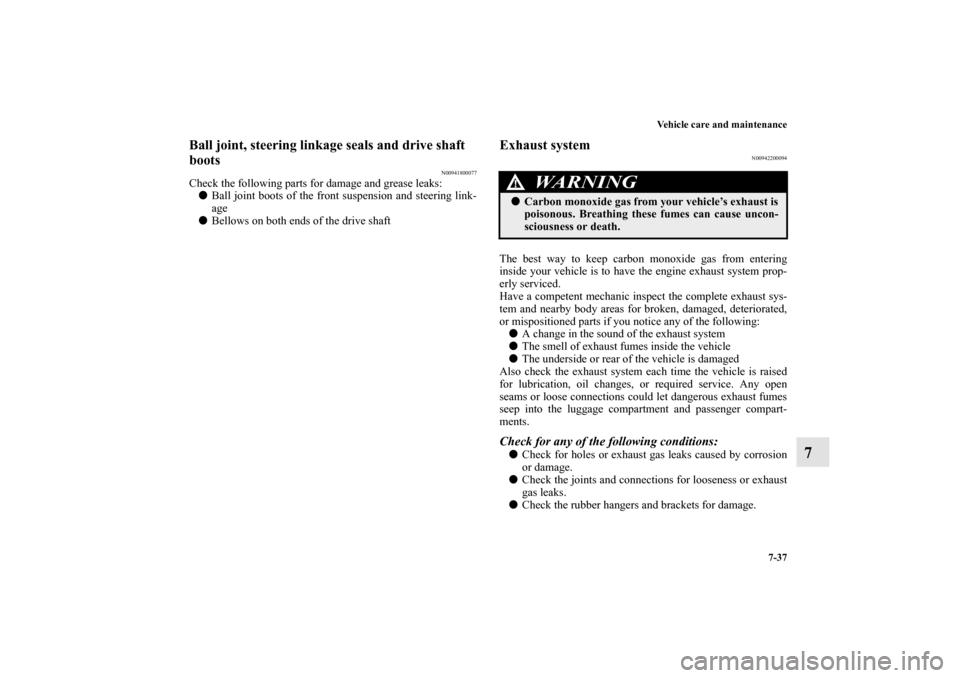

Vehicle care and maintenance7-37
7
Ball joint, steering linkage seals and drive shaft
boots
N00941800077
Check the following parts for damage and grease leaks:
Ball joint boots of the front suspension and steering link-
age

Bellows on both ends of the drive shaft
Exhaust system
N00942200094
The best way to keep carbon monoxide gas from entering
inside your vehicle is to have the engine exhaust system prop-
erly serviced.
Have a competent mechanic inspect the complete exhaust sys-
tem and nearby body areas for broken, damaged, deteriorated,
or mispositioned parts if you notice any of the following:

A change in the sound of the exhaust system

The smell of exhaust fumes inside the vehicle

The underside or rear of the vehicle is damaged
Also check the exhaust system each time the vehicle is raised
for lubrication, oil changes, or required service. Any open
seams or loose connections could let dangerous exhaust fumes
seep into the luggage compartment and passenger compart-
ments.Check for any of the following conditions:
Check for holes or exhaust gas leaks caused by corrosion
or damage.

Check the joints and connections for looseness or exhaust
gas leaks.

Check the rubber hangers and brackets for damage.
WARNING
!
Carbon monoxide gas from your vehicle’s exhaust is
poisonous. Breathing these fumes can cause uncon-
sciousness or death.
BK0150700US.book 37 ページ ２０１２年３月２２日　木曜日　午後６時４６分

7-38 Vehicle care and maintenance
7
Hood lock release mechanism and safety catch
N00942500101
The hood lock release mechanism and hood safety catch should
be checked, cleaned, and oiled when needed for easy move-
ment and to stop rust and wear. Use Multipurpose Grease
NLGI Grade 2 sparingly for all sliding parts of the hood latch
and release lever. Work the grease into the hood lock mecha-
nism until all the movable surfaces are covered.
Also, put a light coat of the same grease on the safety catch
wherever moving parts touch.
For cold and snowy weather
N00942600102
Ventilation slotsThe ventilation slots in front of the windshield should be
brushed clear after a heavy snowfall so that the operation of the
heating and ventilation systems will not be impaired.WeatherstrippingTo prevent freezing of the weatherstripping on the doors,
engine hood, etc., they should be treated with silicone grease.Additional equipment (For regions where snow is
encountered)It is a good idea to carry a shovel or a short-handled spade in
the vehicle during the winter so that you can clear away snow
if you get stranded. A small hand-brush for sweeping snow off
the vehicle and a plastic scraper for the windshield, side and
rear window are also useful.
BK0150700US.book 38 ページ ２０１２年３月２２日　木曜日　午後６時４６分

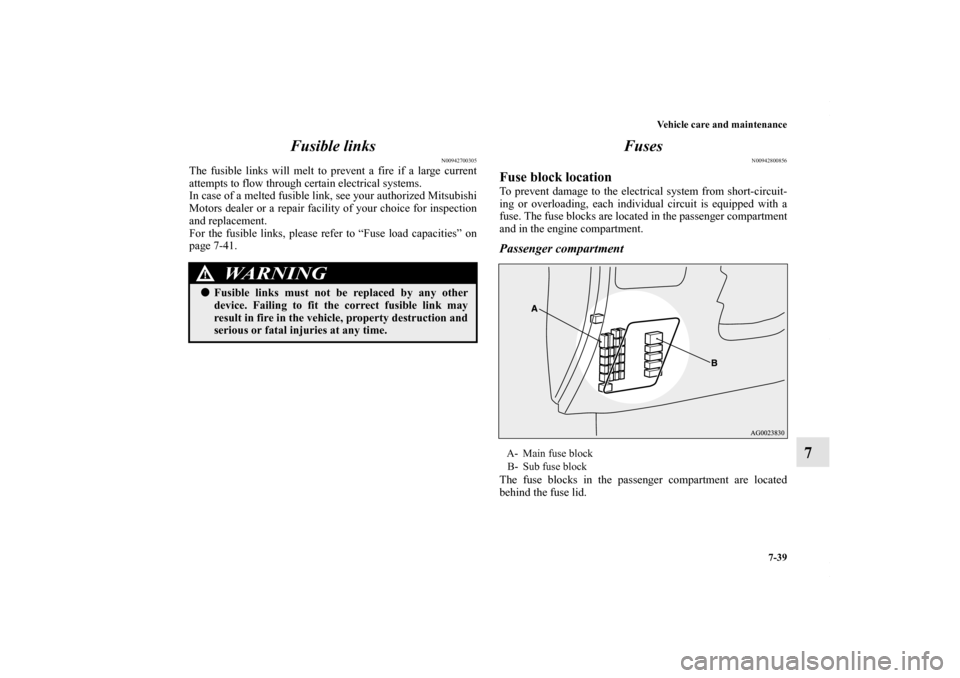

Vehicle care and maintenance7-39
7
Fusible links
N00942700305
The fusible links will melt to prevent a fire if a large current
attempts to flow through certain electrical systems.
In case of a melted fusible link, see your authorized Mitsubishi
Motors dealer or a repair facility of your choice for inspection
and replacement.
For the fusible links, please refer to “Fuse load capacities” on
page 7-41.
Fuses
N00942800856
Fuse block locationTo prevent damage to the electrical system from short-circuit-
ing or overloading, each individual circuit is equipped with a
fuse. The fuse blocks are located in the passenger compartment
and in the engine compartment.Passenger compartmentThe fuse blocks in the passenger compartment are located
behind the fuse lid.
WARNING
!

Fusible links must not be replaced by any other
device. Failing to fit the correct fusible link may
result in fire in the vehicle, property destruction and
serious or fatal injuries at any time.
A- Main fuse block
B- Sub fuse block
BK0150700US.book 39 ページ ２０１２年３月２２日　木曜日　午後６時４６分

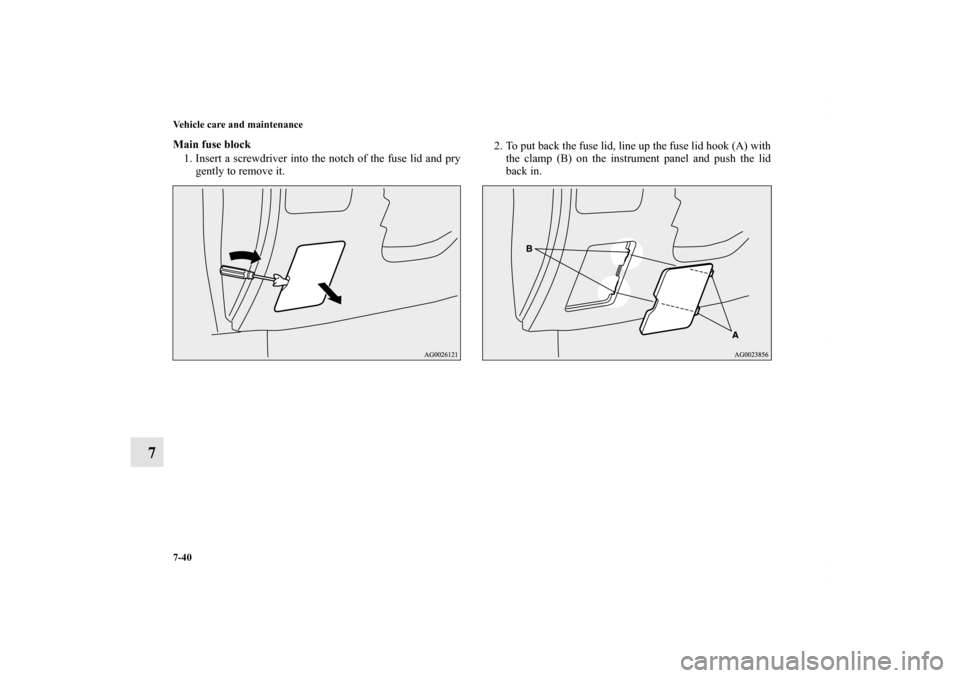

7-40 Vehicle care and maintenance
7
Main fuse block1. Insert a screwdriver into the notch of the fuse lid and pry gently to remove it. 2. To put back the fuse lid, line up the fuse lid hook (A) with
the clamp (B) on the instrument panel and push the lid
back in. BK0150700US.book 40 ページ ２０１２年３月２２日　木曜日　午後６時４６分

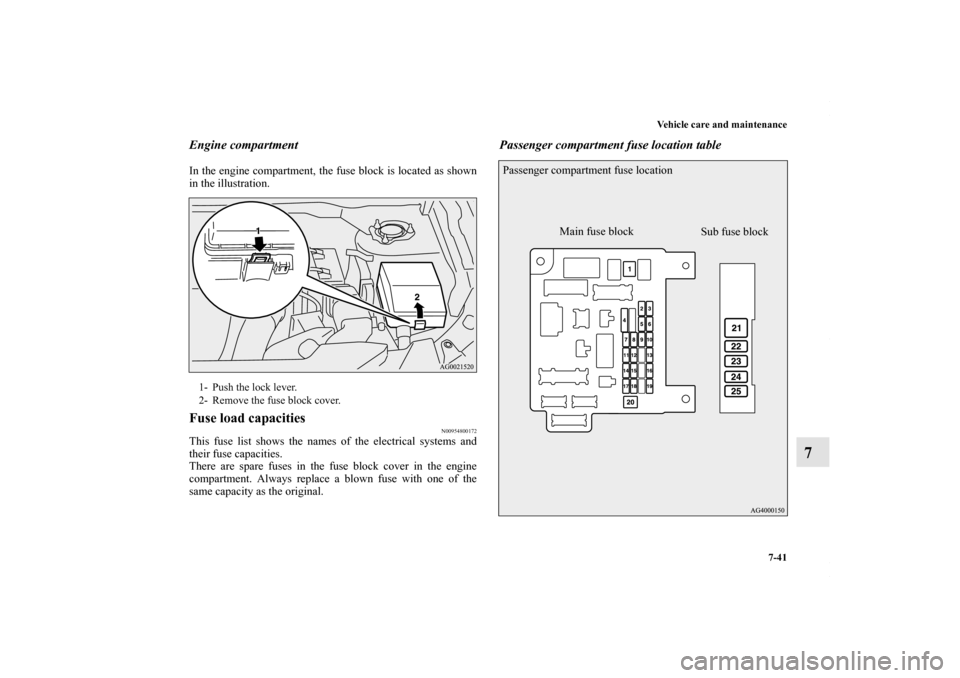

Vehicle care and maintenance7-41
7
Engine compartmentIn the engine compartment, the fuse block is located as shown
in the illustration.Fuse load capacities
N00954800172
This fuse list shows the names of the electrical systems and
their fuse capacities.
There are spare fuses in the fuse block cover in the engine
compartment. Always replace a blown fuse with one of the
same capacity as the original.
Passenger compartment fuse location table
1- Push the lock lever.
2- Remove the fuse block cover.
Passenger compartment fuse location Sub fuse block
Main fuse block
BK0150700US.book 41 ページ
２０１２年３月２２日　木曜日　午後６時４６分

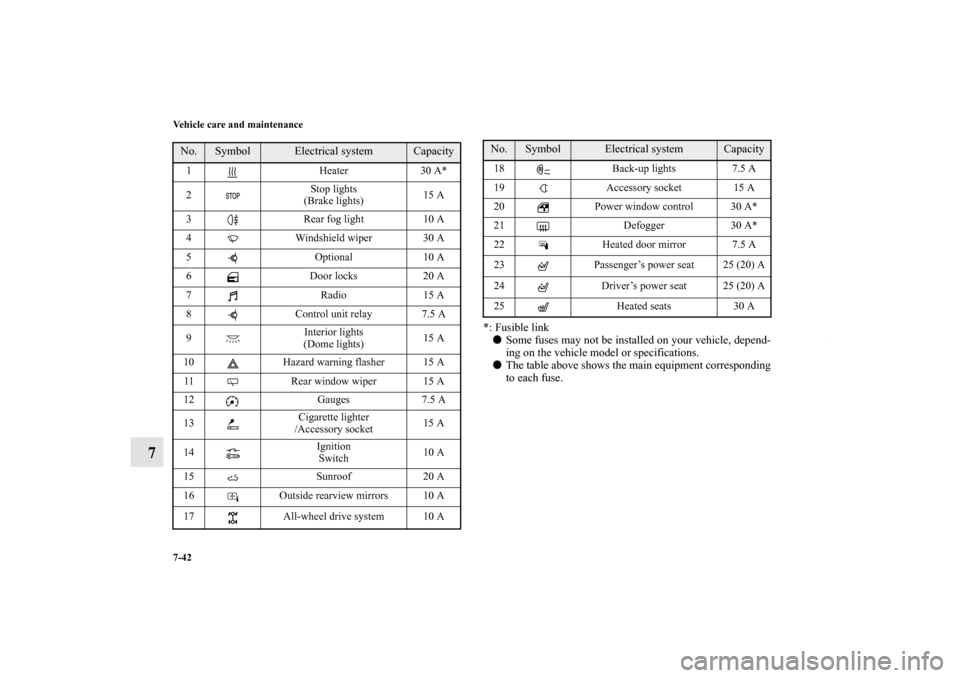

7-42 Vehicle care and maintenance
7
*: Fusible link
Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.
No.
Symbol
Electrical system
Capacity
1 Heater30 A*
2 Stop lights
(Brake lights) 15 A
3 Rear fog light 10 A
4 Windshield wiper 30 A
5 Optional10 A
6 Door locks20 A
7 Radio15 A
8 Control unit relay 7.5 A
9 Interior lights
(Dome lights) 15 A
10 Hazard warning flasher 15 A
11 Rear window wiper 15 A
12 Gauges7.5 A
13 Cigarette lighter
/Accessory socket 15 A
14 Ignition
Switch 10 A
15 Sunroof20 A
16 Outside rearview mirrors 10 A
17 All-wheel drive system 10 A
18 Back-up lights 7.5 A
19 Accessory socket 15 A
20 Power window control 30 A*
21 Defogger30 A*
22 Heated door mirror 7.5 A
23 Passenger’s power seat 25 (20) A
24 Driver’s power seat 25 (20) A
25 Heated seats30 ANo.
Symbol
Electrical system
Capacity
BK0150700US.book 42 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Vehicle care and maintenance7-43
7
Engine compartment fuse location tableEngine compartment fuse location
Behind the fuse block cover
No.
Symbol
Electrical system
Capacity
1 Front fog lights 15 A
2 Engine7.5 A
3 Automatic transaxle 20 A
4 Horn10 A
5 Alternator7.5 A
6 Headlight washer 20 A
7 Air conditioning 10 A
8 ETV/Oil cooler fan
(Twin Clutch SST) 15 A
9 Security horn20 A
10 Wiper deicer15 A
11 — ——
12 Power gate30 A
13 Daytime running lights 10 A
14 Headlight
(high beam) (left) 10 A
15 Headlight
(high beam) (right) 10 A
16 Headlight
(low beam) (left) Discharge 20 A
