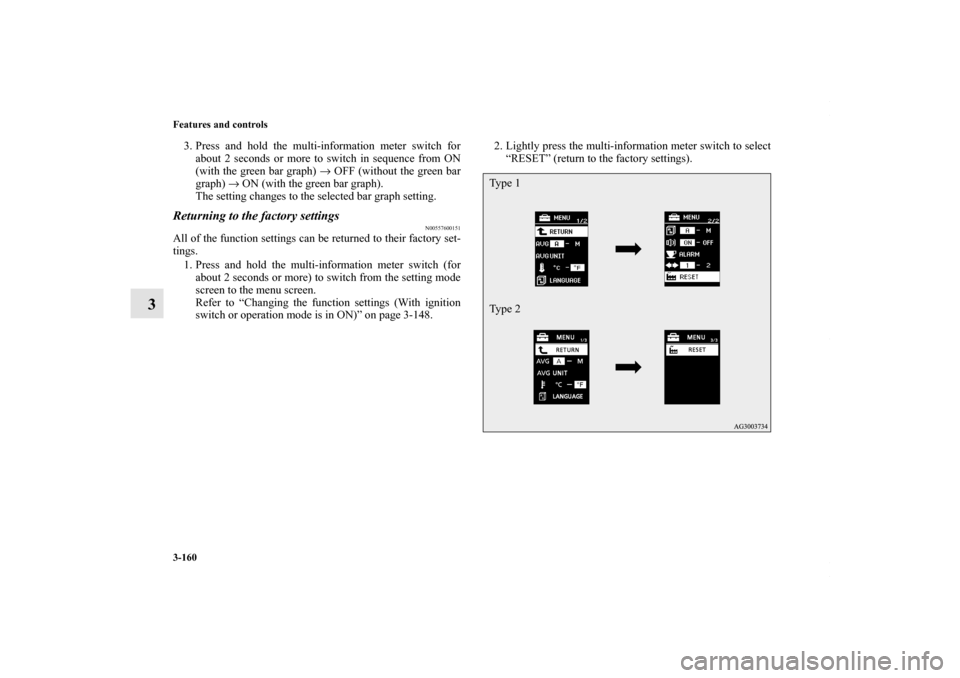

3-160 Features and controls
3
3. Press and hold the multi-information meter switch forabout 2 seconds or more to switch in sequence from ON
(with the green bar graph) → OFF (without the green bar
graph) → ON (with the green bar graph).
The setting changes to the selected bar graph setting.Returning to the factory settings
N00557600151
All of the function settings can be returned to their factory set-
tings.
1. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch or operation mode is in ON)” on page 3-148. 2. Lightly press the multi-information meter switch to select
“RESET” (return to the factory settings).
Type 1
Type 2
BK0150700US.book 160 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-161
3
3. Press and hold the multi-information meter switch (forabout 5 seconds or more), the buzzer sounds and all of the
function settings are returned to the factory settings.NOTE
The factory settings are as follows.
• Average fuel consumption and average speed reset
mode: A (Auto reset)
• Fuel consumption display unit: mpg (US) or (L/100 km)
• Temperature unit: °F (Fahrenheit) or °C (Celsius)
• Display language: ENGLISH
• Cooperative language setting: A
• Operation sounds: ON (Operation sound on)
• “REST REMINDER” display: OFF
• Turn signal sound: Turn signal sound 1
• Momentary fuel consumption with the green bar graph (Type 2): ON
BK0150700US.book 161 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-162 Features and controls
3Indicator light, warning light, and information screen display list
N00557700048
Indicator and warning light list
N00557800267
Type A
Type B
Type B1- Position indicator → P.3-177
2- High beam indicator → P.3-177
3- Charging system warning light → P.3-179
4- Turn signal indicator/hazard warning light → P.3-177
5- Front fog light indicator (if so equipped) → P.3-177
6- Anti-lock braking system warning light → P. 3 - 9 8
7- Tire pressure monitoring system warning light → P.3-116
8- Brake warning light → P.3-177
9- Cruise control indicator (if so equipped) → P.3-10810- Seat belt reminder/warning light
→ P.2-26
11- Supplemental Restraint System (SRS) warning light
→ P.2-52
12- ECO mode indicator (if so equipped) → P.3-177
13- Engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”) → P.3-178
14- Active stability control (ASC) OFF indicator (if so equipped) → P.3-105
15- Active stability control (ASC) indicator → P.3-105
16- Information screen display list → P.3-163
BK0150700US.book 162 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-163
3
Information screen display list
N00557900082
When there is information to be announced, such as light reminder, the tone sounds and the screen switches to the displays show n
below. Refer to the appropriate page and take the necessary measures.
When the cause of the warning display is eliminated, the warning display goes out automatically.
Refer to “Warning display list (With ignition switch or operation mode is in OFF)” on page 3-164.
Refer to “Warning display list (With ignition switch or operation mode is in ON)” on page 3-167.
Refer to “Other interrupt displays” on page 3-174.NOTE
In the following cases, a warning may be displayed on the information screen and the buzzer may sound for a few seconds, at
times.
This is caused by the system picking up interference such as strong electromagnetic waves or noise, and is not a functional
problem.
• An extremely strong electromagnetic wave is received from a source such as an illegal radio set, a spark from a wire, or a
radar station.
• Abnormal voltage or a static electricity discharge is generated by the operation of your vehicle’s electronics (including afte r-
market parts).
If the warning display has occurred a number of times, take your vehicle to an authorized Mitsubishi Motors dealer or a repair
facility of your choice and have the system checked.
BK0150700US.book 163 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-164 Features and controls
3
Warning display list (With ignition switch or operation mode is in OFF)
N00558000224
Screen type 1
Screen type 2
Cause
Do this (Reference)

You have forgotten to remove the key
from the ignition switch.

Remove the key.
Refer to “Key reminder system” on
page 3-40.

You have forgotten to turn off the
lights. Refer to “Light auto-cutout function (head-
lights and other lights)” on page 3-186.

The theft-alarm system is operating. Refer to “Theft-alarm system” on page 3-48.

Immobilizer is registered. Refer to “Customer key programming
(Except for vehicles sold in Canada)” on
page 3-6.
Refer to “Customer F.A.S.T.-key program-
ming (Except for vehicles sold in Canada)”
on page 3-32.
BK0150700US.book 164 ページ ２０１２年３月２２日　木曜日　午後６時４６分

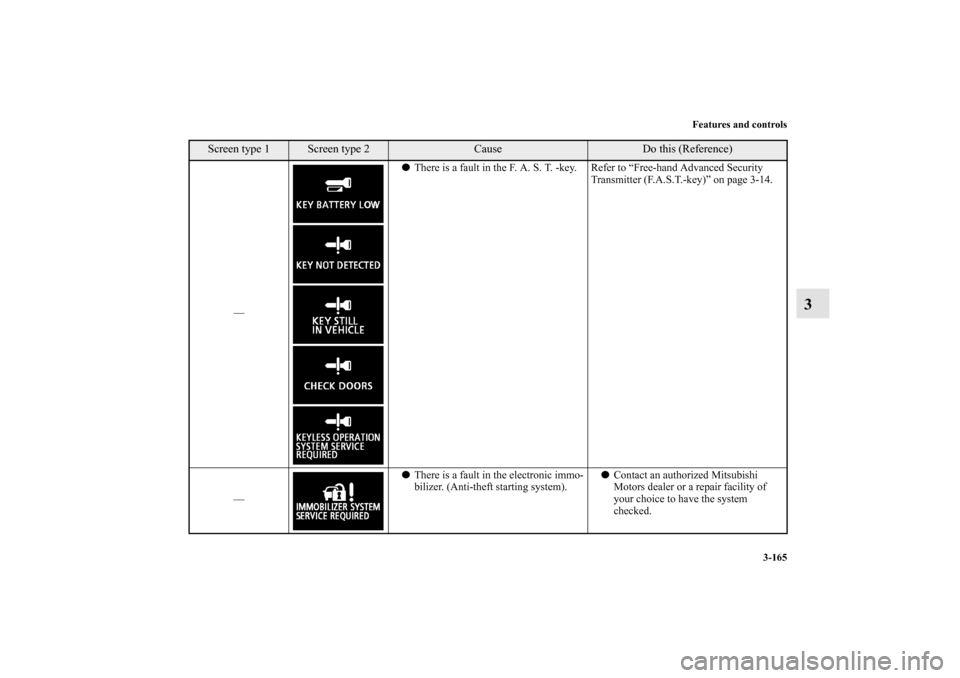

Features and controls3-165
3
—

There is a fault in the F. A. S. T. -key. Refer to “Free-hand Advanced Security
Transmitter (F.A.S.T.-key)” on page 3-14.
—

There is a fault in the electronic immo-
bilizer. (Anti-theft starting system).

Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0150700US.book 165 ページ ２０１２年３月２２日　木曜日　午後６時４６分

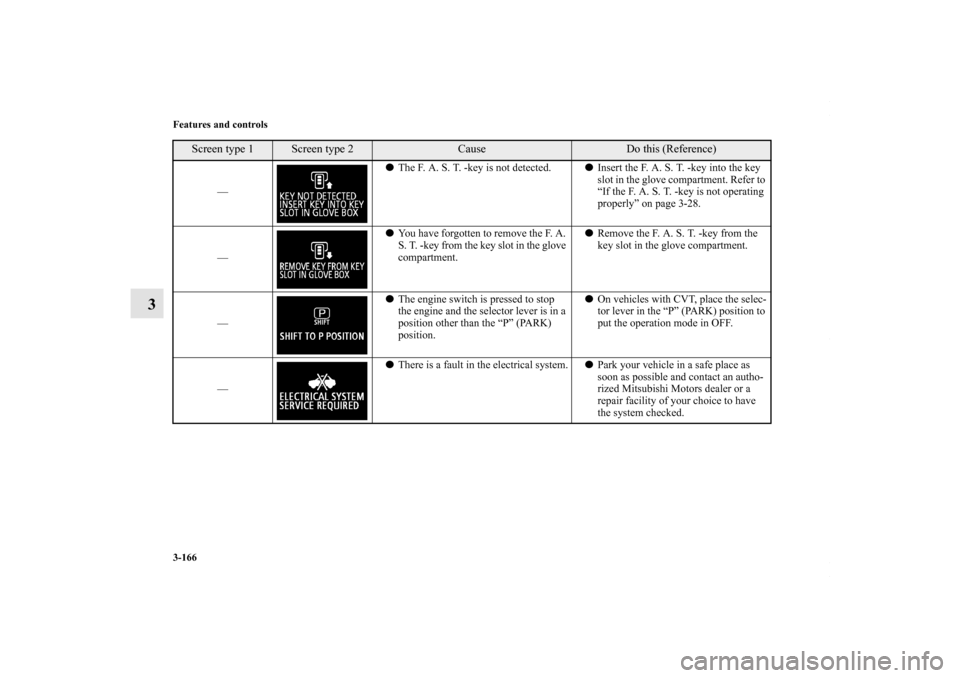

3-166 Features and controls
3
—

The F. A. S. T. -key is not detected.
Insert the F. A. S. T. -key into the key
slot in the glove compartment. Refer to
“If the F. A. S. T. -key is not operating
properly” on page 3-28.
—

You have forgotten to remove the F. A.
S. T. -key from the key slot in the glove
compartment.

Remove the F. A. S. T. -key from the
key slot in the glove compartment.
—

The engine switch is pressed to stop
the engine and the selector lever is in a
position other than the “P” (PARK)
position.

On vehicles with CVT, place the selec-
tor lever in the “P” (PARK) position to
put the operation mode in OFF.
—

There is a fault in the electrical system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0150700US.book 166 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-167
3
Warning display list (With ignition switch or operation mode is in ON)
N00558100296
Screen type 1
Screen type 2
Cause
Do this (Reference)

There is a fault in the EPS.
Have the vehicle inspected by an
authorized Mitsubishi Motors dealer or
a repair facility of your choice as soon
as possible.
Refer to “Electric power steering sys-
tem (EPS)” on page 3-101.
