2013 MITSUBISHI OUTLANDER SPORT Owners Manual

3-200 Features and controls
3
The wipers will operate once if the lever is moved to the
“AUTO” position and the knob (C) is turned in the “+” direc-
tion when the ignition switch or the operation mode is in ON.
Windshield washer
N00504600227
The windshield washer can be operated with the ignition
switch or the operation mode is in ON or ACC.
The washer fluid will be sprayed onto the windshield by pull-
ing the lever toward you.
When the wipers are not in operation or in intermittent opera-
tion, by pulling the lever toward you, the wipers will operate
several times while the washer fluid is being sprayed.
Also, by releasing the lever soon after pulling it toward you,
the washer fluid will be sprayed several times while the wipers
are operating several times. (Intelligent washer)
Intelligent washer will stop operating with any operation of the
lever.
BK0150700US.book 200 ページ ２０１２年３月２２日　木曜日　午後６時４６分

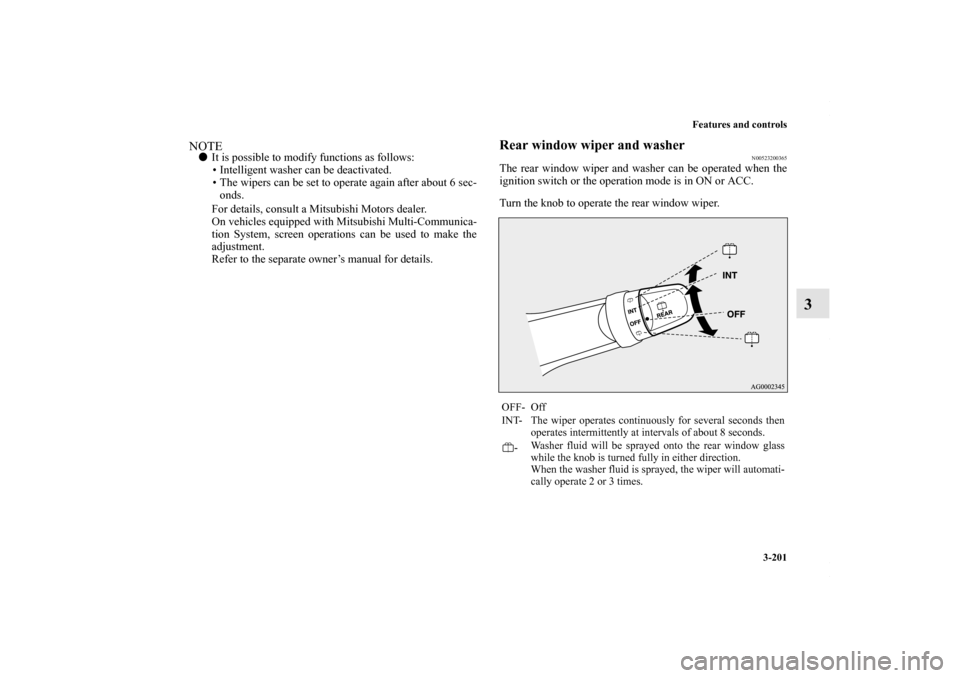

Features and controls3-201
3
NOTE
It is possible to modify functions as follows:
• Intelligent washer can be deactivated.
• The wipers can be set to operate again after about 6 sec- onds.
For details, consult a Mitsubishi Motors dealer.
On vehicles equipped with Mitsubishi Multi-Communica-
tion System, screen operations can be used to make the
adjustment.
Refer to the separate owner’s manual for details.
Rear window wiper and washer
N00523200365
The rear window wiper and washer can be operated when the
ignition switch or the operation mode is in ON or ACC.
Turn the knob to operate the rear window wiper.OFF- Off
INT- The wiper operates continuously for several seconds then operates intermittently at intervals of about 8 seconds.
- Washer fluid will be sprayed onto the rear window glass
while the knob is turned fully in either direction.
When the washer fluid is sprayed, the wiper will automati-
cally operate 2 or 3 times.
BK0150700US.book 201 ページ
２０１２年３月２２日　木曜日　午後６時４６分

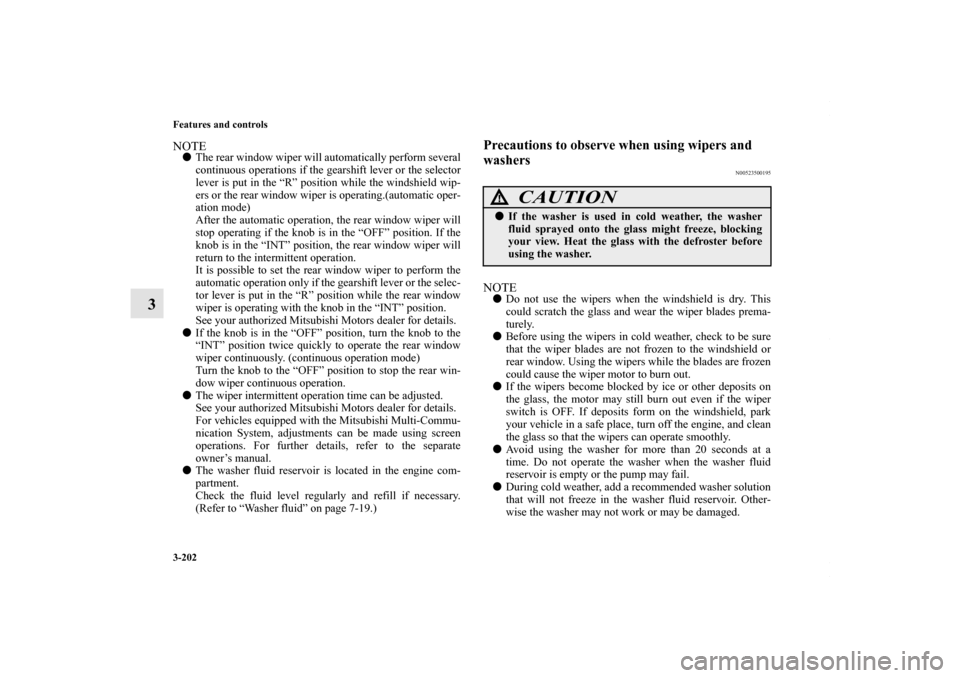

3-202 Features and controls
3
NOTE
The rear window wiper will automatically perform several
continuous operations if the gearshift lever or the selector
lever is put in the “R” position while the windshield wip-
ers or the rear window wiper is operating.(automatic oper-
ation mode)
After the automatic operation, the rear window wiper will
stop operating if the knob is in the “OFF” position. If the
knob is in the “INT” position, the rear window wiper will
return to the intermittent operation.
It is possible to set the rear window wiper to perform the
automatic operation only if the gearshift lever or the selec-
tor lever is put in the “R” position while the rear window
wiper is operating with the knob in the “INT” position.
See your authorized Mitsubishi Motors dealer for details.

If the knob is in the “OFF” position, turn the knob to the
“INT” position twice quickly to operate the rear window
wiper continuously. (continuous operation mode)
Turn the knob to the “OFF” position to stop the rear win-
dow wiper continuous operation.

The wiper intermittent operation time can be adjusted.
See your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For further details, refer to the separate
owner’s manual.

The washer fluid reservoir is located in the engine com-
partment.
Check the fluid level regularly and refill if necessary.
(Refer to “Washer fluid” on page 7-19.)
Precautions to observe when using wipers and
washers
N00523500195
NOTE
Do not use the wipers when the windshield is dry. This
could scratch the glass and wear the wiper blades prema-
turely.

Before using the wipers in cold weather, check to be sure
that the wiper blades are not frozen to the windshield or
rear window. Using the wipers while the blades are frozen
could cause the wiper motor to burn out.

If the wipers become blocked by ice or other deposits on
the glass, the motor may still burn out even if the wiper
switch is OFF. If deposits form on the windshield, park
your vehicle in a safe place, turn off the engine, and clean
the glass so that the wipers can operate smoothly.

Avoid using the washer for more than 20 seconds at a
time. Do not operate the washer when the washer fluid
reservoir is empty or the pump may fail.

During cold weather, add a recommended washer solution
that will not freeze in the washer fluid reservoir. Other-
wise the washer may not work or may be damaged.
CAUTION
!
If the washer is used in cold weather, the washer
fluid sprayed onto the glass might freeze, blocking
your view. Heat the glass with the defroster before
using the washer.
BK0150700US.book 202 ページ ２０１２年３月２２日　木曜日　午後６時４６分

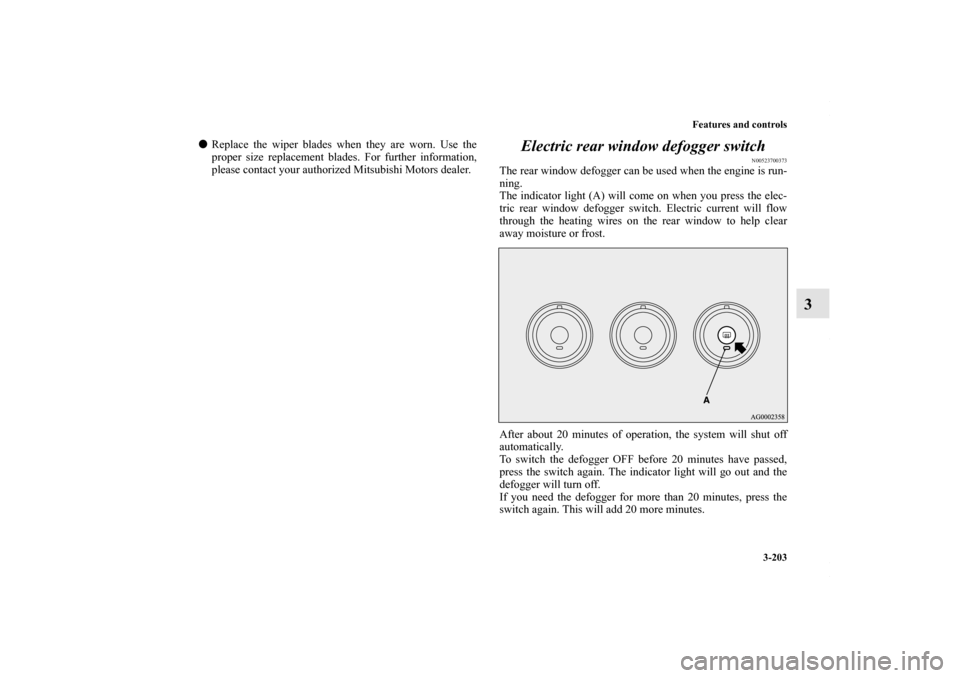

Features and controls3-203
3

Replace the wiper blades when they are worn. Use the
proper size replacement blades. For further information,
please contact your authorized Mitsubishi Motors dealer.
Electric rear window defogger switch
N00523700373
The rear window defogger can be used when the engine is run-
ning.
The indicator light (A) will come on when you press the elec-
tric rear window defogger switch. Electric current will flow
through the heating wires on the rear window to help clear
away moisture or frost.
After about 20 minutes of operation, the system will shut off
automatically.
To switch the defogger OFF before 20 minutes have passed,
press the switch again. The indicator light will go out and the
defogger will turn off.
If you need the defogger for more than 20 minutes, press the
switch again. This will add 20 more minutes.
BK0150700US.book 203 ページ ２０１２年３月２２日　木曜日　午後６時４６分

3-204 Features and controls
3
NOTE
As your vehicle is equipped with heated mirrors, mist can
also be removed from the outside rearview mirrors when
the rear window defogger switch is pressed. (Refer to
“Door mirror heater” on page 3-66.)
Horn switch
N00523800172
To honk the horn, press around the “ ” mark on the steering
wheel.
CAUTION
!
The rear window defogger is not designed to melt
snow. Remove any snow manually before using the
rear window defogger.
Use the rear window defogger only after the engine
has started and is running. Be sure to turn the
defogger switch off immediately after the window is
clear to save on battery power.
Do not place stickers, tape, or other items that are
attached with adhesive over the grid wires on the
rear window.
When cleaning the inside rear window, use a soft
cloth and wipe lightly over the grid wires.
BK0150700US.book 204 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Features and controls3-205
3
Link System
(if so equipped)
N00563700027
The Link System takes overall control of the devices connected
via the USB input terminal or the Bluetooth
® 2.0 interface
allowing the connected devices to be operated by using the
switches in the vehicle or voice commands.
See the following section for details on how to operate.
Refer to “Bluetooth
® 2.0 interface” on page 3-205.
Refer to “USB input terminal” on page 3-231.
Refer to “To play tracks from USB device” on page 5-73.
Refer to “To play tracks from a Bluetooth
® device” on page 5-
88.
Refer to “To use the external audio input function” on page 5-
91.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
Link System End User License Agreement
N00563800015
You have acquired a device that includes software licensed by
Mitsubishi Motors Corporation from JOHNSON CONTROLS
Inc (the automotive experience business unit), and their subse-
quent 3rd party suppliers. For a complete list of these 3rd party
products and their end user license agreements, please go to the
following website.
http://www.jciblueconnect.com/faq/fulldisclosure.pdf
Bluetooth
® 2.0 interface
(if so equipped)
N00563900146
The Bluetooth
® 2.0 interface allows for making/receiving
hands-free calls in the vehicle using a Bluetooth
® compatible
cellular phone based on the wireless communication technol-
ogy commonly known as Bluetooth
®. It also allows the user to
play music, saved in a Bluetooth
® music player, from the vehi-
cle’s speakers.
The system is equipped with a voice recognition function,
which allows you to make hands-free calls by simple switch
operations and voice command operations using a defined
voice tree.
The Bluetooth
® 2.0 interface can be used when the ignition
switch or the operation mode is in ON or ACC.
Before you can use the Bluetooth
® 2.0 interface, you must pair
the Bluetooth
® device and Bluetooth
® 2.0 interface. Refer to
“Connecting the Bluetooth
® 2.0 interface and Bluetooth
®
device” on page 3-213.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
BK0150700US.book 205 ページ ２０１２年３月２２日　木曜日　午後６時４６分

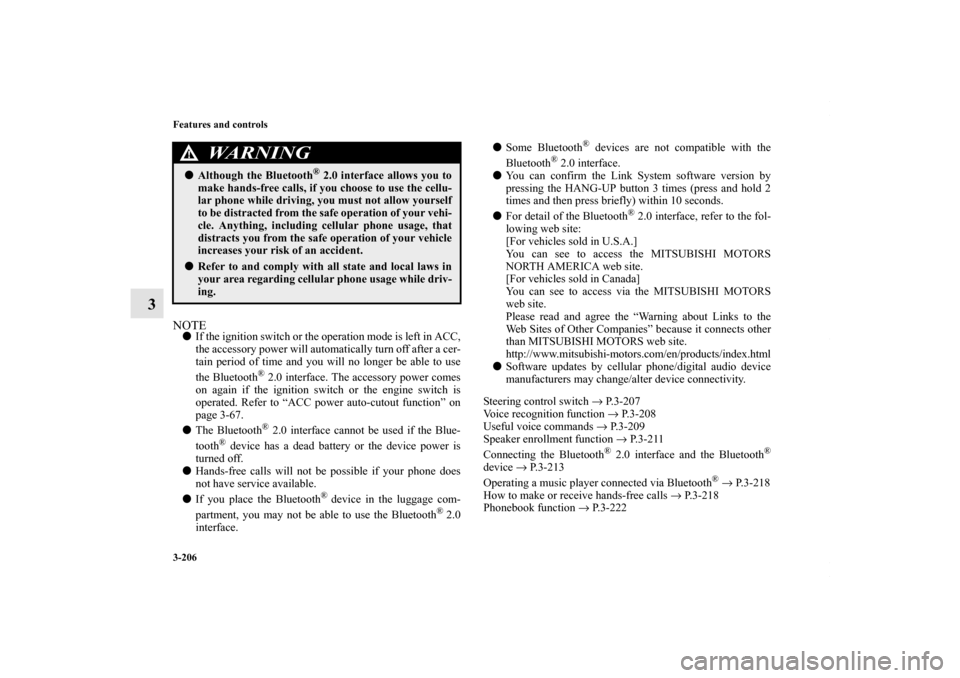

3-206 Features and controls
3
NOTE
If the ignition switch or the operation mode is left in ACC,
the accessory power will automatically turn off after a cer-
tain period of time and you will no longer be able to use
the Bluetooth
® 2.0 interface. The accessory power comes
on again if the ignition switch or the engine switch is
operated. Refer to “ACC power auto-cutout function” on
page 3-67.

The Bluetooth® 2.0 interface cannot be used if the Blue-
tooth
® device has a dead battery or the device power is
turned off.

Hands-free calls will not be possible if your phone does
not have service available.

If you place the Bluetooth
® device in the luggage com-
partment, you may not be able to use the Bluetooth
® 2.0
interface.

Some Bluetooth
® devices are not compatible with the
Bluetooth
® 2.0 interface.

You can confirm the Link System software version by
pressing the HANG-UP button 3 times (press and hold 2
times and then press briefly) within 10 seconds.

For detail of the Bluetooth
® 2.0 interface, refer to the fol-
lowing web site:
[For vehicles sold in U.S.A.]
You can see to access the MITSUBISHI MOTORS
NORTH AMERICA web site.
[For vehicles sold in Canada]
You can see to access via the MITSUBISHI MOTORS
web site.
Please read and agree the “Warning about Links to the
Web Sites of Other Companies” because it connects other
than MITSUBISHI MOTORS web site.
http://www.mitsubishi-motors.com/en/products/index.html

Software updates by cellular phone/digital audio device
manufacturers may change/alter device connectivity.
Steering control switch → P.3-207
Voice recognition function → P.3-208
Useful voice commands → P.3-209
Speaker enrollment function → P.3-211
Connecting the Bluetooth
® 2.0 interface and the Bluetooth
®
device → P.3-213
Operating a music player connected via Bluetooth
® → P.3-218
How to make or receive hands-free calls → P.3-218
Phonebook function → P.3-222
WARNING
!
Although the Bluetooth
® 2.0 interface allows you to
make hands-free calls, if you choose to use the cellu-
lar phone while driving, you must not allow yourself
to be distracted from the safe operation of your vehi-
cle. Anything, including cellular phone usage, that
distracts you from the safe operation of your vehicle
increases your risk of an accident.

Refer to and comply with all state and local laws in
your area regarding cellular phone usage while driv-
ing.
BK0150700US.book 206 ページ ２０１２年４月２日　月曜日　午前１０時１９分

Features and controls3-207
3
Steering control switch
N00564000014
Volume up buttonPress this button to increase the volume. Volume down buttonPress this button to decrease the volume.SPEECH button
Press this button to change to voice recognition mode.
While the system is in voice recognition mode, “Listen-
ing” will appear on the audio display.

If you press the button briefly while in voice recognition
mode, it will interrupt prompting and allow voice com-
mand input.
Pressing the button longer will deactivate the voice recog-
nition mode.

Pressing this button briefly during a call will enable voice
recognition and allow voice command input.PICK-UP button
Press this button when an incoming call is received to
answer the telephone.

When another call is received during a call, press this but-
ton to put the first caller on hold and talk to the new caller.
• In such circumstances, you can press the button briefly
to switch between callers. You will switch to the first
caller and the other caller will be put on hold.
• To establish a three-way call in such situations, press the SPEECH button to enter voice recognition mode and
then say “Join calls.”
1- Volume up button
2- Volume down button
3- SPEECH button
4- PICK-UP button
5- HANG-UP button
BK0150700US.book 207 ページ ２０１２年３月２２日　木曜日　午後６時４６分
