9-2 Specifications

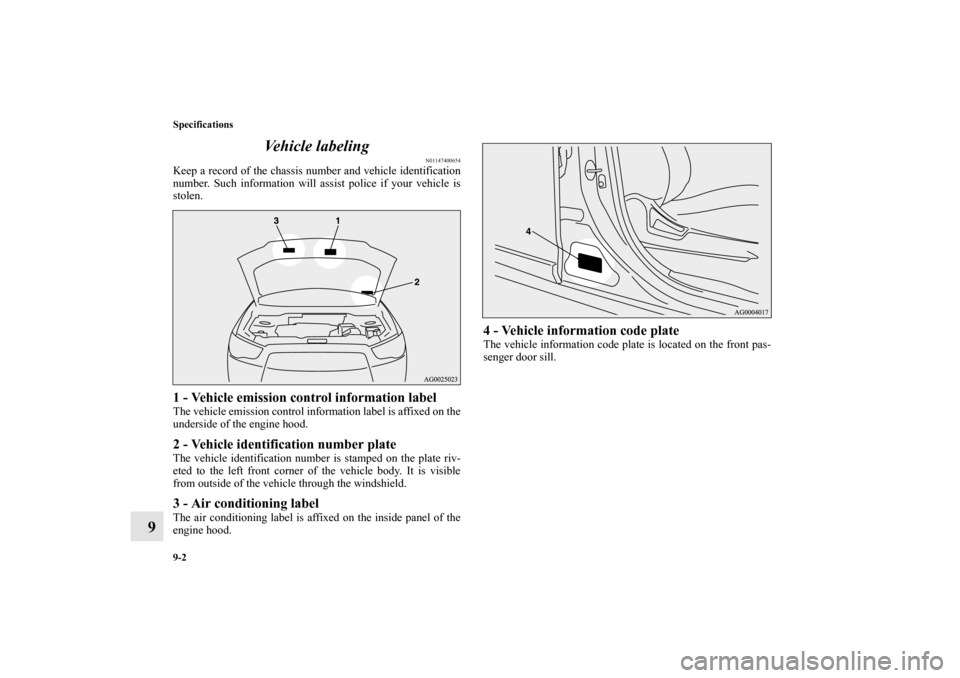

9Vehicle labeling
N01147400654
Keep a record of the chassis number and vehicle identification
number. Such information will assist police if your vehicle is
stolen.1 - Vehicle emission control information labelThe vehicle emission control information label is affixed on the
underside of the engine hood.2 - Vehicle identification number plateThe vehicle identification number is stamped on the plate riv-
eted to the left front corner of the vehicle body. It is visible
from outside of the vehicle through the windshield.3 - Air conditioning labelThe air conditioning label is affixed on the inside panel of the
engine hood.
4 - Vehicle information code plateThe vehicle information code plate is located on the front pas-
senger door sill.
BK0150700US.book 2
ページ ２０１２年３月２２日　木曜日　午後６時４６分

Specifications9-3
9

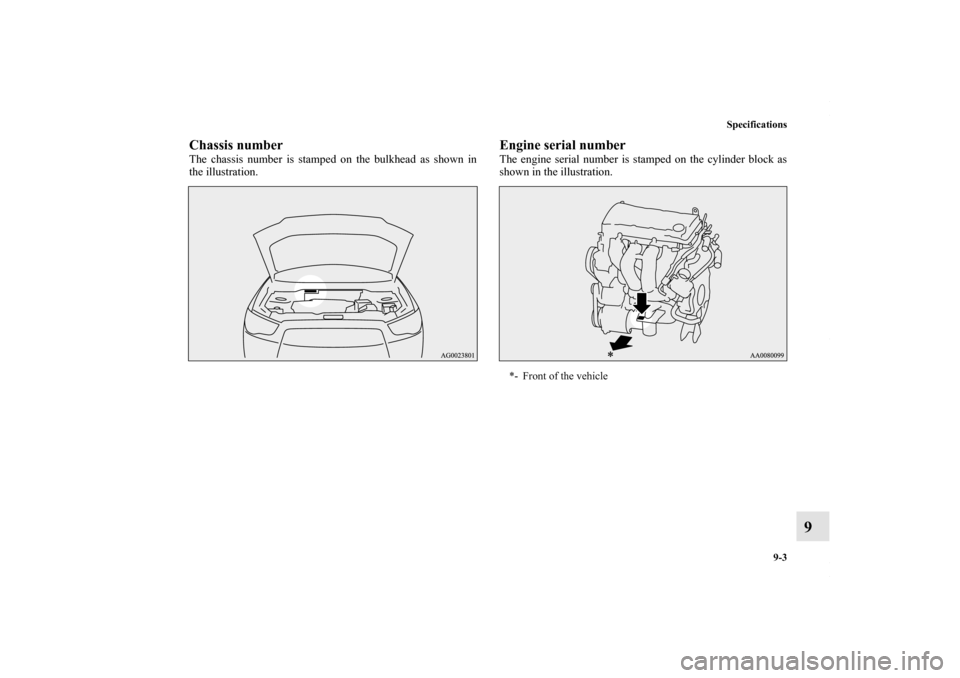

Chassis numberThe chassis number is stamped on the bulkhead as shown in
the illustration.
Engine serial numberThe engine serial number is stamped on the cylinder block as
shown in the illustration.*- Front of the vehicle
BK0150700US.book 3 ページ ２０１２年３月２２日　木曜日　午後６時４６分

9-4 Specifications
9

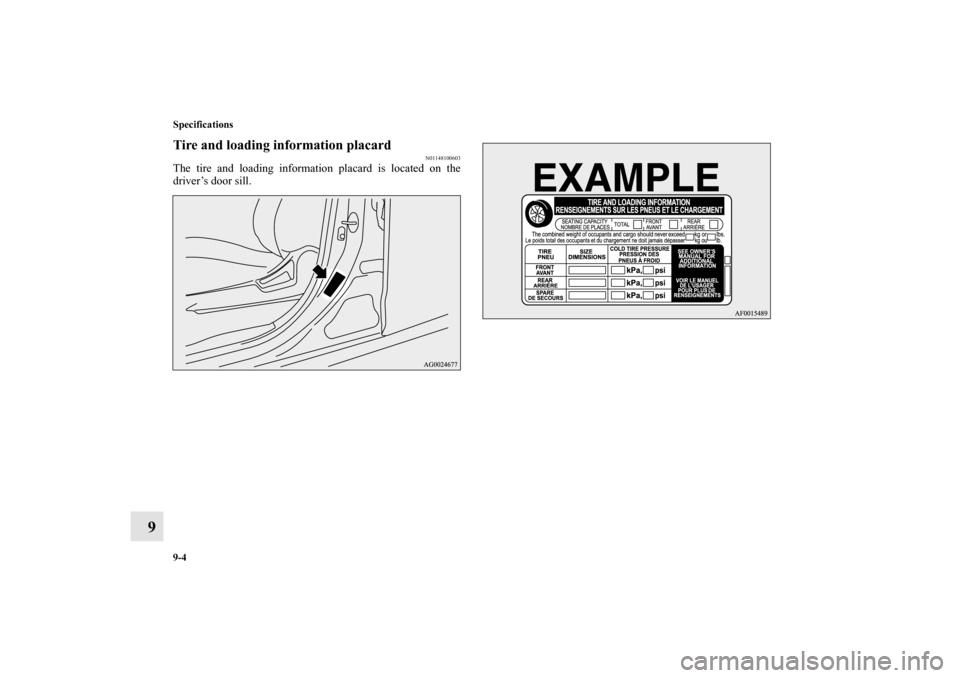

Tire and loading information placard
N01148100603
The tire and loading information placard is located on the
driver’s door sill. BK0150700US.book 4 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Specifications9-5
9
Certification label
N01148200167
The certification label is located on the driver’s door sill.
Vehicle dimensions
N01147500479
Overall length 169.1 in (4,295 mm)Overall width 69.7 in (1,770 mm)Overall height
Without roof rails 64.2 in (1,630 mm)With roof rails 64.6 in (1,640 mm)
Wheel base105.1 in (2,670 mm)
BK0150700US.book 5 ページ ２０１２年３月２２日　木曜日　午後６時４６分

9-6 Specifications

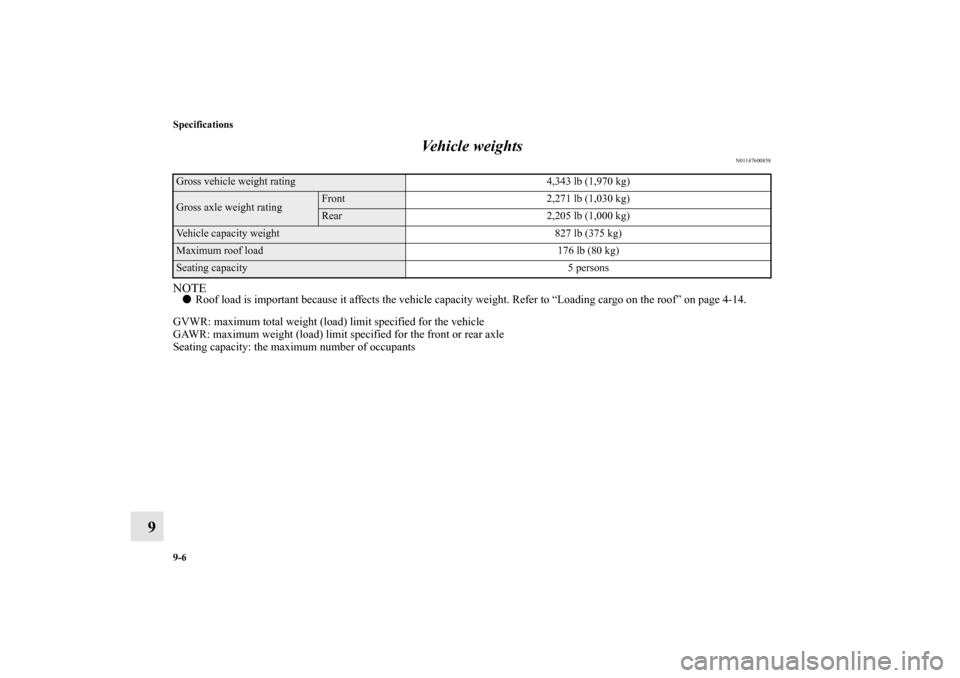

9Vehicle weights
N01147600858
NOTE

Roof load is important because it affects the vehicle capacity weight. Refer to “Loading cargo on the roof” on page 4-14.
GVWR: maximum total weight (load) limit specified for the vehicle
GAWR: maximum weight (load) limit specified for the front or rear axle
Seating capacity: the maximum number of occupantsGross vehicle weight rating 4,343 lb (1,970 kg)Gross axle weight rating
Front2,271 lb (1,030 kg)Rear 2,205 lb (1,000 kg)
Vehicle capacity weight 827 lb (375 kg)Maximum roof load 176 lb (80 kg)Seating capacity 5 personsBK0150700US.book 6 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Specifications9-7
9

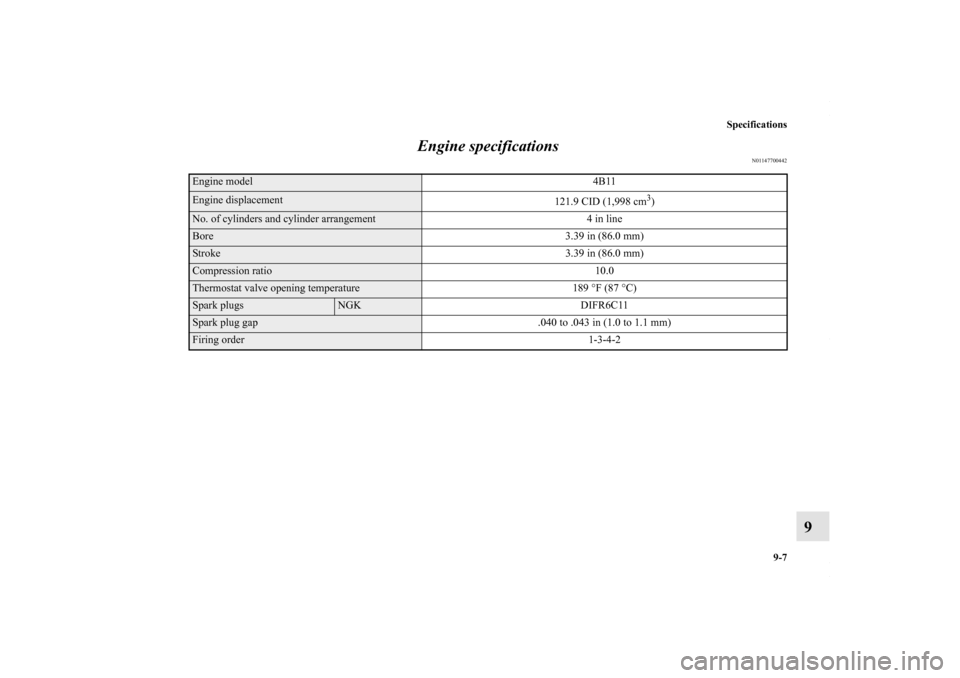

Engine specifications
N01147700442
Engine model
4B11Engine displacement
121.9 CID (1,998 cm
3)
No. of cylinders and cylinder arrangement 4 in lineBore3.39 in (86.0 mm)Stroke 3.39 in (86.0 mm)Compression ratio 10.0Thermostat valve opening temperature189 °F (87 °C)Spark plugs
NGK DIFR6C11
Spark plug gap .040 to .043 in (1.0 to 1.1 mm)Firing order 1-3-4-2
BK0150700US.book 7 ページ ２０１２年３月２２日　木曜日　午後６時４６分

9-8 Specifications

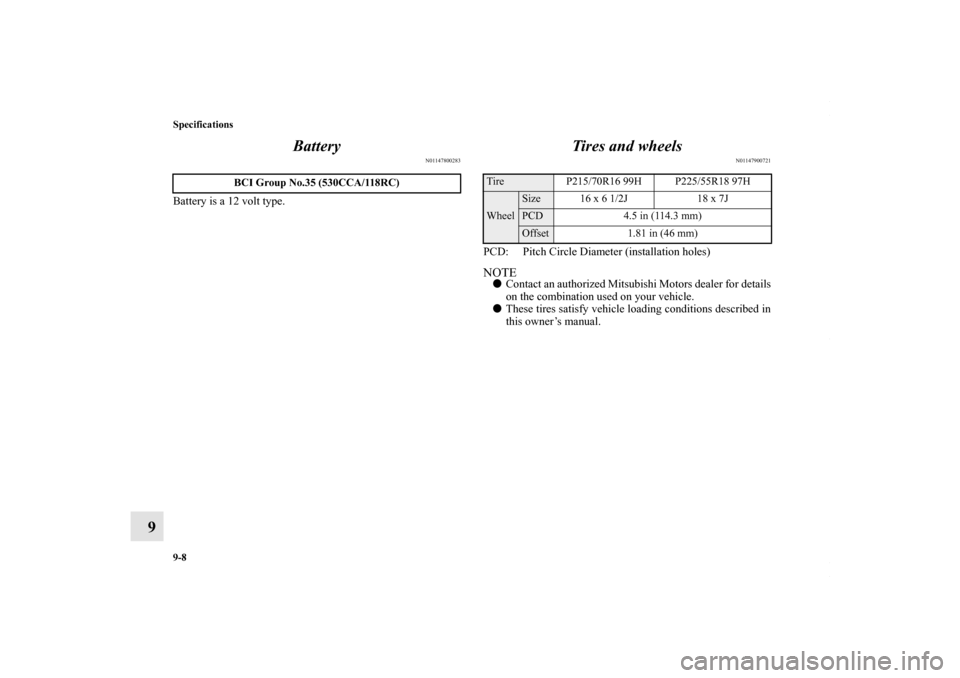

9Battery
N01147800283
Battery is a 12 volt type.
Tires and wheels
N01147900721
PCD: Pitch Circle Diameter (installation holes)NOTE

Contact an authorized Mitsubishi Motors dealer for details
on the combination used on your vehicle.

These tires satisfy vehicle loading conditions described in
this owner’s manual.
BCI Group No.35 (530CCA/118RC)
Tire P215/70R16 99H P225/55R18 97HWheel
Size 16 x 6 1/2J 18 x 7JPCD4.5 in (114.3 mm)Offset 1.81 in (46 mm)
BK0150700US.book 8 ページ ２０１２年３月２２日　木曜日　午後６時４６分

Specifications9-9
9
Capacity
N01148001058
*: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid
organic acid technology
Item
Capacity
Lubricants
Fuel
(approximate)
Front-wheel drive vehicles 16.6 gal (63 L)
Refer to “Fuel selection” on page 1-2All-wheel drive vehicles15.8 gal (60 L)
Engine oil
Oil pan 4.2 qt (4.0 L) Engine oils displaying the ILSAC certification mark (“star-
burst” symbol) on the container.
If these oils are not available, and API classification SN or
higher can be used.Oil filter .32 qt (0.3 L)
Manual transaxle 2.6 qt (2.5 L)Mitsubishi Motors Genuine NEW MULTI GEAR OIL API
classification GL-3 SAE 75W-80Continuously variable transmission (CVT)
7.5 qt (7.1 L) Mitsubishi Motors Genuine CVTF - J4Transfer oil.50 qt (0.47 L)Mitsubishi Motors Genuine Super Hypoid Gear Oil API
classification GL-5 SAE 80Differential
Rear axle
.42 qt (0.4 L)Mitsubishi Motors Genuine Super Hypoid Gear Oil API
classification GL-5 SAE 80
Brake/Clutch (if so equipped)
As required Conforming to Brake fluid DOT3 or DOT4Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2Engine coolant
{Includes .69 qt (0.65 L) in reserve tank}7.9 qt (7.5 L)Mitsubishi Motors Genuine Super Long Life Coolant Pre-
mium or equivalent*Washer fluid
4.8 qt (4.5 L)—Refrigerant (air conditioning) Refer to the “Air
conditioning label” on page 9-2. HFC-134a
