2012 INFINITI G37 Owners Manual

Black plate (464,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]9-14 Technical and consumer information STI0494
TIRE AND LOADING INFORMATION
LABEL GUID-8F8A4A1D-FD92-4E33-B4C2-4AC263867E78
The cold tire pressure is shown on the Tire
and Loading Information label affixed to
the pillar as illustrated. STI0495
AIR CONDITIONER SPECIFICATION
LABEL GUID-850BDC18-9E88-41D8-8D4E-C3D78AF28926
The air conditioner specification label is
attached as shown.

Black plate (465,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-9C7293A2-4691-4D4B-AD12-31CC5DD1C780
STI0696
Sedan Use the following steps to mount the
license plate:
Before mounting the license plate, confirm
that the following parts are enclosed in the
plastic bag.
. License plate bracket
. J-nut 6 2
. Screw 6 2
. Screw grommet 6 2
Only use the recommended mounting
position, otherwise the Intelligent Cruise
Control (ICC) sensor obstruction (if so
equipped) may result.
SEDAN GUID-5895C78E-057F-4431-9277-C9151DE76A20
1. Park the vehicle on flat, level ground.
2. Locate the center position
* A
as
illustrated. Position the license plate
bracket at a distance of approximately
0.35 in (9 mm)
* B
from the bottom of
the bumper. Hold the license plate
bracket in place.
3. Mark the center of the hole
* C
with a
felt-tip pen.
4. Carefully drill two pilot holes using a
0.39 in (10 mm) drill bit at the marked
locations. (Be sure that the drill only
goes through the bumper fascia.)
Technical and consumer information
9-15INSTALLING FRONT LICENSE PLATE

Black plate (466,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]9-16 Technical and consumer information5. Insert grommets into the hole on the
fascia.
6. Insert a flat-blade screwdriver into the
grommet hole to add 90 8 turn onto the
part
* D
.
7. Insert a J-nut into the license plate
bracket before placing the license plate
bracket on the fascia.
8. Install the license plate bracket with
screws.
9. Install the license plate with bolts that
are no longer than 0.55 in (14 mm).

Black plate (467,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ] STI0813
Coupe (except for INFINITI Performance Line, Aerodynamic Package models) COUPE (except for INFINITI Perfor-
mance Line, Aerodynamic Package
models) GUID-B205EE8C-2772-42A3-B406-BDD0BBD9BBDB
1. Park the vehicle on flat, level ground.
2. Locate the center position indicator
* A
on the lower part of the grille. Measure
straight down from the edge where the
bumper and grille meet to the aligning
holes
* B
, keeping the tape measure
lined up with the center position
indicator.
3. Mark the holes
* B
with a felt-tip pen.
4. For Sports models: Carefully drill the
two aligning holes
* B
using a 0.39 in
(10 mm) drill bit at the marked loca-
tions. (Be sure that the drill only goes
through the bumper fascia.)
5. For Sports models: Line up the bosses
* C
or license plate bracket with the
holes and hold the license plate brack-
et in place.
6. Mark the center of the holes
* D
with a
felt-tip pen.
7. Carefully drill the two pilot holes using
a 0.39 in (10 mm) drill bit at the marked
locations. (Be sure that the drill only
goes through the bumper fascia.)
Technical and consumer information
9-17

Black plate (468,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]9-18 Technical and consumer information8. Insert grommets into the hole on the
fascia.
9. Insert a flat-blade screwdriver into the
grommet hole to add 90 8 turn onto the
part
* E
.
10. Insert a J-nut into the license plate
bracket before placing the license plate
bracket on the fascia.
11. Install the license plate bracket with
screws.
12. Install the license plate with bolts that
are no longer than 0.55 in (14 mm).

Black plate (469,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ] STI0805
Coupe (INFINITI Performance Line, Aerodynamic Package models) COUPE (INFINITI Performance Line,
Aerodynamic Package models) GUID-FF35684F-2E3D-4CA9-B7E5-04B85B377033
1. Park the vehicle on flat, level ground.
2. Temporarily fit the license plate bracket
on the center of the front bumper
fascia.
3. For horizontal position adjustment,
place and hold the underside tab of
the license plate bracket on the front
bumper fascia to align the tab ’ s V notch
with the edge of a bead on the upper
side of front bumper fascia.
4. Hold the license plate bracket and mark
the points
* A
on the bumper facia
through the center of the holes
* B
with
a felt-tip pen.
5. Remove the license plate bracket.
6. Detach the license plate bracket and
cut the underside tab by using a cutter.
7. Carefully drill two shallow pilot holes
* A
using a 0.39 in (10 mm) drill bit at
the marked locations. (Be sure that the
drill only goes through the fascia, or
damage to the nut may occur.)
8. Insert Grommets into the hole on the
front bumper fascia.
Technical and consumer information
9-19

Black plate (470,1)

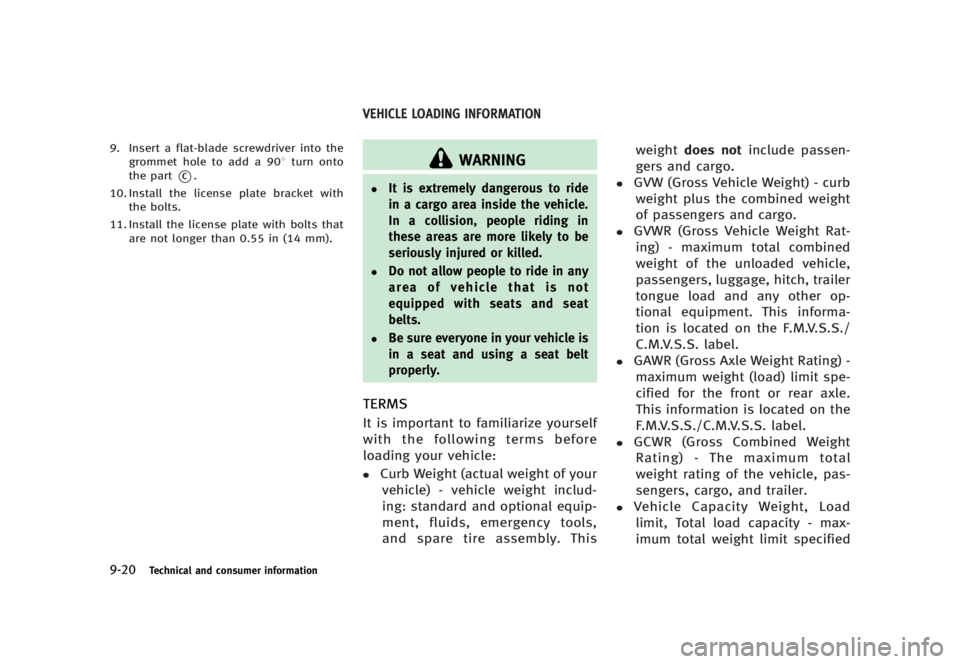

[ Edit: 2012/ 1/ 17 Model: V36-D ]9-20 Technical and consumer information9. Insert a flat-blade screwdriver into the
grommet hole to add a 90 8 turn onto
the part
* C
.
10. Install the license plate bracket with
the bolts.
11. Install the license plate with bolts that
are not longer than 0.55 in (14 mm). GUID-F7343F6D-6C3B-41F4-A6AD-BE69A1DC2FDC
WARNING .
It is extremely dangerous to ride
in a cargo area inside the vehicle.
In a collision, people riding in
these areas are more likely to be
seriously injured or killed. .
Do not allow people to ride in any
area of vehicle that is not
equipped with seats and seat
belts. .
Be sure everyone in your vehicle is
in a seat and using a seat belt
properly.
TERMS GUID-3442F756-0B54-4F09-A262-23D84A9CA9AC
It is important to familiarize yourself
with the following terms before
loading your vehicle: .
Curb Weight (actual weight of your
vehicle) - vehicle weight includ-
ing: standard and optional equip-
ment, fluids, emergency tools,
and spare tire assembly. This weight does not include passen-
gers and cargo. .
GVW (Gross Vehicle Weight) - curb
weight plus the combined weight
of passengers and cargo. .
GVWR (Gross Vehicle Weight Rat-
ing) - maximum total combined
weight of the unloaded vehicle,
passengers, luggage, hitch, trailer
tongue load and any other op-
tional equipment. This informa-
tion is located on the F.M.V.S.S./
C.M.V.S.S. label. .
GAWR (Gross Axle Weight Rating) -
maximum weight (load) limit spe-
cified for the front or rear axle.
This information is located on the
F.M.V.S.S./C.M.V.S.S. label. .
GCWR (Gross Combined Weight
Rating) - The maximum total
weight rating of the vehicle, pas-
sengers, cargo, and trailer. .
Vehicle Capacity Weight, Load
limit, Total load capacity - max-
imum total weight limit specifiedVEHICLE LOADING INFORMATION

Black plate (471,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]of the load (passengers and car-
go) for the vehicle. This is the
maximum combined weight of
occupants and cargo that can be
loaded into the vehicle. If the
vehicle is used to tow a trailer,
the trailer tongue weight must be
included as part of the cargo load.
This information is located on the
Tire and Loading Information la-
bel..
Cargo capacity - permissible
weight of cargo, the weight of
total occupants weight subtracted
from the load limit. STI0365
VEHICLE LOAD CAPACITY GUID-16EB8F06-6588-4DB3-AD19-F995D969E737
Do not exceed the load limit of your
vehicle shown as “ The combined
weight of occupants and cargo ” on
the Tire and Loading Information
label. Do not exceed the number of
occupants shown as “ Seating Capa-
city ” on the Tire and Loading In-
formation label.
To get “ the combined weight of
occupants and cargo ” , add the
weight of all occupants, then add the total luggage weight. Examples
are shown in the illustration.
Steps for determining correct load
limit GUID-B83A4859-8D1F-4DE0-BA0C-340F84D79632
1.
Locate the statement “ The com-
bined weight of occupants and
cargo should never exceed XXX kg
or XXX lbs ” on your vehicle ’ s
placard. 2.
Determine the combined weight of
the driver and passengers that
will be riding in your vehicle.
Technical and consumer information
9-21
