2012 INFINITI G37 Owners Manual

Black plate (40,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]1-18 Safety — Seats, seat belts and supplemental restraint system SSS0290
3. Position the lap belt portion low and
snug on the hips as shown.
4. Pull the shoulder belt portion toward
the retractor to take up extra slack. Be
sure the shoulder belt is routed over
your shoulder and across your chest.
The three-point type seat belts have two
modes of operation:
. Emergency Locking Retractor (ELR)
. Automatic Locking Retractor (ALR)
The Emergency Locking Retractor (ELR)
mode allows the seat belt to extend and
retract to allow the driver and passengers
some freedom of movement in the seat. The ELR locks the seat belt when the
vehicle slows down rapidly or during
impacts.
The Automatic Locking Retractor (ALR)
mode (child restraint mode) locks the seat
belt for child restraint installation.
When the ALR mode is activated the seat
belt cannot be extended again until the
seat belt tongue is detached from the
buckle and fully retracted. The seat belt
returns to the ELR mode after the seat belt
fully retracts. For additional information,
see “ Child restraints ” (P.1-23).
The ALR mode should be used only for
child restraint installation. During normal
seat belt use by an occupant, the ALR
mode should not be activated. If it is
activated, it may cause uncomfortable seat
belt tension.
WARNING When fastening the seat belts, be certain
that seatbacks are completely secured in
the latched position. If they are not com-
pletely secured, passengers may be injured
in an accident or sudden stop. SSS0326
Unfastening the seat belts GUID-E5ABF433-63F1-41B4-9060-772462985B76
To unfasten the seat belt, push the button
on the buckle. The seat belt automatically
retracts.
Checking seat belt operation GUID-B2C3D22B-2FD8-46E0-9AC6-84735F785EB4
Seat belt retractors are designed to lock
seat belt movement by two separate
methods:
. When the belt is pulled quickly from the
retractor.
. When the vehicle slows down rapidly.
To increase your confidence in the seat
belts, check the operation as follows:

Black plate (41,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]. Grasp the shoulder belt and pull
forward quickly. The retractor should
lock and restrict further belt movement.
If the retractor does not lock during this
check or if you have any question about
seat belt operation, see an INFINITI retailer.
SSS0687
Center of rear seat (Sedan) GUID-F8C852B7-8F2B-4F66-B9F1-740AF287A7F1
Selecting correct set of seat belts: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The center seat belt buckle is identified by
the CENTER mark
* A
. The center seat belt
tongue can be fastened only into the center
seat belt buckle. SSS0294A
Shoulder belt height adjustment
(for Sedan front seats) GUID-9DA0069A-F53D-4536-89F5-3F6983A3F7DF
The shoulder belt anchor height should be
adjusted to the position best for you. (See
“ Precautions on seat belt usage ” (P.1-14).)
To adjust, push the button
* A
, and then
move the shoulder belt anchor to the
desired position, so that the belt passes
over the center of the shoulder. The belt
should be away from your face and neck,
but not falling off of your shoulder. Release
the adjustment button to lock the shoulder
belt anchor into position.
Safety — Seats, seat belts and supplemental restraint system
1-19

Black plate (42,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]1-20 Safety — Seats, seat belts and supplemental restraint systemWARNING. After adjustment, release the adjustment
button and try to move the shoulder belt
anchor up and down to make sure it is
securely fixed in position.
. The shoulder belt anchor height should
be adjusted to the position best for you.
Failure to do so may reduce the effec-
tiveness of the entire restraint system
and increase the chance or severity of
injury in an accident. SSS0588
Shoulder belt arm (for Coupe front
seats) GUID-79A89F1D-4AEA-49A3-B52A-98FCD811131B
Before fastening the seat belt, pull the
shoulder belt arm forward until it clicks at
the lock position. The arm can also be
folded down for easier access for rear seat
passengers.
Pulling the arm forward will allow an easy
access to the belt. SEAT BELT EXTENDERS GUID-B1D92F02-3294-412F-84BF-88F73FEF6097
If, because of body size or driving position,
it is not possible to properly fit the lap-
shoulder belt and fasten it, an extender
that is compatible with the installed seat
belts is available that can be purchased.
The extender adds approximately 8 in (200
mm) of length and may be used for either
the driver or front passenger seating
position. See an INFINITI retailer for assis-
tance with purchasing an extender if an
extender is required.
WARNING . Only INFINITI seat belt extenders, made
by the same company which made the
original equipment seat belts, should be
used with the INFINITI seat belts.
. Adults and children who can use the
standard seat belt should not use an
extender. Such unnecessary use could
result in serious personal injury in the
event of an accident.
. Never use seat belt extenders to install
child restraints. If the child restraint is
not secured properly, the child could be
seriously injured in a collision or a

Black plate (43,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]sudden stop.

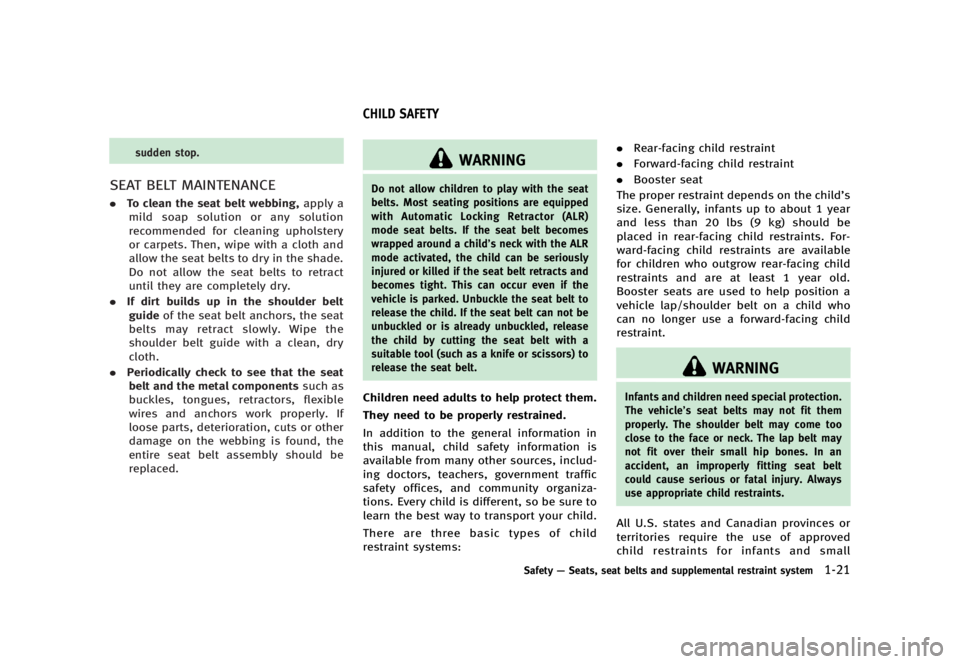

SEAT BELT MAINTENANCE GUID-FD012A51-6217-44CA-9A47-C28EBAF61CDE
. To clean the seat belt webbing, apply a
mild soap solution or any solution
recommended for cleaning upholstery
or carpets. Then, wipe with a cloth and
allow the seat belts to dry in the shade.
Do not allow the seat belts to retract
until they are completely dry.
. If dirt builds up in the shoulder belt
guide of the seat belt anchors, the seat
belts may retract slowly. Wipe the
shoulder belt guide with a clean, dry
cloth.
. Periodically check to see that the seat
belt and the metal components such as
buckles, tongues, retractors, flexible
wires and anchors work properly. If
loose parts, deterioration, cuts or other
damage on the webbing is found, the
entire seat belt assembly should be
replaced. GUID-758C3ADB-56E4-4839-A833-17F0574CC784
WARNING Do not allow children to play with the seat
belts. Most seating positions are equipped
with Automatic Locking Retractor (ALR)
mode seat belts. If the seat belt becomes
wrapped around a child ’ s neck with the ALR
mode activated, the child can be seriously
injured or killed if the seat belt retracts and
becomes tight. This can occur even if the
vehicle is parked. Unbuckle the seat belt to
release the child. If the seat belt can not be
unbuckled or is already unbuckled, release
the child by cutting the seat belt with a
suitable tool (such as a knife or scissors) to
release the seat belt.
Children need adults to help protect them.
They need to be properly restrained.
In addition to the general information in
this manual, child safety information is
available from many other sources, includ-
ing doctors, teachers, government traffic
safety offices, and community organiza-
tions. Every child is different, so be sure to
learn the best way to transport your child.
There are three basic types of child
restraint systems: . Rear-facing child restraint
. Forward-facing child restraint
. Booster seat
The proper restraint depends on the child ’ s
size. Generally, infants up to about 1 year
and less than 20 lbs (9 kg) should be
placed in rear-facing child restraints. For-
ward-facing child restraints are available
for children who outgrow rear-facing child
restraints and are at least 1 year old.
Booster seats are used to help position a
vehicle lap/shoulder belt on a child who
can no longer use a forward-facing child
restraint.
WARNING Infants and children need special protection.
The vehicle ’ s seat belts may not fit them
properly. The shoulder belt may come too
close to the face or neck. The lap belt may
not fit over their small hip bones. In an
accident, an improperly fitting seat belt
could cause serious or fatal injury. Always
use appropriate child restraints.
All U.S. states and Canadian provinces or
territories require the use of approved
child restraints for infants and small
Safety — Seats, seat belts and supplemental restraint system
1-21CHILD SAFETY

Black plate (44,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]1-22 Safety — Seats, seat belts and supplemental restraint systemchildren. See “ Child restraints ” (P.1-23).
A child restraint may be secured in the
vehicle by using either the LATCH (Lower
Anchor and Tethers for CHildren) system or
with the vehicle seat belt. See “ Child
restraints ” (P.1-23) for more information.
INFINITI recommends that all pre-teens
and children be restrained in the rear seat.
Studies show that children are safer when
properly restrained in the rear seat than in
the front seat.
This is especially important because your
vehicle has a supplemental restraint sys-
tem (Air bag system) for the front passen-
ger. See “ Supplemental restraint system ”
(P.1-41).
INFANTS GUID-81981691-E72A-4BD1-8C1F-5BB0437EDCA7
Infants up to at least 1 year old should be
placed in a rear-facing child restraint.
INFINITI recommends that infants be placed
in child restraints that comply with Federal
Motor Vehicle Safety Standards or Cana-
dian Motor Vehicle Safety Standards. You
should choose a child restraint that fits
your vehicle and always follow the manu-
facturer ’ s instructions for installation and
use. SMALL CHILDREN GUID-4B9EA2FD-B4B7-4495-B26D-F98DBFB5E95B
Children that are over 1 year old and weigh
at least 20 lbs (9 kg) should remain in a
rear-facing child restraint as long as
possible up to the height or weight limit
of the child restraint. Forward-facing child
restraints are available for children who
outgrow rear facing child restraints and are
at least 1 year old. Refer to the manufac-
turer ’ s instructions for minimum and max-
imum weight and height
recommendations. INFINITI recommends
that small children be placed in child
restraints that comply with Federal Motor
Vehicle Safety Standards or Canadian
Motor Vehicle Safety Standards. You
should choose a child restraint that fits
your vehicle and always follow the manu-
facturer ’ s instructions for installation and
use.
LARGER CHILDREN GUID-68A06744-D08D-4184-A663-B44714919409
Children who are too large for child
restraints should be seated and restrained
by the seat belts which are provided. The
seat belt may not fit properly if the child is
less than 4 ft 9 in (142.5 cm) tall and
weighs between 40 lbs (18 kg) and 80 lbs
(36 kg). A booster seat should be used to obtain proper seat belt fit.
INFINITI recommends that a child be placed
in a commercially available booster seat if
the shoulder belt fits close to the face or
neck or if the lap portion of the seat belt
goes across the abdomen. The booster seat
should raise the child so that the shoulder
belt is properly positioned across the top,
middle portion of the shoulder and the lap
belt is low on the hips. A booster seat can
only be used in seating positions that have
a three-point type seat belt. The booster
seat should fit the vehicle seat and have a
label certifying that it complies with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards.
Once the child has grown so the shoulder
belt is no longer on or near the face and
neck, use the shoulder belt without the
booster seat.
WARNING Never let a child stand or kneel on any seat
and do not allow a child in the cargo area.
The child could be seriously injured or killed
in a sudden stop or collision.

Black plate (45,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]GUID-6F253891-941F-476D-B2AD-069FE8CA4BEE
SSS0099
SSS0100PRECAUTIONS ON CHILD RE-
STRAINTS GUID-5FE7E7BB-A112-4287-8A75-C4B83BB8D21F
WARNING . Failure to follow the warnings and
instructions for proper use and installa-
tion of child restraints could result in
serious injury or death of a child or other
passengers in a sudden stop or collision:
— The child restraint must be used and
installed properly. Always follow all
of the child restraint manufacturer ’ s
instructions for installation and use.
— Infants and children should never be
held on anyone ’ s lap. Even the
strongest adult cannot resist the
forces of a collision.
— Do not put a seat belt around both a
child and another passenger.
— INFINITI recommends that all child
restraints be installed in the rear
seat. Studies show that children are
safer when properly restrained in the
rear seat than in the front seat. If you
must install a forward-facing child
restraint in the front seat, see “ For- ward-facing child restraint installa-
tion using the seat belts ” (P.1-33).
— Even with the INFINITI Advanced Air
Bag System, never install a rear-
facing child restraint in the front
seat. An inflating air bag could
seriously injure or kill a child. A
rear-facing child restraint must only
be used in the rear seat.
— Be sure to purchase a child restraint
that will fit the child and vehicle.
Some child restraints may not fit
properly in your vehicle.
— Child restraint anchor points are
designed to withstand loads from
child restraints that are properly
fitted.
— Never use the anchor points for
adult seat belts or harnesses.
— A child restraint with a top tether
strap should not be used in the front
passenger seat.
— Keep seatbacks as upright as pos-
sible after fitting the child restraint.
— Infants and children should always
be placed in an appropriate child
restraint while in the vehicle.
Safety — Seats, seat belts and supplemental restraint system
1-23CHILD RESTRAINTS

Black plate (46,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]1-24 Safety — Seats, seat belts and supplemental restraint system. When the child restraint is not in use,
keep it secured with the LATCH system
or a seat belt. In a sudden stop or
collision, loose objects can injure occu-
pants or damage the vehicle.
CAUTIONA child restraint in a closed vehicle can
become very hot. Check the seating surface
and buckles before placing a child in the
child restraint.
This vehicle is equipped with a universal
child restraint anchor system, referred to
as the LATCH (Lower Anchors and Tethers
for CHildren) system. Some child restraints
include rigid or webbing-mounted attach-
ments that can be connected to these
anchors.
For details, see “ Lower Anchors and
Tethers for CHildren System (LATCH) ” (P.1-
25).
If you do not have a LATCH compatible
child restraint, the vehicle seat belts can
be used.
Several manufacturers offer child restraints for infants and small children of various
sizes. When selecting any child restraint,
keep the following points in mind:
. Choose only a restraint with a label
certifying that it complies with Federal
Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Stan-
dard 213.
. Check the child restraint in your vehicle
to be sure it is compatible with the
vehicle ’ s seat and seat belt system.
. If the child restraint is compatible with
your vehicle, place your child in the
child restraint and check the various
adjustments to be sure the child
restraint is compatible with your child.
Choose a child restraint that is de-
signed for your child ’ s height and
weight. Always follow all recommended
procedures.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on forward-facing child
restraints be secured to the designated
anchor point on the vehicle. SSS0710
LATCH label location (Sedan)
SSS0370B
LATCH label location (Coupe)

Black plate (47,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]Lower Anchors and Tethers for
CHildren System (LATCH) GUID-FC181028-F551-4DEE-8F16-CBB822A9F046
Your vehicle is equipped with special
anchor points that are used with the LATCH
(Lower Anchors and Tethers for CHildren)
system compatible child restraints. This
system may also be referred to as the
ISOFIX or ISOFIX compatible system. With
this system, you do not have to use a
vehicle seat belt to secure the child
restraint.
LATCH lower anchor GUID-67723C5A-DDB4-4E15-AF32-78083E9EADCF
WARNINGFailure to follow the warnings and instruc-
tions for proper use and installation of child
restraints could result in serious injury or
death of a child or other passengers in a
sudden stop or collision:
. Attach LATCH system compatible child
restraints only at the locations shown in
the illustration.
. Do not secure a child restraint in the
center rear seating position using the
LATCH lower anchors. The child restraint
will not be secured properly. . Inspect the lower anchors by inserting
your fingers into the lower anchor area.
Feel to make sure there are no obstruc-
tions over the anchors such as seat belt
webbing or seat cushion material. The
child restraint will not be secured
properly if the lower anchors are ob-
structed.
SSS0637
LATCH lower anchor location (Sedan)
SSS0670
LATCH lower anchor location (Coupe)
Safety — Seats, seat belts and supplemental restraint system
1-25
