2012 INFINITI G37 Owners Manual

Black plate (168,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]3-26 Pre-driving checks and adjustments GUID-0A2F0EF8-70E0-4509-BE3C-E077A7541106
WARNING. Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.
. Do not adjust the steering wheel any
closer to you than is necessary for
proper steering operation and comfort.
The driver ’ s air bag inflates with great
force. If you are unrestrained, leaning
forward, sitting sideways or out of
position in any way, you are at greater
risk of injury or death in a crash. You
may also receive serious or fatal injuries
from the air bag if you are up against it
when it inflates. Always sit back against
the seatback and as far away as practical
from the steering wheel. Always use the
seat belts. SPA2328
MANUAL OPERATION (if so
equipped) GUID-E531E01C-480F-4832-8A2F-7DB7D1BBD55C
Tilt or telescopic operation GUID-44ED5F8C-B493-4F4C-B6AB-0E69748E95E6
Pull the lock lever
* 1
down and adjust the
steering wheel up, down, forward or rear-
ward to the desired position.
Push the lock lever up securely to lock the
steering wheel in place. SPA2312
ELECTRIC OPERATION (if so
equipped) GUID-010C7211-B94D-440E-A135-0E0FDA1DB257
Tilt or telescopic operation GUID-8DDEF560-46B7-49C3-B657-4DA748B62330
Move the lever to adjust the steering wheel
up or down, forward or rearward to the
desired position.
Entry/Exit function operation (if so
equipped): GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
The automatic drive positioner system will
make the steering wheel move up auto-
matically when the driver ’ s door is opened
with the ignition switch in the LOCK
position. This lets the driver get into andTILT/TELESCOPIC STEERING

Black plate (169,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]out of the seat more easily.
For more information, see “ Automatic drive
positioner ” (P.3-31). GUID-4E67EC6A-FA18-4614-BCC8-9010570BFB44
SIC3451CAUTION . Do not store the main sun visor before
storing the extension sun visor.
. Do not pull the extension sun visor
forcedly downward.
1. To block out glare from the front, swing
down the main sun visor
* 1
.
2. To block glare from the side, remove
the main sun visor from the center
mount and swing it to the side
* 2
.
3. Draw out the extension sun visor
* 3
from the main sun visor to block from
further glare.
Pre-driving checks and adjustments
3-27SUN VISORS

Black plate (170,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]3-28 Pre-driving checks and adjustments GUID-5FF59AF5-32FA-4647-8F55-5C77CF27361B
SPA2447
INSIDE MIRROR GUID-6C5033E3-8A89-4036-AAF2-C6503881141F
Adjust the height and the angle of the
inside mirror to the desired position. SPA2143
Manual anti-glare type GUID-831BED0E-56D0-4AEB-9B65-1A5520327BC5
The night position
* 1
will reduce glare
from the headlights of vehicles behind you
at night.
Use the day position
* 2
when driving in
daylight hours.
WARNING Use the night position only when necessary,
because it reduces rear view clarity. SPA2422A
Type A
SPA2450
Type BMIRRORS

Black plate (171,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]Automatic anti-glare type GUID-42BCED9D-122C-447D-8C17-A6AFE2097EE0
The inside mirror is designed so that it
automatically changes reflection according
to the intensity of the headlights of the
following vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is
pushed to the ON position.
When the anti-glare system is turned on,
the indicator light
* A
will illuminate and
excessive glare from the headlights of the
vehicle behind you will be reduced.
Type A: Push the
switch
* B
to make the
inside rearview mirror operate normally
and the indicator light will turn off. Push
the
switch again to turn the system on.
Type B: Push the “ * ” switch
* C
to make
the inside rearview mirror operate nor-
mally. The indicator light will turn off. Push
the “ I ” switch
* D
to turn the system on.
Do not allow any object to cover the
sensors
* E
or apply glass cleaner on
them. Doing so will reduce the sensitivity
of the sensor, resulting in improper
operation.
For the compass (if so equipped) opera- tion, see “ Compass ” (P.2-9).
For the HomeLink ®
Universal Transceiver
operation, see “ HomeLink ®
Universal
Transceiver ” (P.2-59).
SPA2319
OUTSIDE MIRRORS GUID-44D37997-DE2C-47B8-BB91-5AA2BF04971B
WARNING Objects viewed in the outside mirror on the
passenger side are closer than they appear.
Be careful when moving to the right. Using
only this mirror could cause an accident.
Use the inside mirror or glance over your
shoulder to properly judge distances to
other objects.
Pre-driving checks and adjustments
3-29

Black plate (172,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]3-30 Pre-driving checks and adjustmentsAdjusting outside mirrors GUID-62D6641D-12C3-418F-87ED-A733909B16C3
The outside mirror control switch is located
on the armrest.
The outside mirror will operate only when
the ignition switch is in the ACC or ON
position.
Turn the switch right or left to select the
right or left side mirror
* 1
, then adjust
using the control switch
* 2
.
Defrosting outside mirrors (if so
equipped) GUID-77293E7E-8BFF-45ED-B0F9-F0C64B2CA14C
The outside mirrors will be heated when
the rear window defroster switch is oper-
ated. SPA1829
Foldable outside mirrors GUID-B809786B-AB52-4018-AF0B-10DCF52FE49E
Fold the outside mirror by pushing it
toward the rear of the vehicle. SIC2064
Type A
SIC3869
Type B

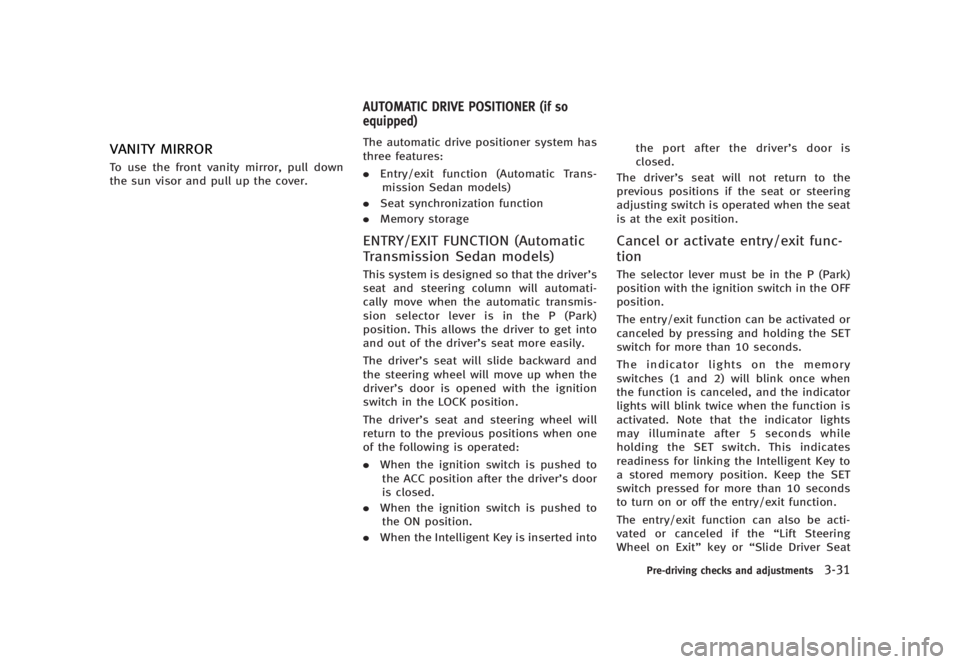

Black plate (173,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]VANITY MIRROR GUID-418E781F-468D-4640-B3BF-4DA5D9BE4DFA
To use the front vanity mirror, pull down
the sun visor and pull up the cover. GUID-3EDC2AC8-B979-442D-AEB4-1AF89546AADA
The automatic drive positioner system has
three features:
. Entry/exit function (Automatic Trans-
mission Sedan models)
. Seat synchronization function
. Memory storage
ENTRY/EXIT FUNCTION (Automatic
Transmission Sedan models) GUID-30995ABA-8234-45F4-9B5C-ECA6C07F73E6
This system is designed so that the driver ’ s
seat and steering column will automati-
cally move when the automatic transmis-
sion selector lever is in the P (Park)
position. This allows the driver to get into
and out of the driver ’ s seat more easily.
The driver ’ s seat will slide backward and
the steering wheel will move up when the
driver ’ s door is opened with the ignition
switch in the LOCK position.
The driver ’ s seat and steering wheel will
return to the previous positions when one
of the following is operated:
. When the ignition switch is pushed to
the ACC position after the driver ’ s door
is closed.
. When the ignition switch is pushed to
the ON position.
. When the Intelligent Key is inserted into the port after the driver ’ s door is
closed.
The driver ’ s seat will not return to the
previous positions if the seat or steering
adjusting switch is operated when the seat
is at the exit position.
Cancel or activate entry/exit func-
tion GUID-8D71F741-560B-4B4E-AA55-F9F223C96E4F
The selector lever must be in the P (Park)
position with the ignition switch in the OFF
position.
The entry/exit function can be activated or
canceled by pressing and holding the SET
switch for more than 10 seconds.
The indicator lights on the memory
switches (1 and 2) will blink once when
the function is canceled, and the indicator
lights will blink twice when the function is
activated. Note that the indicator lights
may illuminate after 5 seconds while
holding the SET switch. This indicates
readiness for linking the Intelligent Key to
a stored memory position. Keep the SET
switch pressed for more than 10 seconds
to turn on or off the entry/exit function.
The entry/exit function can also be acti-
vated or canceled if the “ Lift Steering
Wheel on Exit ” key or “ Slide Driver Seat
Pre-driving checks and adjustments
3-31AUTOMATIC DRIVE POSITIONER (if so
equipped)

Black plate (174,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]3-32 Pre-driving checks and adjustmentsBack on Exit ” key is turned to ON or OFF in
the “ Comfort ” settings. (See “ Vehicle
information and settings ” (P.4-9).)
Initialize entry/exit function GUID-0EEBBCEC-2899-4DC8-AE43-1CC42FE3C5C1
If the battery cable is disconnected, or if
the fuse opens, the entry/exit function will
not work though this function was set on
before. In such a case, after connecting the
battery or replacing with a new fuse, open
and close the driver ’ s door more than two
times after the ignition switch is turned
from the ON position to the LOCK position.
The entry/exit function will be activated. SPA2322
SEAT SYNCHRONIZATION FUNCTION GUID-44A9BCE7-C5A3-4DE5-84C7-DAFAF434BFA8
The seat synchronization function automa-
tically adjusts the positions of the steering
wheel and outside mirrors when the seat is
adjusted using the power seat switches.
However, the steering wheel and outside
mirrors will not move if the seat is adjusted
over the maximum thresholds. The system
considers that the steering wheel and
outside mirror adjustments are not neces-
sary because the seat may not be adjusted
for the driving position. Note that the
function is set to disabled as the factory
default setting. The seat synchronization function operates
under the following conditions:
. The ignition switch is in the ON posi-
tion.
. The selector lever is in the P (Park)
position (Automatic Transmission mod-
els) or the parking brake is applied
(Manual Transmission models).
. The seatback is raised (Coupe).
If the outside mirrors or the steering wheel
reaches its maximum adjustment, the
function is automatically disabled. Restart
the function by selecting a previously
stored seat memory position using the
memory switches (1 or 2). An Intelligent
Key that was previously linked to the
stored seat memory can also be used to
restart the function.
If a seat position was not previously stored
in the seat memory, restart the function by
adjusting the steering wheel and outside
mirrors manually for your best driving
position and then drive the vehicle above
4 MPH (7 km/h).

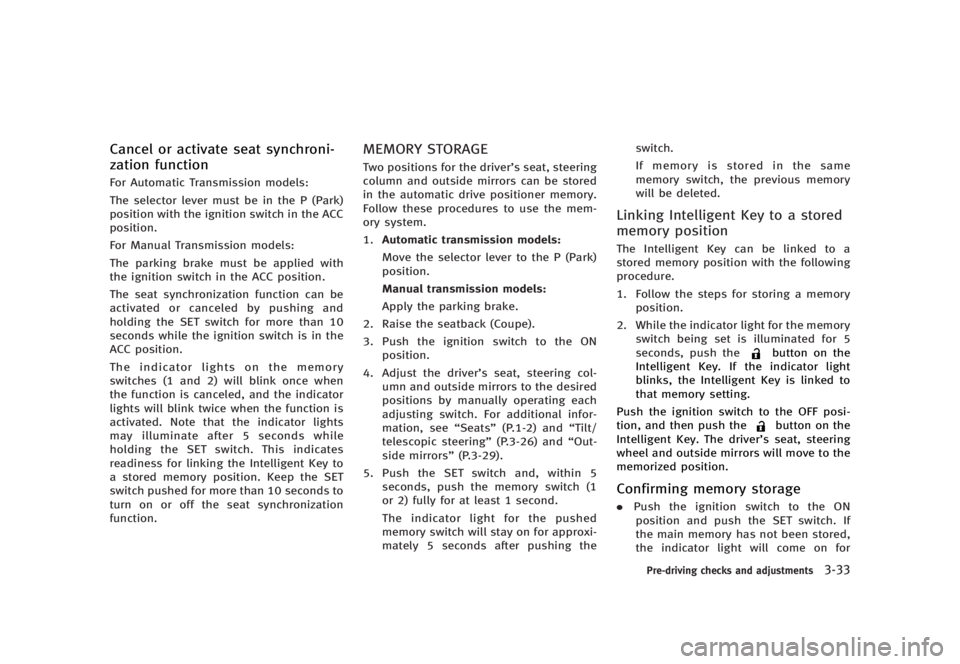

Black plate (175,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]Cancel or activate seat synchroni-
zation function GUID-9FA1381E-62FE-4338-8BE9-EF06F61AFC12
For Automatic Transmission models:
The selector lever must be in the P (Park)
position with the ignition switch in the ACC
position.
For Manual Transmission models:
The parking brake must be applied with
the ignition switch in the ACC position.
The seat synchronization function can be
activated or canceled by pushing and
holding the SET switch for more than 10
seconds while the ignition switch is in the
ACC position.
The indicator lights on the memory
switches (1 and 2) will blink once when
the function is canceled, and the indicator
lights will blink twice when the function is
activated. Note that the indicator lights
may illuminate after 5 seconds while
holding the SET switch. This indicates
readiness for linking the Intelligent Key to
a stored memory position. Keep the SET
switch pushed for more than 10 seconds to
turn on or off the seat synchronization
function. MEMORY STORAGE GUID-A3BE9A91-CE23-4574-92F2-3FB031E53D7E
Two positions for the driver ’ s seat, steering
column and outside mirrors can be stored
in the automatic drive positioner memory.
Follow these procedures to use the mem-
ory system.
1. Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Apply the parking brake.
2. Raise the seatback (Coupe).
3. Push the ignition switch to the ON
position.
4. Adjust the driver ’ s seat, steering col-
umn and outside mirrors to the desired
positions by manually operating each
adjusting switch. For additional infor-
mation, see “ Seats ” (P.1-2) and “ Tilt/
telescopic steering ” (P.3-26) and “ Out-
side mirrors ” (P.3-29).
5. Push the SET switch and, within 5
seconds, push the memory switch (1
or 2) fully for at least 1 second.
The indicator light for the pushed
memory switch will stay on for approxi-
mately 5 seconds after pushing the switch.
If memory is stored in the same
memory switch, the previous memory
will be deleted.
Linking Intelligent Key to a stored
memory position GUID-260E8272-8777-4E19-9288-E40B723FABBA
The Intelligent Key can be linked to a
stored memory position with the following
procedure.
1. Follow the steps for storing a memory
position.
2. While the indicator light for the memory
switch being set is illuminated for 5
seconds, push the
button on the
Intelligent Key. If the indicator light
blinks, the Intelligent Key is linked to
that memory setting.
Push the ignition switch to the OFF posi-
tion, and then push the
button on the
Intelligent Key. The driver ’ s seat, steering
wheel and outside mirrors will move to the
memorized position.
Confirming memory storage GUID-E5D175B3-57DC-4C96-A449-0B72F25D2264
. Push the ignition switch to the ON
position and push the SET switch. If
the main memory has not been stored,
the indicator light will come on for
Pre-driving checks and adjustments
3-33
