2012 INFINITI G37 Owners Manual

Black plate (264,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]4-86 Monitor, climate, audio, phone and voice recognition systems SAA1567
AUX Menu GUID-028F9869-7767-406B-A1DE-AB16A4EB4D4D
When the “ Setting ” key on the display is
selected while in the AUX mode, the menu
screen will be displayed.
Display Mode: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
Choose the display mode from the follow-
ing items.
. Normal
. Wide
. Cinema SAA0451
CD/DVD/USB MEMORY CARE AND
CLEANING GUID-4EAEE317-77F3-4525-B6F0-95F17934528E
CD/DVD GUID-11617F31-8FAE-479F-A0DA-9DB80EE21C11
. Handle a CD/DVD by its edges. Never
touch the surface of the disc. Do not
bend the disc.
. Always place the discs in the storage
case when they are not being used.
. To clean a disc, wipe the surface from
the center to the outer edge using a
clean, soft cloth. Do not wipe the disc
using a circular motion.
Do not use a conventional record
cleaner or alcohol intended for indus- trial use.
. A new disc may be rough on the inner
and outer edges. Remove the rough
edges by rubbing the inner and outer
edges with the side of a pen or pencil
as illustrated.
USB memory GUID-CA5F5F5F-0A31-4007-B700-6C062828A2EB
. Never touch the terminal portion of the
USB memory.
. Do not place heavy objects on the USB
memory.
. Do not store the USB memory in highly
humid locations.
. Do not expose the USB memory to
direct sunlight.
. Do not spill any liquids on the USB
memory.
Refer to the USB memory Owner ’ s Manual
for the details.

Black plate (265,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]SAA2923
Models with navigation system
SAA2924
Models without navigation system 1. Audio source switch
2. Menu control switch (models with
navigation system) or audio tuning
switch (models without navigation
system)
3. Volume control switch
4. Back switch
STEERING-WHEEL-MOUNTED CON-
TROLS FOR AUDIO GUID-619B0EB1-40C6-4771-A31A-F210615026F9
Menu control switch (models with
navigation system) or audio tuning
switch (models without navigation
system) GUID-658196B2-17D0-4C26-B7B5-F266229BD7BC
While the display is showing a MAP
(navigation systems only), STATUS or Audio
screen, tilt the switch upward or downward
to select a station, track, CD or folder. For
most audio sources, tilting the switch up/
down for more than 1.5 seconds provides a
different function than tilting up/down for
less than 1.5 seconds.
AM and FM radio: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
. Tilting up/down for less than 1.5
seconds will increase or decrease the
preset station.
. Tilting up/down for more than 1.5
seconds will seek up or down to the next station.
. Pushing the menu control switch (mod-
els with navigation system) will show
the list of preset stations.
XM Satellite Radio: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
. Tilting up/down for less than 1.5
seconds will increase or decrease the
preset channel.
. Tilting up/down for more than 1.5
seconds will go to the next or previous
category.
. Pushing the menu control switch (mod-
els with navigation system) will show
the XM Menu.
iPod ®
(if so equipped): GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
. Tilting up/down for less than 1.5
seconds will increase or decrease the
track number.
. Pushing the menu control switch will
show the iPod Menu.
CD: GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
. Tilting up/down for less than 1.5
seconds will increase or decrease the
track number.
. Tilting up/down for more than 1.5
seconds will increase/decrease the
folder number (if playing compressed
Monitor, climate, audio, phone and voice recognition systems
4-87

Black plate (266,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]4-88 Monitor, climate, audio, phone and voice recognition systemsaudio files).
. Pushing the menu control switch (mod-
els with navigation system) will show
the CD Menu.
DVD (models with navigation system): GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
. Tilting up/down for less than 1.5
seconds will increase or decrease the
track number.
. Tilting up/down for more than 1.5
seconds will increase or decrease the
title number.
. Pushing the menu control switch will
select an item from the DVD display.
. When the transparent operation menu
appears, the switch will control the
menu.
USB (if so equipped): GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
. Tilting up/down for less than 1.5
seconds will increase or decrease the
track number.
. Tilting up/down for more than 1.5
seconds will increase/decrease the
folder number
. Pushing the menu control switch will
show the USB Menu. Music Box ®
(if so equipped): GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
. Tilting up/down for less than 1.5
seconds will increase or decrease the
track number.
. Tilting up/down for more than 1.5
seconds will increase/decrease the
album (folder) number (if playing com-
pressed audio files).
. Pushing the menu control switch will
show the Music Box ®
Menu.
Bluetooth ®
Audio (models with navigation
system): GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
. Tilting up/down for less than 1.5
seconds will increase or decrease the
track number.
AUX (if so equipped): GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
. Pushing the menu control switch (mod-
els with navigation system) will show
the AUX Menu.
BACK switch (models with
navigation system) GUID-06356188-0EBC-4773-83BB-C5A3DF870F32
Push this switch to go back to the previous
screen or cancel the selection if it is not
completed. Volume control switches GUID-F5A8FDCD-1001-46F7-ADD1-4F45904F01A4
Push the upper (+) or lower ( − ) side switch
to increase or decrease the volume.
Audio source switch GUID-1F9B9EBE-148A-4808-8151-23DFA61D14B8
Push the audio source switch to change
the mode as follows.
Type A:
. Models with navigation system
AM ? FM ? SAT ? CD/DVD ? Music
Box ®
? USB/iPod ®
? Bluetooth ®
Audio
. Models without navigation system
AM ? FM ? CD ? Music Box ®
?
USB/iPod ®
? SAT
Type B:
Preset A ? Preset B ? Preset C ? CD
Media not connected/inserted will be
skipped.

Black plate (267,1)

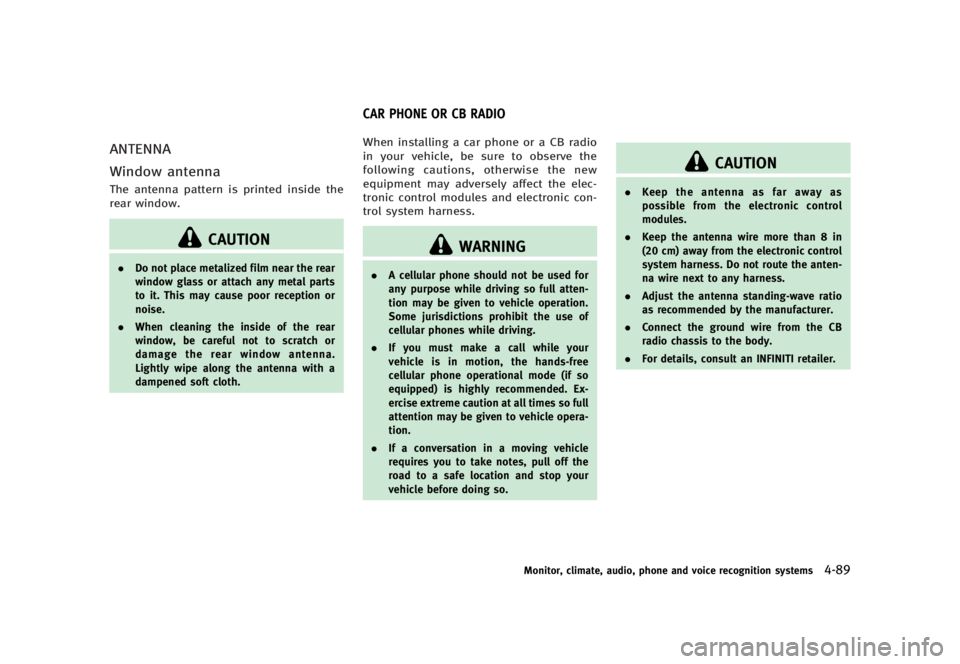

[ Edit: 2012/ 1/ 17 Model: V36-D ]ANTENNA GUID-AE59AE39-282B-471D-AAE3-AF1B262D1067
Window antenna GUID-408E3CB9-D7B6-4535-98F3-BE82D1245CF6
The antenna pattern is printed inside the
rear window.
CAUTION. Do not place metalized film near the rear
window glass or attach any metal parts
to it. This may cause poor reception or
noise.
. When cleaning the inside of the rear
window, be careful not to scratch or
damage the rear window antenna.
Lightly wipe along the antenna with a
dampened soft cloth. GUID-4281BF2E-5AF1-4794-99C8-250FE5F478D9
When installing a car phone or a CB radio
in your vehicle, be sure to observe the
following cautions, otherwise the new
equipment may adversely affect the elec-
tronic control modules and electronic con-
trol system harness.
WARNING . A cellular phone should not be used for
any purpose while driving so full atten-
tion may be given to vehicle operation.
Some jurisdictions prohibit the use of
cellular phones while driving.
. If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode (if so
equipped) is highly recommended. Ex-
ercise extreme caution at all times so full
attention may be given to vehicle opera-
tion.
. If a conversation in a moving vehicle
requires you to take notes, pull off the
road to a safe location and stop your
vehicle before doing so. CAUTION . Keep the antenna as far away as
possible from the electronic control
modules.
. Keep the antenna wire more than 8 in
(20 cm) away from the electronic control
system harness. Do not route the anten-
na wire next to any harness.
. Adjust the antenna standing-wave ratio
as recommended by the manufacturer.
. Connect the ground wire from the CB
radio chassis to the body.
. For details, consult an INFINITI retailer.
Monitor, climate, audio, phone and voice recognition systems
4-89CAR PHONE OR CB RADIO

Black plate (268,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]4-90 Monitor, climate, audio, phone and voice recognition systems GUID-C97140DA-85AB-4A83-B611-9C3AD1DFBDC7
WARNING. Use a phone after stopping your vehicle
in a safe location. If you have to use a
phone while driving, exercise extreme
caution at all times so full attention may
be given to vehicle operation.
. If you find yourself unable to devote full
attention to vehicle operation while
talking on the phone, pull off the road
to a safe location and stop your vehicle
before doing so.
CAUTIONTo avoid draining the vehicle battery, use a
phone after starting the engine.
Your INFINITI is equipped with Bluetooth ®
Hands-Free Phone System. If you are an
owner of a compatible Bluetooth ®
enabled
cellular phone, you can set up the wireless
connection between your cellular phone
and the in-vehicle phone module. With
Bluetooth ®
wireless technology, you can
make or receive a telephone call with your
cellular phone in your pocket. Once a cellular phone is connected to the
in-vehicle phone module, no phone con-
necting procedure is required anymore.
Your phone is automatically connected
with the in-vehicle phone module when
the ignition switch is pushed to the ON
position with the registered cellular phone
turned on and carried in the vehicle.
You can register up to 5 different Blue-
tooth ®
cellular phones in the in-vehicle
phone module. However, you can talk on
only one cellular phone at a time.
The INFINITI Voice Recognition system
supports the phone commands, so dialing
a phone number using your voice is
possible. For more details, see “ INFINITI
Voice Recognition system (models with
navigation system) ” (P.4-114).
Before using the Bluetooth ®
Hands-Free
Phone System, refer to the following notes.
. Wireless LAN (Wi-Fi) and the Bluetooth ®
functions share the same frequency
band (2.4 GHz). Using the Bluetooth ®
and the wireless LAN functions at the
same time may slow down or discon-
nect the communication and cause
undesired noise. It is recommended
that you turn off the wireless LAN (Wi-
Fi) when using the Bluetooth ®
func- tions.
. Set up the wireless connection between
a compatible cellular phone and the in-
vehicle phone module before using the
Bluetooth ®
Hands-Free Phone System.
. Some Bluetooth ®
enabled cellular
phones may not be recognized by the
in-vehicle phone module. Please visit
www.InfinitiUSA.com/bluetooth for a
recommended phone list.
. You will not be able to use a hands-free
phone under the following conditions:
— Your vehicle is outside of the tele-
phone service area.
— Your vehicle is in an area where it is
difficult to receive radio waves; such
as in a tunnel, in an underground
parking garage, behind a tall build-
ing or in a mountainous area.
— Your cellular phone is locked in
order not to be dialed.
. When the radio wave condition is not
ideal or ambient sound is too loud, it
may be difficult to hear the other
person ’ s voice during a call.
. Immediately after the ignition switch is
pushed to the ON position, it may be
impossible to receive a call for a short
period of time.Bluetooth ®
HANDS-FREE PHONE SYSTEM
(models with navigation system)

Black plate (269,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]. Do not place the cellular phone in an
area surrounded by metal or far away
from the in-vehicle phone module to
prevent tone quality degradation and
wireless connection disruption.
. While a cellular phone is connected
through the Bluetooth ®
wireless con-
nection, the battery power of the
cellular phone may discharge quicker
than usual.
. If the Bluetooth ®
Hands-Free Phone
System seems to be malfunctioning,
please visit www.InfinitiUSA.com/blue-
tooth for troubleshooting help.
. Some cellular phones or other devices
may cause interference or a buzzing
noise to come from the audio system
speakers. Storing the device in a
different location may reduce or elim-
inate the noise.
. Refer to the cellular phone Owner ’ s
Manual regarding the telephone pairing
procedure specific to your phone,
battery charging, cellular phone anten-
na, etc.
. The antenna display on the monitor will
not coincide with the antenna display
of some cellular phones. . Keep the interior of the vehicle as quiet
as possible to hear the caller ’ s voice
clearly as well as to minimize its
echoes.
. If reception between callers is unclear,
adjusting the incoming or outgoing call
volume may improve the clarity.
REGULATORY INFORMATION GUID-45C8809D-13C7-484B-BAAA-A89D504ED503
FCC Regulatory information GUID-636F13F0-6D27-42F0-A915-498885D2D5D5
. CAUTION: To maintain compliance with
FCC ’ s RF exposure guidelines, use only
the supplied antenna. Unauthorized
antenna, modification, or attachments
could damage the transmitter and may
violate FCC regulations.
. Operation is subject to the following
two conditions:
1. this device may not cause interference
and
2. this device must accept any interfer-
ence, including interference that may
cause undesired operation of the de-
vice
IC Regulatory information GUID-81DEAF38-3ED8-4146-81F8-1F111A551209
. Operation is subject to the following
two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired
operation of the device.
. This Class B digital apparatus meets all
requirements of the Canadian Interfer-
ence-Causing Equipment Regulations.
Bluetooth trademark: Bluetooth ®
is a trademark
owned by Bluetooth SIG, Inc.,
and licensed to Clarion Co., Ltd.
VOICE COMMANDS GUID-DC1FBBFE-C9FC-4BE4-98EE-C78349271F4A
You can use voice commands to operate
various Bluetooth ®
Hands-Free Phone Sys-
tem features using the INFINITI Voice
Recognition system.
For more details, see “ INFINITI Voice
Recognition system (models with naviga-
tion system) ” (P.4-114).
Monitor, climate, audio, phone and voice recognition systems
4-91

Black plate (270,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]4-92 Monitor, climate, audio, phone and voice recognition systems SAA1772
CONTROL BUTTONS GUID-0B868A4F-9B5D-45FD-8767-9633BA3ABBBF
1) PHONE button
2) TALK /PHONE SEND button SAA2519
CONNECTING PROCEDURE GUID-5001AC50-4CF3-478F-AA37-19C8B982C9BF
1. Push the PHONE button or the
button, and select the “ Connect Phone ”
key. SAA2520
2. When a PIN code appears on the
screen, operate the compatible Blue-
tooth ®
cellular phone to enter the PIN
code.
The connecting procedure of the cellu-
lar phone varies according to each
cellular phone. See the cellular phone
Owner ’ s Manual for the details. You can
also visit
www.InfinitiUSA.com/bluetooth or call
INFINITI Consumer Affairs Department
for instructions on pairing INFINITI
recommended cellular phones.
When the connection process is com-
pleted, the screen will return to the

Black plate (271,1)
[ Edit: 2012/ 1/ 17 Model: V36-D ]Phone menu display.
PHONE SELECTION GUID-55FEE7E0-1713-47B1-B3A9-605D3DAAC920
Up to 5 cellular phones can be registered
to the system. To switch to connect another
cellular phone, push PHONE button and
select the “ Connected Phones ” key. The
registered cellular phones are shown on
the list. If you select a cellular phone that
is different from the one currently con-
nected, the newly selected phone will be
connected to the system.
VEHICLE PHONEBOOK GUID-9C55C4DB-C8AB-40D9-9A84-A06D2C3EF82D
This vehicle has two phonebooks available
for hands-free use. Depending on the
phone, the system may automatically
download the entire cell phone ’ s phone-
book into the “ Handset Phonebook ” . For
the details about downloading a phone-
book, see “ Phone setting ” (P.4-98). If a
phonebook does not automatically down-
load, the vehicle phonebook may be set for
up to 1,000 entries. This phonebook allows
the recording of a name to speak while
using voice recognition. SAA2521
1. Push the PHONE button and select the
“ Vehicle Phonebook ” key.
2. Select the “ Add New ” key at the top of
the screen. SAA2522
3. Choose the method for entering the
phonebook entry. For this example,
select “ Enter Number by Keypad ” .
4. Enter the digits and select the “ OK ”
key. (See “ How to use touch screen
(models with navigation system) ” (P.4-
5).)
Monitor, climate, audio, phone and voice recognition systems
4-93
