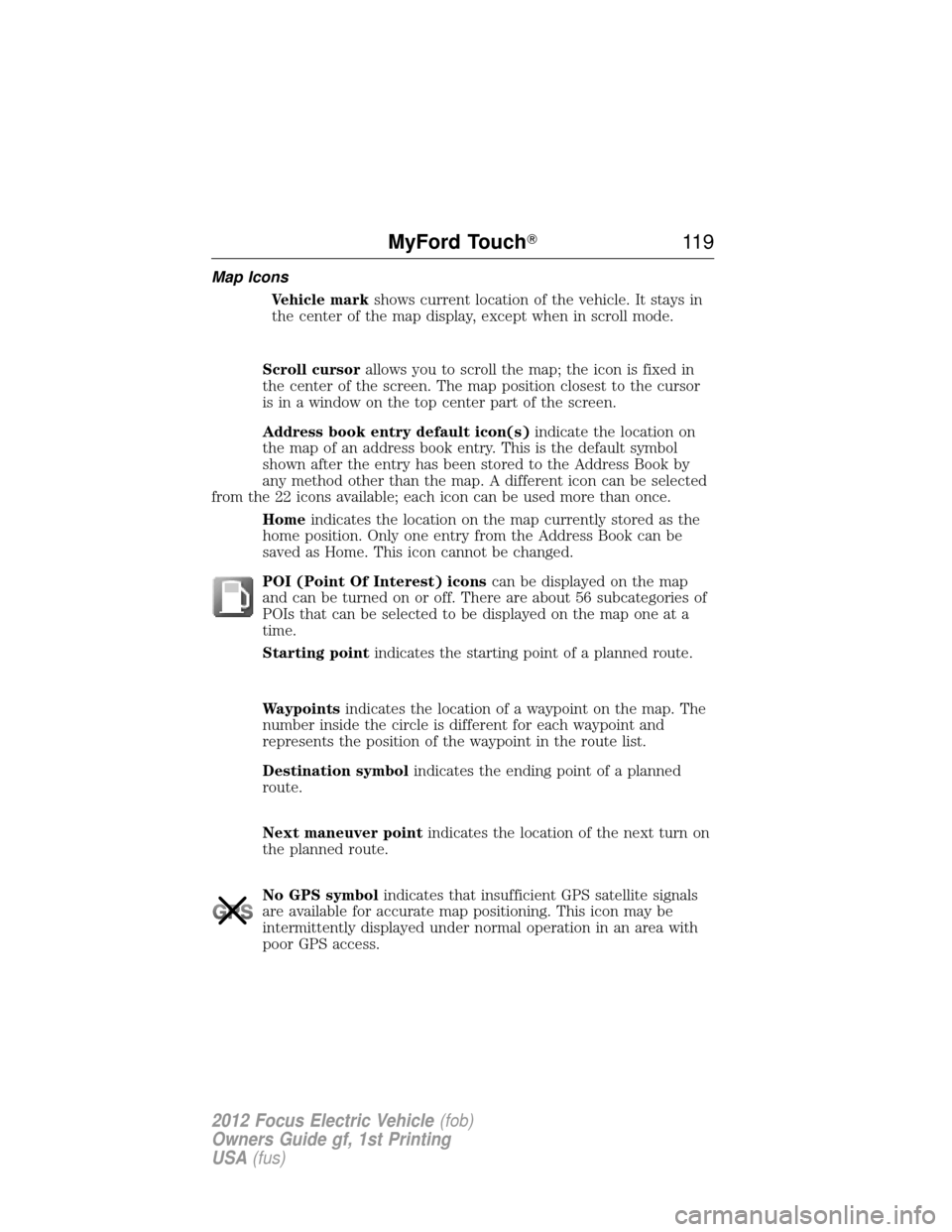

Map IconsVehicle mark shows current location of the vehicle. It stays in
the center of the map display, except when in scroll mode.
Scroll cursor allows you to scroll the map; the icon is fixed in
the center of the screen. The map position closest to the cursor
is in a window on the top center part of the screen.
Address book entry default icon(s) indicate the location on
the map of an address book entry. This is the default symbol
shown after the entry has been stored to the Address Book by
any method other than the map. A different icon can be selected
from the 22 icons available; each icon can be used more than once.
Homeindicates the location on the map currently stored as the
home position. Only one entry from the Address Book can be
saved as Home. This icon cannot be changed.
POI (Point Of Interest) icons can be displayed on the map
and can be turned on or off. There are about 56 subcategories of
POIs that can be selected to be displayed on the map one at a
time.
Starting point indicates the starting point of a planned route.
Waypoints indicates the location of a waypoint on the map. The
number inside the circle is different for each waypoint and
represents the position of the waypoint in the route list.
Destination symbol indicates the ending point of a planned
route.
Next maneuver point indicates the location of the next turn on
the planned route.
No GPS symbol indicates that insufficient GPS satellite signals
are available for accurate map positioning. This icon may be
intermittently displayed under normal operation in an area with
poor GPS access.
MyFord Touch 11 9
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

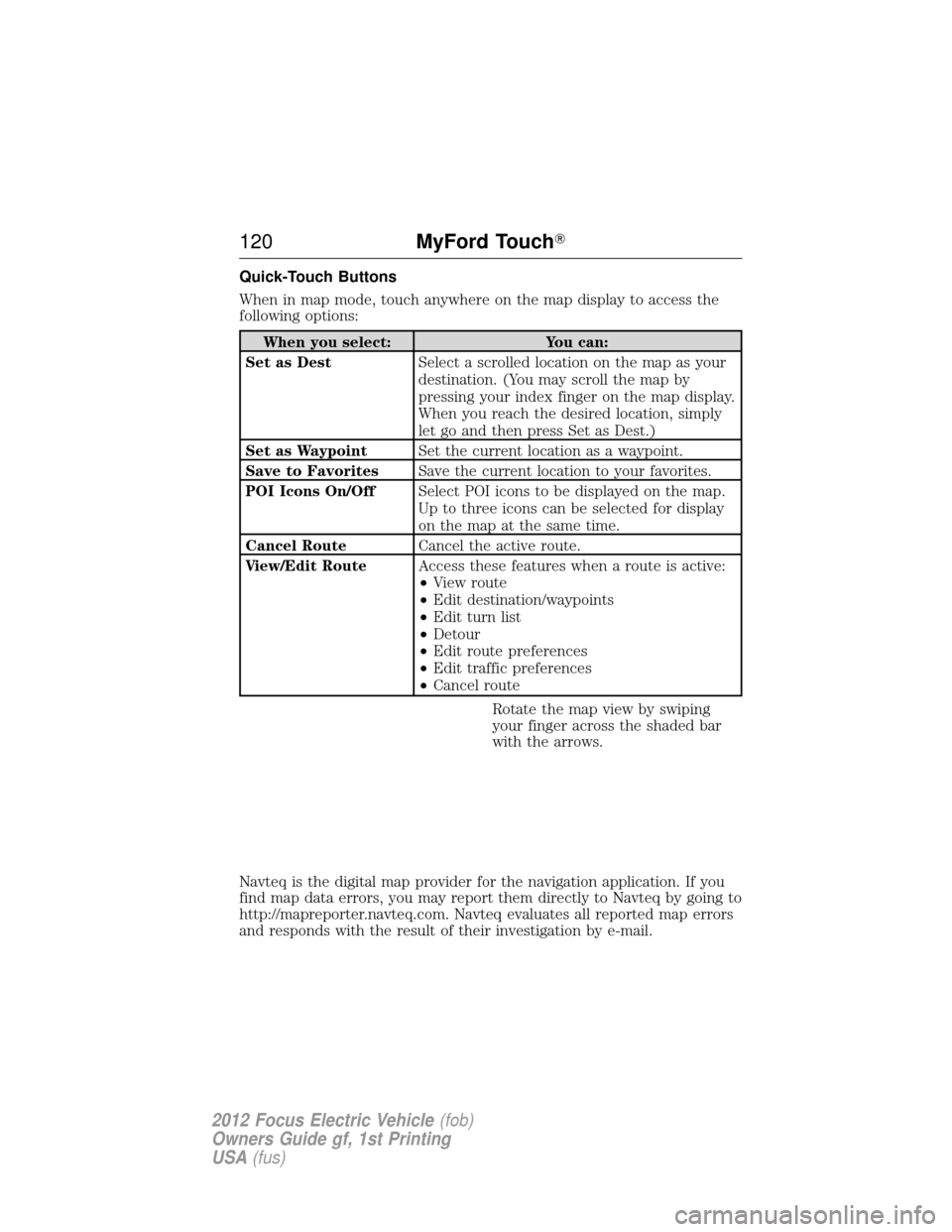

Quick-Touch Buttons
When in map mode, touch anywhere on the map display to access the
following options:
When you select:You can:
Set as Dest Select a scrolled location on the map as your
destination. (You may scroll the map by
pressing your index finger on the map display.
When you reach the desired location, simply
let go and then press Set as Dest.)
Set as Waypoint Set the current location as a waypoint.
Save to Favorites Save the current location to your favorites.
POI Icons On/Off Select POI icons to be displayed on the map.
Up to three icons can be selected for display
on the map at the same time.
Cancel Route Cancel the active route.
View/Edit Route Access these features when a route is active:
•View route
• Edit destination/waypoints
• Edit turn list
• Detour
• Edit route preferences
• Edit traffic preferences
• Cancel route
Rotate the map view by swiping
your finger across the shaded bar
with the arrows.
Navteq is the digital map provider for the navigation application. If you
find map data errors, you may report them directly to Navteq by going to
http://mapreporter.navteq.com. Navteq evaluates all reported map errors
and responds with the result of their investigation by e-mail.
120 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

“DESTINATION”“”
“” “Favorites”“Home”
“Intersection”
“Nearest ” “Nearest POI”
“Play nametags” “POI category”
“Previous destination” “Street address” “Help”
“NAVIGATION”“Destination”*
“Zoom city”
“Zoom country”
“Zoom in minimum”
“Zoom out maximum” “Zoom province”“Zoom state”
“Zoom street”
“Zoom to ” “Help”
*If you have said, “Destination”, you may say any of the commands in
the Destination chart.
If your vehicle is equipped with the SD card navigation feature, you have
the ability to enter in a street address using a feature called one-shot
destination street address. When you say either “Navigation destination
street address” or “Destination street address”, the system asks you to
say the full address. The system displays an example on-screen. You can
then speak the address naturally, such as “One two three four Main
Street, Anytown”.
122 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

DUAL AUTOMATIC TEMPERATURE CONTROL (DATC) SYSTEM
Temperature conversion:To switch between Fahrenheit and Celsius:
Press MENU > Display Settings > Temp. Setting. If your vehicle is
equipped with the touchscreen system, press Menu > Settings > System
> Temperature.
1. Press to turn the system on or off.
2. Distributes outside air through the windshield defroster vents
and demister vents. Can be used to clear the windshield of fog
and thin ice. Automatically turns on rear window defroster and
heated mirrors. Press this button again to return to the previous air flow
selection.
3. MAX A/C: Press to distribute recirculated air through the instrument
panel vents to cool the vehicle. This re-cooling of the interior air is more
economical and efficient. Recirculated air may also help reduce
undesirable odors from entering the vehicle.
4. Passenger temperature setting: Rotate knob to turn on dual zone
operation and select the desired temperature for the passenger only. To
return to single zone operation, press and hold AUTO for two to four
seconds.
234
98765
12111
10
Climate Control 123
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
• Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
• To improve the A/C cool down, drive with the windows open for
approximately 2–3 minutes after starting the vehicle or until the
vehicle has “aired out.”
• The A/C system is used to cool both the interior of the vehicle and the
high voltage battery. In hot outside temperatures, interior cooling may
be temporarily reduced if the high voltage battery requires cooling.
Keep the vehicle plugged in (when possible) to allow automatic
battery cooling in high temperature conditions.
• Interior heating is done by an electrical heater. Set the fan at a lower
speed to get a warmer outlet temperature on cold days.
• A small amount of air may be felt from the floor vent regardless of the
air distribution setting that is selected.
Maximum Cooling Performance
1. Press MAX A/C. The system defaults to single zone operation and the
coldest temperature setting. LO appears in the display.
2. A/C,
andwill be selected.
3. Fan speed will be increased to the highest speed, but can be adjusted
as desired.
Side Window Defogging or Defrosting 1. Select air distribution through the floor vent.
2. Select air distribution through the panel vent.
3. Select A/C.
4. Adjust the temperature control to maintain comfort.
5. Set the fan to the highest speed.
6. Direct the outer instrument panel vents toward the side windows.
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
Climate Control 125
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

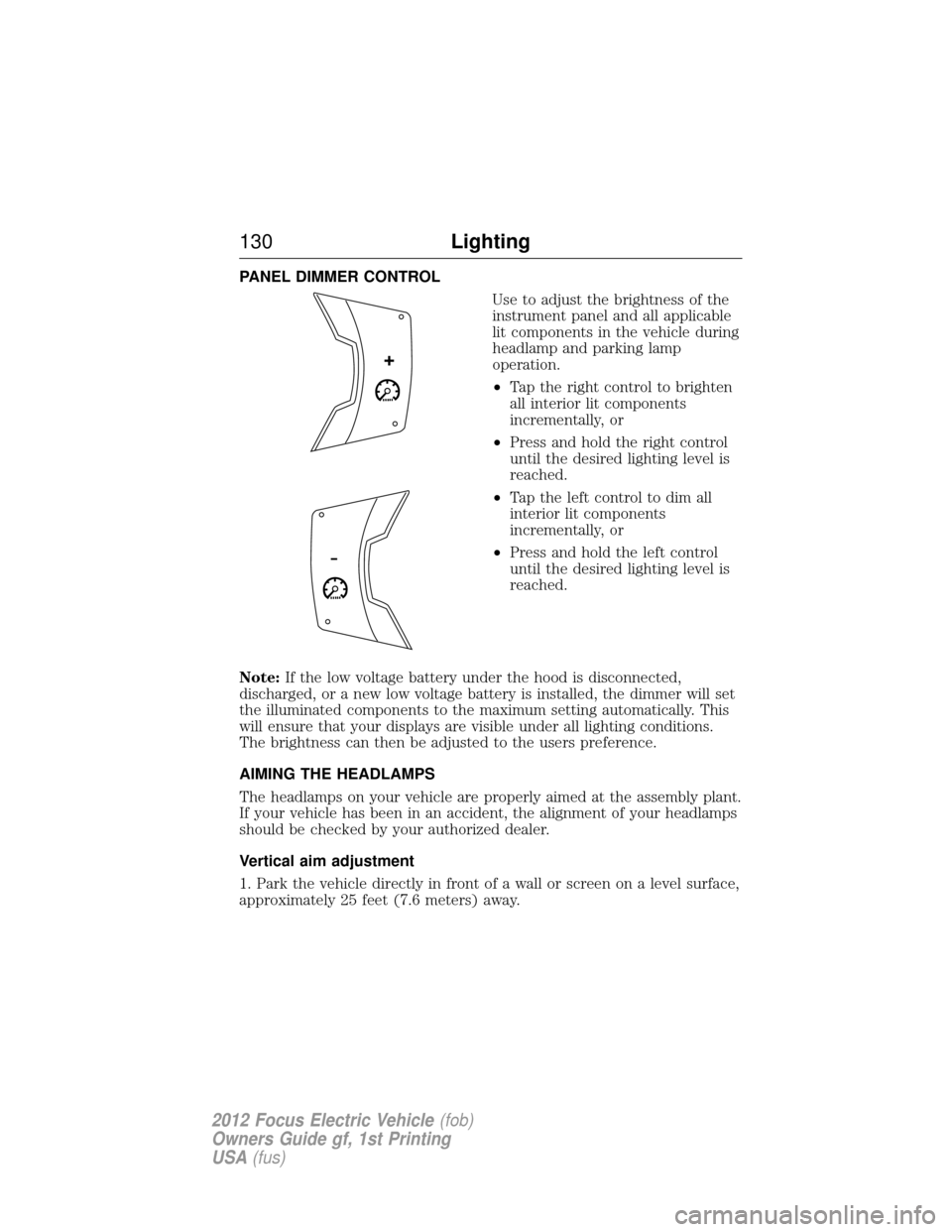

PANEL DIMMER CONTROLUse to adjust the brightness of the
instrument panel and all applicable
lit components in the vehicle during
headlamp and parking lamp
operation.
•Tap the right control to brighten
all interior lit components
incrementally, or
• Press and hold the right control
until the desired lighting level is
reached.
• Tap the left control to dim all
interior lit components
incrementally, or
• Press and hold the left control
until the desired lighting level is
reached.
Note: If the low voltage battery under the hood is disconnected,
discharged, or a new low voltage battery is installed, the dimmer will set
the illuminated components to the maximum setting automatically. This
will ensure that your displays are visible under all lighting conditions.
The brightness can then be adjusted to the users preference.
AIMING THE HEADLAMPS
The headlamps on your vehicle are properly aimed at the assembly plant.
If your vehicle has been in an accident, the alignment of your headlamps
should be checked by your authorized dealer.
Vertical aim adjustment
1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 feet (7.6 meters) away.
130 Lighting
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

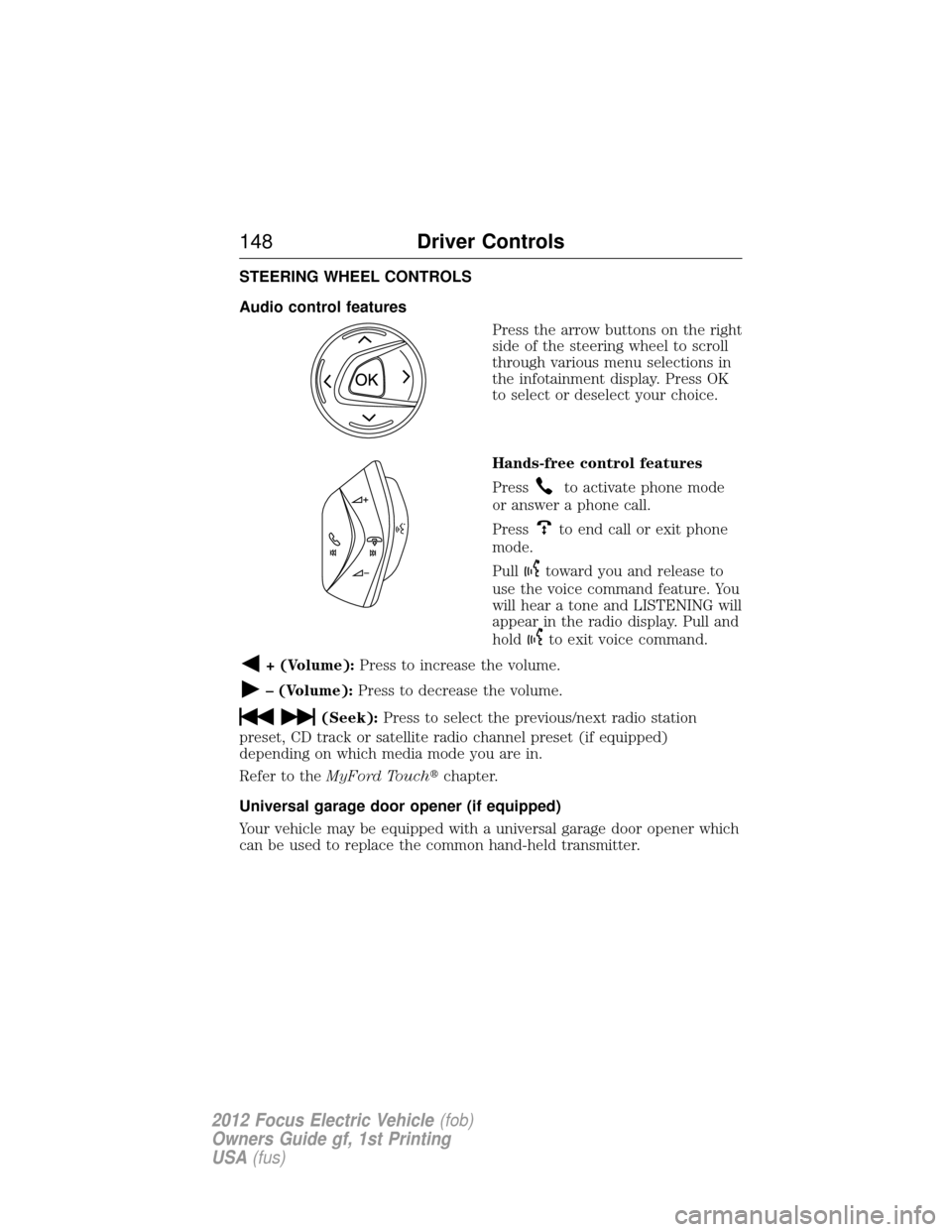

STEERING WHEEL CONTROLS
Audio control featuresPress the arrow buttons on the right
side of the steering wheel to scroll
through various menu selections in
the infotainment display. Press OK
to select or deselect your choice.
Hands-free control features
Press
to activate phone mode
or answer a phone call.
Press
to end call or exit phone
mode.
Pull
toward you and release to
use the voice command feature. You
will hear a tone and LISTENING will
appear in the radio display. Pull and
hold
to exit voice command.
+ (Volume): Press to increase the volume.
– (Volume):Press to decrease the volume.
(Seek):Press to select the previous/next radio station
preset, CD track or satellite radio channel preset (if equipped)
depending on which media mode you are in.
Refer to the MyFord Touch chapter.
Universal garage door opener (if equipped)
Your vehicle may be equipped with a universal garage door opener which
can be used to replace the common hand-held transmitter.
148 Driver Controls
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Once a key has been programmed you can access the following
information using the information display control:
•How many admin keys and MyKeys are programmed to the vehicle.
• The total distance the vehicle has been driven with a MyKey.
For vehicles equipped with Intelligent Access Key (push button start),
when both a MyKey and an Admin Intelligent Access key (fob) are present,
the admin fob will be recognized by the vehicle to start the vehicle.
Standard Settings
These settings cannot be changed.
•
Belt-Minder. This cannot be disabled and the five–minute timer does not
expire. The audio system is muted when MyKey Belt-Minder is activated.
• Early distance to stop. Warnings are displayed in the information display
control followed by an audible tone at 15 miles to stop.
• Driver assist features, if equipped on your vehicle, are forced on: Parking
aid, blind spot information system (BLIS) with cross traffic alert and the
collision warning system.
Optional Settings
These settings can be configured right after a MyKey is first created or
changed afterword with an admin key.
• Vehicle speed limit of 80 mph (130 km/h). Visual warnings are
displayed followed by an audible tone when vehicle speed has
reached 80 mph (130 km/h).
• Vehicle speed warning of 45, 55 or 65 mph (75, 90, or 105 km/h).
Visual warnings are displayed followed by an audible tone when the
preselected vehicle speed is exceeded.
• Audio system maximum volume of 45%. A message in the audio
system is displayed when attempting to exceed the limited volume.
• AdvanceTrac. The system cannot be turned off when Always-on has
been set.
Creating a MyKey
Use the information display control to create a MyKey
1. Hold the key next to the symbol on the right side of the steering column (or next to the back-up location on the right side of the
steering column) refer to Keyless startingin theDriving chapter for
backup slot location.
2. Turn the ignition on.
3. Access the main menu on the information display controls and select Settings, then MyKey by pressing OK or the > button.
4. Press OK to select Create.
156 Locks and Security
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
