2012 FORD FOCUS ELECTRIC Owners Manual

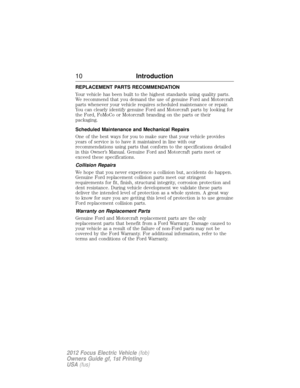

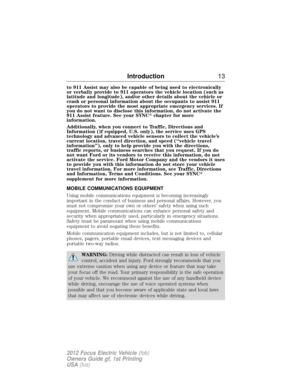

Introduction5
Instrument Cluster 16

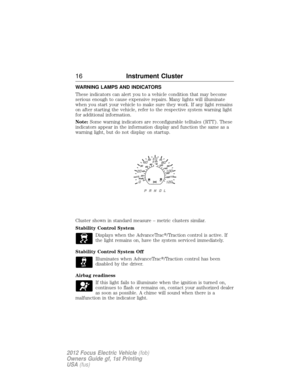

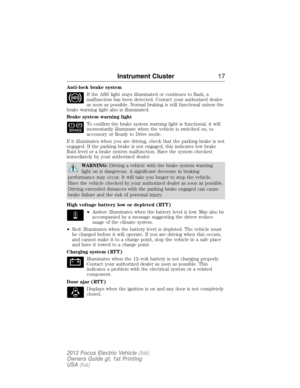

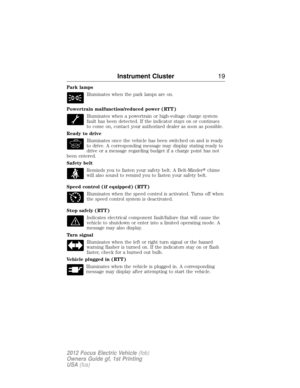

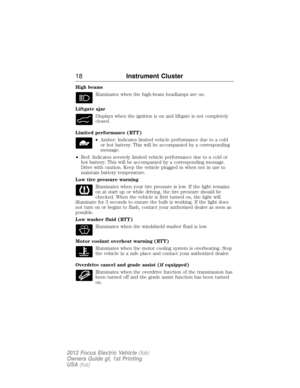

Warning lamps and indicators .............................16

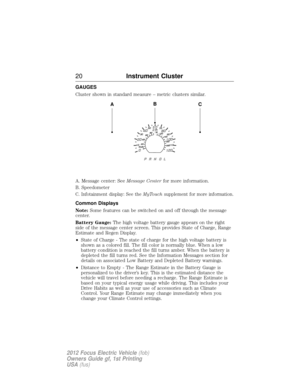

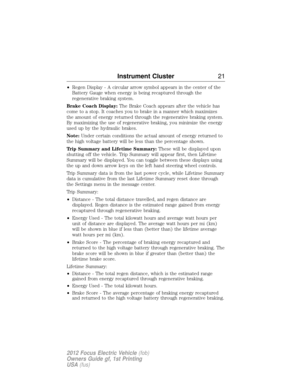

Gauges .............................................20

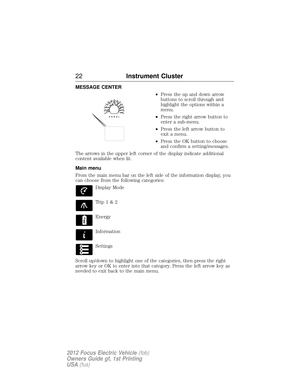

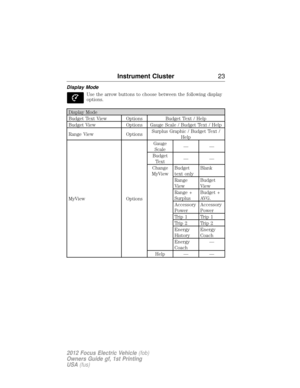

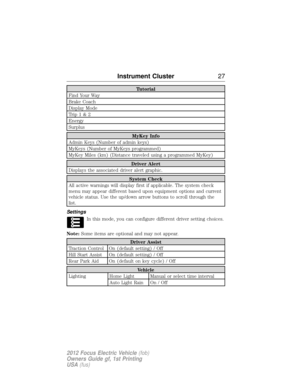

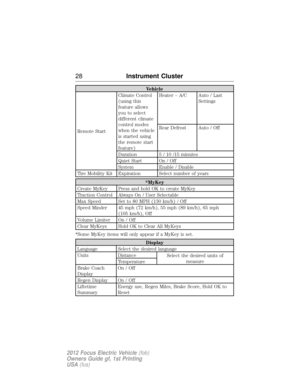

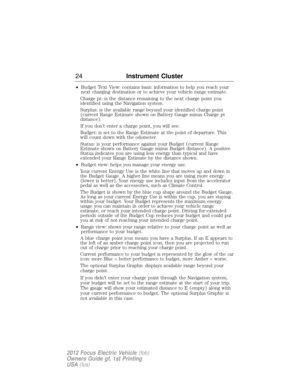

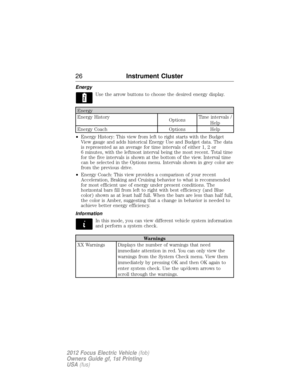

Message center .......................................22

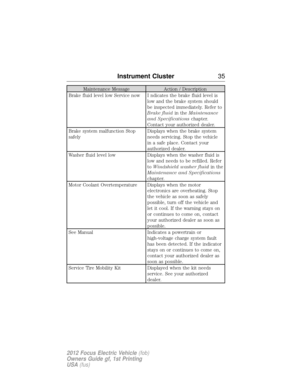

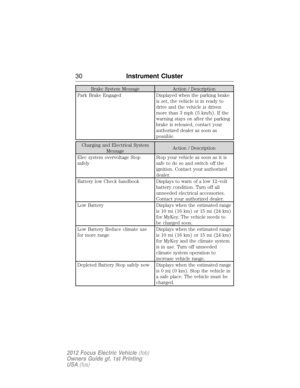

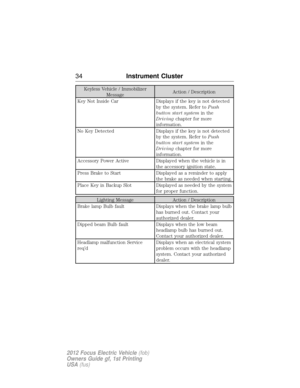

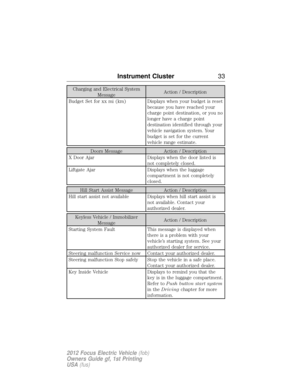

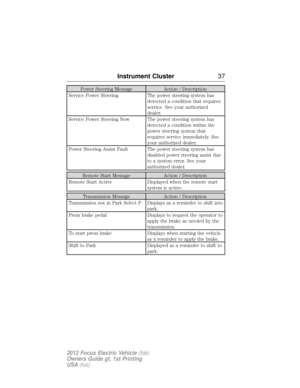

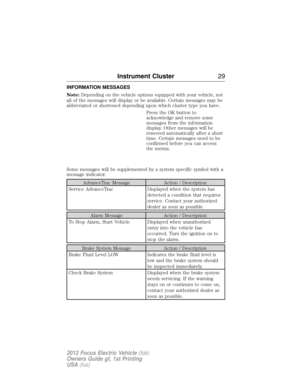

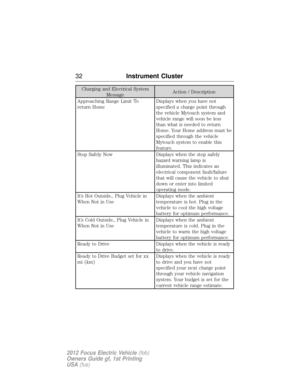

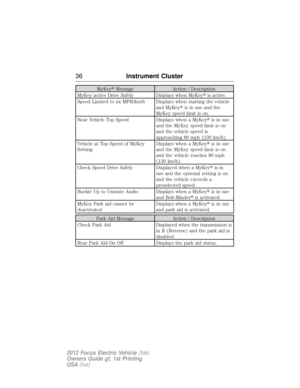

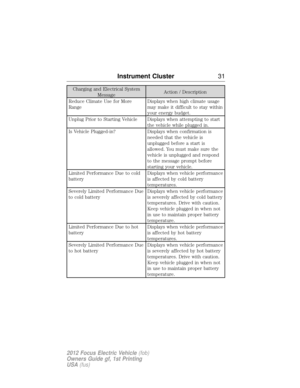

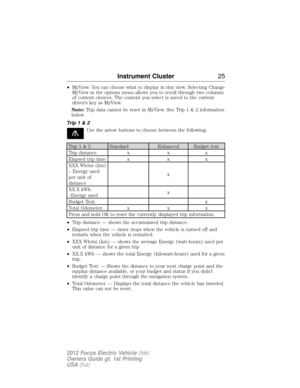

Information messages ...................................29

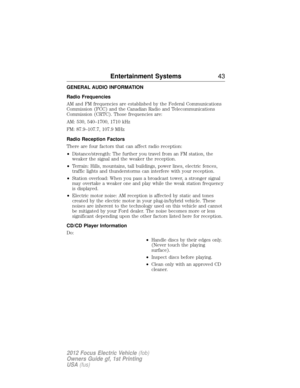

Entertainment Systems 39

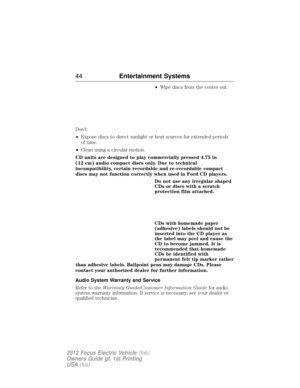

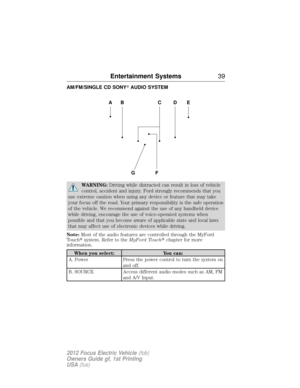

AM/FM stereo with single CD .............................39

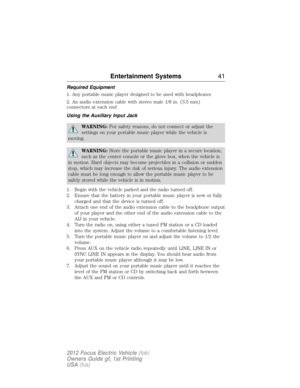

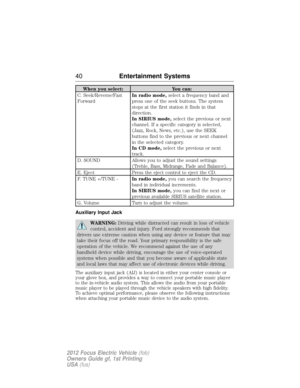

Auxiliary input jack (Line in) .............................40

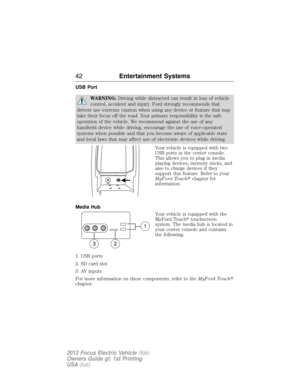

USB port ............................................42

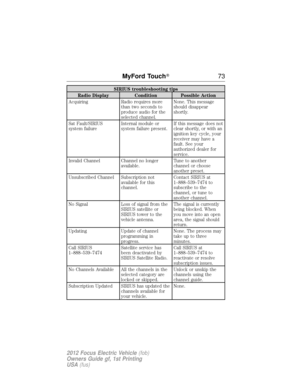

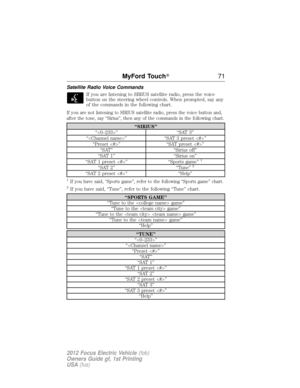

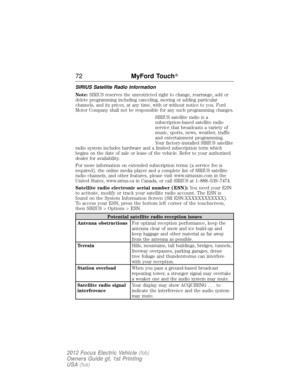

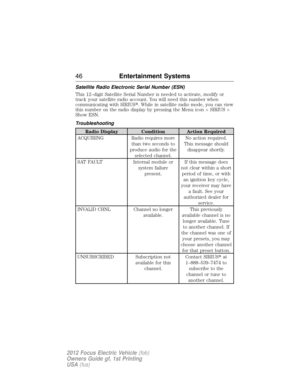

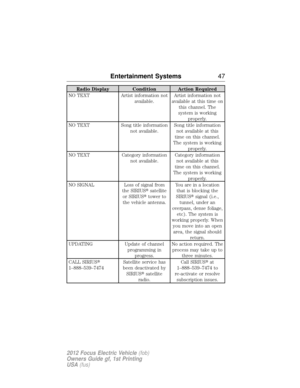

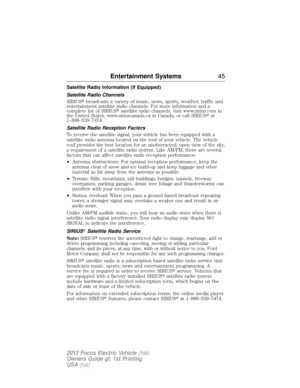

Satellite radio information ................................45

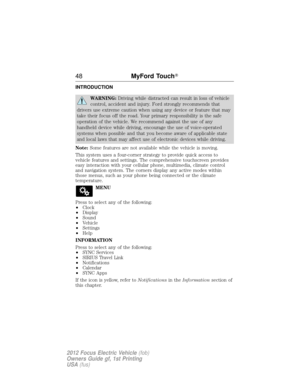

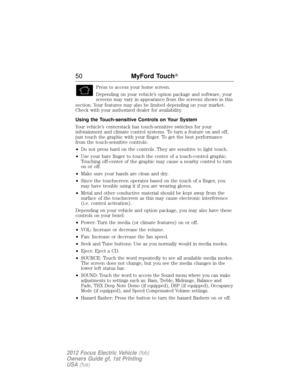

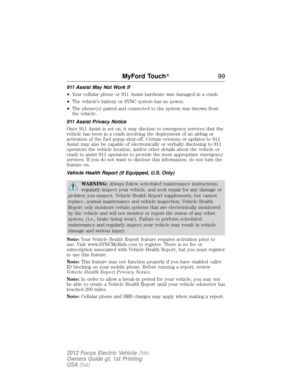

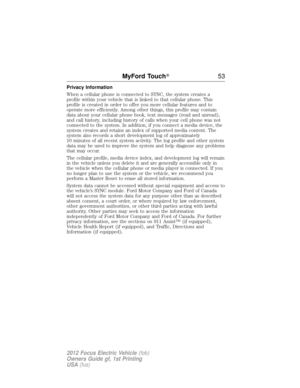

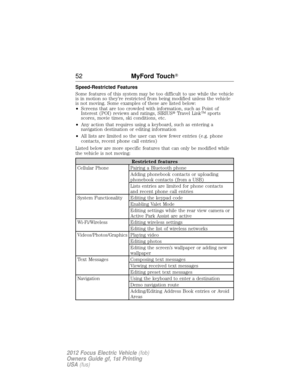

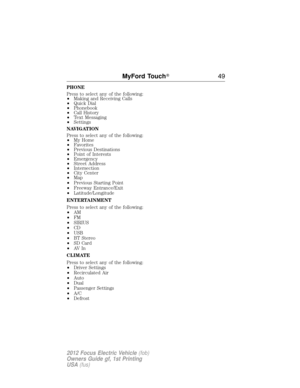

MyFord Touch 48

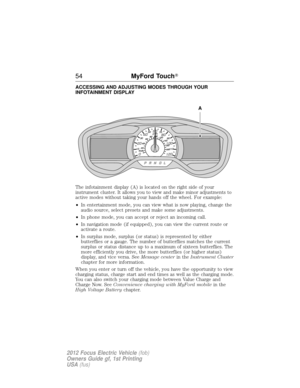

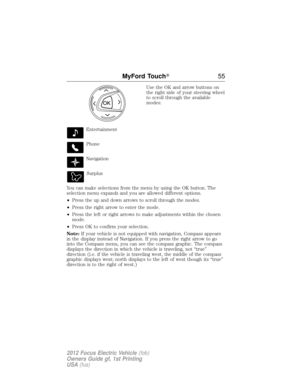

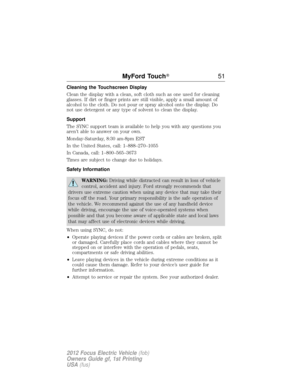

Infotainment display ....................................54

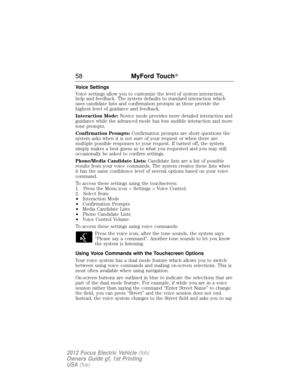

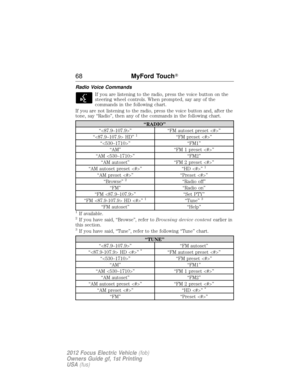

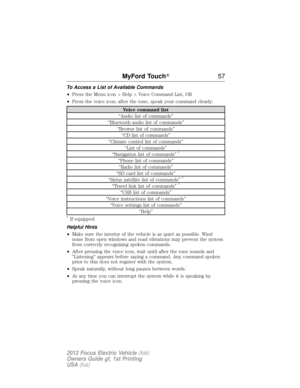

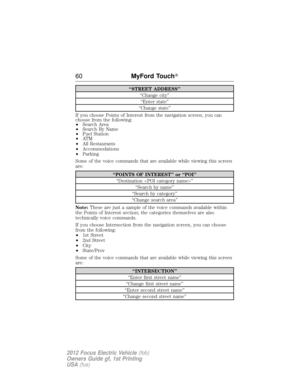

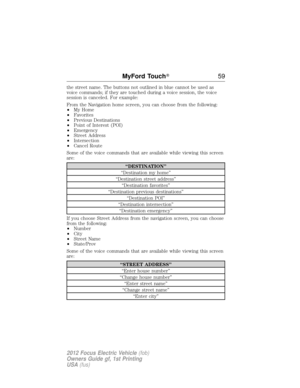

Voice recognition ......................................56

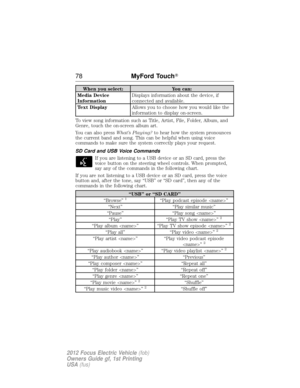

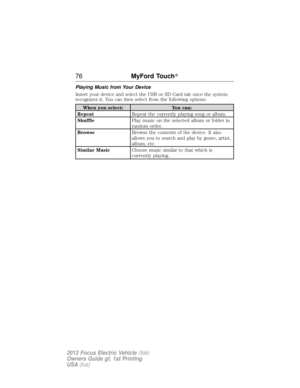

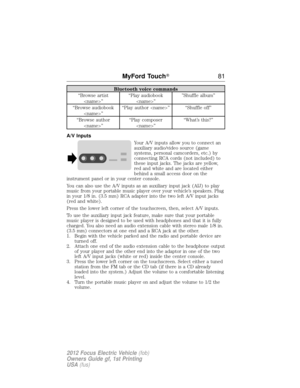

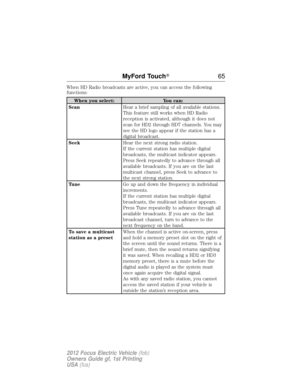

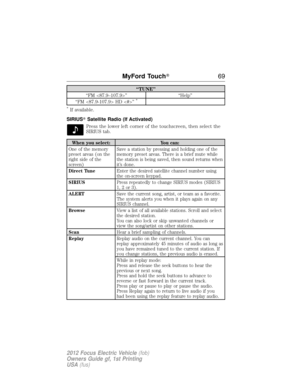

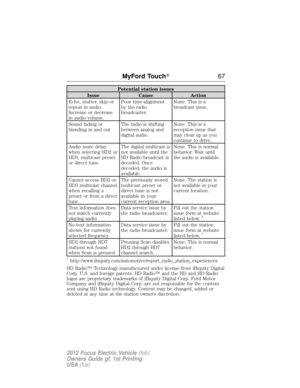

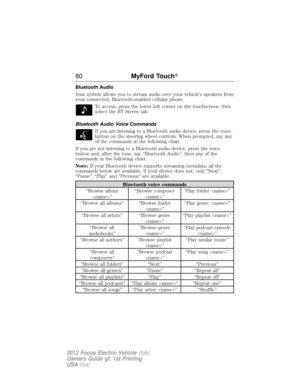

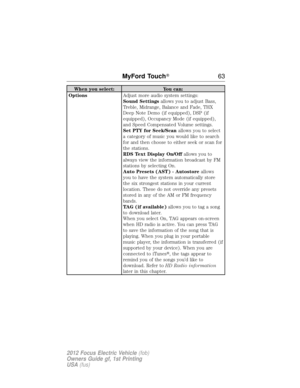

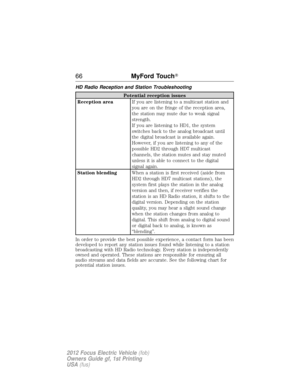

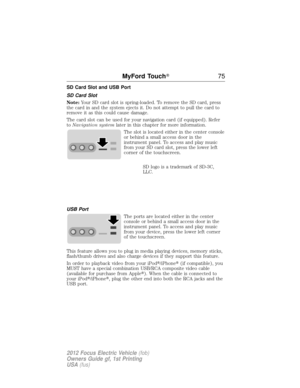

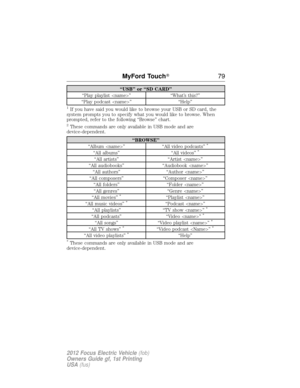

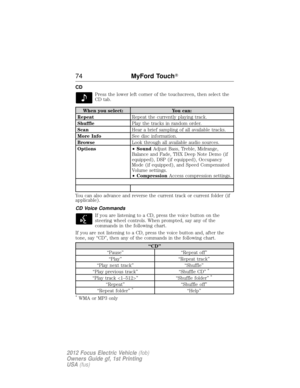

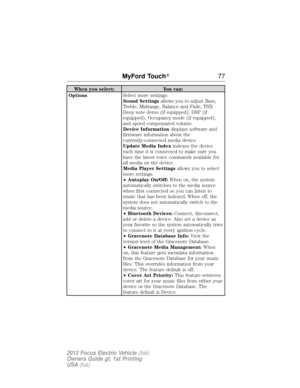

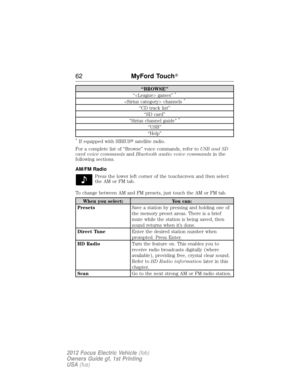

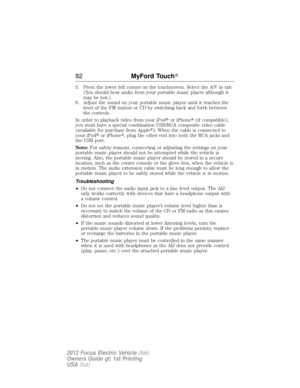

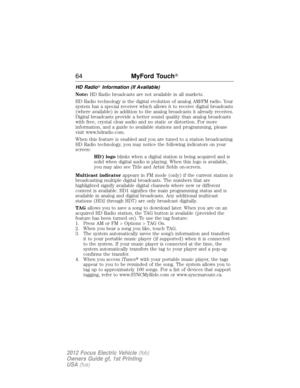

Listening to music .....................................61

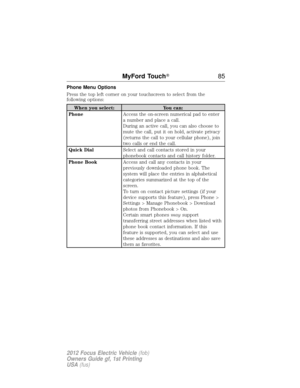

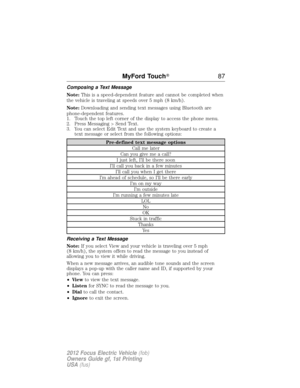

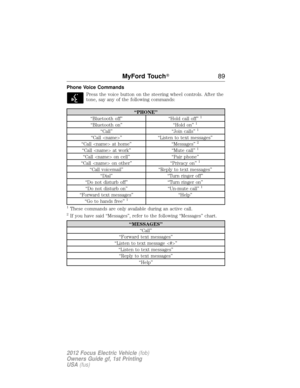

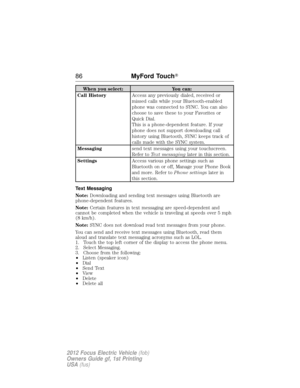

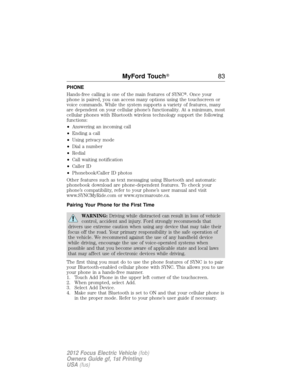

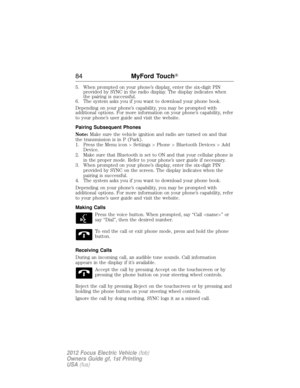

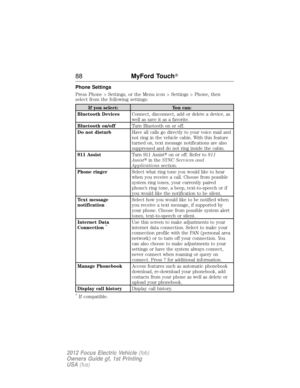

Phone features ........................................83

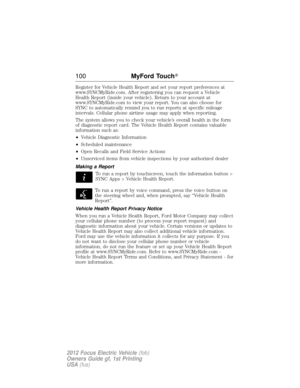

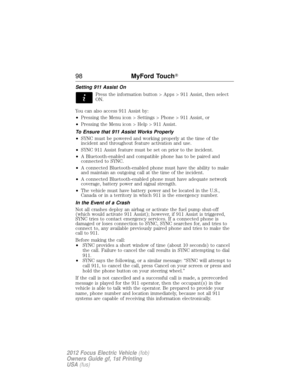

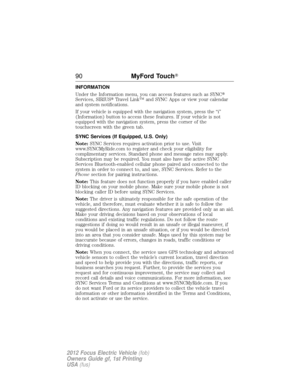

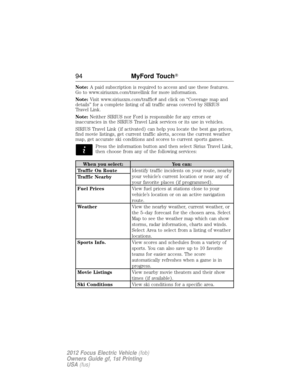

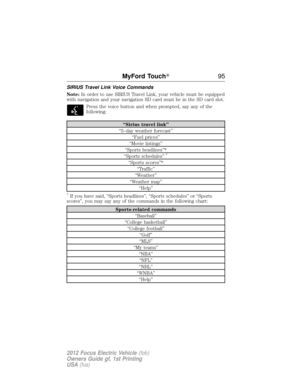

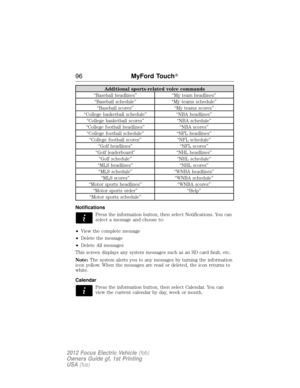

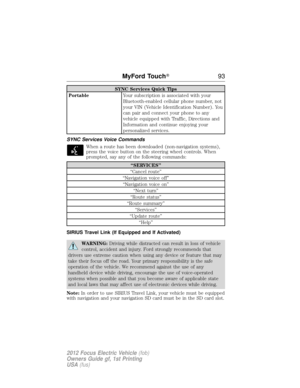

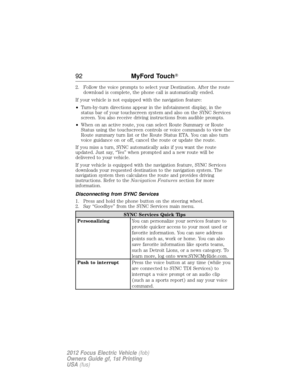

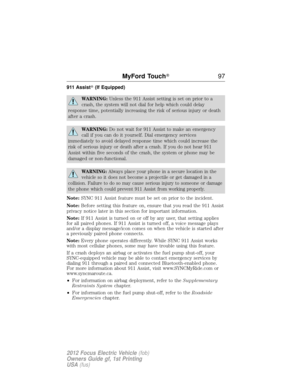

Information Menu ......................................90

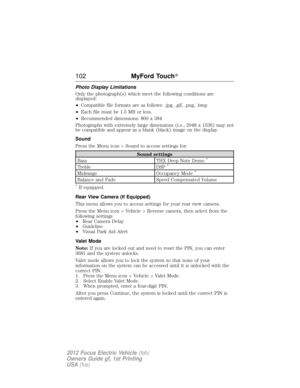

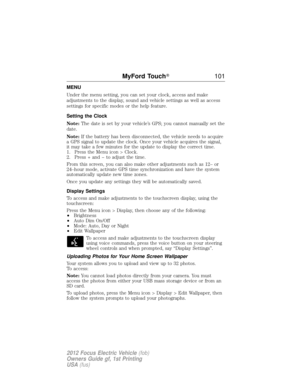

Menu features .......................................101

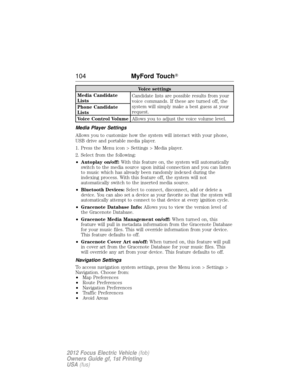

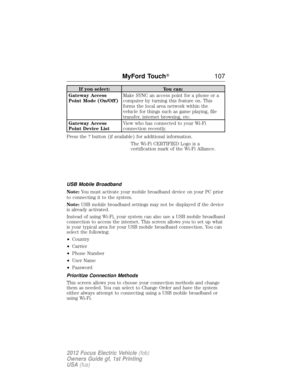

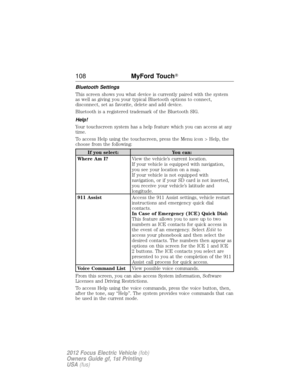

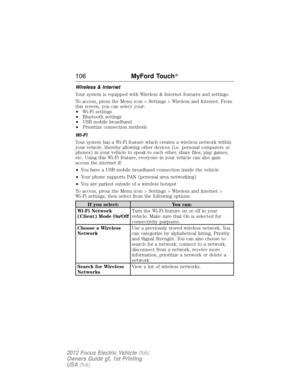

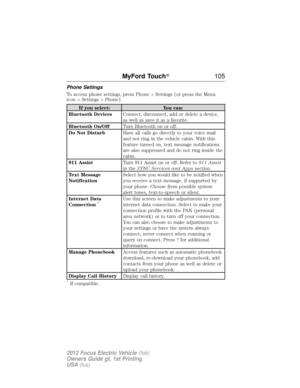

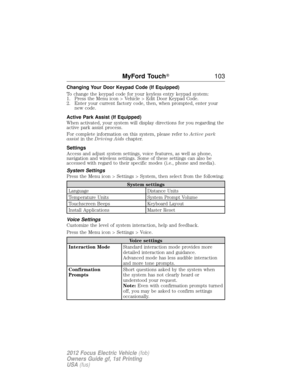

Settings ........................................... .103

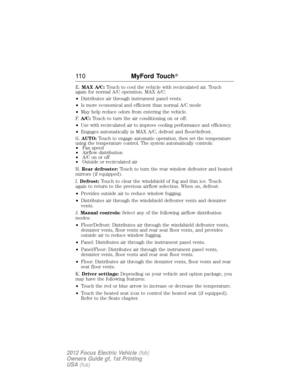

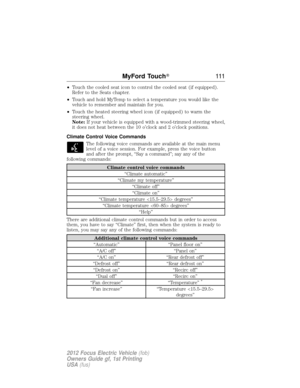

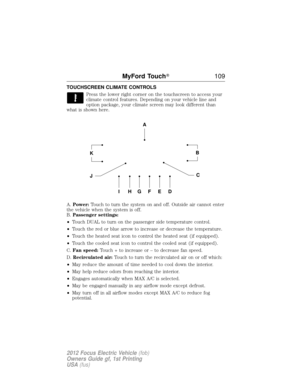

Climate features ......................................109

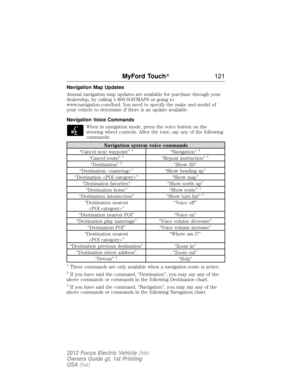

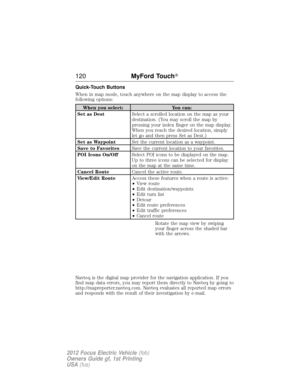

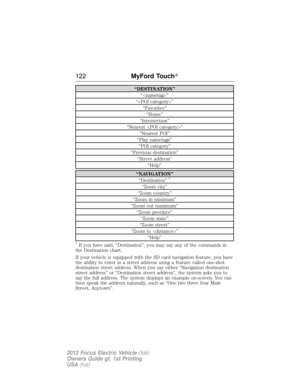

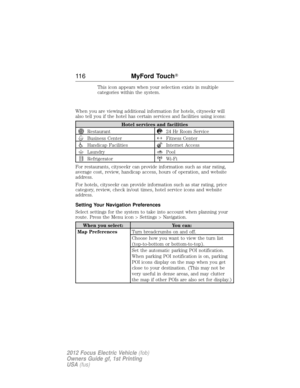

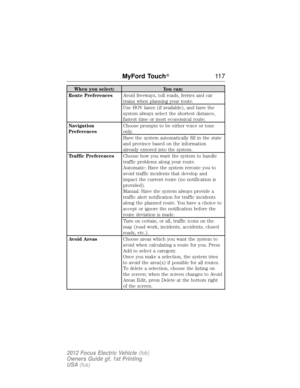

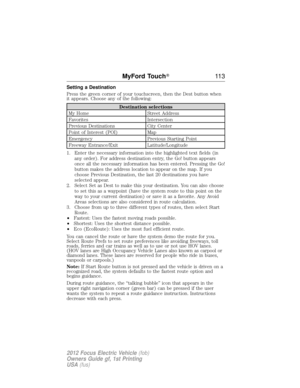

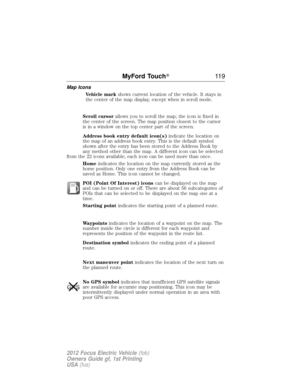

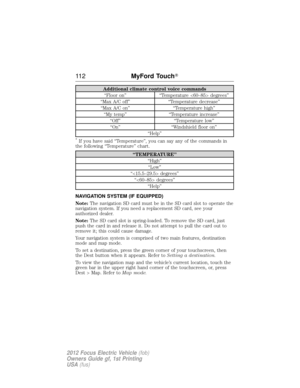

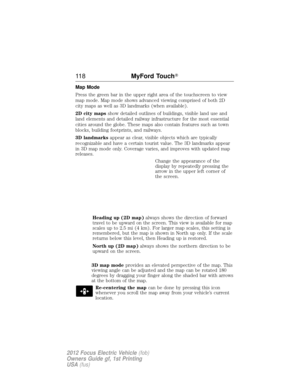

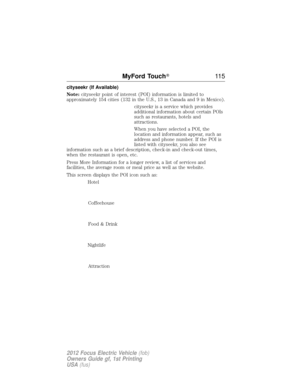

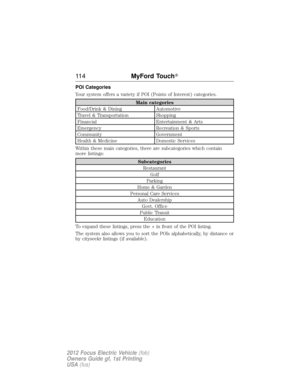

Navigation system .....................................112

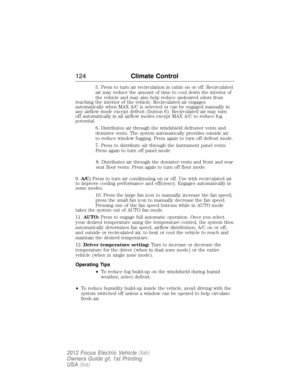

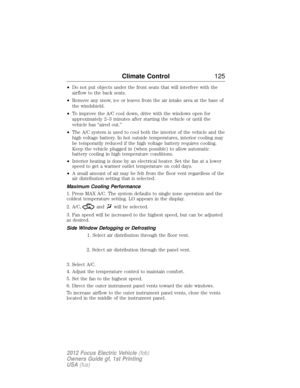

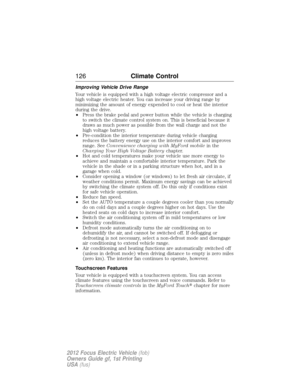

Climate Control 123

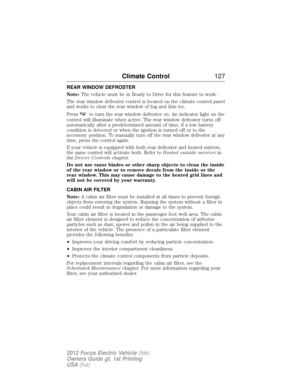

Rear window defroster .................................127
Lighting 128

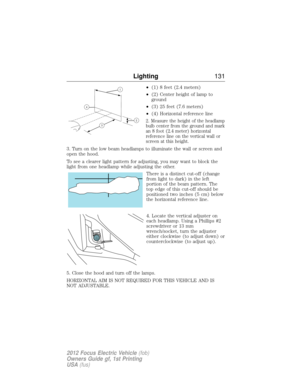

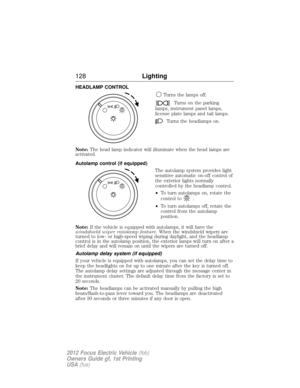

Headlamps ......................................... .128
Autolamps ......................................... .128

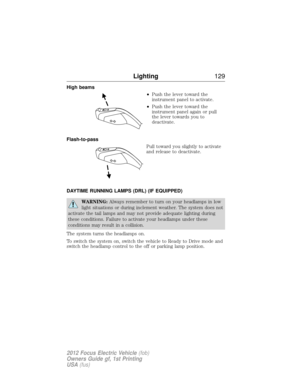

Daytime running lamps .................................129
Panel dimmer control ..................................130
Turn signal control ....................................132

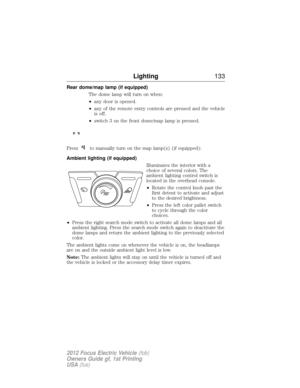

Interior lamps ........................................132

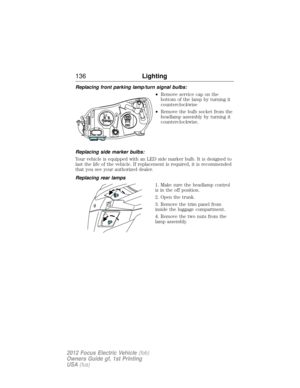

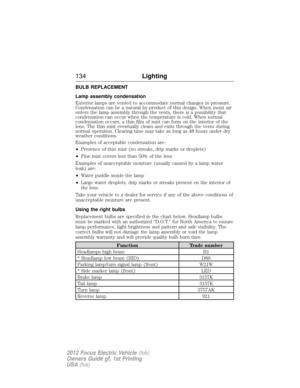

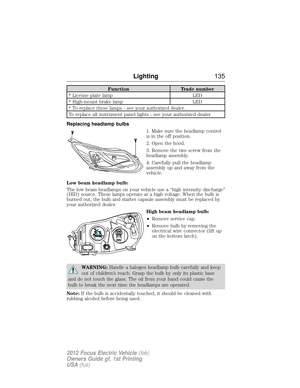

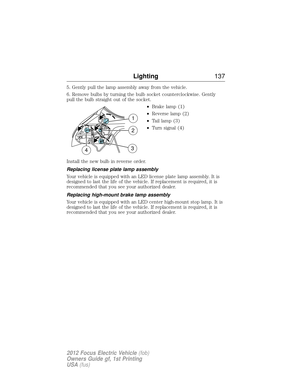

Bulb replacement .....................................134
Table of Contents 1
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

Driver Controls138

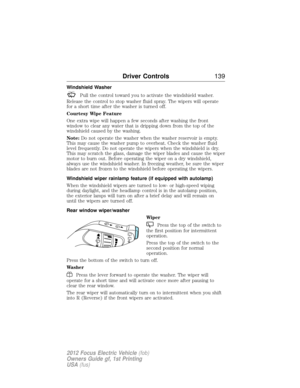

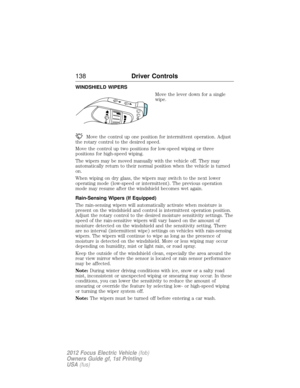

Windshield wiper/washer control ..........................138

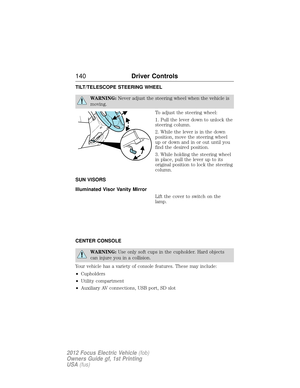

Steering wheel adjustment ..............................140

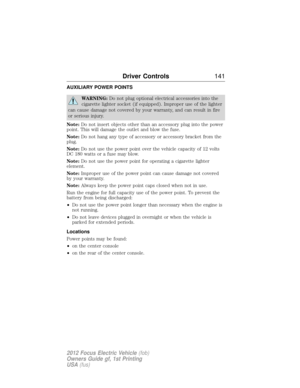

Sun visors ......................................... .140

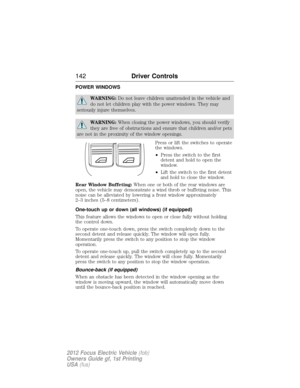

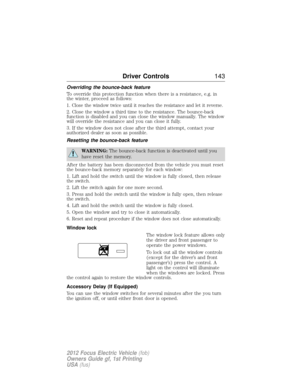

Power windows ......................................142

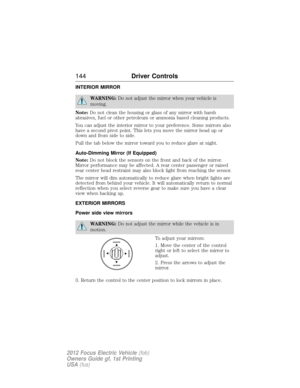

Interior mirrors ......................................144

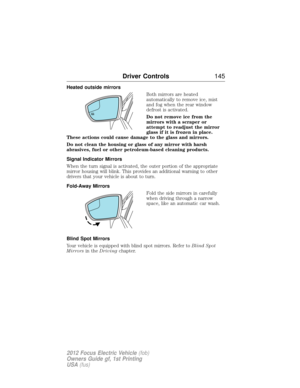

Mirrors ............................................ .144

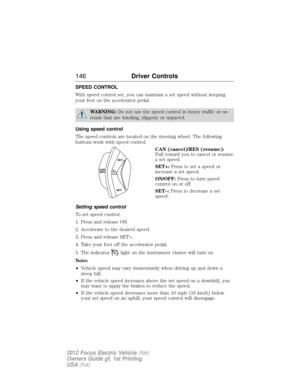

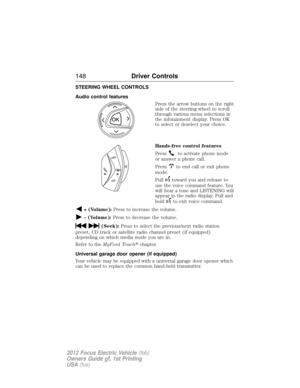

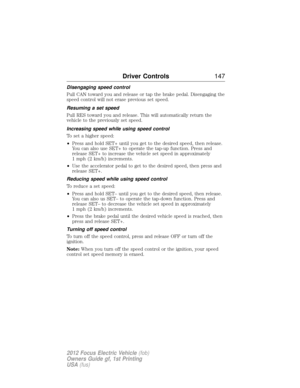

Speed control ........................................146

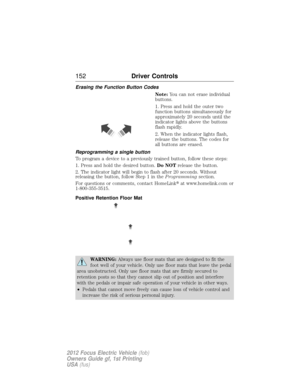

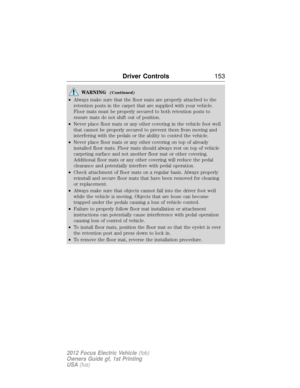

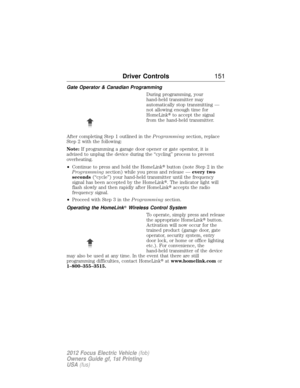

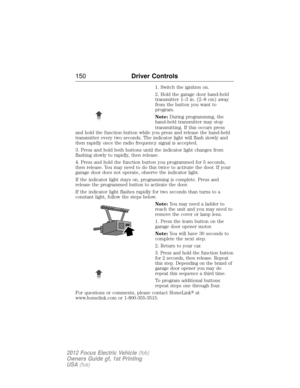

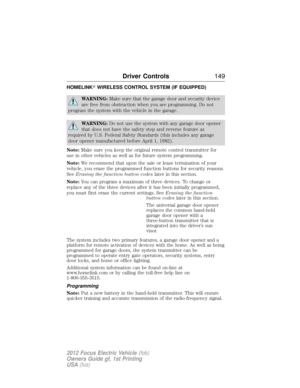

HomeLink wireless control system ........................149

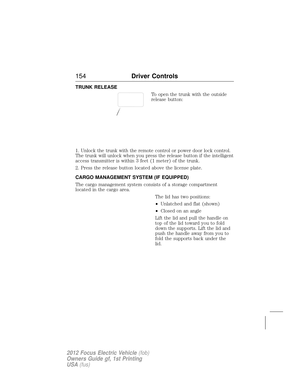

Trunk release ........................................154

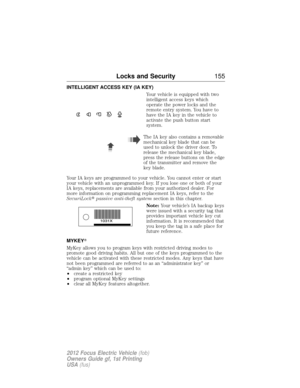

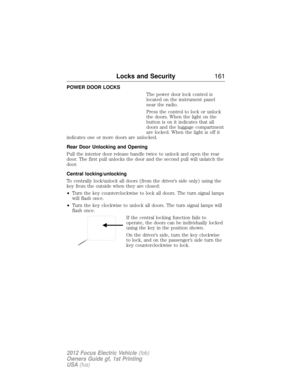

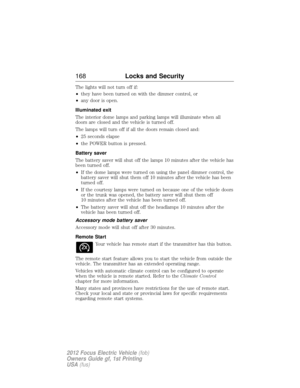

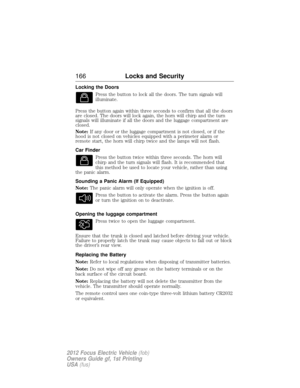

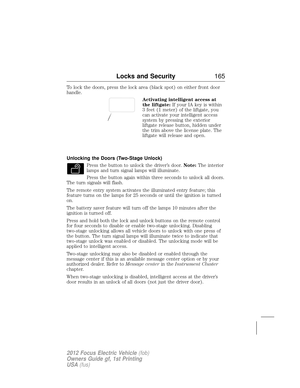

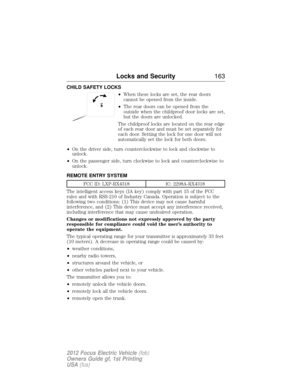

Locks and Security 155

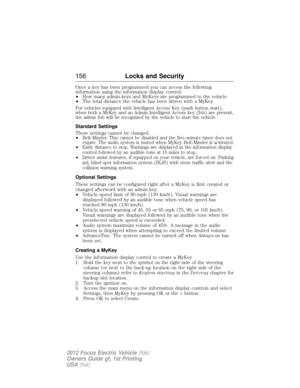

Settings, MyKey ......................................156
Creating ........................................... .156

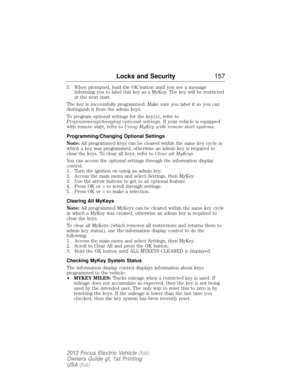

Clearing ........................................... .157
System status ........................................157

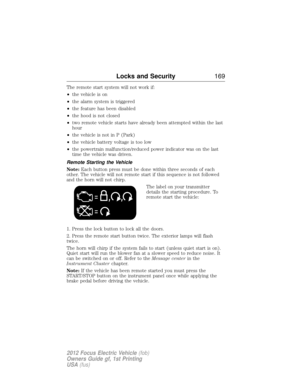

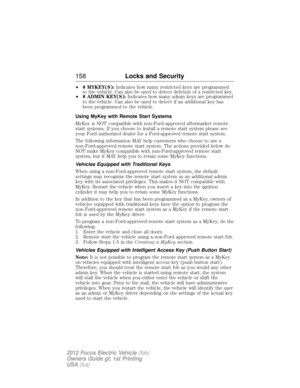

Remote start, MyKey ..................................158

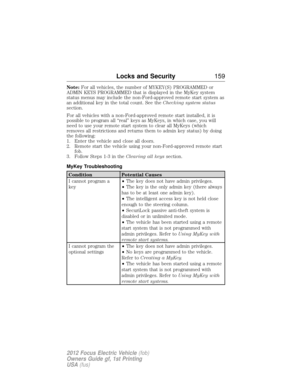

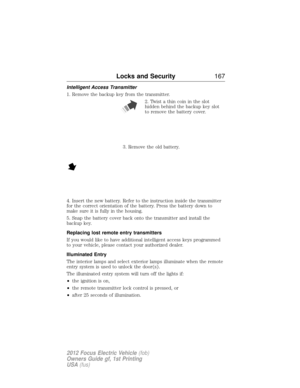

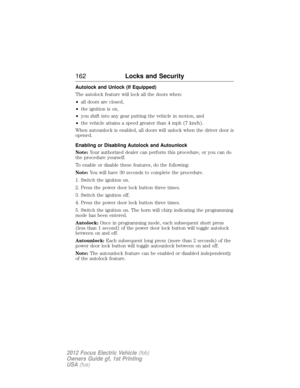

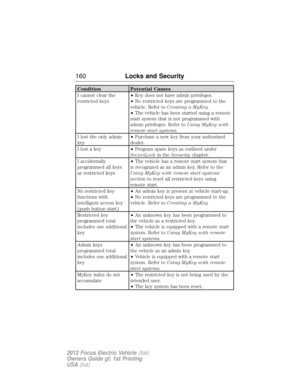

Troubleshooting, MyKey ................................159

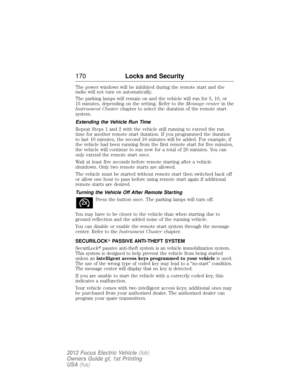

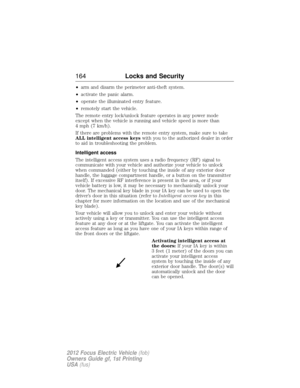

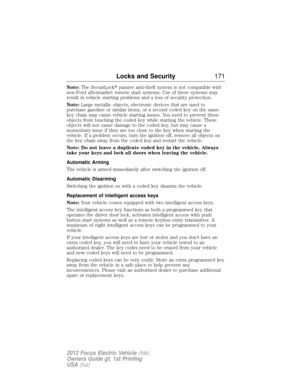

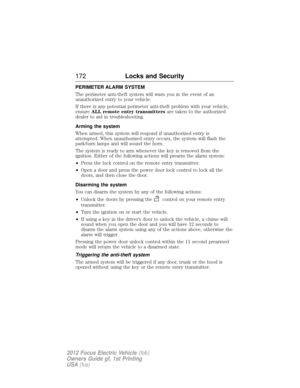

Anti-theft system .....................................170
Seating and Safety Restraints 173

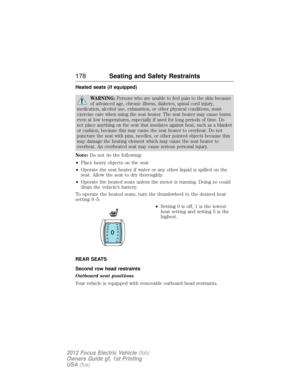

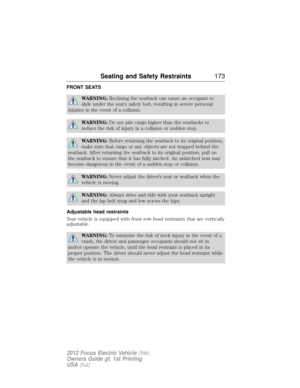

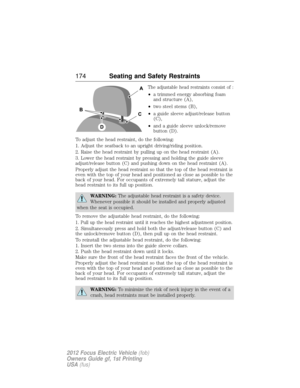

Seating ........................................... .173

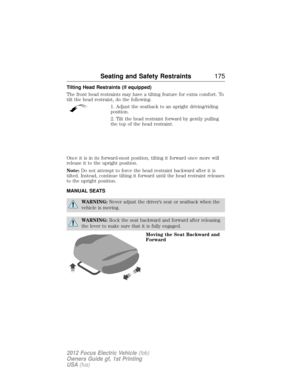

Manual seats ........................................175

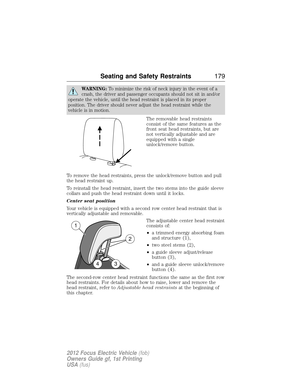

Power seats ........................................ .177

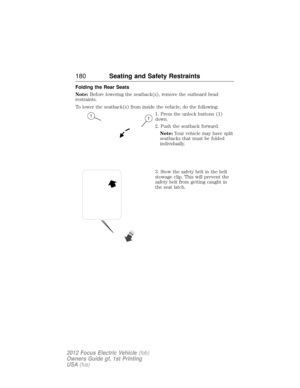

Rear seats ......................................... .180

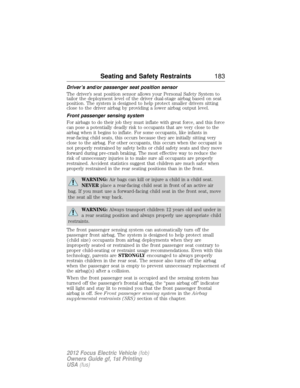

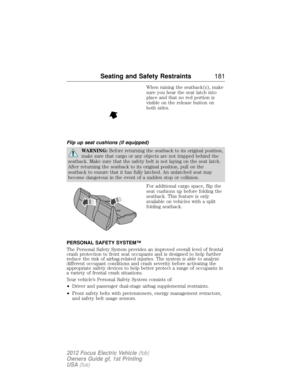

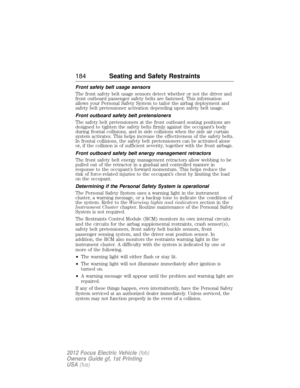

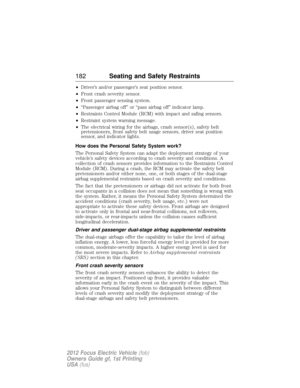

Personal Safety System™ ...............................181

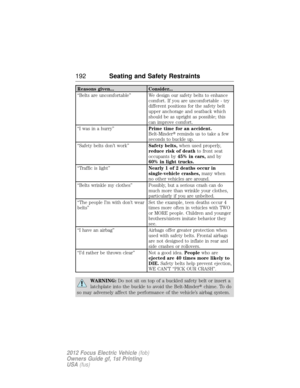

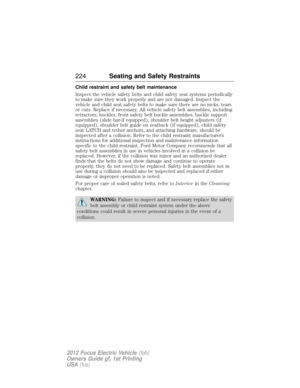

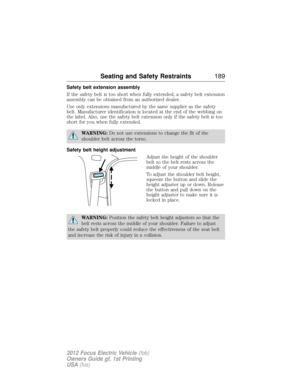

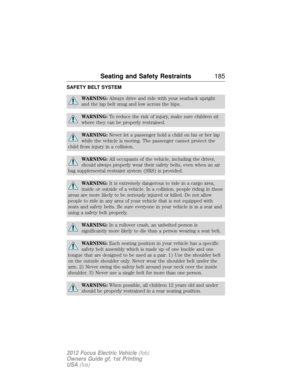

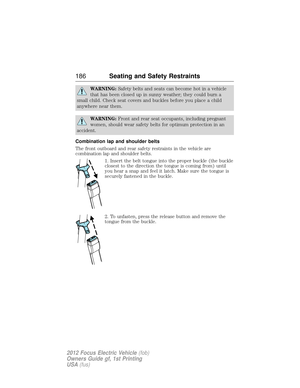

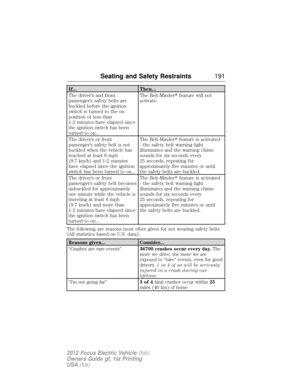

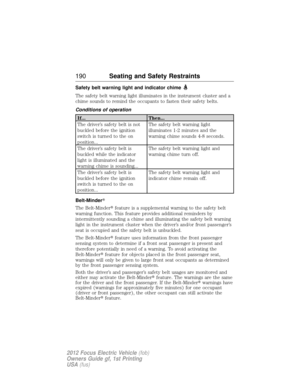

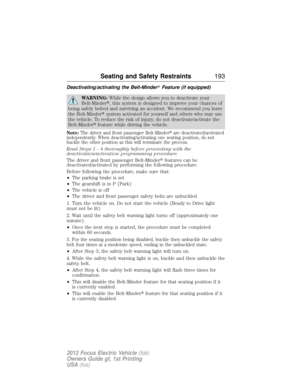

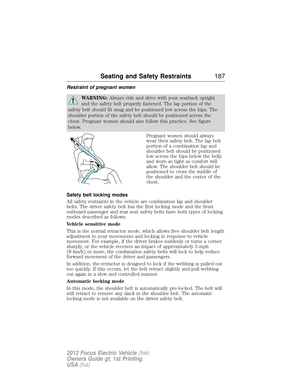

Safety belt system ....................................185

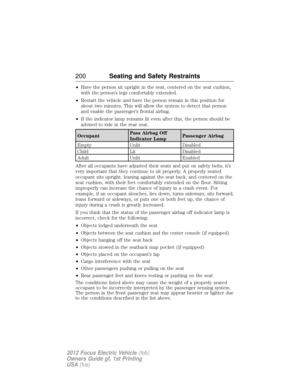

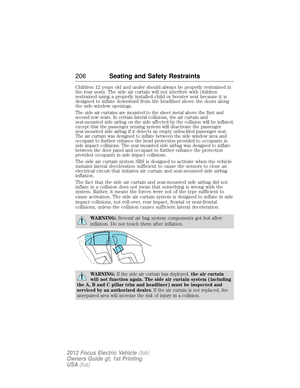

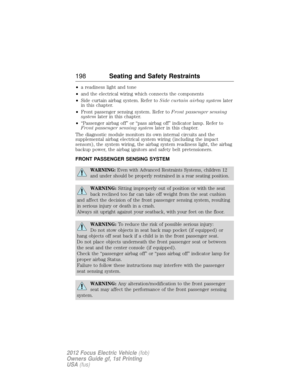

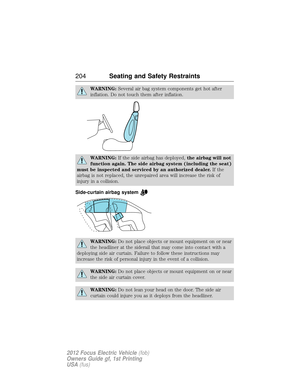

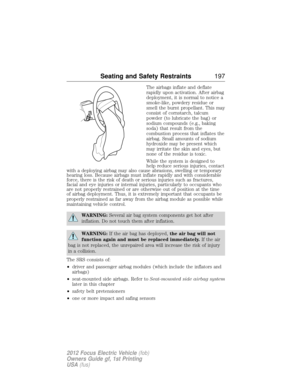

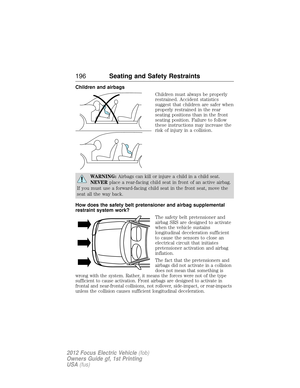

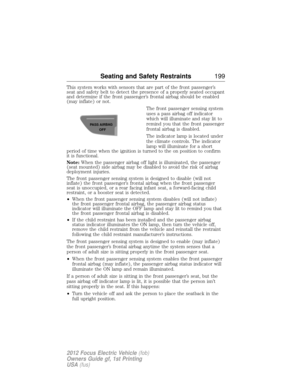

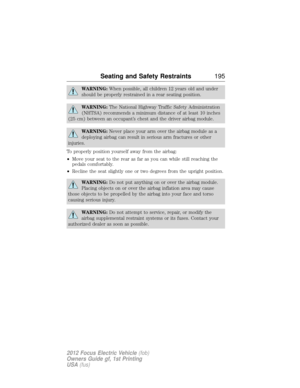

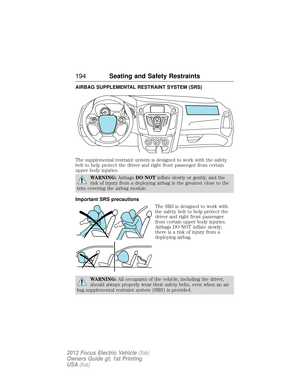

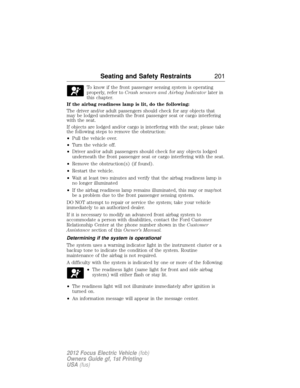

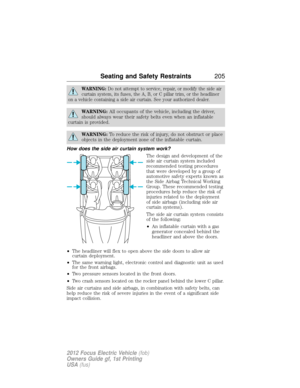

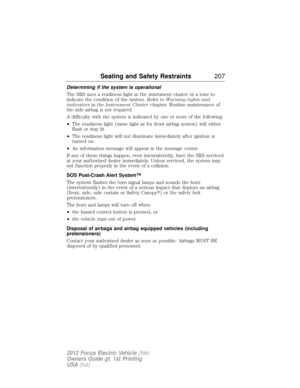

Airbags ........................................... .194

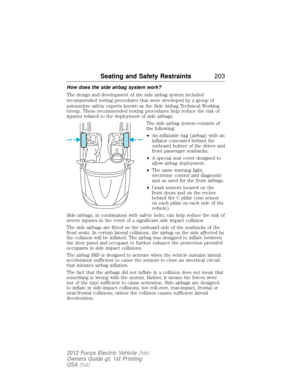

Knee airbag ........................................ .202

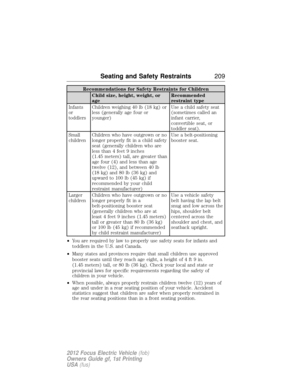

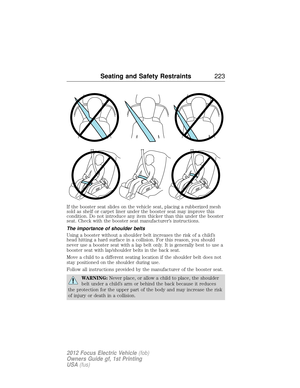

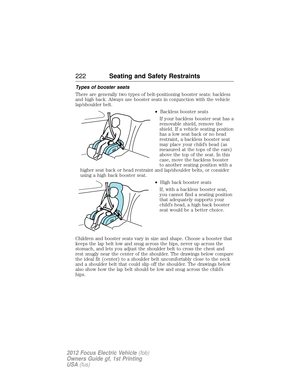

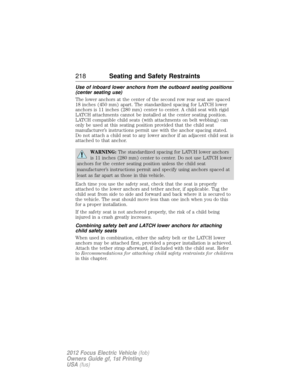

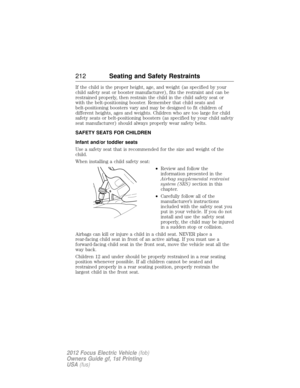

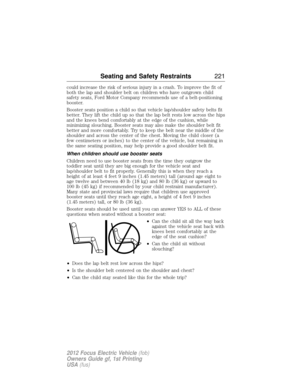

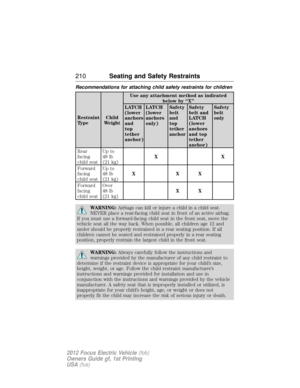

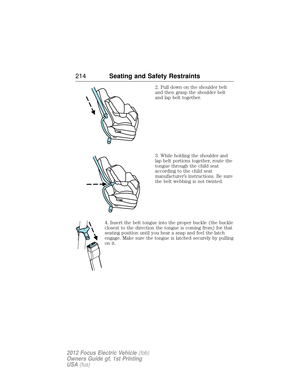

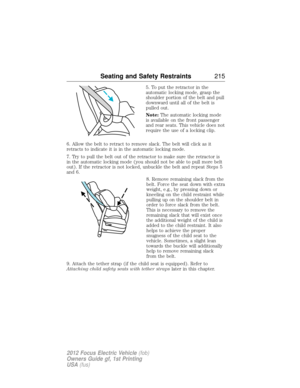

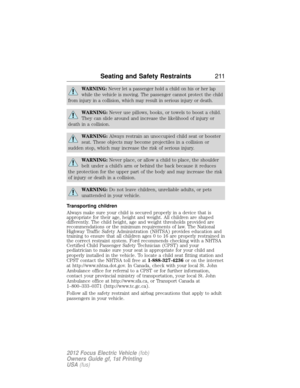

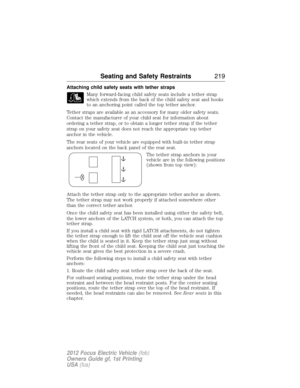

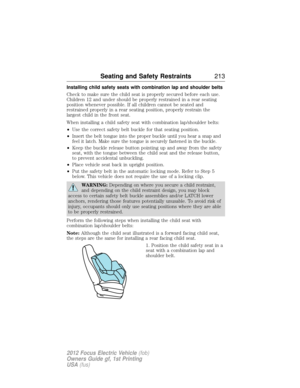

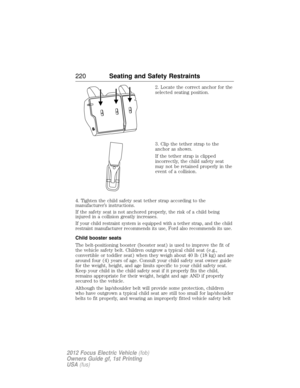

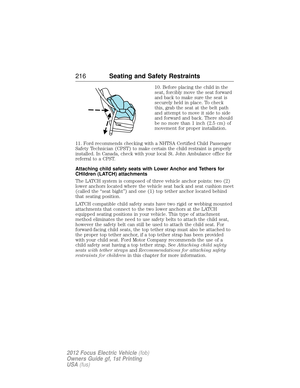

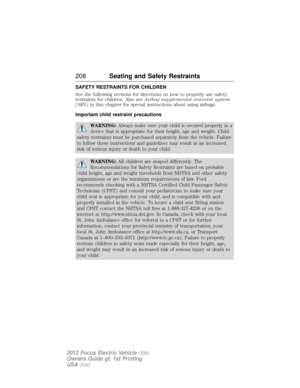

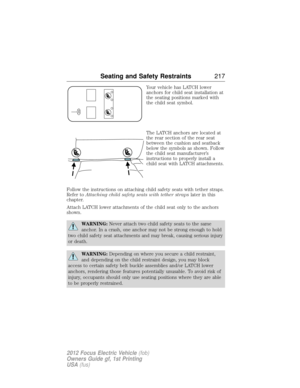

Child restraints .......................................208
2 Table of Contents
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Tires, Wheels and Loading225

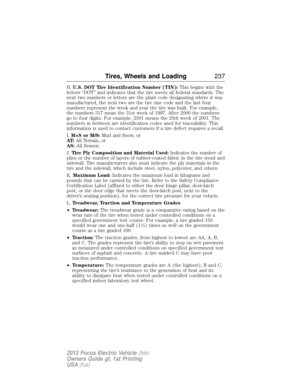

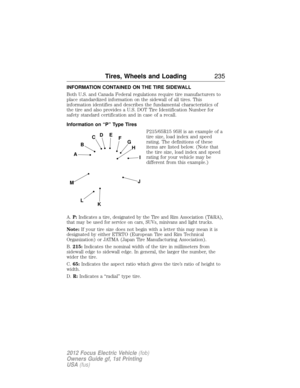

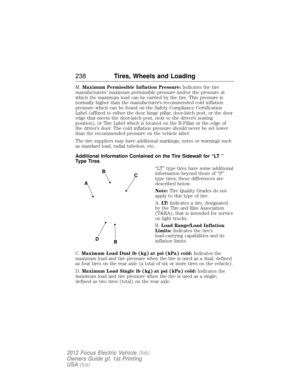

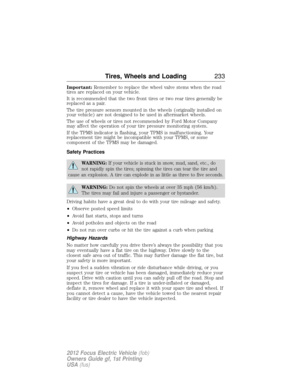

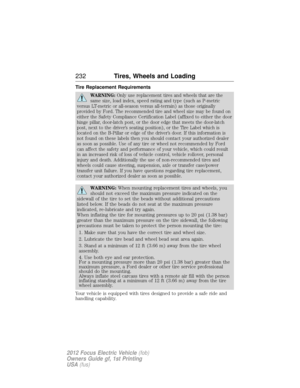

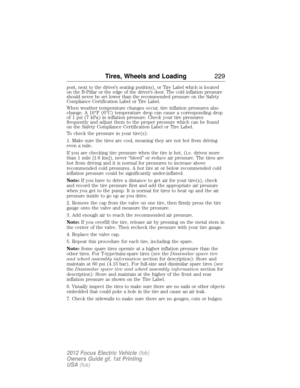

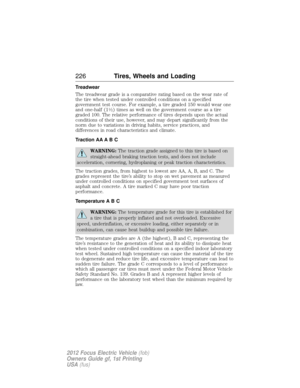

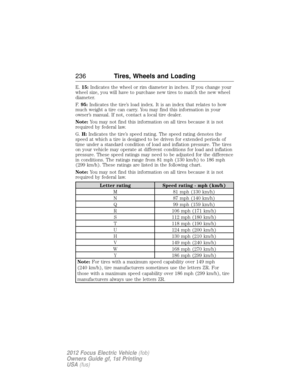

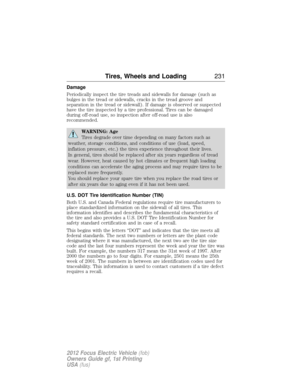

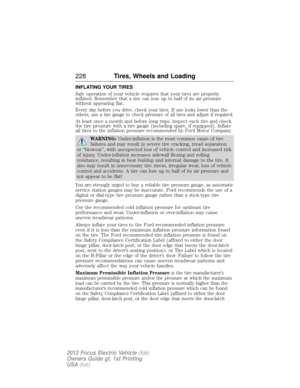

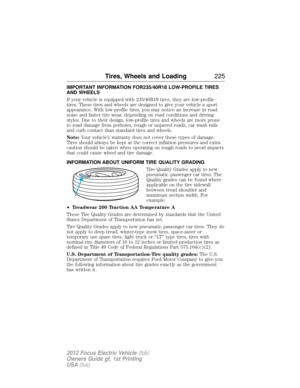

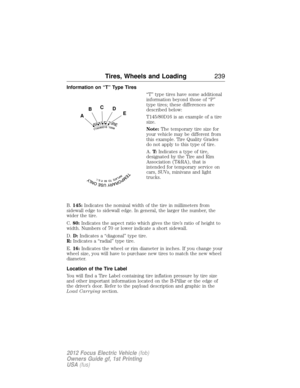

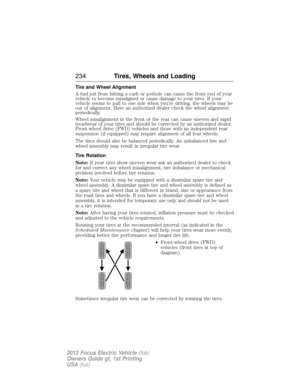

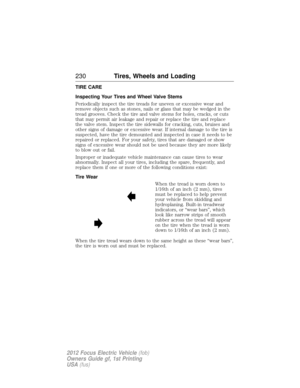

Tire information ......................................225

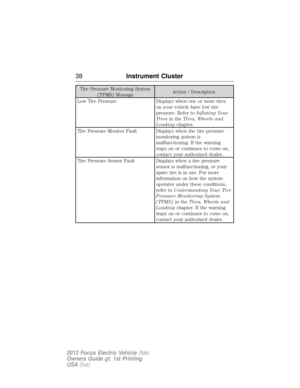

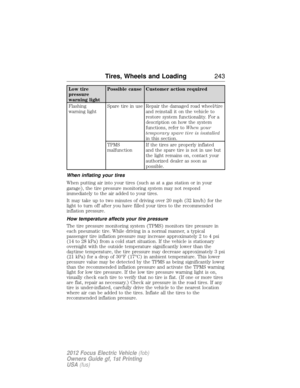

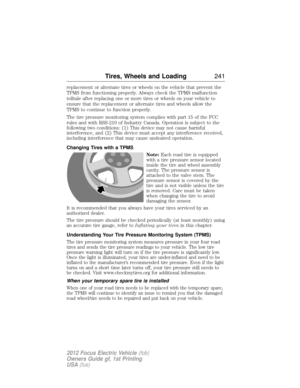

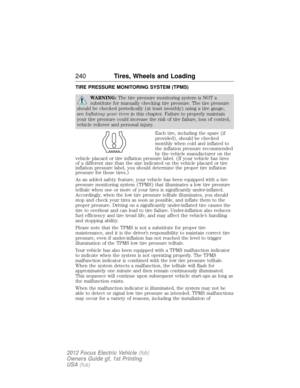

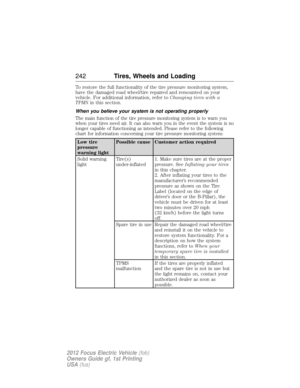

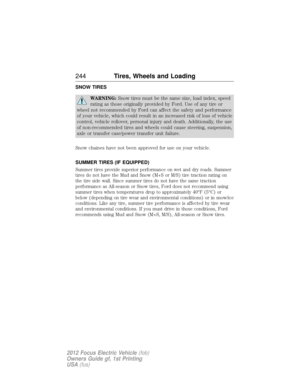

Tire Pressure Monitoring System (TPMS) ...................240

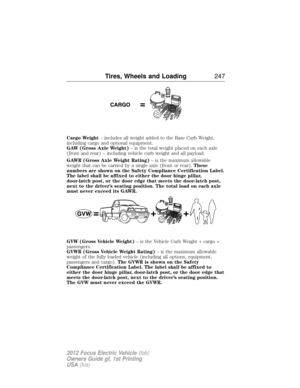

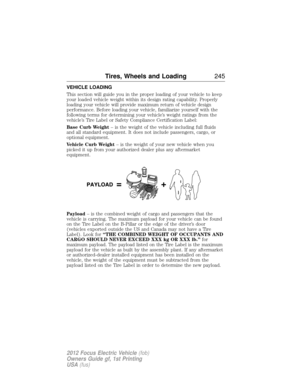

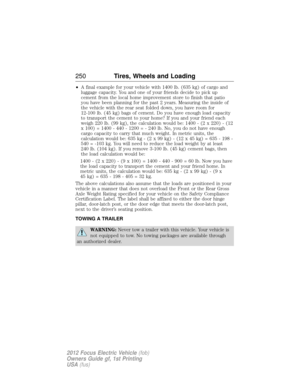

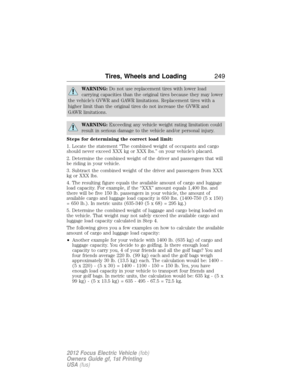

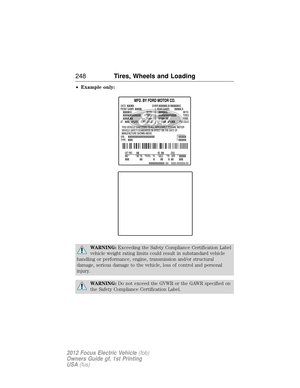

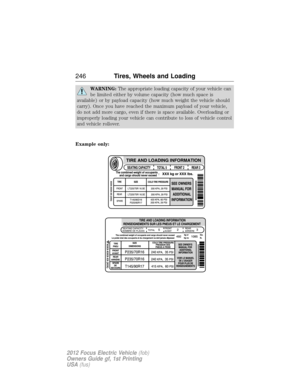

Vehicle loading .......................................245
Trailer towing ........................................250

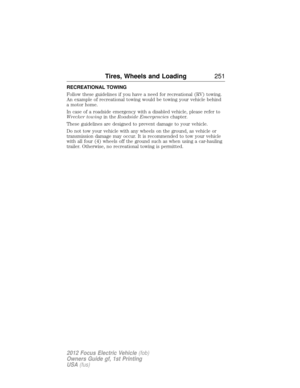

Recreational towing ...................................251

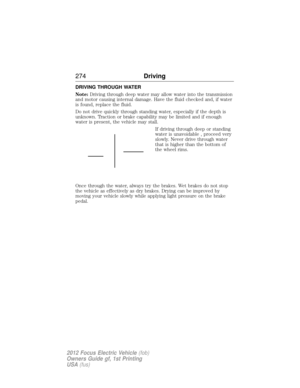

Driving 252

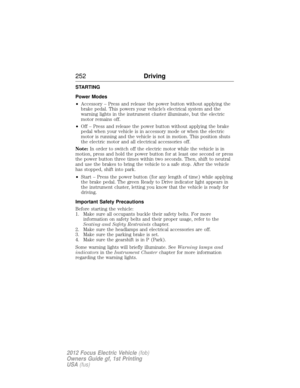

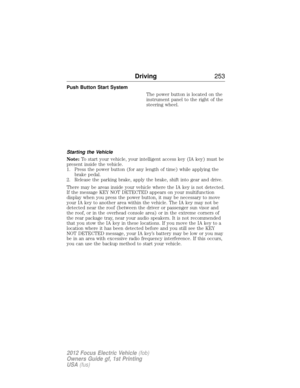

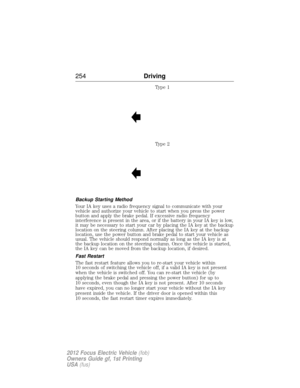

Starting ........................................... .252

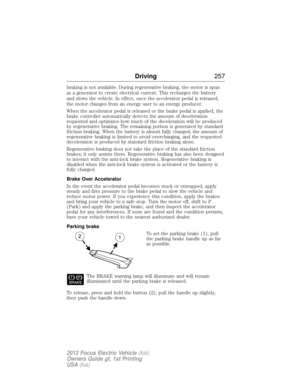

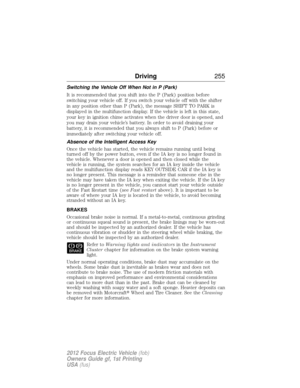

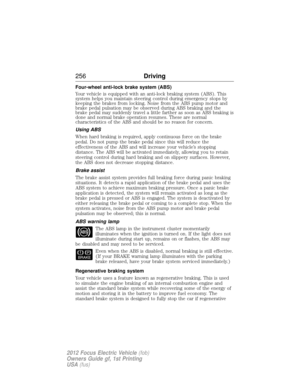

Brakes ............................................ .255

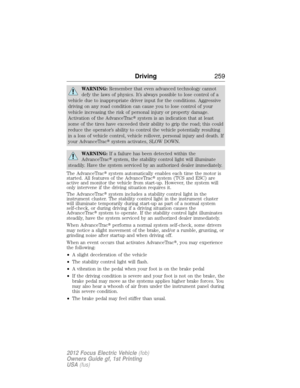

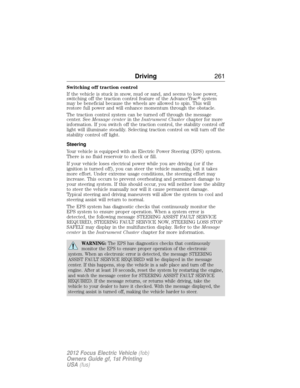

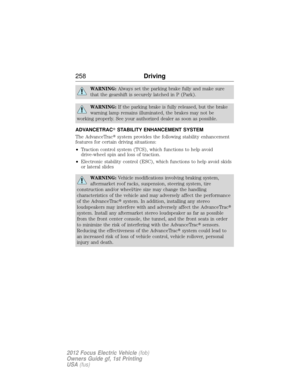

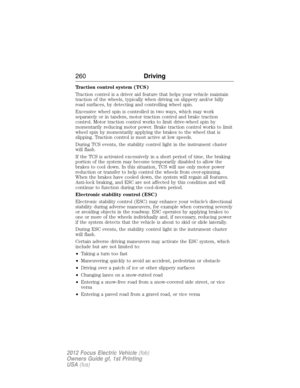

AdvanceTrac .......................................258

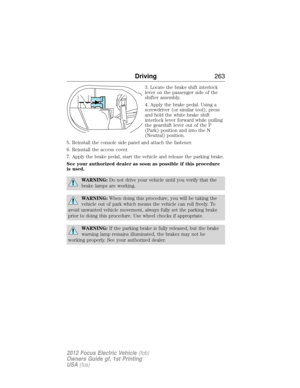

Automatic transmission .................................264

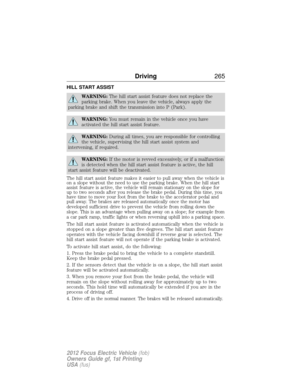

Hill start assist .......................................265

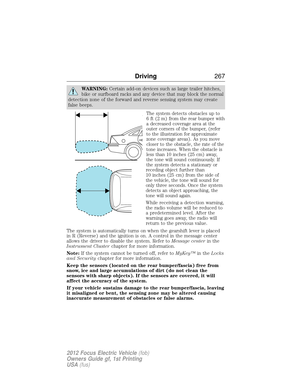

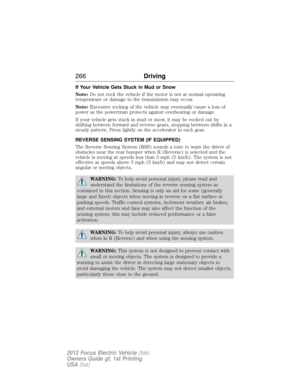

Reverse sensing system .................................266

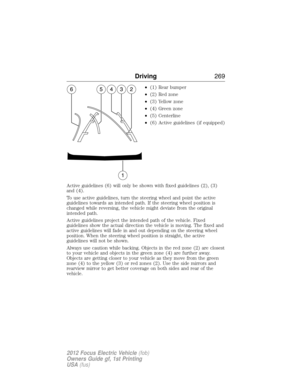

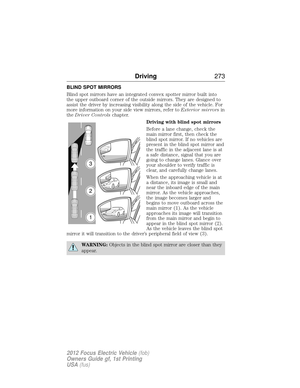

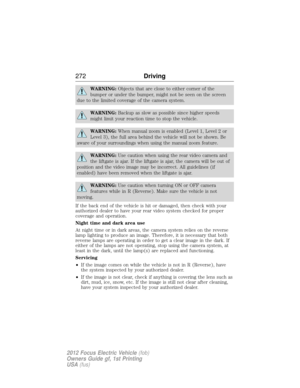

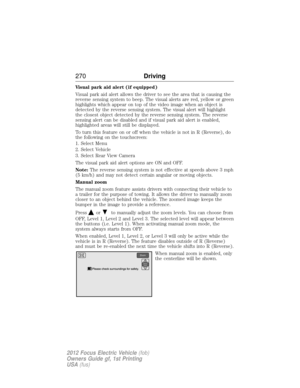

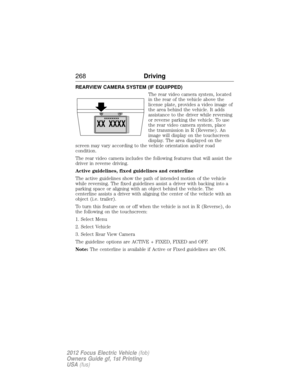

Rear-view camera system ...............................268
Roadside Emergencies 275

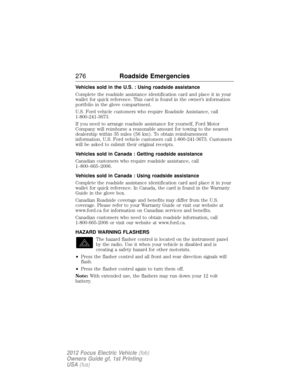

Getting roadside assistance ..............................275
Hazard warning flashers ................................276

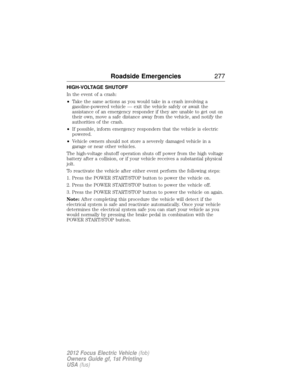

High-voltage shut-off ...................................277

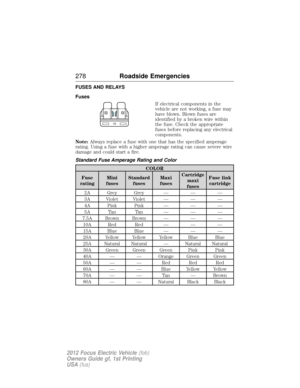

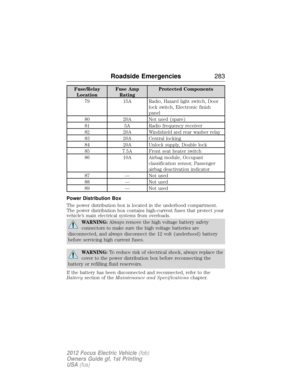

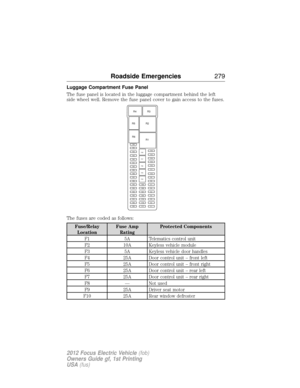

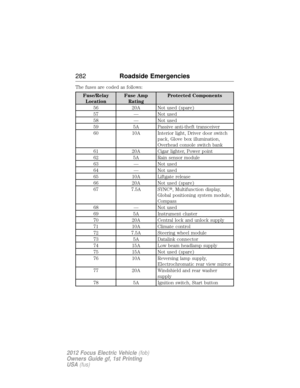

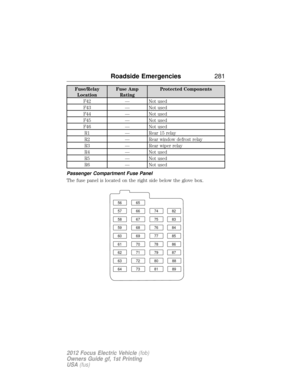

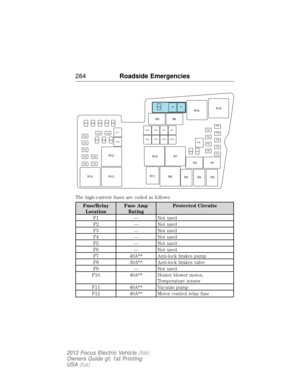

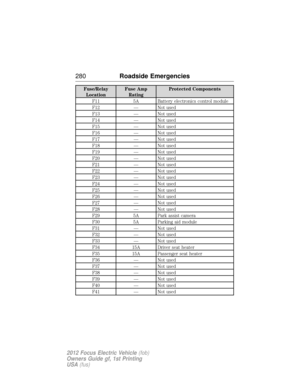

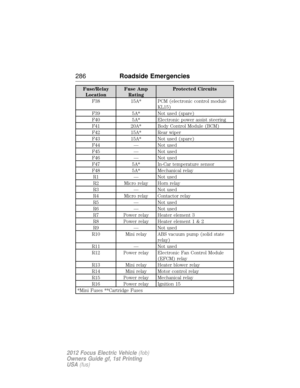

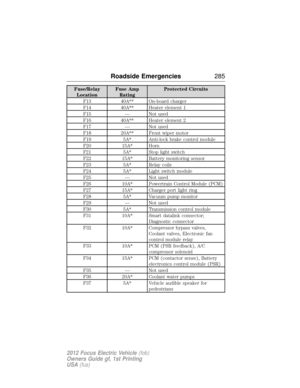

Fuses and relays ......................................278

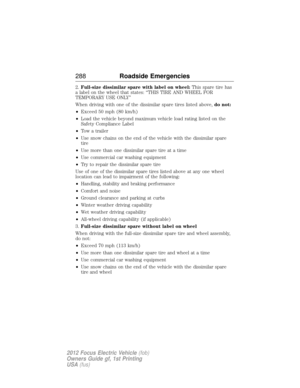

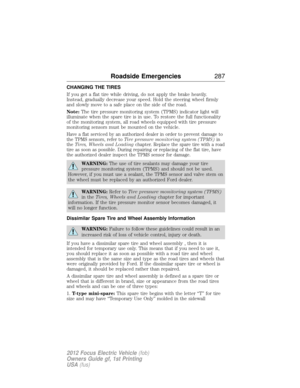

Changing tires .......................................287

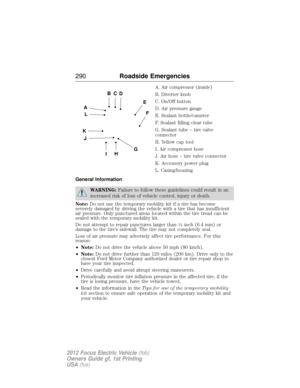

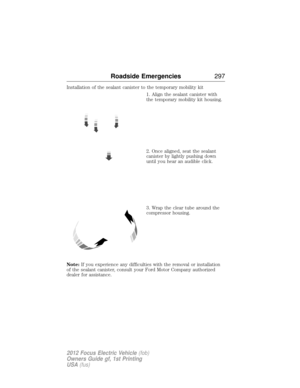

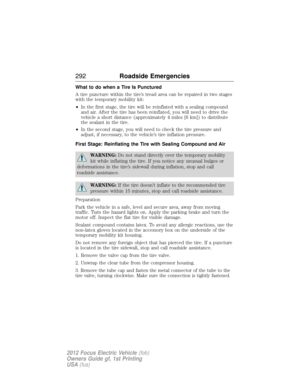

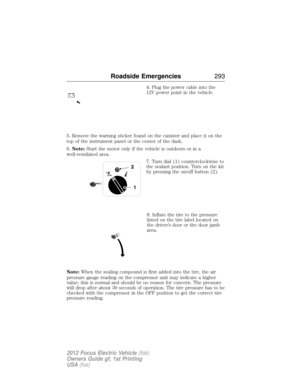

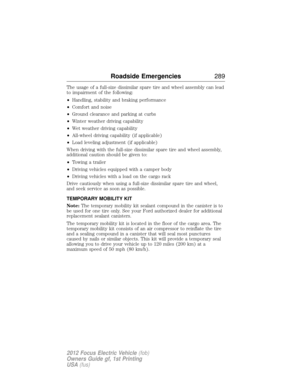

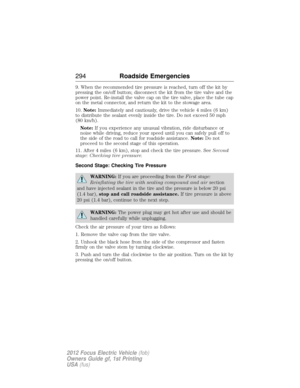

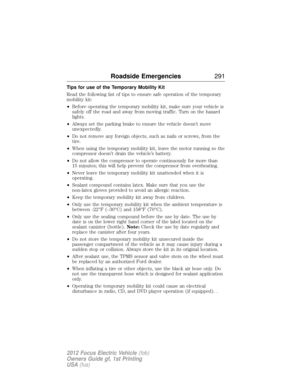

Temporary mobility kit .................................289

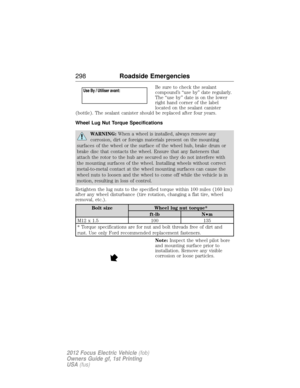

Wheel lug nut torque ..................................298

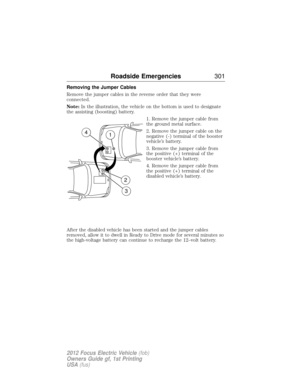

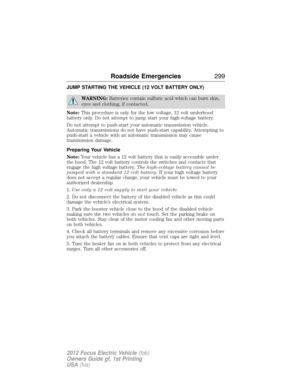

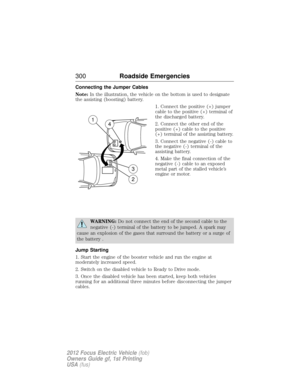

Jump starting ........................................299

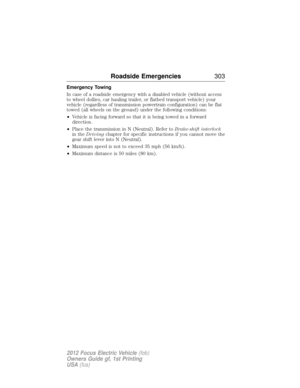

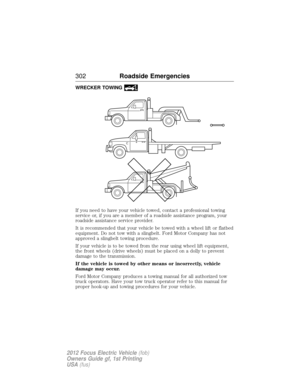

Wrecker towing ......................................302

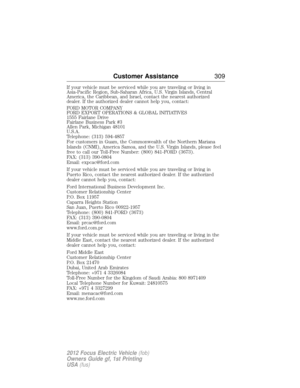

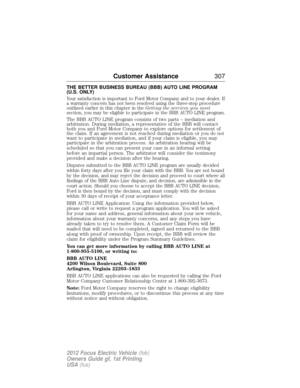

Customer Assistance 304

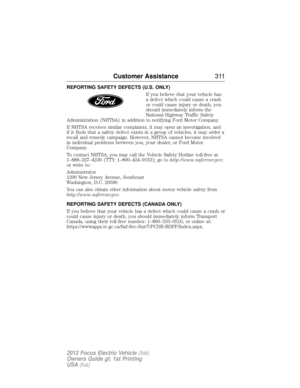

Reporting safety defects (U.S. only) .......................311
Reporting safety defects (Canada only) .....................311
Table of Contents3
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

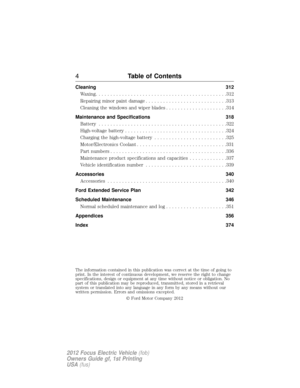

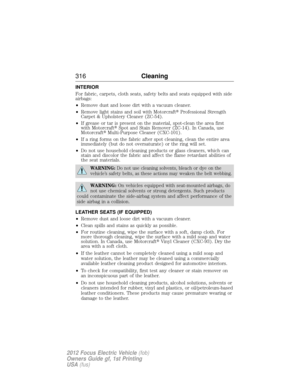

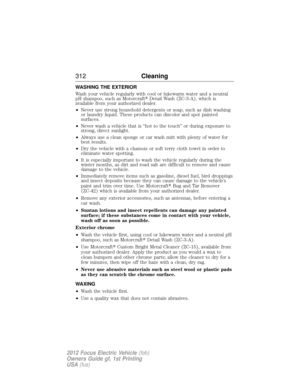

Cleaning312
Waxing ............................................ .312

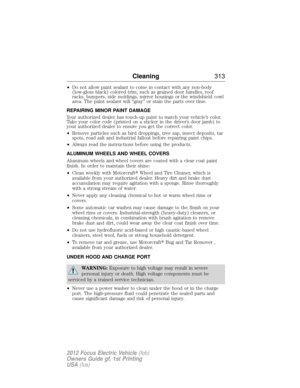

Repairing minor paint damage ............................313

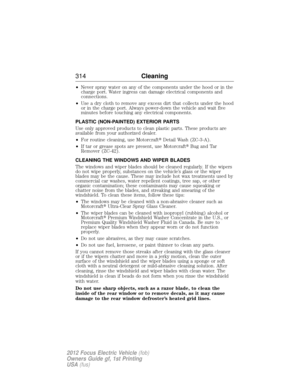

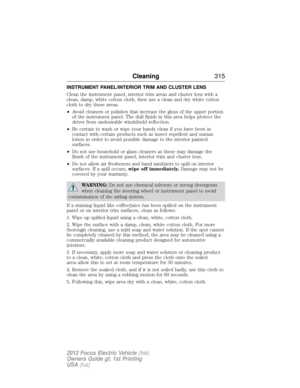

Cleaning the windows and wiper blades .....................314

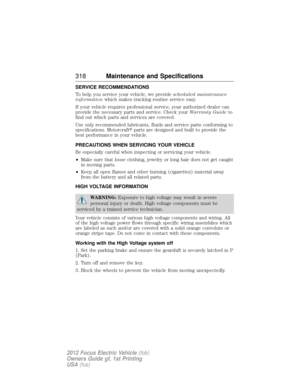

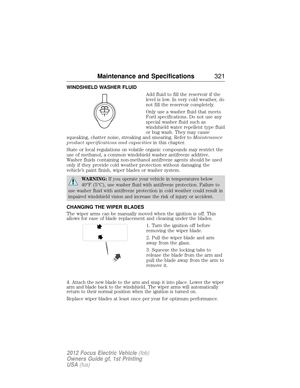

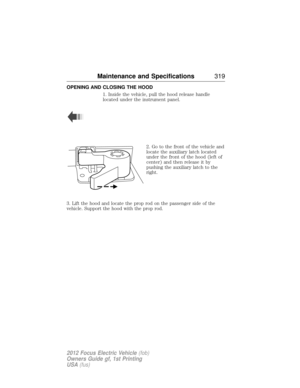

Maintenance and Specifications 318

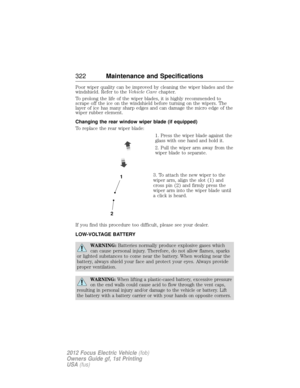

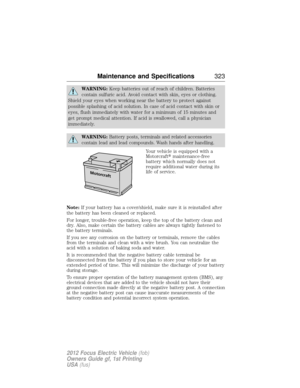

Battery ........................................... .322

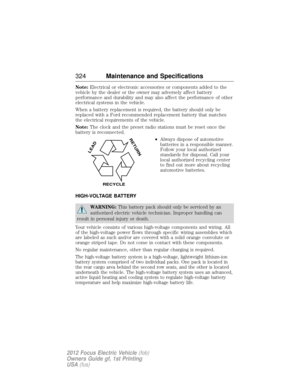

High-voltage battery ...................................324

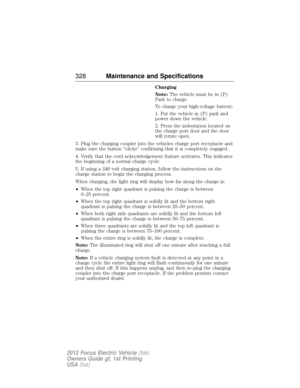

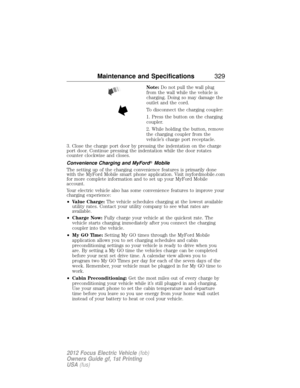

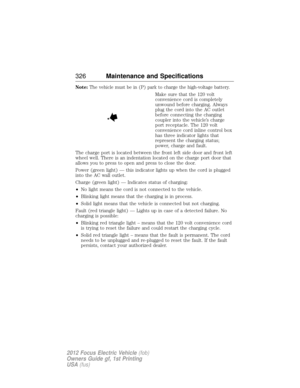

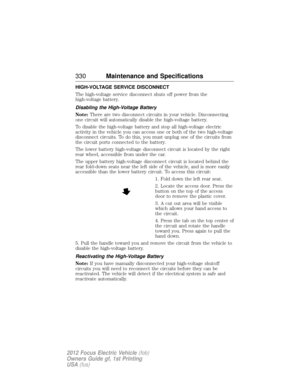

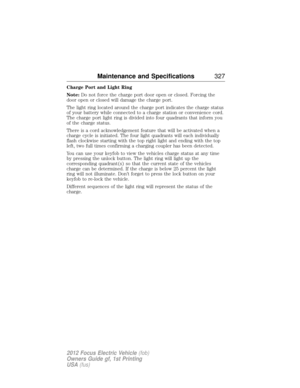

Charging the high-voltage battery .........................325

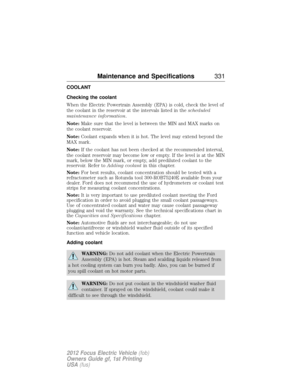

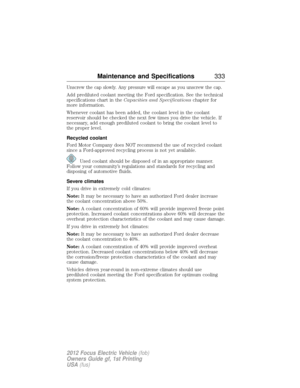

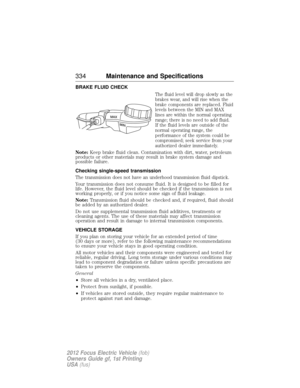

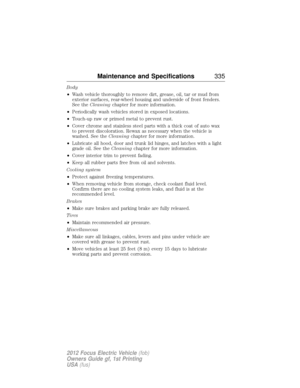

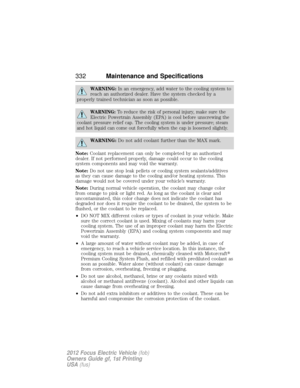

Motor/Electronics Coolant ...............................331

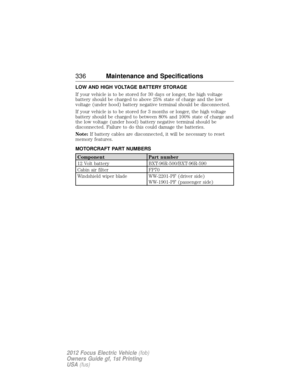

Part numbers ........................................336

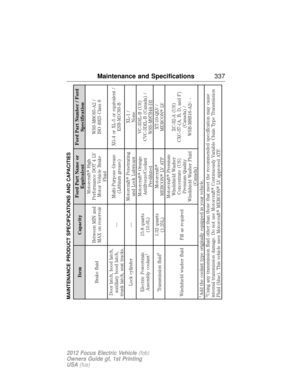

Maintenance product specifications and capacities .............337

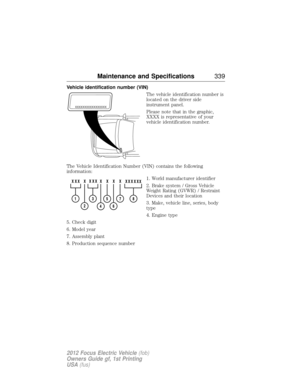

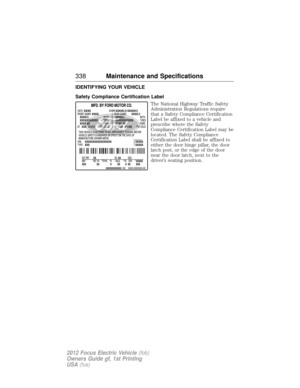

Vehicle identification number ............................339
Accessories 340

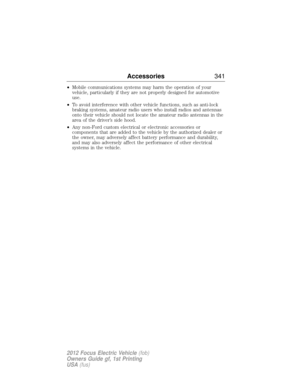

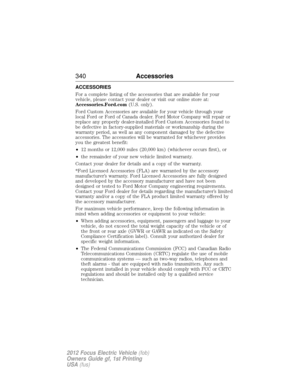

Accessories ........................................ .340

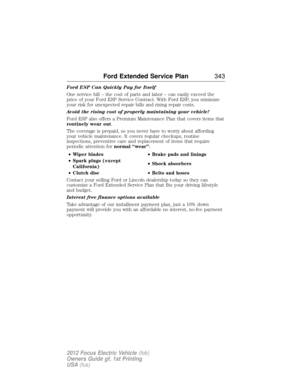

Ford Extended Service Plan 342

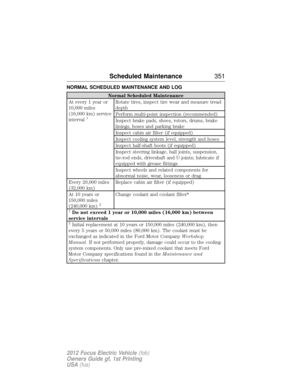

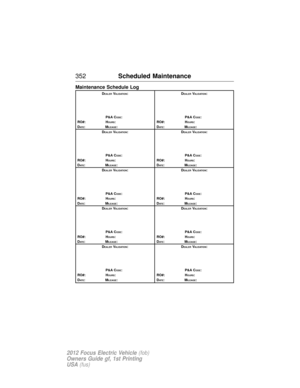

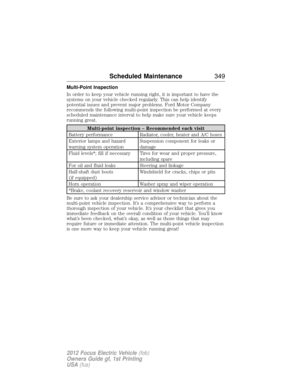

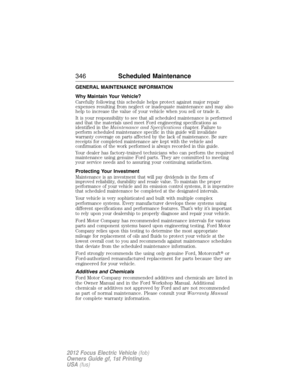

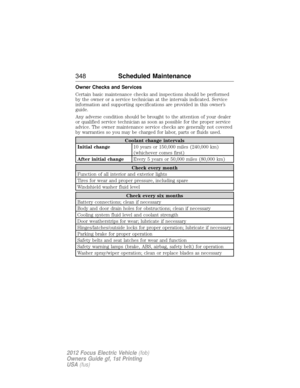

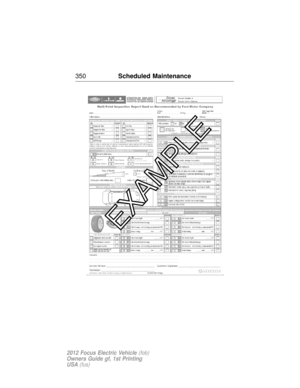

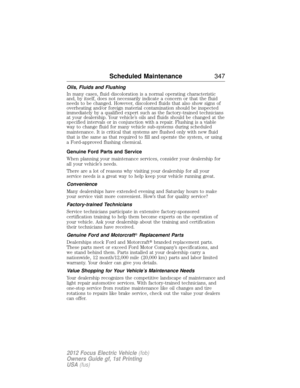

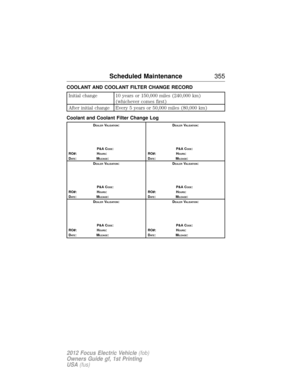

Scheduled Maintenance 346 Normal scheduled maintenance and log .....................351

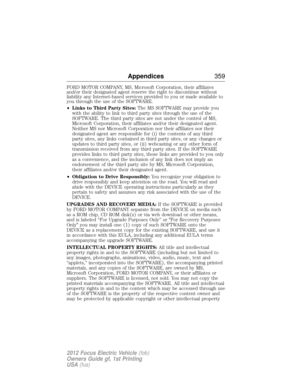

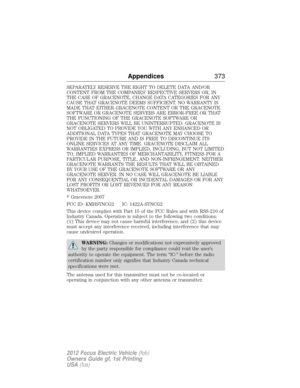

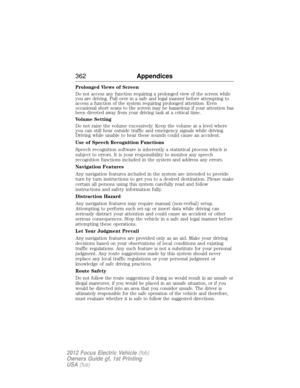

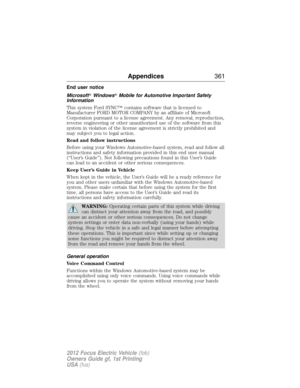

Appendices 356

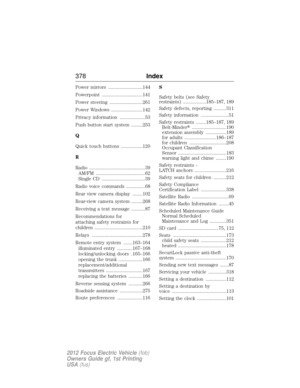

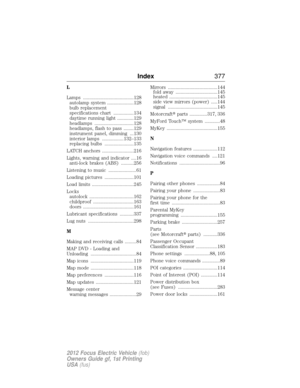

Index 374
The information contained in this publication was correct at the time of going to
print. In the interest of continuous development, we reserve the right to change
specifications, design or equipment at any time without notice or obligation. No
part of this publication may be reproduced, transmitted, stored in a retrieval
system or translated into any language in any form by any means without our
written permission. Errors and omissions excepted. © Ford Motor Company 2012
4Table of Contents
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Congratulations
Congratulations on acquiring your new Ford Motor Company product.
Please take the time to get well acquainted with your vehicle by reading
this handbook. The more you know and understand about your vehicle,
the greater the safety and pleasure you will derive from driving it.
For more information on Ford Motor Company and its products visit the
following website:
•In the United States: www.ford.com
• In Canada: www.ford.ca
• In Mexico: www.ford.com.mx
Additional owner information is given in separate publications.
This vehicle’s Owner’s Guide describes every option and model variant
available and therefore some of the items covered may not apply to your
particular vehicle. Furthermore, due to printing cycles it may describe
options before they are generally available.
Remember to pass on this vehicle’s Owner’s Guide when reselling the
vehicle. It is an integral part of the vehicle.
Safety and Environment Protection

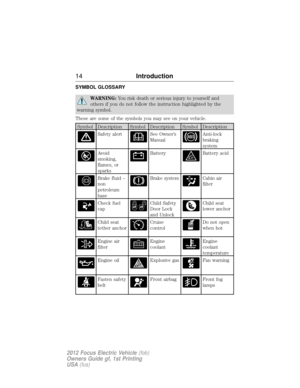

Symbols in this manual
WARNING: You risk death or serious injury to yourself and
others if you do not follow the instruction highlighted by the
warning symbol.

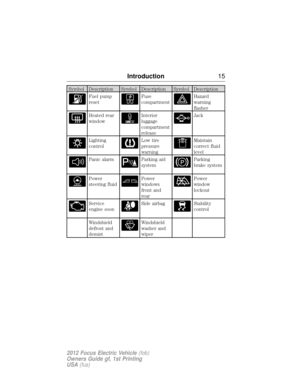

Symbols on your vehicle When you see these symbols, read and follow the relevant
instructions in this manual before touching or attempting
adjustment of any kind.
Protecting the Environment You must play your part in protecting the environment. Correct
vehicle usage and the authorized disposal of waste, cleaning
and lubrication materials are significant steps toward this aim.
Introduction 5
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

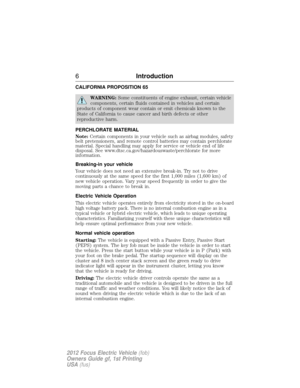

CALIFORNIA PROPOSITION 65
WARNING:Some constituents of engine exhaust, certain vehicle
components, certain fluids contained in vehicles and certain
products of component wear contain or emit chemicals known to the
State of California to cause cancer and birth defects or other
reproductive harm.
PERCHLORATE MATERIAL
Note: Certain components in your vehicle such as airbag modules, safety
belt pretensioners, and remote control batteries may contain perchlorate
material. Special handling may apply for service or vehicle end of life
disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate for more
information.
Breaking-in your vehicle
Your vehicle does not need an extensive break-in. Try not to drive
continuously at the same speed for the first 1,000 miles (1,600 km) of
new vehicle operation. Vary your speed frequently in order to give the
moving parts a chance to break in.
Electric Vehicle Operation
This electric vehicle operates entirely from electricity stored in the on-board
high voltage battery pack. There is no internal combustion engine as in a
typical vehicle or hybrid electric vehicle, which leads to unique operating
characteristics. Familiarizing yourself with these unique characteristics will
help ensure optimal performance from your new vehicle.
Normal vehicle operation
Starting: The vehicle is equipped with a Passive Entry, Passive Start
(PEPS) system. The key fob must be inside the vehicle in order to start
the vehicle. Press the start button while your vehicle is in P (Park) with
your foot on the brake pedal. The startup sequence will display on the
cluster and 8 inch center stack screen and the green ready to drive
indicator light will appear in the instrument cluster, letting you know
that the vehicle is ready for driving.
Driving: The electric vehicle driver controls operate the same as a
traditional automobile and the vehicle is designed to be driven in the full
range of traffic and weather conditions. You will likely notice the lack of
sound when driving the electric vehicle which is due to the lack of an
internal combustion engine.
6 Introduction
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

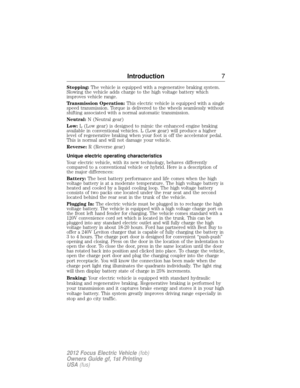

Stopping:The vehicle is equipped with a regenerative braking system.
Slowing the vehicle adds charge to the high voltage battery which
improves vehicle range.

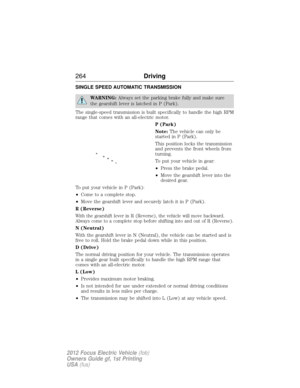

Transmission Operation: This electric vehicle is equipped with a single
speed transmission. Torque is delivered to the wheels seamlessly without
shifting associated with a normal automatic transmission.
Neutral: N (Neutral gear)
Low: L (Low gear) is designed to mimic the enhanced engine braking
available in conventional vehicles. L (Low gear) will produce a higher
level of regenerative braking when your foot is off the accelerator pedal.
This is normal and will not damage your vehicle.
Reverse: R (Reverse gear)
Unique electric operating characteristics
Your electric vehicle, with its new technology, behaves differently
compared to a conventional vehicle or hybrid. Here is a description of
the major differences:

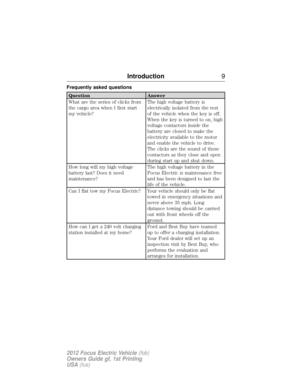

Battery: The best battery performance and life comes when the high
voltage battery is at a moderate temperature. The high voltage battery is
heated and cooled by a liquid cooling loop. The high voltage battery
consists of two packs one located under the rear seat and the second
located behind the rear seat in the trunk of the vehicle.
Plugging In: The electric vehicle must be plugged in to recharge the high
voltage battery. The vehicle is equipped with a high voltage charge port on
the front left hand fender for charging. The vehicle comes standard with a
120V convenience cord set which is located in the trunk. This can be
plugged into any standard electric outlet and will fully charge the high
voltage battery in about 18-20 hours. Ford has partnered with Best Buy to
offer a 240V Leviton charger that is capable of fully charging the battery in
3 to 4 hours. The charge port door is designed for convenient “push-push”
opening and closing. Press on the door in the location of the indentation to
open the door. To close the door, press in the same location until the door
has rotated back into position and clicked into place. To charge the vehicle,
open the charge port door and plug the charging coupler into the charge
port receptacle. You will know the connection has been made when the
charge port light ring illuminates the quadrants individually. The light ring
will then display battery state of charge in 25% increments.
Braking: Your electric vehicle is equipped with standard hydraulic
braking and regenerative braking. Regenerative braking is performed by
your transmission and it captures brake energy and stores it in your high
voltage battery. This system greatly improves driving range especially in
stop and go city traffic.
Introduction 7
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

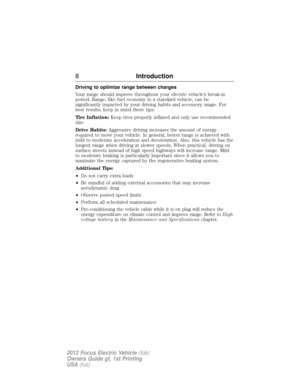

Driving to optimize range between charges
Your range should improve throughout your electric vehicle’s break-in
period. Range, like fuel economy in a standard vehicle, can be
significantly impacted by your driving habits and accessory usage. For
best results, keep in mind these tips:
Tire Inflation:Keep tires properly inflated and only use recommended
size.
Drive Habits: Aggressive driving increases the amount of energy
required to move your vehicle. In general, better range is achieved with
mild to moderate acceleration and deceleration. Also, this vehicle has the
longest range when driving at slower speeds. When practical, driving on
surface streets instead of high speed highways will increase range. Mild
to moderate braking is particularly important since it allows you to
maximize the energy captured by the regenerative braking system.
Additional Tips:
• Do not carry extra loads
• Be mindful of adding external accessories that may increase
aerodynamic drag
• Observe posted speed limits
• Perform all scheduled maintenance
•
Pre-conditioning the vehicle cabin while it is on plug will reduce the
energy expenditure on climate control and improve range. Refer to High
voltage battery in theMaintenance and Specifications chapter.
8Introduction
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
