Heated outside mirrorsBoth mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.
Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause damage to the glass and mirrors.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Signal Indicator Mirrors
When the turn signal is activated, the outer portion of the appropriate
mirror housing will blink. This provides an additional warning to other
drivers that your vehicle is about to turn.
Fold-Away Mirrors
Fold the side mirrors in carefully
when driving through a narrow
space, like an automatic car wash.
Blind Spot Mirrors
Your vehicle is equipped with blind spot mirrors. Refer to Blind Spot
Mirrors in theDriving chapter.
Driver Controls 145
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

SPEED CONTROL
With speed control set, you can maintain a set speed without keeping
your foot on the accelerator pedal.
WARNING:Do not use the speed control in heavy traffic or on
roads that are winding, slippery or unpaved.
Using speed control
The speed controls are located on the steering wheel. The following
buttons work with speed control: CAN (cancel)/RES (resume):
Pull toward you to cancel or resume
a set speed.
SET+:Press to set a speed or
increase a set speed.
ON/OFF: Press to turn speed
control on or off.
SET–: Press to decrease a set
speed.
Setting speed control
To set speed control:
1. Press and release ON.
2. Accelerate to the desired speed.
3. Press and release SET+.
4. Take your foot off the accelerator pedal.
5. The indicator
light on the instrument cluster will turn on.
Note:
• Vehicle speed may vary momentarily when driving up and down a
steep hill.
• If the vehicle speed increases above the set speed on a downhill, you
may want to apply the brakes to reduce the speed.
• If the vehicle speed decreases more than 10 mph (16 km/h) below
your set speed on an uphill, your speed control will disengage.
CAN
RESON/OFF
SET+
SET-
146 Driver Controls
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

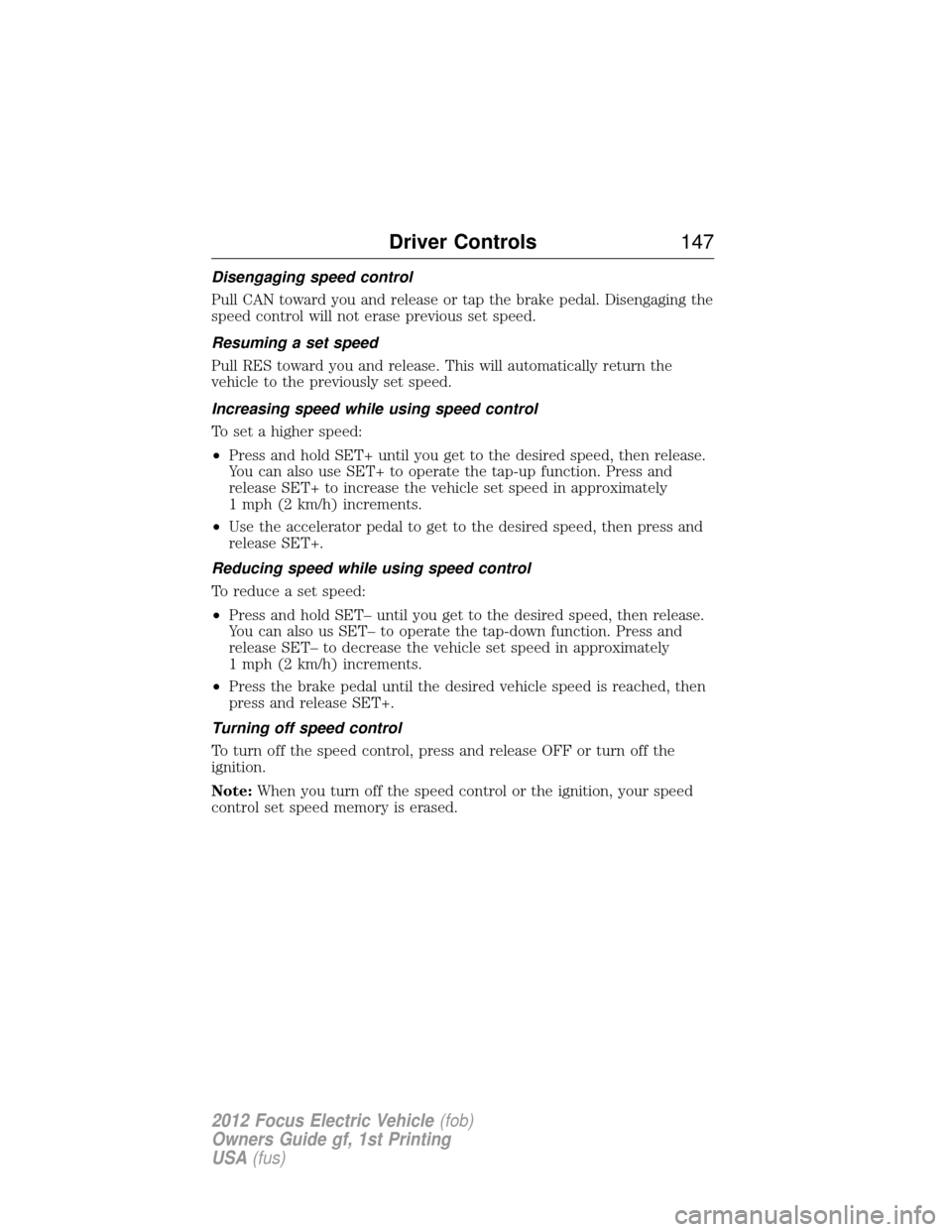

Disengaging speed control
Pull CAN toward you and release or tap the brake pedal. Disengaging the
speed control will not erase previous set speed.
Resuming a set speed
Pull RES toward you and release. This will automatically return the
vehicle to the previously set speed.
Increasing speed while using speed control
To set a higher speed:
•Press and hold SET+ until you get to the desired speed, then release.
You can also use SET+ to operate the tap-up function. Press and
release SET+ to increase the vehicle set speed in approximately
1 mph (2 km/h) increments.
• Use the accelerator pedal to get to the desired speed, then press and
release SET+.
Reducing speed while using speed control
To reduce a set speed:
• Press and hold SET– until you get to the desired speed, then release.
You can also us SET– to operate the tap-down function. Press and
release SET– to decrease the vehicle set speed in approximately
1 mph (2 km/h) increments.
• Press the brake pedal until the desired vehicle speed is reached, then
press and release SET+.
Turning off speed control
To turn off the speed control, press and release OFF or turn off the
ignition.
Note: When you turn off the speed control or the ignition, your speed
control set speed memory is erased.
Driver Controls 147
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

STEERING WHEEL CONTROLS
Audio control featuresPress the arrow buttons on the right
side of the steering wheel to scroll
through various menu selections in
the infotainment display. Press OK
to select or deselect your choice.
Hands-free control features
Press
to activate phone mode
or answer a phone call.
Press
to end call or exit phone
mode.
Pull
toward you and release to
use the voice command feature. You
will hear a tone and LISTENING will
appear in the radio display. Pull and
hold
to exit voice command.
+ (Volume): Press to increase the volume.
– (Volume):Press to decrease the volume.
(Seek):Press to select the previous/next radio station
preset, CD track or satellite radio channel preset (if equipped)
depending on which media mode you are in.
Refer to the MyFord Touch chapter.
Universal garage door opener (if equipped)
Your vehicle may be equipped with a universal garage door opener which
can be used to replace the common hand-held transmitter.
148 Driver Controls
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

HOMELINKWIRELESS CONTROL SYSTEM (IF EQUIPPED)
WARNING:Make sure that the garage door and security device
are free from obstruction when you are programming. Do not
program the system with the vehicle in the garage.
WARNING: Do not use the system with any garage door opener
that does not have the safety stop and reverse feature as
required by U.S. Federal Safety Standards (this includes any garage
door opener manufactured before April 1, 1982).
Note: Make sure you keep the original remote control transmitter for
use in other vehicles as well as for future system programming.
Note: We recommend that upon the sale or lease termination of your
vehicle, you erase the programmed function buttons for security reasons.
See Erasing the function button codes later in this section.
Note: You can program a maximum of three devices. To change or
replace any of the three devices after it has been initially programmed,
you must first erase the current settings. See Erasing the function
button codes later in this section.
The universal garage door opener
replaces the common hand-held
garage door opener with a
three-button transmitter that is
integrated into the driver’s sun
visor.
The system includes two primary features, a garage door opener and a
platform for remote activation of devices with the home. As well as being
programmed for garage doors, the system transmitter can be
programmed to operate entry gate operators, security systems, entry
door locks, and home or office lighting.
Additional system information can be found on-line at
www.homelink.com or by calling the toll-free help line on
1-800-355-3515.
Programming
Note: Put a new battery in the hand-held transmitter. This will ensure
quicker training and accurate transmission of the radio-frequency signal.
Driver Controls 149
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

1. Switch the ignition on.
2. Hold the garage door hand-held
transmitter 1–3 in. (2–8 cm) away
from the button you want to
program.
Note:During programming, the
hand-held transmitter may stop
transmitting. If this occurs press
and hold the function button while you press and release the hand-held
transmitter every two seconds. The indicator light will flash slowly and
then rapidly once the radio frequency signal is accepted.
3. Press and hold both buttons until the indicator light changes from
flashing slowly to rapidly, then release.
4. Press and hold the function button you programmed for 5 seconds,
then release. You may need to do this twice to activate the door. If your
garage door does not operate, observe the indicator light.
If the indicator light stays on, programming is complete. Press and
release the programmed button to activate the door.
If the indicator light flashes rapidly for two seconds than turns to a
constant light, follow the steps below.
Note:You may need a ladder to
reach the unit and you may need to
remove the cover or lamp lens.
1. Press the learn button on the
garage door opener motor.
Note: You will have 30 seconds to
complete the next step.
2. Return to your car.
3. Press and hold the function button
for 2 seconds, then release. Repeat
this step. Depending on the brand of
garage door opener you may do
repeat this sequence a third time.
To program additional buttons
repeat steps one through four.
For questions or comments, please contact HomeLink at
www.homelink.com or 1-800-355-3515.
150 Driver Controls
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Gate Operator & Canadian ProgrammingDuring programming, your
hand-held transmitter may
automatically stop transmitting —
not allowing enough time for
HomeLinkto accept the signal
from the hand-held transmitter.
After completing Step 1 outlined in the Programmingsection, replace
Step 2 with the following:
Note: If programming a garage door opener or gate operator, it is
advised to unplug the device during the “cycling” process to prevent
overheating.
• Continue to press and hold the HomeLink button (note Step 2 in the
Programming section) while you press and release — every two
seconds (“cycle”) your hand-held transmitter until the frequency
signal has been accepted by the HomeLink. The indicator light will
flash slowly and then rapidly after HomeLink accepts the radio
frequency signal.
• Proceed with Step 3 in the Programmingsection.
Operating the HomeLink Wireless Control System
To operate, simply press and release
the appropriate HomeLink button.
Activation will now occur for the
trained product (garage door, gate
operator, security system, entry
door lock, or home or office lighting
etc.). For convenience, the
hand-held transmitter of the device
may also be used at any time. In the event that there are still
programming difficulties, contact HomeLink atwww.homelink.com or
1–800–355–3515.
Driver Controls 151
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

Erasing the Function Button CodesNote:You can not erase individual
buttons.
1. Press and hold the outer two
function buttons simultaneously for
approximately 20 seconds until the
indicator lights above the buttons
flash rapidly.
2. When the indicator lights flash,
release the buttons. The codes for
all buttons are erased.
Reprogramming a single button
To program a device to a previously trained button, follow these steps:
1. Press and hold the desired button. Do NOTrelease the button.
2. The indicator light will begin to flash after 20 seconds. Without
releasing the button, follow Step 1 in the Programmingsection.
For questions or comments, contact HomeLink at www.homelink.com or
1-800-355-3515.
Positive Retention Floor Mat
WARNING: Always use floor mats that are designed to fit the
foot well of your vehicle. Only use floor mats that leave the pedal
area unobstructed. Only use floor mats that are firmly secured to
retention posts so that they cannot slip out of position and interfere
with the pedals or impair safe operation of your vehicle in other ways.
• Pedals that cannot move freely can cause loss of vehicle control and
increase the risk of serious personal injury.
