2012 FORD FOCUS ELECTRIC Owners Manual

SIRIUS troubleshooting tips
Radio Display Condition Possible Action
Acquiring Radio requires more than two seconds to
produce audio for the
selected channel.None. This message
should disappear
shortly.
Sat Fault/SIRIUS
system failure Internal module or
system failure present.If this message does not
clear shortly, or with an
ignition key cycle, your
receiver may have a
fault. See your
authorized dealer for
service.
Invalid Channel Channel no longer available.Tune to another
channel or choose
another preset.
Unsubscribed Channel Subscription not available for this
channel.Contact SIRIUS at
1–888–539–7474 to
subscribe to the
channel, or tune to
another channel.
No Signal Loss of signal from the
SIRIUS satellite or
SIRIUS tower to the
vehicle antenna. The signal is currently
being blocked. When
you move into an open
area, the signal should
return.
Updating Update of channel
programming in
progress. None. The process may
take up to three
minutes.
Call SIRIUS
1–888–539–7474 Satellite service has
been deactivated by
SIRIUS Satellite Radio.Call SIRIUS at
1–888–539–7474 to
reactivate or resolve
subscription issues.
No Channels Available All the channels in the selected category are
locked or skipped.Unlock or unskip the
channels using the
channel guide.
Subscription Updated SIRIUS has updated the channels available for
your vehicle.None.
MyFord Touch
73
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

CDPress the lower left corner of the touchscreen, then select the
CD tab.
When you select: You can:
Repeat Repeat the currently playing track.
Shuffle Play the tracks in random order.
Scan Hear a brief sampling of all available tracks.
More Info See disc information.
Browse Look through all available audio sources.
Options •Sound Adjust Bass, Treble, Midrange,
Balance and Fade, THX Deep Note Demo (if
equipped), DSP (if equipped), Occupancy
Mode (if equipped), and Speed Compensated
Volume settings.
• Compression Access compression settings.
You can also advance and reverse the current track or current folder (if
applicable).
CD Voice Commands If you are listening to a CD, press the voice button on the
steering wheel controls. When prompted, say any of the
commands in the following chart.
If you are not listening to a CD, press the voice button and, after the
tone, say “CD”, then any of the commands in the following chart.
“CD”
“Pause” “Repeat off” “Play” “Repeat track”
“Play next track” “Shuffle”
“Play previous track” “Shuffle CD”
*
“Play track <1–512>”“Shuffle folder”*
“Repeat”“Shuffle off”
“Repeat folder”*“Help”
*WMA or MP3 only
74 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

SD Card Slot and USB Port
SD Card Slot
Note:Your SD card slot is spring-loaded. To remove the SD card, press
the card in and the system ejects it. Do not attempt to pull the card to
remove it as this could cause damage.
The card slot can be used for your navigation card (if equipped). Refer
to Navigation system later in this chapter for more information.
The slot is located either in the center console
or behind a small access door in the
instrument panel. To access and play music
from your SD card slot, press the lower left
corner of the touchscreen.
SD logo is a trademark of SD-3C,
LLC.
USB Port The ports are located either in the center
console or behind a small access door in the
instrument panel. To access and play music
from your device, press the lower left corner
of the touchscreen.
This feature allows you to plug in media playing devices, memory sticks,
flash/thumb drives and also charge devices if they support this feature.
In order to playback video from your iPod/iPhone (if compatible), you
MUST have a special combination USB/RCA composite video cable
(available for purchase from Apple). When the cable is connected to
your iPod/iPhone, plug the other end into both the RCA jacks and the
USB port.
MyFord Touch 75
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

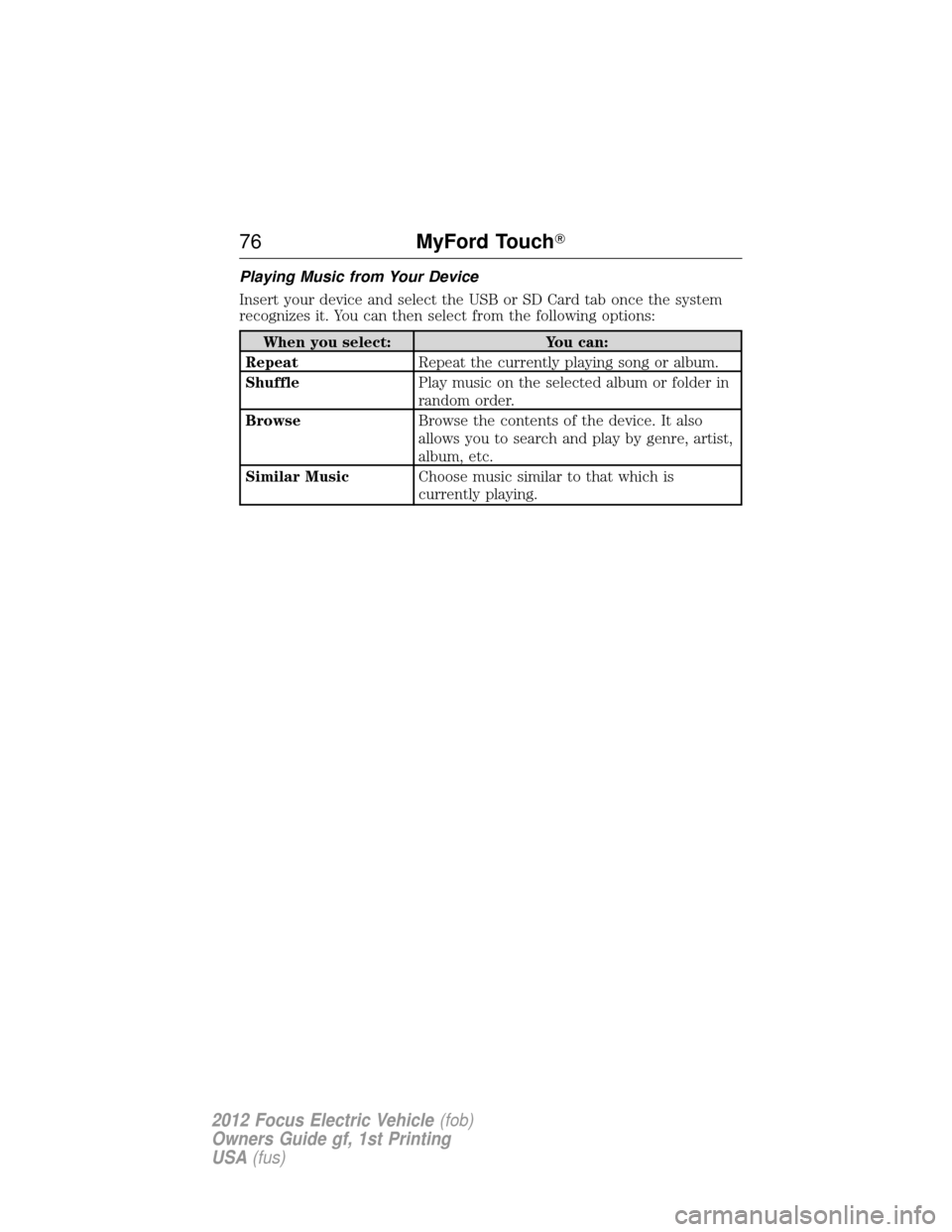

Playing Music from Your Device
Insert your device and select the USB or SD Card tab once the system
recognizes it. You can then select from the following options:
When you select:You can:
Repeat Repeat the currently playing song or album.
Shuffle Play music on the selected album or folder in
random order.
Browse Browse the contents of the device. It also
allows you to search and play by genre, artist,
album, etc.
Similar Music Choose music similar to that which is
currently playing.
76MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

When you select:You can:
Options Select more settings:
Sound Settingsallows you to adjust Bass,
Treble, Midrange, Balance and Fade, THX
Deep note demo (if equipped), DSP (if
equipped), Occupancy mode (if equipped),
and speed compensated volume.
Device Information displays software and
firmware information about the
currently-connected media device.
Update Media Index indexes the device
each time it is connected to make sure you
have the latest voice commands available for
all media on the device.
Media Player Settings allows you to select
more settings.
• Autoplay On/Off: When on, the system
automatically switches to the media source
when first connected so you can listen to
music that has been indexed. When off, the
system does not automatically switch to the
media source.
• Bluetooth Devices: Connect, disconnect,
add or delete a device. Also set a device as
your favorite so the system automatically tries
to connect to it at every ignition cycle.
• Gracenote Database Info: View the
version level of the Gracenote Database.
• Gracenote Media Management: When
on, this feature gets metadata information
from the Gracenote Database for your music
files. This overrides information from your
device. The feature default is off.
• Cover Art Priority: This feature retrieves
cover art for your music files from either your
device or the Gracenote Database. The
feature default is Device.
MyFord Touch 77
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

When you select:You can:
Media Device
Information Displays information about the device, if
connected and available.
Text Display Allows you to choose how you would like the
information to display on-screen.
To view song information such as Title, Artist, File, Folder, Album, and
Genre, touch the on-screen album art.
You can also press What’s Playing?to hear how the system pronounces
the current band and song. This can be helpful when using voice
commands to make sure the system correctly plays your request.
SD Card and USB Voice Commands
If you are listening to a USB device or an SD card, press the
voice button on the steering wheel controls. When prompted,
say any of the commands in the following chart.
If you are not listening to a USB device or an SD card, press the voice
button and, after the tone, say “USB” or “SD card”, then any of the
commands in the following chart.
“USB” or “SD CARD”
“Browse”1“Play podcast episode ”
“Next” “Play similar music”
“Pause” “Play song ” “Play” “Play TV show ”
2
“Play album ” “Play TV show episode ”2
“Play all” “Play video ”2
“Play artist ” “Play video podcast episode
”2
“Play audiobook ” “Play video playlist ”2
“Play author ” “Previous”
“Play composer ” “Repeat all”
“Play folder ” “Repeat off”
“Play genre ” “Repeat one”
“Play movie ”
2“Shuffle”
“Play music video ”2“Shuffle off”
78 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

“USB” or “SD CARD”
“Play playlist ” “What’s this?”
“Play podcast ” “Help”
1If you have said you would like to browse your USB or SD card, the
system prompts you to specify what you would like to browse. When
prompted, refer to the following “Browse” chart.
2These commands are only available in USB mode and are
device-dependent.
“BROWSE”
“Album ” “All video podcasts”*
“All albums” “All videos”*
“All artists”“Artist ”
“All audiobooks” “Audiobook ”
“All authors” “Author ”
“All composers” “Composer ”
“All folders” “Folder ”
“All genres” “Genre ”
“All movies”
*“Playlist ”
“All music videos”*“Podcast ”
“All playlists” “TV show ”*
“All podcasts” “Video ”*
“All songs”“Video playlist ”*
“All TV shows”*“Video podcast ”*
“All video playlists”*“Help”
*These commands are only available in USB mode and are
device-dependent.
MyFord Touch 79
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

Bluetooth Audio
Your system allows you to stream audio over your vehicle’s speakers from
your connected, Bluetooth-enabled cellular phone.To access, press the lower left corner on the touchscreen, then
select the BT Stereo tab.
Bluetooth Audio Voice Commands If you are listening to a Bluetooth audio device, press the voice
button on the steering wheel controls. When prompted, say any
of the commands in the following chart.
If you are not listening to a Bluetooth audio device, press the voice
button and, after the tone, say “Bluetooth Audio”, then any of the
commands in the following chart.
Note: If your Bluetooth device supports streaming metadata, all the
commands below are available. If your device does not, only “Next”,
“Pause”, “Play” and “Previous” are available.
Bluetooth voice commands
“Browse album ” “Browse composer
” “Play folder ”
“Browse all albums” “Browse folder ”“Play genre ”
“Browse all artists” “Browse genre ”“Play playlist ”
“Browse all
audiobooks” ”Browse genre
” “Play podcast episode
”
“Browse all authors” ”Browse playlist ”“Play similar music”
“Browse all
composers” ”Browse podcast
” “Play song ”
“Browse all folders” “Next” “Previous” “Browse all genres” “Pause” “Repeat all”
“Browse all playlists” “Play” “Repeat off”
“Browse all podcasts” “Play album ” “Repeat one” “Browse all songs” “Play artist ” “Shuffle”
