2012 FORD FOCUS ELECTRIC Owners Manual

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
ItemCapacityFord Part Name or
Equivalent Ford Part Number / Ford
Specification
Brake fluid Between MIN and
MAX on reservoir Motorcraft
High
Performance DOT 4 LV Motor Vehicle Brake Fluid WSS-M6C65-A2 /
ISO 4925 Class 6
Door latch, hood latch, auxiliary hood latch,
trunk latch, seat tracks. —
Multi-Purpose Grease
(Lithium grease) XG-4 or XL-5 or equivalent /
ESB-M1C93-B
Lock cylinder —Motorcraft
Penetrating
and Lock Lubricant XL-1 /
None
Electric Powertrain Assembly coolant
1
15.8 quarts (15.0L) Motorcraft
Orange
Antifreeze/Coolant Prediluted VC-3DIL-B (US)
CVC-3DIL-B (Canada) / WSS-M97B44-D2
Transmission fluid
2
1.32 quarts (1.25L) Motorcraft
MERCON LV AT F XT-10-QLV /
MERCON LV
Windshield washer fluid Fill as required Motorcraft
Premium
Windshield Washer Concentrate (US)Premium Quality
Windshield Washer Fluid (Canada) ZC-32-A (US)
CXC-37-(A, B, D, and F) (Canada) /
WSB-M8B16-A2/- -
1Add the coolant type originally equipped in your vehicle.2Using any transmission fluid other than those that meet the recommended specification may cause
internal transmission damage. Do not use Motorcraft Continuously Variable Chain Type Transmission
Fluid (blue). This vehicle uses Motorcraft MERCONLV approved ATF.
Maintenance and Specifications 337
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification LabelThe National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance Certification
Label be affixed to a vehicle and
prescribe where the Safety
Compliance Certification Label may be
located. The Safety Compliance
Certification Label shall be affixed to
either the door hinge pillar, the door
latch post, or the edge of the door
near the door latch, next to the
driver’s seating position.
338Maintenance and Specifications
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Vehicle identification number (VIN)The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information: 1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
Maintenance and Specifications 339
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

ACCESSORIES
For a complete listing of the accessories that are available for your
vehicle, please contact your dealer or visit our online store at:
Accessories.Ford.com(U.S. only).
Ford Custom Accessories are available for your vehicle through your
local Ford or Ford of Canada dealer. Ford Motor Company will repair or
replace any properly dealer-installed Ford Custom Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
• 12 months or 12,000 miles (20,000 km) (whichever occurs first), or
• the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
• When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
• The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
340 Accessories
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

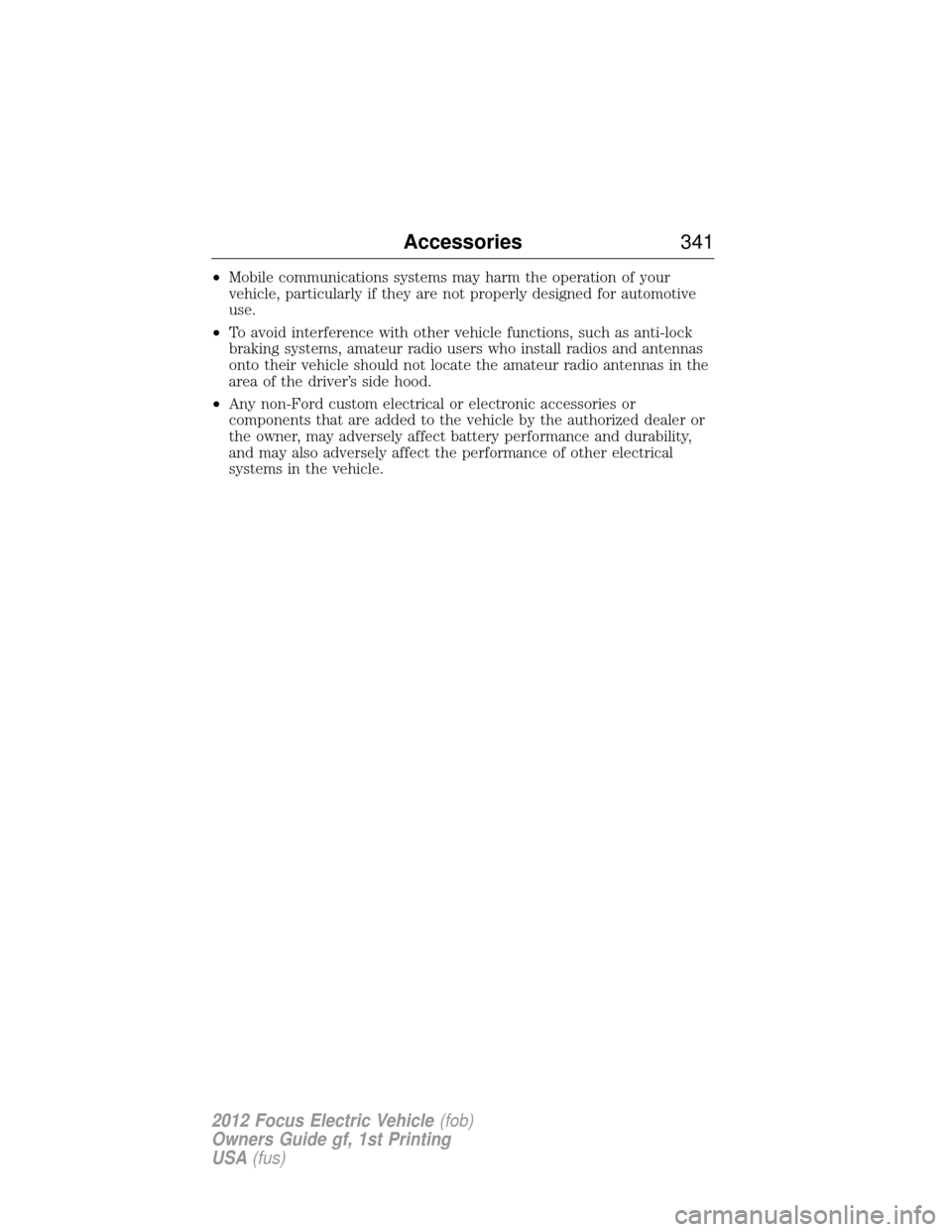

•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
• To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the amateur radio antennas in the
area of the driver’s side hood.
• Any non-Ford custom electrical or electronic accessories or
components that are added to the vehicle by the authorized dealer or
the owner, may adversely affect battery performance and durability,
and may also adversely affect the performance of other electrical
systems in the vehicle.
Accessories 341
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

FORD ESP EXTENDED SERVICE PLANS (U.S. ONLY)
More than 32 million Ford and Lincoln owners have discovered the
powerful protection of Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides “peace of mind”
protection beyond the New Vehicle Limited Warranty coverage.
Up to 500+ Covered Vehicle Components
There are four, new-vehicle Extended Service Plans with different levels
of coverage. Ask your dealer for details.
PremiumCare –Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered!
ExtraCare – Covers 113 components, and includes many high-tech
items.
BaseCare – Covers 84 components.
PowertrainCare – Covers 29 critical components.
Ford ESP is honored by all Ford and Lincoln Dealers in the U.S.
and Canada It’s the only extended service plan authorized and backed
by Ford Motor Company. That means you get:
• Reliable, quality service anywhere you go.
• Factory-trained technicians.
• Ford Authorized Parts used with every covered repair.
Rental car reimbursement
If your vehicle is kept overnight for covered repairs, you are
eligible for rental car coverage, including Bumper-to-Bumper warranty
repairs, or manufacturer’s recalls.
Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus, exclusive 24/7 roadside assistance, including:
• Towing, flat-tire change and battery jump starts.
• Out-of-fuel and lock-out assistance.
• Travel expense reimbursement for lodging, meals and rental car.
• Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.
342 Ford Extended Service Plan
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Ford ESP Can Quickly Pay for Itself
One service bill – the cost of parts and labor – can easily exceed the
price of your Ford ESP Service Contract. With Ford ESP, you minimize
your risk for unexpected repair bills and rising repair costs.
Avoid the rising cost of properly maintaining your vehicle!
Ford ESP also offers a Premium Maintenance Plan that covers items that
routinely wear out.
The coverage is prepaid, so you never have to worry about affording
your vehicle maintenance. It covers regular checkups, routine
inspections, preventive care and replacement of items that require
periodic attention fornormal “wear”:
• Wiper blades •Brake pads and linings
• Spark plugs (except
California) •
Shock absorbers
• Clutch disc •Belts and hoses
Contact your selling Ford or Lincoln dealership today so they can
customize a Ford Extended Service Plan that fits your driving lifestyle
and budget.
Interest free finance options available
Take advantage of our installment payment plan, just a 10% down
payment will provide you with an affordable no interest, no-fee payment
opportunity.
Ford Extended Service Plan 343
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

PROTECT YOURSELF FROM THE RISING COST OF VEHICLE REPAIRS WITH A FORD EXT\
ENDED SERVICE PLAN!
Name
To learn more, call our Ford ESP specialists at 800-367-3377, and don't forget to ask about our interest free payment
program, allowing you all the security and benefits Ford ESP has to offer w hile paying over time. Your pre-approved with
no credit checks,no hassles!
Or, complete the information below and mail this to:Ford
ESPP.O. Box 8072
Royal Oak, MI 48068-9933
ADDRESS APT. #
STATE ZIP
CITY
E-MAIL
(PLEASE PRINT)
344 Ford Extended Service Plan
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
