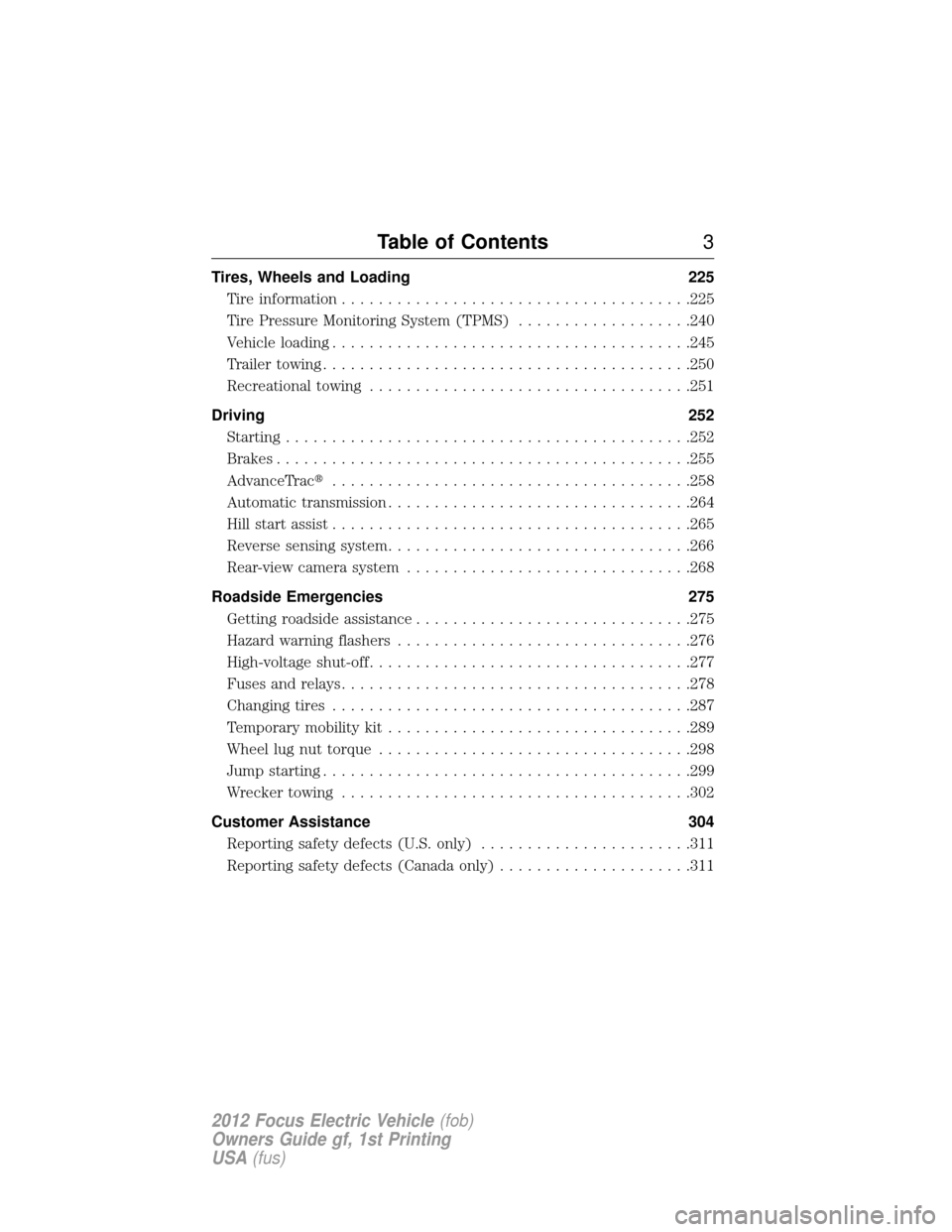

Tires, Wheels and Loading225
Tire information ......................................225
Tire Pressure Monitoring System (TPMS) ...................240
Vehicle loading .......................................245
Trailer towing ........................................250
Recreational towing ...................................251
Driving 252
Starting ........................................... .252
Brakes ............................................ .255
AdvanceTrac .......................................258
Automatic transmission .................................264
Hill start assist .......................................265
Reverse sensing system .................................266
Rear-view camera system ...............................268
Roadside Emergencies 275
Getting roadside assistance ..............................275
Hazard warning flashers ................................276
High-voltage shut-off ...................................277
Fuses and relays ......................................278
Changing tires .......................................287
Temporary mobility kit .................................289
Wheel lug nut torque ..................................298
Jump starting ........................................299
Wrecker towing ......................................302
Customer Assistance 304
Reporting safety defects (U.S. only) .......................311
Reporting safety defects (Canada only) .....................311
Table of Contents3
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

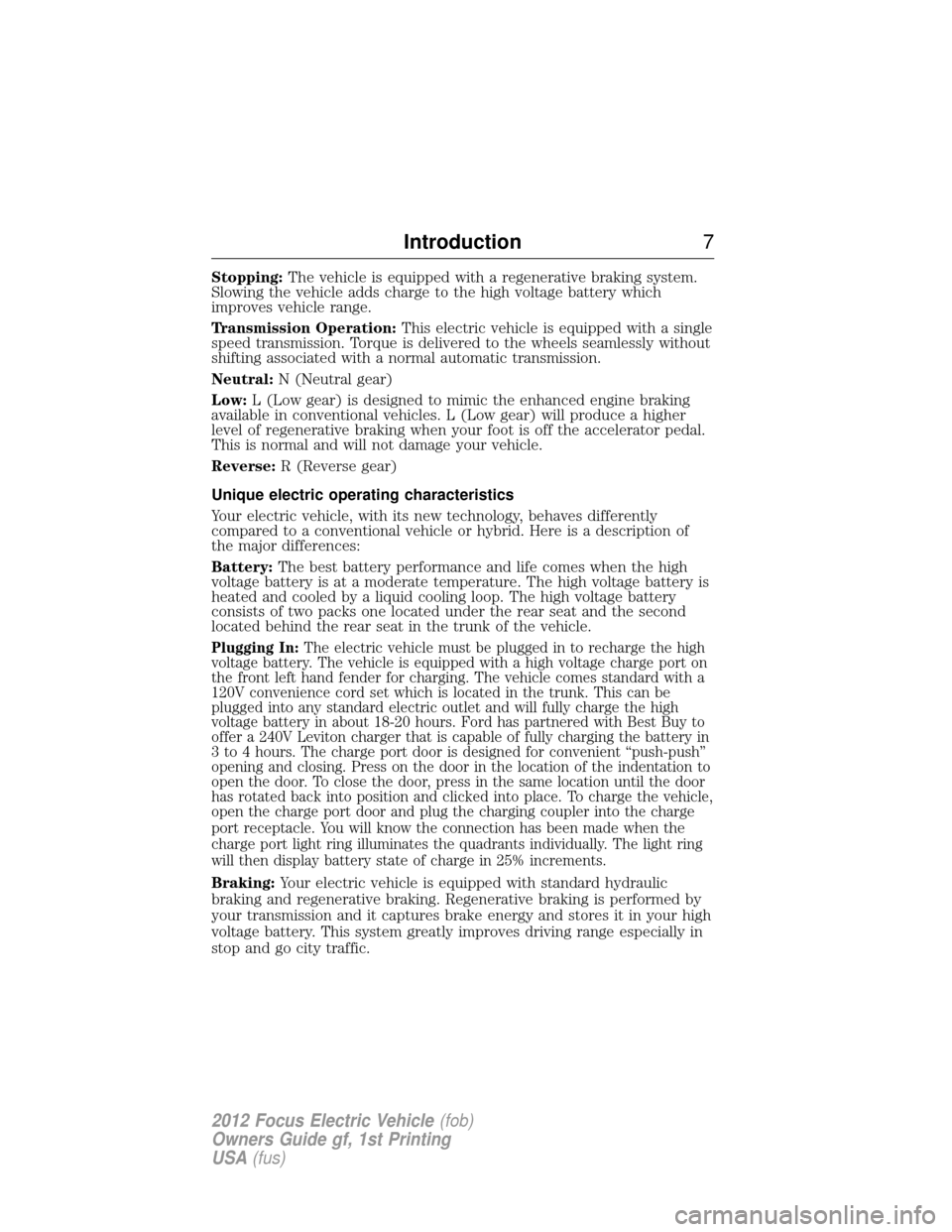

Stopping:The vehicle is equipped with a regenerative braking system.
Slowing the vehicle adds charge to the high voltage battery which
improves vehicle range.
Transmission Operation: This electric vehicle is equipped with a single
speed transmission. Torque is delivered to the wheels seamlessly without
shifting associated with a normal automatic transmission.
Neutral: N (Neutral gear)
Low: L (Low gear) is designed to mimic the enhanced engine braking
available in conventional vehicles. L (Low gear) will produce a higher
level of regenerative braking when your foot is off the accelerator pedal.
This is normal and will not damage your vehicle.
Reverse: R (Reverse gear)
Unique electric operating characteristics
Your electric vehicle, with its new technology, behaves differently
compared to a conventional vehicle or hybrid. Here is a description of
the major differences:
Battery: The best battery performance and life comes when the high
voltage battery is at a moderate temperature. The high voltage battery is
heated and cooled by a liquid cooling loop. The high voltage battery
consists of two packs one located under the rear seat and the second
located behind the rear seat in the trunk of the vehicle.
Plugging In: The electric vehicle must be plugged in to recharge the high
voltage battery. The vehicle is equipped with a high voltage charge port on
the front left hand fender for charging. The vehicle comes standard with a
120V convenience cord set which is located in the trunk. This can be
plugged into any standard electric outlet and will fully charge the high
voltage battery in about 18-20 hours. Ford has partnered with Best Buy to
offer a 240V Leviton charger that is capable of fully charging the battery in
3 to 4 hours. The charge port door is designed for convenient “push-push”
opening and closing. Press on the door in the location of the indentation to
open the door. To close the door, press in the same location until the door
has rotated back into position and clicked into place. To charge the vehicle,
open the charge port door and plug the charging coupler into the charge
port receptacle. You will know the connection has been made when the
charge port light ring illuminates the quadrants individually. The light ring
will then display battery state of charge in 25% increments.
Braking: Your electric vehicle is equipped with standard hydraulic
braking and regenerative braking. Regenerative braking is performed by
your transmission and it captures brake energy and stores it in your high
voltage battery. This system greatly improves driving range especially in
stop and go city traffic.
Introduction 7
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

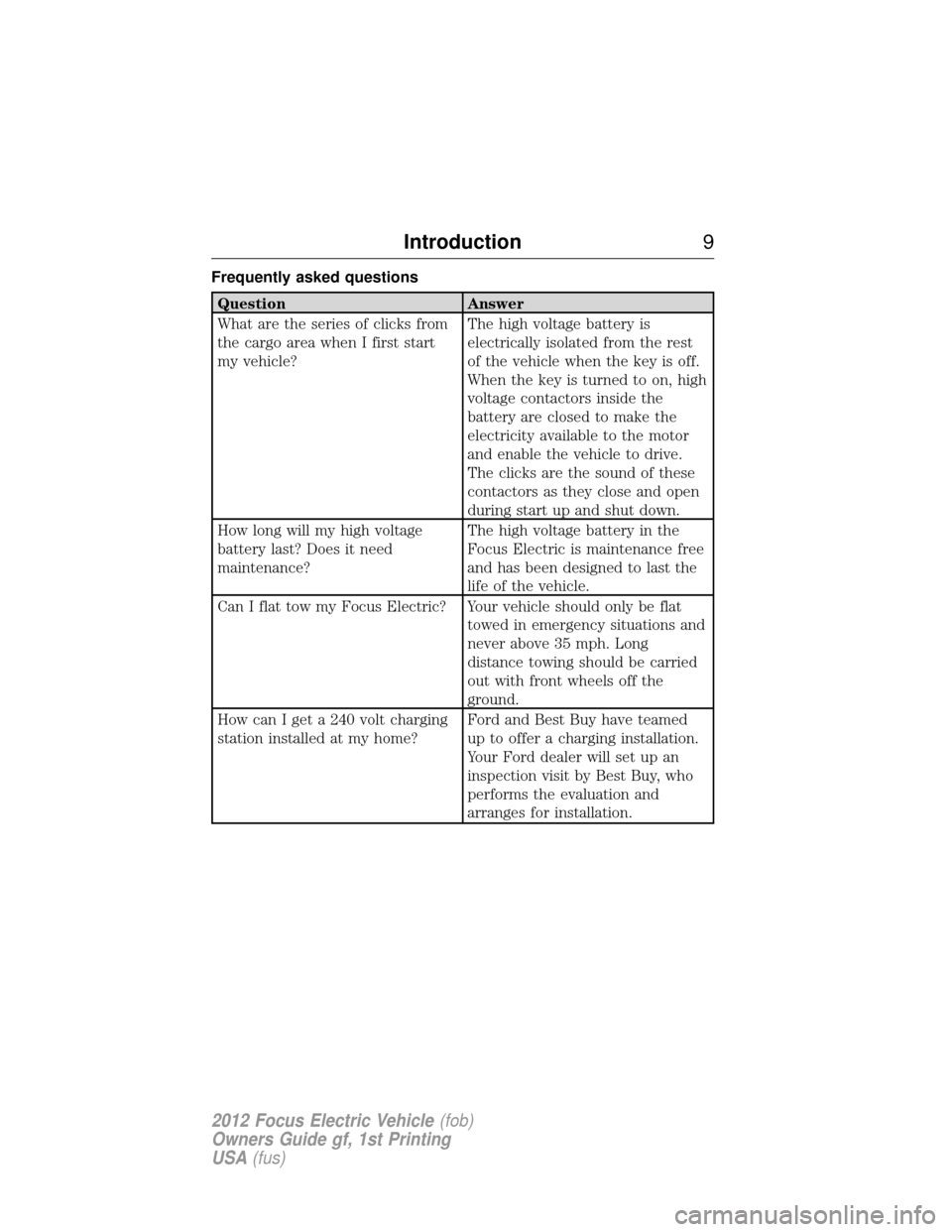

Frequently asked questions
QuestionAnswer
What are the series of clicks from
the cargo area when I first start
my vehicle? The high voltage battery is
electrically isolated from the rest
of the vehicle when the key is off.
When the key is turned to on, high
voltage contactors inside the
battery are closed to make the
electricity available to the motor
and enable the vehicle to drive.
The clicks are the sound of these
contactors as they close and open
during start up and shut down.
How long will my high voltage
battery last? Does it need
maintenance? The high voltage battery in the
Focus Electric is maintenance free
and has been designed to last the
life of the vehicle.
Can I flat tow my Focus Electric? Your vehicle should only be flat towed in emergency situations and
never above 35 mph. Long
distance towing should be carried
out with front wheels off the
ground.
How can I get a 240 volt charging
station installed at my home? Ford and Best Buy have teamed
up to offer a charging installation.
Your Ford dealer will set up an
inspection visit by Best Buy, who
performs the evaluation and
arranges for installation.
Introduction
9
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

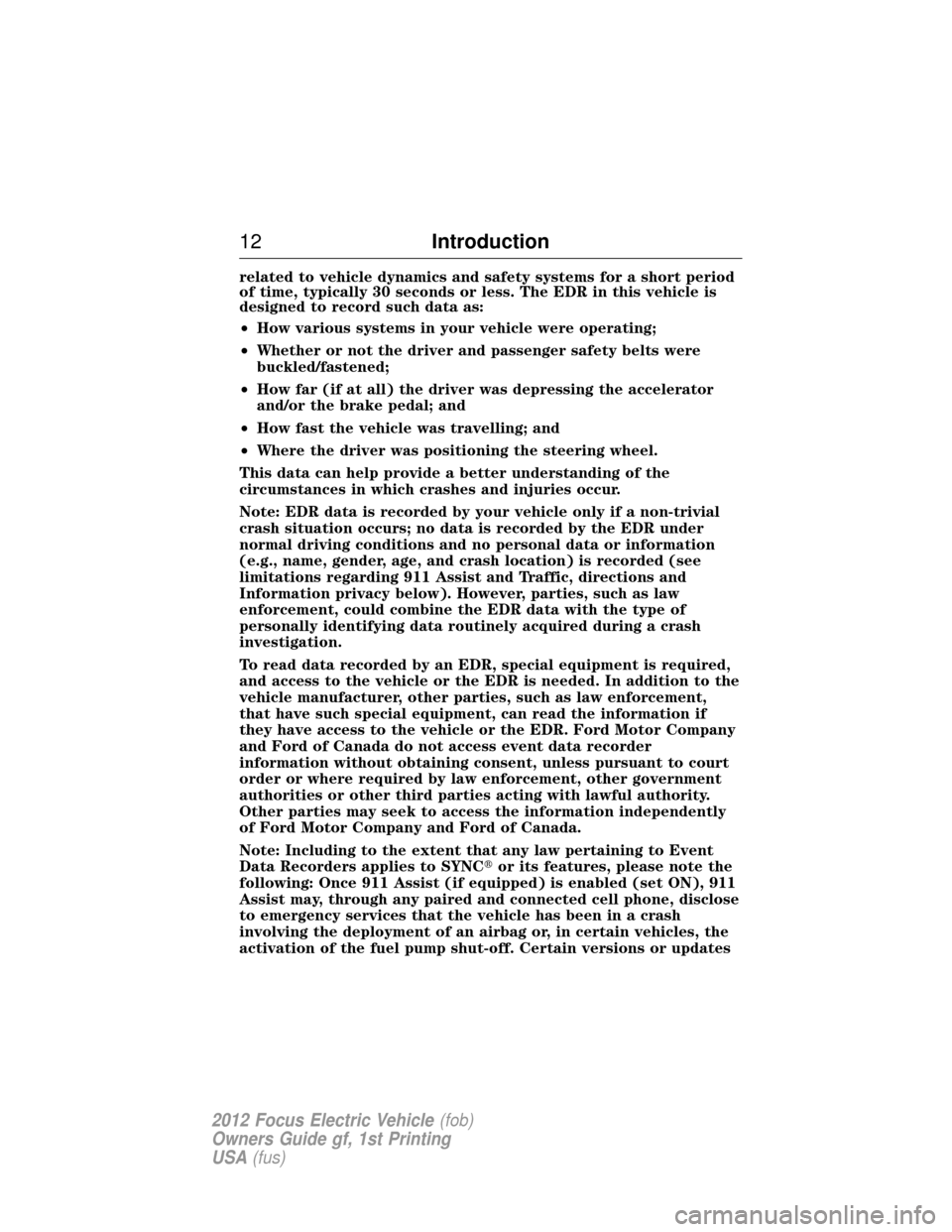

related to vehicle dynamics and safety systems for a short period
of time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
•How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were
buckled/fastened;
• How far (if at all) the driver was depressing the accelerator
and/or the brake pedal; and
• How fast the vehicle was travelling; and
• Where the driver was positioning the steering wheel.
This data can help provide a better understanding of the
circumstances in which crashes and injuries occur.
Note: EDR data is recorded by your vehicle only if a non-trivial
crash situation occurs; no data is recorded by the EDR under
normal driving conditions and no personal data or information
(e.g., name, gender, age, and crash location) is recorded (see
limitations regarding 911 Assist and Traffic, directions and
Information privacy below). However, parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an EDR, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement,
that have such special equipment, can read the information if
they have access to the vehicle or the EDR. Ford Motor Company
and Ford of Canada do not access event data recorder
information without obtaining consent, unless pursuant to court
order or where required by law enforcement, other government
authorities or other third parties acting with lawful authority.
Other parties may seek to access the information independently
of Ford Motor Company and Ford of Canada.
Note: Including to the extent that any law pertaining to Event
Data Recorders applies to SYNC or its features, please note the
following: Once 911 Assist (if equipped) is enabled (set ON), 911
Assist may, through any paired and connected cell phone, disclose
to emergency services that the vehicle has been in a crash
involving the deployment of an airbag or, in certain vehicles, the
activation of the fuel pump shut-off. Certain versions or updates
12 Introduction
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

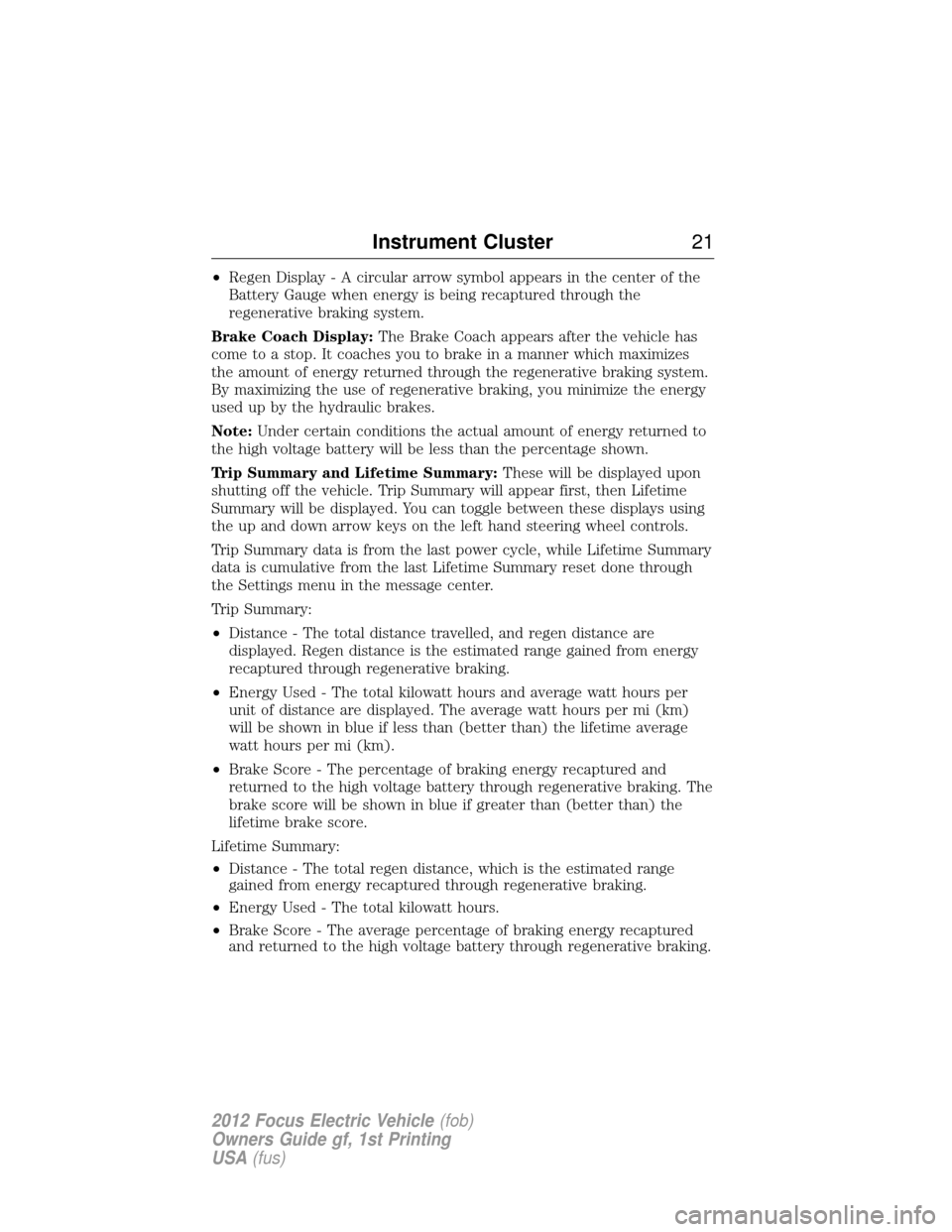

•Regen Display - A circular arrow symbol appears in the center of the
Battery Gauge when energy is being recaptured through the
regenerative braking system.
Brake Coach Display: The Brake Coach appears after the vehicle has
come to a stop. It coaches you to brake in a manner which maximizes
the amount of energy returned through the regenerative braking system.
By maximizing the use of regenerative braking, you minimize the energy
used up by the hydraulic brakes.
Note: Under certain conditions the actual amount of energy returned to
the high voltage battery will be less than the percentage shown.
Trip Summary and Lifetime Summary: These will be displayed upon
shutting off the vehicle. Trip Summary will appear first, then Lifetime
Summary will be displayed. You can toggle between these displays using
the up and down arrow keys on the left hand steering wheel controls.
Trip Summary data is from the last power cycle, while Lifetime Summary
data is cumulative from the last Lifetime Summary reset done through
the Settings menu in the message center.
Trip Summary:
• Distance - The total distance travelled, and regen distance are
displayed. Regen distance is the estimated range gained from energy
recaptured through regenerative braking.
• Energy Used - The total kilowatt hours and average watt hours per
unit of distance are displayed. The average watt hours per mi (km)
will be shown in blue if less than (better than) the lifetime average
watt hours per mi (km).
• Brake Score - The percentage of braking energy recaptured and
returned to the high voltage battery through regenerative braking. The
brake score will be shown in blue if greater than (better than) the
lifetime brake score.
Lifetime Summary:
• Distance - The total regen distance, which is the estimated range
gained from energy recaptured through regenerative braking.
• Energy Used - The total kilowatt hours.
• Brake Score - The average percentage of braking energy recaptured
and returned to the high voltage battery through regenerative braking.
Instrument Cluster 21
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

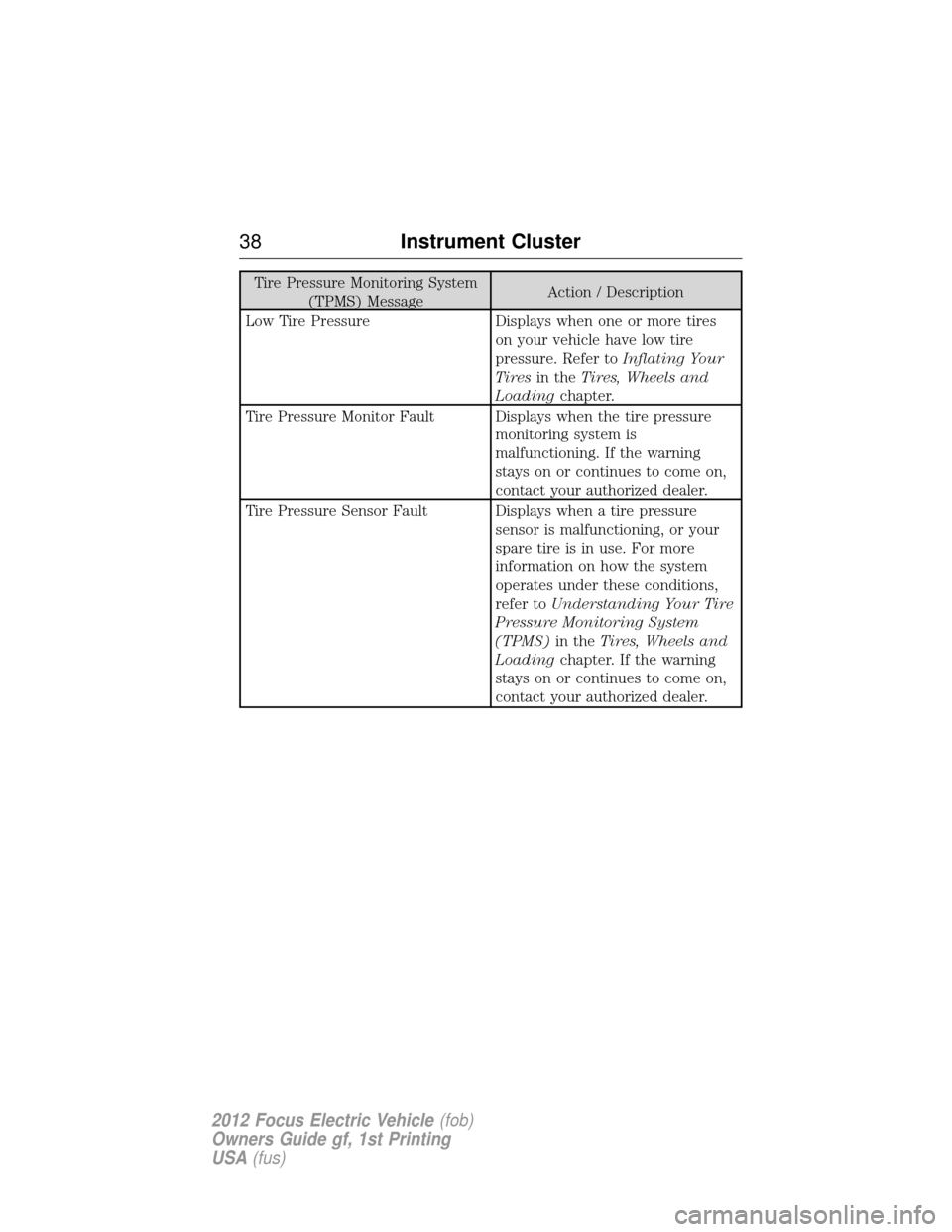

Tire Pressure Monitoring System(TPMS) Message Action / Description
Low Tire Pressure Displays when one or more tires on your vehicle have low tire
pressure. Refer toInflating Your
Tires in the Tires, Wheels and
Loading chapter.
Tire Pressure Monitor Fault Displays when the tire pressure monitoring system is
malfunctioning. If the warning
stays on or continues to come on,
contact your authorized dealer.
Tire Pressure Sensor Fault Displays when a tire pressure sensor is malfunctioning, or your
spare tire is in use. For more
information on how the system
operates under these conditions,
refer toUnderstanding Your Tire
Pressure Monitoring System
(TPMS) in theTires, Wheels and
Loading chapter. If the warning
stays on or continues to come on,
contact your authorized dealer.
38 Instrument Cluster
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

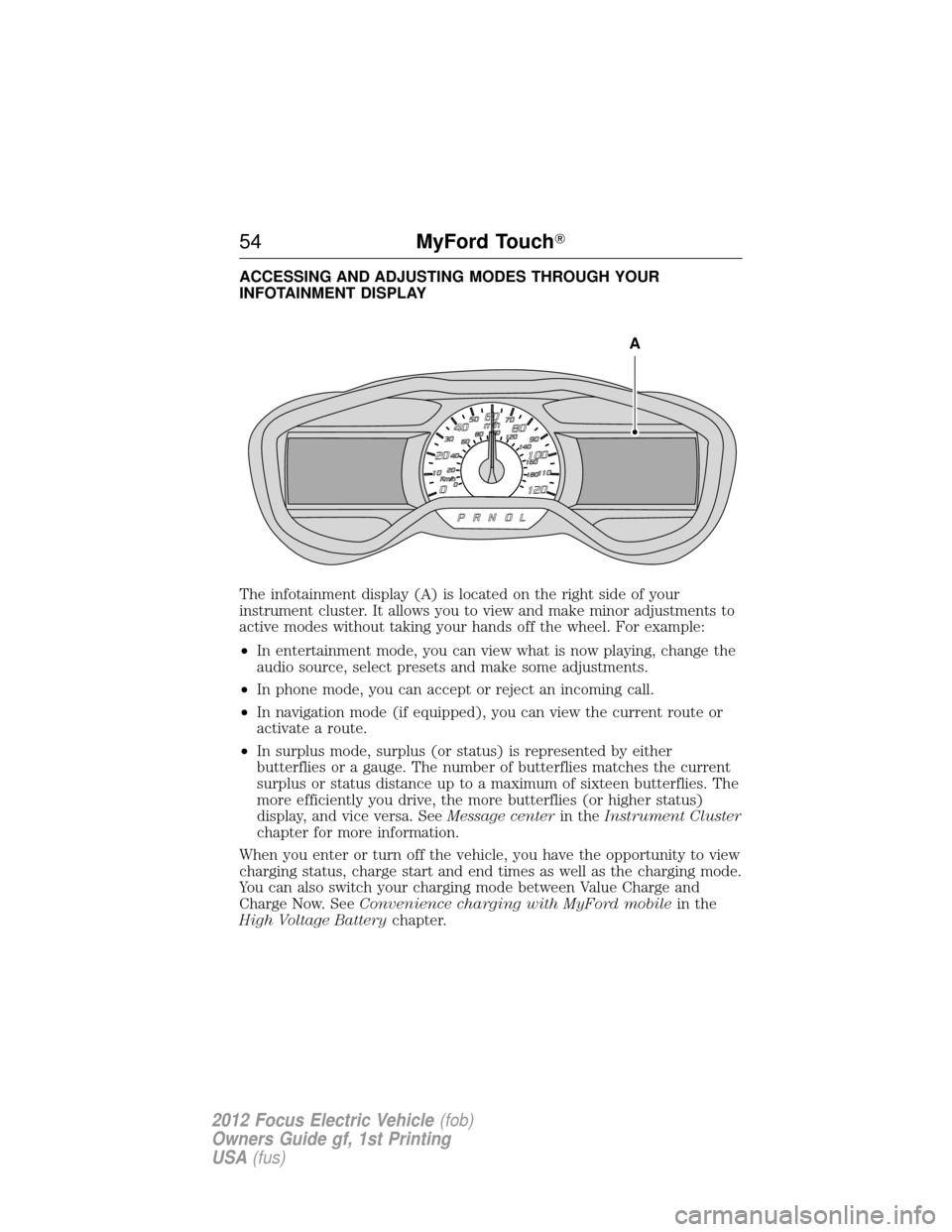

ACCESSING AND ADJUSTING MODES THROUGH YOUR
INFOTAINMENT DISPLAY
The infotainment display (A) is located on the right side of your
instrument cluster. It allows you to view and make minor adjustments to
active modes without taking your hands off the wheel. For example:
•In entertainment mode, you can view what is now playing, change the
audio source, select presets and make some adjustments.
• In phone mode, you can accept or reject an incoming call.
• In navigation mode (if equipped), you can view the current route or
activate a route.
• In surplus mode, surplus (or status) is represented by either
butterflies or a gauge. The number of butterflies matches the current
surplus or status distance up to a maximum of sixteen butterflies. The
more efficiently you drive, the more butterflies (or higher status)
display, and vice versa. See Message centerin theInstrument Cluster
chapter for more information.
When you enter or turn off the vehicle, you have the opportunity to view
charging status, charge start and end times as well as the charging mode.
You can also switch your charging mode between Value Charge and
Charge Now. See Convenience charging with MyFord mobile in the
High Voltage Battery chapter.
A
54MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
