2012 FORD FOCUS ELECTRIC wheel

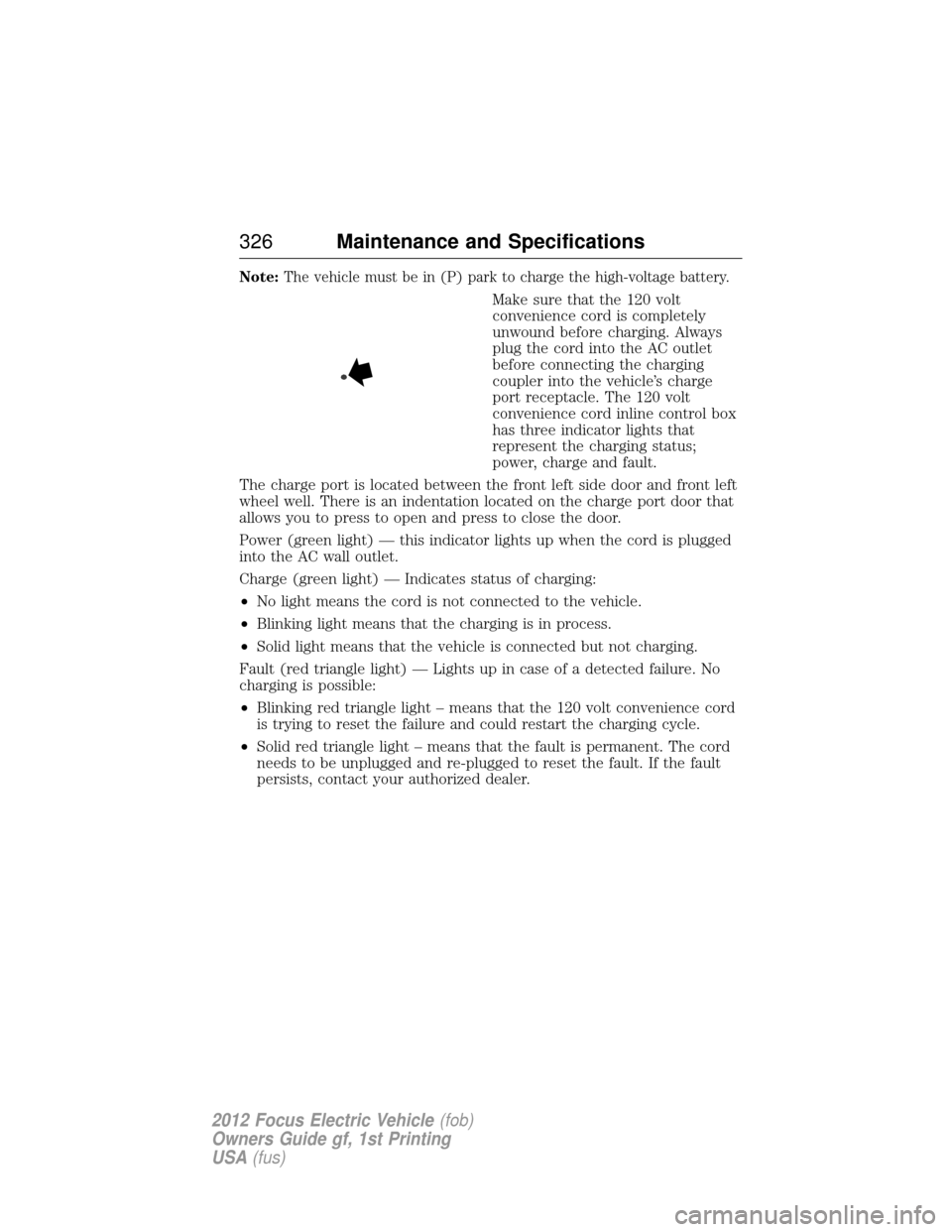

Note:The vehicle must be in (P) park to charge the high-voltage battery.
Make sure that the 120 volt
convenience cord is completely
unwound before charging. Always
plug the cord into the AC outlet
before connecting the charging
coupler into the vehicle’s charge
port receptacle. The 120 volt
convenience cord inline control box
has three indicator lights that
represent the charging status;
power, charge and fault.
The charge port is located between the front left side door and front left
wheel well. There is an indentation located on the charge port door that
allows you to press to open and press to close the door.
Power (green light) — this indicator lights up when the cord is plugged
into the AC wall outlet.
Charge (green light) — Indicates status of charging:
• No light means the cord is not connected to the vehicle.
• Blinking light means that the charging is in process.
• Solid light means that the vehicle is connected but not charging.
Fault (red triangle light) — Lights up in case of a detected failure. No
charging is possible:
• Blinking red triangle light – means that the 120 volt convenience cord
is trying to reset the failure and could restart the charging cycle.
• Solid red triangle light – means that the fault is permanent. The cord
needs to be unplugged and re-plugged to reset the fault. If the fault
persists, contact your authorized dealer.
326 Maintenance and Specifications
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

HIGH-VOLTAGE SERVICE DISCONNECT
The high-voltage service disconnect shuts off power from the
high-voltage battery.
Disabling the High-Voltage Battery
Note:There are two disconnect circuits in your vehicle. Disconnecting
one circuit will automatically disable the high-voltage battery.
To disable the high-voltage battery and stop all high-voltage electric
activity in the vehicle you can access one or both of the two high-voltage
disconnect circuits. To do this, you must unplug one of the circuits from
the circuit ports connected to the battery.
The lower battery high-voltage disconnect circuit is located by the right
rear wheel, accessible from under the car.
The upper battery high-voltage disconnect circuit is located behind the
rear fold-down seats near the left side of the vehicle, and is more easily
accessible than the lower battery circuit. To access this circuit:
1. Fold down the left rear seat.
2. Locate the access door. Press the
button on the top of the access
door to remove the plastic cover.
3. A cut out area will be visible
which allows your hand access to
the circuit.
4. Press the tab on the top center of
the circuit and rotate the handle
toward you. Press again to pull the
hand down.
5. Pull the handle toward you and remove the circuit from the vehicle to
disable the high-voltage battery.
Reactivating the High-Voltage Battery
Note: If you have manually disconnected your high-voltage shutoff
circuits you will need to reconnect the circuits before they can be
reactivated. The vehicle will detect if the electrical system is safe and
reactivate automatically.
330 Maintenance and Specifications
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Body
•Wash vehicle thoroughly to remove dirt, grease, oil, tar or mud from
exterior surfaces, rear-wheel housing and underside of front fenders.
See the Cleaning chapter for more information.
• Periodically wash vehicles stored in exposed locations.
• Touch-up raw or primed metal to prevent rust.
• Cover chrome and stainless steel parts with a thick coat of auto wax
to prevent discoloration. Rewax as necessary when the vehicle is
washed. See the Cleaningchapter for more information.
• Lubricate all hood, door and trunk lid hinges, and latches with a light
grade oil. See the Cleaningchapter for more information.
• Cover interior trim to prevent fading.
• Keep all rubber parts free from oil and solvents.
Cooling system
• Protect against freezing temperatures.
• When removing vehicle from storage, check coolant fluid level.
Confirm there are no cooling system leaks, and fluid is at the
recommended level.
Brakes
• Make sure brakes and parking brake are fully released.
Tires
• Maintain recommended air pressure.
Miscellaneous
• Make sure all linkages, cables, levers and pins under vehicle are
covered with grease to prevent rust.
• Move vehicles at least 25 feet (8 m) every 15 days to lubricate
working parts and prevent corrosion.
Maintenance and Specifications 335
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

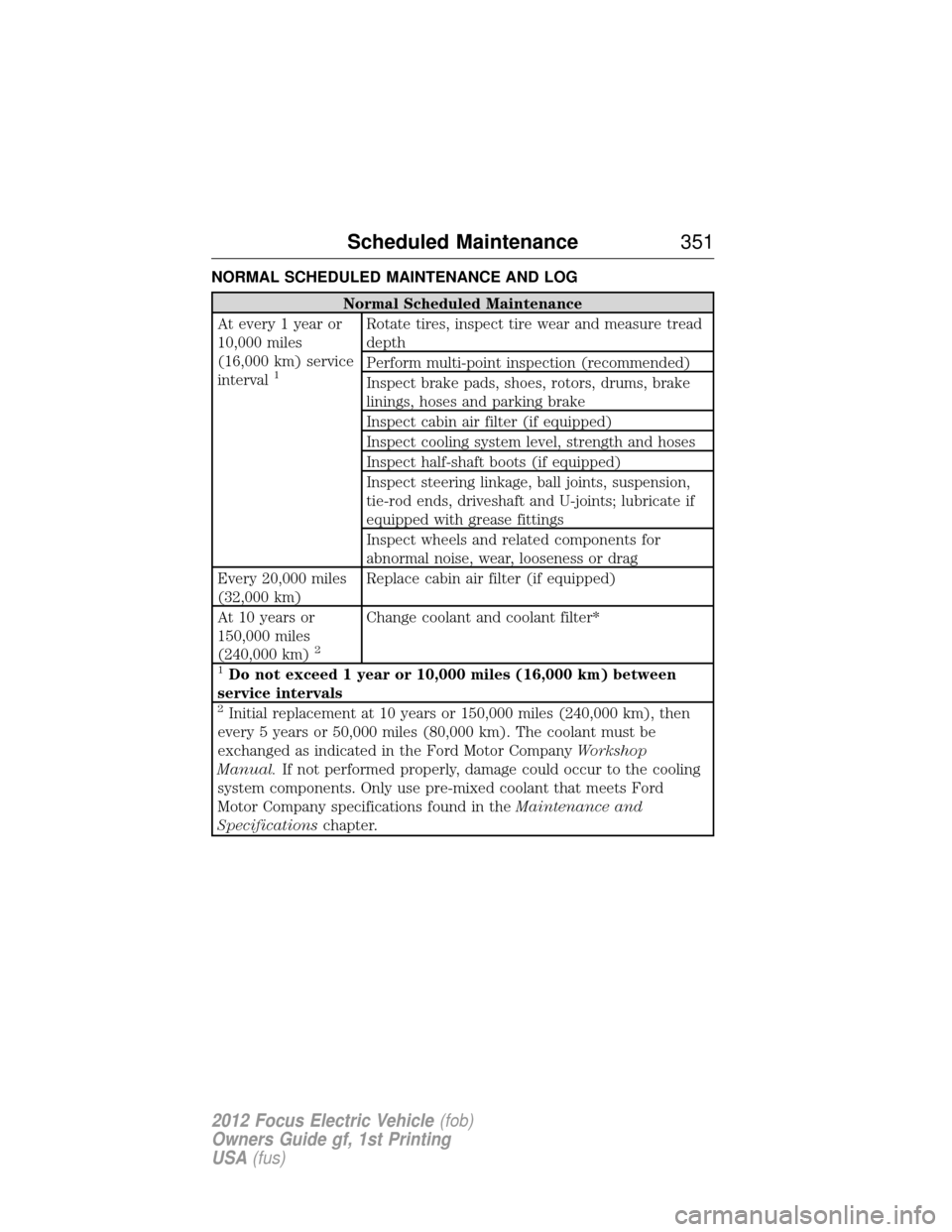

NORMAL SCHEDULED MAINTENANCE AND LOG
Normal Scheduled Maintenance
At every 1 year or
10,000 miles
(16,000 km) service
interval
1
Rotate tires, inspect tire wear and measure tread
depth
Perform multi-point inspection (recommended)
Inspect brake pads, shoes, rotors, drums, brake
linings, hoses and parking brake
Inspect cabin air filter (if equipped)
Inspect cooling system level, strength and hoses
Inspect half-shaft boots (if equipped)
Inspect steering linkage, ball joints, suspension,
tie-rod ends, driveshaft and U-joints; lubricate if
equipped with grease fittings
Inspect wheels and related components for
abnormal noise, wear, looseness or drag
Every 20,000 miles
(32,000 km) Replace cabin air filter (if equipped)
At 10 years or
150,000 miles
(240,000 km)
2
Change coolant and coolant filter*
1Do not exceed 1 year or 10,000 miles (16,000 km) between
service intervals
2Initial replacement at 10 years or 150,000 miles (240,000 km), then
every 5 years or 50,000 miles (80,000 km). The coolant must be
exchanged as indicated in the Ford Motor Company Workshop
Manual. If not performed properly, damage could occur to the cooling
system components. Only use pre-mixed coolant that meets Ford
Motor Company specifications found in the Maintenance and
Specifications chapter.
Scheduled Maintenance 351
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

End user notice
MicrosoftWindowsMobile for Automotive Important Safety
Information
This system Ford SYNC™ contains software that is licensed to
Manufacturer FORD MOTOR COMPANY by an affiliate of Microsoft
Corporation pursuant to a license agreement. Any removal, reproduction,
reverse engineering or other unauthorized use of the software from this
system in violation of the license agreement is strictly prohibited and
may subject you to legal action.
Read and follow instructions
Before using your Windows Automotive-based system, read and follow all
instructions and safety information provided in this end user manual
(“User’s Guide”). Not following precautions found in this User’s Guide
can lead to an accident or other serious consequences.
Keep User’s Guide in Vehicle
When kept in the vehicle, the User’s Guide will be a ready reference for
you and other users unfamiliar with the Windows Automotive-based
system. Please make certain that before using the system for the first
time, all persons have access to the User’s Guide and read its
instructions and safety information carefully.
WARNING: Operating certain parts of this system while driving
can distract your attention away from the road, and possibly
cause an accident or other serious consequences. Do not change
system settings or enter data non-verbally (using your hands) while
driving. Stop the vehicle in a safe and legal manner before attempting
these operations. This is important since while setting up or changing
some functions you might be required to distract your attention away
from the road and remove your hands from the wheel.
General operation
Voice Command Control
Functions within the Windows Automotive-based system may be
accomplished using only voice commands. Using voice commands while
driving allows you to operate the system without removing your hands
from the wheel.
Appendices 361
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

C
Capacities for refilling fluids ....337
Cargo management system ......154
CD ................................................39
CD player ....................................74
CD voice commands ...................74
Cell phone use ............................13
Changing a tire .........................287
Child safety seats ......................212attaching with tether
straps .......................................219
in front seat ............................213
in rear seat ..............................213
LATCH .....................................216
recommendations ...................210
Child safety seats -
booster seats .............................221
Cleaning the touchscreen ..........51
Cleaning your vehicle engine compartment ..............313
instrument panel ....................315
interior .....................................316
plastic parts ............................314
washing ....................................312
waxing .....................................312
wheels ......................................313
wiper blades ............................314
Climate control (see Air
conditioning or Heating) ..........123
Climate voice commands .........111
Clock ..........................................101
Console ......................................140
Controls steering column ......................148
Coolant ......................................331 checking and adding ..............331 refill capacities ........................337
specifications ..........................337
Cruise control
(see Speed control) ..................146
Customer Assistance ................275 Ford Extended Service
Plan ..................................342, 345
Getting assistance outside
the U.S. and Canada ..............308
Getting roadside assistance ...275
Getting the service you
need .........................................304
Ordering additional owner’s
literature .................................310
Utilizing the
Mediation/Arbitration
Program ...................................308
D
Daytime running lamps
(see Lamps) ..............................129
Dipstick automatic transmission
fluid ..........................................334
Display settings .........................101
Doors central unlocking ....................161
Driving under special
conditions ..................................266 through water .........................274
E
Emergencies, roadside jump-starting ..........................299
End user license agreement ....356
Engine cleaning ...................................313
service points ..........................320
Index 375
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Engine fan .................................320
Event data recording ..................11
F
Fan, Engine Cooling .........318, 320
Fleet MyKey programming ......155
Floor mats .........................152, 154
Fluid capacities .........................337
Fuses ..................................278–279
G
Garage door opener ..................148
Gauges .........................................20
H
Hazard flashers .........................276
HD Radio™ .................................64
Headlamps .................................128aiming ......................................130
autolamp system .....................128
bulb specifications ..................134
daytime running lights ...........129
flash to pass ............................129
high beam ...............................129
replacing bulbs .......................135
turning on and off ..................128
Head restraints .........................173
Heated steering wheel ..............109
Heating heating and air conditioning
system .....................................123
Help ............................................108
High-voltage battery charging ...................................325 service disconnect ..................330
High-voltage shut off ................277
Hill start assist ..........................265
Homelink wireless control
system ........................................149
Hood ..........................................319
How to use voice commands .....56
I
Ignition .......................................252
Illuminated visor mirror ...........140
Infant seats
(see Safety seats) .....................212
Infotainment display ...................54
Instrument panel cleaning ...................................315
cluster ........................................16
lighting up panel and
interior .....................................130
Intelligent Access Key ..............155
Intelligent Access with push
button start ...............................164
J
Jack ............................................287 positioning ...............................287
storage .....................................287
Jump-starting your vehicle ......299
K
Keyless entry system autolock ...................................162
Keys ...........................................171 positions of the ignition .........252
376 Index
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Setting your wallpaper .............101
Side air curtain .........................204
SIRIUSsatellite radio ...............69
SIRIUS satellite radio voice
commands ...................................71
SIRIUS Travel Link .....................93
SIRIUS Travel Link voice
commands ...................................95
SOS Post Crash Alert ...............207
Specification chart,
lubricants ...................................337
Speed control ............................146
Starting your vehicle ................252 jump starting ..........................299
push button start system .......253
Steering wheel controls ....................................148
tilting .......................................140
Supported media file types ........80
Supported player, media
formats and metadata
information ..................................80
SYNC Services ...........................90
System settings .........................103
T
Temperature control
(see Climate control) ...............109
Temporary mobility kit .............289
Text messaging ...........................86
Tilt steering wheel ....................140
Tire Pressure Monitoring
System (TPMS) Tires, Wheels and Loading ....240 Tires ...........................225–227, 287
alignment ................................234
care ..........................................230
changing ..................................287
checking the pressure ............230
inflating ...................................228
label .........................................239
replacing ..................................232
rotating ....................................234
safety practices .......................233
sidewall information ...............235
snow tires and chains ............244
spare tire .................................287
Temporary mobility kit ..........289
terminology .............................227
tire grades ...............................226
treadwear ........................226, 230
Touchscreen features
(climate) ....................................109
Towing .......................................250 recreational towing .................251
trailer towing ..........................250
wrecker ....................................302
Traffic preferences ...................116
Transmission brake-shift interlock (BSI) ....262
fluid, checking and adding
(automatic) .............................334
fluid, refill capacities ..............337
lubricant specifications ..........337
Trunk .........................................154 remote release ........................166
Turn signal ................................132
U
Universal garage door opener ..148
USB port ................................42, 75
Index 379
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
