2012 FORD FOCUS ELECTRIC wheel

Push Button Start SystemThe power button is located on the
instrument panel to the right of the
steering wheel.
Starting the Vehicle
Note: To start your vehicle, your intelligent access key (IA key) must be
present inside the vehicle.
1. Press the power button (for any length of time) while applying the brake pedal.
2. Release the parking brake, apply the brake, shift into gear and drive.
There may be areas inside your vehicle where the IA key is not detected.
If the message KEY NOT DETECTED appears on your multifunction
display when you press the power button, it may be necessary to move
your IA key to another area within the vehicle. The IA key may not be
detected near the roof (between the driver or passenger sun visor and
the roof, or in the overhead console area) or in the extreme corners of
the rear package tray, near your audio speakers. It is not recommended
that you stow the IA key in these locations. If you move the IA key to a
location where it has been detected before and you still see the KEY
NOT DETECTED message, your IA key’s battery may be low or you may
be in an area with excessive radio frequency interference. If this occurs,
you can use the backup method to start your vehicle.
Driving 253
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Switching the Vehicle Off When Not in P (Park)
It is recommended that you shift into the P (Park) position before
switching your vehicle off. If you switch your vehicle off with the shifter
in any position other than P (Park), the message SHIFT TO PARK is
displayed in the multifunction display. If the vehicle is left in this state,
your key in ignition chime activates when the driver door is opened, and
you may drain your vehicle’s battery. In order to avoid draining your
battery, it is recommended that you always shift to P (Park) before or
immediately after switching your vehicle off.
Absence of the Intelligent Access Key
Once the vehicle has started, the vehicle remains running until being
turned off by the power button, even if the IA key is no longer found in
the vehicle. Whenever a door is opened and then closed while the
vehicle is running, the system searches for an IA key inside the vehicle
and the multifunction display reads KEY OUTSIDE CAR if the IA key is
no longer present. This message is a reminder that someone else in the
vehicle may have taken the IA key when exiting the vehicle. If the IA key
is no longer present in the vehicle, you cannot start your vehicle outside
of the Fast Restart time (seeFast restartabove). It is important to be
aware of where your IA key is located in the vehicle, to avoid becoming
stranded without an IA key.
BRAKES
Occasional brake noise is normal. If a metal-to-metal, continuous grinding
or continuous squeal sound is present, the brake linings may be worn-out
and should be inspected by an authorized dealer. If the vehicle has
continuous vibration or shudder in the steering wheel while braking, the
vehicle should be inspected by an authorized dealer.
Refer toWarning lights and indicators in theInstrument
Cluster chapter for information on the brake system warning
light.
Under normal operating conditions, brake dust may accumulate on the
wheels. Some brake dust is inevitable as brakes wear and does not
contribute to brake noise. The use of modern friction materials with
emphasis on improved performance and environmental considerations
can lead to more dust than in the past. Brake dust can be cleaned by
weekly washing with soapy water and a soft sponge. Heavier deposits can
be removed with Motorcraft Wheel and Tire Cleaner. See the Cleaning
chapter for more information.
Driving 255
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Four-wheel anti-lock brake system (ABS)
Your vehicle is equipped with an anti-lock braking system (ABS). This
system helps you maintain steering control during emergency stops by
keeping the brakes from locking. Noise from the ABS pump motor and
brake pedal pulsation may be observed during ABS braking and the
brake pedal may suddenly travel a little farther as soon as ABS braking is
done and normal brake operation resumes. These are normal
characteristics of the ABS and should be no reason for concern.
Using ABS
When hard braking is required, apply continuous force on the brake
pedal. Do not pump the brake pedal since this will reduce the
effectiveness of the ABS and will increase your vehicle’s stopping
distance. The ABS will be activated immediately, allowing you to retain
steering control during hard braking and on slippery surfaces. However,
the ABS does not decrease stopping distance.
Brake assist
The brake assist system provides full braking force during panic braking
situations. It detects a rapid application of the brake pedal and uses the
ABS system to achieve maximum braking pressure. Once a panic brake
application is detected, the system will remain activated as long as the
brake pedal is pressed or ABS is engaged. The system is deactivated by
either releasing the brake pedal or coming to a complete stop. When the
system activates, noise from the ABS pump motor and brake pedal
pulsation may be observed; this is normal.
ABS warning lampThe ABS lamp in the instrument cluster momentarily
illuminates when the ignition is turned on. If the light does not
illuminate during start up, remains on or flashes, the ABS may
be disabled and may need to be serviced.
Even when the ABS is disabled, normal braking is still effective.
(If your BRAKE warning lamp illuminates with the parking
brake released, have your brake system serviced immediately.)
Regenerative braking system
Your vehicle uses a feature known as regenerative braking. This is used
to simulate the engine braking of an internal combustion engine and
assist the standard brake system while recovering some of the energy of
motion and storing it in the battery to improve fuel economy. The
standard brake system is designed to fully stop the car if regenerative
256 Driving
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

WARNING:Always set the parking brake fully and make sure
that the gearshift is securely latched in P (Park).
WARNING: If the parking brake is fully released, but the brake
warning lamp remains illuminated, the brakes may not be
working properly. See your authorized dealer as soon as possible.
ADVANCETRAC STABILITY ENHANCEMENT SYSTEM
The AdvanceTrac system provides the following stability enhancement
features for certain driving situations:
• Traction control system (TCS), which functions to help avoid
drive-wheel spin and loss of traction.
• Electronic stability control (ESC), which functions to help avoid skids
or lateral slides
WARNING: Vehicle modifications involving braking system,
aftermarket roof racks, suspension, steering system, tire
construction and/or wheel/tire size may change the handling
characteristics of the vehicle and may adversely affect the performance
of the AdvanceTrac system. In addition, installing any stereo
loudspeakers may interfere with and adversely affect the AdvanceTrac
system. Install any aftermarket stereo loudspeaker as far as possible
from the front center console, the tunnel, and the front seats in order
to minimize the risk of interfering with the AdvanceTrac sensors.
Reducing the effectiveness of the AdvanceTrac system could lead to
an increased risk of loss of vehicle control, vehicle rollover, personal
injury and death.
258 Driving
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Traction control system (TCS)
Traction control is a driver aid feature that helps your vehicle maintain
traction of the wheels, typically when driving on slippery and/or hilly
road surfaces, by detecting and controlling wheel spin.
Excessive wheel spin is controlled in two ways, which may work
separately or in tandem, motor traction control and brake traction
control. Motor traction control works to limit drive-wheel spin by
momentarily reducing motor power. Brake traction control works to limit
wheel spin by momentarily applying the brakes to the wheel that is
slipping. Traction control is most active at low speeds.
During TCS events, the stability control light in the instrument cluster
will flash.
If the TCS is activated excessively in a short period of time, the braking
portion of the system may become temporarily disabled to allow the
brakes to cool down. In this situation, TCS will use only motor power
reduction or transfer to help control the wheels from over-spinning.
When the brakes have cooled down, the system will regain all features.
Anti-lock braking, and ESC are not affected by this condition and will
continue to function during the cool-down period.
Electronic stability control (ESC)
Electronic stability control (ESC) may enhance your vehicle’s directional
stability during adverse maneuvers, for example when cornering severely
or avoiding objects in the roadway. ESC operates by applying brakes to
one or more of the wheels individually and, if necessary, reducing power
if the system detects that the vehicle is about to skid or slide laterally.
During ESC events, the stability control light in the instrument cluster
will flash.
Certain adverse driving maneuvers may activate the ESC system, which
include but are not limited to:
•Taking a turn too fast
• Maneuvering quickly to avoid an accident, pedestrian or obstacle
• Driving over a patch of ice or other slippery surfaces
• Changing lanes on a snow-rutted road
• Entering a snow-free road from a snow-covered side street, or vice
versa
• Entering a paved road from a gravel road, or vice versa
260 Driving
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Switching off traction control
If the vehicle is stuck in snow, mud or sand, and seems to lose power,
switching off the traction control feature of the AdvanceTracsystem
may be beneficial because the wheels are allowed to spin. This will
restore full power and will enhance momentum through the obstacle.
The traction control system can be turned off through the message
center. See Message center in theInstrument Cluster chapter for more
information. If you switch off the traction control, the stability control off
light will illuminate steadily. Selecting traction control on will turn off the
stability control off light.
Steering
Your vehicle is equipped with an Electric Power Steering (EPS) system.
There is no fluid reservoir to check or fill.
If your vehicle loses electrical power while you are driving (or if the
ignition is turned off), you can steer the vehicle manually, but it takes
more effort. Under extreme usage conditions, the steering effort may
increase. This occurs to prevent overheating and permanent damage to
your steering system. If this should occur, you will neither lose the ability
to steer the vehicle manually nor will it cause permanent damage.
Typical steering and driving maneuvers will allow the system to cool and
steering assist will return to normal.
The EPS system has diagnostic checks that continuously monitor the
EPS system to ensure proper operation. When a system error is
detected, the following message STEERING ASSIST FAULT SERVICE
REQUIRED, STEERING FAULT SERVICE NOW, STEERING LOSS STOP
SAFELY may display in the multifunction display. Refer to the Message
center in theInstrument Cluster chapter for more information.
WARNING:The EPS has diagnostics checks that continuously
monitor the EPS to ensure proper operation of the electronic
system. When an electronic error is detected, the message STEERING
ASSIST FAULT SERVICE REQUIRED will be displayed in the message
center. If this happens, stop the vehicle in a safe place and turn off the
engine. After at least 10 seconds, reset the system by restarting the engine,
and watch the message center for STEERING ASSIST FAULT SERVICE
REQUIRED. If the message returns, or returns while driving, take the
vehicle to your dealer to have it checked. With the message displayed, the
steering assist is turned off, making the vehicle harder to steer.
Driving 261
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

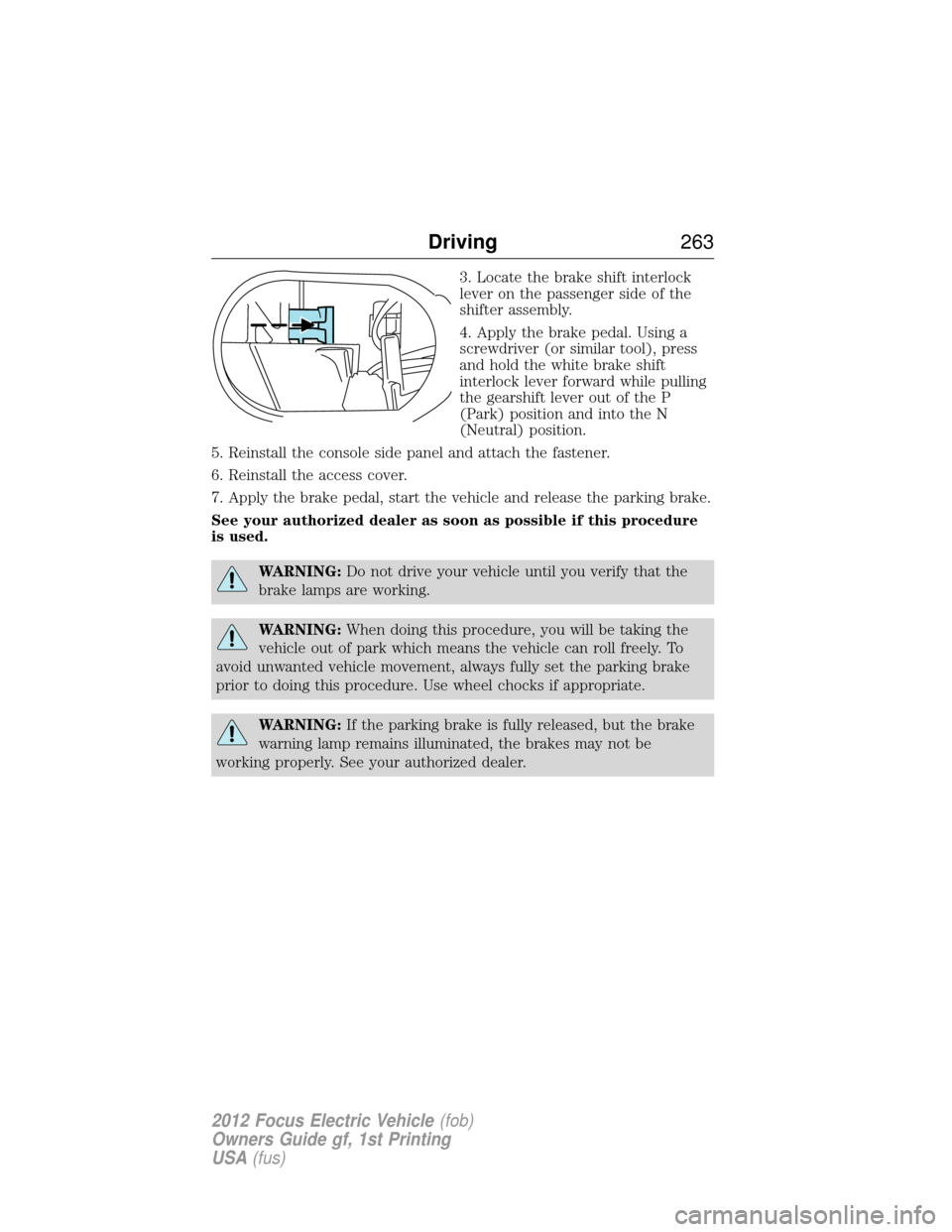

3. Locate the brake shift interlock
lever on the passenger side of the
shifter assembly.
4. Apply the brake pedal. Using a
screwdriver (or similar tool), press
and hold the white brake shift
interlock lever forward while pulling
the gearshift lever out of the P
(Park) position and into the N
(Neutral) position.
5. Reinstall the console side panel and attach the fastener.
6. Reinstall the access cover.
7. Apply the brake pedal, start the vehicle and release the parking brake.
See your authorized dealer as soon as possible if this procedure
is used.
WARNING: Do not drive your vehicle until you verify that the
brake lamps are working.
WARNING: When doing this procedure, you will be taking the
vehicle out of park which means the vehicle can roll freely. To
avoid unwanted vehicle movement, always fully set the parking brake
prior to doing this procedure. Use wheel chocks if appropriate.
WARNING: If the parking brake is fully released, but the brake
warning lamp remains illuminated, the brakes may not be
working properly. See your authorized dealer.
Driving 263
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

SINGLE SPEED AUTOMATIC TRANSMISSION
WARNING:Always set the parking brake fully and make sure
the gearshift lever is latched in P (Park).
The single-speed transmission is built specifically to handle the high RPM
range that comes with an all-electric motor. P (Park)
Note:The vehicle can only be
started in P (Park).
This position locks the transmission
and prevents the front wheels from
turning.
To put your vehicle in gear:
• Press the brake pedal.
• Move the gearshift lever into the
desired gear.
To put your vehicle in P (Park):
• Come to a complete stop.
• Move the gearshift lever and securely latch it in P (Park).
R (Reverse)
With the gearshift lever in R (Reverse), the vehicle will move backward.
Always come to a complete stop before shifting into and out of R (Reverse).
N (Neutral)
With the gearshift lever in N (Neutral), the vehicle can be started and is
free to roll. Hold the brake pedal down while in this position.
D (Drive)
The normal driving position for your vehicle. The transmission operates
in a single gear built specifically to handle the high RPM range that
comes with an all-electric motor.
L (Low)
• Provides maximum motor braking.
• Is not intended for use under extended or normal driving conditions
and results in less miles per charge.
• The transmission may be shifted into L (Low) at any vehicle speed.
PRNDL
264 Driving
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
