2012 FORD FOCUS ELECTRIC wheel

Use the OK and arrow buttons on
the right side of your steering wheel
to scroll through the available
modes:
Entertainment
Phone
Navigation Surplus
You can make selections from the menu by using the OK button. The
selection menu expands and you are allowed different options.
• Press the up and down arrows to scroll through the modes.
• Press the right arrow to enter the mode.
• Press the left or right arrows to make adjustments within the chosen
mode.
• Press OK to confirm your selection.
Note: If your vehicle is not equipped with navigation, Compass appears
in the display instead of Navigation. If you press the right arrow to go
into the Compass menu, you can see the compass graphic. The compass
displays the direction in which the vehicle is traveling, not “true”
direction (i.e. if the vehicle is traveling west, the middle of the compass
graphic displays west; north displays to the left of west though its “true”
direction is to the right of west.)
MyFord Touch 55
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

USING VOICE RECOGNITION
This system helps you control many features using voice commands. This
allows you to keep your hands on the wheel and focus on what is in
front of you. The system provides feedback through audible tones,
prompts, questions and spoken confirmations depending on the situation
and the chosen level of interaction (voice settings).
The system also asks short questions (confirmation prompts) when it is
not sure of your request or when there are multiple possible responses
to your request.
When using voice commands, words and icons may also appear in the
lower left status bar indicating the status of the voice session (i.e.,
listening, success, failed, paused or try again).
How to Use Voice Commands with Your SystemPress the voice icon; after the tone, speak your command
clearly.
These commands can be said at any time “Cancel”“Exit”
“Go back”
“List of commands” “Main menu”“Next page”
“Previous page”
“What can I say?” “Help”
What Can I Say?
To access the available voice commands for the current session, do one
of the following:
• During a voice session, press the lower left status bar of the screen,
OR
• Say “What can I say?” for an on-screen listing of the possible voice
commands associated with your current voice session, OR
• Press the voice icon; after the tone, say “Help” for an audible list of
possible voice commands.
56 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

“INTERSECTION”“Enter city”
“Change city” “Enter state”
“Change state”
The dual mode feature is also available when the voice system displays a
list of items to pick from during a voice session, where you would be
able to touch the line item or say “Line 2”. If a command is not
understood or there are multiple options, the system returns a list for
you to choose from.
ENTERTAINMENT
Your system offers many media options. You can access these options
using the touchscreen or voice commands.
Browsing Device Content
When listening to any type of audio, you can browse through other
devices without having to change sources. For example, if you are
currently listening to the radio, you can browse all the artists that are
stored on your USB device. Press the voice icon on the steering wheel. When prompted,
you can say:
“BROWSE” within devices “Browse”1
“Browse games”2
“Browse channels”2
“Browse CD track list”
“Browse Sirius channel guide”2
“Browse SD card” “Browse USB” “Help”
1If you have said “Browse”, you can then say any commands in the
following chart.
2If equipped with SIRIUS satellite radio.
MyFord Touch 61
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

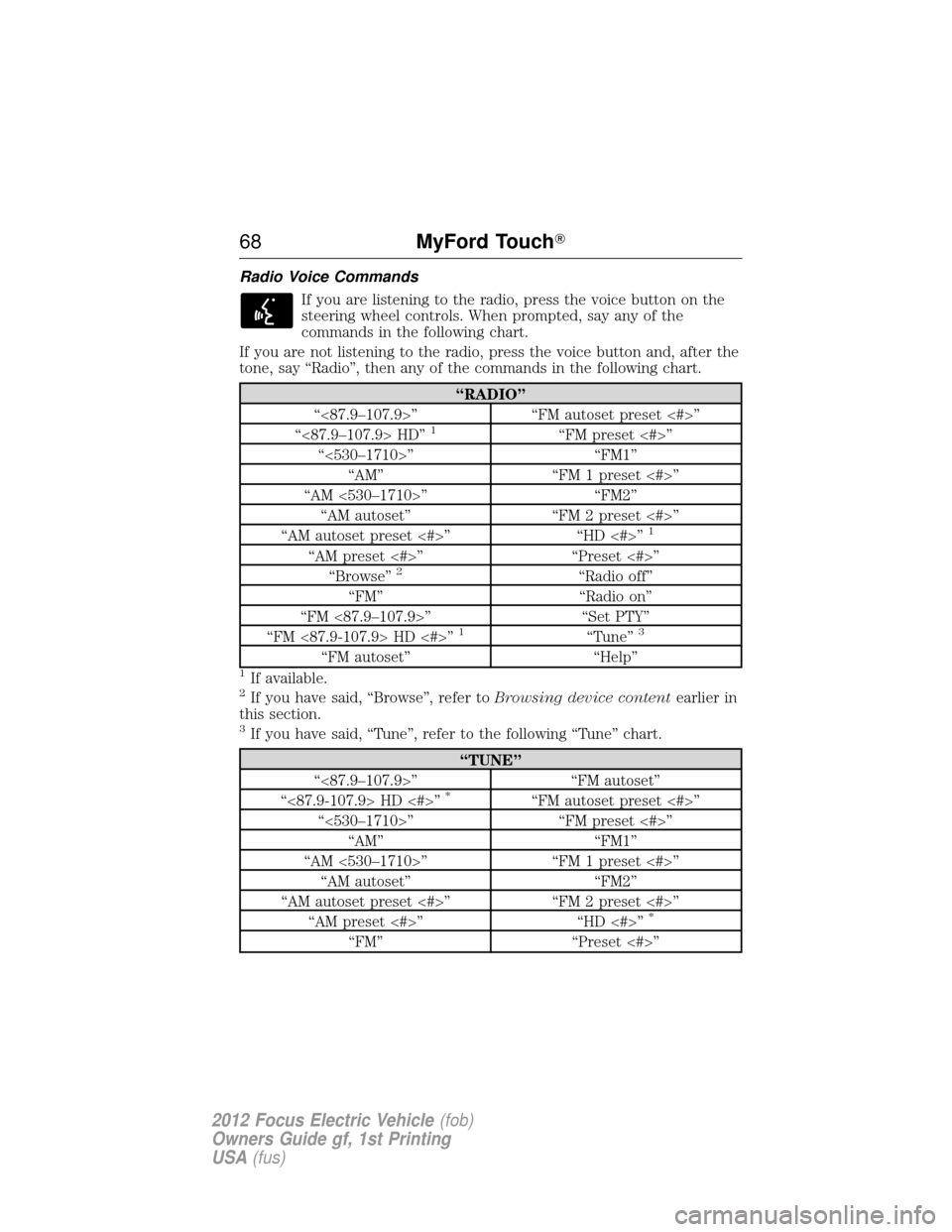

Radio Voice CommandsIf you are listening to the radio, press the voice button on the
steering wheel controls. When prompted, say any of the
commands in the following chart.
If you are not listening to the radio, press the voice button and, after the
tone, say “Radio”, then any of the commands in the following chart.
“RADIO”
“<87.9–107.9>” “FM autoset preset <#>”
“<87.9–107.9> HD”
1“FM preset <#>”
“<530–1710>” “FM1” “AM” “FM 1 preset <#>”
“AM <530–1710>” “FM2” “AM autoset” “FM 2 preset <#>”
“AM autoset preset <#>” “HD <#>”
1
“AM preset <#>” “Preset <#>”
“Browse”2“Radio off”
“FM” “Radio on”
“FM <87.9–107.9>” “Set PTY”
“FM <87.9-107.9> HD <#>”
1“Tune”3
“FM autoset” “Help”1If available.2If you have said, “Browse”, refer toBrowsing device contentearlier in
this section.
3If you have said, “Tune”, refer to the following “Tune” chart.
“TUNE”
“<87.9–107.9>” “FM autoset”
“<87.9-107.9> HD <#>”
*“FM autoset preset <#>”
“<530–1710>” “FM preset <#>” “AM” “FM1”
“AM <530–1710>” “FM 1 preset <#>” “AM autoset” “FM2”
“AM autoset preset <#>” “FM 2 preset <#>” “AM preset <#>” “HD <#>”
*
“FM” “Preset <#>”
68MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

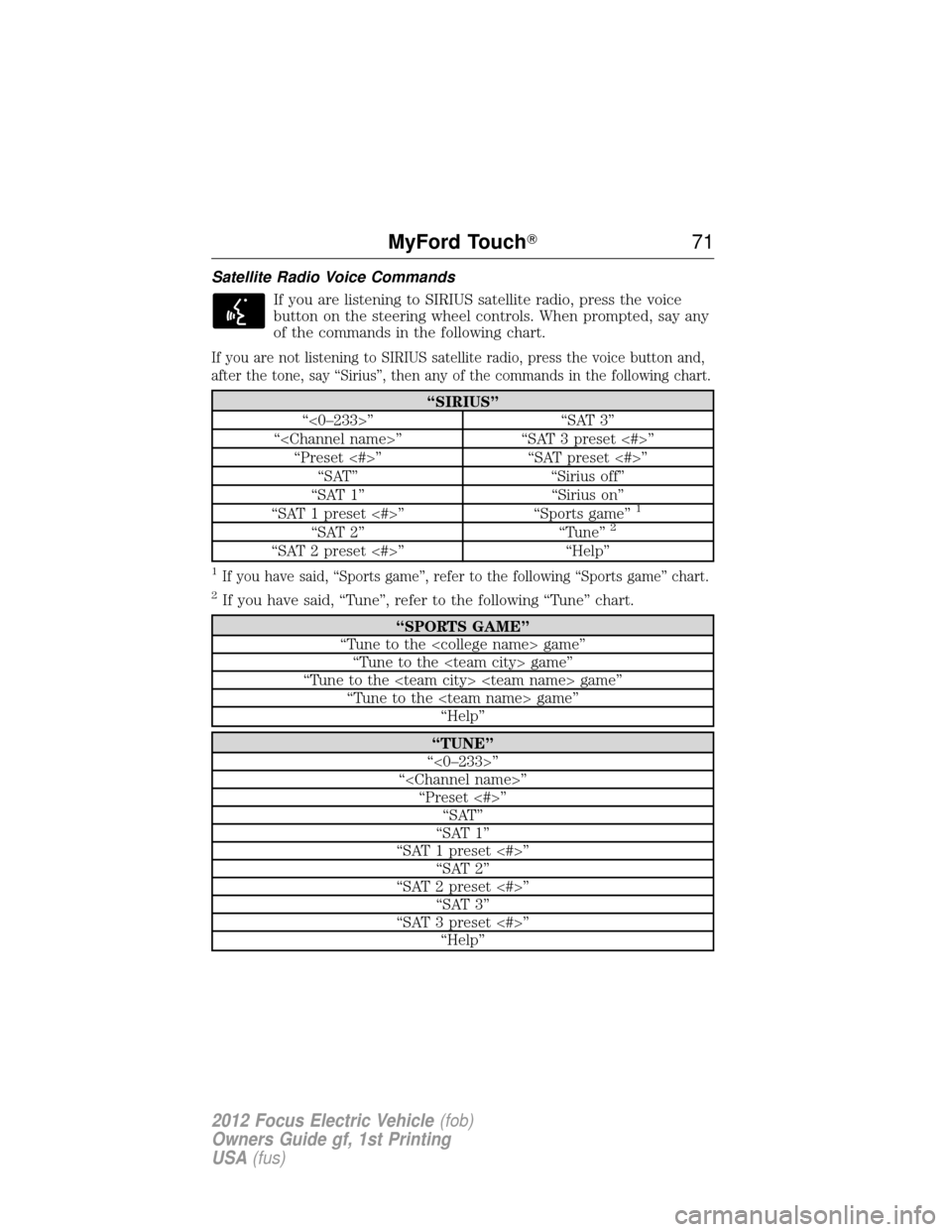

Satellite Radio Voice CommandsIf you are listening to SIRIUS satellite radio, press the voice
button on the steering wheel controls. When prompted, say any
of the commands in the following chart.
If you are not listening to SIRIUS satellite radio, press the voice button and,
after the tone, say “Sirius”, then any of the commands in the following chart.
“SIRIUS”
“<0–233>” “SAT 3”
“” “SAT 3 preset <#>”
“Preset <#>” “SAT preset <#>”
“SAT” “Sirius off”
“SAT 1” “Sirius on”
“SAT 1 preset <#>” “Sports game”
1
“SAT 2”“Tune”2
“SAT 2 preset <#>” “Help”
1If you have said, “Sports game”, refer to the following “Sports game” chart.
2If you have said, “Tune”, refer to the following “Tune” chart.
“SPORTS GAME”
“Tune to the game” “Tune to the game”
“Tune to the game” “Tune to the game” “Help”
“TUNE”
“<0–233>”
“” “Preset <#>” “SAT”
“SAT 1”
“SAT 1 preset <#>” “SAT 2”
“SAT 2 preset <#>” “SAT 3”
“SAT 3 preset <#>” “Help”
MyFord Touch 71
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

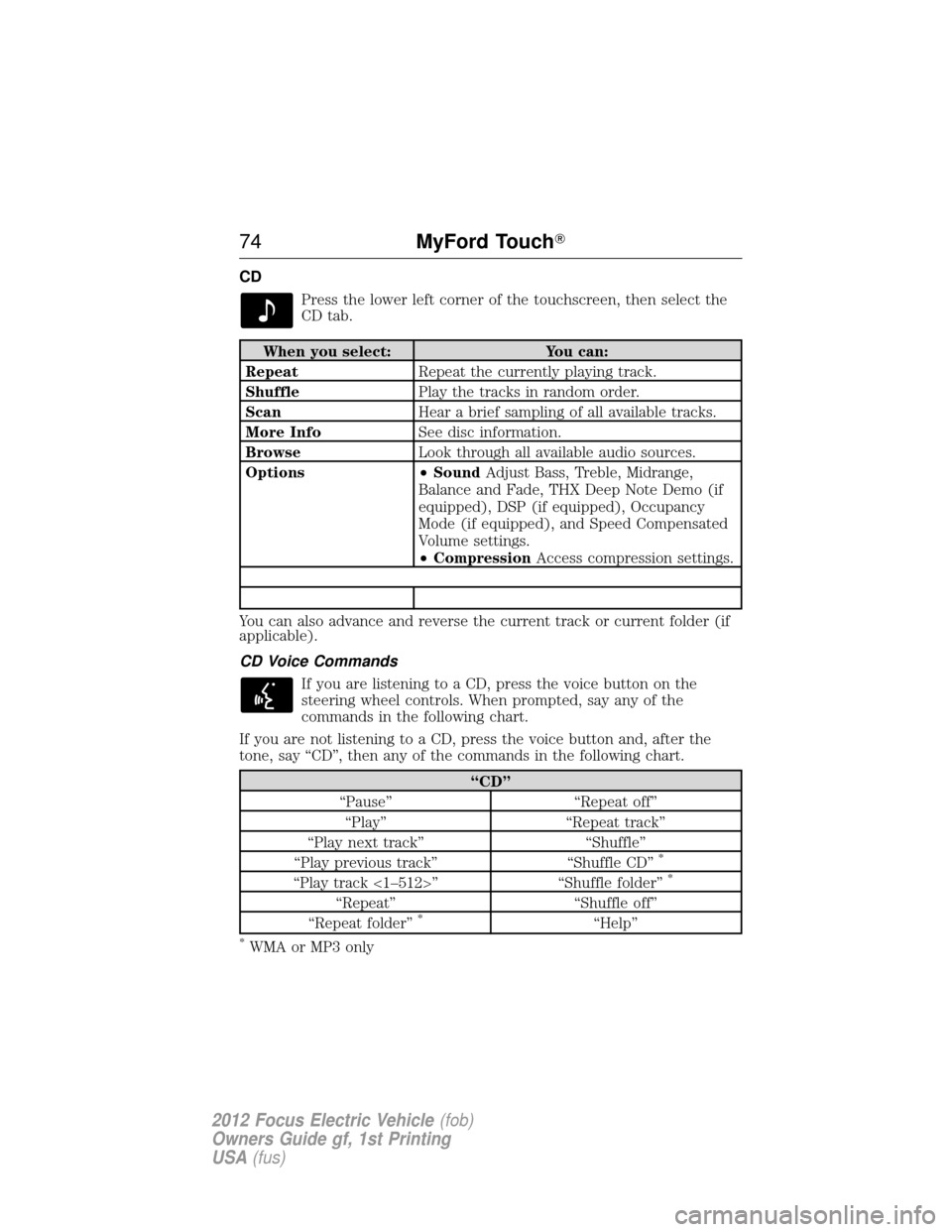

CDPress the lower left corner of the touchscreen, then select the
CD tab.
When you select: You can:
Repeat Repeat the currently playing track.
Shuffle Play the tracks in random order.
Scan Hear a brief sampling of all available tracks.
More Info See disc information.
Browse Look through all available audio sources.
Options •Sound Adjust Bass, Treble, Midrange,
Balance and Fade, THX Deep Note Demo (if
equipped), DSP (if equipped), Occupancy
Mode (if equipped), and Speed Compensated
Volume settings.
• Compression Access compression settings.
You can also advance and reverse the current track or current folder (if
applicable).
CD Voice Commands If you are listening to a CD, press the voice button on the
steering wheel controls. When prompted, say any of the
commands in the following chart.
If you are not listening to a CD, press the voice button and, after the
tone, say “CD”, then any of the commands in the following chart.
“CD”
“Pause” “Repeat off” “Play” “Repeat track”
“Play next track” “Shuffle”
“Play previous track” “Shuffle CD”
*
“Play track <1–512>”“Shuffle folder”*
“Repeat”“Shuffle off”
“Repeat folder”*“Help”
*WMA or MP3 only
74 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

When you select:You can:
Media Device
Information Displays information about the device, if
connected and available.
Text Display Allows you to choose how you would like the
information to display on-screen.
To view song information such as Title, Artist, File, Folder, Album, and
Genre, touch the on-screen album art.
You can also press What’s Playing?to hear how the system pronounces
the current band and song. This can be helpful when using voice
commands to make sure the system correctly plays your request.
SD Card and USB Voice Commands
If you are listening to a USB device or an SD card, press the
voice button on the steering wheel controls. When prompted,
say any of the commands in the following chart.
If you are not listening to a USB device or an SD card, press the voice
button and, after the tone, say “USB” or “SD card”, then any of the
commands in the following chart.
“USB” or “SD CARD”
“Browse”1“Play podcast episode ”
“Next” “Play similar music”
“Pause” “Play song ” “Play” “Play TV show ”
2
“Play album ” “Play TV show episode ”2
“Play all” “Play video ”2
“Play artist ” “Play video podcast episode
”2
“Play audiobook ” “Play video playlist ”2
“Play author ” “Previous”
“Play composer ” “Repeat all”
“Play folder ” “Repeat off”
“Play genre ” “Repeat one”
“Play movie ”
2“Shuffle”
“Play music video ”2“Shuffle off”
78 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Bluetooth Audio
Your system allows you to stream audio over your vehicle’s speakers from
your connected, Bluetooth-enabled cellular phone.To access, press the lower left corner on the touchscreen, then
select the BT Stereo tab.
Bluetooth Audio Voice Commands If you are listening to a Bluetooth audio device, press the voice
button on the steering wheel controls. When prompted, say any
of the commands in the following chart.
If you are not listening to a Bluetooth audio device, press the voice
button and, after the tone, say “Bluetooth Audio”, then any of the
commands in the following chart.
Note: If your Bluetooth device supports streaming metadata, all the
commands below are available. If your device does not, only “Next”,
“Pause”, “Play” and “Previous” are available.
Bluetooth voice commands
“Browse album ” “Browse composer
” “Play folder ”
“Browse all albums” “Browse folder ”“Play genre ”
“Browse all artists” “Browse genre ”“Play playlist ”
“Browse all
audiobooks” ”Browse genre
” “Play podcast episode
”
“Browse all authors” ”Browse playlist ”“Play similar music”
“Browse all
composers” ”Browse podcast
” “Play song ”
“Browse all folders” “Next” “Previous” “Browse all genres” “Pause” “Repeat all”
“Browse all playlists” “Play” “Repeat off”
“Browse all podcasts” “Play album ” “Repeat one” “Browse all songs” “Play artist ” “Shuffle”
80 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
