Park lampsIlluminates when the park lamps are on.
Powertrain malfunction/reduced power (RTT) Illuminates when a powertrain or high-voltage charge system
fault has been detected. If the indicator stays on or continues
to come on, contact your authorized dealer as soon as possible.
Ready to drive Illuminates once the vehicle has been switched on and is ready
to drive. A corresponding message may display stating ready to
drive or a message regarding budget if a charge point has not
been entered.
Safety belt
Reminds you to fasten your safety belt. A Belt-Minder chime
will also sound to remind you to fasten your safety belt.
Speed control (if equipped) (RTT) Illuminates when the speed control is activated. Turns off when
the speed control system is deactivated.
Stop safely (RTT) Indicates electrical component fault/failure that will cause the
vehicle to shutdown or enter into a limited operating mode. A
message may also display.
Turn signal Illuminates when the left or right turn signal or the hazard
warning flasher is turned on. If the indicators stay on or flash
faster, check for a burned out bulb.
Vehicle plugged in (RTT) Illuminates when the vehicle is plugged in. A corresponding
message may display after attempting to start the vehicle.
Instrument Cluster 19
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

BULB REPLACEMENT
Lamp assembly condensation
Exterior lamps are vented to accommodate normal changes in pressure.
Condensation can be a natural by-product of this design. When moist air
enters the lamp assembly through the vents, there is a possibility that
condensation can occur when the temperature is cold. When normal
condensation occurs, a thin film of mist can form on the interior of the
lens. The thin mist eventually clears and exits through the vents during
normal operation. Clearing time may take as long as 48 hours under dry
weather conditions.
Examples of acceptable condensation are:
•Presence of thin mist (no streaks, drip marks or droplets)
• Fine mist covers less than 50% of the lens
Examples of unacceptable moisture (usually caused by a lamp water
leak) are:
• Water puddle inside the lamp
• Large water droplets, drip marks or streaks present on the interior of
the lens
Take your vehicle to a dealer for service if any of the above conditions of
unacceptable moisture are present.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America to ensure
lamp performance, light brightness and pattern and safe visibility. The
correct bulbs will not damage the lamp assembly or void the lamp
assembly warranty and will provide quality bulb burn time.
Function Trade number
Headlamps high beam H1
* Headlamp low beam (HID) D8S
Parking lamp/turn signal lamp (front) W21W
* Side marker lamp (front) LED
Brake lamp 3157K
Tail lamp 3157K
Turn lamp 3757AK
Reverse lamp 921
134Lighting
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

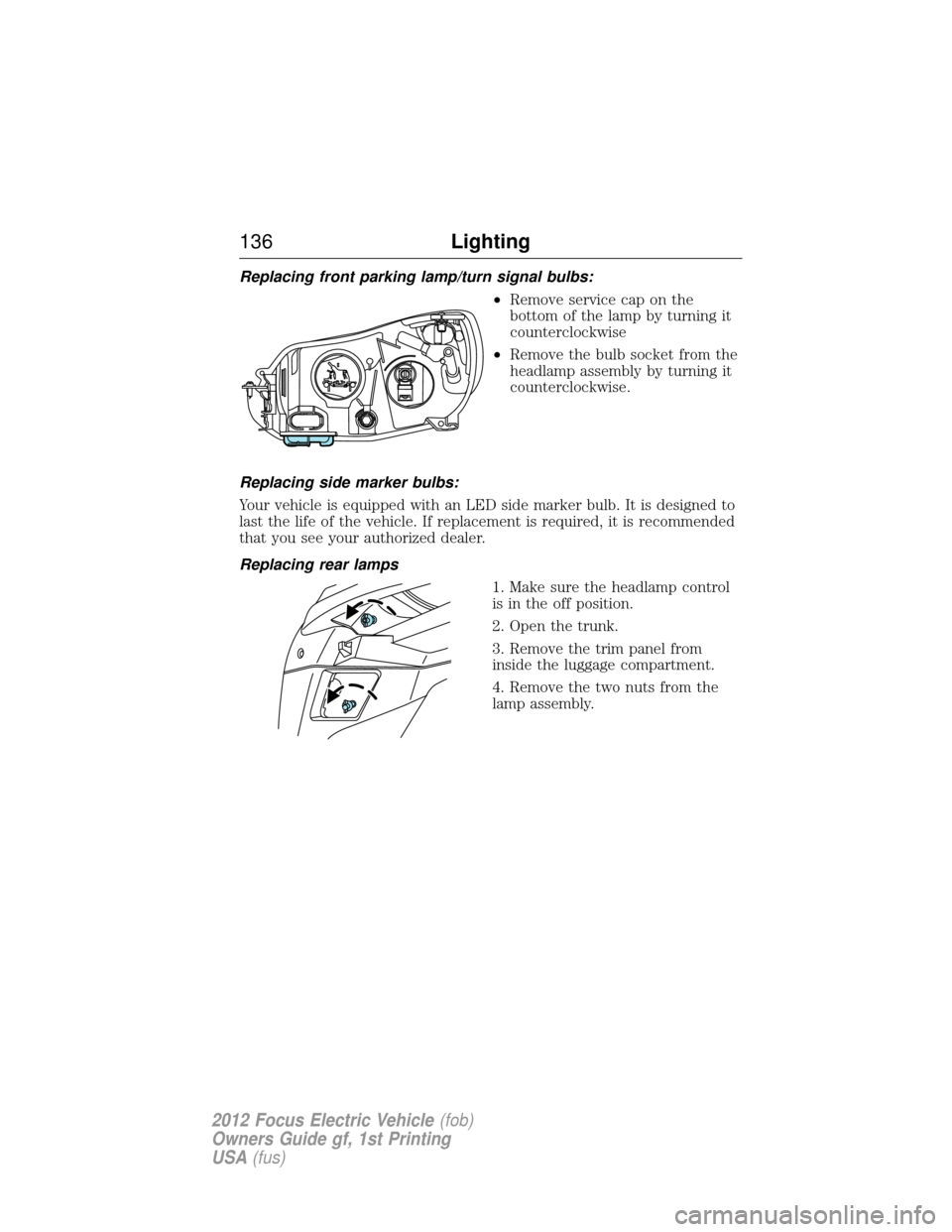

Replacing front parking lamp/turn signal bulbs:•Remove service cap on the
bottom of the lamp by turning it
counterclockwise
• Remove the bulb socket from the
headlamp assembly by turning it
counterclockwise.
Replacing side marker bulbs:
Your vehicle is equipped with an LED side marker bulb. It is designed to
last the life of the vehicle. If replacement is required, it is recommended
that you see your authorized dealer.
Replacing rear lamps 1. Make sure the headlamp control
is in the off position.
2. Open the trunk.
3. Remove the trim panel from
inside the luggage compartment.
4. Remove the two nuts from the
lamp assembly.
136Lighting
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

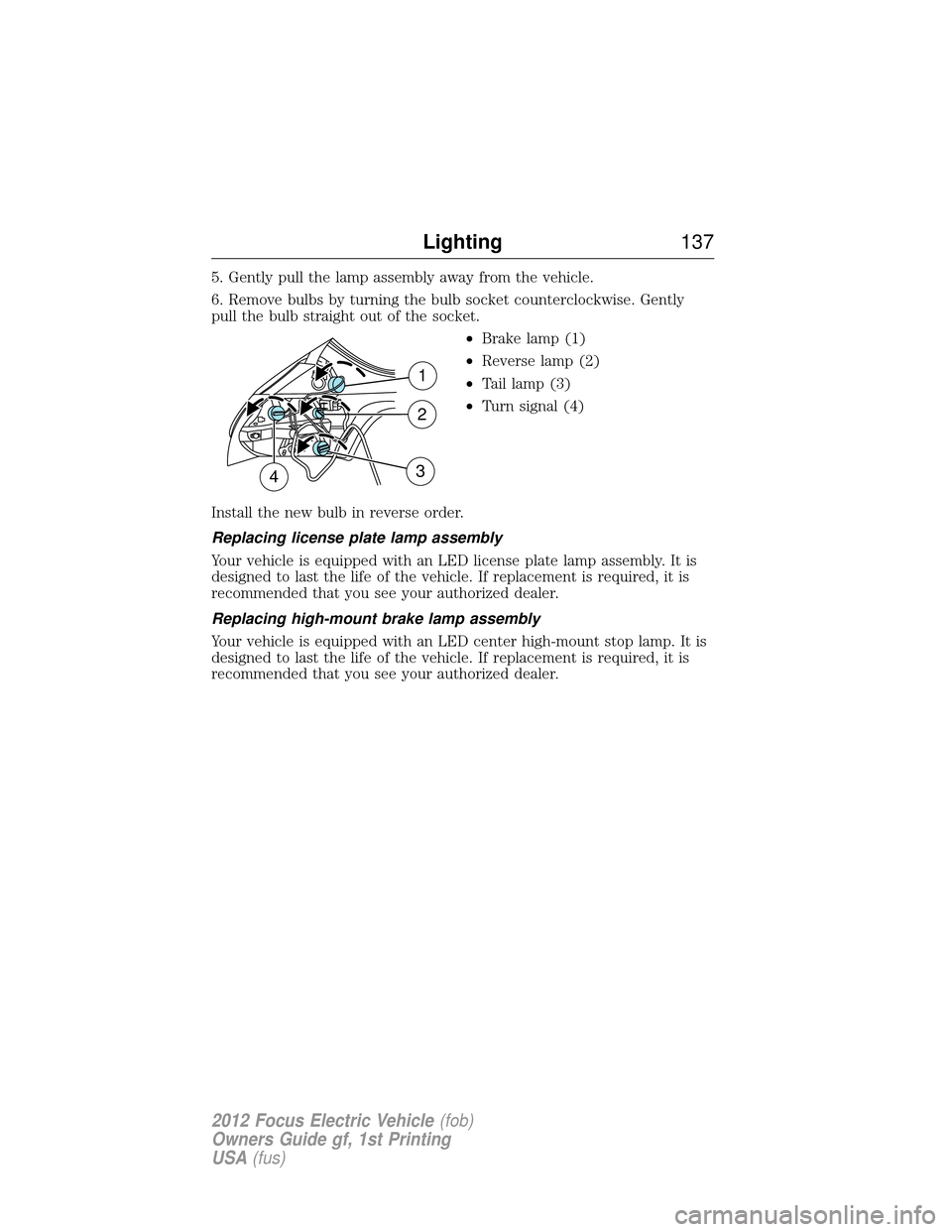

5. Gently pull the lamp assembly away from the vehicle.
6. Remove bulbs by turning the bulb socket counterclockwise. Gently
pull the bulb straight out of the socket.•Brake lamp (1)
• Reverse lamp (2)
• Tail lamp (3)
• Turn signal (4)
Install the new bulb in reverse order.
Replacing license plate lamp assembly
Your vehicle is equipped with an LED license plate lamp assembly. It is
designed to last the life of the vehicle. If replacement is required, it is
recommended that you see your authorized dealer.
Replacing high-mount brake lamp assembly
Your vehicle is equipped with an LED center high-mount stop lamp. It is
designed to last the life of the vehicle. If replacement is required, it is
recommended that you see your authorized dealer.
1
2
43
Lighting 137
