2012 FORD FOCUS ELECTRIC Owners Manual

To Access a List of Available Commands
•Press the Menu icon > Help > Voice Command List, OR
• Press the voice icon; after the tone, speak your command clearly:
Voice command list
“Audio list of commands”
“Bluetooth audio list of commands” “Browse list of commands”“CD list of commands”
“Climate control list of commands” “List of commands”
“Navigation list of commands”
*
“Phone list of commands” “Radio list of commands”
“SD card list of commands”
“Sirius satellite list of commands”
*
“Travel link list of commands”*
“USB list of commands”
“Voice instructions list of commands” “Voice settings list of commands” “Help”
*If equipped.
Helpful Hints
• Make sure the interior of the vehicle is as quiet as possible. Wind
noise from open windows and road vibrations may prevent the system
from correctly recognizing spoken commands.
• After pressing the voice icon, wait until after the tone sounds and
“Listening” appears before saying a command. Any command spoken
prior to this does not register with the system.
• Speak naturally, without long pauses between words.
• At any time you can interrupt the system while it is speaking by
pressing the voice icon.
MyFord Touch 57
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

Voice Settings
Voice settings allow you to customize the level of system interaction,
help and feedback. The system defaults to standard interaction which
uses candidate lists and confirmation prompts as these provide the
highest level of guidance and feedback.
Interaction Mode:Novice mode provides more detailed interaction and
guidance while the advanced mode has less audible interaction and more
tone prompts.
Confirmation Prompts: Confirmation prompts are short questions the
system asks when it is not sure of your request or when there are
multiple possible responses to your request. If turned off, the system
simply makes a best guess as to what you requested and you may still
occasionally be asked to confirm settings.
Phone/Media Candidate Lists: Candidate lists are a list of possible
results from your voice commands. The system creates these lists when
it has the same confidence level of several options based on your voice
command.
To access these settings using the touchscreen:
1. Press the Menu icon > Settings > Voice Control.
2. Select from:
• Interaction Mode
• Confirmation Prompts
• Media Candidate Lists
• Phone Candidate Lists
• Voice Control Volume
To access these settings using voice commands: Press the voice icon; after the tone sounds, the system says
“Please say a command”. Another tone sounds to let you know
the system is listening.
Using Voice Commands with the Touchscreen Options
Your voice system has a dual mode feature which allows you to switch
between using voice commands and making on-screen selections. This is
most often available when using navigation.
On-screen buttons are outlined in blue to indicate the selections that are
part of the dual mode feature. For example, if while you are in a voice
session rather than saying the command “Enter Street Name” to change
the field, you can press “Street” and the voice session does not end.
Instead, the voice system changes to the Street field and asks you to say
58 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

the street name. The buttons not outlined in blue cannot be used as
voice commands; if they are touched during a voice session, the voice
session is canceled. For example:
From the Navigation home screen, you can choose from the following:
•My Home
• Favorites
• Previous Destinations
• Point of Interest (POI)
• Emergency
• Street Address
• Intersection
• Cancel Route
Some of the voice commands that are available while viewing this screen
are:
“DESTINATION”
“Destination my home”
“Destination street address” “Destination favorites”
“Destination previous destinations” “Destination POI”
“Destination intersection” “Destination emergency”
If you choose Street Address from the navigation screen, you can choose
from the following:
• Number
• City
• Street Name
• State/Prov
Some of the voice commands that are available while viewing this screen
are:
“STREET ADDRESS” “Enter house number”
“Change house number” “Enter street name”
“Change street name” “Enter city”
MyFord Touch 59
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

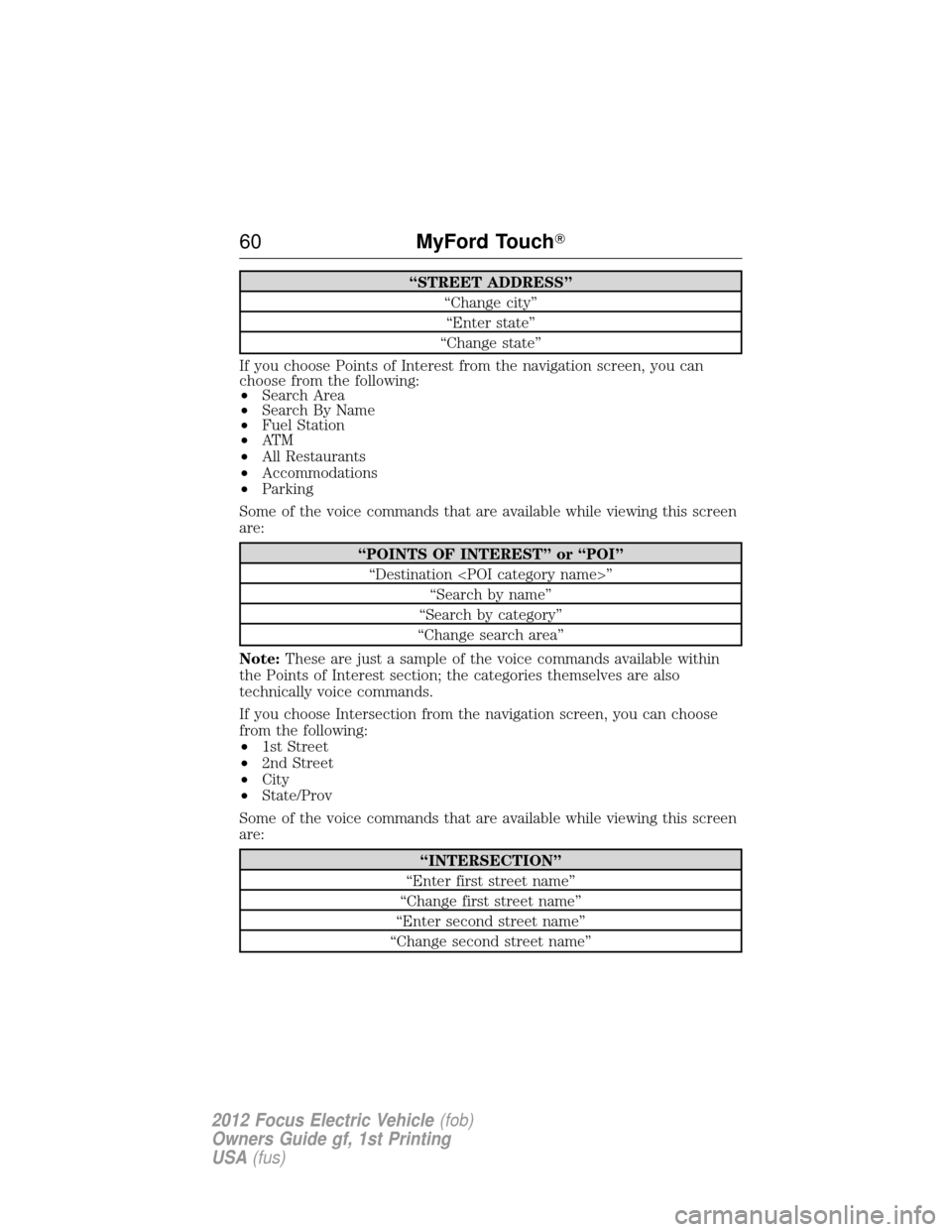

“STREET ADDRESS”“Change city”“Enter state”
“Change state”
If you choose Points of Interest from the navigation screen, you can
choose from the following:
• Search Area
• Search By Name
• Fuel Station
• AT M
• All Restaurants
• Accommodations
• Parking
Some of the voice commands that are available while viewing this screen
are:
“POINTS OF INTEREST” or “POI” “Destination ” “Search by name”
“Search by category”
“Change search area”
Note: These are just a sample of the voice commands available within
the Points of Interest section; the categories themselves are also
technically voice commands.
If you choose Intersection from the navigation screen, you can choose
from the following:
• 1st Street
• 2nd Street
• City
• State/Prov
Some of the voice commands that are available while viewing this screen
are:
“INTERSECTION”
“Enter first street name”
“Change first street name”
“Enter second street name”
“Change second street name”
60 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

“INTERSECTION”“Enter city”
“Change city” “Enter state”
“Change state”
The dual mode feature is also available when the voice system displays a
list of items to pick from during a voice session, where you would be
able to touch the line item or say “Line 2”. If a command is not
understood or there are multiple options, the system returns a list for
you to choose from.
ENTERTAINMENT
Your system offers many media options. You can access these options
using the touchscreen or voice commands.
Browsing Device Content
When listening to any type of audio, you can browse through other
devices without having to change sources. For example, if you are
currently listening to the radio, you can browse all the artists that are
stored on your USB device. Press the voice icon on the steering wheel. When prompted,
you can say:
“BROWSE” within devices “Browse”1
“Browse games”2
“Browse channels”2
“Browse CD track list”
“Browse Sirius channel guide”2
“Browse SD card” “Browse USB” “Help”
1If you have said “Browse”, you can then say any commands in the
following chart.
2If equipped with SIRIUS satellite radio.
MyFord Touch 61
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

“BROWSE”
“ games”*
channels*
“CD track list” “SD card”
“Sirius channel guide”
*
“USB”
“Help”
*If equipped with SIRIUS satellite radio.
For a complete list of “Browse” voice commands, refer to USB and SD
card voice commands andBluetooth audio voice commands in the
following sections.
AM/FM Radio
Press the lower left corner of the touchscreen and then select
the AM or FM tab.
To change between AM and FM presets, just touch the AM or FM tab.
When you select: You can:
Presets Save a station by pressing and holding one of
the memory preset areas. There is a brief
mute while the station is being saved, then
sound returns when it’s done.
Direct Tune Enter the desired station number when
prompted. Press Enter.
HD Radio Turn the feature on. This enables you to
receive radio broadcasts digitally (where
available), providing free, crystal clear sound.
Refer toHD Radio information later in this
chapter.
Scan Go to the next strong AM or FM radio station.
62MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

When you select:You can:
Options Adjust more audio system settings:
Sound Settingsallows you to adjust Bass,
Treble, Midrange, Balance and Fade, THX
Deep Note Demo (if equipped), DSP (if
equipped), Occupancy Mode (if equipped),
and Speed Compensated Volume settings.
Set PTY for Seek/Scan allows you to select
a category of music you would like to search
for and then choose to either seek or scan for
the stations.
RDS Text Display On/Off allows you to
always view the information broadcast by FM
stations by selecting On.
Auto Presets (AST) - Autostore allows
you to have the system automatically store
the six strongest stations in your current
location. These do not override any presets
stored in any of the AM or FM frequency
bands.
TAG (if available) allows you to tag a song
to download later.
When you select On, TAG appears on-screen
when HD radio is active. You can press TAG
to save the information of the song that is
playing. When you plug in your portable
music player, the information is transferred (if
supported by your device). When you are
connected to iTunes, the tags appear to
remind you of the songs you’d like to
download. Refer to HD Radio information
later in this chapter.
MyFord Touch 63
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

HD RadioInformation (If Available)
Note: HD Radio broadcasts are not available in all markets.
HD Radio technology is the digital evolution of analog AM/FM radio. Your
system has a special receiver which allows it to receive digital broadcasts
(where available) in addition to the analog broadcasts it already receives.
Digital broadcasts provide a better sound quality than analog broadcasts
with free, crystal clear audio and no static or distortion. For more
information, and a guide to available stations and programming, please
visit www.hdradio.com.
When this feature is enabled and you are tuned to a station broadcasting
HD Radio technology, you may notice the following indicators on your
screen: HD) logo blinks when a digital station is being acquired and is
solid when digital audio is playing. When this logo is available,
you may also see Title and Artist fields on-screen.
Multicast indicator appears in FM mode (only) if the current station is
broadcasting multiple digital broadcasts. The numbers that are
highlighted signify available digital channels where new or different
content is available. HD1 signifies the main programming status and is
available in analog and digital broadcasts. Any additional multicast
stations (HD2 through HD7) are only broadcast digitally.
TA G allows you to save a song to download later. When you are on an
acquired HD Radio station, the TAG button is available (provided the
feature has been turned on). To use the tag feature:
1. Press AM or FM > Options > TAG On.
2. When you hear a song you like, touch TAG.
3. The system automatically saves the song’s information and transfers it to your portable music player (if supported) when it is connected
to the system. If your music player is connected at the time, the
system automatically transfers the tag to your player and a pop-up
confirms the transfer.
4. When you access iTunes with your portable music player, the tags
appear to you to be reminded of the song. The system allows you to
tag up to approximately 100 songs. For a list of devices that support
tagging, refer to www.SYNCMyRide.com or www.syncmaroute.ca.
64 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
