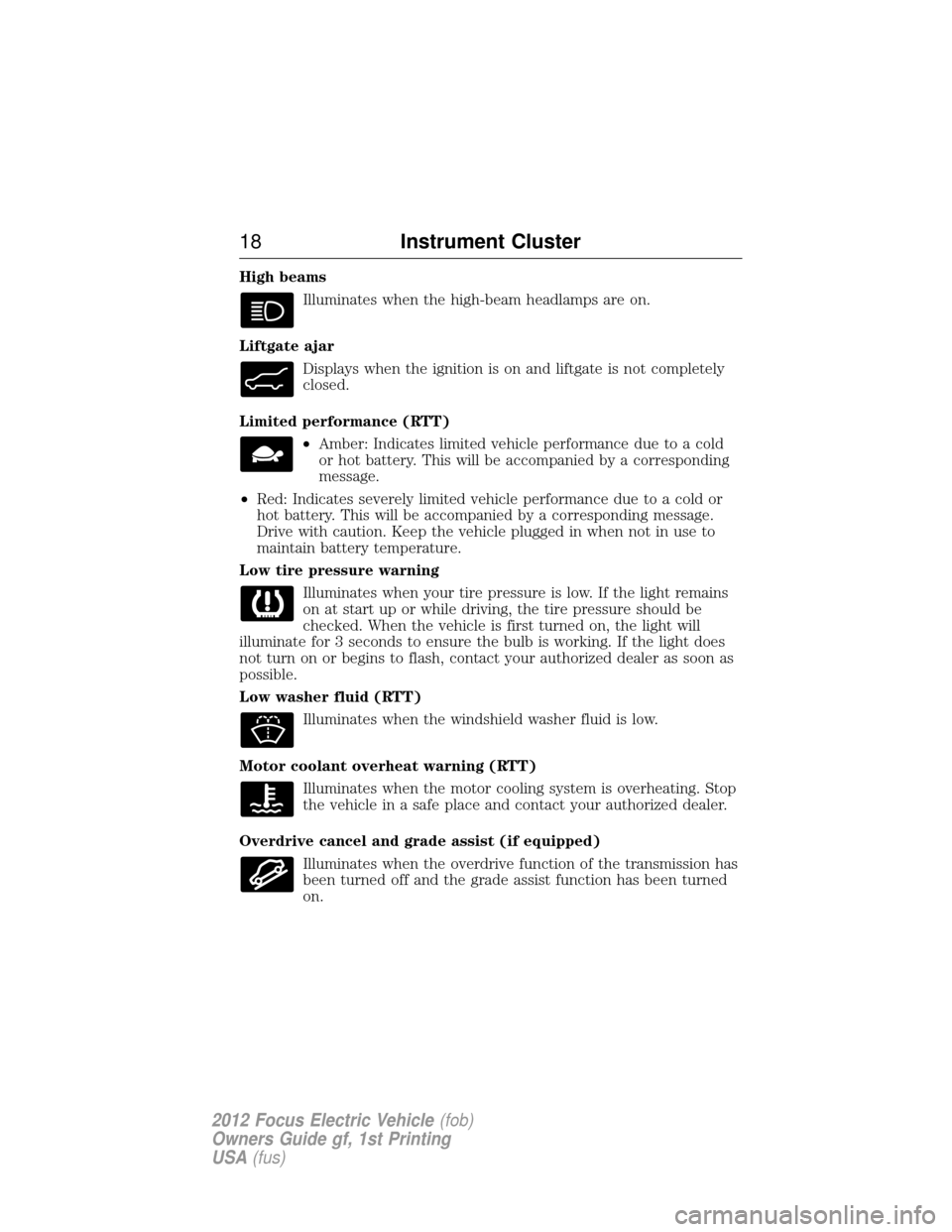

2012 FORD FOCUS ELECTRIC high beam

High beamsIlluminates when the high-beam headlamps are on.
Liftgate ajar Displays when the ignition is on and liftgate is not completely
closed.
Limited performance (RTT) •Amber: Indicates limited vehicle performance due to a cold
or hot battery. This will be accompanied by a corresponding
message.
• Red: Indicates severely limited vehicle performance due to a cold or
hot battery. This will be accompanied by a corresponding message.
Drive with caution. Keep the vehicle plugged in when not in use to
maintain battery temperature.
Low tire pressure warning Illuminates when your tire pressure is low. If the light remains
on at start up or while driving, the tire pressure should be
checked. When the vehicle is first turned on, the light will
illuminate for 3 seconds to ensure the bulb is working. If the light does
not turn on or begins to flash, contact your authorized dealer as soon as
possible.
Low washer fluid (RTT)
Illuminates when the windshield washer fluid is low.
Motor coolant overheat warning (RTT) Illuminates when the motor cooling system is overheating. Stop
the vehicle in a safe place and contact your authorized dealer.
Overdrive cancel and grade assist (if equipped) Illuminates when the overdrive function of the transmission has
been turned off and the grade assist function has been turned
on.
18 Instrument Cluster
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

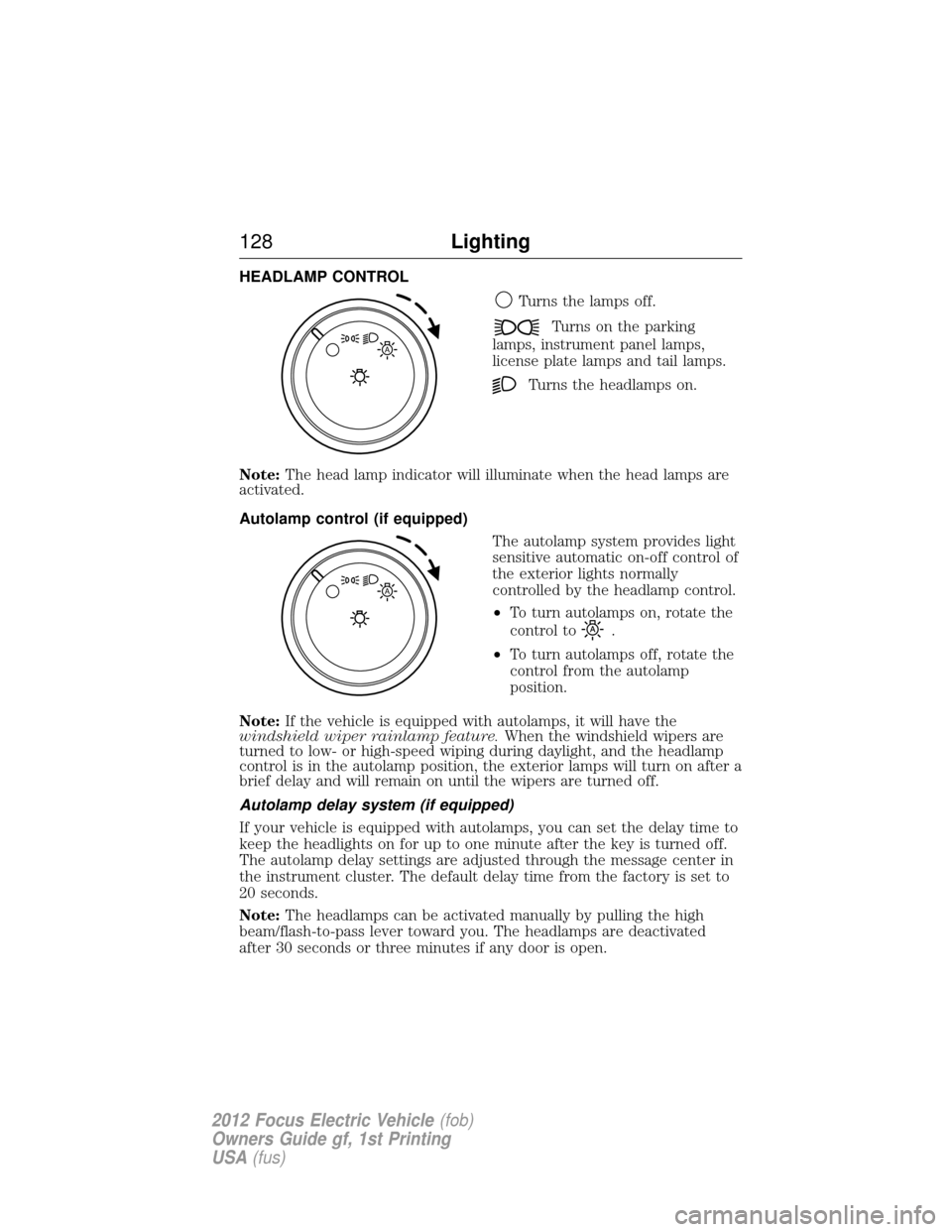

HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking
lamps, instrument panel lamps,
license plate lamps and tail lamps.
Turns the headlamps on.
Note: The head lamp indicator will illuminate when the head lamps are
activated.
Autolamp control (if equipped)
The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.
•To turn autolamps on, rotate the
control to
.
• To turn autolamps off, rotate the
control from the autolamp
position.
Note: If the vehicle is equipped with autolamps, it will have the
windshield wiper rainlamp feature. When the windshield wipers are
turned to low- or high-speed wiping during daylight, and the headlamp
control is in the autolamp position, the exterior lamps will turn on after a
brief delay and will remain on until the wipers are turned off.
Autolamp delay system (if equipped)
If your vehicle is equipped with autolamps, you can set the delay time to
keep the headlights on for up to one minute after the key is turned off.
The autolamp delay settings are adjusted through the message center in
the instrument cluster. The default delay time from the factory is set to
20 seconds.
Note: The headlamps can be activated manually by pulling the high
beam/flash-to-pass lever toward you. The headlamps are deactivated
after 30 seconds or three minutes if any door is open.
A
A
128 Lighting
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

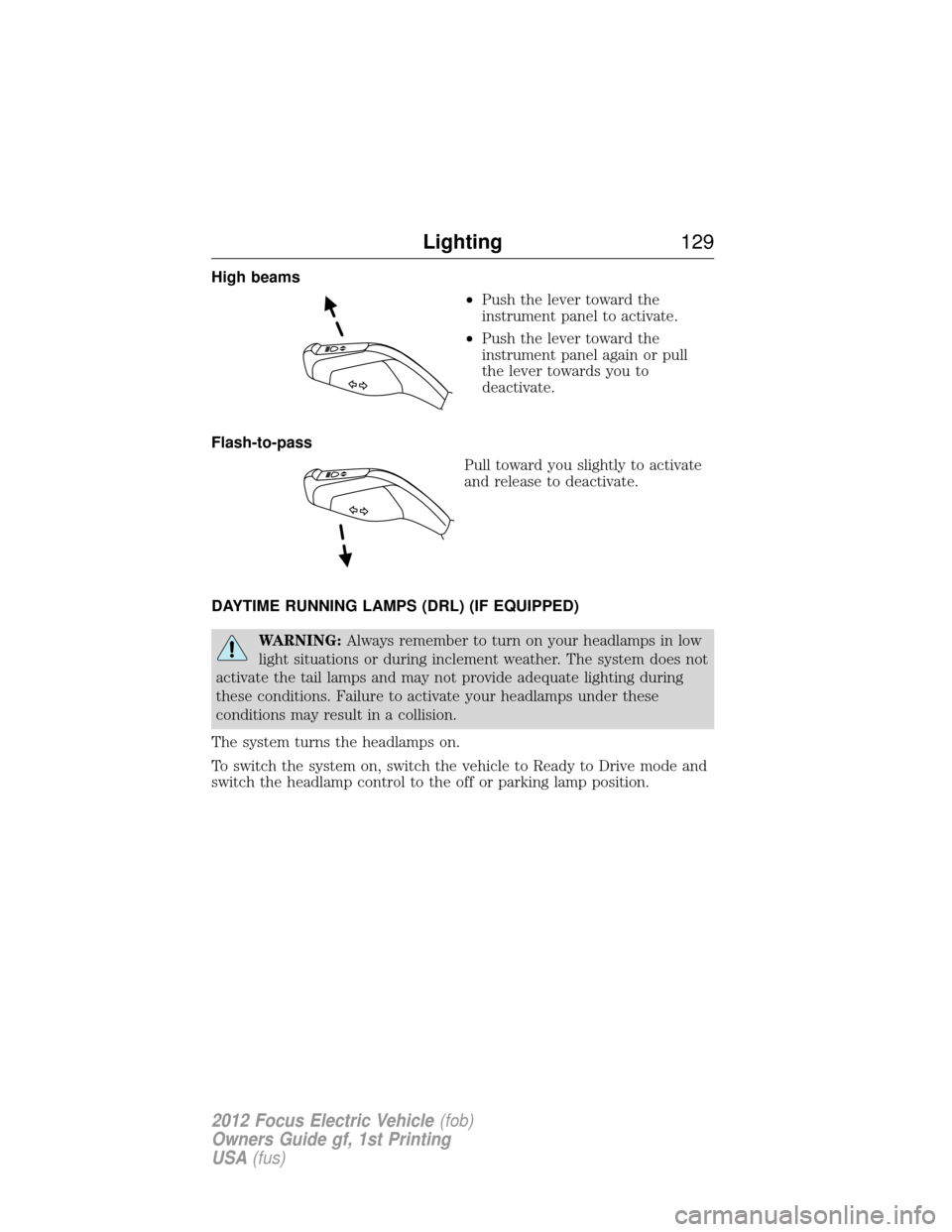

High beams•Push the lever toward the
instrument panel to activate.
• Push the lever toward the
instrument panel again or pull
the lever towards you to
deactivate.
Flash-to-pass Pull toward you slightly to activate
and release to deactivate.
DAYTIME RUNNING LAMPS (DRL) (IF EQUIPPED)
WARNING: Always remember to turn on your headlamps in low
light situations or during inclement weather. The system does not
activate the tail lamps and may not provide adequate lighting during
these conditions. Failure to activate your headlamps under these
conditions may result in a collision.
The system turns the headlamps on.
To switch the system on, switch the vehicle to Ready to Drive mode and
switch the headlamp control to the off or parking lamp position.
Lighting 129
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

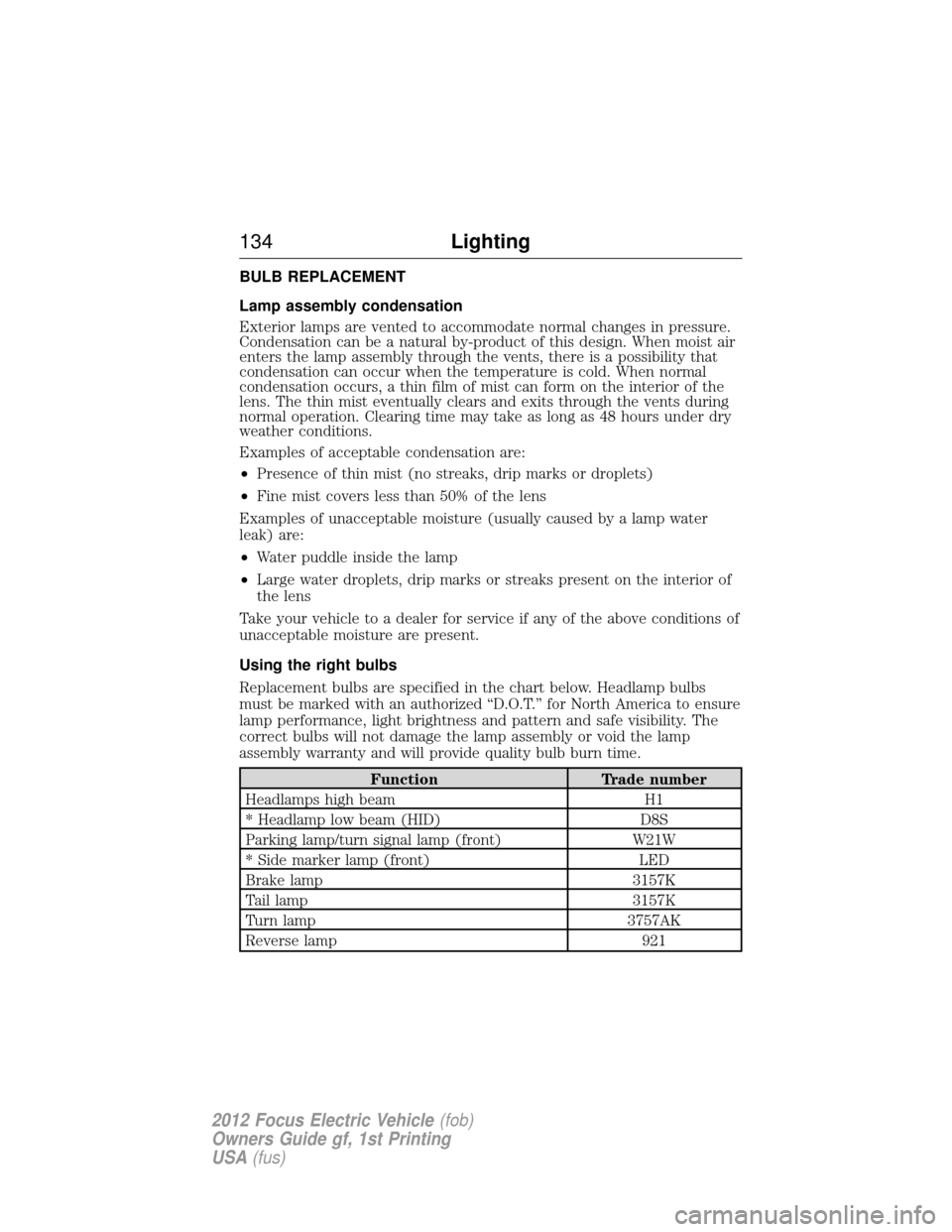

BULB REPLACEMENT
Lamp assembly condensation
Exterior lamps are vented to accommodate normal changes in pressure.
Condensation can be a natural by-product of this design. When moist air
enters the lamp assembly through the vents, there is a possibility that
condensation can occur when the temperature is cold. When normal
condensation occurs, a thin film of mist can form on the interior of the
lens. The thin mist eventually clears and exits through the vents during
normal operation. Clearing time may take as long as 48 hours under dry
weather conditions.
Examples of acceptable condensation are:
•Presence of thin mist (no streaks, drip marks or droplets)
• Fine mist covers less than 50% of the lens
Examples of unacceptable moisture (usually caused by a lamp water
leak) are:
• Water puddle inside the lamp
• Large water droplets, drip marks or streaks present on the interior of
the lens
Take your vehicle to a dealer for service if any of the above conditions of
unacceptable moisture are present.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America to ensure
lamp performance, light brightness and pattern and safe visibility. The
correct bulbs will not damage the lamp assembly or void the lamp
assembly warranty and will provide quality bulb burn time.
Function Trade number
Headlamps high beam H1
* Headlamp low beam (HID) D8S
Parking lamp/turn signal lamp (front) W21W
* Side marker lamp (front) LED
Brake lamp 3157K
Tail lamp 3157K
Turn lamp 3757AK
Reverse lamp 921
134Lighting
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

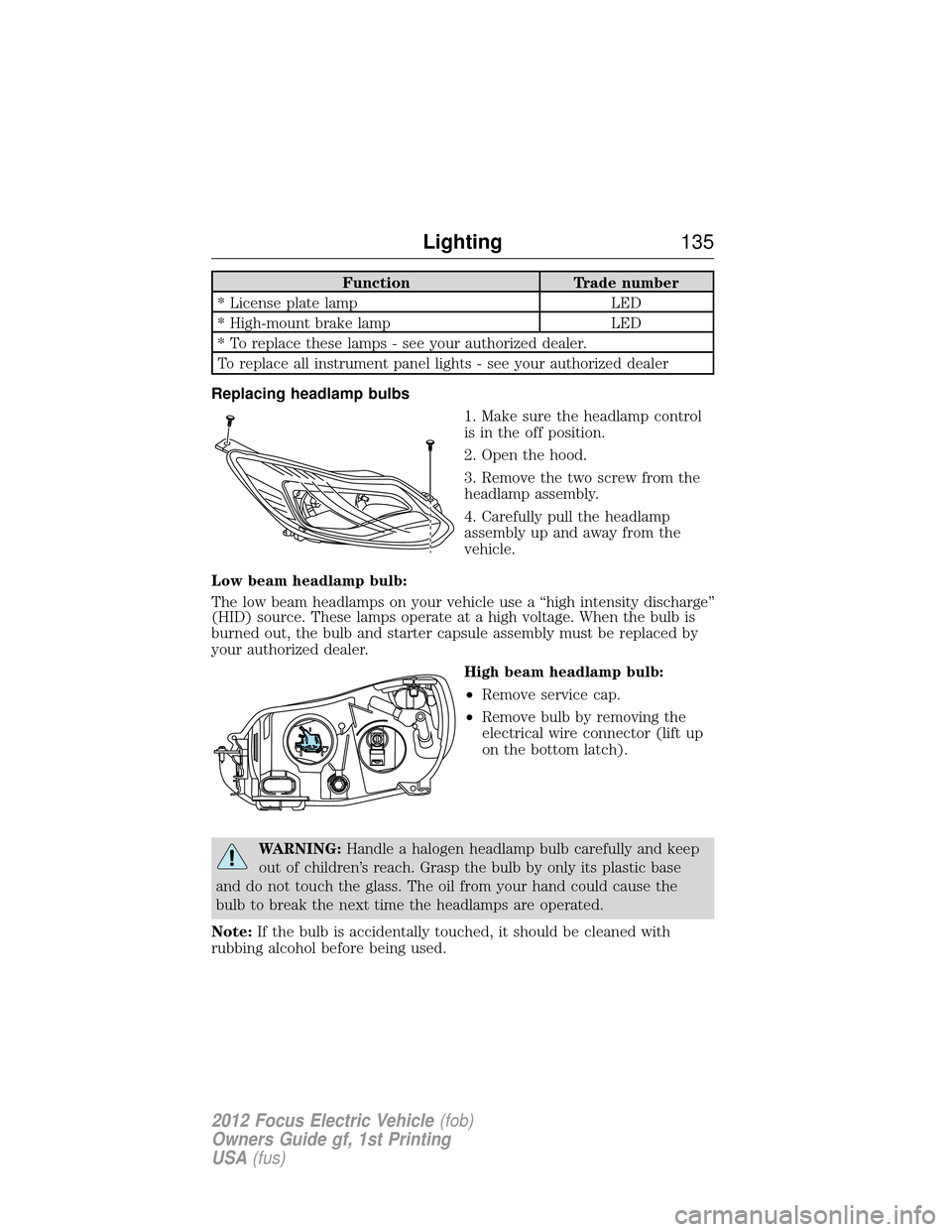

FunctionTrade number
* License plate lamp LED
* High-mount brake lamp LED
* To replace these lamps - see your authorized dealer.
To replace all instrument panel lights - see your authorized dealer
Replacing headlamp bulbs 1. Make sure the headlamp control
is in the off position.
2. Open the hood.
3. Remove the two screw from the
headlamp assembly.
4. Carefully pull the headlamp
assembly up and away from the
vehicle.
Low beam headlamp bulb:
The low beam headlamps on your vehicle use a “high intensity discharge”
(HID) source. These lamps operate at a high voltage. When the bulb is
burned out, the bulb and starter capsule assembly must be replaced by
your authorized dealer. High beam headlamp bulb:
•Remove service cap.
• Remove bulb by removing the
electrical wire connector (lift up
on the bottom latch).
WARNING: Handle a halogen headlamp bulb carefully and keep
out of children’s reach. Grasp the bulb by only its plastic base
and do not touch the glass. The oil from your hand could cause the
bulb to break the next time the headlamps are operated.
Note: If the bulb is accidentally touched, it should be cleaned with
rubbing alcohol before being used.
Lighting 135
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

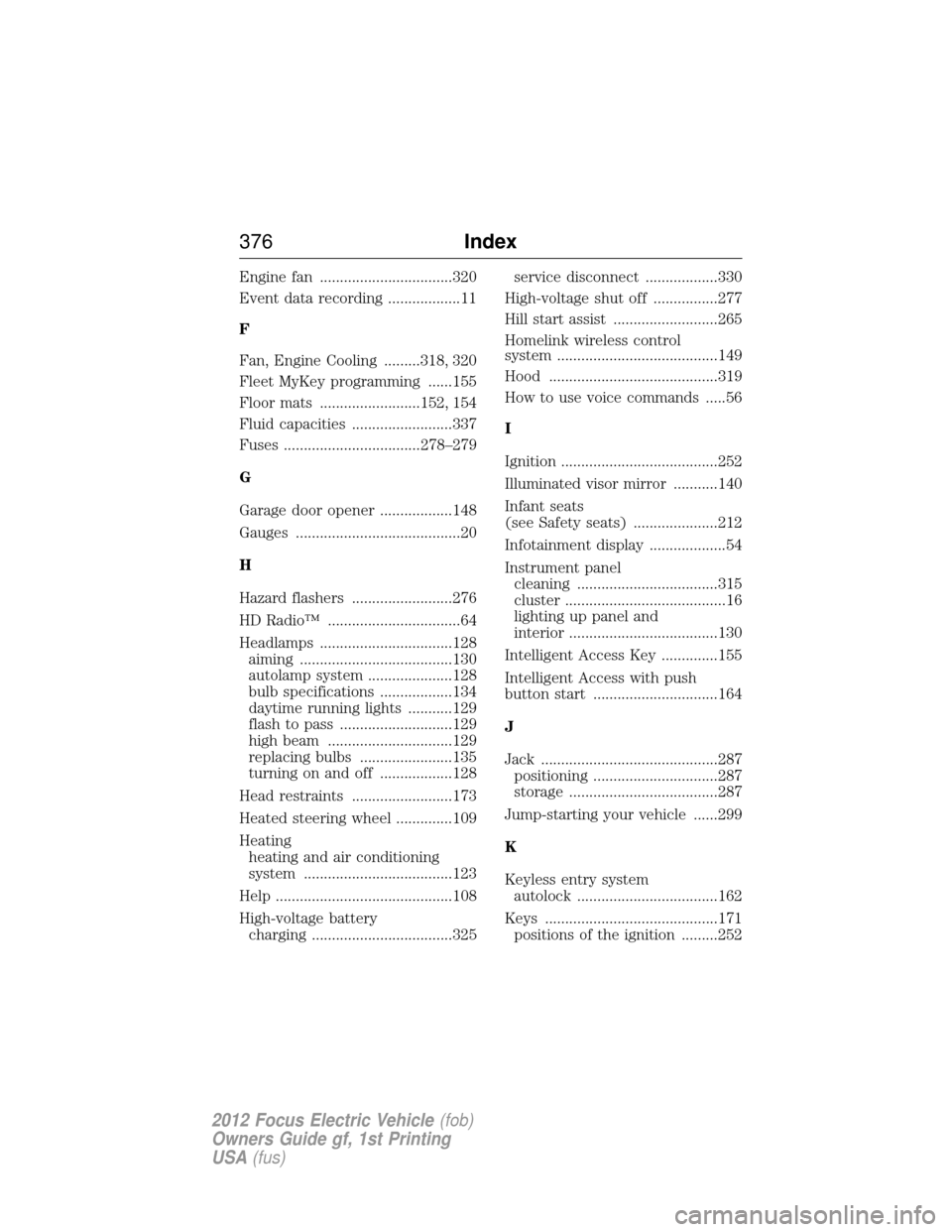

Engine fan .................................320
Event data recording ..................11
F
Fan, Engine Cooling .........318, 320
Fleet MyKey programming ......155
Floor mats .........................152, 154
Fluid capacities .........................337
Fuses ..................................278–279
G
Garage door opener ..................148
Gauges .........................................20
H
Hazard flashers .........................276
HD Radio™ .................................64
Headlamps .................................128aiming ......................................130
autolamp system .....................128
bulb specifications ..................134
daytime running lights ...........129
flash to pass ............................129
high beam ...............................129
replacing bulbs .......................135
turning on and off ..................128
Head restraints .........................173
Heated steering wheel ..............109
Heating heating and air conditioning
system .....................................123
Help ............................................108
High-voltage battery charging ...................................325 service disconnect ..................330
High-voltage shut off ................277
Hill start assist ..........................265
Homelink wireless control
system ........................................149
Hood ..........................................319
How to use voice commands .....56
I
Ignition .......................................252
Illuminated visor mirror ...........140
Infant seats
(see Safety seats) .....................212
Infotainment display ...................54
Instrument panel cleaning ...................................315
cluster ........................................16
lighting up panel and
interior .....................................130
Intelligent Access Key ..............155
Intelligent Access with push
button start ...............................164
J
Jack ............................................287 positioning ...............................287
storage .....................................287
Jump-starting your vehicle ......299
K
Keyless entry system autolock ...................................162
Keys ...........................................171 positions of the ignition .........252
376 Index
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
