To know if the front passenger sensing system is operating
properly, refer toCrash sensors and Airbag Indicator later in
this chapter.
If the airbag readiness lamp is lit, do the following:
The driver and/or adult passengers should check for any objects that
may be lodged underneath the front passenger seat or cargo interfering
with the seat.
If objects are lodged and/or cargo is interfering with the seat; please take
the following steps to remove the obstruction:
• Pull the vehicle over.
• Turn the vehicle off.
• Driver and/or adult passengers should check for any objects lodged
underneath the front passenger seat or cargo interfering with the seat.
• Remove the obstruction(s) (if found).
• Restart the vehicle.
• Wait at least two minutes and verify that the airbag readiness lamp is
no longer illuminated
• If the airbag readiness lamp remains illuminated, this may or may/not
be a problem due to the front passenger sensing system.
DO NOT attempt to repair or service the system; take your vehicle
immediately to an authorized dealer.
If it is necessary to modify an advanced front airbag system to
accommodate a person with disabilities, contact the Ford Customer
Relationship Center at the phone number shown in the Customer
Assistance section of this Owner’s Manual.
Determining if the system is operational
The system uses a warning indicator light in the instrument cluster or a
backup tone to indicate the condition of the system. Routine
maintenance of the airbag is not required.
A difficulty with the system is indicated by one or more of the following: •The readiness light (same light for front and side airbag
system) will either flash or stay lit.
• The readiness light will not illuminate immediately after ignition is
turned on.
• An information message will appear in the message center.
Seating and Safety Restraints 201
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

If any of these things happen, even intermittently, have the supplemental
restraint system serviced at an authorized dealer immediately. Unless
serviced, the system may not function properly in the event of a collision.
Knee Airbag (if equipped)
The knee airbag is located under the instrument panel. The system
works along with the driver’s front airbag to help reduce injury to the
legs. When the driver’s airbag activates in a collision, the knee airbag
deploys from under the instrument panel. As with front and side airbags,
it is important to be properly seated and restrained to reduce the risk of
death or serious injury.
Seat-mounted side airbag system
WARNING:Do not place objects or mount equipment on or near
the airbag cover on the side of the seatbacks of the front seats or
in front seat areas that may come into contact with a deploying airbag.
Failure to follow these instructions may increase the risk of personal
injury in the event of a collision.
WARNING: Do not use accessory seat covers. The use of
accessory seat covers may prevent the deployment of the side
airbags and increase the risk of injury in an accident.
WARNING: Do not lean your head on the door. The side airbag
could injure you as it deploys from the side of the seatback.
WARNING: Do not attempt to service, repair, or modify the
airbag SRS, its fuses or the seat cover on a seat containing an
airbag. Contact your authorized dealer as soon as possible.
WARNING: All occupants of the vehicle should always wear
their safety belts even when an airbag SRS is provided.
202 Seating and Safety Restraints
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

How does the side airbag system work?
The design and development of the side airbag system included
recommended testing procedures that were developed by a group of
automotive safety experts known as the Side Airbag Technical Working
Group. These recommended testing procedures help reduce the risk of
injuries related to the deployment of side airbags.The side airbag system consists of
the following:
•An inflatable bag (airbag) with an
inflator concealed behind the
outboard bolster of the driver and
front passenger seatbacks.
• A special seat cover designed to
allow airbag deployment.
• The same warning light,
electronic control and diagnostic
unit as used for the front airbags.
• Crash sensors located on the
front doors and on the rocker
behind the C pillar (one sensor
on each pillar on each side of the
vehicle).
Side airbags, in combination with safety belts, can help reduce the risk of
severe injuries in the event of a significant side impact collision.
The side airbags are fitted on the outboard side of the seatbacks of the
front seats. In certain lateral collisions, the airbag on the side affected by
the collision will be inflated. The airbag was designed to inflate between
the door panel and occupant to further enhance the protection provided
occupants in side impact collisions.
The airbag SRS is designed to activate when the vehicle sustains lateral
acceleration sufficient to cause the sensors to close an electrical circuit
that initiates airbag inflation.
The fact that the airbags did not inflate in a collision does not mean that
something is wrong with the system. Rather, it means the forces were
not of the type sufficient to cause activation. Side airbags are designed
to inflate in side-impact collisions, not roll-over, rear-impact, frontal or
near-frontal collisions, unless the collision causes sufficient lateral
deceleration.
Seating and Safety Restraints 203
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

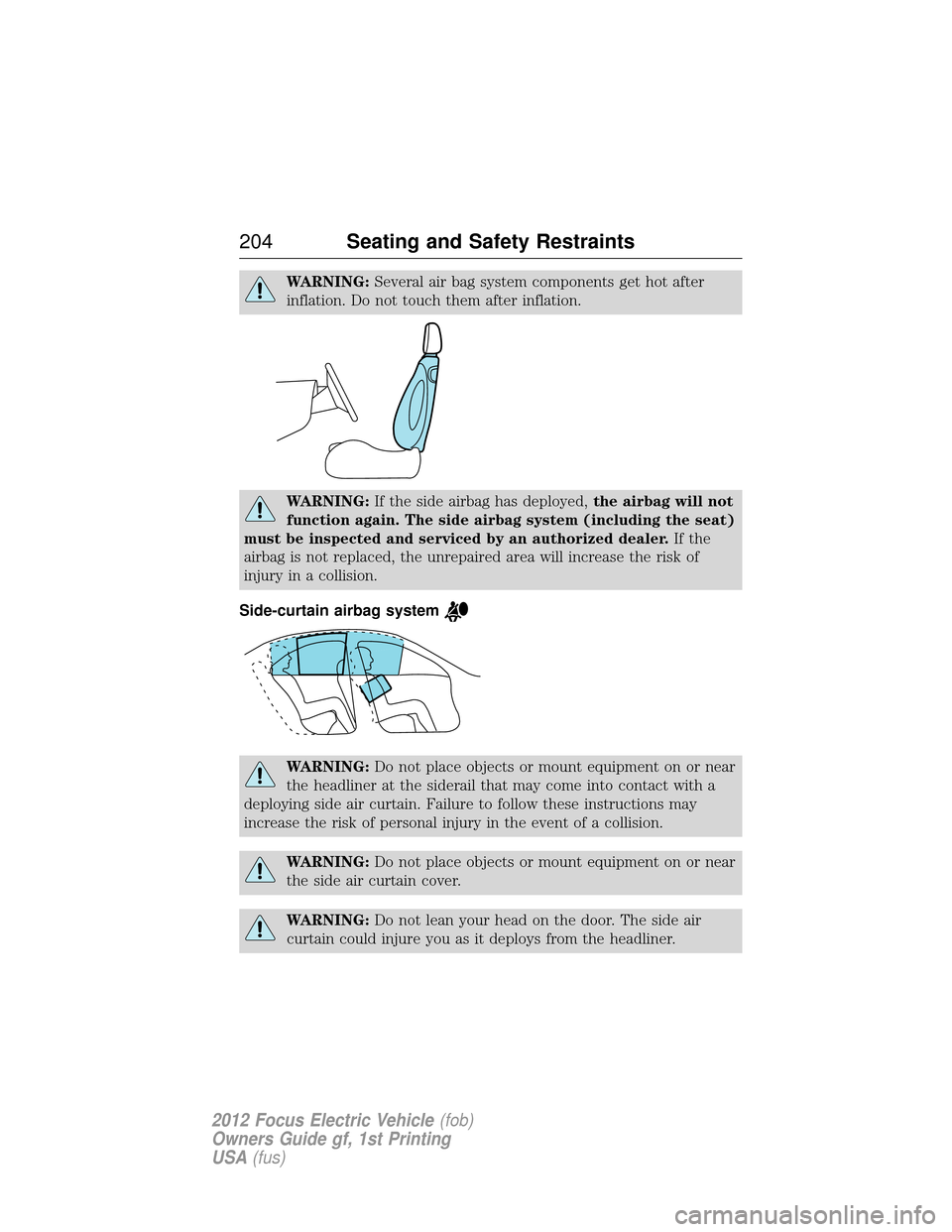

WARNING:Several air bag system components get hot after
inflation. Do not touch them after inflation.
WARNING: If the side airbag has deployed, the airbag will not
function again. The side airbag system (including the seat)
must be inspected and serviced by an authorized dealer. If the
airbag is not replaced, the unrepaired area will increase the risk of
injury in a collision.
Side-curtain airbag system
WARNING: Do not place objects or mount equipment on or near
the headliner at the siderail that may come into contact with a
deploying side air curtain. Failure to follow these instructions may
increase the risk of personal injury in the event of a collision.
WARNING: Do not place objects or mount equipment on or near
the side air curtain cover.
WARNING: Do not lean your head on the door. The side air
curtain could injure you as it deploys from the headliner.
204 Seating and Safety Restraints
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

WARNING:Do not attempt to service, repair, or modify the side air
curtain system, its fuses, the A, B, or C pillar trim, or the headliner
on a vehicle containing a side air curtain. See your authorized dealer.
WARNING: All occupants of the vehicle, including the driver,
should always wear their safety belts even when an inflatable
curtain is provided.
WARNING: To reduce the risk of injury, do not obstruct or place
objects in the deployment zone of the inflatable curtain.
How does the side air curtain system work? The design and development of the
side air curtain system included
recommended testing procedures
that were developed by a group of
automotive safety experts known as
the Side Airbag Technical Working
Group. These recommended testing
procedures help reduce the risk of
injuries related to the deployment
of side airbags (including side air
curtain systems).
The side air curtain system consists
of the following:
•An inflatable curtain with a gas
generator concealed behind the
headliner and above the doors.
• The headliner will flex to open above the side doors to allow air
curtain deployment.
• The same warning light, electronic control and diagnostic unit as used
for the front airbags.
• Two pressure sensors located in the front doors.
•
Two crash sensors located on the rocker panel behind the lower C pillar.
Side air curtains and side airbags, in combination with safety belts, can
help reduce the risk of severe injuries in the event of a significant side
impact collision.
Seating and Safety Restraints 205
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

Children 12 years old and under should always be properly restrained in
the rear seats. The side air curtain will not interfere with children
restrained using a properly installed child or booster seat because it is
designed to inflate downward from the headliner above the doors along
the side window openings.
The side air curtains are mounted to the sheet metal above the first and
second row seats. In certain lateral collisions, the air curtain and
seat-mounted side airbag on the side affected by the collision will be inflated,
except that the passenger sensing system will deactivate the passenger
seat-mounted side airbag if it detects an empty unbuckled passenger seat.
The air curtain was designed to inflate between the side window area and
occupant to further enhance the head protection provided to occupants in
side impact collisions. The seat-mounted side airbag was designed to inflate
between the door panel and occupant to further enhance the protection
provided occupants in side impact collisions.
The side air curtain system SRS is designed to activate when the vehicle
sustains lateral deceleration sufficient to cause the sensors to close an
electrical circuit that initiates air curtain and seat-mounted side airbag
inflation.
The fact that the side air curtain and seat-mounted side airbag did not
inflate in a collision does not mean that something is wrong with the
system. Rather, it means the forces were not of the type sufficient to
cause activation. The side air curtain system is designed to inflate in side
impact collisions, not roll-over, rear impact, frontal or near-frontal
collisions, unless the collision causes sufficient lateral deceleration.
WARNING:Several air bag system components get hot after
inflation. Do not touch them after inflation.
WARNING: If the side air curtain has deployed, the air curtain
will not function again. The side air curtain system (including
the A, B and C pillar trim and headliner) must be inspected and
serviced by an authorized dealer. If the air curtain is not replaced, the
unrepaired area will increase the risk of injury in a collision.
206 Seating and Safety Restraints
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Determining if the system is operational
The SRS uses a readiness light in the instrument cluster or a tone to
indicate the condition of the system. Refer toWarning lights and
indicators in theInstrument Cluster chapter. Routine maintenance of
the side airbag is not required.
A difficulty with the system is indicated by one or more of the following:
• The readiness light (same light as for front airbag system) will either
flash or stay lit.
• The readiness light will not illuminate immediately after ignition is
turned on.
• An information message will appear in the message center.
If any of these things happen, even intermittently, have the SRS serviced
at your authorized dealer immediately. Unless serviced, the system may
not function properly in the event of a collision.
SOS Post-Crash Alert System™
The system flashes the turn signal lamps and sounds the horn
(intermittently) in the event of a serious impact that deploys an airbag
(front, side, side curtain or Safety Canopy) or the safety belt
pretensioners.
The horn and lamps will turn off when:
• the hazard control button is pressed, or
• the vehicle runs out of power.
Disposal of airbags and airbag equipped vehicles (including
pretensioners)
Contact your authorized dealer as soon as possible. Airbags MUST BE
disposed of by qualified personnel.
Seating and Safety Restraints 207
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

SAFETY RESTRAINTS FOR CHILDREN
See the following sections for directions on how to properly use safety
restraints for children. Also seeAirbag supplemental restraint system
(SRS) in this chapter for special instructions about using airbags.
Important child restraint precautions
WARNING: Always make sure your child is secured properly in a
device that is appropriate for their height, age and weight. Child
safety restraints must be purchased separately from the vehicle. Failure
to follow these instructions and guidelines may result in an increased
risk of serious injury or death to your child.
WARNING: All children are shaped differently. The
Recommendations for Safety Restraints are based on probable
child height, age and weight thresholds from NHTSA and other safety
organizations or are the minimum requirements of law. Ford
recommends checking with a NHTSA Certified Child Passenger Safety
Technician (CPST) and consult your pediatrician to make sure your
child seat is appropriate for your child, and is compatible with and
properly installed in the vehicle. To locate a child seat fitting station
and CPST contact the NHTSA toll free at 1-888-327-4236 or on the
internet at http://www.nhtsa.dot.gov. In Canada, check with your local
St. John Ambulance office for referral to a CPST or for further
information, contact your provincial ministry of transportation, your
local St. John Ambulance office at http://www.sfa.ca, or Transport
Canada at 1–800–333–0371 (http://www.tc.gc.ca). Failure to properly
restrain children in safety seats made especially for their height, age,
and weight may result in an increased risk of serious injury or death to
your child.
208 Seating and Safety Restraints
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
