2012 FORD FOCUS ELECTRIC fuse box

Fuse/RelayLocation Fuse Amp
Rating Protected Components
F42 — Not used
F43 — Not used
F44 — Not used
F45 — Not used
F46 — Not used
R1 — Rear 15 relay
R2 — Rear window defrost relay
R3 — Rear wiper relay
R4 — Not used
R5 — Not used
R6 — Not used

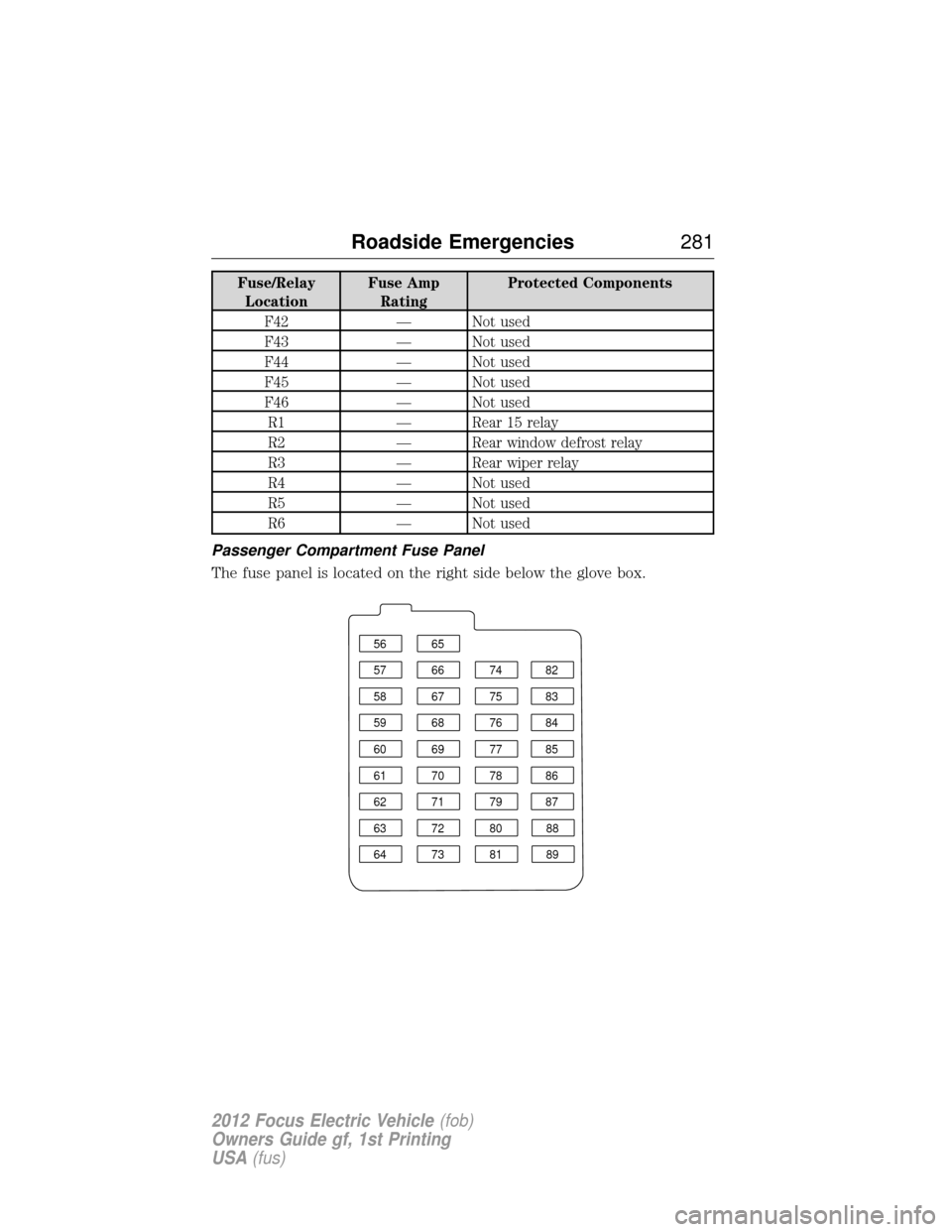

Passenger Compartment Fuse Panel
The fuse panel is located on the right side below the glove box.
56
57
58
59
60
61
62
63
6465
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
88
89
82
83
84
85
86
87
Roadside Emergencies 281
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

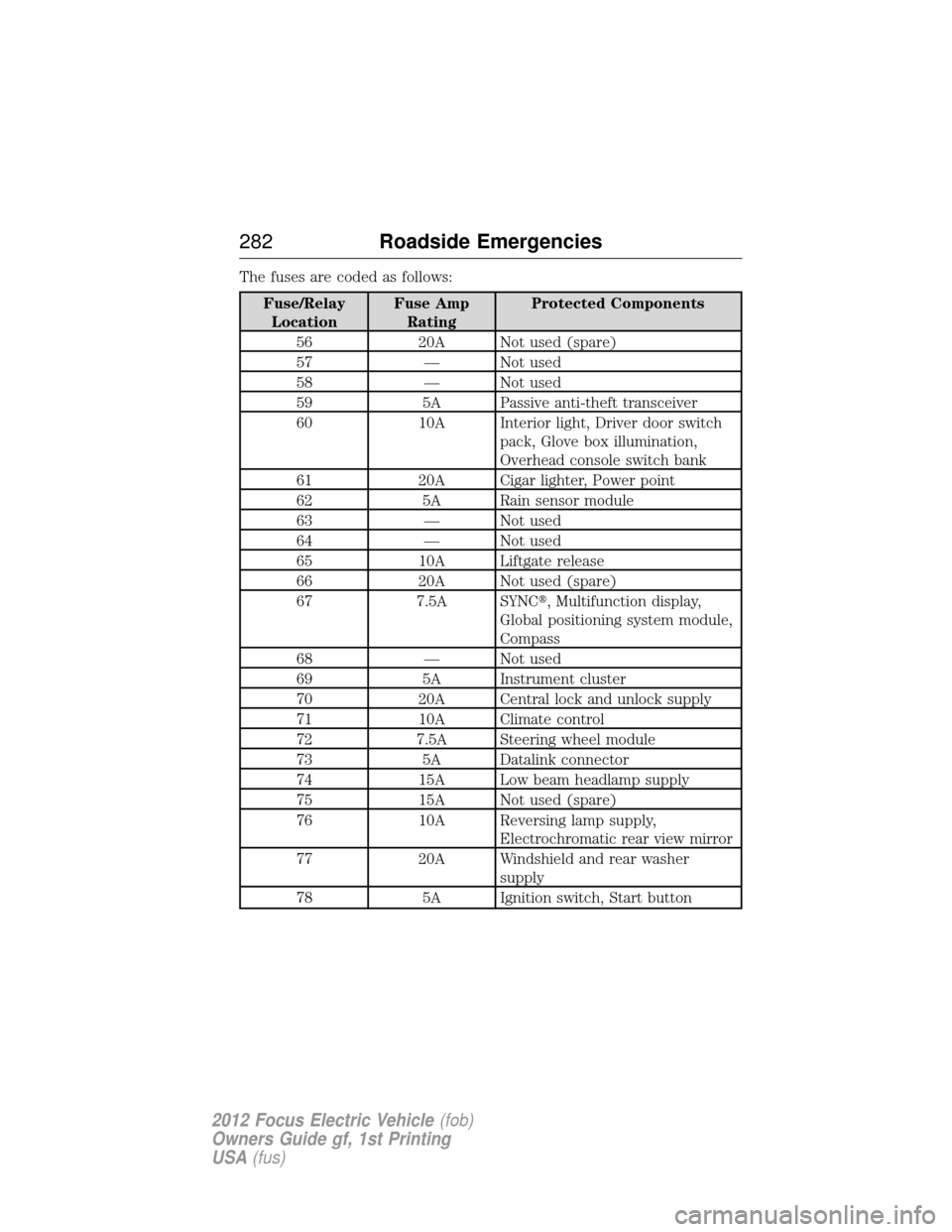

The fuses are coded as follows:
Fuse/RelayLocation Fuse Amp
Rating Protected Components
56 20A Not used (spare)
57 — Not used
58 — Not used
59 5A Passive anti-theft transceiver
60 10A Interior light, Driver door switch
pack, Glove box illumination,
Overhead console switch bank
61 20A Cigar lighter, Power point
62 5A Rain sensor module
63 — Not used
64 — Not used
65 10A Liftgate release
66 20A Not used (spare)
67 7.5A SYNC, Multifunction display,
Global positioning system module,
Compass
68 — Not used
69 5A Instrument cluster
70 20A Central lock and unlock supply
71 10A Climate control
72 7.5A Steering wheel module
73 5A Datalink connector
74 15A Low beam headlamp supply
75 15A Not used (spare)
76 10A Reversing lamp supply,
Electrochromatic rear view mirror
77 20A Windshield and rear washer
supply
78 5A Ignition switch, Start button
282Roadside Emergencies
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

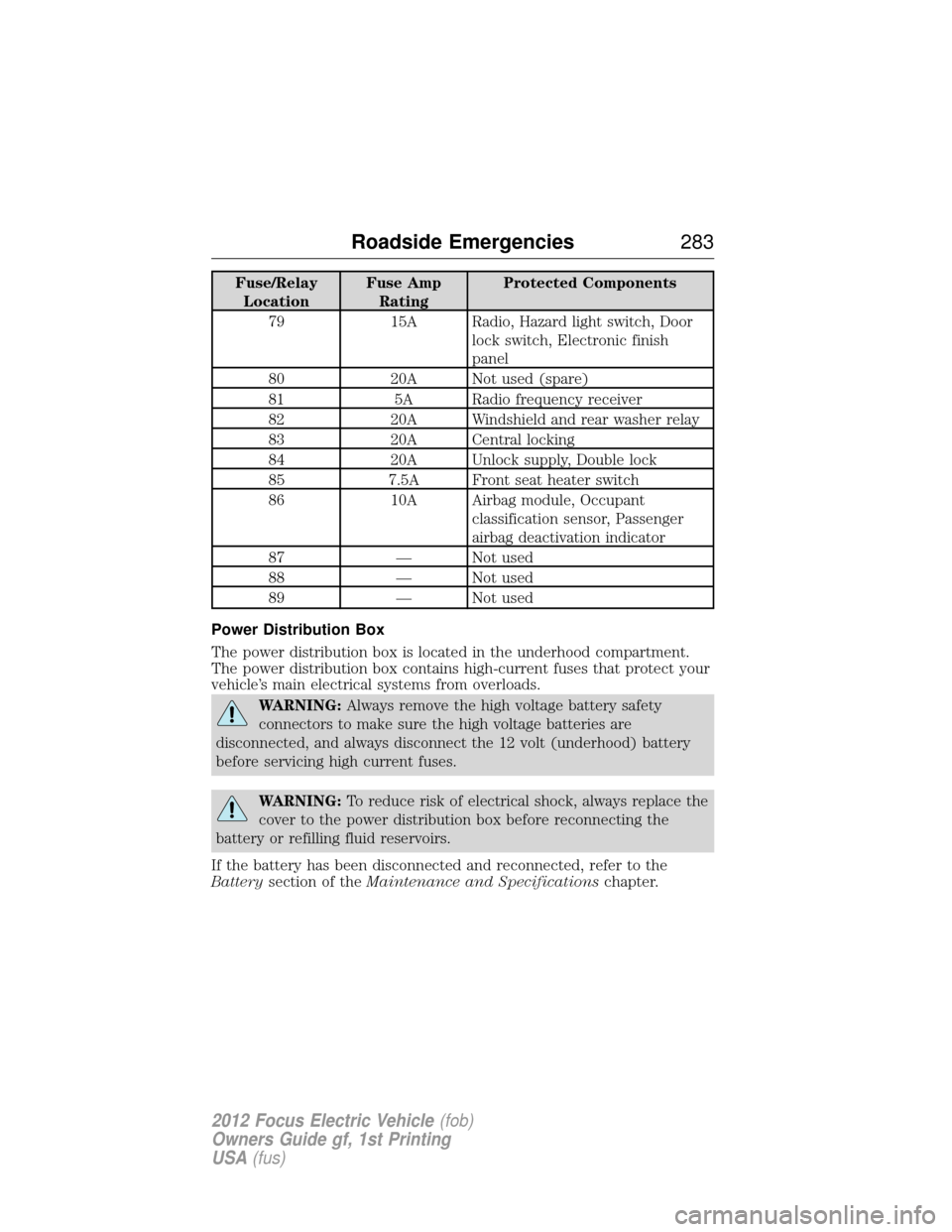

Fuse/RelayLocation Fuse Amp
Rating Protected Components
79 15A Radio, Hazard light switch, Door
lock switch, Electronic finish
panel
80 20A Not used (spare)
81 5A Radio frequency receiver
82 20A Windshield and rear washer relay
83 20A Central locking
84 20A Unlock supply, Double lock
85 7.5A Front seat heater switch
86 10A Airbag module, Occupant
classification sensor, Passenger
airbag deactivation indicator
87 — Not used
88 — Not used
89 — Not used
Power Distribution Box
The power distribution box is located in the underhood compartment.
The power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING: Always remove the high voltage battery safety
connectors to make sure the high voltage batteries are
disconnected, and always disconnect the 12 volt (underhood) battery
before servicing high current fuses.
WARNING: To reduce risk of electrical shock, always replace the
cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and Specifications chapter.
Roadside Emergencies 283
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
