INTRODUCTION
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Note: Some features are not available while the vehicle is moving.
This system uses a four-corner strategy to provide quick access to
vehicle features and settings. The comprehensive touchscreen provides
easy interaction with your cellular phone, multimedia, climate control
and navigation system. The corners display any active modes within
those menus, such as your phone being connected or the climate
temperature. MENU
Press to select any of the following:
• Clock
• Display
• Sound
• Vehicle
• Settings
• Help
INFORMATION
Press to select any of the following:
• SYNC Services
• SIRIUS Travel Link
• Notifications
• Calendar
• SYNC Apps
If the icon is yellow, refer to Notificationsin theInformation section of
this chapter.
48 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

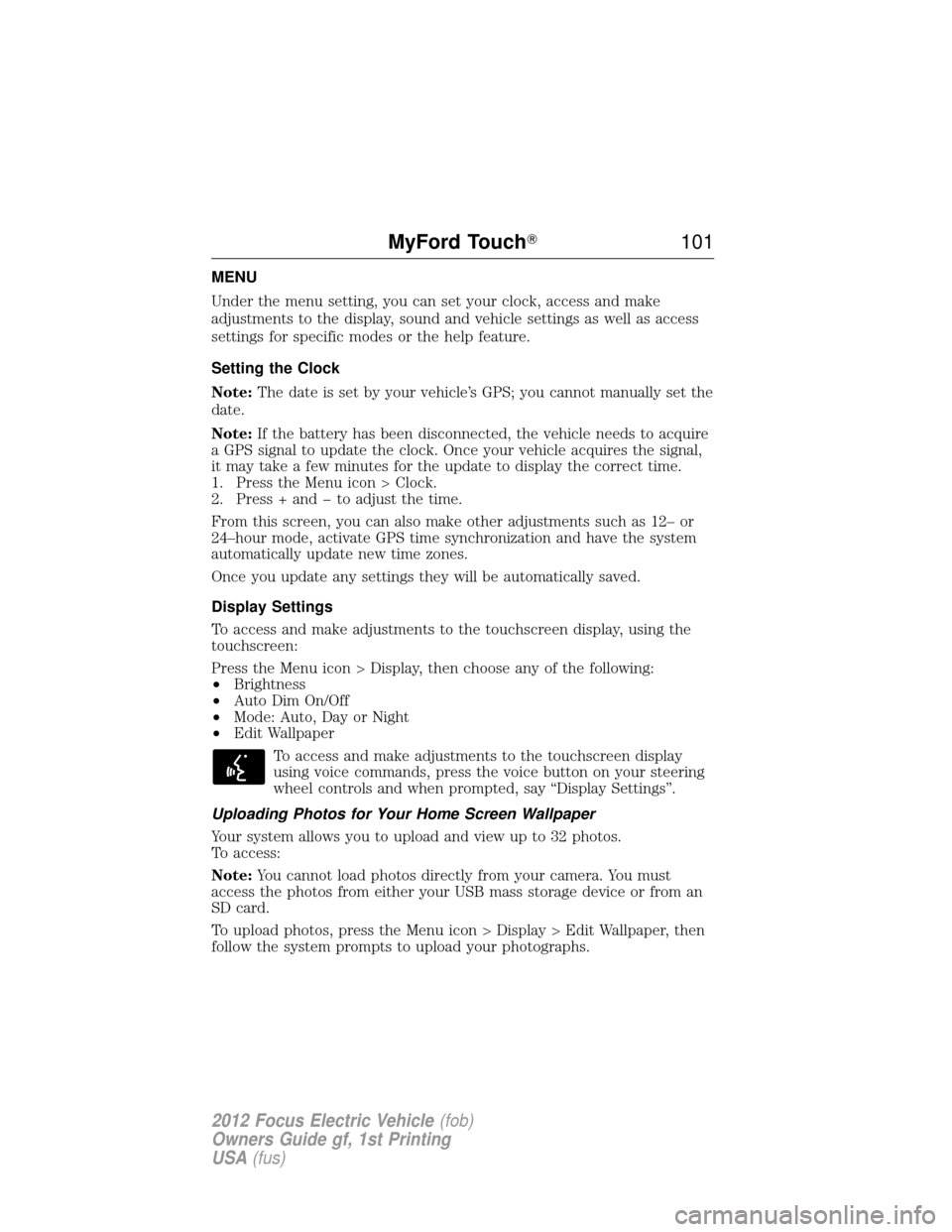

MENU
Under the menu setting, you can set your clock, access and make
adjustments to the display, sound and vehicle settings as well as access
settings for specific modes or the help feature.
Setting the Clock
Note:The date is set by your vehicle’s GPS; you cannot manually set the
date.
Note: If the battery has been disconnected, the vehicle needs to acquire
a GPS signal to update the clock. Once your vehicle acquires the signal,
it may take a few minutes for the update to display the correct time.
1. Press the Menu icon > Clock.
2. Press + and to adjust the time.
From this screen, you can also make other adjustments such as 12– or
24–hour mode, activate GPS time synchronization and have the system
automatically update new time zones.
Once you update any settings they will be automatically saved.
Display Settings
To access and make adjustments to the touchscreen display, using the
touchscreen:
Press the Menu icon > Display, then choose any of the following:
• Brightness
• Auto Dim On/Off
• Mode: Auto, Day or Night
• Edit Wallpaper
To access and make adjustments to the touchscreen display
using voice commands, press the voice button on your steering
wheel controls and when prompted, say “Display Settings”.
Uploading Photos for Your Home Screen Wallpaper
Your system allows you to upload and view up to 32 photos.
To access:
Note: You cannot load photos directly from your camera. You must
access the photos from either your USB mass storage device or from an
SD card.
To upload photos, press the Menu icon > Display > Edit Wallpaper, then
follow the system prompts to upload your photographs.
MyFord Touch 101
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

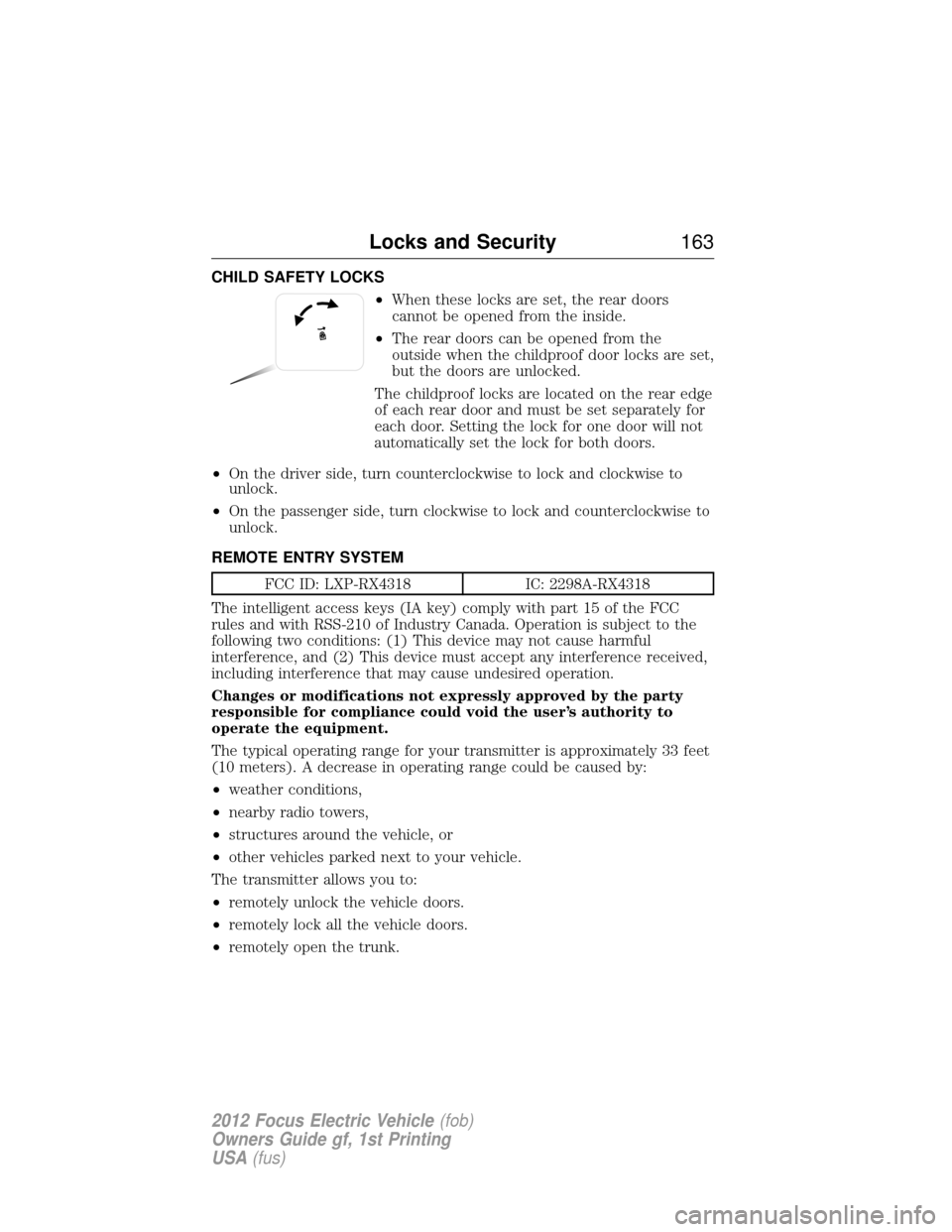

CHILD SAFETY LOCKS•When these locks are set, the rear doors
cannot be opened from the inside.
• The rear doors can be opened from the
outside when the childproof door locks are set,
but the doors are unlocked.
The childproof locks are located on the rear edge
of each rear door and must be set separately for
each door. Setting the lock for one door will not
automatically set the lock for both doors.
• On the driver side, turn counterclockwise to lock and clockwise to
unlock.
• On the passenger side, turn clockwise to lock and counterclockwise to
unlock.
REMOTE ENTRY SYSTEM
FCC ID: LXP-RX4318 IC: 2298A-RX4318
The intelligent access keys (IA key) comply with part 15 of the FCC
rules and with RSS-210 of Industry Canada. Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The typical operating range for your transmitter is approximately 33 feet
(10 meters). A decrease in operating range could be caused by:
• weather conditions,
• nearby radio towers,
• structures around the vehicle, or
• other vehicles parked next to your vehicle.
The transmitter allows you to:
• remotely unlock the vehicle doors.
• remotely lock all the vehicle doors.
• remotely open the trunk.
Locks and Security 163
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

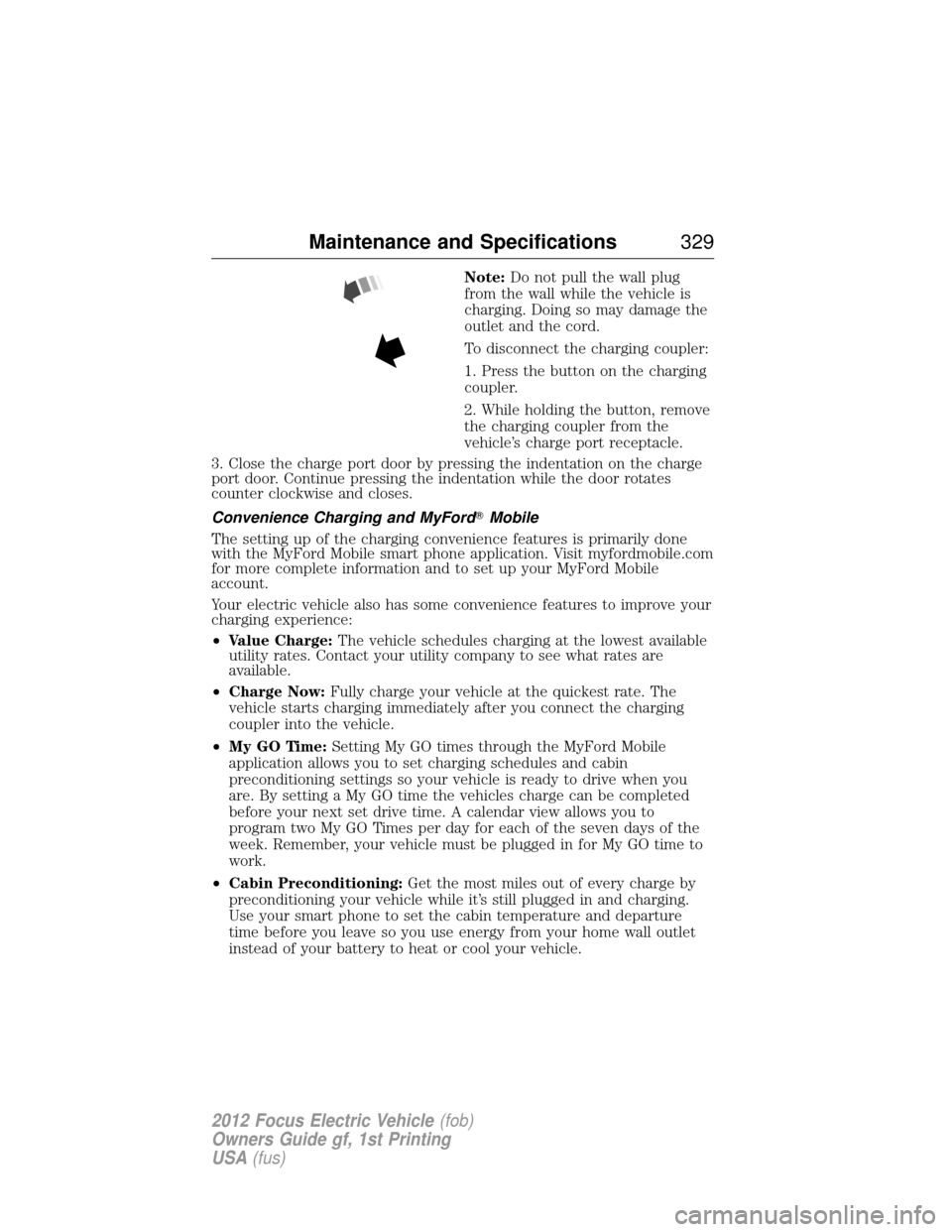

Note:Do not pull the wall plug
from the wall while the vehicle is
charging. Doing so may damage the
outlet and the cord.
To disconnect the charging coupler:
1. Press the button on the charging
coupler.
2. While holding the button, remove
the charging coupler from the
vehicle’s charge port receptacle.
3. Close the charge port door by pressing the indentation on the charge
port door. Continue pressing the indentation while the door rotates
counter clockwise and closes.
Convenience Charging and MyFord Mobile
The setting up of the charging convenience features is primarily done
with the MyFord Mobile smart phone application. Visit myfordmobile.com
for more complete information and to set up your MyFord Mobile
account.
Your electric vehicle also has some convenience features to improve your
charging experience:
• Value Charge: The vehicle schedules charging at the lowest available
utility rates. Contact your utility company to see what rates are
available.
• Charge Now: Fully charge your vehicle at the quickest rate. The
vehicle starts charging immediately after you connect the charging
coupler into the vehicle.
• My GO Time: Setting My GO times through the MyFord Mobile
application allows you to set charging schedules and cabin
preconditioning settings so your vehicle is ready to drive when you
are. By setting a My GO time the vehicles charge can be completed
before your next set drive time. A calendar view allows you to
program two My GO Times per day for each of the seven days of the
week. Remember, your vehicle must be plugged in for My GO time to
work.
• Cabin Preconditioning: Get the most miles out of every charge by
preconditioning your vehicle while it’s still plugged in and charging.
Use your smart phone to set the cabin temperature and departure
time before you leave so you use energy from your home wall outlet
instead of your battery to heat or cool your vehicle.
Maintenance and Specifications 329
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

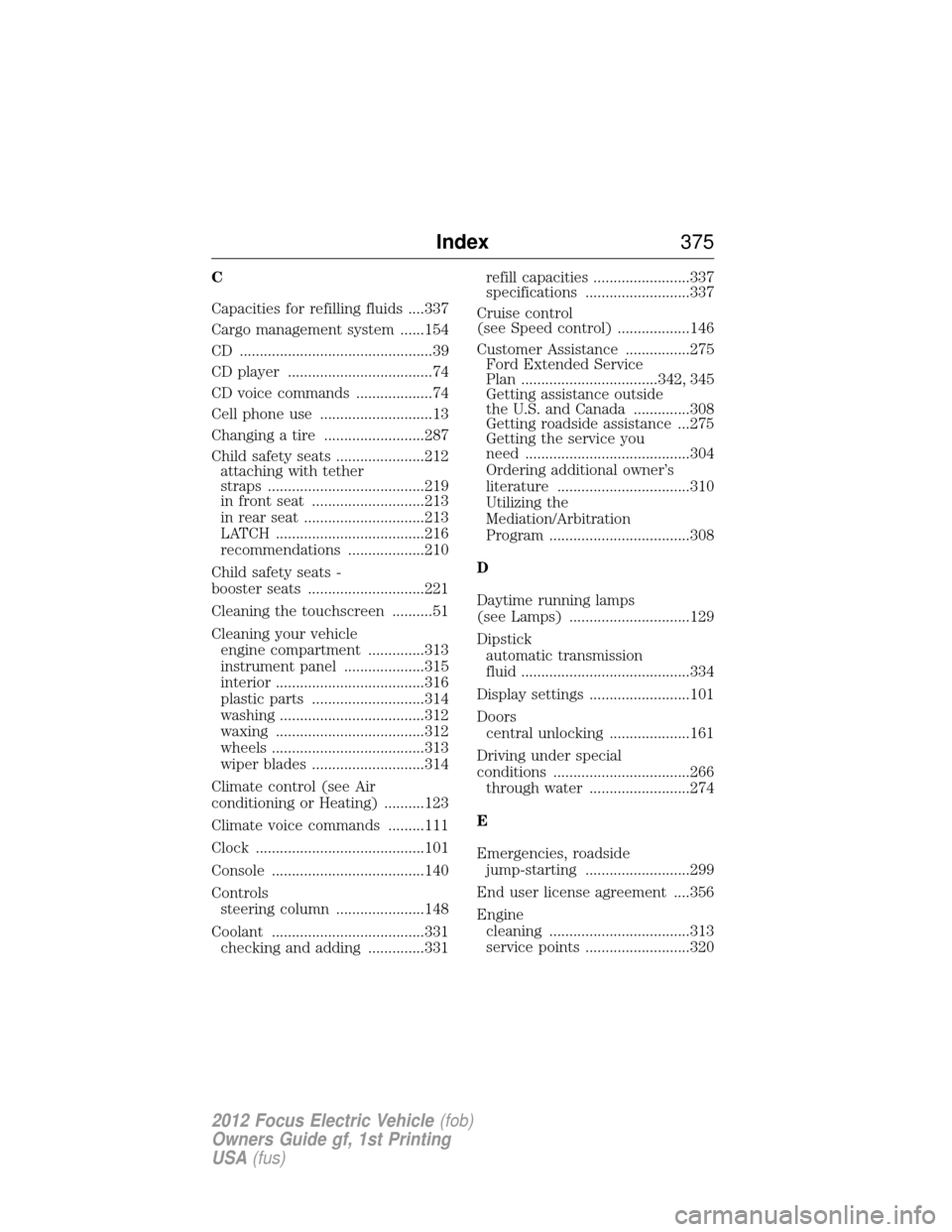

C
Capacities for refilling fluids ....337
Cargo management system ......154
CD ................................................39
CD player ....................................74
CD voice commands ...................74
Cell phone use ............................13
Changing a tire .........................287
Child safety seats ......................212attaching with tether
straps .......................................219
in front seat ............................213
in rear seat ..............................213
LATCH .....................................216
recommendations ...................210
Child safety seats -
booster seats .............................221
Cleaning the touchscreen ..........51
Cleaning your vehicle engine compartment ..............313
instrument panel ....................315
interior .....................................316
plastic parts ............................314
washing ....................................312
waxing .....................................312
wheels ......................................313
wiper blades ............................314
Climate control (see Air
conditioning or Heating) ..........123
Climate voice commands .........111
Clock ..........................................101
Console ......................................140
Controls steering column ......................148
Coolant ......................................331 checking and adding ..............331 refill capacities ........................337
specifications ..........................337
Cruise control
(see Speed control) ..................146
Customer Assistance ................275 Ford Extended Service
Plan ..................................342, 345
Getting assistance outside
the U.S. and Canada ..............308
Getting roadside assistance ...275
Getting the service you
need .........................................304
Ordering additional owner’s
literature .................................310
Utilizing the
Mediation/Arbitration
Program ...................................308
D
Daytime running lamps
(see Lamps) ..............................129
Dipstick automatic transmission
fluid ..........................................334
Display settings .........................101
Doors central unlocking ....................161
Driving under special
conditions ..................................266 through water .........................274
E
Emergencies, roadside jump-starting ..........................299
End user license agreement ....356
Engine cleaning ...................................313
service points ..........................320
Index 375
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

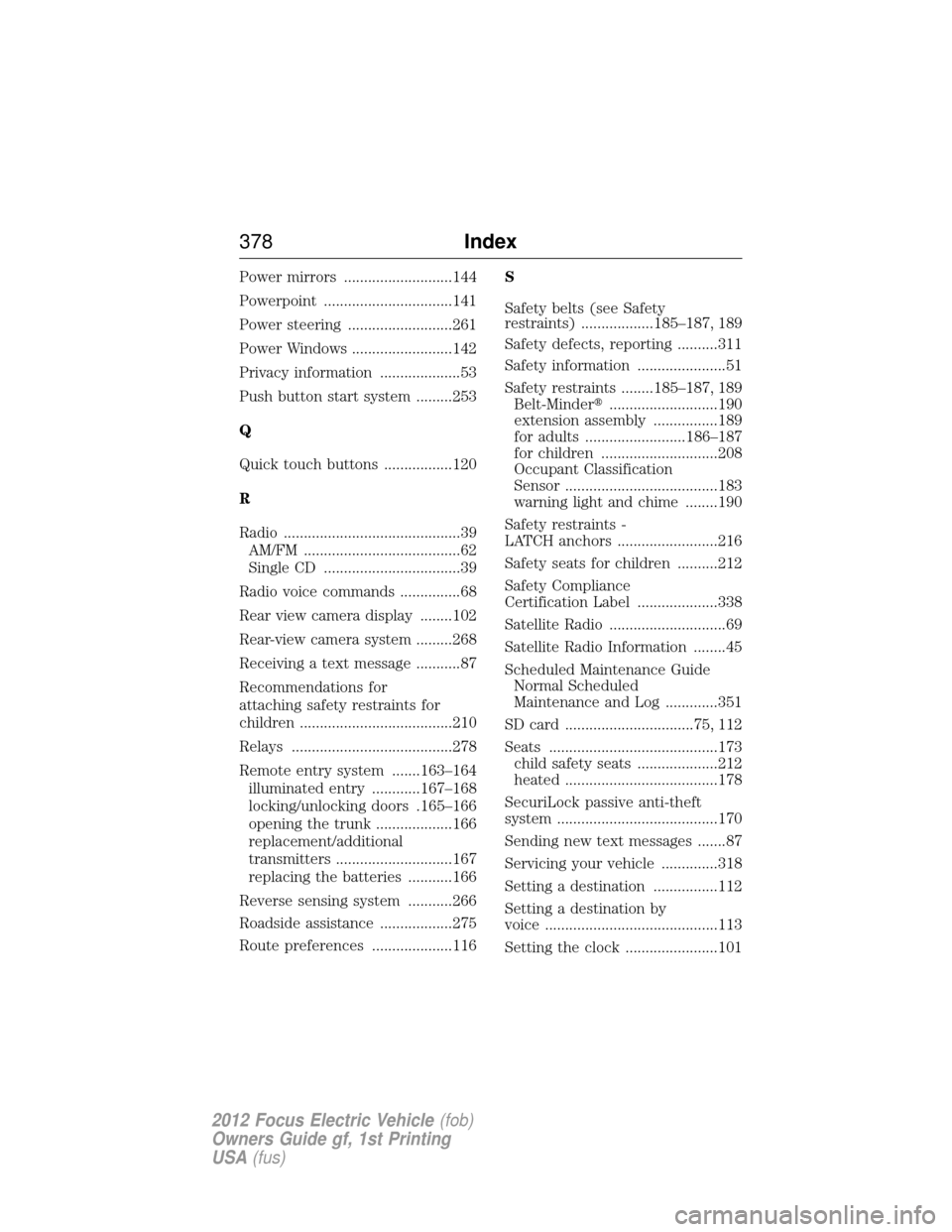

Power mirrors ...........................144
Powerpoint ................................141
Power steering ..........................261
Power Windows .........................142
Privacy information ....................53
Push button start system .........253
Q
Quick touch buttons .................120
R
Radio ............................................39AM/FM .......................................62
Single CD ..................................39
Radio voice commands ...............68
Rear view camera display ........102
Rear-view camera system .........268
Receiving a text message ...........87
Recommendations for
attaching safety restraints for
children ......................................210
Relays ........................................278
Remote entry system .......163–164 illuminated entry ............167–168
locking/unlocking doors .165–166
opening the trunk ...................166
replacement/additional
transmitters .............................167
replacing the batteries ...........166
Reverse sensing system ...........266
Roadside assistance ..................275
Route preferences ....................116 S
Safety belts (see Safety
restraints) ..................185–187, 189
Safety defects, reporting ..........311
Safety information ......................51
Safety restraints ........185–187, 189
Belt-Minder ...........................190
extension assembly ................189
for adults .........................186–187
for children .............................208
Occupant Classification
Sensor ......................................183
warning light and chime ........190
Safety restraints -
LATCH anchors .........................216
Safety seats for children ..........212
Safety Compliance
Certification Label ....................338
Satellite Radio .............................69
Satellite Radio Information ........45
Scheduled Maintenance Guide Normal Scheduled
Maintenance and Log .............351
SD card ................................75, 112
Seats ..........................................173 child safety seats ....................212
heated ......................................178
SecuriLock passive anti-theft
system ........................................170
Sending new text messages .......87
Servicing your vehicle ..............318
Setting a destination ................112
Setting a destination by
voice ...........................................113
Setting the clock .......................101
378 Index
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
