2012 FORD FOCUS ELECTRIC cabin filter

SYMBOL GLOSSARY
WARNING:You risk death or serious injury to yourself and
others if you do not follow the instruction highlighted by the
warning symbol.
These are some of the symbols you may see on your vehicle.
Symbol Description Symbol Description Symbol Description
Safety alertSee Owner’s
ManualAnti-lock
braking
system
Avoid
smoking,
flames, or
sparksBatteryBattery acid
Brake fluid –
non
petroleum
baseBrake systemCabin air
filter
Check fuel
capChild Safety
Door Lock
and UnlockChild seat
lower anchor
Child seat
tether anchorCruise
controlDo not open
when hot
Engine air
filterEngine
coolantEngine
coolant
temperature
Engine oilExplosive gasFan warning
Fasten safety
beltFront airbagFront fog
lamps
14 Introduction
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

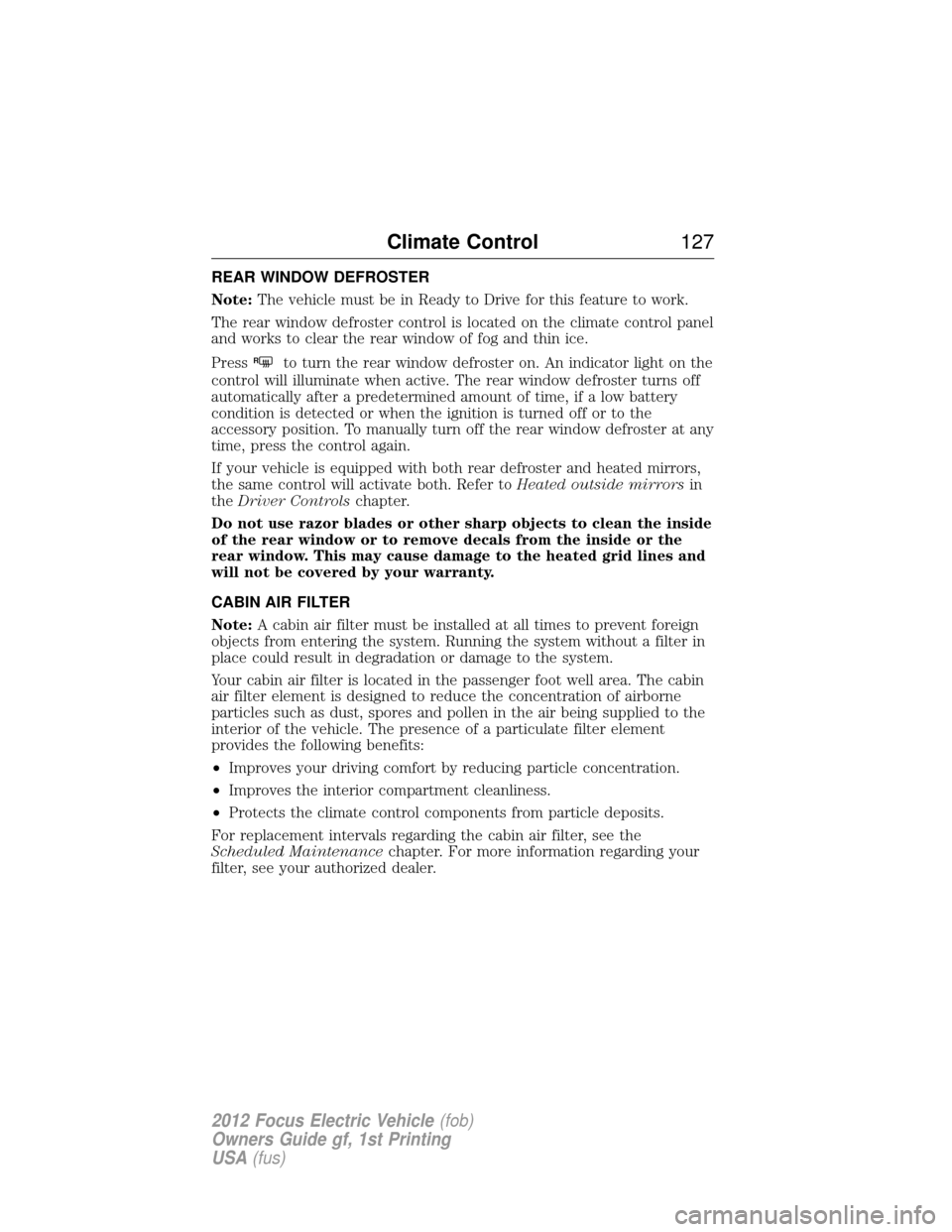

REAR WINDOW DEFROSTER
Note:The vehicle must be in Ready to Drive for this feature to work.
The rear window defroster control is located on the climate control panel
and works to clear the rear window of fog and thin ice.
Press
Rto turn the rear window defroster on. An indicator light on the
control will illuminate when active. The rear window defroster turns off
automatically after a predetermined amount of time, if a low battery
condition is detected or when the ignition is turned off or to the
accessory position. To manually turn off the rear window defroster at any
time, press the control again.
If your vehicle is equipped with both rear defroster and heated mirrors,
the same control will activate both. Refer to Heated outside mirrorsin
the Driver Controls chapter.
Do not use razor blades or other sharp objects to clean the inside
of the rear window or to remove decals from the inside or the
rear window. This may cause damage to the heated grid lines and
will not be covered by your warranty.
CABIN AIR FILTER
Note: A cabin air filter must be installed at all times to prevent foreign
objects from entering the system. Running the system without a filter in
place could result in degradation or damage to the system.
Your cabin air filter is located in the passenger foot well area. The cabin
air filter element is designed to reduce the concentration of airborne
particles such as dust, spores and pollen in the air being supplied to the
interior of the vehicle. The presence of a particulate filter element
provides the following benefits:
• Improves your driving comfort by reducing particle concentration.
• Improves the interior compartment cleanliness.
• Protects the climate control components from particle deposits.
For replacement intervals regarding the cabin air filter, see the
Scheduled Maintenance chapter. For more information regarding your
filter, see your authorized dealer.
Climate Control 127
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

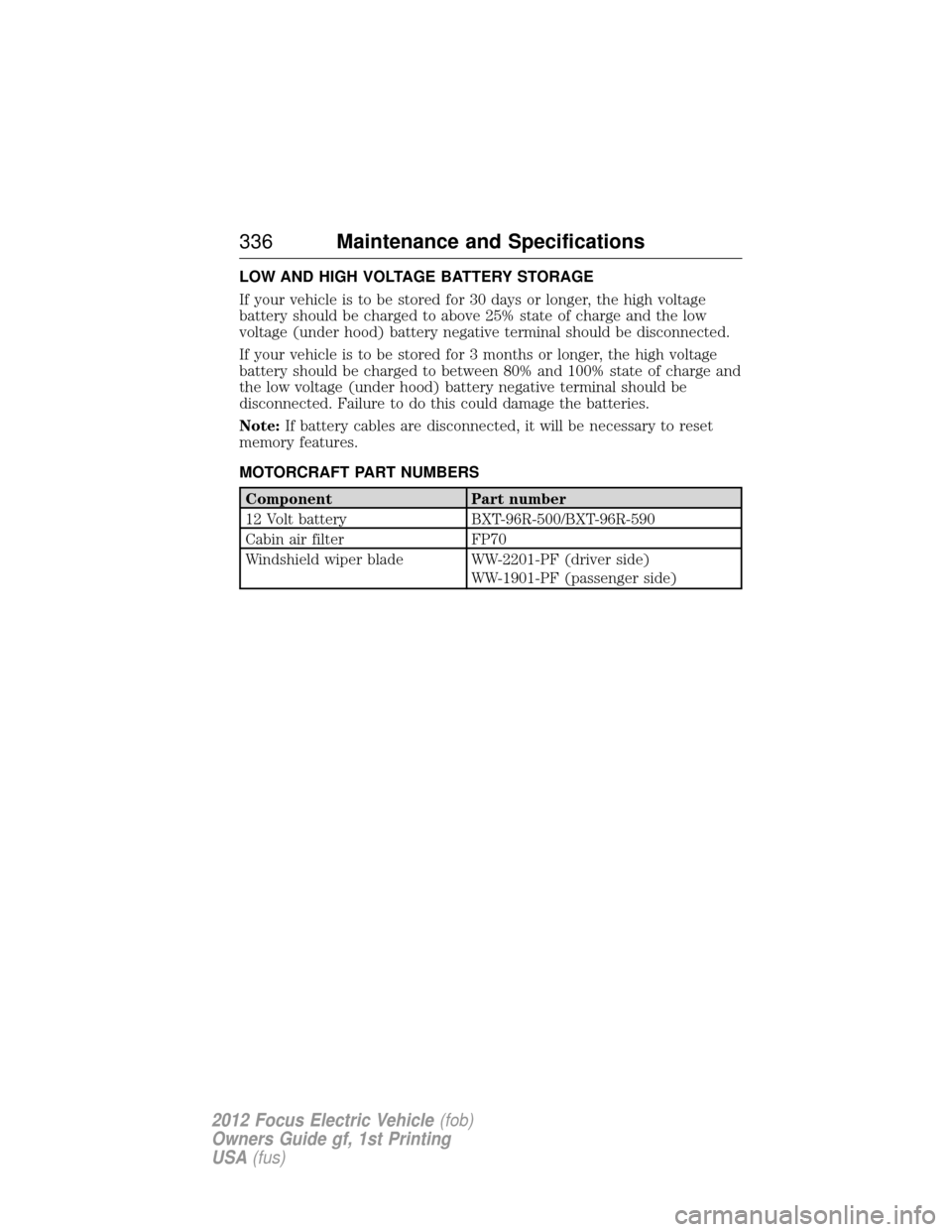

LOW AND HIGH VOLTAGE BATTERY STORAGE
If your vehicle is to be stored for 30 days or longer, the high voltage
battery should be charged to above 25% state of charge and the low
voltage (under hood) battery negative terminal should be disconnected.
If your vehicle is to be stored for 3 months or longer, the high voltage
battery should be charged to between 80% and 100% state of charge and
the low voltage (under hood) battery negative terminal should be
disconnected. Failure to do this could damage the batteries.
Note:If battery cables are disconnected, it will be necessary to reset
memory features.
MOTORCRAFT PART NUMBERS
Component Part number
12 Volt battery BXT-96R-500/BXT-96R-590
Cabin air filter FP70
Windshield wiper blade WW-2201-PF (driver side) WW-1901-PF (passenger side)
336Maintenance and Specifications
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

NORMAL SCHEDULED MAINTENANCE AND LOG
Normal Scheduled Maintenance
At every 1 year or
10,000 miles
(16,000 km) service
interval
1
Rotate tires, inspect tire wear and measure tread
depth
Perform multi-point inspection (recommended)
Inspect brake pads, shoes, rotors, drums, brake
linings, hoses and parking brake
Inspect cabin air filter (if equipped)
Inspect cooling system level, strength and hoses
Inspect half-shaft boots (if equipped)
Inspect steering linkage, ball joints, suspension,
tie-rod ends, driveshaft and U-joints; lubricate if
equipped with grease fittings
Inspect wheels and related components for
abnormal noise, wear, looseness or drag
Every 20,000 miles
(32,000 km) Replace cabin air filter (if equipped)
At 10 years or
150,000 miles
(240,000 km)
2
Change coolant and coolant filter*
1Do not exceed 1 year or 10,000 miles (16,000 km) between
service intervals
2Initial replacement at 10 years or 150,000 miles (240,000 km), then
every 5 years or 50,000 miles (80,000 km). The coolant must be
exchanged as indicated in the Ford Motor Company Workshop
Manual. If not performed properly, damage could occur to the cooling
system components. Only use pre-mixed coolant that meets Ford
Motor Company specifications found in the Maintenance and
Specifications chapter.
Scheduled Maintenance 351
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

911 Assist™ ................................97
A
Accessing and using your
USB port ......................................75
Accessing your calendar ............96
Accessory delay ........................143
Adding (pairing) a phone ..........84
AdvanceTrac ..............................258
Airbag supplemental restraint
system ........................194, 202, 204and child safety seats ............196
description ..............194, 202, 204
disposal ....................................207
driver airbag ............196, 203, 205
indicator light .................201, 207
operation .................196, 203, 205
passenger airbag .....196, 203, 205
side airbag ...............................202
Air conditioning ........................123
Air filter, cabin ..........................336
Ambient mood/lighting .............133
AM/FM .........................................62
Anti-lock brake system
(see Brakes) ..............................256
Anti-theft system ..............170, 172 arming the system ..........171–172
disarming a triggered
system .....................................172
triggering .................................172
Audio system Single CD ..................................39
Audio system (see Radio) .........39
Automatic transaxle fluid, adding ............................334 fluid, checking ........................334
Automatic transmission ............264 fluid, refill capacities ..............337
fluid, specification ..................337
Auxiliary Input Jack ...................72
Auxiliary input jack
(Line in) ......................................40
Auxiliary powerpoint ................141
A/V inputs ....................................81
B
Battery .......................................322 acid, treating emergencies .....322
jumping a disabled battery ....299
maintenance-free ....................322
replacement, specifications ...336
servicing ..................................322
traction battery pack
assembly ..................................324
Belt-Minder .............................190
Blind spot mirror ......................273
Booster seats .............................221
Brakes ................................255–256 anti-lock ...................................256
anti-lock brake system (ABS)
warning light ...........................256
fluid, checking and adding ....334
fluid, refill capacities ..............337
fluid, specifications .................337
lubricant specifications ..........337
parking ....................................257
shift interlock ..........................262
Break-in period .............................6
Bulbs ..........................................134
374 Index
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
