2012 FORD FOCUS ELECTRIC navigation system

Introduction5
Instrument Cluster 16
Warning lamps and indicators .............................16
Gauges .............................................20
Message center .......................................22
Information messages ...................................29
Entertainment Systems 39
AM/FM stereo with single CD .............................39
Auxiliary input jack (Line in) .............................40
USB port ............................................42
Satellite radio information ................................45
MyFord Touch 48
Infotainment display ....................................54
Voice recognition ......................................56
Listening to music .....................................61
Phone features ........................................83
Information Menu ......................................90
Menu features .......................................101
Settings ........................................... .103
Climate features ......................................109
Navigation system .....................................112
Climate Control 123
Rear window defroster .................................127
Lighting 128
Headlamps ......................................... .128
Autolamps ......................................... .128
Daytime running lamps .................................129
Panel dimmer control ..................................130
Turn signal control ....................................132
Interior lamps ........................................132
Bulb replacement .....................................134
Table of Contents 1
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

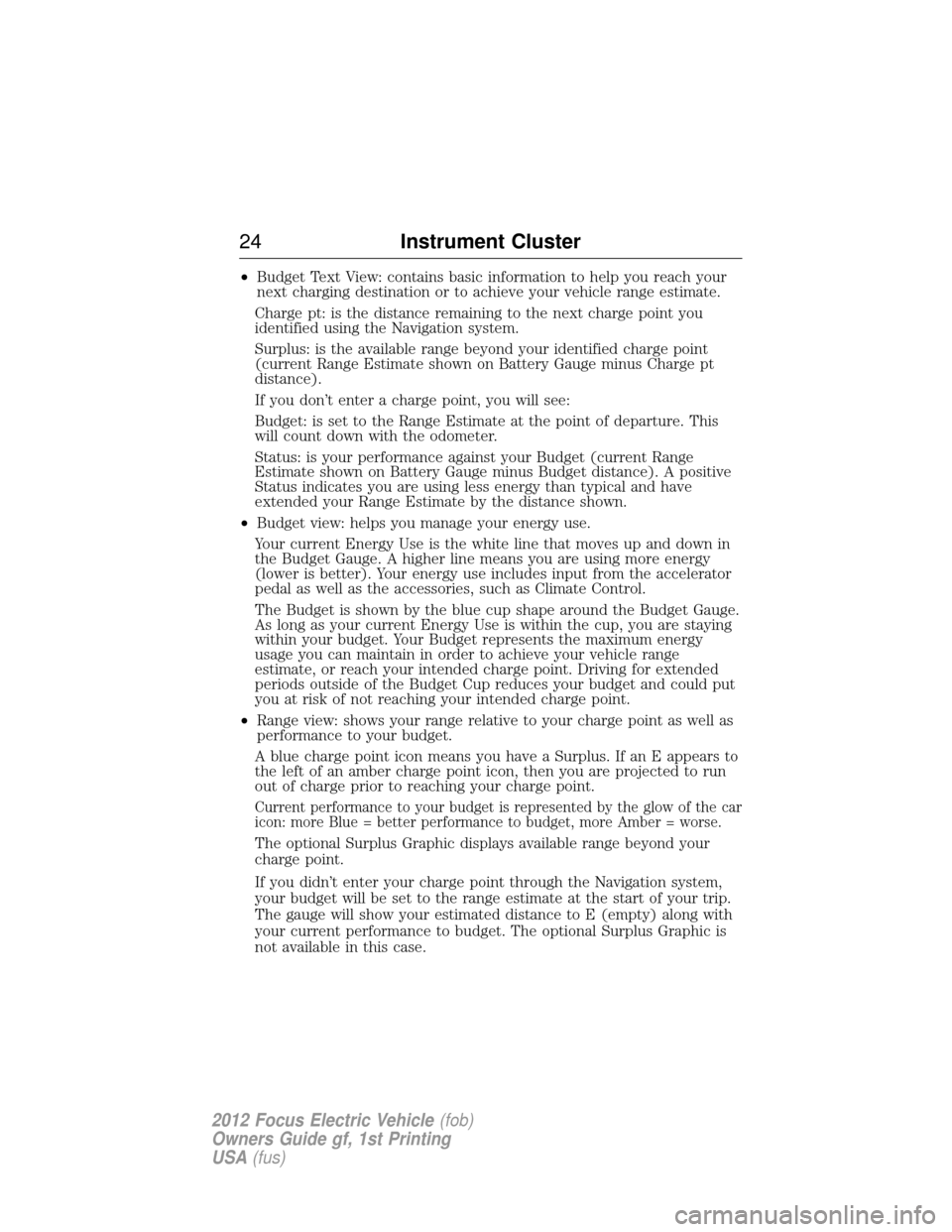

•Budget Text View: contains basic information to help you reach your
next charging destination or to achieve your vehicle range estimate.
Charge pt: is the distance remaining to the next charge point you
identified using the Navigation system.
Surplus: is the available range beyond your identified charge point
(current Range Estimate shown on Battery Gauge minus Charge pt
distance).
If you don’t enter a charge point, you will see:
Budget: is set to the Range Estimate at the point of departure. This
will count down with the odometer.
Status: is your performance against your Budget (current Range
Estimate shown on Battery Gauge minus Budget distance). A positive
Status indicates you are using less energy than typical and have
extended your Range Estimate by the distance shown.
• Budget view: helps you manage your energy use.
Your current Energy Use is the white line that moves up and down in
the Budget Gauge. A higher line means you are using more energy
(lower is better). Your energy use includes input from the accelerator
pedal as well as the accessories, such as Climate Control.
The Budget is shown by the blue cup shape around the Budget Gauge.
As long as your current Energy Use is within the cup, you are staying
within your budget. Your Budget represents the maximum energy
usage you can maintain in order to achieve your vehicle range
estimate, or reach your intended charge point. Driving for extended
periods outside of the Budget Cup reduces your budget and could put
you at risk of not reaching your intended charge point.
• Range view: shows your range relative to your charge point as well as
performance to your budget.
A blue charge point icon means you have a Surplus. If an E appears to
the left of an amber charge point icon, then you are projected to run
out of charge prior to reaching your charge point.
Current performance to your budget is represented by the glow of the car
icon: more Blue = better performance to budget, more Amber = worse.
The optional Surplus Graphic displays available range beyond your
charge point.
If you didn’t enter your charge point through the Navigation system,
your budget will be set to the range estimate at the start of your trip.
The gauge will show your estimated distance to E (empty) along with
your current performance to budget. The optional Surplus Graphic is
not available in this case.
24 Instrument Cluster
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

•MyView: You can choose what to display in this view. Selecting Change
MyView in the options menu allows you to scroll through two columns
of content choices. The content you select is saved to the current
driver’s key as MyView.
Note: Trip data cannot be reset in MyView. See Tri p1&2information
below.
Trip 1 & 2 Use the arrow buttons to choose between the following.
Trip 1 & 2 Standard Enhanced Budget text
Trip distance xxx
Elapsed trip time x xx
XXX Wh/mi (km)
– Energy used
per unit of
distance x
XX.X kWh
–Energy used x
Budget Text x
Total Odometer. x xx
Press and hold OK to reset the currently displayed trip information.
• Trip distance — shows the accumulated trip distance.
• Elapsed trip time — timer stops when the vehicle is turned off and
restarts when the vehicle is restarted.
• XXX Wh/mi (km) — shows the average Energy (watt-hours) used per
unit of distance for a given trip
• XX.X kWh — shows the total Energy (kilowatt-hours) used for a given
trip.
• Budget Text — Shows the distance to your next charge point and the
surplus distance available, or your budget and status if you didn’t
identify a charge point through the navigation system.
• Total Odometer — Displays the total distance the vehicle has traveled.
This value can not be reset.
Instrument Cluster 25
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

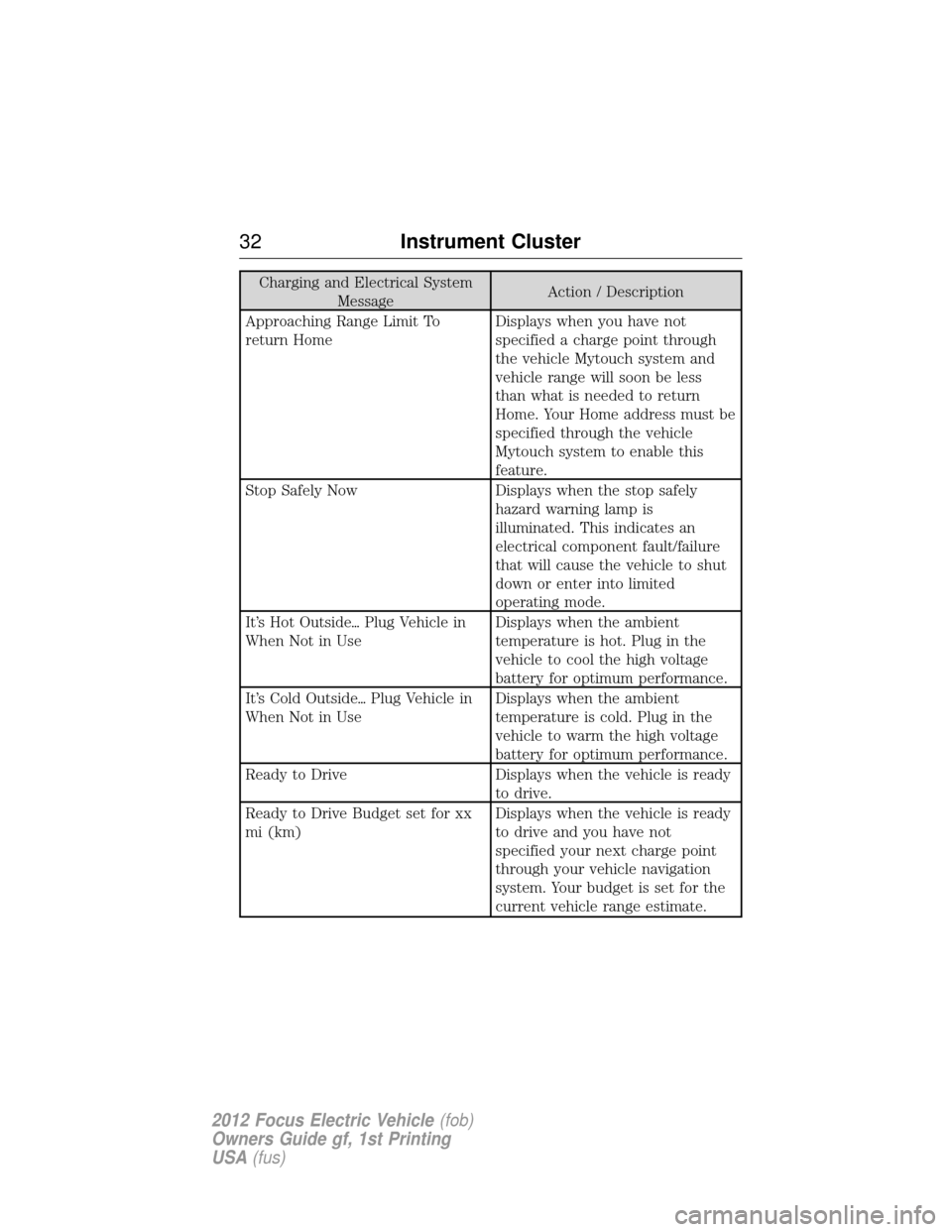

Charging and Electrical SystemMessage Action / Description
Approaching Range Limit To
return Home Displays when you have not
specified a charge point through
the vehicle Mytouch system and
vehicle range will soon be less
than what is needed to return
Home. Your Home address must be
specified through the vehicle
Mytouch system to enable this
feature.
Stop Safely Now Displays when the stop safely hazard warning lamp is
illuminated. This indicates an
electrical component fault/failure
that will cause the vehicle to shut
down or enter into limited
operating mode.
It’s Hot Outside Plug Vehicle in
When Not in Use Displays when the ambient
temperature is hot. Plug in the
vehicle to cool the high voltage
battery for optimum performance.
It’s Cold Outside Plug Vehicle in
When Not in Use Displays when the ambient
temperature is cold. Plug in the
vehicle to warm the high voltage
battery for optimum performance.
Ready to Drive Displays when the vehicle is ready to drive.
Ready to Drive Budget set for xx
mi (km) Displays when the vehicle is ready
to drive and you have not
specified your next charge point
through your vehicle navigation
system. Your budget is set for the
current vehicle range estimate.
32
Instrument Cluster
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Charging and Electrical SystemMessage Action / Description
Budget Set for xx mi (km) Displays when your budget is reset because you have reached your
charge point destination, or you no
longer have a charge point
destination identified through your
vehicle navigation system. Your
budget is set for the current
vehicle range estimate.
Doors MessageAction / Description
X Door Ajar Displays when the door listed is
not completely closed.
Liftgate Ajar Displays when the luggage
compartment is not completely
closed.
Hill Start Assist Message Action / Description
Hill start assist not available Displays when hill start assist is not available. Contact your
authorized dealer.
Keyless Vehicle / ImmobilizerMessage Action / Description
Starting System Fault This message is displayed when there is a problem with your
vehicle’s starting system. See your
authorized dealer for service.
Steering malfunction Service now Contact your authorized dealer.
Steering malfunction Stop safely Stop the vehicle in a safe place. Contact your authorized dealer.
Key Inside Vehicle Displays to remind you that the key is in the luggage compartment.
Refer toPush button start system
in the Driving chapter for more
information.
Instrument Cluster 33
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

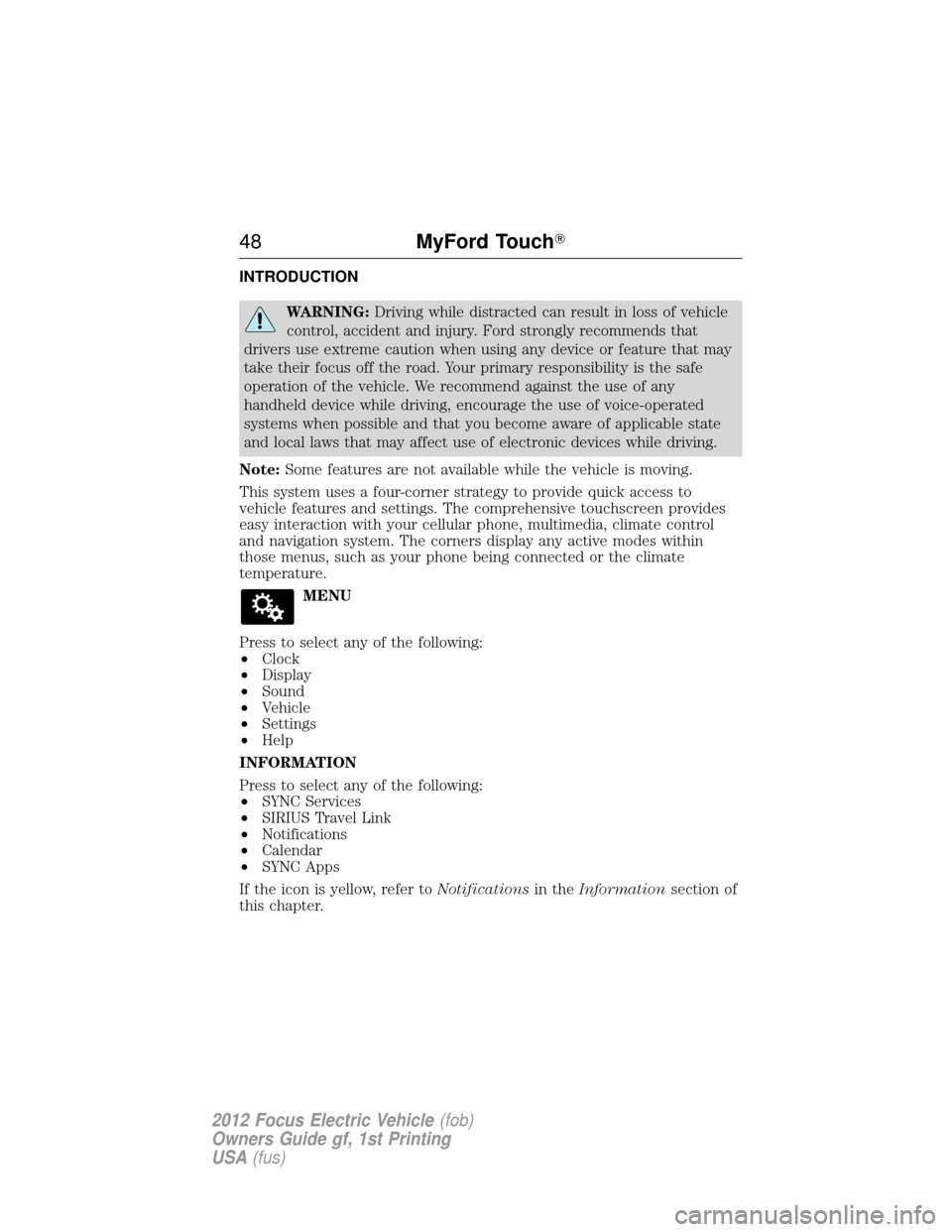

INTRODUCTION
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Note: Some features are not available while the vehicle is moving.
This system uses a four-corner strategy to provide quick access to
vehicle features and settings. The comprehensive touchscreen provides
easy interaction with your cellular phone, multimedia, climate control
and navigation system. The corners display any active modes within
those menus, such as your phone being connected or the climate
temperature. MENU
Press to select any of the following:
• Clock
• Display
• Sound
• Vehicle
• Settings
• Help
INFORMATION
Press to select any of the following:
• SYNC Services
• SIRIUS Travel Link
• Notifications
• Calendar
• SYNC Apps
If the icon is yellow, refer to Notificationsin theInformation section of
this chapter.
48 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

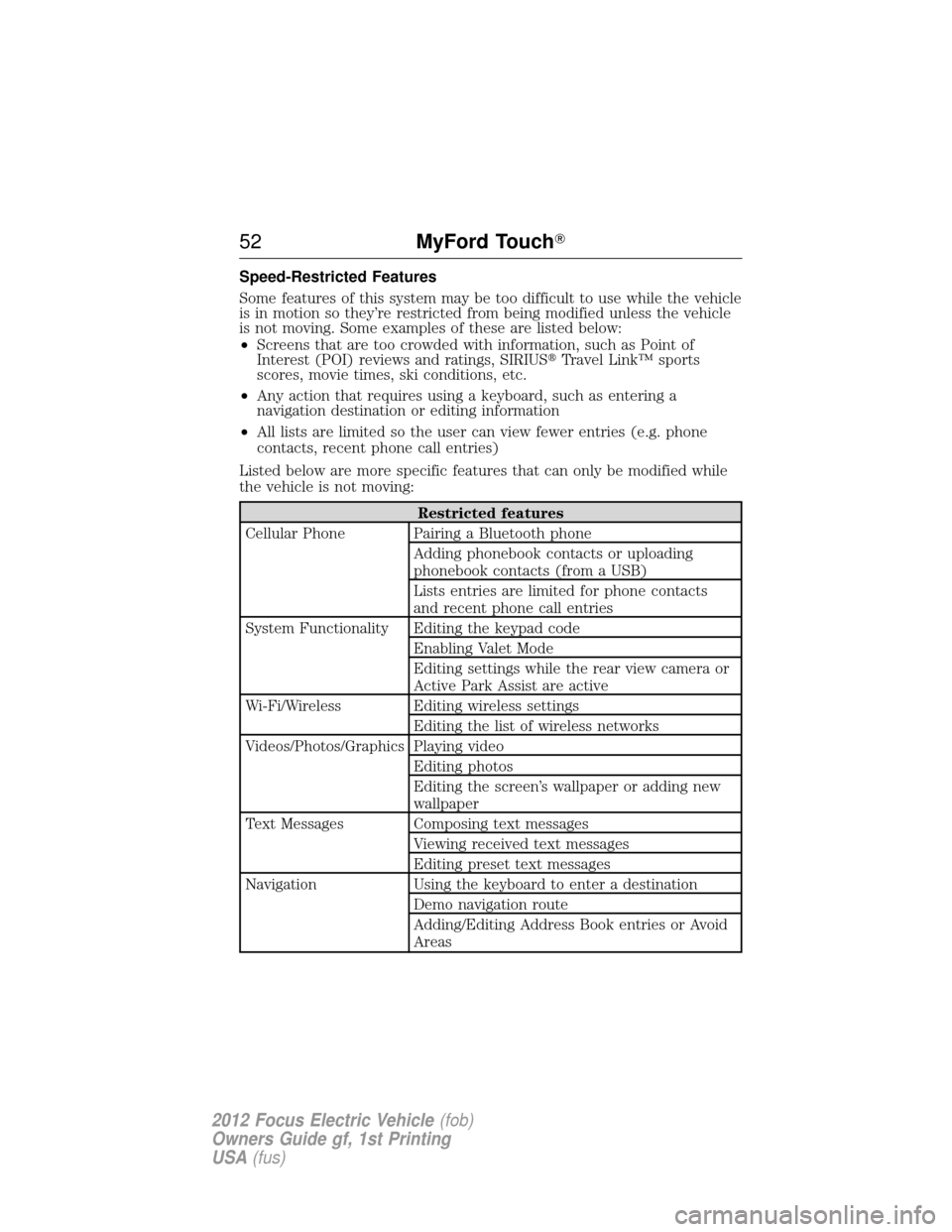

Speed-Restricted Features
Some features of this system may be too difficult to use while the vehicle
is in motion so they’re restricted from being modified unless the vehicle
is not moving. Some examples of these are listed below:
•Screens that are too crowded with information, such as Point of
Interest (POI) reviews and ratings, SIRIUS Travel Link™ sports
scores, movie times, ski conditions, etc.
• Any action that requires using a keyboard, such as entering a
navigation destination or editing information
• All lists are limited so the user can view fewer entries (e.g. phone
contacts, recent phone call entries)
Listed below are more specific features that can only be modified while
the vehicle is not moving:
Restricted features
Cellular Phone Pairing a Bluetooth phone Adding phonebook contacts or uploading
phonebook contacts (from a USB)
Lists entries are limited for phone contacts
and recent phone call entries
System Functionality Editing the keypad code Enabling Valet Mode
Editing settings while the rear view camera or
Active Park Assist are active
Wi-Fi/Wireless Editing wireless settings Editing the list of wireless networks
Videos/Photos/Graphics Playing video Editing photos
Editing the screen’s wallpaper or adding new
wallpaper
Text Messages Composing text messages Viewing received text messages
Editing preset text messages
Navigation Using the keyboard to enter a destination
Demo navigation route
Adding/Editing Address Book entries or Avoid
Areas
52MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

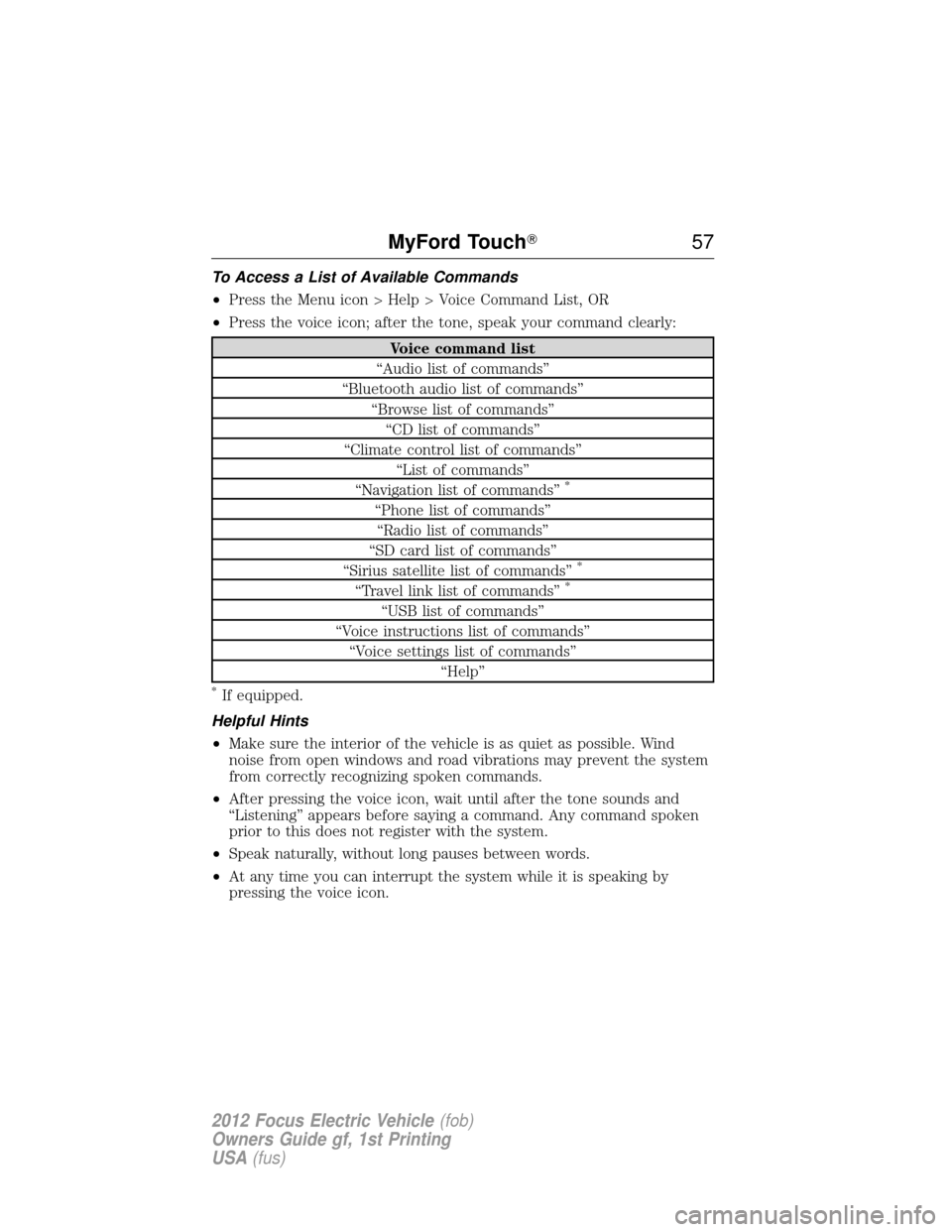

To Access a List of Available Commands
•Press the Menu icon > Help > Voice Command List, OR
• Press the voice icon; after the tone, speak your command clearly:
Voice command list
“Audio list of commands”
“Bluetooth audio list of commands” “Browse list of commands”“CD list of commands”
“Climate control list of commands” “List of commands”
“Navigation list of commands”
*
“Phone list of commands” “Radio list of commands”
“SD card list of commands”
“Sirius satellite list of commands”
*
“Travel link list of commands”*
“USB list of commands”
“Voice instructions list of commands” “Voice settings list of commands” “Help”
*If equipped.
Helpful Hints
• Make sure the interior of the vehicle is as quiet as possible. Wind
noise from open windows and road vibrations may prevent the system
from correctly recognizing spoken commands.
• After pressing the voice icon, wait until after the tone sounds and
“Listening” appears before saying a command. Any command spoken
prior to this does not register with the system.
• Speak naturally, without long pauses between words.
• At any time you can interrupt the system while it is speaking by
pressing the voice icon.
MyFord Touch 57
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)
