2012 FORD FOCUS ELECTRIC window

Introduction5
Instrument Cluster 16
Warning lamps and indicators .............................16
Gauges .............................................20
Message center .......................................22
Information messages ...................................29
Entertainment Systems 39
AM/FM stereo with single CD .............................39
Auxiliary input jack (Line in) .............................40
USB port ............................................42
Satellite radio information ................................45
MyFord Touch 48
Infotainment display ....................................54
Voice recognition ......................................56
Listening to music .....................................61
Phone features ........................................83
Information Menu ......................................90
Menu features .......................................101
Settings ........................................... .103
Climate features ......................................109
Navigation system .....................................112
Climate Control 123
Rear window defroster .................................127
Lighting 128
Headlamps ......................................... .128
Autolamps ......................................... .128
Daytime running lamps .................................129
Panel dimmer control ..................................130
Turn signal control ....................................132
Interior lamps ........................................132
Bulb replacement .....................................134
Table of Contents 1
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

Driver Controls138
Windshield wiper/washer control ..........................138
Steering wheel adjustment ..............................140
Sun visors ......................................... .140
Power windows ......................................142
Interior mirrors ......................................144
Mirrors ............................................ .144
Speed control ........................................146
HomeLink wireless control system ........................149
Trunk release ........................................154
Locks and Security 155
Settings, MyKey ......................................156
Creating ........................................... .156
Clearing ........................................... .157
System status ........................................157
Remote start, MyKey ..................................158
Troubleshooting, MyKey ................................159
Anti-theft system .....................................170
Seating and Safety Restraints 173
Seating ........................................... .173
Manual seats ........................................175
Power seats ........................................ .177
Rear seats ......................................... .180
Personal Safety System™ ...............................181
Safety belt system ....................................185
Airbags ........................................... .194
Knee airbag ........................................ .202
Child restraints .......................................208
2 Table of Contents
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Cleaning312
Waxing ............................................ .312
Repairing minor paint damage ............................313
Cleaning the windows and wiper blades .....................314
Maintenance and Specifications 318
Battery ........................................... .322
High-voltage battery ...................................324
Charging the high-voltage battery .........................325
Motor/Electronics Coolant ...............................331
Part numbers ........................................336
Maintenance product specifications and capacities .............337
Vehicle identification number ............................339
Accessories 340
Accessories ........................................ .340
Ford Extended Service Plan 342
Scheduled Maintenance 346 Normal scheduled maintenance and log .....................351
Appendices 356
Index 374
The information contained in this publication was correct at the time of going to
print. In the interest of continuous development, we reserve the right to change
specifications, design or equipment at any time without notice or obligation. No
part of this publication may be reproduced, transmitted, stored in a retrieval
system or translated into any language in any form by any means without our
written permission. Errors and omissions excepted. © Ford Motor Company 2012
4Table of Contents
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Symbol Description Symbol Description Symbol Description
Fuel pump
resetFuse
compartmentHazard
warning
flasher
Heated rear
windowInterior
luggage
compartment
releaseJack
Lighting
controlLow tire
pressure
warningMaintain
correct fluid
level
Panic alarmParking aid
systemParking
brake system
Power
steering fluidPower
windows
front and
rearPower
window
lockout
Service
engine soonSide airbagStability
control
Windshield
defrost and
demistWindshield
washer and
wiper
Introduction15
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

To Access a List of Available Commands
•Press the Menu icon > Help > Voice Command List, OR
• Press the voice icon; after the tone, speak your command clearly:
Voice command list
“Audio list of commands”
“Bluetooth audio list of commands” “Browse list of commands”“CD list of commands”
“Climate control list of commands” “List of commands”
“Navigation list of commands”
*
“Phone list of commands” “Radio list of commands”
“SD card list of commands”
“Sirius satellite list of commands”
*
“Travel link list of commands”*
“USB list of commands”
“Voice instructions list of commands” “Voice settings list of commands” “Help”
*If equipped.
Helpful Hints
• Make sure the interior of the vehicle is as quiet as possible. Wind
noise from open windows and road vibrations may prevent the system
from correctly recognizing spoken commands.
• After pressing the voice icon, wait until after the tone sounds and
“Listening” appears before saying a command. Any command spoken
prior to this does not register with the system.
• Speak naturally, without long pauses between words.
• At any time you can interrupt the system while it is speaking by
pressing the voice icon.
MyFord Touch 57
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

Setting 911 Assist OnPress the information button > Apps > 911 Assist, then select
ON.
You can also access 911 Assist by:
• Pressing the Menu icon > Settings > Phone > 911 Assist, or
• Pressing the Menu icon > Help > 911 Assist.
To Ensure that 911 Assist Works Properly
• SYNC must be powered and working properly at the time of the
incident and throughout feature activation and use.
• SYNC 911 Assist feature must be set on prior to the incident.
• A Bluetooth-enabled and compatible phone has to be paired and
connected to SYNC.
• A connected Bluetooth-enabled phone must have the ability to make
and maintain an outgoing call at the time of the incident.
• A connected Bluetooth-enabled phone must have adequate network
coverage, battery power and signal strength.
• The vehicle must have battery power and be located in the U.S.,
Canada or in a territory in which 911 is the emergency number.
In the Event of a Crash
Not all crashes deploy an airbag or activate the fuel pump shut-off
(which would activate 911 Assist); however, if 911 Assist is triggered,
SYNC tries to contact emergency services. If a connected phone is
damaged or loses connection to SYNC, SYNC searches for, and tries to
connect to, any available previously paired phone and tries to make the
call to 911.
Before making the call:
• SYNC provides a short window of time (about 10 seconds) to cancel
the call. Failure to cancel the call results in SYNC attempting to dial
911.
• SYNC says the following, or a similar message: “SYNC will attempt to
call 911, to cancel the call, press Cancel on your screen or press and
hold the phone button on your steering wheel.”
If the call is not cancelled and a successful call is made, a prerecorded
message is played for the 911 operator, then the occupant(s) in the
vehicle is able to talk with the operator. Be prepared to provide your
name, phone number and location immediately, because not all 911
systems are capable of receiving this information electronically.
98 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

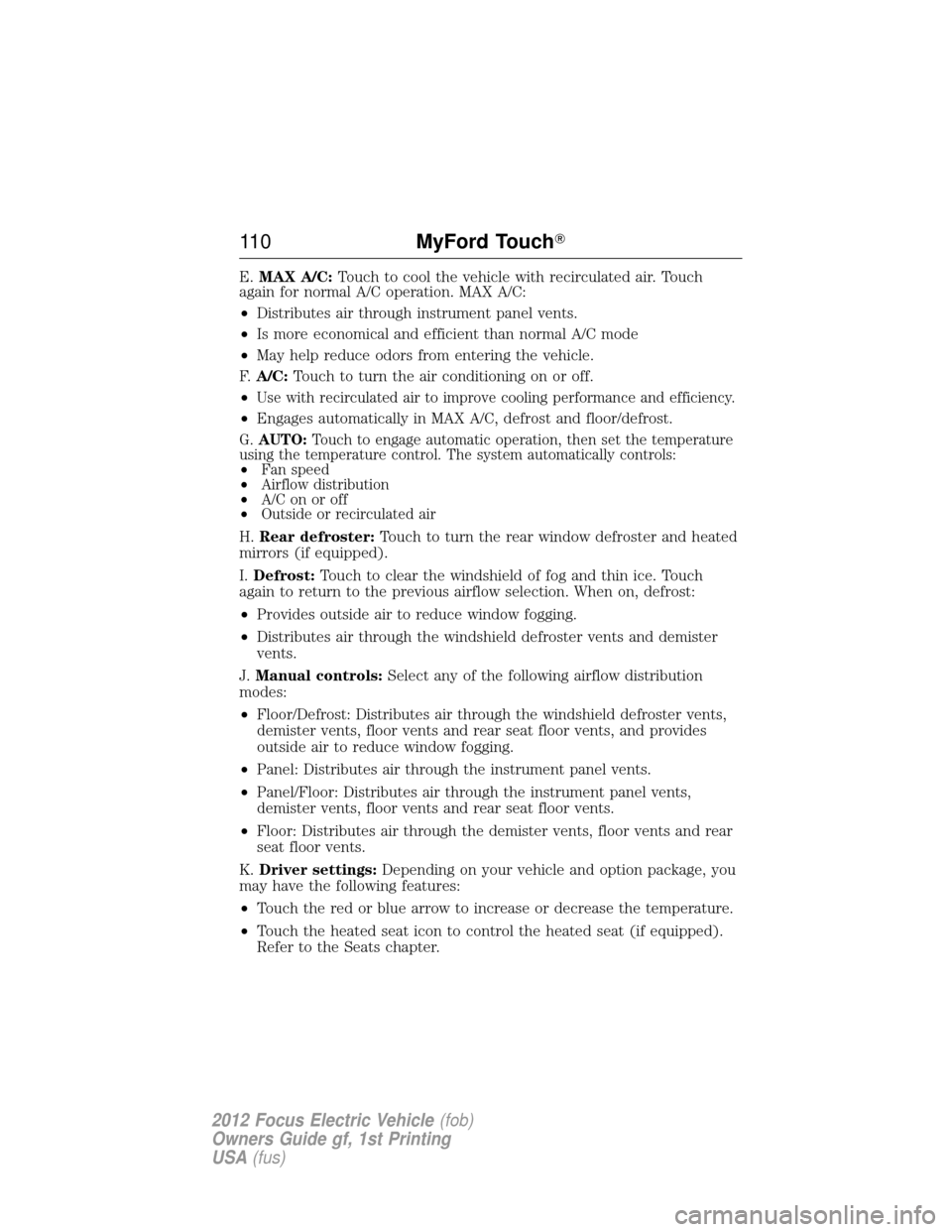

E.MAX A/C: Touch to cool the vehicle with recirculated air. Touch
again for normal A/C operation. MAX A/C:
• Distributes air through instrument panel vents.
• Is more economical and efficient than normal A/C mode
• May help reduce odors from entering the vehicle.
F. A/C: Touch to turn the air conditioning on or off.
•
Use with recirculated air to improve cooling performance and efficiency.
• Engages automatically in MAX A/C, defrost and floor/defrost.
G. AUTO: Touch to engage automatic operation, then set the temperature
using the temperature control. The system automatically controls:
• Fan speed
• Airflow distribution
• A/C on or off
• Outside or recirculated air
H.Rear defroster: Touch to turn the rear window defroster and heated
mirrors (if equipped).
I. Defrost: Touch to clear the windshield of fog and thin ice. Touch
again to return to the previous airflow selection. When on, defrost:
• Provides outside air to reduce window fogging.
• Distributes air through the windshield defroster vents and demister
vents.
J. Manual controls: Select any of the following airflow distribution
modes:
• Floor/Defrost: Distributes air through the windshield defroster vents,
demister vents, floor vents and rear seat floor vents, and provides
outside air to reduce window fogging.
• Panel: Distributes air through the instrument panel vents.
• Panel/Floor: Distributes air through the instrument panel vents,
demister vents, floor vents and rear seat floor vents.
• Floor: Distributes air through the demister vents, floor vents and rear
seat floor vents.
K. Driver settings: Depending on your vehicle and option package, you
may have the following features:
• Touch the red or blue arrow to increase or decrease the temperature.
• Touch the heated seat icon to control the heated seat (if equipped).
Refer to the Seats chapter.
11 0 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

Map IconsVehicle mark shows current location of the vehicle. It stays in
the center of the map display, except when in scroll mode.
Scroll cursor allows you to scroll the map; the icon is fixed in
the center of the screen. The map position closest to the cursor
is in a window on the top center part of the screen.
Address book entry default icon(s) indicate the location on
the map of an address book entry. This is the default symbol
shown after the entry has been stored to the Address Book by
any method other than the map. A different icon can be selected
from the 22 icons available; each icon can be used more than once.
Homeindicates the location on the map currently stored as the
home position. Only one entry from the Address Book can be
saved as Home. This icon cannot be changed.
POI (Point Of Interest) icons can be displayed on the map
and can be turned on or off. There are about 56 subcategories of
POIs that can be selected to be displayed on the map one at a
time.
Starting point indicates the starting point of a planned route.
Waypoints indicates the location of a waypoint on the map. The
number inside the circle is different for each waypoint and
represents the position of the waypoint in the route list.
Destination symbol indicates the ending point of a planned
route.
Next maneuver point indicates the location of the next turn on
the planned route.
No GPS symbol indicates that insufficient GPS satellite signals
are available for accurate map positioning. This icon may be
intermittently displayed under normal operation in an area with
poor GPS access.
MyFord Touch 11 9
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)
